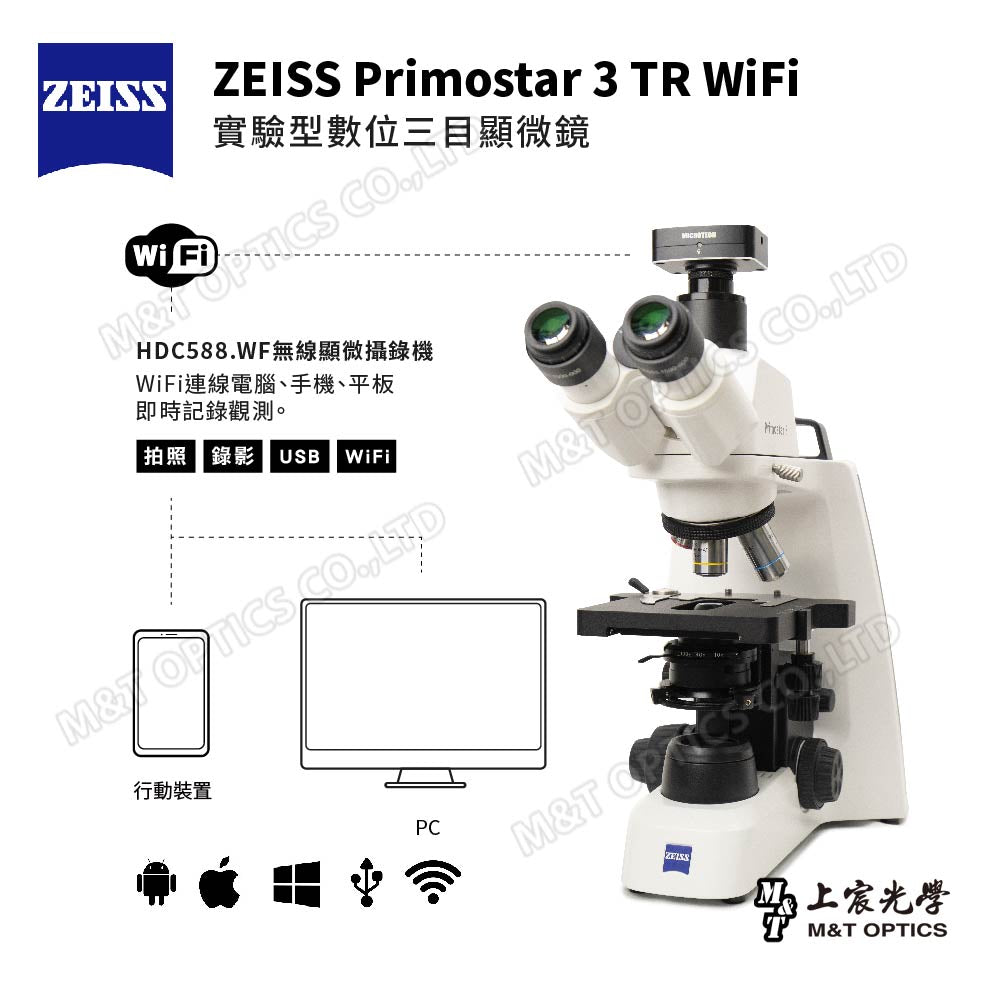

Equipped with WiFi wireless microscopic camera

"HDC588.WF wireless camcorder" has a large photosensitive element, high resolution, easy connection method, sturdy structure and lightweight size. It is equipped with the ZEISS Primostar 3 TR microscope third eye image receiver, which can connect computers and mobile phones through USB or WiFi to transfer images. , watch and record images under the microscope in real time, and can also take photos and videos, measure and calculate microscopic images to meet your professional needs.

Larger sensor

In order to provide a larger field of view and resolution for microscopic images, HDC588.WF uses a more expensive 1/1.8" CMOS sensor. The 8 million pixels provide more realistic and smooth real-time dynamic images. You can take clear photos or record videos at any time. It can give full play to the high-magnification efficiency of the microscope.

Extremely high compatibility creates advantages

It can use USB interface and WiFi wireless transmission function, and is compatible with Mac, Windows, Android, ios and other mainstream computer and mobile device operating systems on the market.

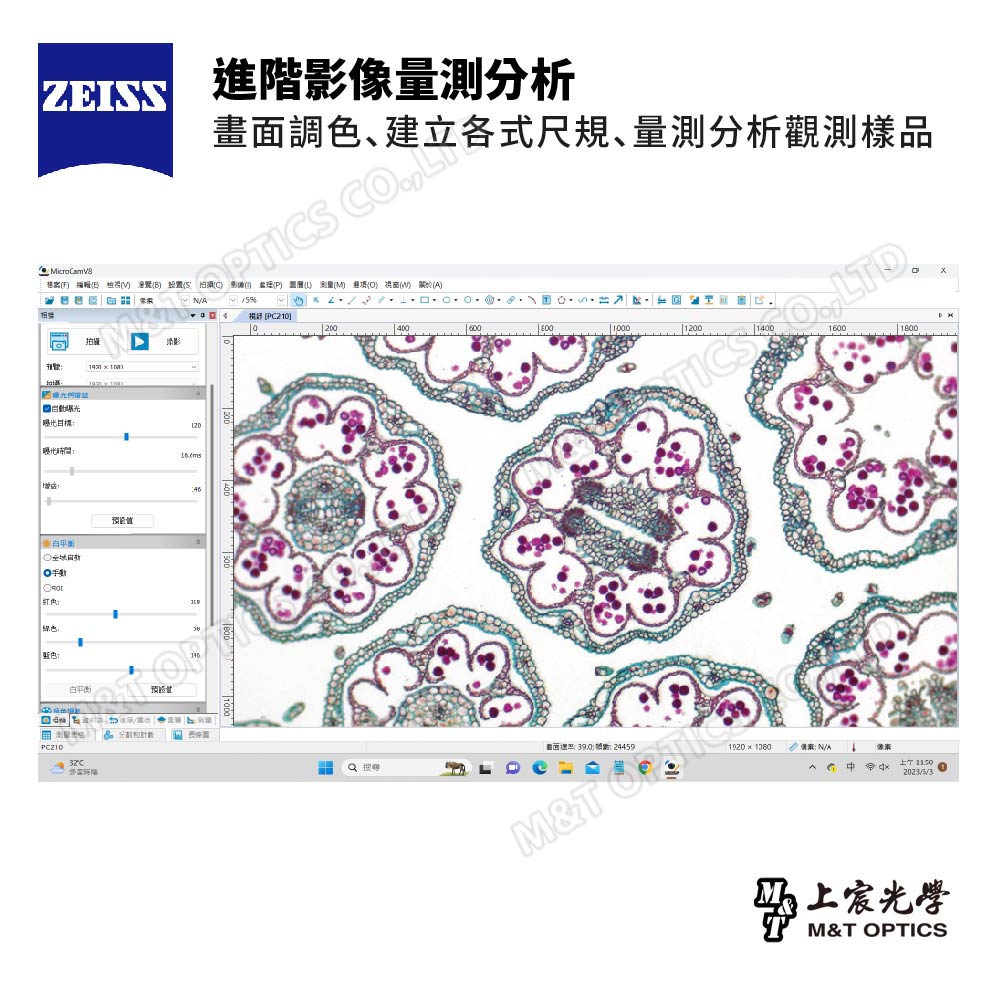

Complete camera control interface and image processing functions

The computer software contains a complete operating interface, which can control the exposure of the microscope camera and provide advanced control of field correction and sharpness adjustment. Measurement reports (Excel spreadsheets, Word files) can also be exported.

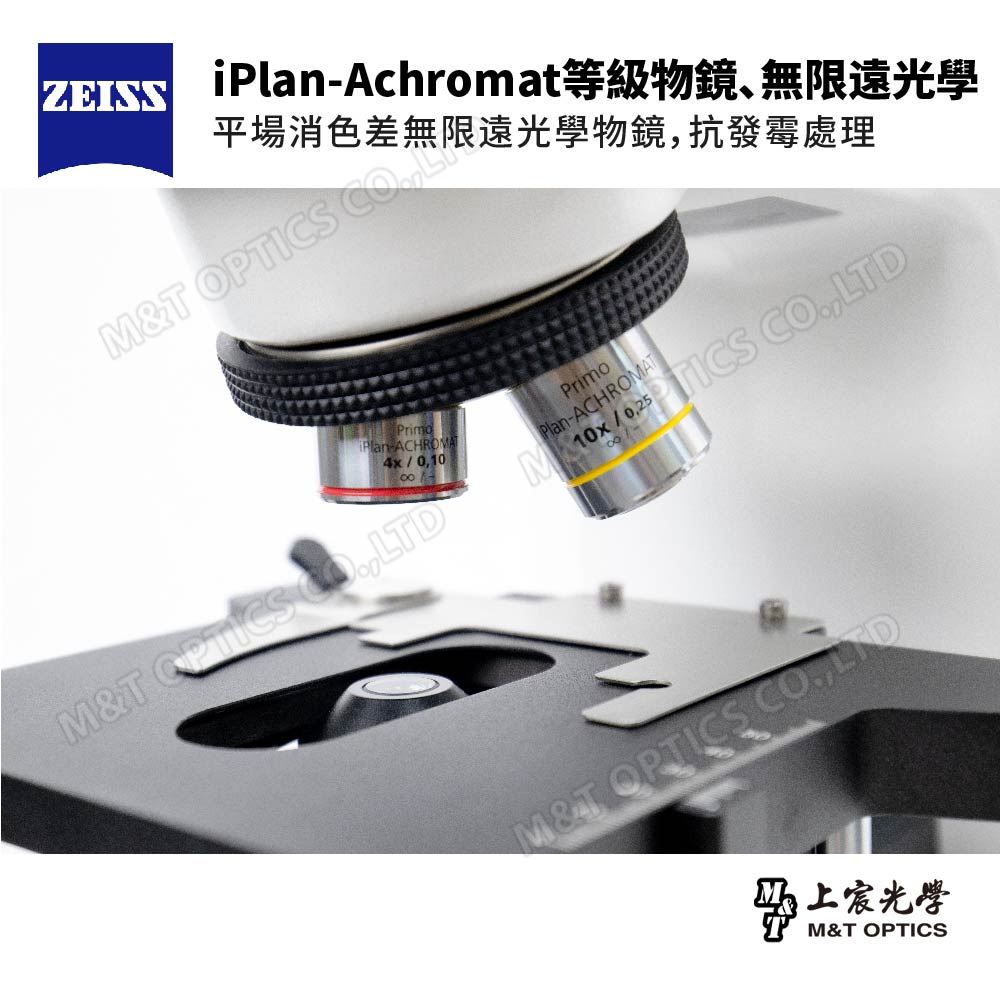

iPlan-Achromat grade objective lens, infinity optics

The standard version is equipped with iPlan-Achromat grade objective lenses, all of which have been treated with mildew resistance.

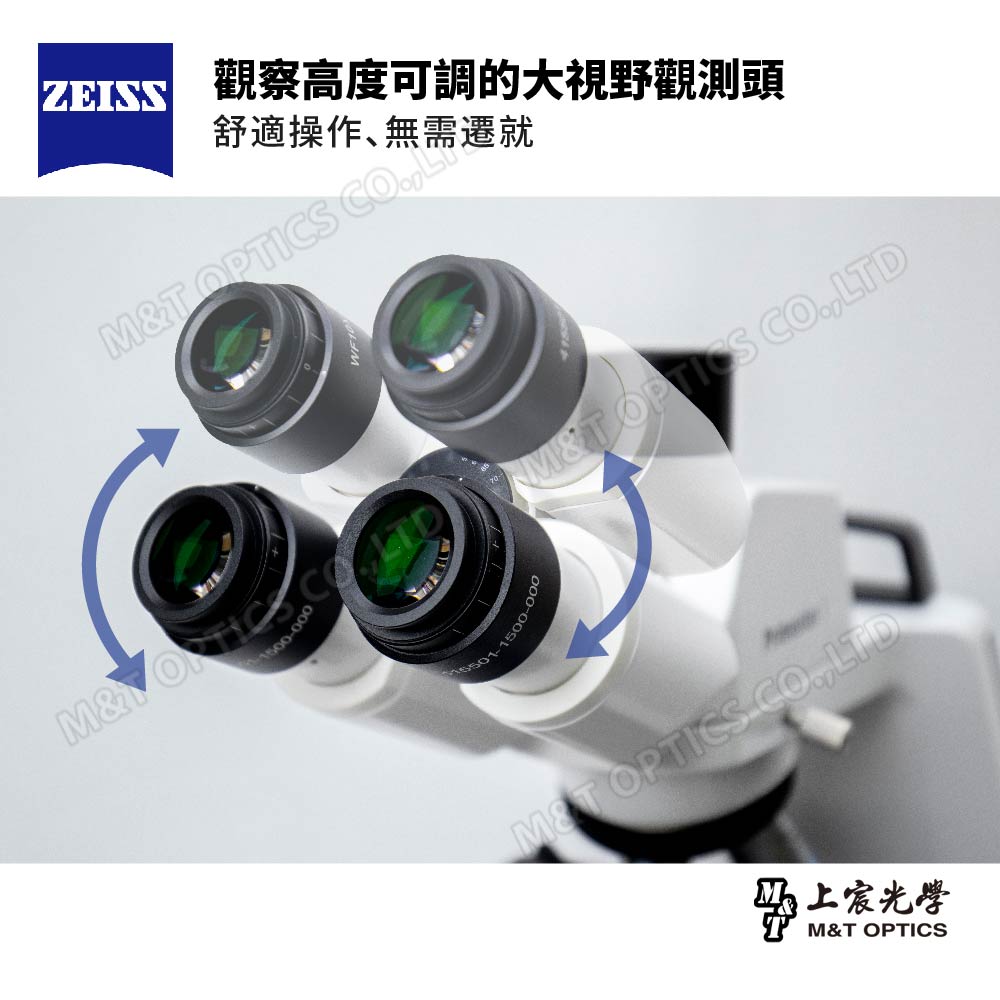

Observation height adjustable large field of view observation head

Binocular observation head with adjustable observation height: It has a viewing angle of 30° and is compatible with a maximum field of view of 20mm. Binocular pupil distance adjustment: Adjust the distance between binocular eyes in a wide range from 48 mm to 75 mm.

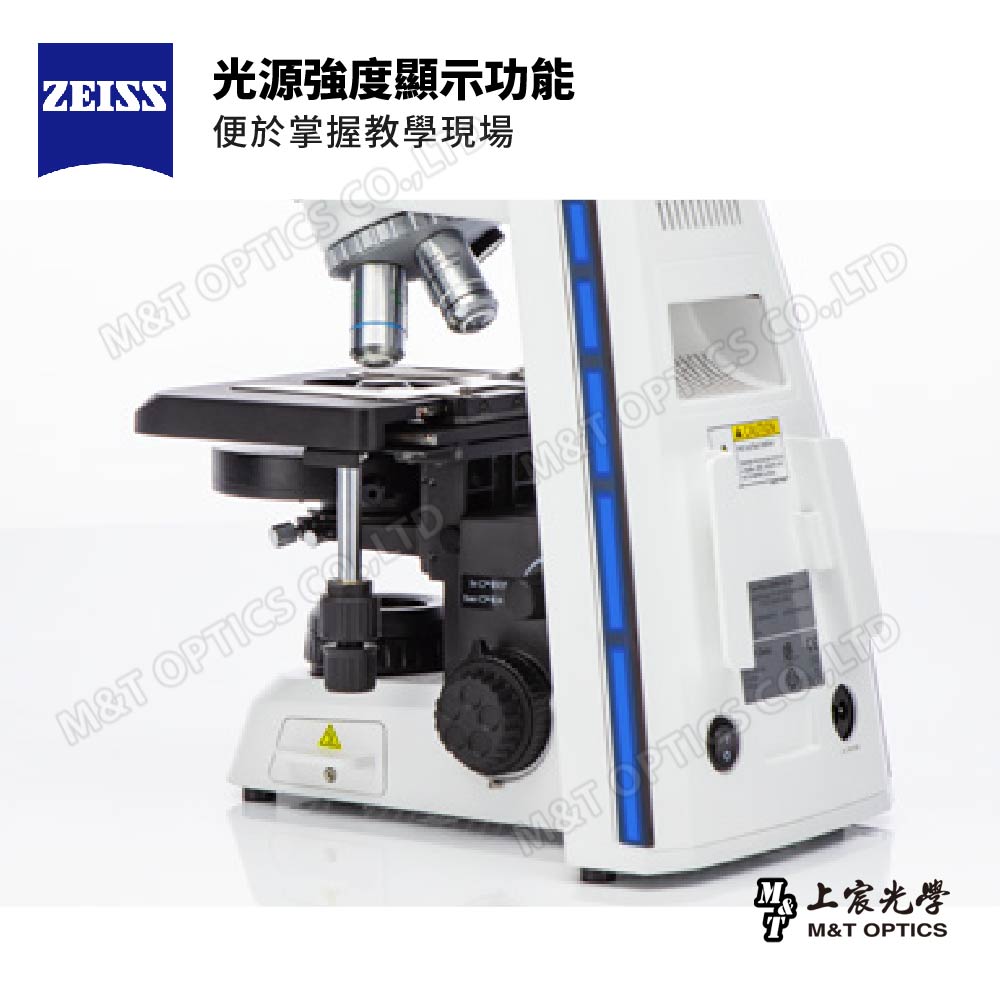

Light source intensity display function - easy to grasp the teaching site

The intensity of the light source is the most important control item for the microscope in the classroom. There are five segments of blue LED light bars on both sides of the mirror body to display the output light intensity, providing teachers and students with the most representative lighting parameters for mutual reference.

Rackless high-quality stage

Rackless stage ensures greater safety and comfort. Durable: short, sturdy stage hinges with easy-to-read ruler.

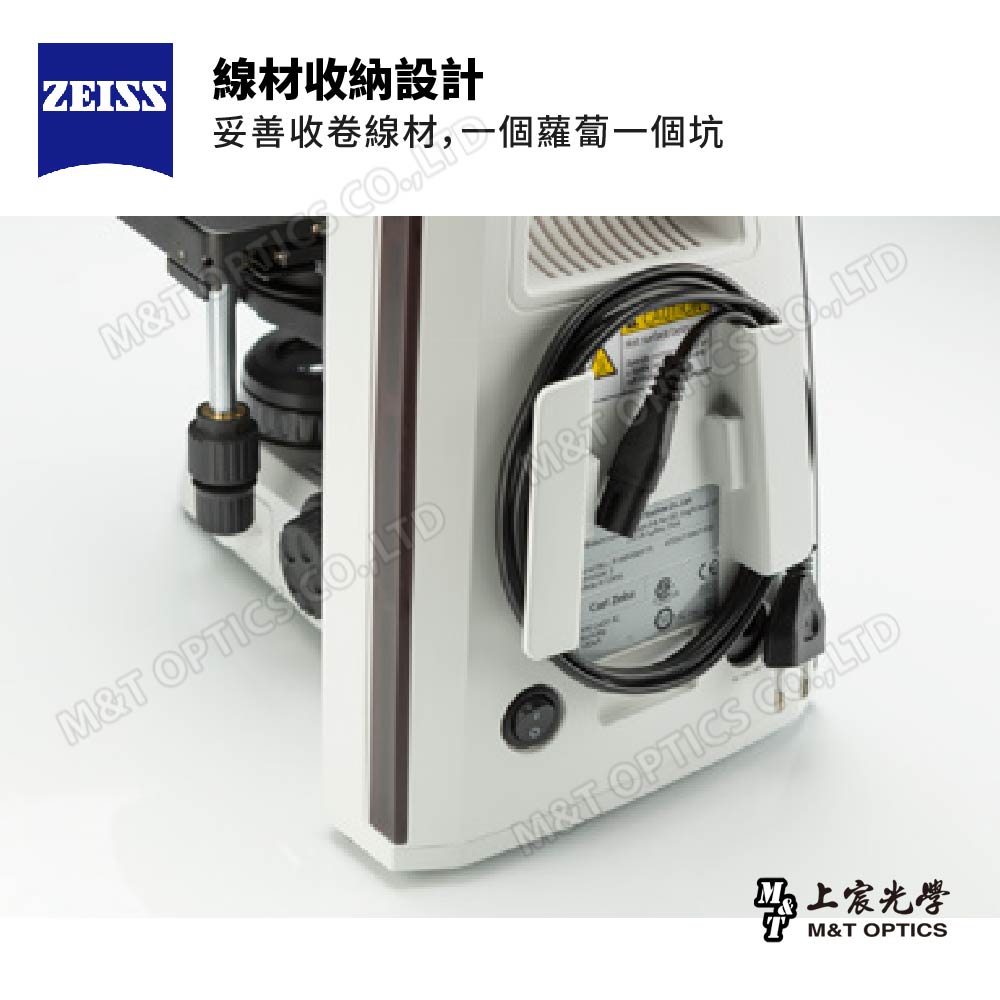

Rewind the wire properly

The wire storage design on the back of the machine provides the ultimate use of space. One carrot and one hole to avoid wire loss

ZEISS Primostar 3 TR M2 Plus Parts Description

Observation sample sharing

Filbert - brightfield observation, 40x objective magnification

Observation sample sharing

Rabbit tongue taste buds - phase contrast observation, 40x objective lens magnification

Observation sample sharing

Cross-section of vascular bundles of Lily of the Valley flower - using Zeiss original fluorescence kit, 10x objective lens magnification

ZEISS Primostar 3 Microscope Dimensional Drawing

ZEISS Primostar 3 series microscope configuration diagram

Comprehensive magnification	40X~400X
Trinocular observation head	Tilt angle 30°, visual field of view 20°, 50:50 light split, adjustable observation height 375-425mm, third eye connected to RD2 focus reducer and HDC588 microphotography system
pupillary distance	Adjustable pupillary distance 48~75mm, adjustable parallax (diopter) of left eye eyepiece seat
eyepiece	WF10X/22mm(φ30)*2pcs
objective lens	4X working distance WD=12mm, 10X, working distance WD=4.51mm, 40X, working distance WD=0.61mm
nose chakra	RMS W0.8 four-hole retractable type
Focusing system	Coaxial coarse and fine adjustment, with elastic adjustment ring, Z-axis adjustment wheel full stroke 15mm including limit device, coarse adjustment accuracy 45mm/revolution, fine adjustment accuracy 0.5mm/revolution
Stage	Mechanical stage, appearance size 140x140mm, XY axis movement range up to 75x40mm, rack is hidden design to avoid exposure
condenser	Fixed Abbe NA0.9/1.25, built-in aperture
Transmitted light source	Adjustable brightness 3W LED light source circuit, color temperature 5600K
power supply	External DC12V power supply, applicable voltage 100~240 V
physical dimension	208×296×398mm
weight	8.5-12kg
Microcamcorder	MICROTECH HDC588.WF Wireless Digital Microscope Camera
Warranty	1 year
