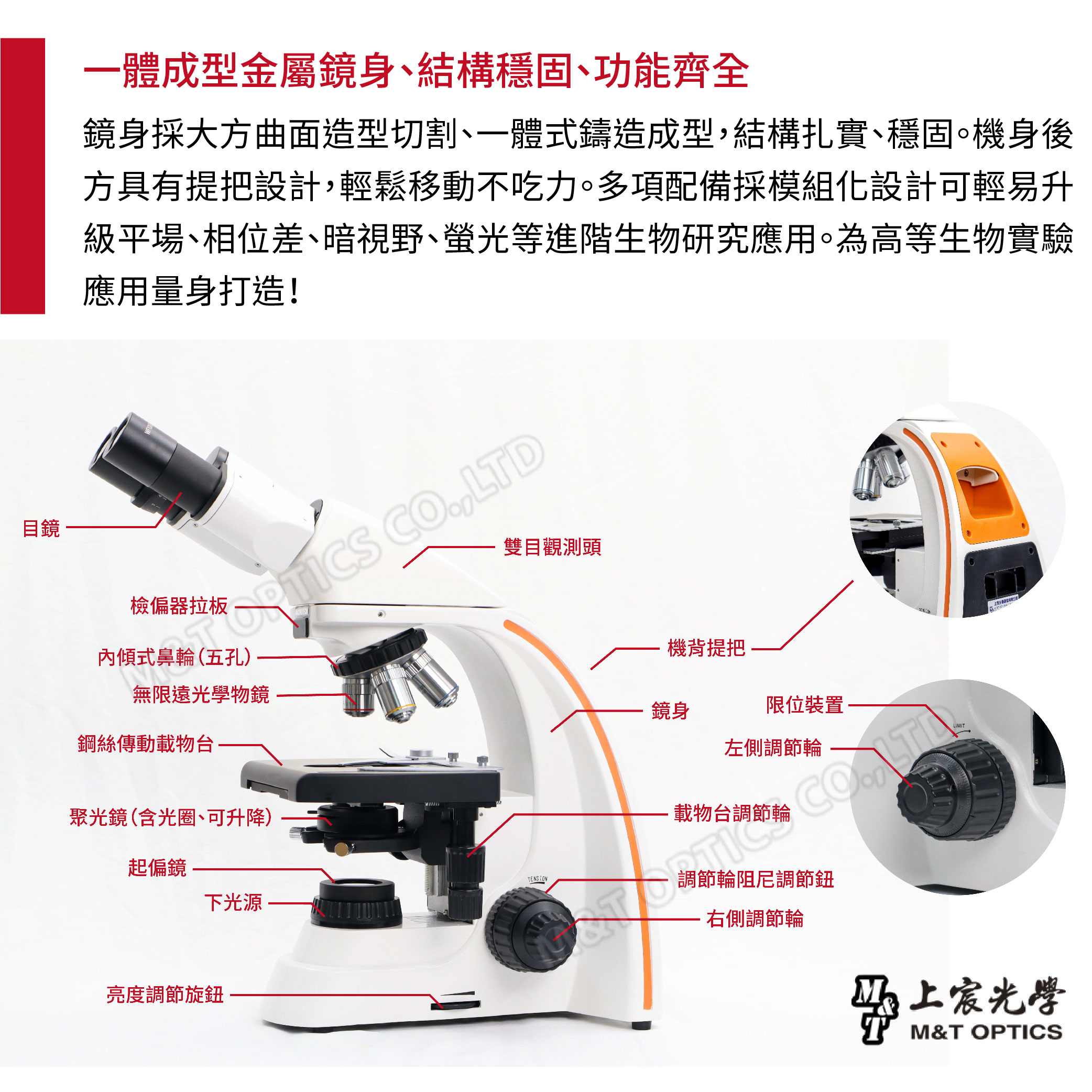

MICROTECH MX600-CB Binocular Biological Microscope
Order number
CB4 Educational 400X: 2241200188, CBC standard 1000X including polarized light: 2241200156, and CBP flat field 1000X including polarized light: 2241200003
Couldn't load pickup availability

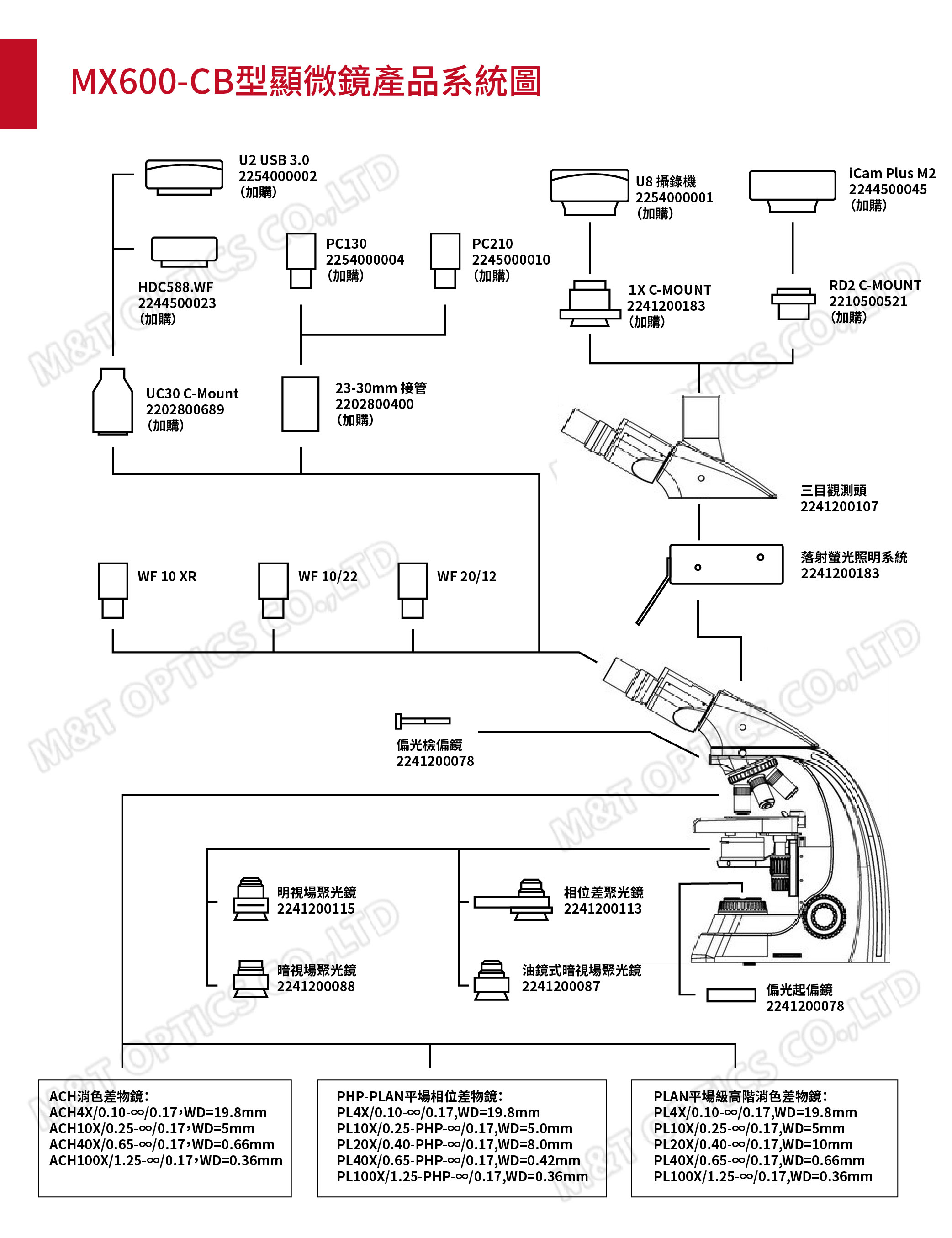

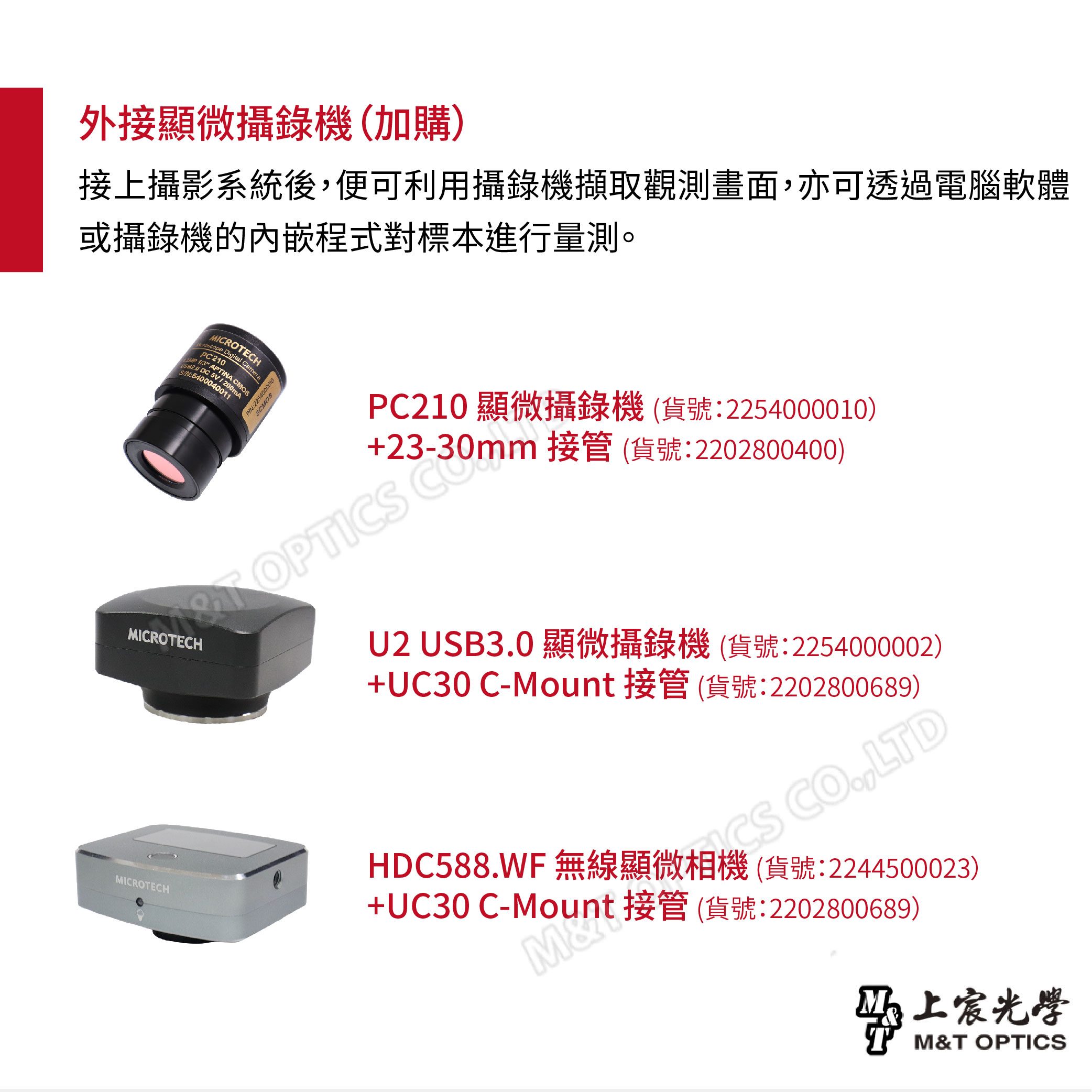

Recommended additional purchase (photography system)
MICROTECH U2 USB3.0 microscopic camcorder (item number: 2254000010)
HDC588.WF wireless microscope camera (Cat. No.: 2244500023)
MICROTECH PC210 Digital Microscope USB Camera (Item number: 2254000002)
Product specifications
| Optical system | ∞Infinite parallel optics |
|
eyepiece
|
WF10X field of view φ22mm pair |
|
CB 4 objective lens
|
4X/0.10—∞/0.17. 10X/0.25-∞/0.17. 40X/0.65—∞/0.17 |
|
CB C objective lens
|
4X/0.10—∞/0.17. 10X/0.25-∞/0.17. 40X/0.65-∞/0.17. 100X／1.25—∞／0.17 |
|
CB P objective lens
|
PL4X/0.10-∞/0.17. PL10X/0.25-∞/0.17. PL20X/0.40-∞/0.17. PL40X/0.65-∞/0.17. PL100X/1.25—∞/0.17 |
|
eyepiece tube
|
Tilt 30 degrees, interpupillary distance adjustment range 53~75mm |
|

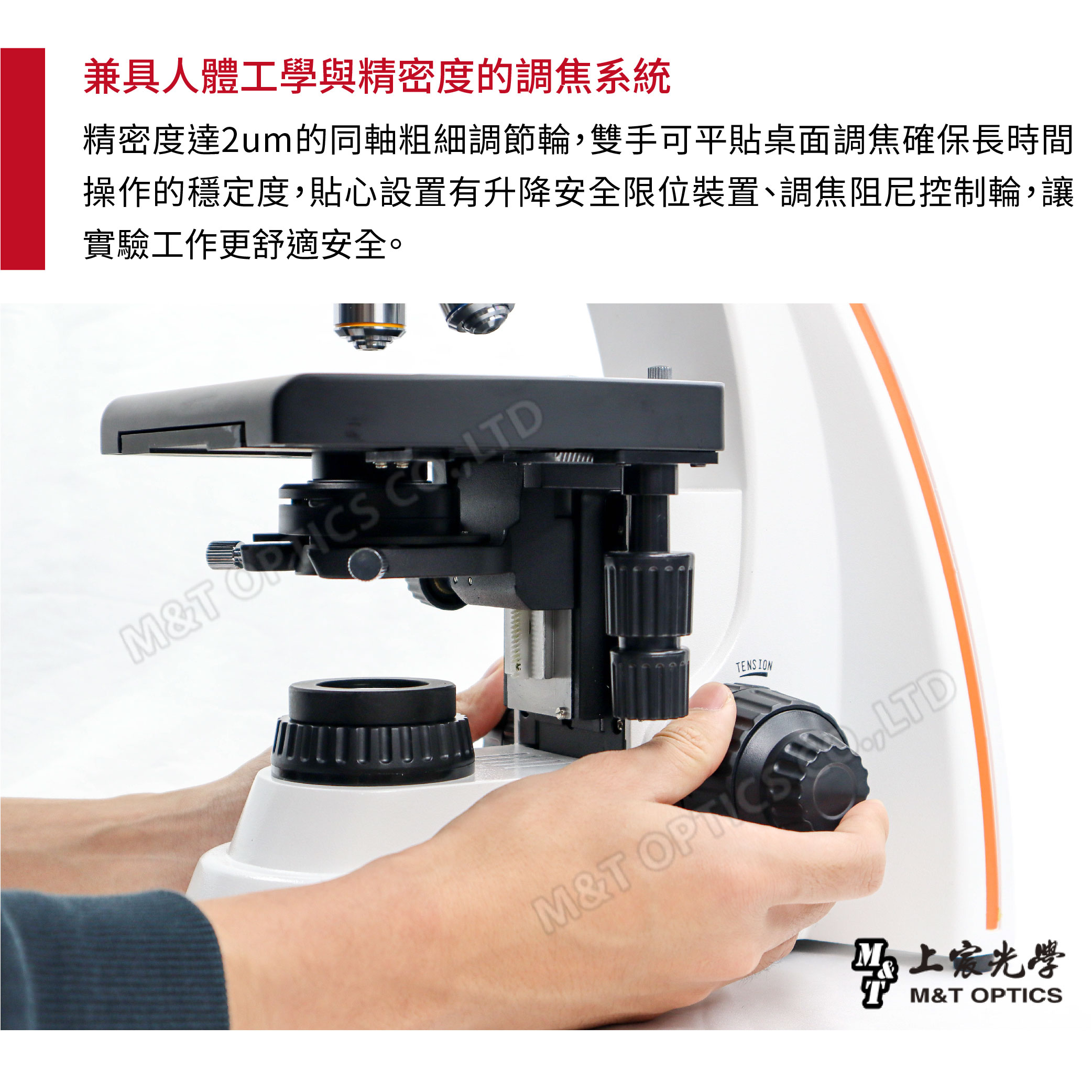

Coarse and fine coaxial focusing
|

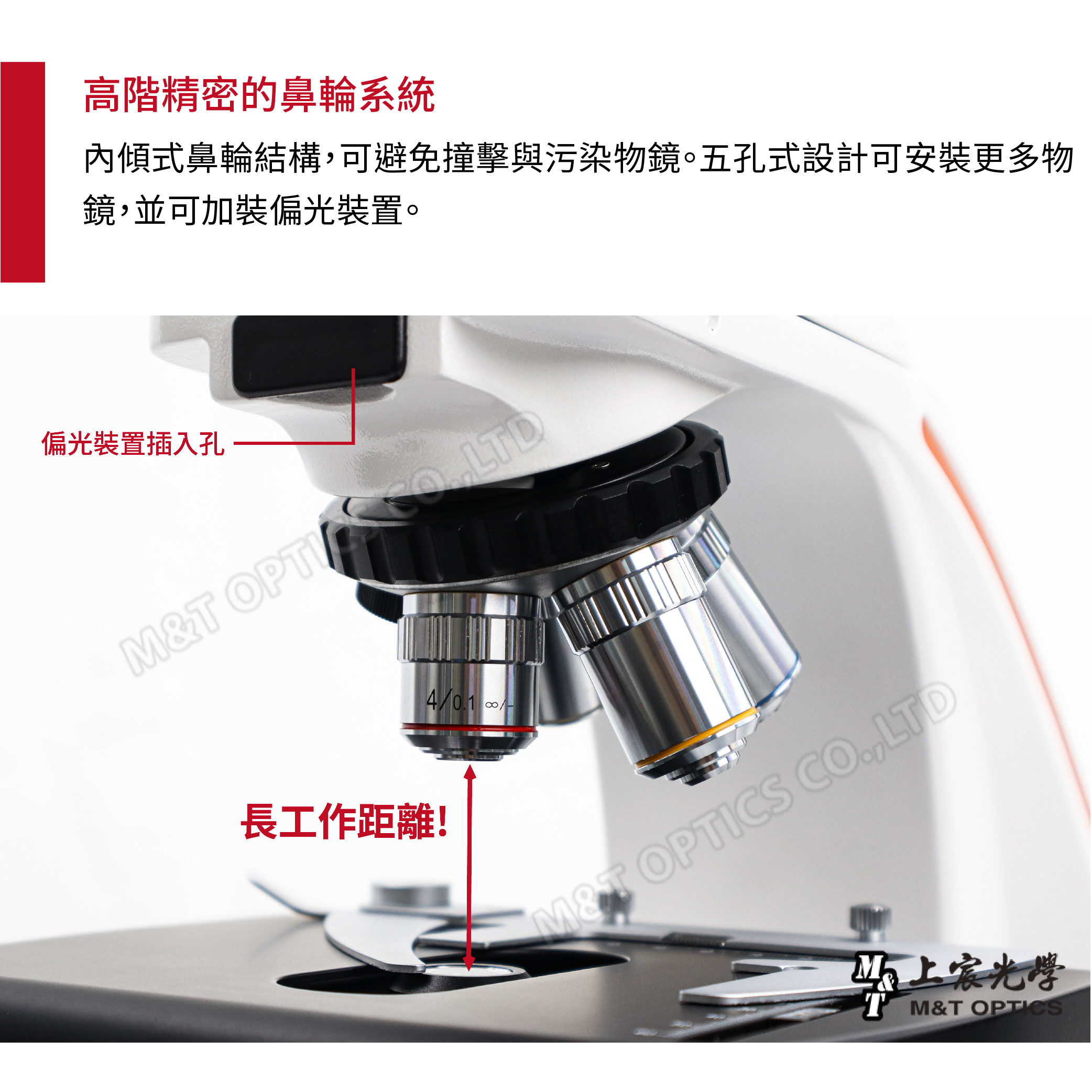

Comes with locking and limiting device, micro-motion grid value 2μm, five-hole retractable nose wheel converter, built-in simple polarizing analyzer |
|

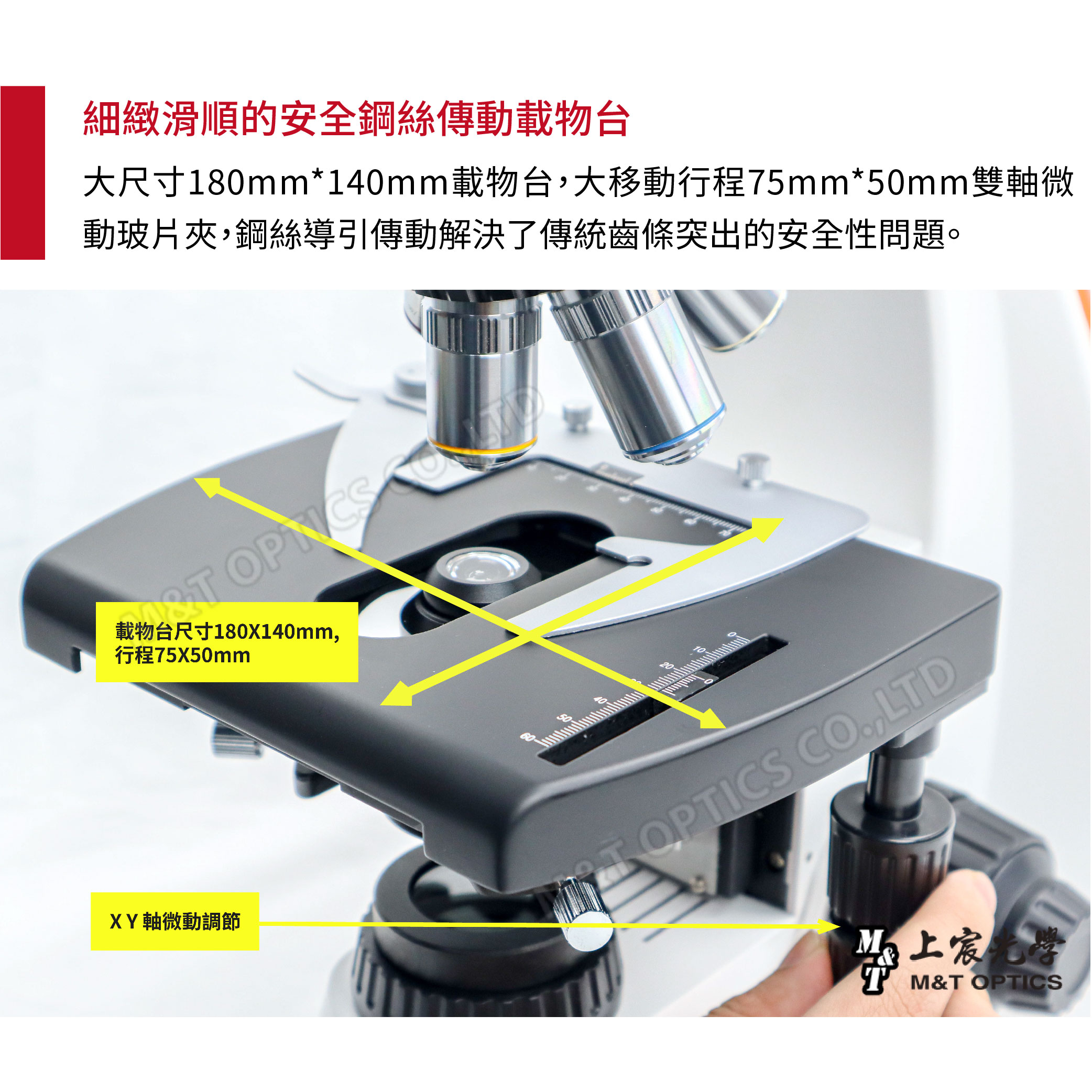

Wire driven stage
|
Size 180x140mm, stroke 75x50mm, no rack exposed |
|

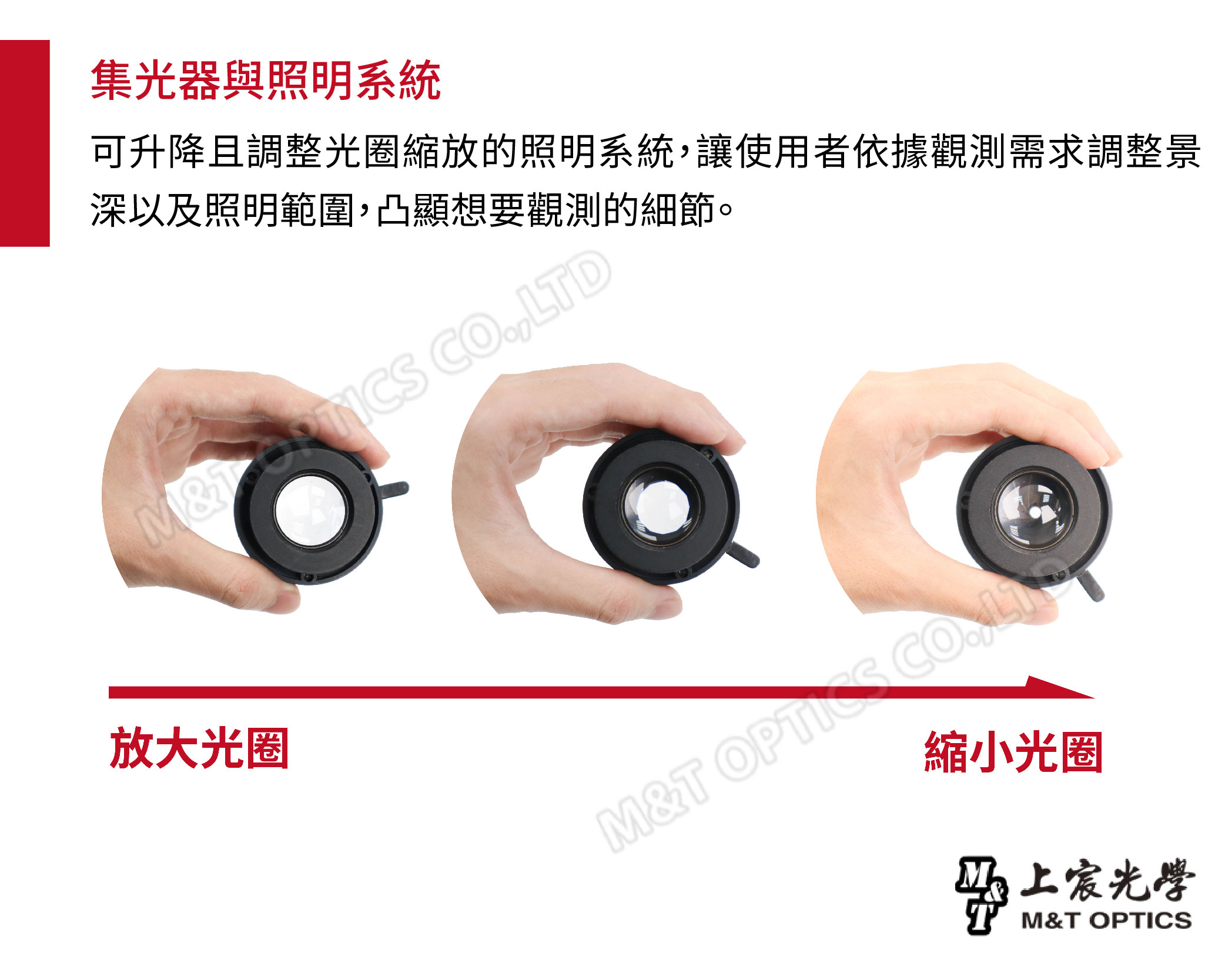

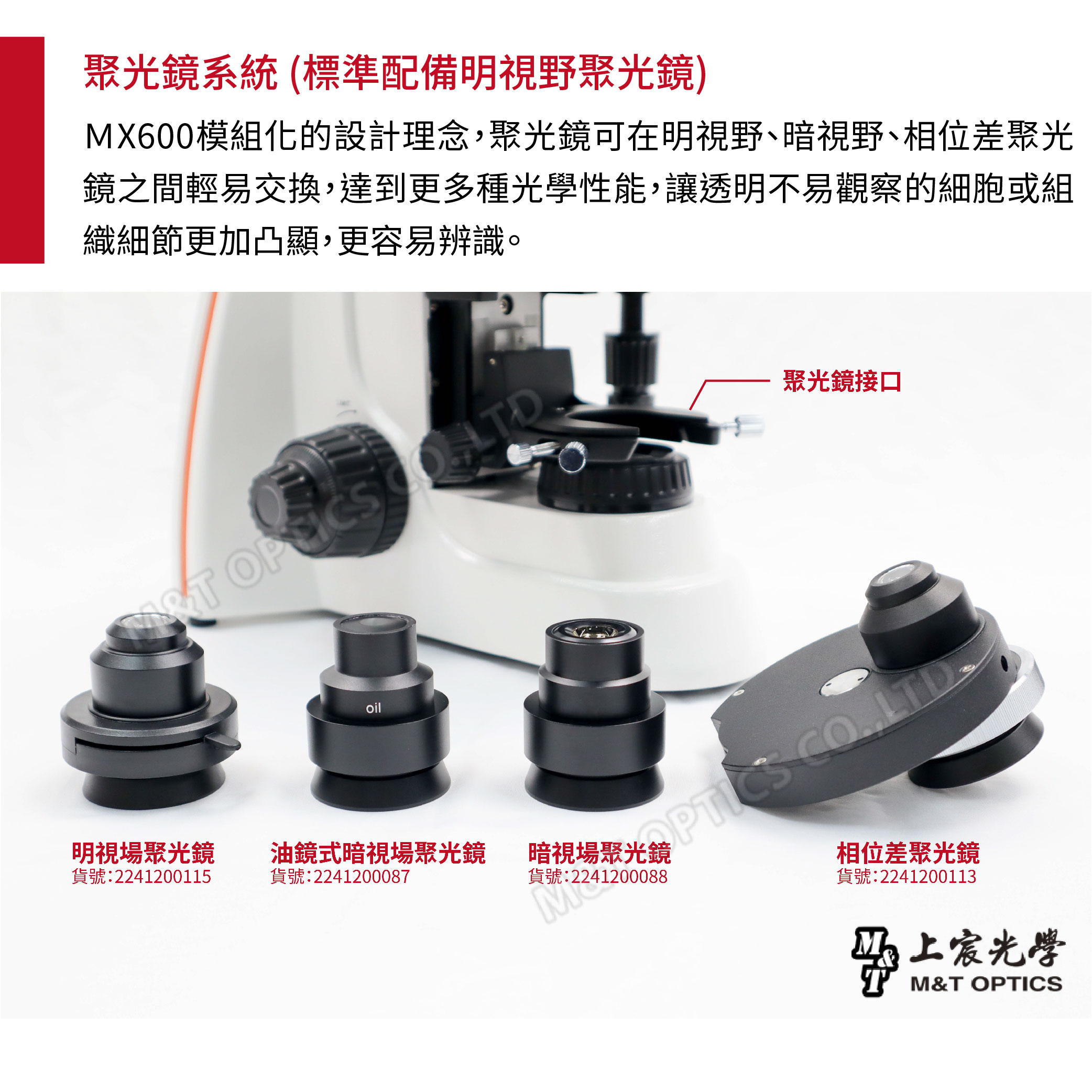

Transmissive Abbe condenser
|
NA1.25, adjustable up and down, built-in field diaphragm |
|
transmitted light source
|
White LED brightness adjustable |
|
transmission filter
|
Frosted glass x1 |
|
light collector
|

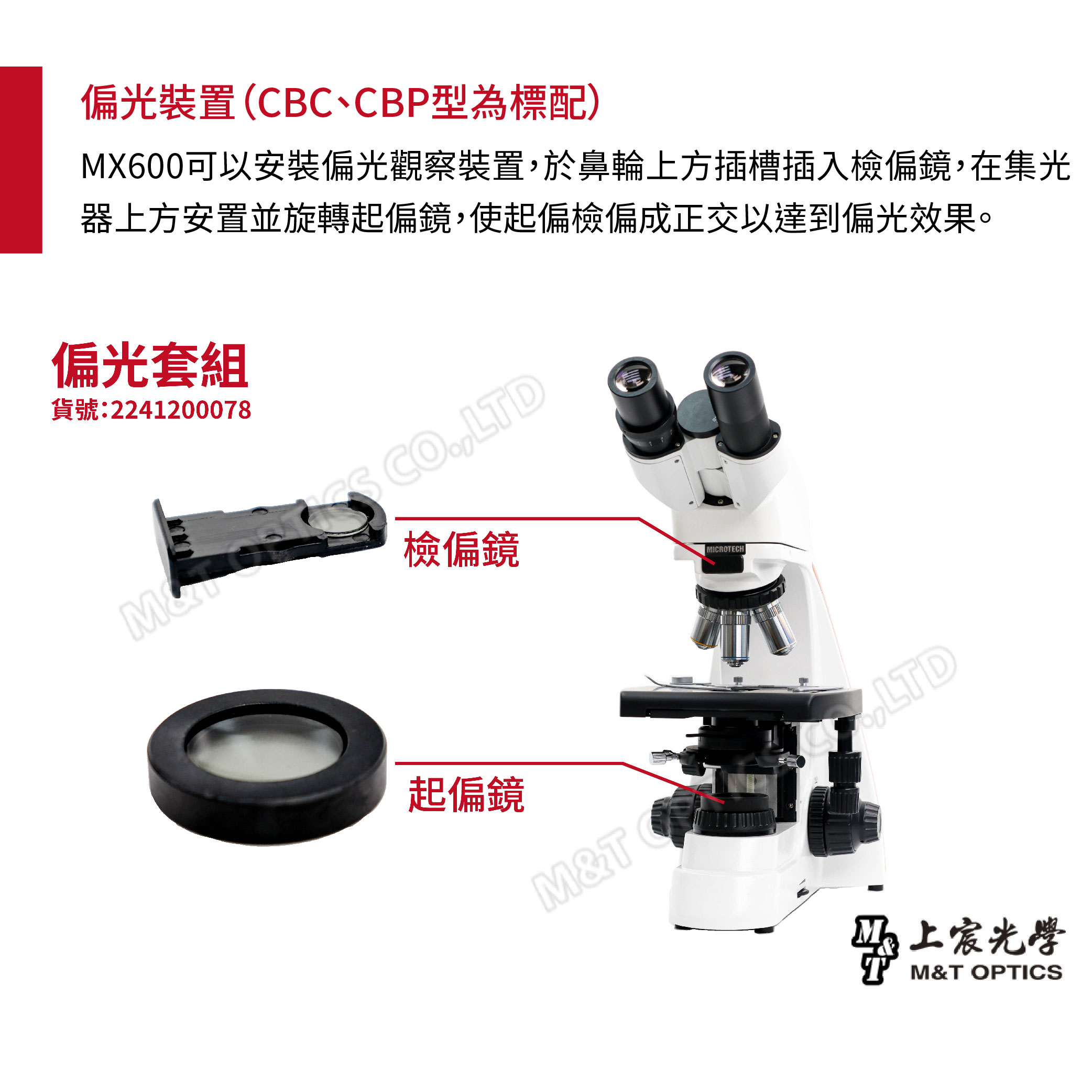

Transmissive plano-convex lens system, adjustable Kohler light field, attached with simple polarizer |
|

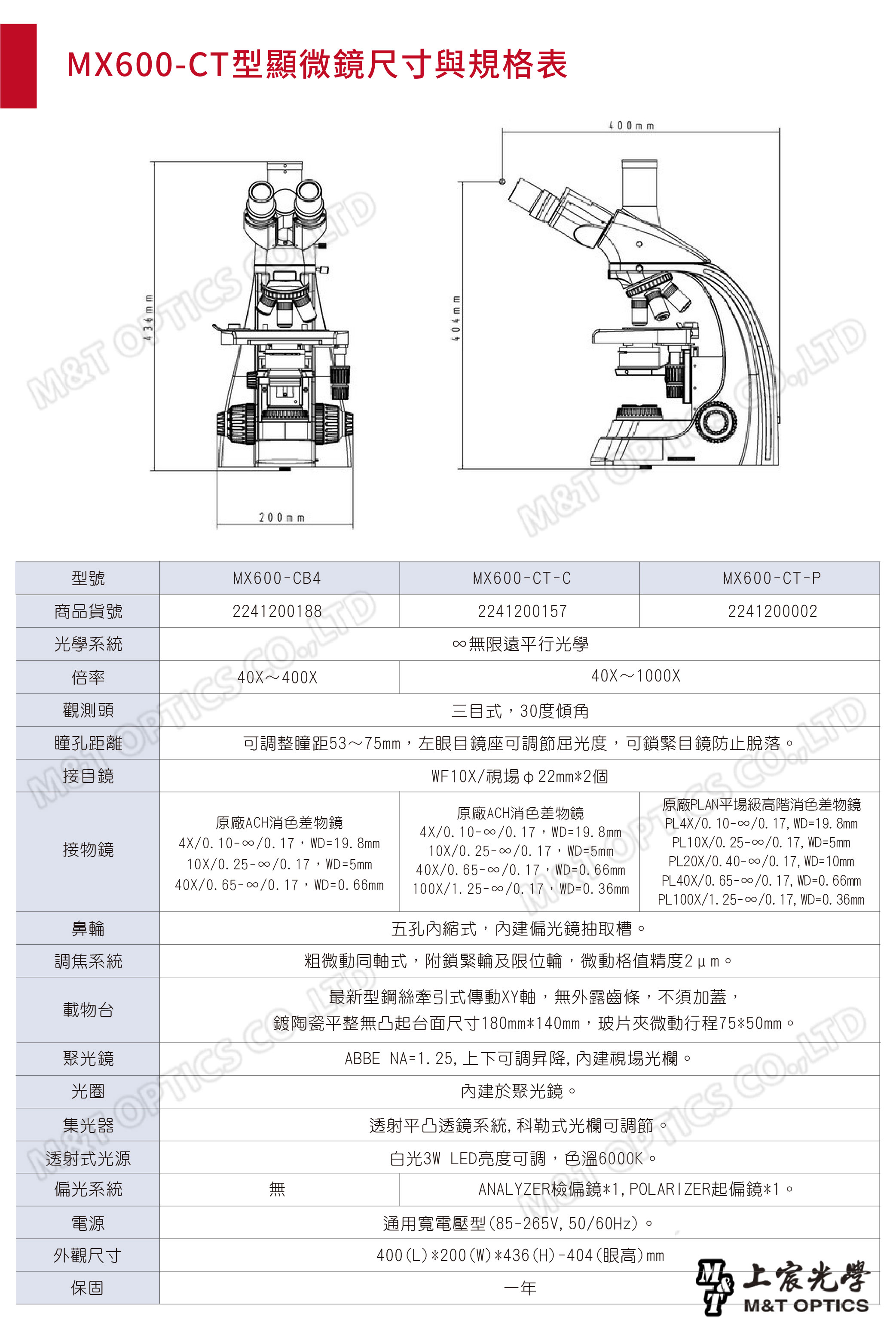

Appearance size mm
|
400x200x436mm eye height 404mm |
|
power supply
|
Universal wide voltage type 85～265V, 50～60Hz |
