Newer, faster, simpler

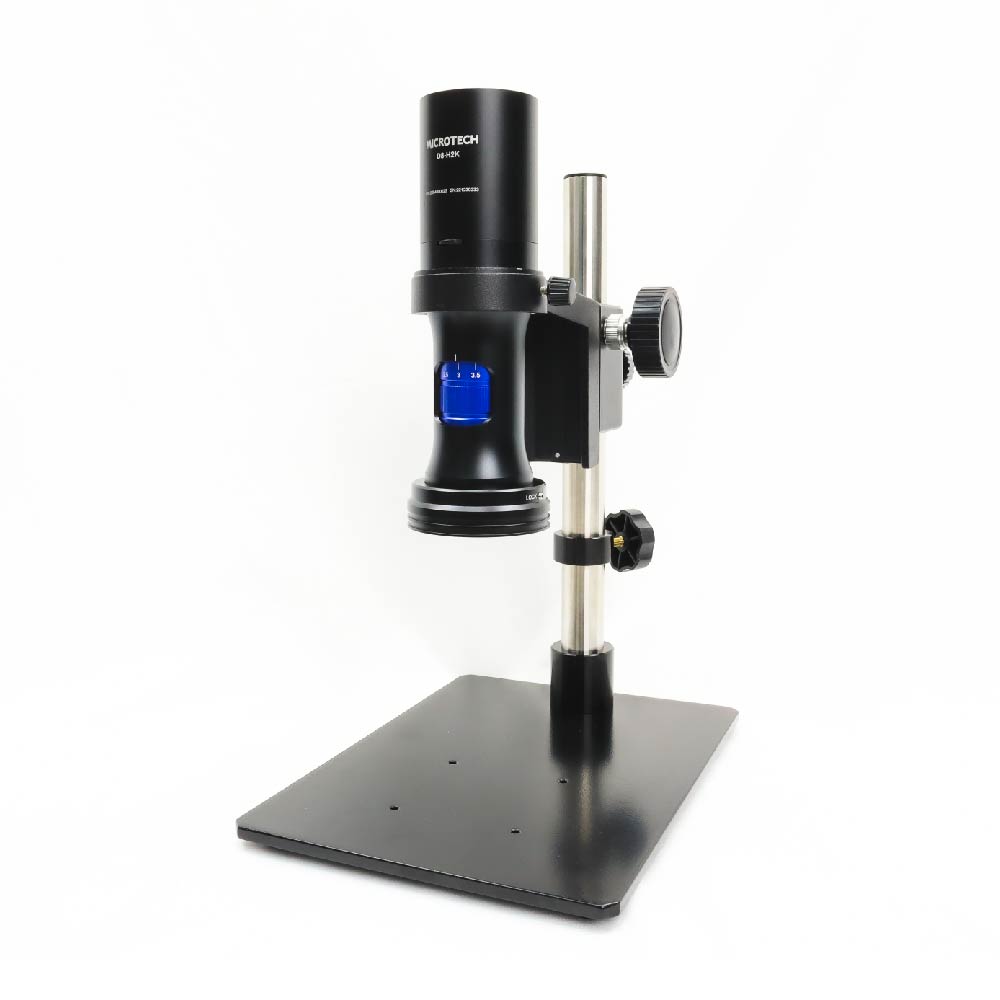

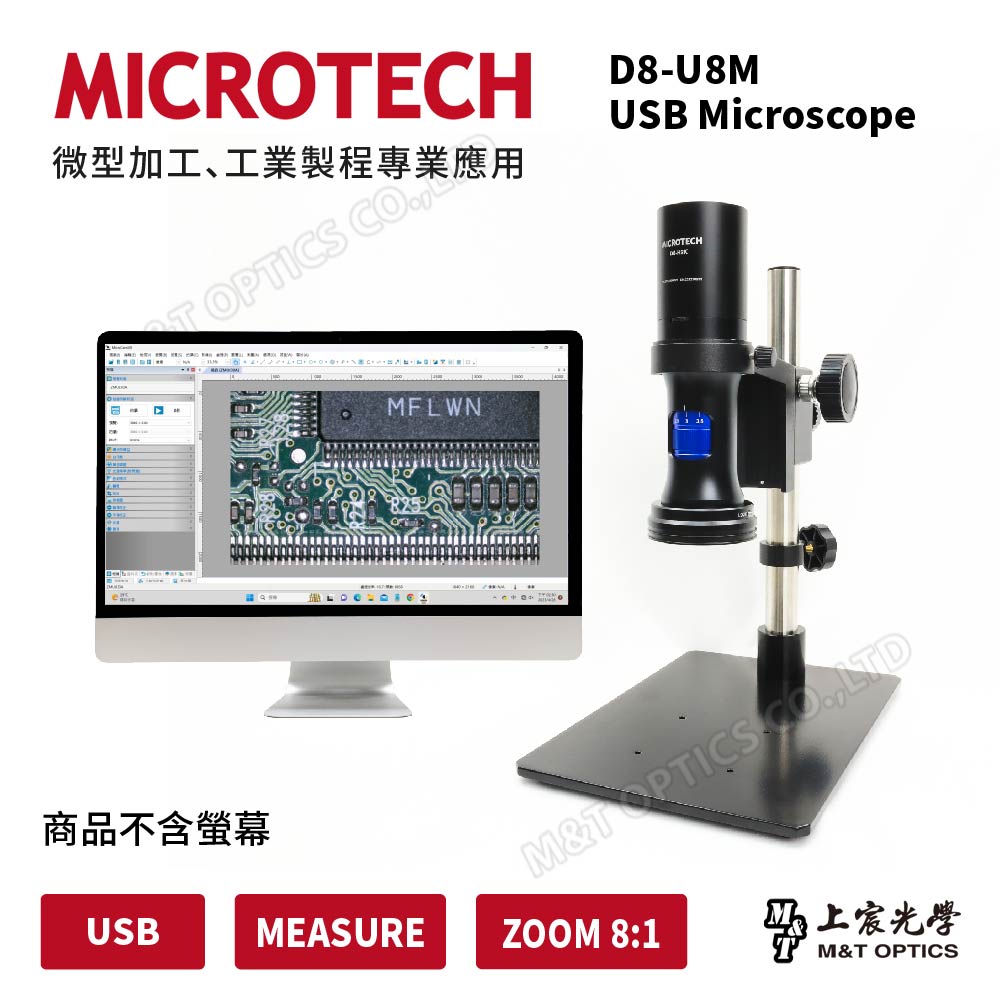

MICROTECH's new D8 series digital monocular microscope, light source, lens barrel, image, ALL IN ONE. Get started quickly and meet your work needs. The body shape design is streamlined, simple and powerful, reducing the risk of being pulled and accidentally touched in the environment. It is a convenient multi-purpose digital microscope that adapts to a variety of needs.

Compact and streamlined appearance design, suitable for operations in limited spaces

The compact appearance design of the body is different from many monocular microscopes on the market. The MICROTECH D8 series monocular microscope combines microscopic image recording, LED epi-light source, and dimmer on the lens body. There is no need to connect a large number of wires when using it.

Long working distance to meet operational needs

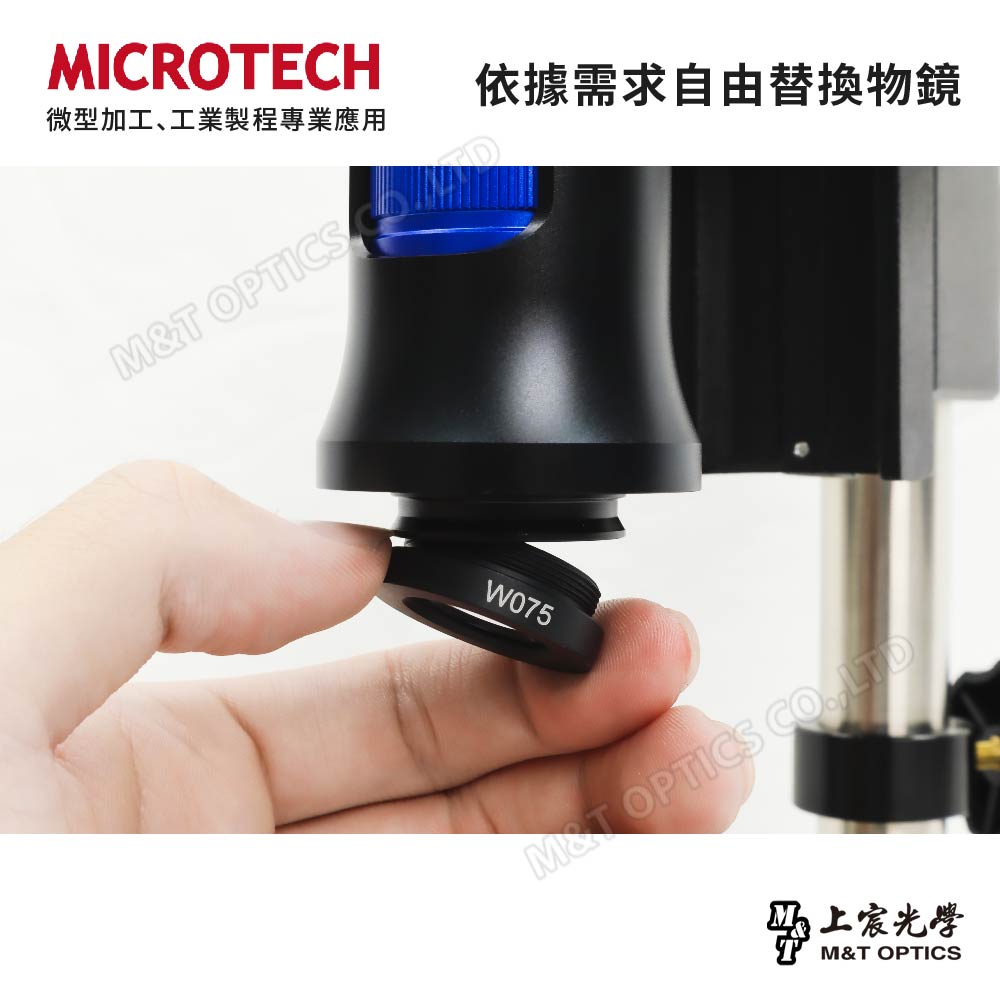

The standard objective lens has a working distance of up to 105mm, allowing the object to be measured to maintain an appropriate distance from the objective lens. It is suitable for use situations where the object under test needs to be moved frequently (textile, quality control, QC, etc.) or where the object under test needs to be operated (assembly, welding, engraving). And the working distance will not change with the magnification of the microscope, allowing you to quickly zoom in and out of the field of view. If you need a longer working distance or higher microscope magnification, you can also replace the objective lenses with different magnifications to meet your needs.

Infinity parallel optical system

It uses an infinity parallel optical objective lens and a Zoom zoom body with a zoom ratio of 0.7X ~ 5.6X up to 8, and is assembled with precise optical axis accuracy. The objective lens can be replaced according to the usage requirements, and the system magnification and working distance can be changed.

Precise parfocality and centering

The photography system is precisely calibrated so that no matter how the magnification ring is adjusted and rotated, the image can still maintain optical focus and center. Greatly improving work rate is crucial for industrial manufacturing and measurement.

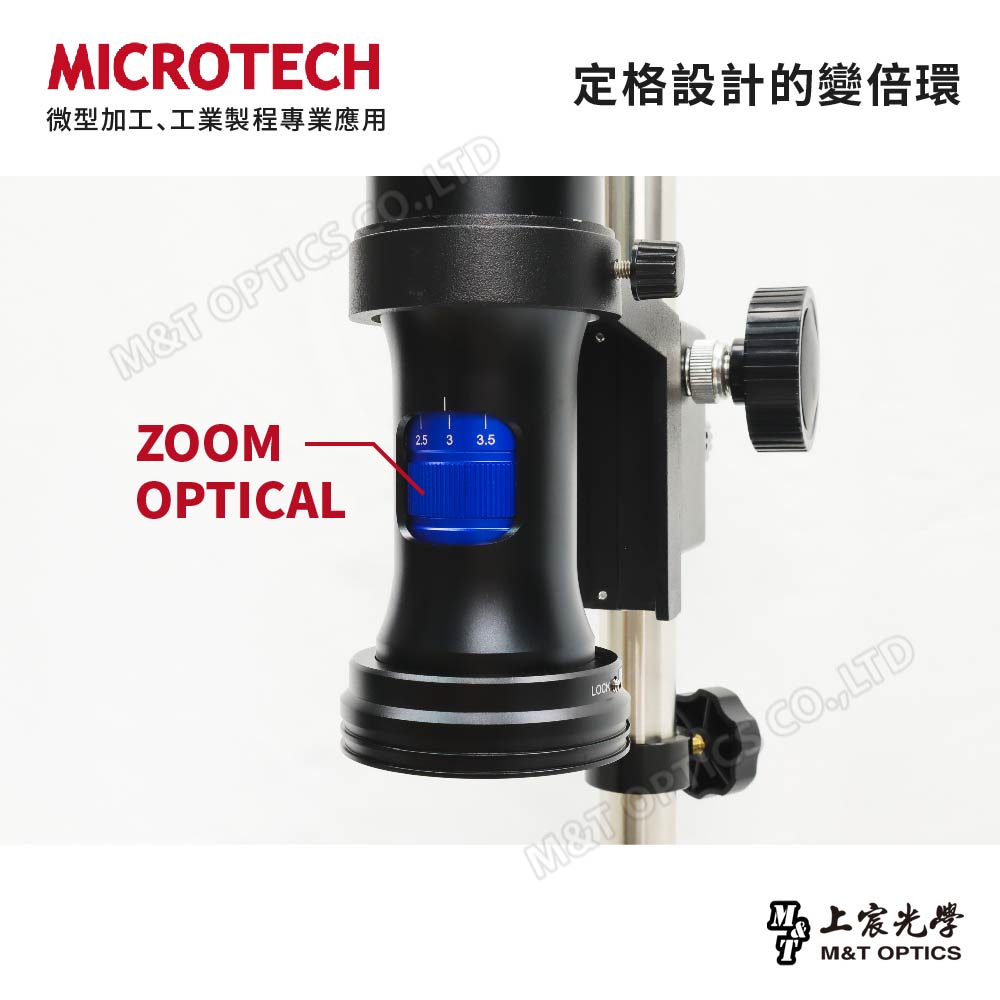

Zoom ring fixed frame design

Accurately position and freeze each integer magnification, so that the magnification has a calculable basic condition. The measurement system software needs to perform optical correction based on the actual microscope objective lens magnification to determine the true size of each sampling area. If the zoom microscope cannot freeze and position, it will Will cause measurement errors.

Universal specification focusing bracket

It adopts a single-speed rack guide focusing bracket, which has a simple appearance and does not take up space. The operating height can be adjusted by sliding up and down the column to adapt to various types of objects being measured. It can handle larger or thicker objects to be measured, or meet the need to install fixtures at the bottom. All in One design magnetic lamp holder and dimmer

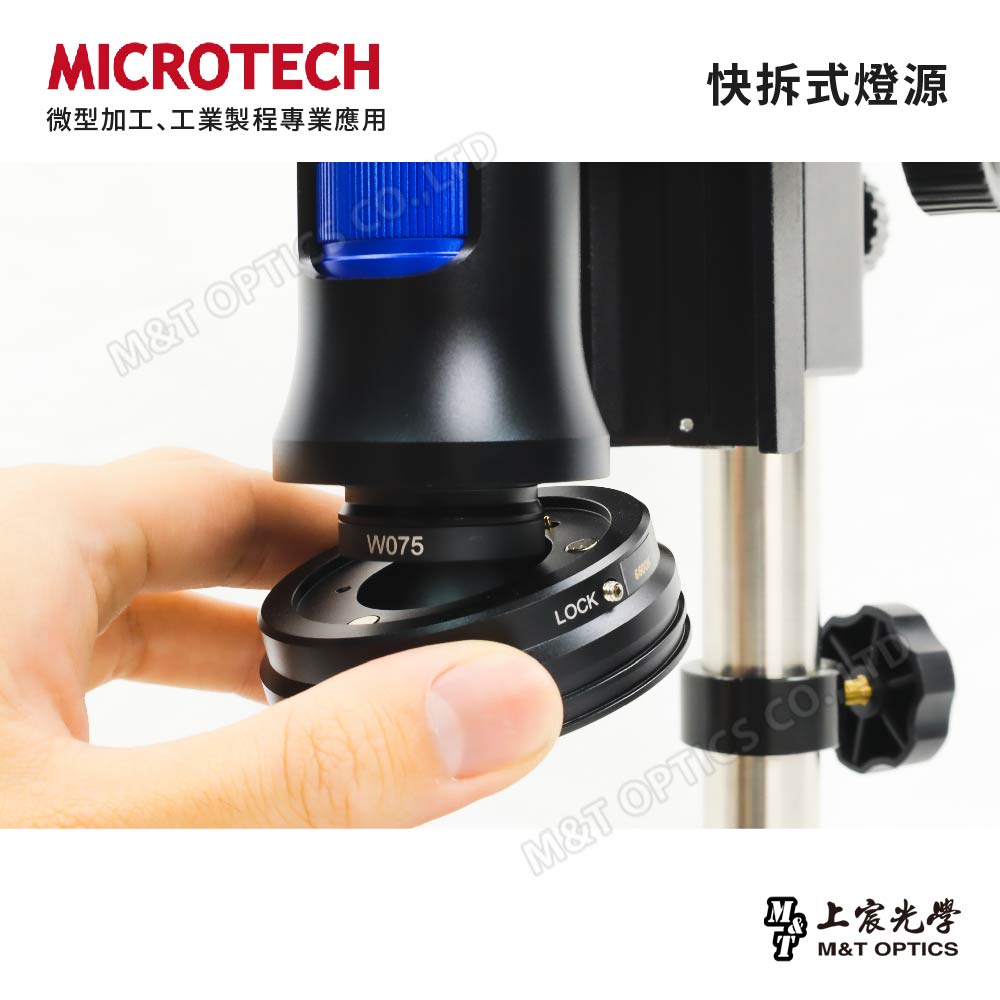

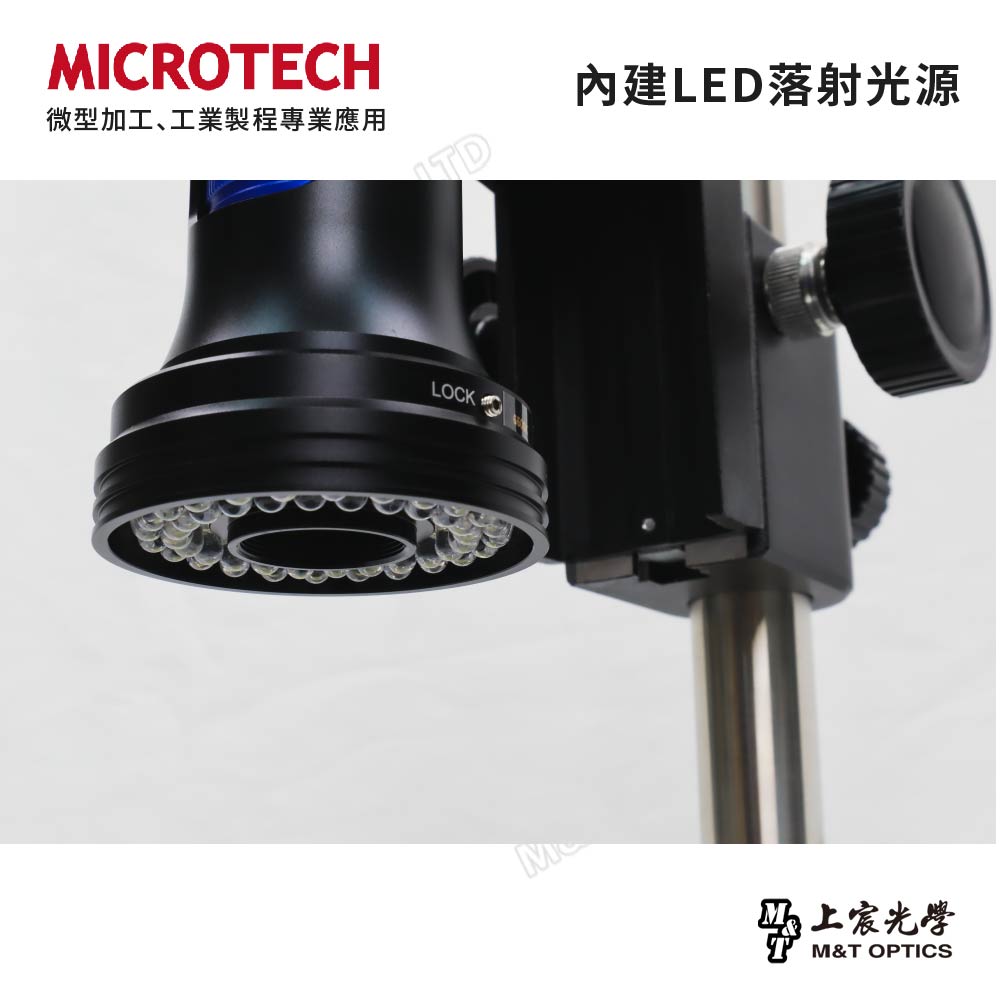

Built-in LED epilight source, magnetic lamp holder design, intuitive and convenient disassembly and assembly. When installing the microscope bracket or changing the objective lens, no tools are needed. You only need to remove the magnetic light source directly with your bare hands, and then the bracket can be placed or the objective lens can be unscrewed. The intensity of the light source can be adjusted remotely from the lens body or the software interface.

Modular base

The D8 series is available in a variety of bases, and can also be equipped with other accessories such as light sources and mobile platforms as needed to meet diversified work needs. If it needs to be used in a limited space, it can be equipped with a standard SW base. If an operating platform is required, an optional one can be used. SF large base.

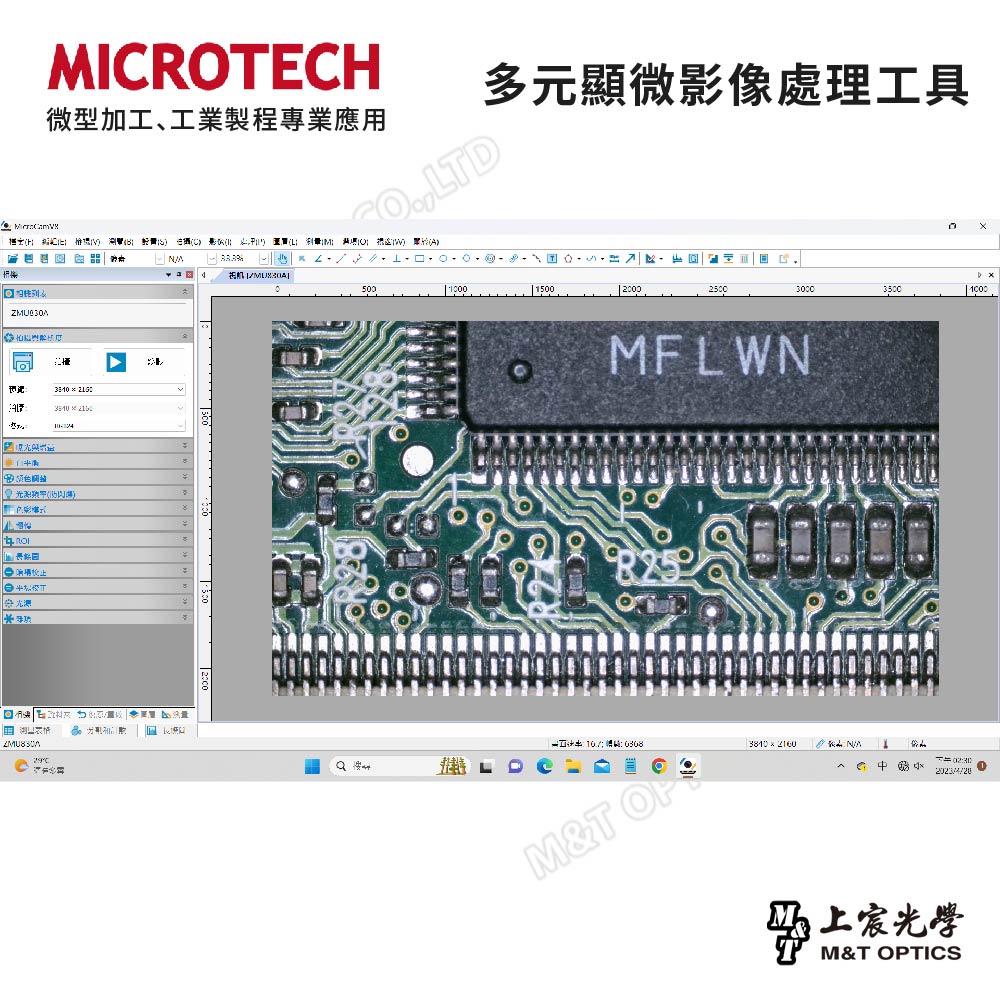

Microcam V8 microscopy imaging application

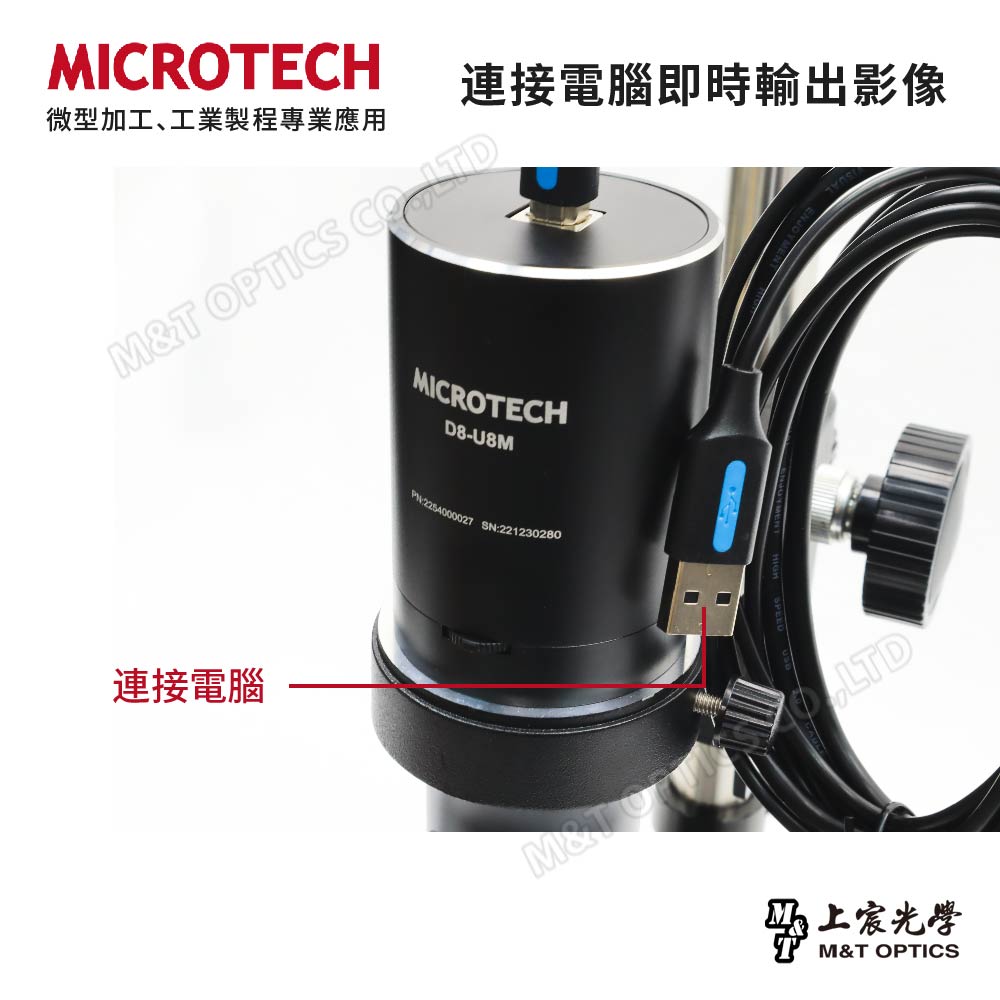

Use the USB interface to connect the camcorder to your computer. The corresponding microscopic imaging application (Microcam V8) supports photo and video functions. It has built-in rulers and various measuring tools, allowing you to accurately measure and record. You can also operate splicing, overlaying, and depth of field extension... to meet a variety of usage scenarios. You can view and capture images in the microscope in real time through the camera control software, and you can also record high-definition videos for subsequent analysis and sharing. Powerful image processing functions

The Microcam V8 app features automatic exposure and white balance functions to help you quickly obtain clear and color-accurate images. Color adjustments can also be made manually in post-production to ensure the best image quality.

Image stitching function

Just like shooting with the panoramic function of your mobile phone, you can turn on the "image stitching" function and slowly move the object under the microscope. The Microcam V8 application will help you quickly capture images beyond the field of view of the microscope through program calculations, such as the entire PCB board, the complete workpiece plane, and large grinding surfaces.

Data list function

The Microcam V8 application measurement function can be used to measure geometric figures and mark scales, text and dimensions. To make the recording process more convenient, measurement results can be imported into Word or Excel using the graphic and text export function.

Real shot effect - circuit board Real shot effect - fabric fiber

Product specifications

Series stores	D8—U8M USB digital microscope
model	D8—U8M USB (Cat. No. 2254000027)
Optical system	Infinity parallel optical system (Infinity)
Zoom tube	ZOOM 0.7X～5.6X, full frame design
Objective lens type	W0.75X WD＝105mm
Adaptable objective lens	W0.5X, W0.75X, W1.0X, W1.5X, W2.0X (standard configuration is W0.75X, others are optional)
Field of view size	2.7x1.5mm²-21.4x12.0mm²
Photosensitive element	1/2.8 inches (5.57mmx3.13mm) SONY IMX415 (C)
Pixel size	1.45x1.45（μm）
light sensitivity	300mv/g with 1/30s
Output quality	3840x2160P 30FPS / 1920x1080P 30FPS / 1280x720P 30FPS / 960x540P 30FPS
Output interface	UVC (USB)
Power requirements	USB2.0 port synchronous power supply DC5V
working distance	105mm (parfocal distance of objective lens)
Applicable bracket bayonet	50mm
Lens barrel size	188mm x 52mm
Standard stage size	180x245x7mm（ (Width x Depth x Thickness Magnetic Cast Iron)
light source	Built-in magnetic quick-release ring light
Dimming design	There is an adjustment button on the lens barrel, which can also be adjusted using software.
