Your most solid partner in the laboratory and teaching field

Primostar 3 packs all the performance you need into a compact and solid metal body that is reliable and durable, amplifying the efficiency and productivity of your learning/teaching or laboratory work. Introducing Zeiss's clever design ingenuity and paying attention to all details for you.

Variety of appearances, adaptable to various situations

Primostar 3 comes with multiple configurations, let us customize it to be your perfect partner. Open the package, plug in the power and you can start your work or teaching immediately without too many settings.

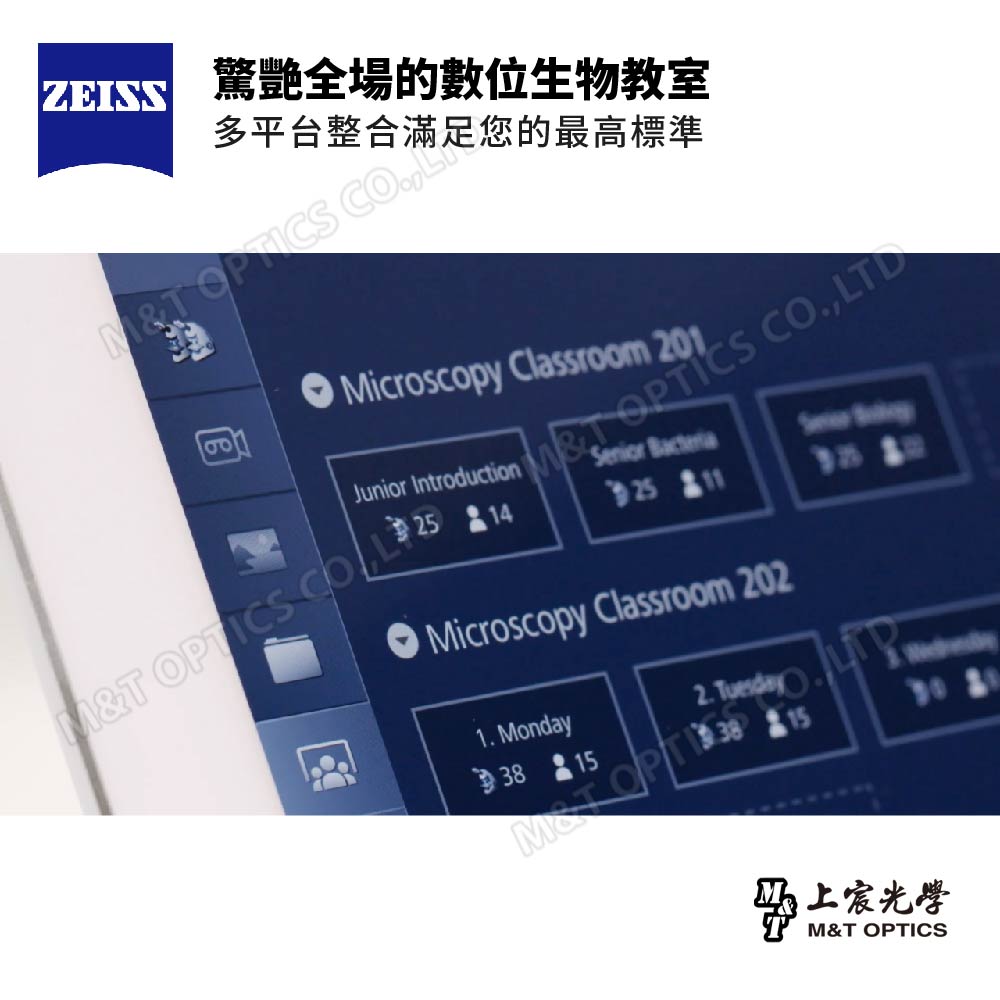

A stunning digital biology classroom

An observation head equipped with an electronic eyepiece allows you to see and take pictures immediately, pair with mobile devices, connect to a computer to support video, and project to a large screen... The integration of multiple platforms enables you to meet your highest standards whether it is physical or distance teaching. The electronic eyepiece has been carefully adjusted by the original factory, and the electronic image with almost zero chromatic aberration is consistent with visual observation.

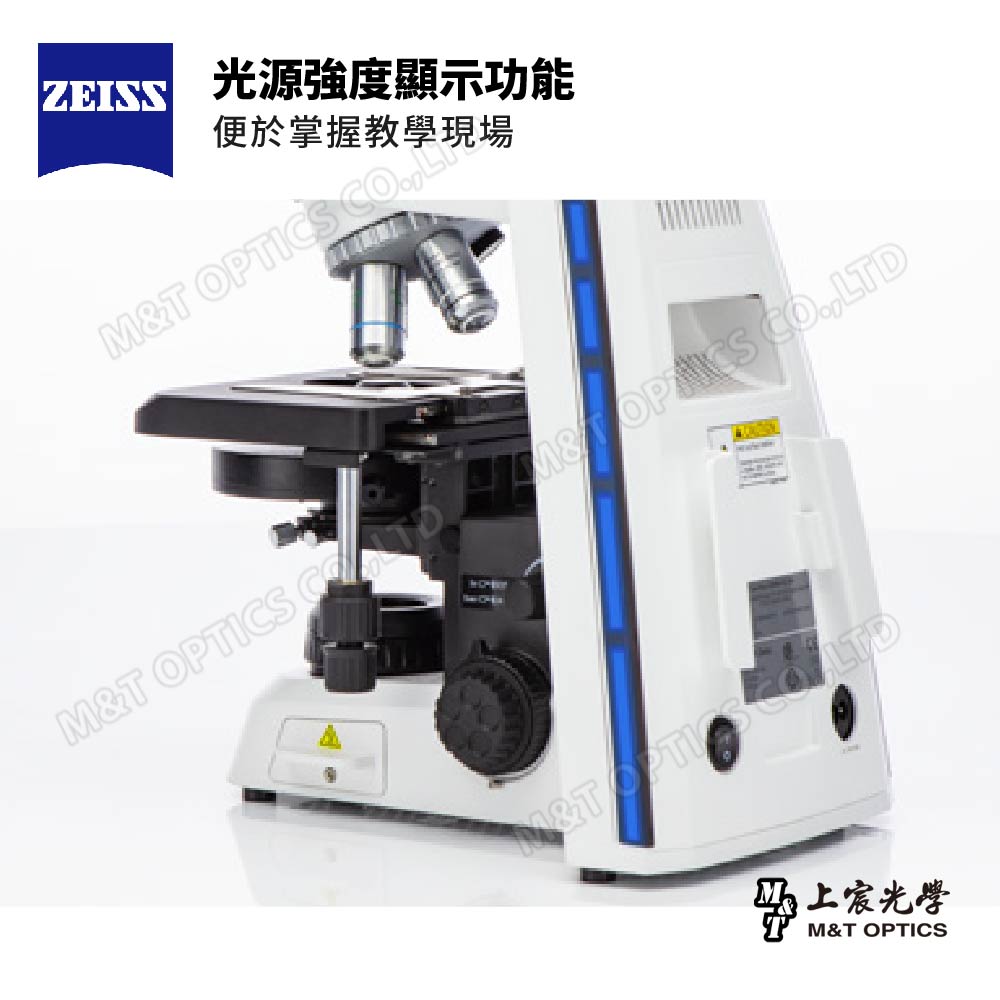

Light source intensity display function - easy to grasp the teaching site

The intensity of the light source is the most important control item for the microscope in the classroom. There are five segments of blue LED light bars on both sides of the mirror body to display the output light intensity, providing teachers and students with the most representative lighting parameters for mutual reference.

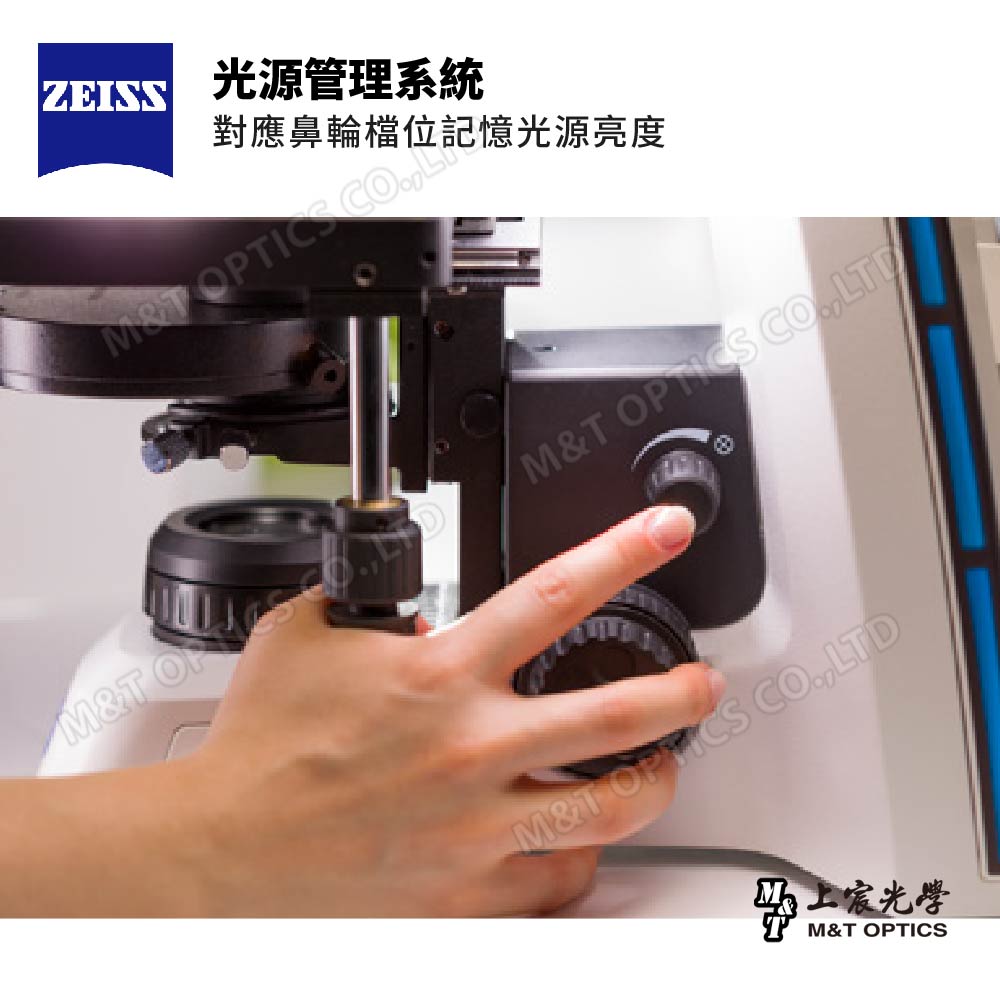

Light source management system

Maximize your work efficiency ZEISS Primostar 3 is equipped with the "Light Source Management System" that is equipped on all high-end models of ZEISS. When used, it can remember the brightness of the light source according to the corresponding nose wheel gear. Simplify the tedious process of frequently adjusting light sources for all researchers.

Energy saving and efficient - always on call for you

Equipped with an energy-saving mode, the microscope automatically goes to sleep after being idle for 30 minutes after being turned on. Any form of operation (adjusting the observation tube, dimmer button, focusing wheel...) can wake it up immediately, making the work seamless. Simplify operations, save energy and optimize the life of lighting and electronic systems.

Freely switch light sources - no need to choose, own once

In response to the needs of different objects under test, ZEISS Primostar 3 supports both 30W halogen bulbs and power-saving LED lighting sources. No matter which light source is used, it supports microscope dimming and light source management functions, and also has stable output color temperature and Light intensity. The package comes with exclusive tools to easily replace the original light source accessories.

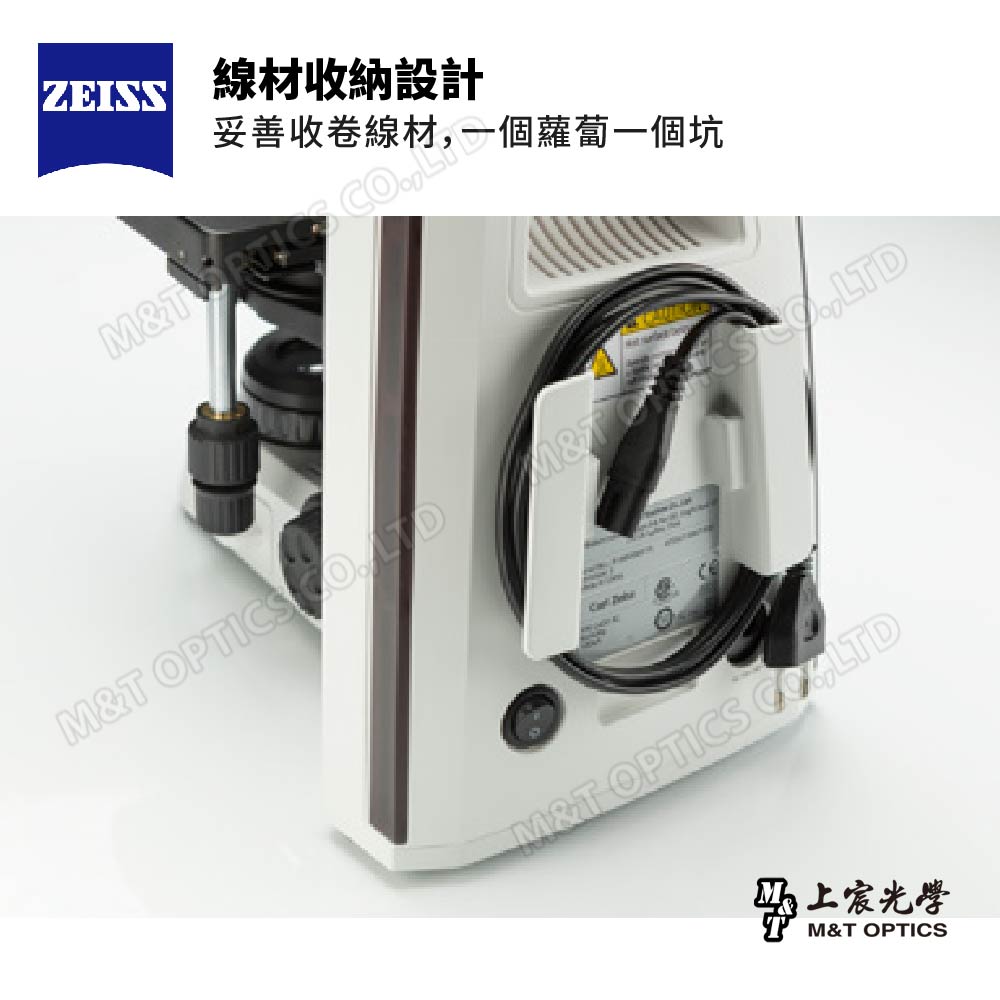

Rewind the wire properly

The wire storage design on the back of the machine provides the ultimate use of space. One carrot and one pit to avoid wire loss.

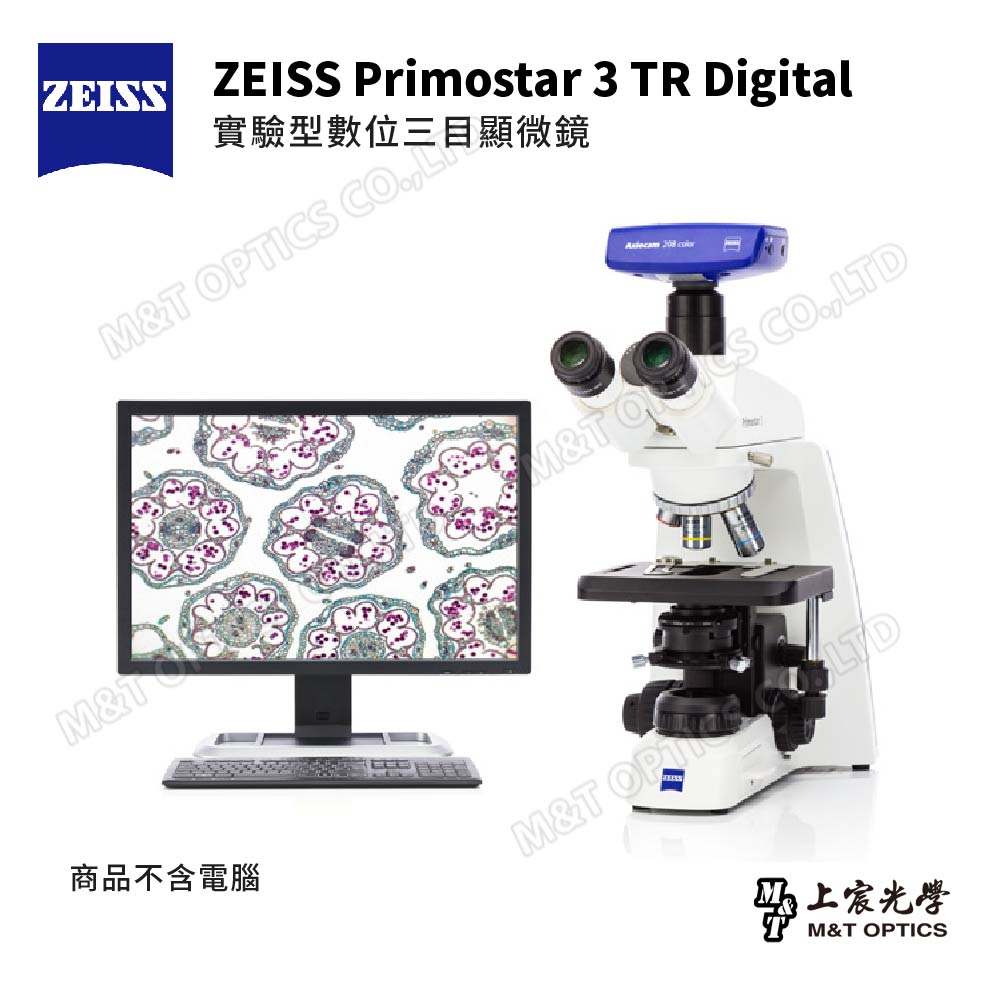

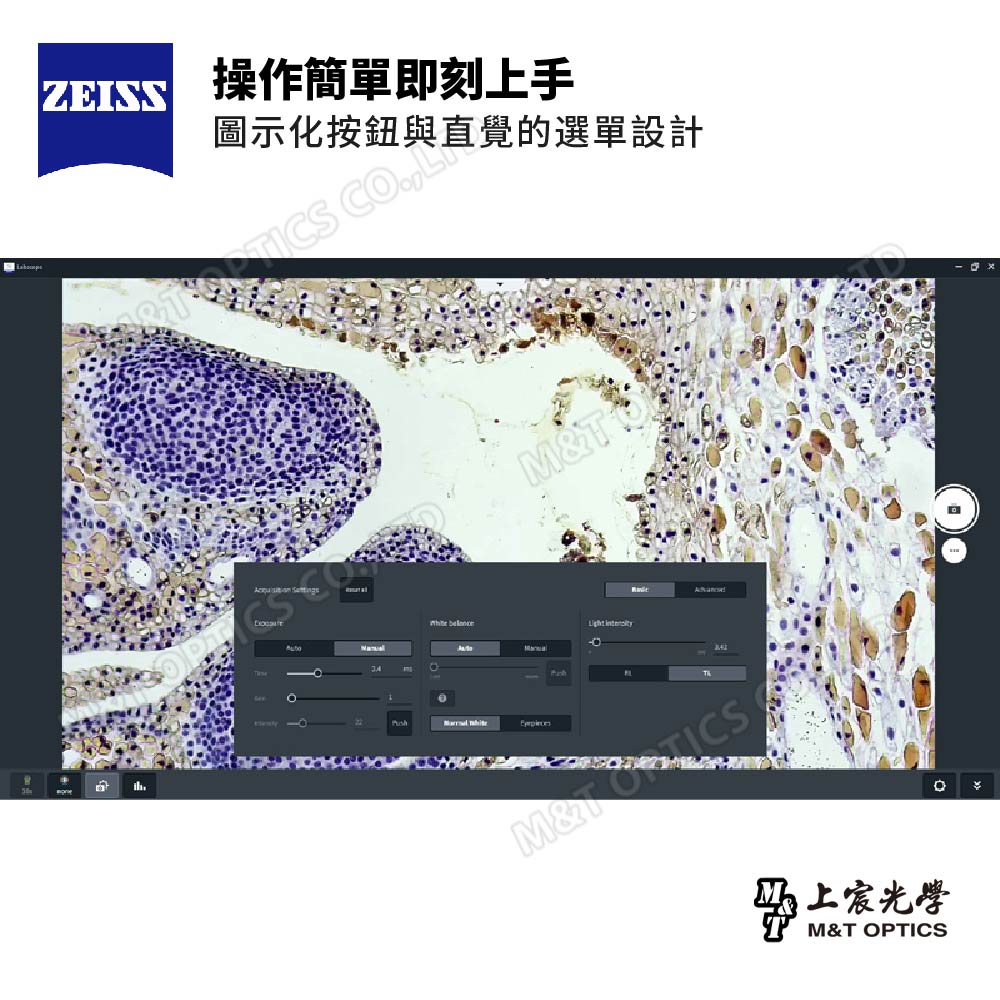

Instantly record your learning and observations

ZEISS Primostar 3 TR Digital can instantly output images under the microscope after being connected to the screen, and can quickly take pictures, videos and image processing. The operation interface has built-in scale, measurement and up to 15 kinds of annotation functions to prepare for the subsequent scientific analysis. Be fully prepared and use a variety of preset templates to quickly compile observation reports for easy sharing and recording.

Split windows for image comparison

The image file and the real-time microscope screen can be opened at the same time, and the two screens can be displayed at the same time to compare samples with each other and facilitate teaching demonstrations. When shooting, you can also capture the images in the split screen, output the observation report and annotate it.

Virtual laser pen function

The virtual laser pen function can be activated, and the light point of the virtual laser pen can be projected onto the large screen with a finger or cursor on the connected device to attract students' attention and guide them to pay attention to small structures and interesting details.

Augmented Reality Image-Tablet Only

Introducing the auxiliary function of AR augmented reality technology, combined with the rear lens image of the tablet, allowing you to compare the microscopic image being taken with books or charts, or overlay it on white paper to describe your observations Sample structure.

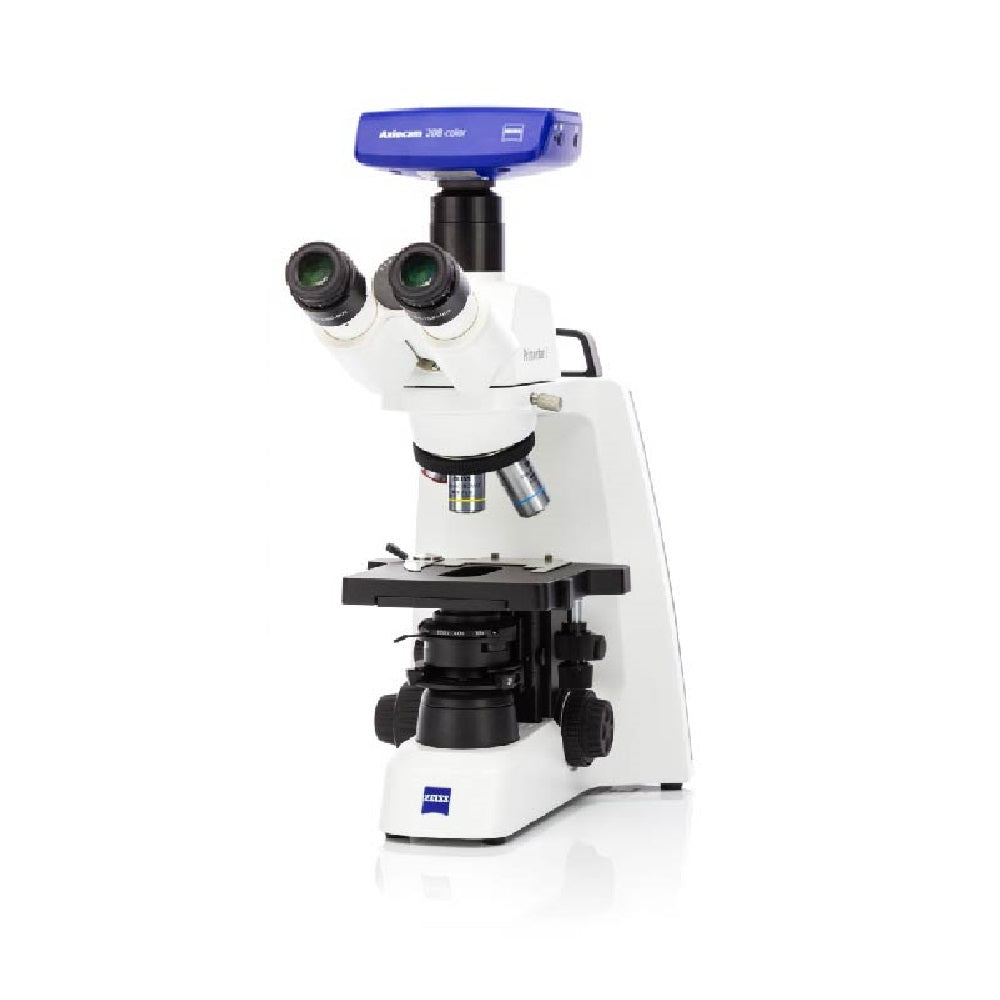

ZEISS Primostar 3 TR Digital parts description

Observation sample sharing

Filbert - brightfield observation, 40x objective magnification

Observation sample sharing

Rabbit tongue taste buds - phase contrast observation, 40x objective lens magnification

Observation sample sharing

Cross-section of vascular bundles of Lily of the Valley flower - using Zeiss original fluorescence kit, 10x objective lens magnification

ZEISS Primostar 3 Microscope Dimensional Drawing

ZEISS Primostar 3 series microscope configuration diagram

Product specifications

Comprehensive magnification	40X~400X
Trinocular observation head	Tilt angle 30°, visual field of view 20°, 50:50 light split, adjustable observation height 375-425mm, third eye connected to RD2 focus reducer and HDC588 microphotography system
pupillary distance	Adjustable pupillary distance 48~75mm, adjustable parallax (diopter) of left eye eyepiece seat
eyepiece	WF10X/22mm(φ30)*2pcs
objective lens	4X working distance WD=12mm, 10X, working distance WD=4.51mm, 40X, working distance WD=0.61mm
nose chakra	RMS W0.8 four-hole retractable type
Focusing system	Coaxial coarse and fine adjustment, with elastic adjustment ring, Z-axis adjustment wheel full stroke 15mm including limit device, coarse adjustment accuracy 45mm/revolution, fine adjustment accuracy 0.5mm/revolution
Stage	Mechanical stage, appearance size 140x140mm, XY axis movement range up to 75x40mm, rack is hidden design to avoid exposure
condenser	Fixed Abbe NA0.9/1.25, built-in aperture
Transmitted light source	Adjustable brightness 3W LED light source circuit, color temperature 5600K
power supply	External DC12V power supply, applicable voltage 100~240 V
physical dimension	208×296×398mm
weight	8.5-12kg
Microcamcorder	ZEISS Axiocam 208 Smart Microscope Camera
