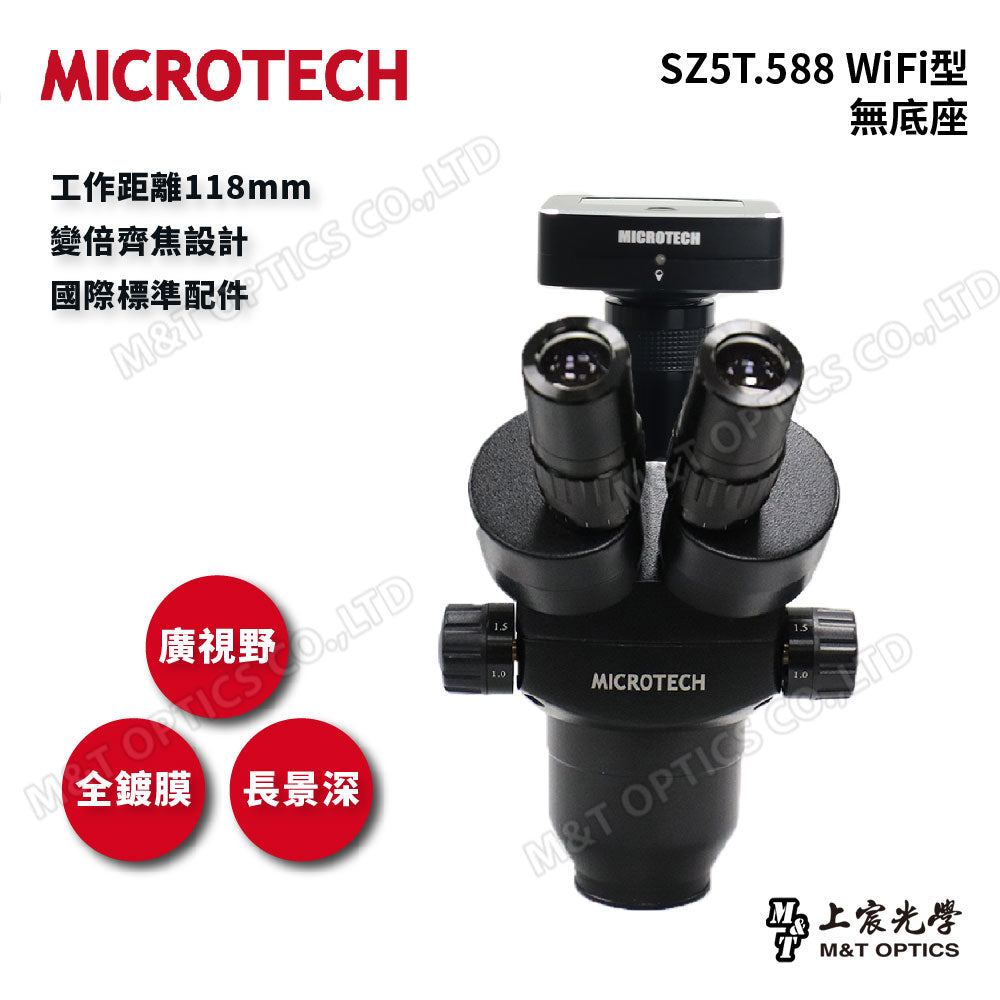

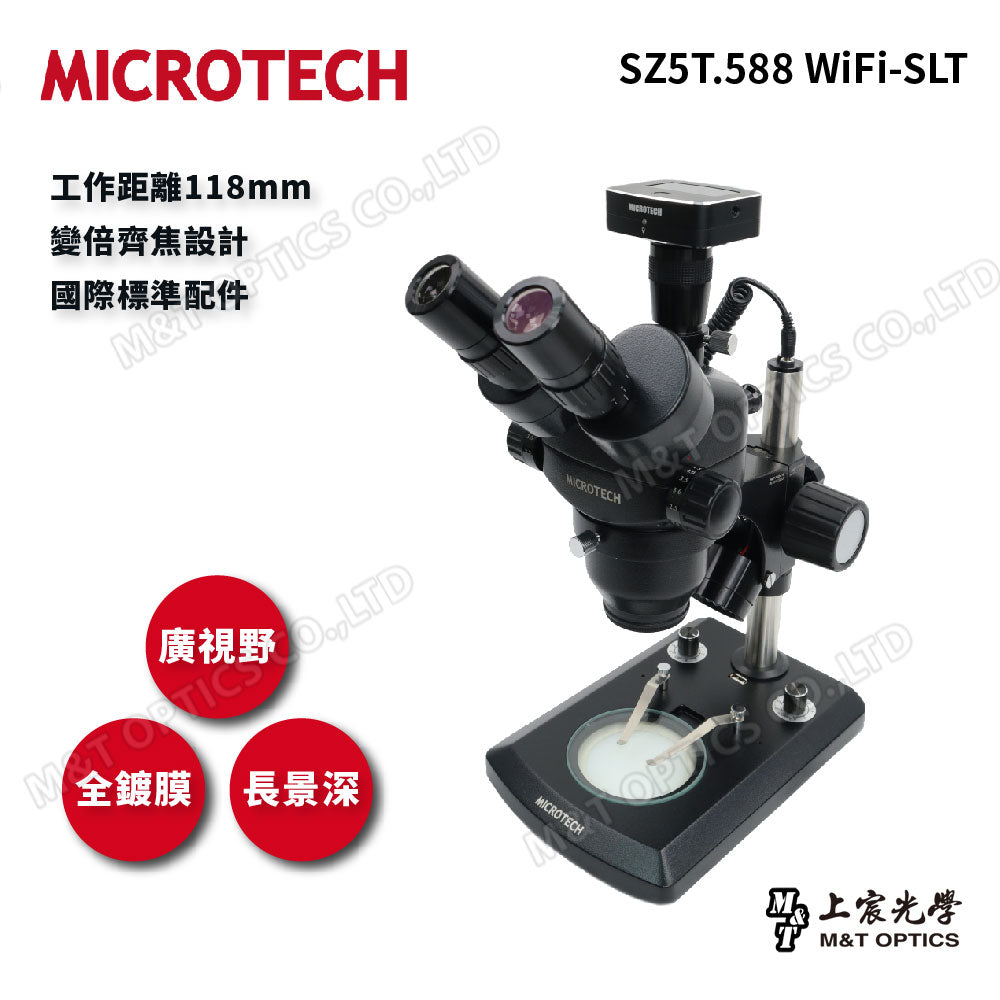

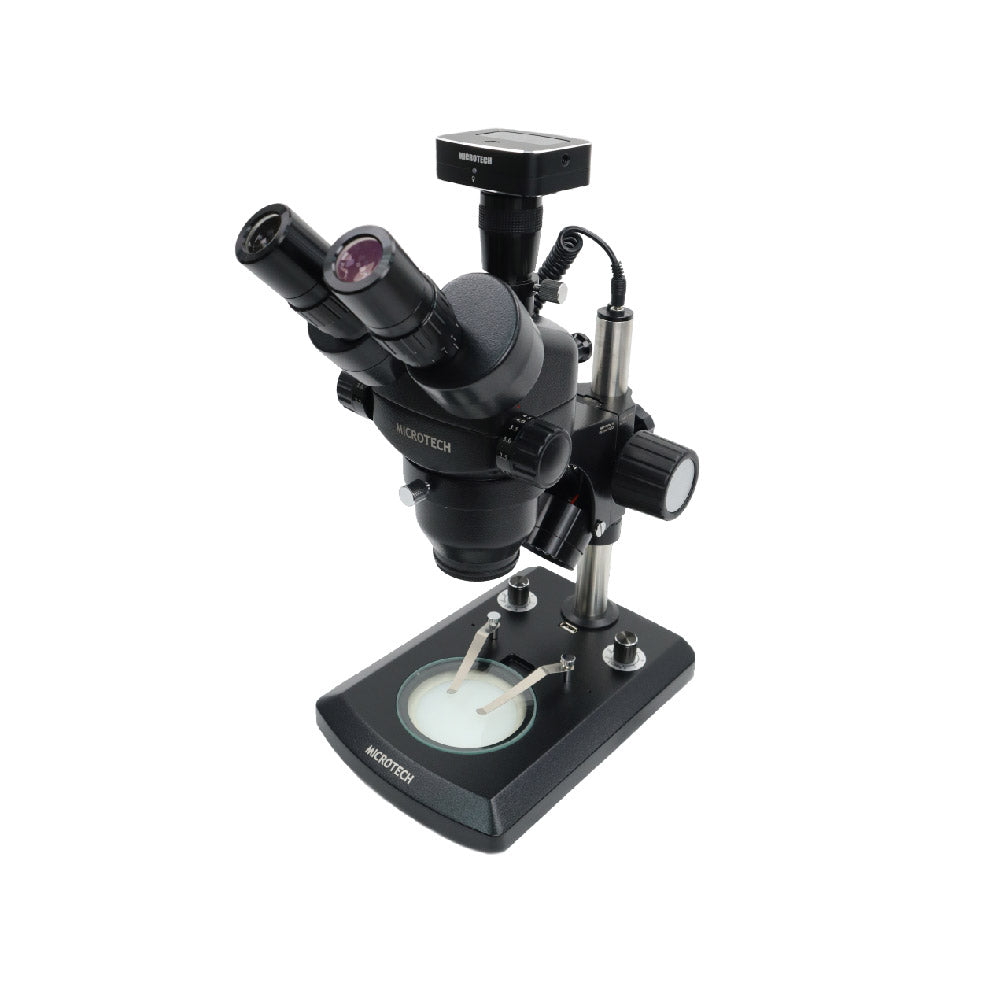

MICROTECH SZ5T.588 WiFi wireless microphotography multifunctional digital stereo (anatomy) microscope - top and bottom light base combination
Order number
N/A
Couldn't load pickup availability
Product specifications
|
Optical system |
Greenough |
|
Comprehensive magnification
|
7X～45X |
|
Zoom ratio
|
1:6.4 |
|
Observation head
|
Trinocular |
|
Visual tilt angle
|
45° |
|
pupillary distance range
|
52mm～76mm |
|
Parallax adjustment
|

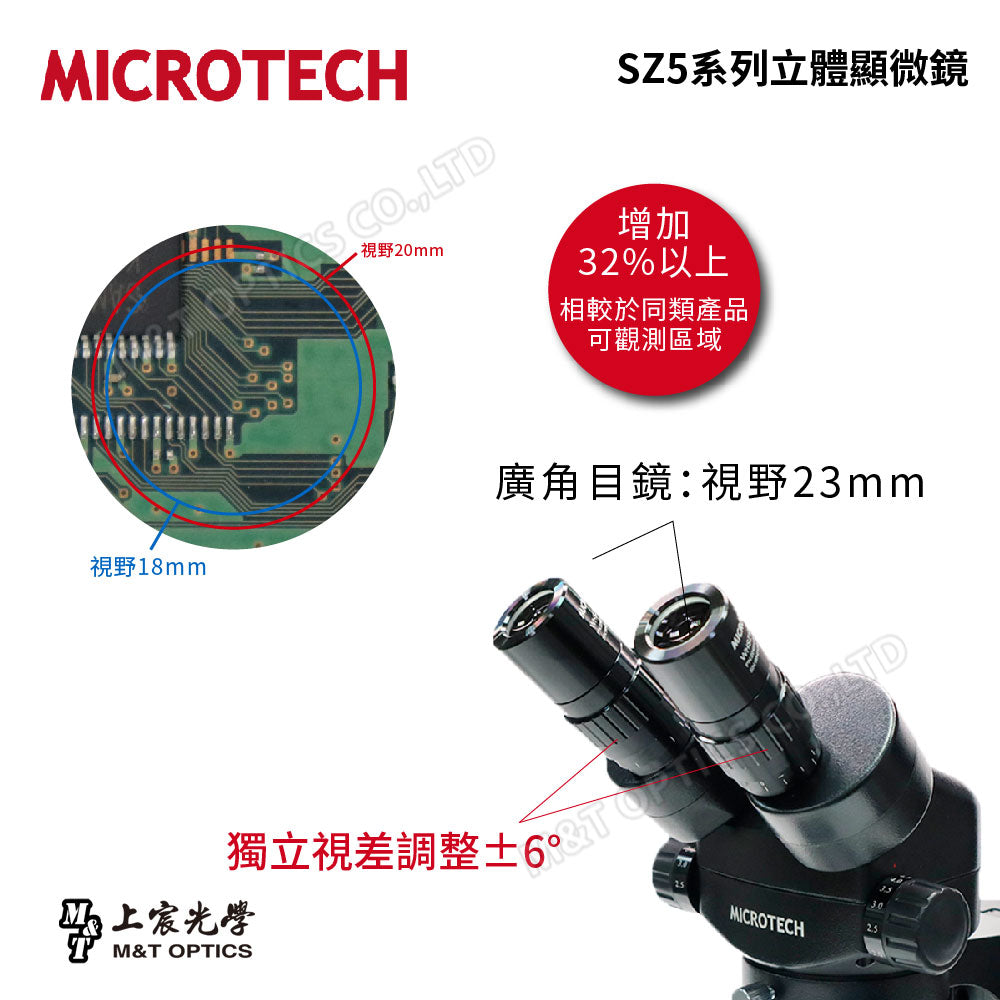

Binocular tubes have independent adjustment ±6° |
|
eyepiece
|
WHSZ10X/23 field of view Φ23mm |
|
objective lens
|
0.7X～4.5X |
|
Zoom mode
|
ZOOM zoom. Fixed design. Horizontal zoom wheel type |
|
Protective glass
|
have |
|
Auxiliary objective thread
|
M48X0.75 |
|
working distance
|
118mm |
|
Focusing system
|
Single speed.Rack guide |
|
Column type
|
Cylindrical column diameter 25mm |
|
Stage type
|
Integrated top and bottom light base with built-in light source and camera power supply hole |
|

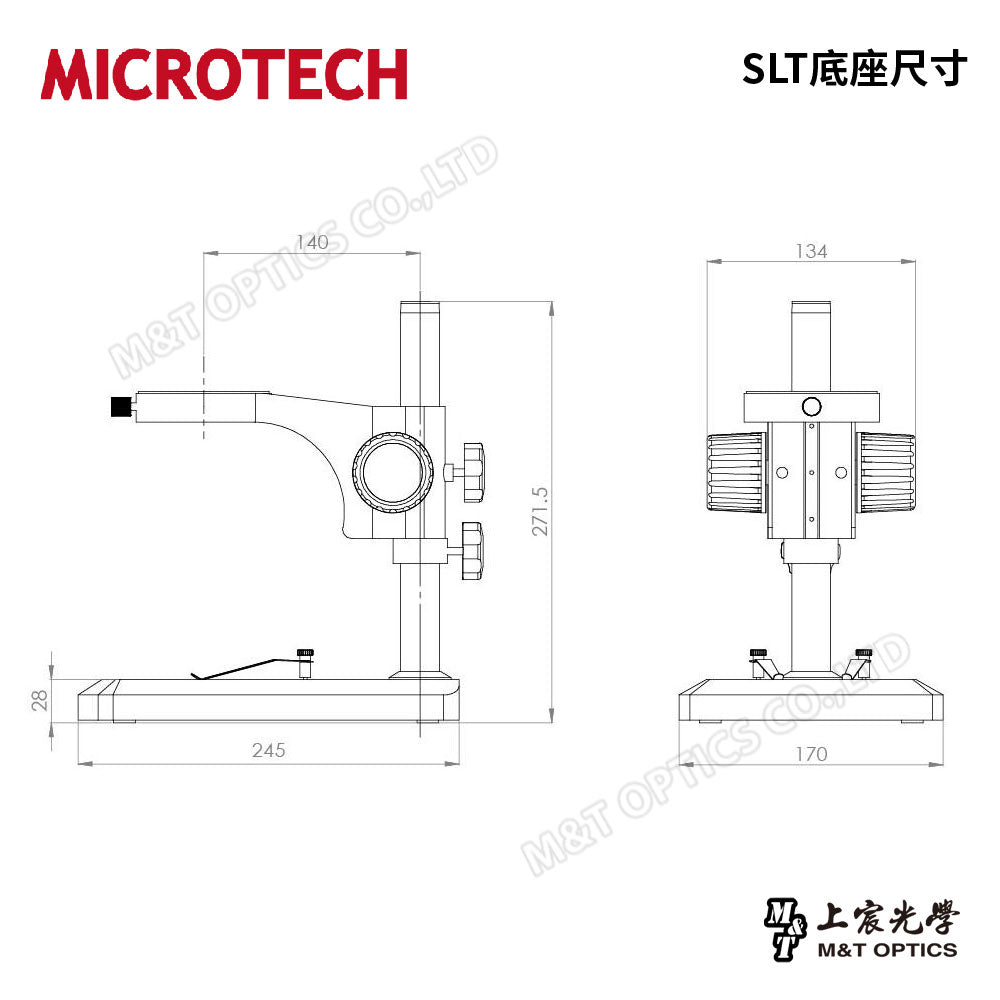

Stage size
|
SLT type (width 170mmX depth 245mm) |
|
Transmitted light source
|
Yes, can be dimmed independently |
|
Reflective light source
|
Yes, side projection type, can be independently dimmed and the projection angle can be adjusted |
|
Power Systems
|
Input AC100~240V to DC12V3A DC, built-in DC5V2AUSB power supply hole 1, DC12V2A power supply hole 1 |
|
Camcorder picture quality
|
8,000,000 pixels |
|
Photosensitive element size
|
Photosensitive element 1/1.8＂ |
|
Image output
|
Can be connected to mobile phones, tablets and computers, and can switch USB transmission |
|
System support
|
Supports Apple iOS and Android dual systems |
| Photography function | Capable of taking and recording microscopic images |
|
Measurement software
|
Supports MicroCam V5 software to mark scale and dimensions (download from official website) |
