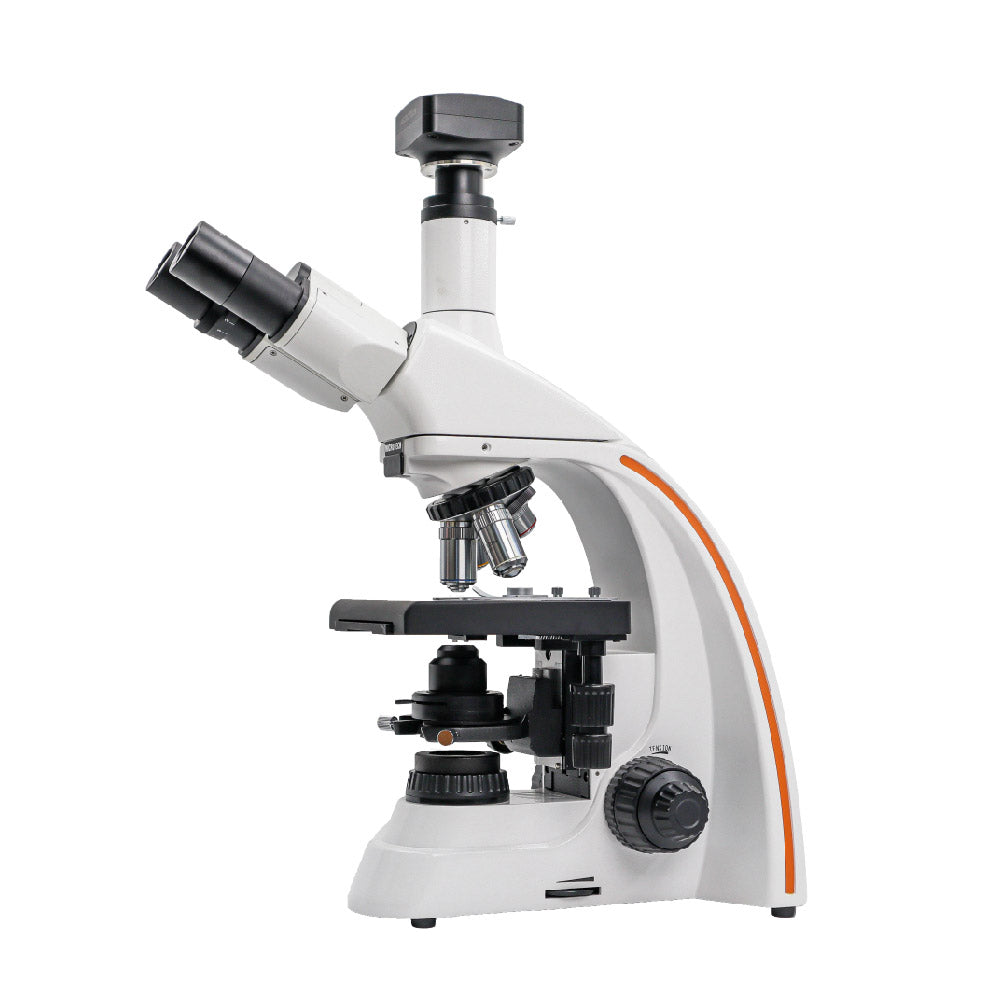

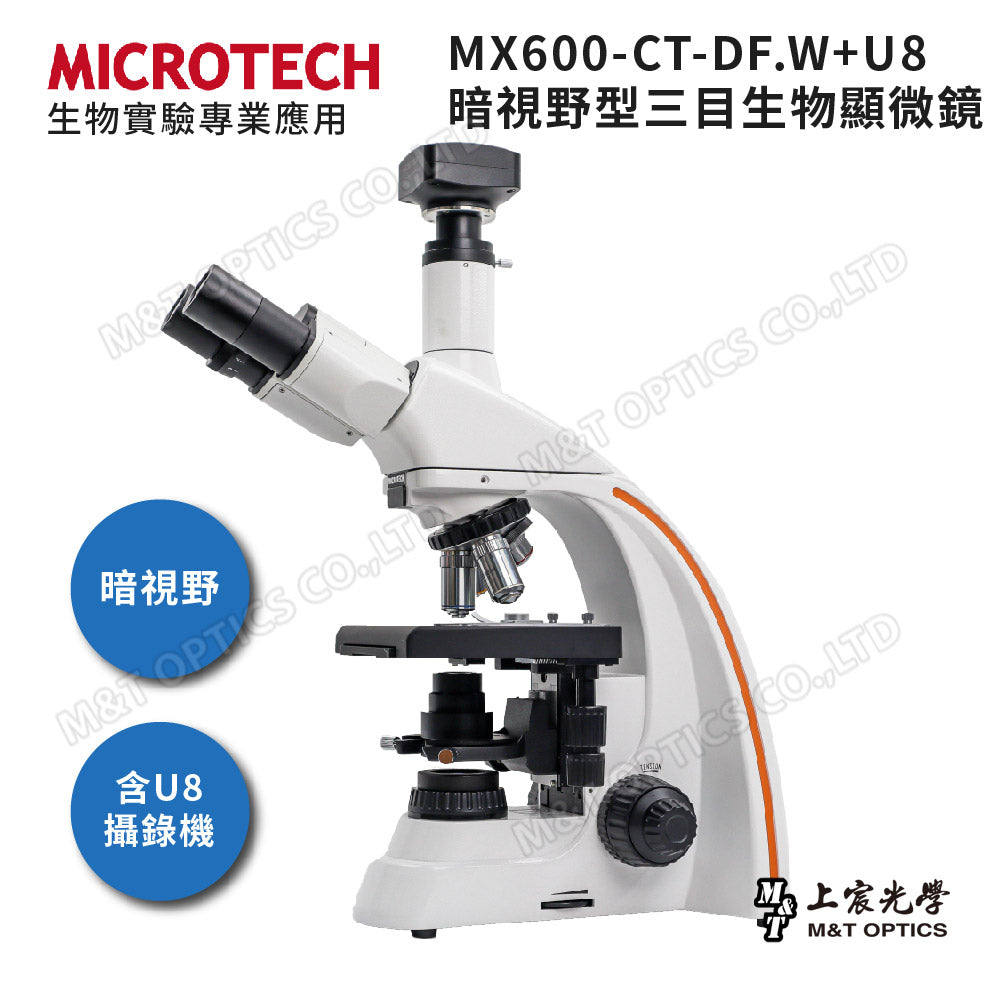

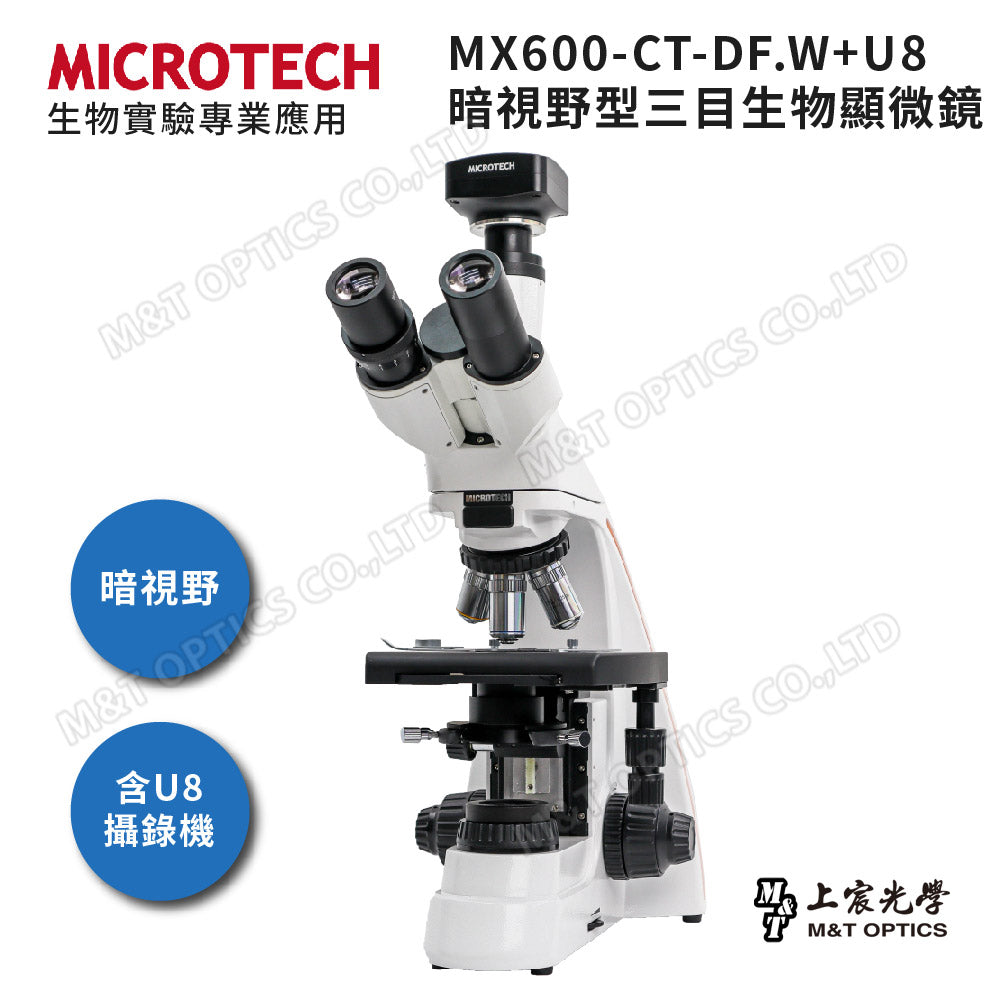

MICROTECH MX600-CT-DF.W+U8 dark field trinocular biological microscope - original factory warranty for one year

Order number

2241200189+2210500521+2244500045

Product specifications

Optical system	∞Infinite parallel optics
eyepiece	WF10X field of view φ22mm pair.

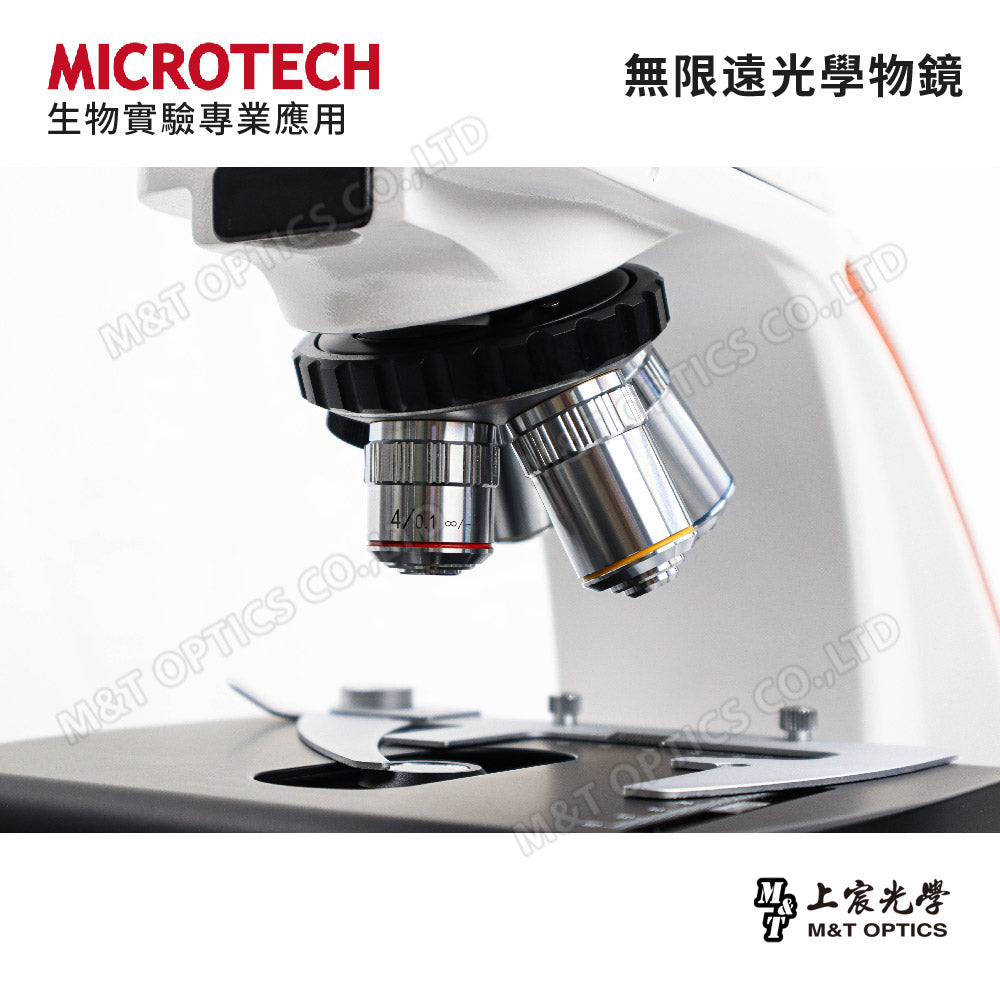

PLAN plan high order achromatic objectives	PL4X/0.10—∞/0.17 WD21mm. PL10X/0.25—∞/0.17WD5mm. PL20X／0.40—∞／0.17WD10mm. PL40X／0.65—∞／0.17WD0.66mm.

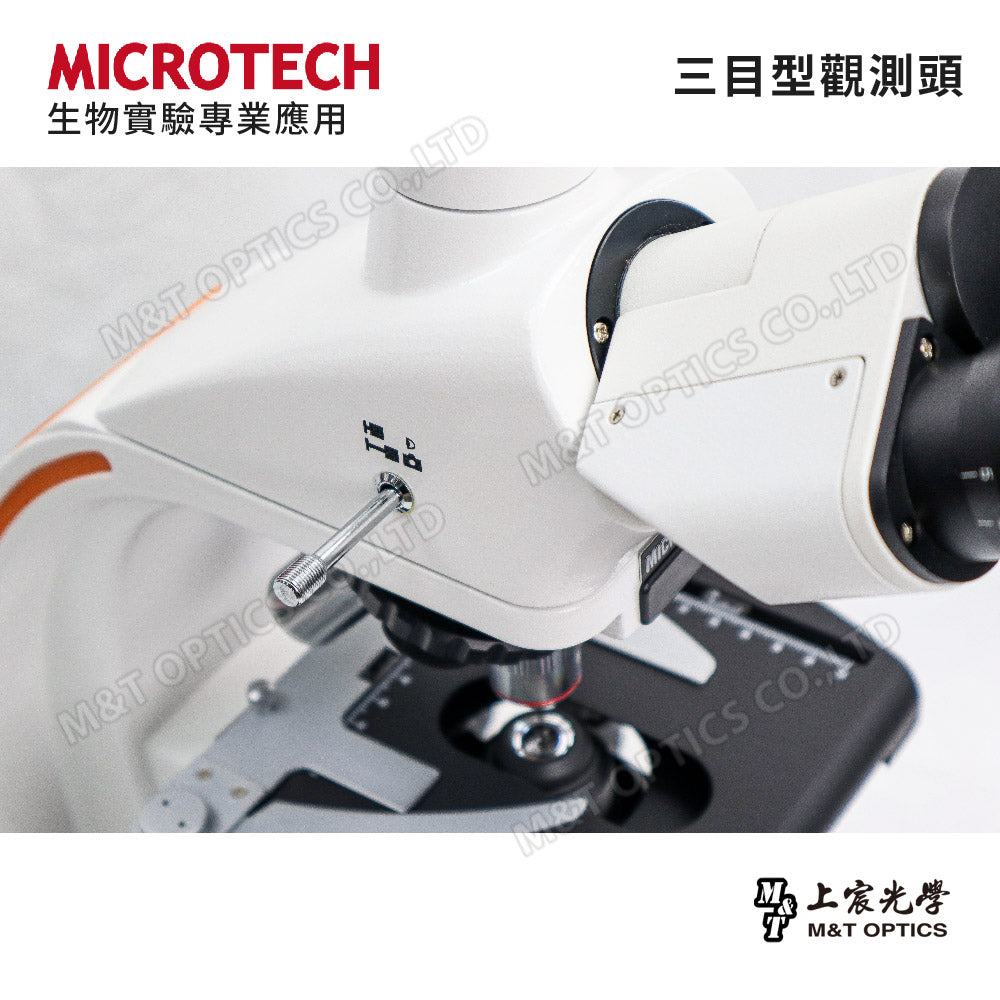

eyepiece tube	Trinocular split ratio 100, tilt 30 degrees, interpupillary distance adjustment range 53 ~ 75mm.

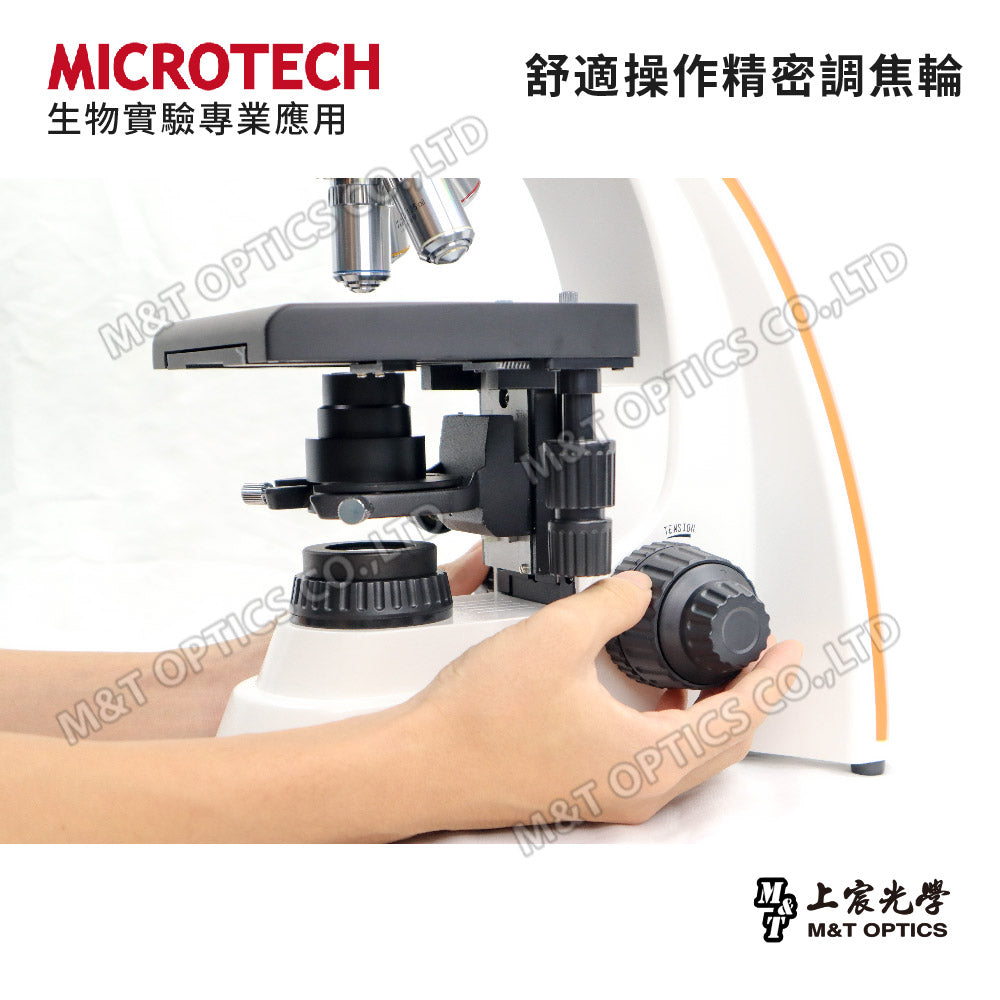

Coarse and fine coaxial focusing	Equipped with locking and limiting devices, the micro-movement value is 2μm.

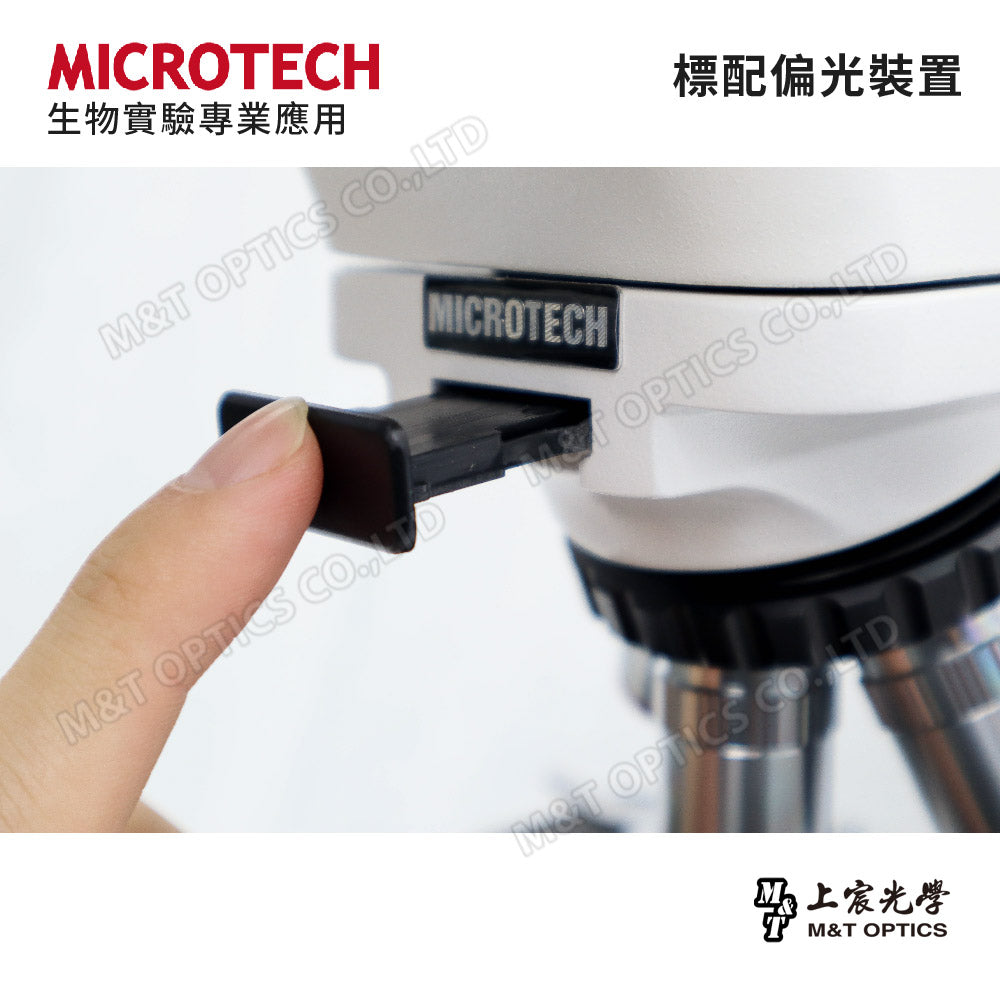

nose chakra	Five-hole retractable nose wheel converter, equipped with a simple polarizing analyzer.

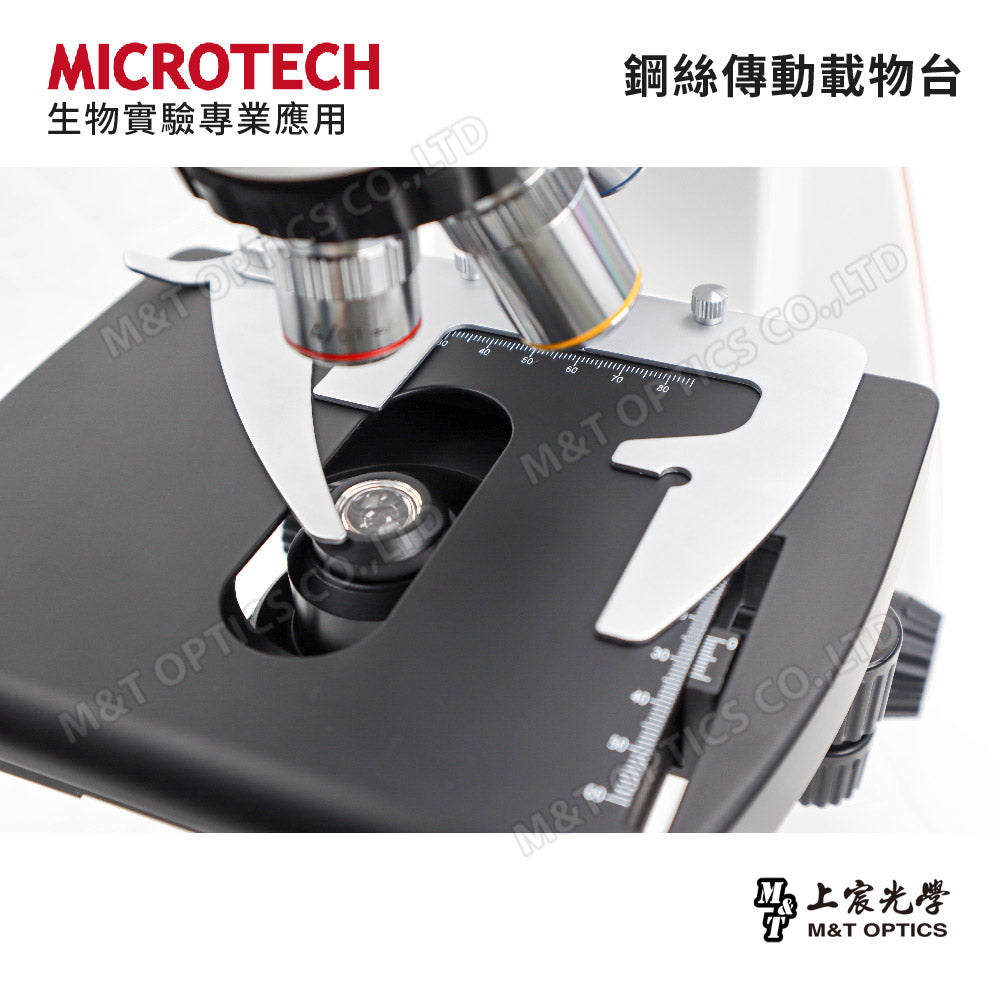

Wire driven stage	Size 180x140mm, stroke 75x50mm, no rack exposed.
condenser	Dry darkfield condenser.
transmitted light source	White LED brightness is adjustable.
transmission filter	Frosted glass x1.
light collector	Transmissive plano-convex lens system, adjustable Kohler light field, attached with simple polarizing polarizer.
Appearance size mm	400x200x436mm, eye height 404mm.
power supply	Universal wide voltage type 85～265V, 50～60Hz.
