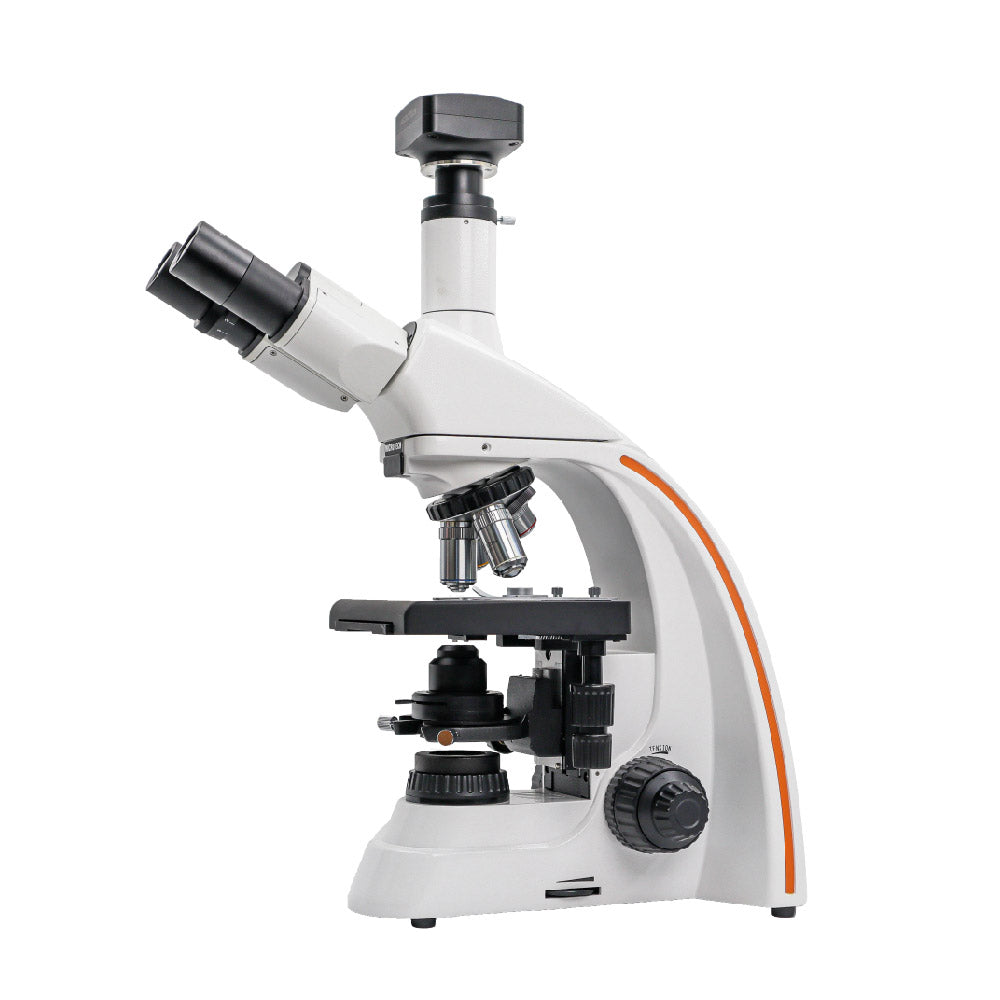

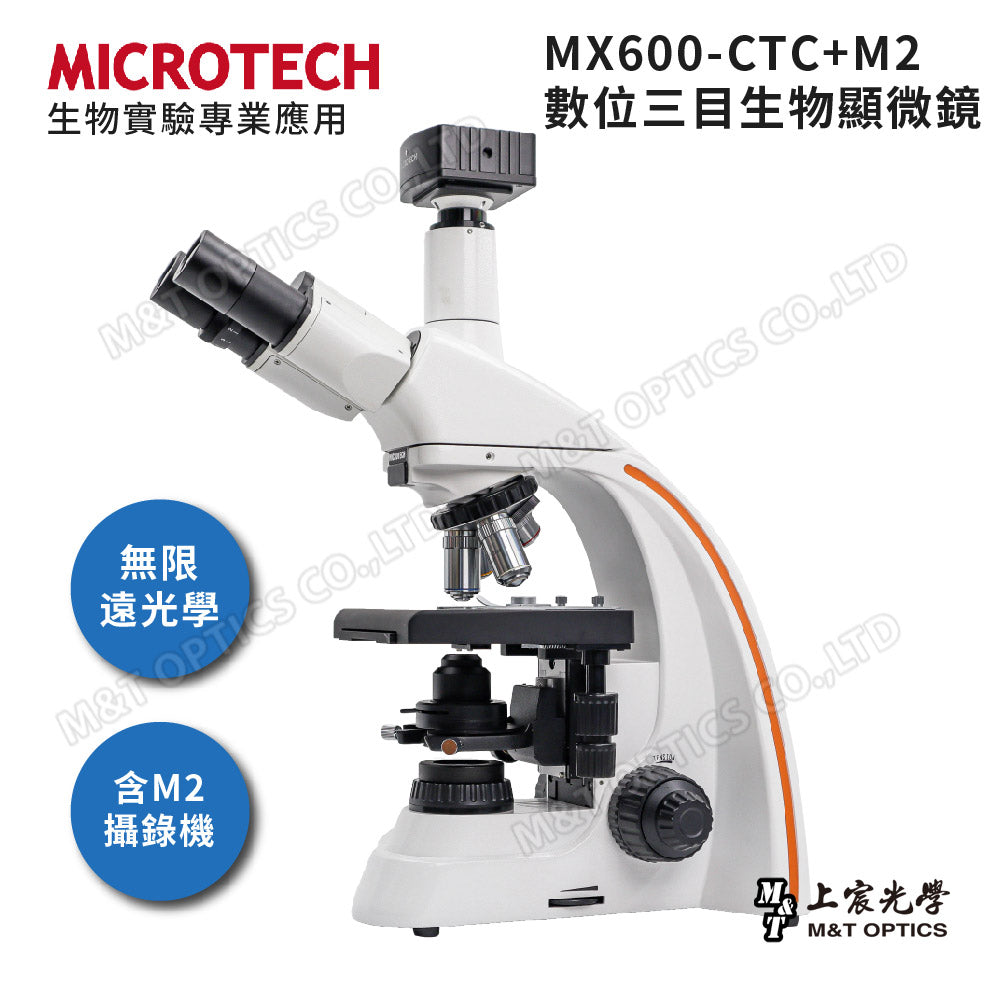

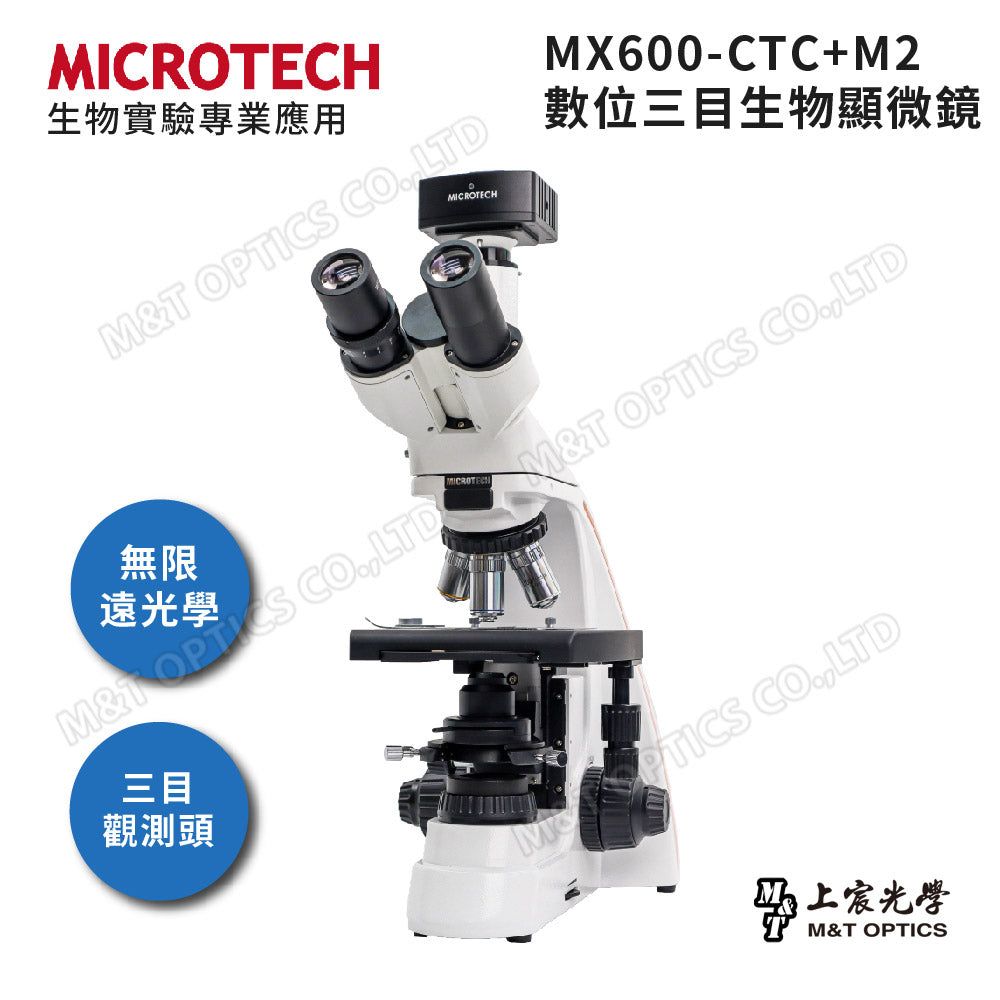

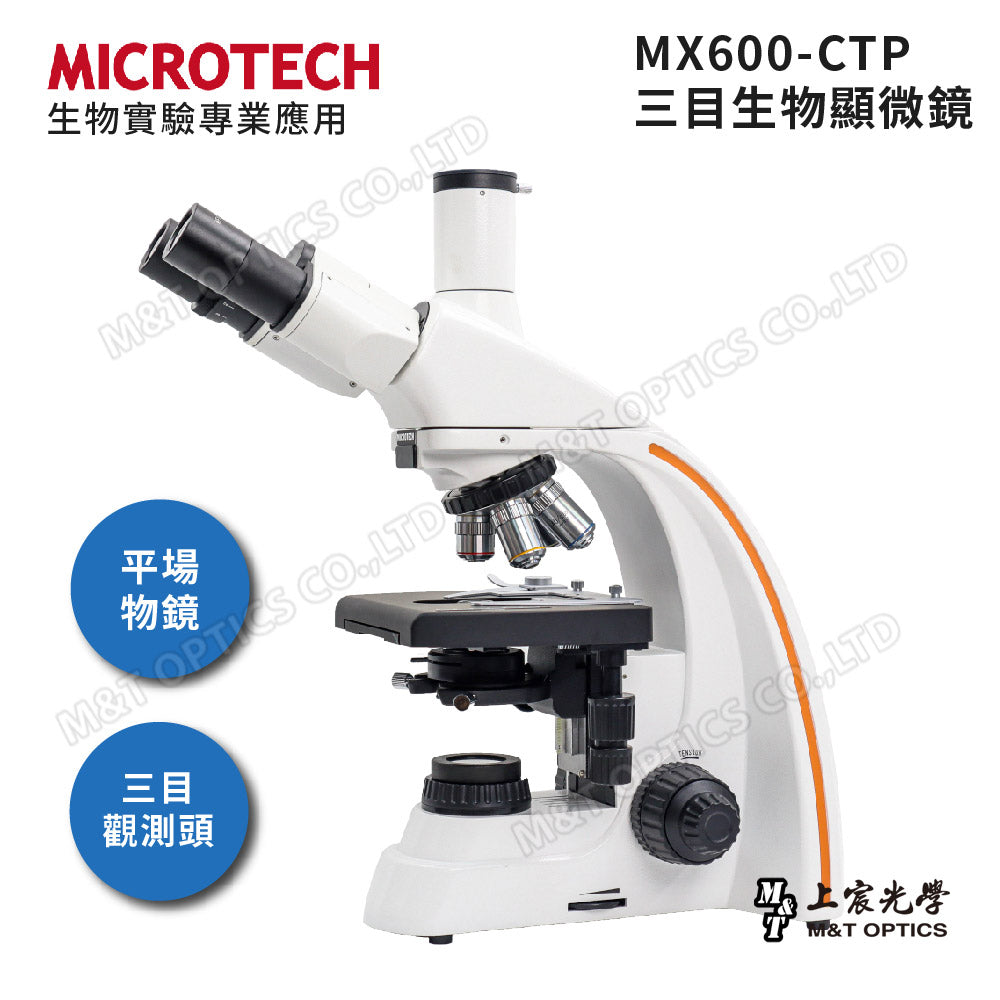

MICROTECH MX600-CTC/P+M2 trinocular biological microscope
Order number
CTC standard version: 2241200157 and CTP flat version: 2241200157
Couldn't load pickup availability
Recommended to purchase
Microscope related consumables
Engraving eyepiece (item number: 2201100518)
MICROTECH LMT-1 Lens Wiping Pen (Article No.: 2248100004)
MiniPC-V5 version mini computer (item number: 2244500026)
German Mirror Oil-8ml (Article No.: 2201800044)
Product specifications
| Optical system | ∞Infinite parallel optics |
|
eyepiece
|
WF10X field of view φ22mm pair |
|

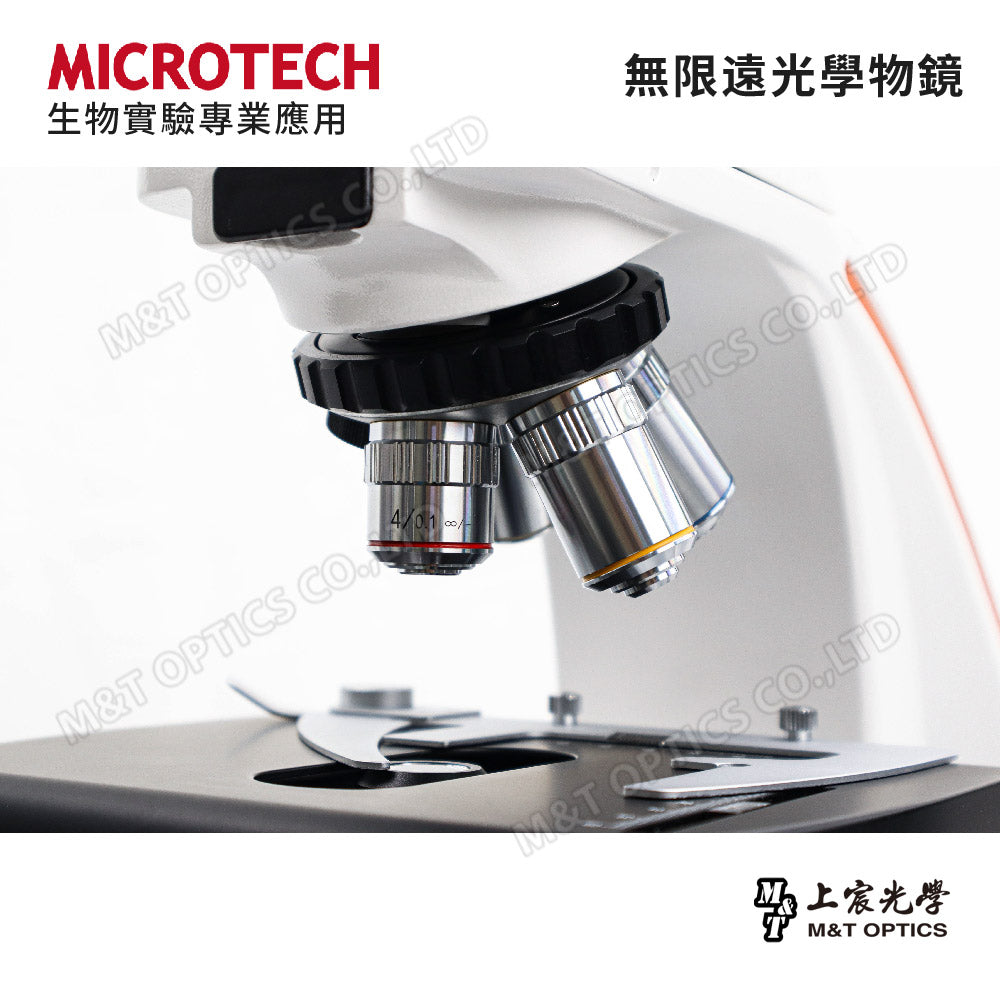

PLAN plan high order achromatic objectives
|
PL4X/0.10—∞/0.17 WD21mm. PL10X/0.25-∞/0.17WD5mm. PL20X／0.40—∞／0.17WD10mm. PL40X／0.65—∞／0.17WD0.66mm. PL100X／1.25—∞／0.17WD0.36mm |
|

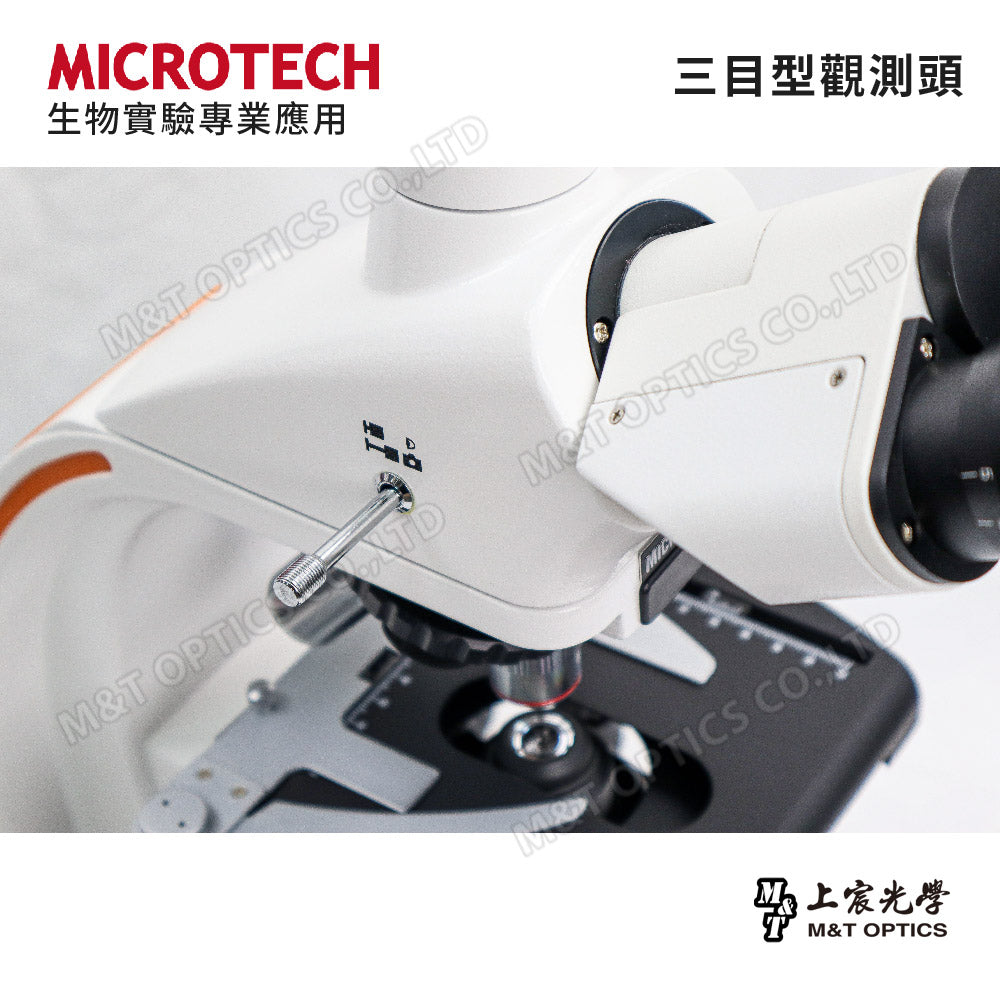

eyepiece tube
|
Trinocular split ratio 100, tilt 30 degrees, interpupillary distance adjustment range 53~75mm |
|

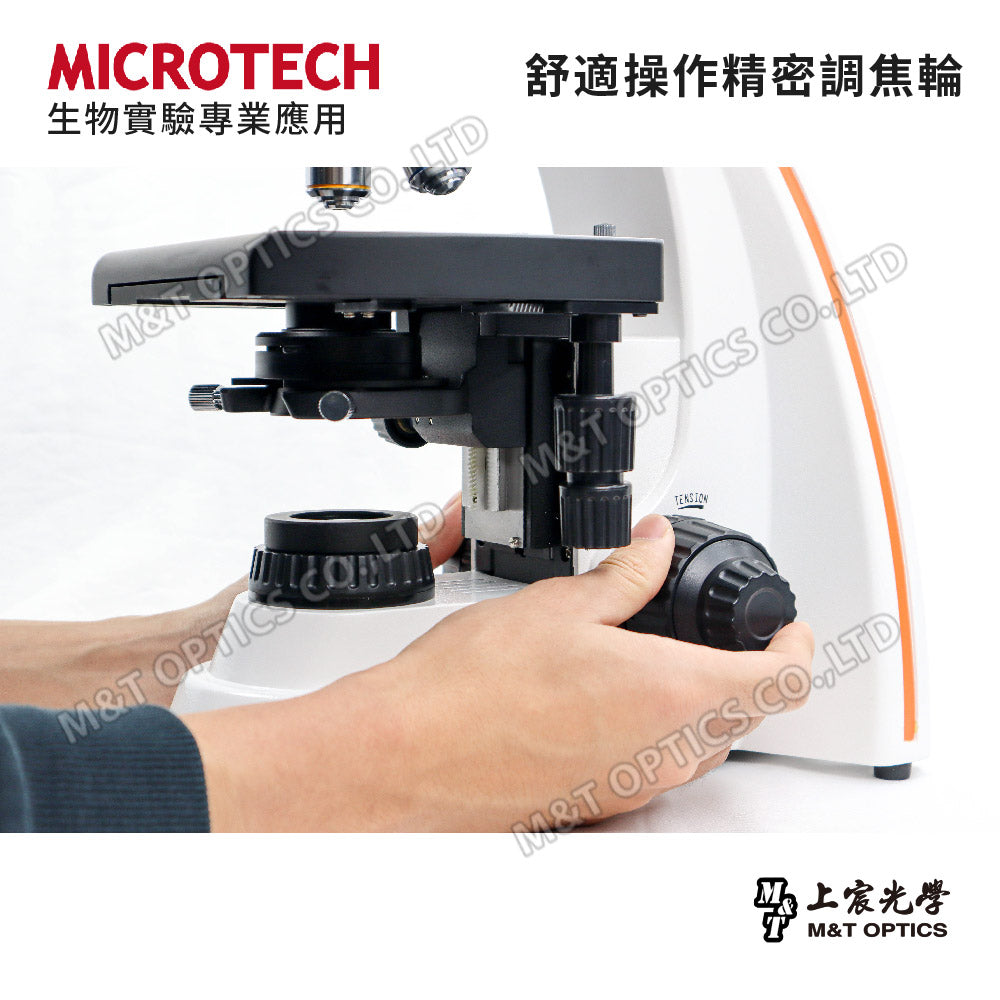

Coarse and fine coaxial focusing
|

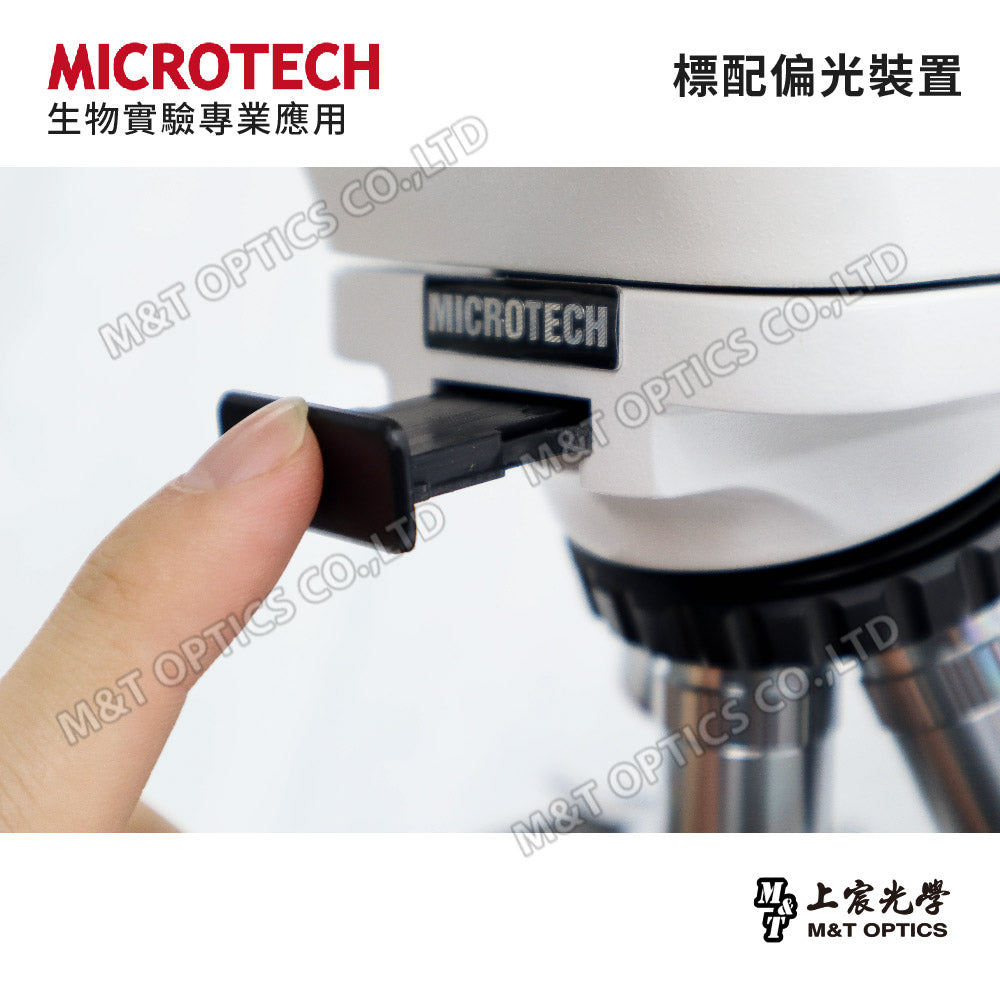

Comes with locking and limiting device, micro-motion grid value 2μm, five-hole retractable nose wheel converter, built-in simple polarizing analyzer |
|

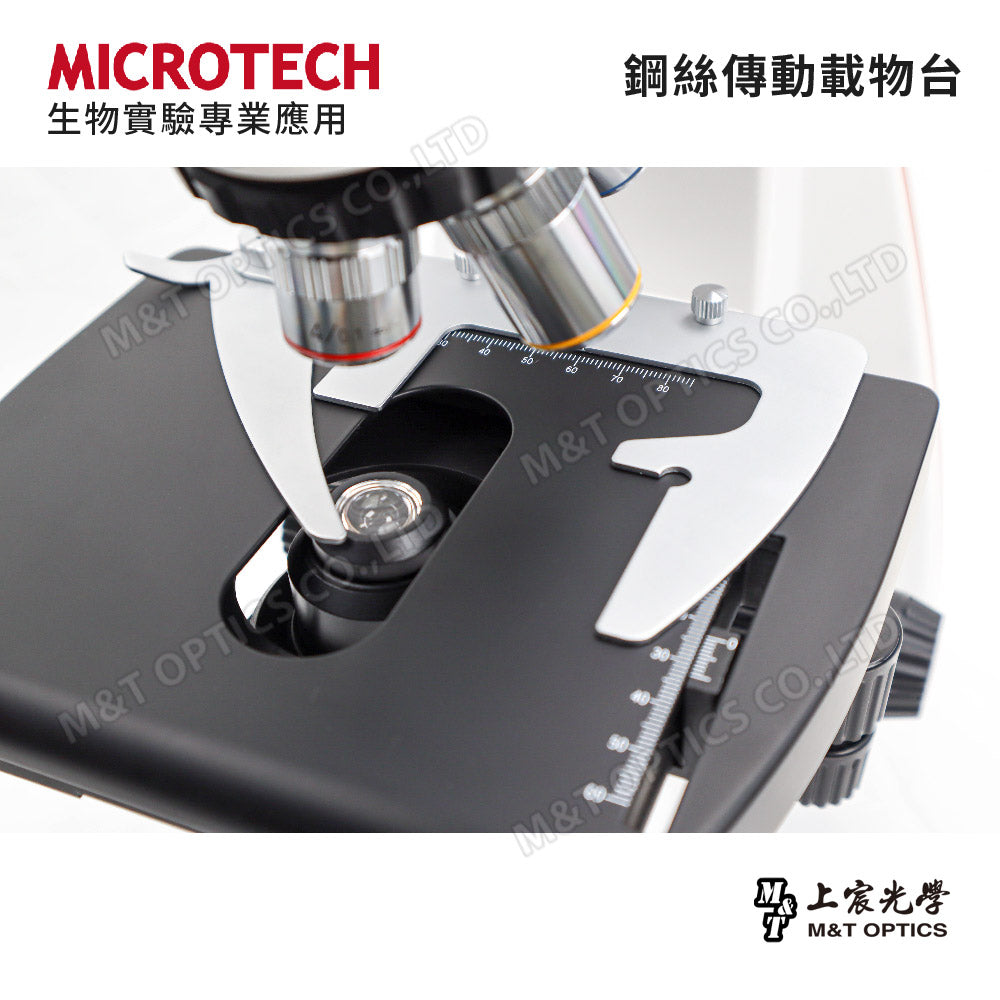

Wire driven stage
|
Size 180x140mm, stroke 75x50mm, no rack exposed |
|
Transmissive Abbe condenser
|
NA1.25, adjustable up and down, built-in field diaphragm |
|
transmitted light source
|
White LED brightness adjustable |
|
transmission filter
|
Frosted glass x1 |
|
light collector
|
Transmissive plano-convex lens system, adjustable Kohler light field, attached with simple polarizer |
|
Appearance size mm
|
400x200x436mm eye height 404mm |
|
power supply
|
Universal wide voltage type 85～265V, 50～60Hz |
