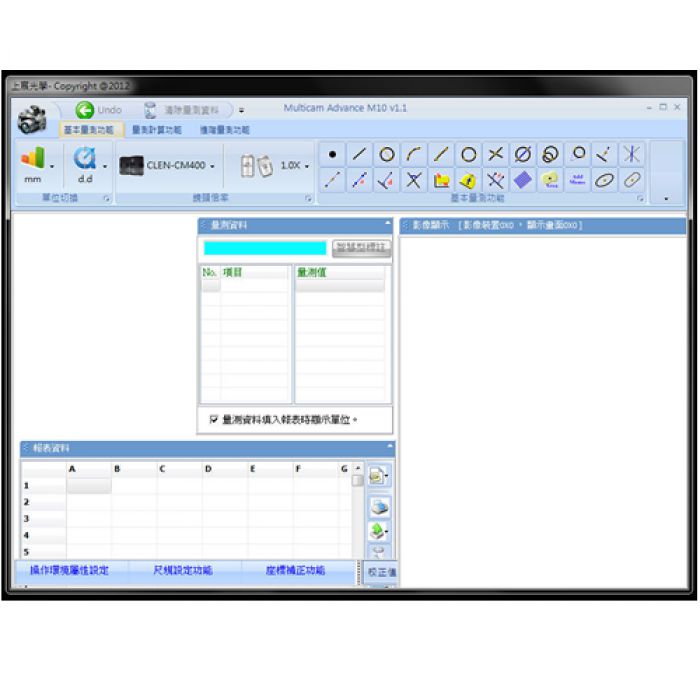

MULTICAM M10 is a set of micro-measurement software tailor-made according to the research and development needs of industrial quality control. It has complete measurement performance and is designed with user logic concepts. Intuitive buttons make it easier to operate and use, and it has a high degree of system compatibility. , suitable for optical decoders of major brands, and is extremely accurate and reliable when used in digital image measurement of microscopes. It is suitable for academic research, industrial R&D, quality assurance, and other units that require microscopic measurement technology.

Specification--

1. Machine system management

1. System functions: Set communication port, quadrant, measurement dimension 2, linear compensation, image proportion correction.
2. Lens data: Create or delete multiple groups of lens names, and define multiple groups of magnification names.
3. Correction function: optical correction (orthogonal or arbitrary straight line), image proportion correction.
4. Measurement buffer settings
5. Operating environment properties: Set the font, color, and line width of all display object cursors to create a unique measurement environment. You can change the origin display, alignment line, and measurement component properties.
6. Ruler setting: horizontal ruler, vertical ruler, cross ruler, scale ruler, division number and decimal can be set.
7. Coordinate correction: coordinate translation and rotation correction settings.
8. Measurement settings: unit switching mm/um/inch/mil/, lens selection, magnification selection.
9. Image window: resolution switching, cross alignment line, dynamic/static switching, importing images, scale bar - vertical, horizontal, cross, saving images, image parameter settings.

2. Measurement tools

1. Basic measurements: points, lines, arcs, circles, regression lines, regression arcs, regression circles, line intersections, line-circle intersections, intersections of two circles, tangent points of circles, midpoints of points and lines, bisectors, midpoints of two points, Distance between two points, distance between points and lines, angle between two lines, rectangular measurement, vertical distance from multiple points to a line, PITCH measurement, irregular area, text input image, ellipse measurement, long groove measurement.
2. Measurement and calculation: intersection of two lines, focus of line circle, intersection of two circles, point to circle tangent point, point to line midpoint, bisector, midpoint of two points, distance between two points, angle between two lines, point to line perpendicularity Distance, two circle calculation, line circle calculation, two line calculation.
3. Automatic edge-finding detection: automatic line-finding, automatic arc-finding, automatic circle-finding

3. Auxiliary tools

1. Magnifying glass point selection: You can enlarge the image within the frame selection range (2X~5X) to make the point selection more accurate.
2. Smart annotation: Mark measurement data on graphics.
3. Data export: Measurement data and measurement images can be exported to WORD, EXCEL, and OPEN-OFFICE.
4. Form creation: Multiple sets of measurement data can be directly pasted into the system and personalized reports can be created.
5. Accuracy indicator: The system instantly displays the current measurement lens magnification and correction value.
6. Optical ruler display: Instantly capture the X, Y, Z three-axis optical ruler information of the machine and customize the display digits. Recommended machine: 2206300008GM45P-10102206300009GM45P-2010
