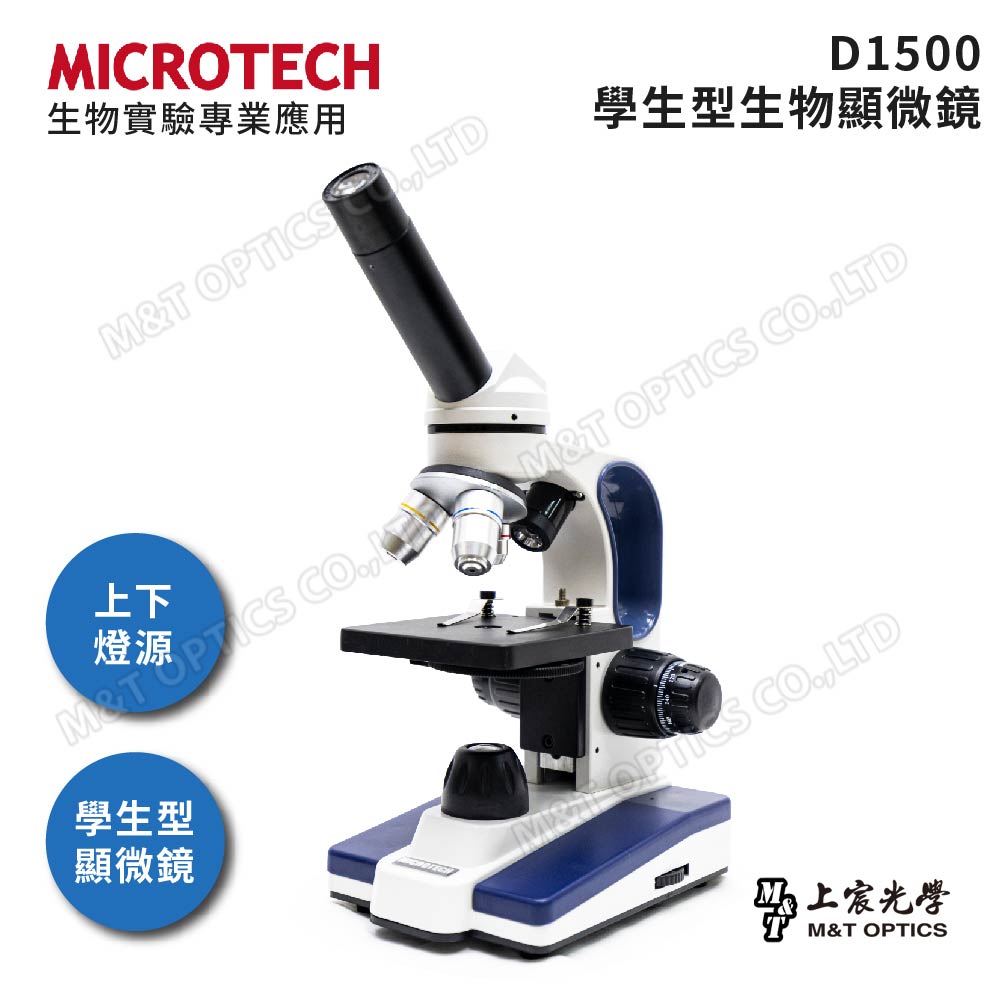

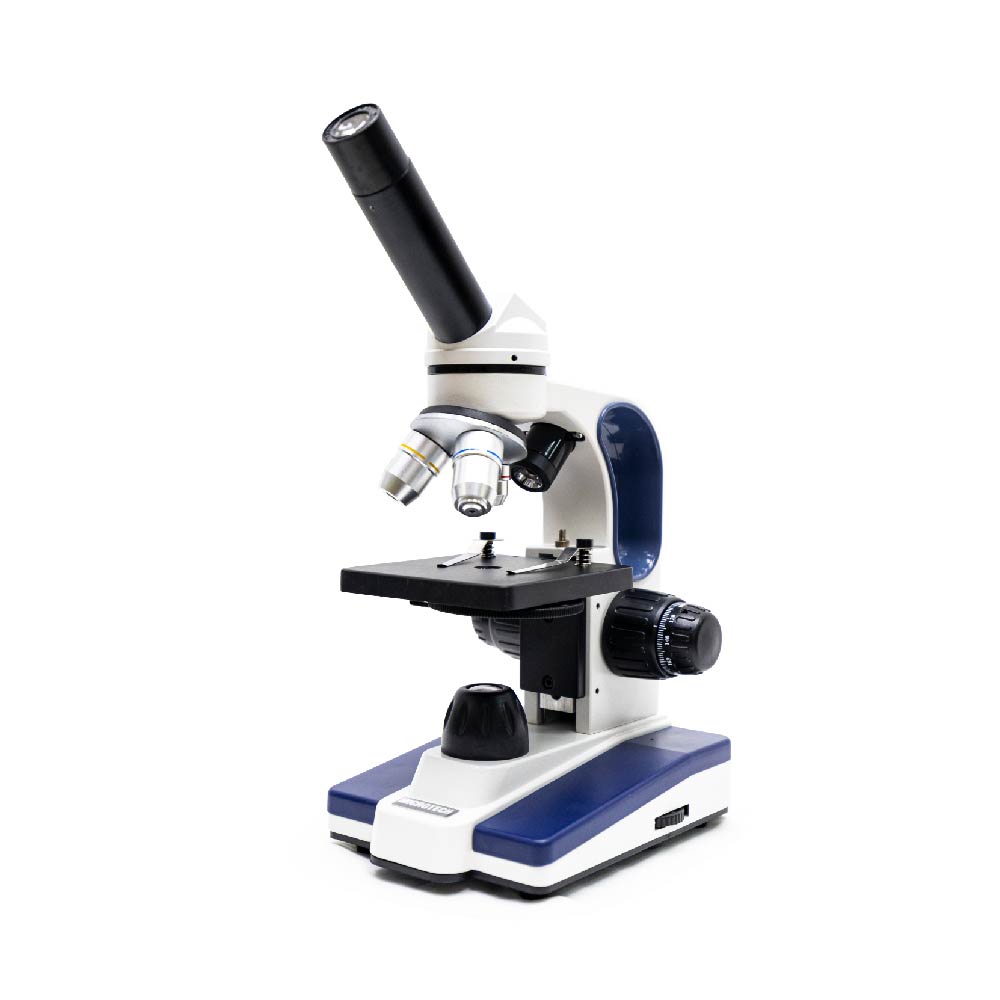

Up and down light student type biological microscope

The optical magnification is 40X~1500X, and with a lower light, it can observe translucent biological slice specimens and opaque objects. Suitable for students' biological experiments and daily observation. Unlike many entry-level microscopes, all lenses of the D1500 are made of "achromatic" grade optical glass lenses, resulting in clearer images, more vivid colors, and up to 1500X magnification. The body is made of high-strength aluminum alloy, with a strong and stable structure. With purchase, you will receive a box of slides and a cover slip (valued at RMB 200). The D1500-UPN photography kit comes with a special mobile phone camera stand for convenient and stable recording and observation.

A good partner for science education in primary and secondary schools

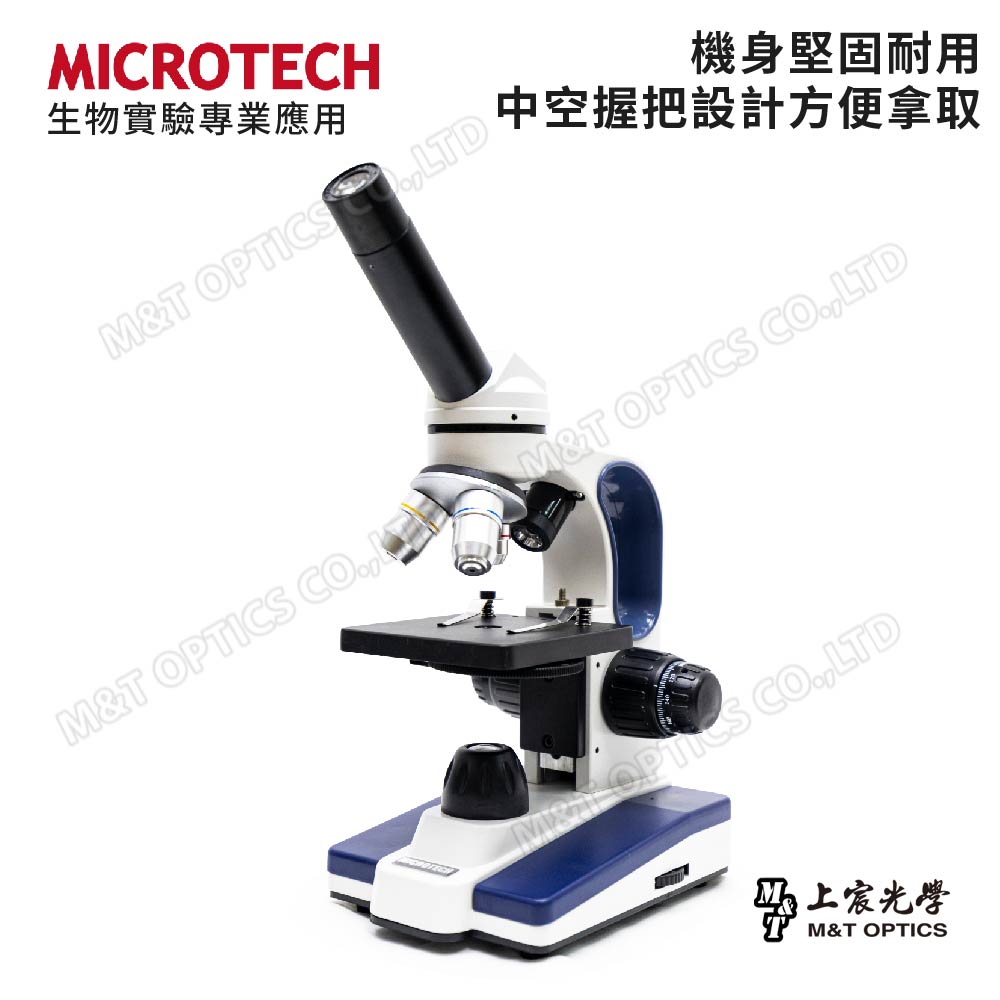

MICROTECH D1500 is made of lightweight and strong aluminum alloy material, with precise and stable structure and high accuracy. It is a model purchased in large quantities by many primary and secondary schools as well as liberal arts cram schools for teaching. The design of the hollow grip prevents the microscope from slipping and causing damage during movement. It is easy to take and suitable for students to use. The glass lens is highly durable and will not be easily damaged or stained to affect the imaging effect.

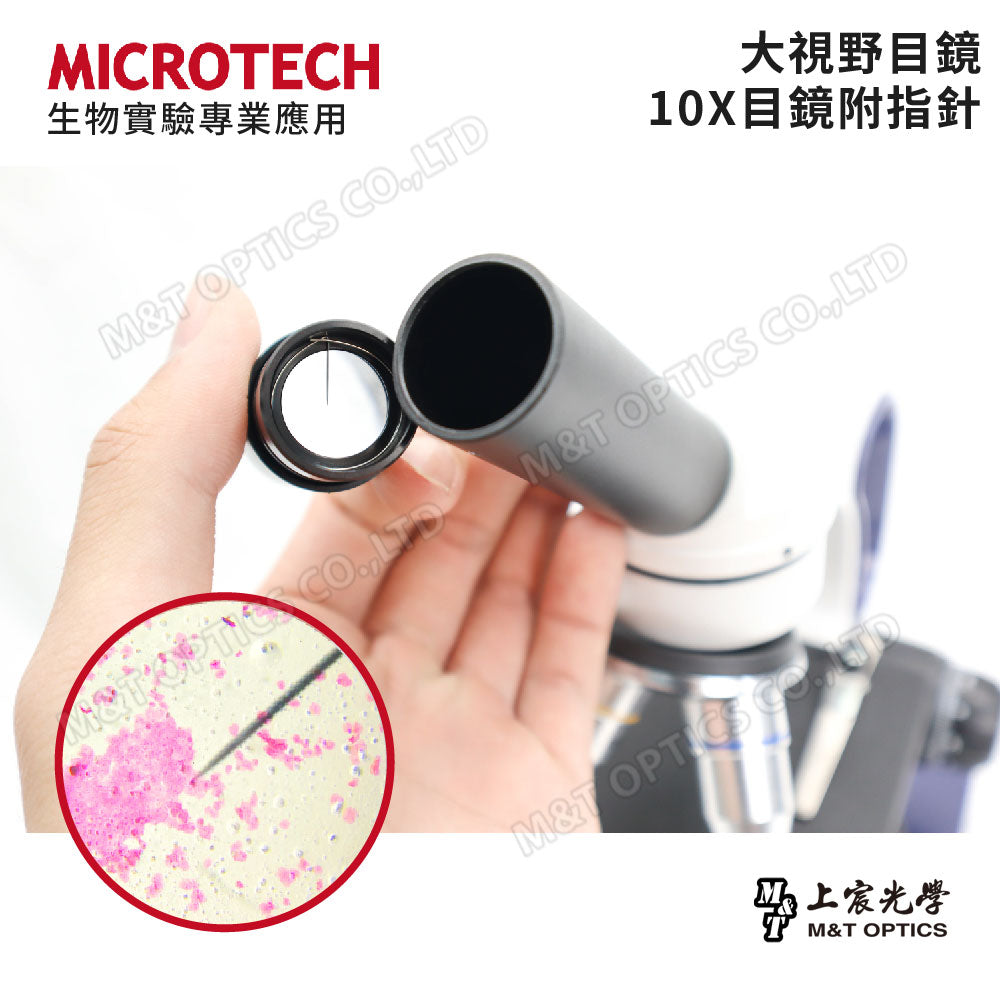

Large field of view eyepiece, rotatable observation head

The wide-field eyepiece is combined with a vacuum-coated achromatic objective lens and a coarse and fine focusing system to produce stable and clear images. The field of view is wide and suitable for long-term observation. You can also replace the high-power objective lens to increase the magnification, or use the electronic eyepiece to take microscopic images to record observations. The 10X eyepiece comes with a pointer that can point to the target to assist in teaching or sharing, and the 25X high-magnification objective lens provides higher magnification for observing specimen details. The monocular observation head can be rotated 360 degrees, making it convenient for teaching or sharing the microscopic world with partners beside or across from you.

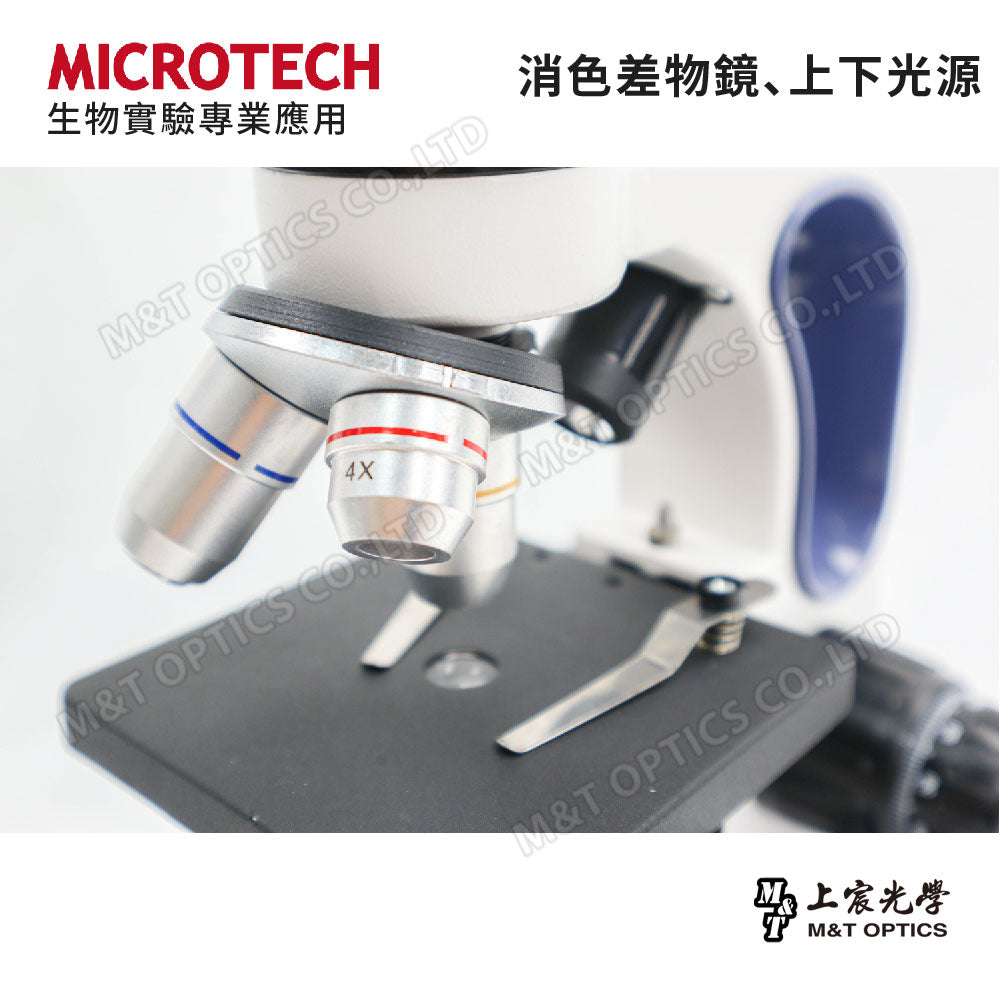

Achromatic optical system

Using the "achromatic optical system", the objective lens and eyepiece are composed of multiple lenses with different materials and optical properties, which can correct the dispersed light when passing through the lens and refocus it on the same point, making the image clear and sharp. The 4x, 10x, and 60x achromatic objective lenses are all fixed with steel ball positioning and rotating nose wheels. They are accurately aligned when changing magnifications and are easy to use. There is a spring buffer mechanism in the 60x objective lens. If the user accidentally hits the glass with the objective lens, the objective lens will automatically recoil and expand to prevent the glass from being crushed, causing danger.

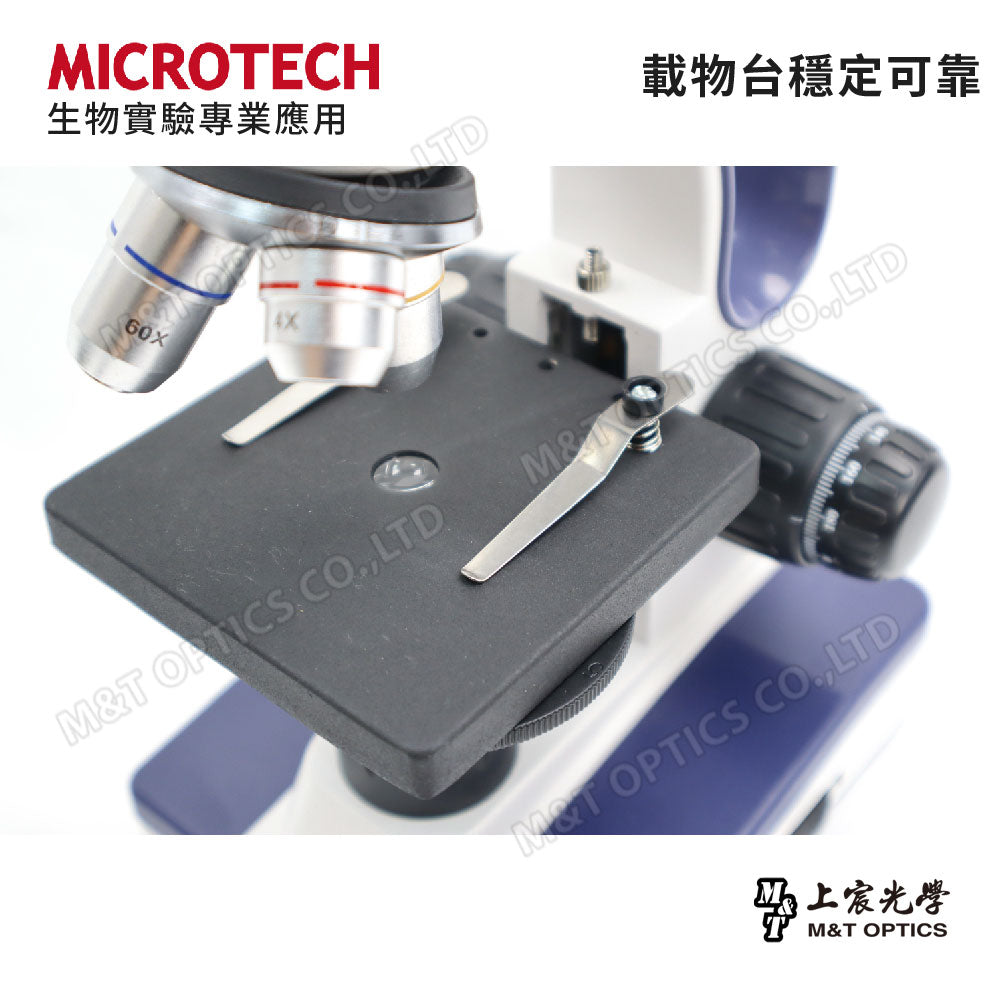

The stage is stable and reliable

The slide clamp-type metal stage and focusing system are equipped with coarse adjustment and fine adjustment wheels. The durability is better than similar models. The focusing base is equipped with a limit safety device to provide an extra layer of protection to prevent the slide from being broken by collision with the objective lens. The bottom of the stage is equipped with a six-hole diaphragm, which can narrow the aperture and increase imaging contrast during high-magnification observation.

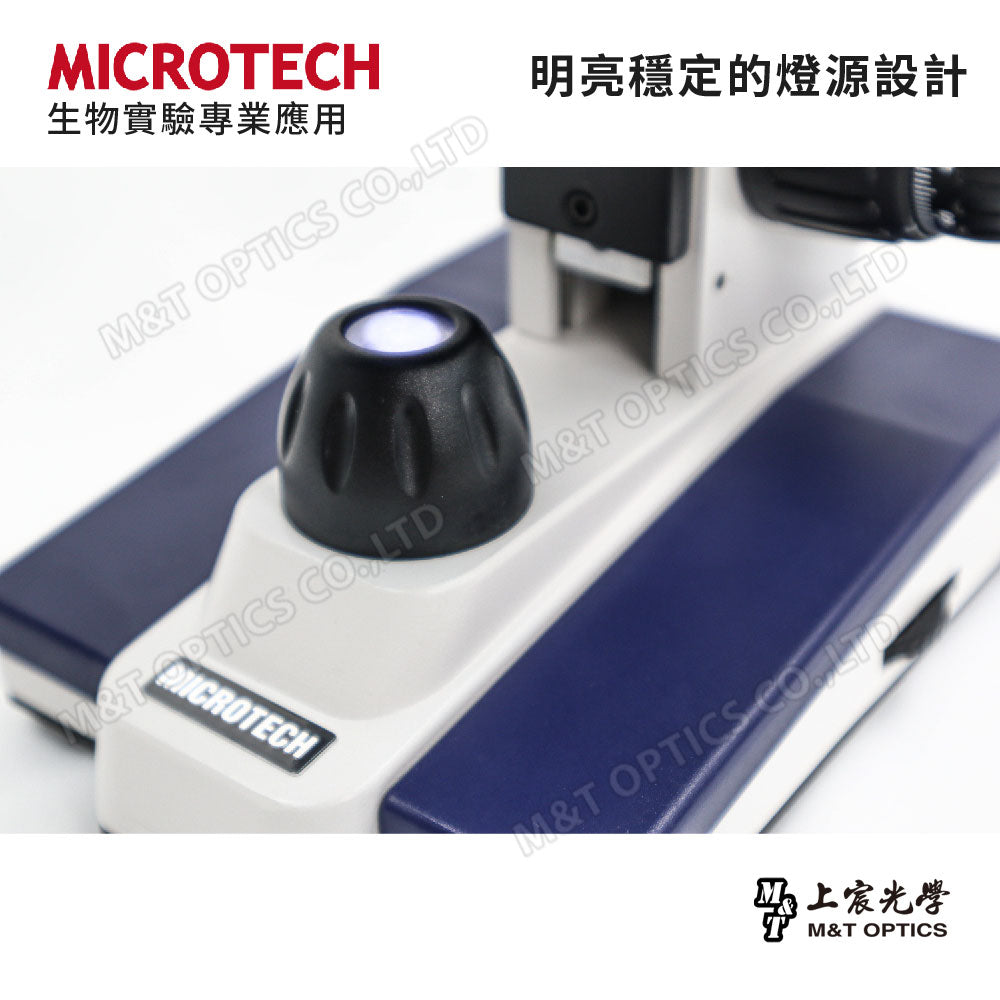

Bright and stable light source design

Using an adjustable LED light set, the light source has a long life, and the brightness and color temperature are stable, allowing you to continuously have a bright field of vision and clear images, suitable for long-term observation, and the six-hole aperture is standardized and equipped for easier operation. Equipped with upper and lower light sources, it can observe light-transmitting biological slice specimens and opaque samples (insects, minerals), making it a multi-purpose machine.

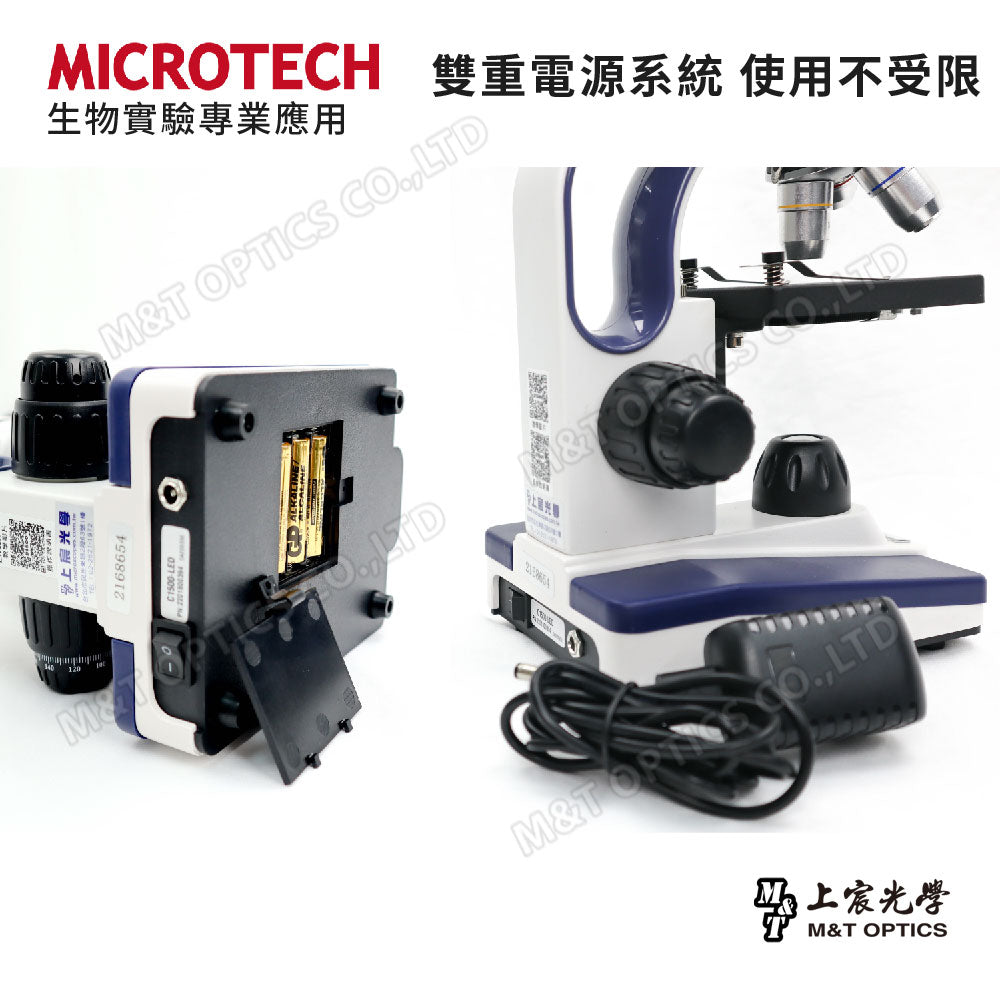

Dual power supply system, unlimited use

In addition to using the transformer connection socket for power supply, it can also be powered by three AA batteries, and its use is not subject to environmental restrictions.

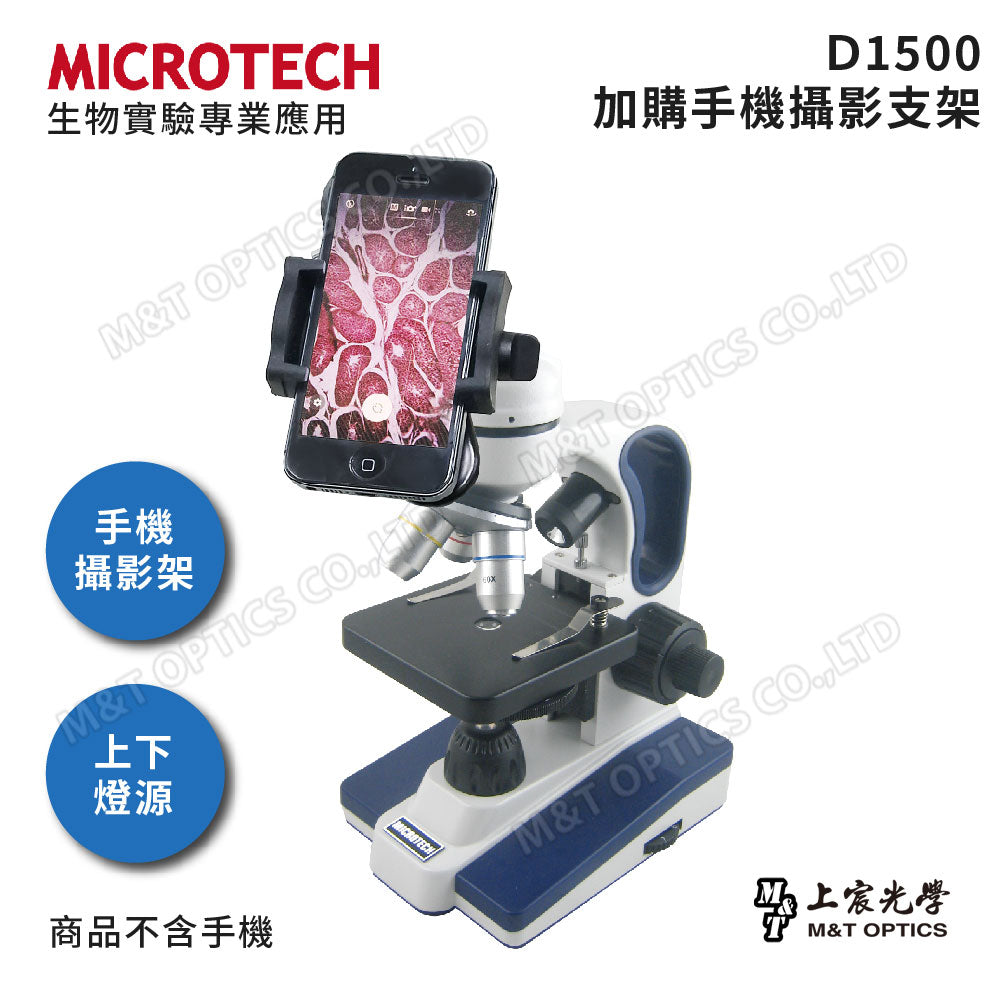

Recommended additional purchase - UPN-270 mobile phone photography bracket (commonly applicable to all models of smartphones)

Microscope users always have the urge to take pictures of the wonderful microscopic world under the microscope. Shangchen has professionally developed a mobile phone photography gimbal that can firmly fix the mobile phone and correctly place the lens at the ideal back focus of the microscope. Position, use the shooting function of your mobile phone to reproduce the microscopic world wonderfully.

• Applicable mobile phone width 5.5~10cm (allowable width of mobile phone holder).
• Customized eyepiece adapter, easy and stable installation.
• It can be used without removing the original eyepiece.
• The shooting field of view can reach 100% (compared to visual inspection).
• It can focus semi-automatically and accurately (the phone lens itself is micro-focused).
• After the mobile phone is connected to the Internet, you can live broadcast or share photos and videos via wifi.

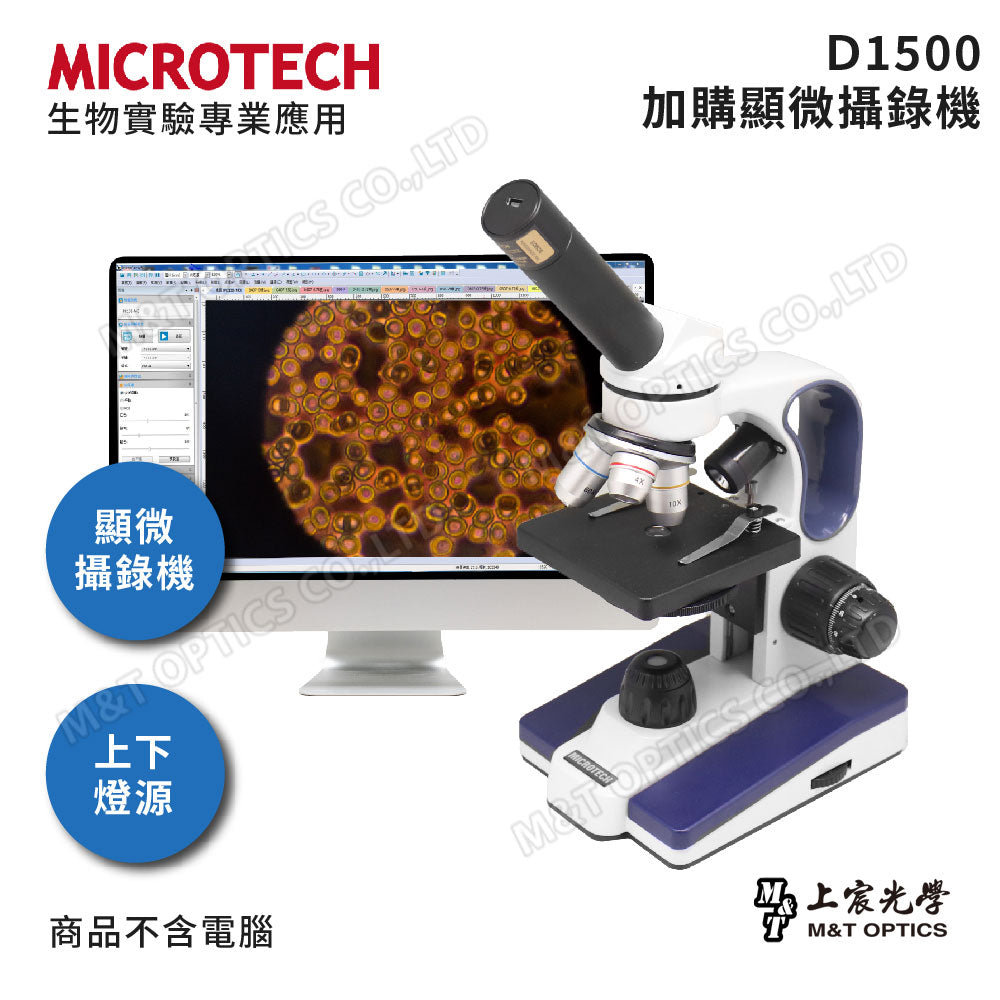

Recommended additional purchase-microscopic camera (PC130.M3)

It comes with professional-grade software and high-resolution CMOS sensor, which synchronizes with the computer screen in real time during observation, giving you the ultimate experience in teaching and research. Compatible with Windows, Mac operating systems and smartphones (you need to bring your own adapter cable).

Recommended additional purchase - basic experimental tool set

Recommended additional purchase-Professional lens wiping pen (LMT-1)

The optical equipment lens wiping pen developed in Canada has an exclusive patent for the original carbon particle formula to remove oil film. It can easily remove stains remaining on the surface without using any cleaning fluid. It is an essential tool for cleaning and maintenance of optical mechanical lenses.

Product specifications

Lens tube	Monocular straight type
nose chakra	Three hole type
eyepiece	10X, 25X
Connect objective lens	4X, 10X, 60X
Observation magnification	40 times ~ 1500 times
Focusing device	Coaxial thickness adjustment wheel
Lifting mechanism	Coaxial focusing system with limit device
slide stage	96X96mm slice fixed clip type
condenser	Fixed condenser
aperture	Six-hole diaphragm
Light source system	Equipped with adjustable up and down light LED lighting group
Mirror holder	172mmx126mm
Body size	17x13x32cm
Net weight of fuselage	1595g
Weight including packaging carton	2117g
Package size	28x23x37cm
mobile photography	Optional mobile phone camera stand available
Connect computer	Optional microscopic camera available for purchase
