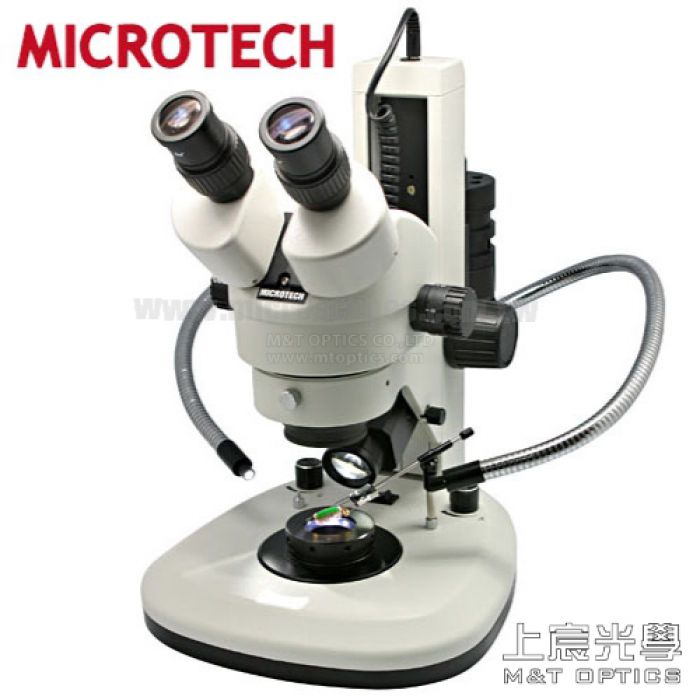

MICROTECH S630-D76-JW (for jewelry appraisal only)

Order number

Product specifications

brand MICROTECH
Lens tube
Three-eye observation 45° type, interpupillary distance 53~80mm, with 100% switching of the third photography light path
eyepiece
2 wide-angle eyepieces WF10X/20 (φ30mm, D＝φ35x46mm), with eyecups
Connect objective lens
Dual objective lens system, diameter φ15mm, ZOOM＝0.7X～4.5X
Observation magnification
10X eyepiece = 7X～45X standard, 20X eyepiece 14X～90X optional
working distance
WD=100mm after focusing
The room
Dimensions: 113mm x 108mm
third eye head
Standard @23mm pipe, optional installation CM05-C-MOUNT
Bracket lift
Square column rail—lens base φ76mm—depth 120mm, focusing stroke 100mm
Stage
Base size 240mm x 285mm x height 400mm with φ95mm storage board + light-transmitting board
Light source adapter
φ54mm～φ48mm x 0.75
light source from above
Resolution 2592*1944 dynamic pixels
light source below
Dimmable LED lighting set, lighting range diameter 65mm
power supply
AC110220V
weight
About 5.5kg
