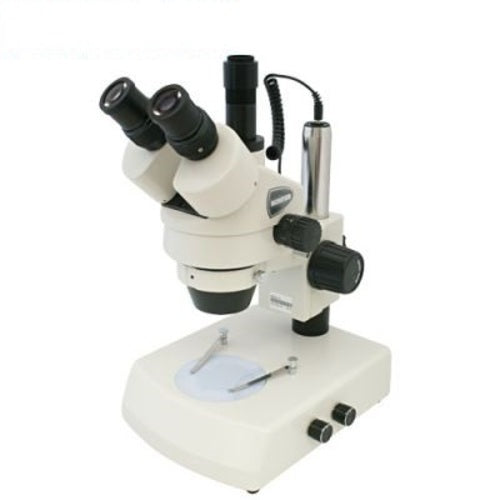

MICROTECH S630 stereo microscope sample shooting

wafer

CPU solder joints

screw

circuit board

Standard accessories
WF10X/20 high eye point eyepiece 35/46/30-MP
L76 type base (halogen lamp upper and lower lights including bracket)
MICROTECH S630-BODY (body)
S630-CMOUNT-1X CCD adapter

Product specifications

brand	MICROTECH
Lens tube	Three-eye squint type, interpupillary distance range 5380mm
eyepiece	Two 20mm high-definition ultra-wide-angle eyepieces 10X
Connect objective lens	Caliber 15mm, stepless zoom 0.7X 4.5X
Observation magnification	7.5X 45X
The room	113mm x 108mm, built-in large MultiCoating hood
Focus bracket	32mm75mm133mm deep, stroke 50mm, can be disassembled independently
Lifting mechanism	32 cylinder system power cord built-in
Stage	170mmX250mm standard platform, with 95mm storage board
working distance	90mm
Light source adapter	4mm 48mmx0.75
light source from above	6V15W power-saving high-brightness halogen cup lighting set
light source below	6V15W power-saving high-brightness halogen contour lighting set
