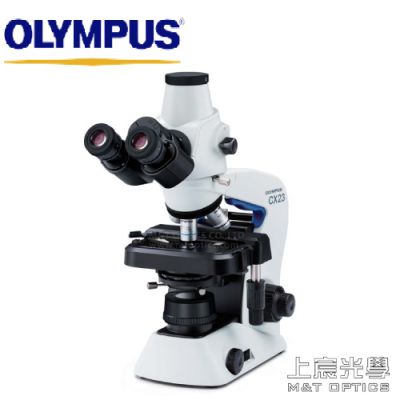

【OLYMPUS CX23T 三目型生物顯微鏡】

出色的光學品質與友善的使用者設計

User-Friendly Design and Outstanding Optical Performance

1.Lift

Ergonomic grip

• Ergonomic grips add safety when retrieving themicroscope from high places.
• Colored grips indicate the appropriate places to hold the microscope. • Smooth, rounded design eliminates sharp edges.
• The CX23 microscope is one of the lightest in its class, with a total weight of approx. 5.9 kg (13.01 lbs).

2.Carry

Rackless stage and stage cover

Ergonomic grip for easy carrying

Fixed eyepieces

Angled arm enables comfortable carrying

• The arm is angled to keep user’s wrists in acomfortable, neutral position.
• The eyepiece can be fixed in place to help prevent damage or loss during transportation.
• A rackless stage and stage cover enable safety and
• stability during long periods of use.

3.Prepare

Convenient and easily accessible power cable storage

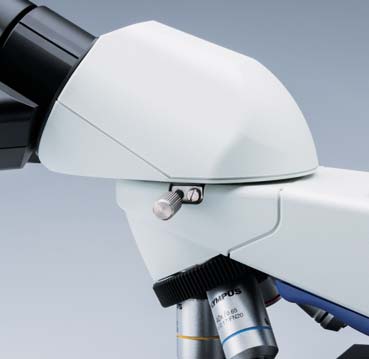

Locking pin for easy binocular rotation



Eyepoint height adjustment

Interpupillary adjustment

• A locking pin keeps the observation tube in place.
• nterpupillary adjustments, ranging from 48 to 75mm, enables individual users to set it to their needs.
• Eyepoint adjustments accommodate the user’s height and provide greater comfort.
• Left and right diopter adjustment enable optimal focus for each eye.



4.Set the Sample

Inward-facing revolving nosepiece



Coaxial knobs

• An inward-facing rotating nosepiece facilitates a larger working area above the stage, enabling easier operation and specimen exchange or making it easier to apply oil to immersion objectives.
• Objectives with long working distances provide clearance for thick samples and slides.
• coaxial knobs for fine or coarse adjustments.The microscope is built for durability and precise control, whether accessed from the left or right side.
• A torque release function helps prevent damage if excess force is applied to the coarse focusing knob or stage knob.

5.Observe

• The focus lock helps prevent the objectives from damaging the specimen.
• Field number (FN) of 20 provides a wide field of view.
• The CX23 microscope features plan achromat objectives that preserve outstanding image flatness throughout the field of view.
• operation lifetime of 20,000 hours. vivid colors on HE-stained samples.

6.Store

• The focus lock helps prevent the objectives from damaging the specimen.
• Field number (FN) of 20 provides a wide field of view.
• The CX23 microscope features plan achromat objectives that preserve outstanding image flatness throughout the field of view.
• operation lifetime of 20,000 hours. vivid colors on HE-stained samples.
