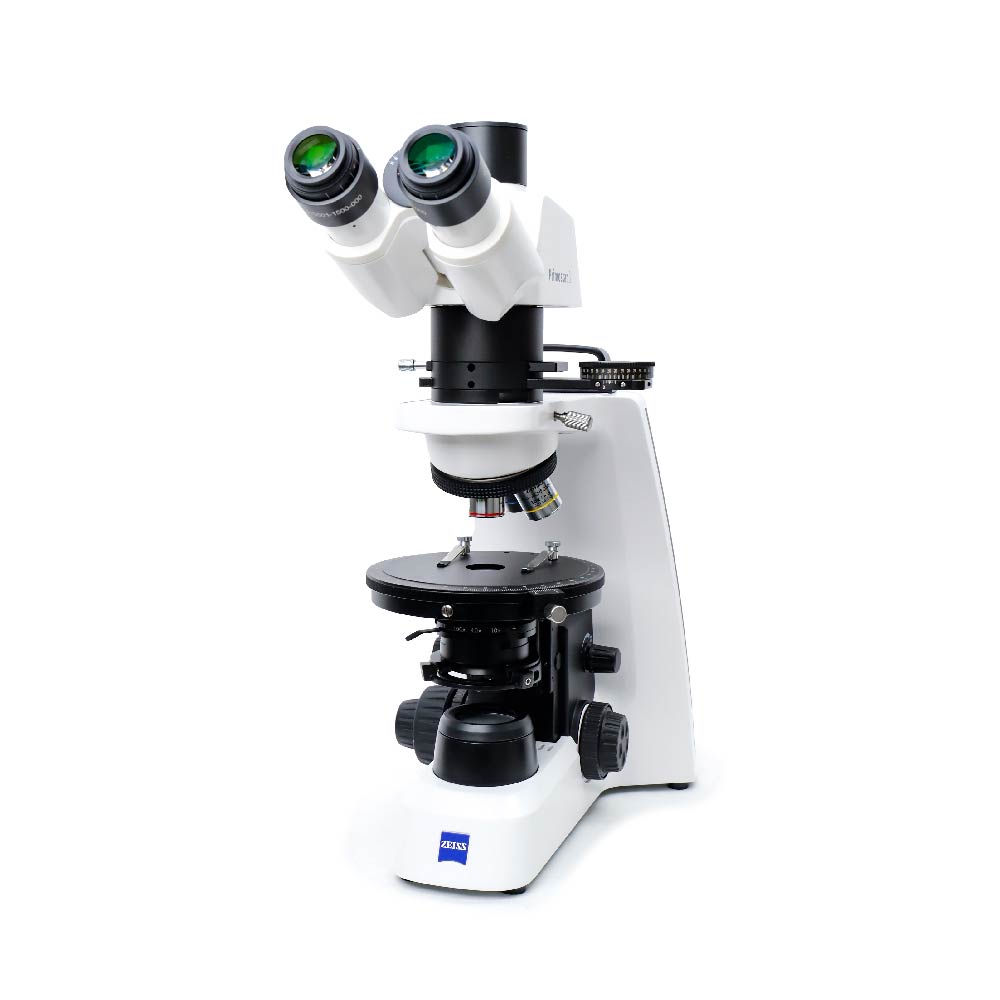

Name: ZEISS Primostar 3 TR POL German Zeiss polarizing binocular microscope
Brand: ZEISS
SKU: RR00046
Availability: InStock

1 10

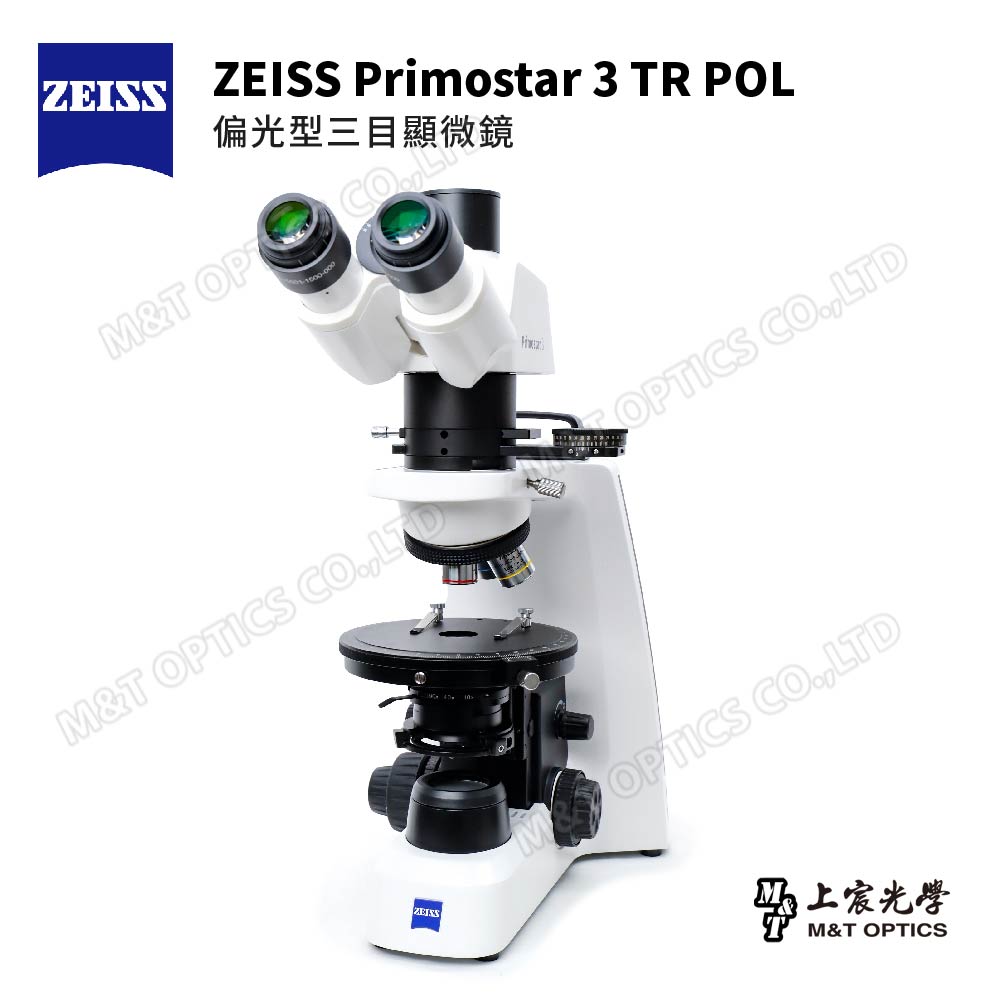

ZEISS Primostar 3 TR POL German Zeiss polarizing binocular microscope

Order number

RR00046

Tailored for geology and earth science education

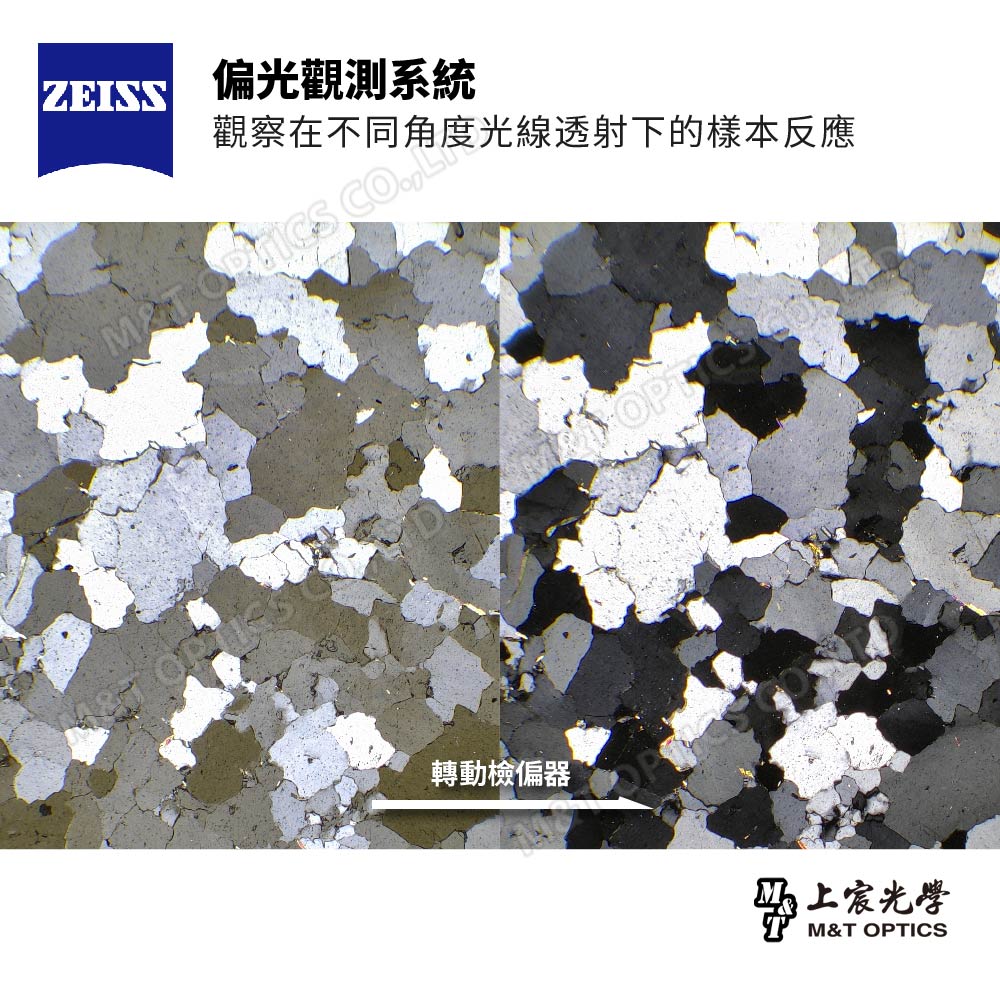

In earth science and geology teaching practice, polarizing microscopes are used to analyze rocks, minerals, and core samples. This helps identify different types of minerals, understand the history and geological processes of rocks, and study the Earth's structure. ZEISS Primostar 3 TR POL is equipped with the high-resolution infinity parallel optical system objective lens originally manufactured by ZEISS in Germany, and the annular polarizing stage allows the operator to rotate the specimen smoothly and carefully observe the sample response under different angles of light transmission. The large-field eyepiece enables wide vision and clear imaging. The focusing mechanism is designed in an ergonomic manner, and both hands can be placed flat on the table to adjust focus. Suitable for earth science research, materials science education, geology and other application fields.

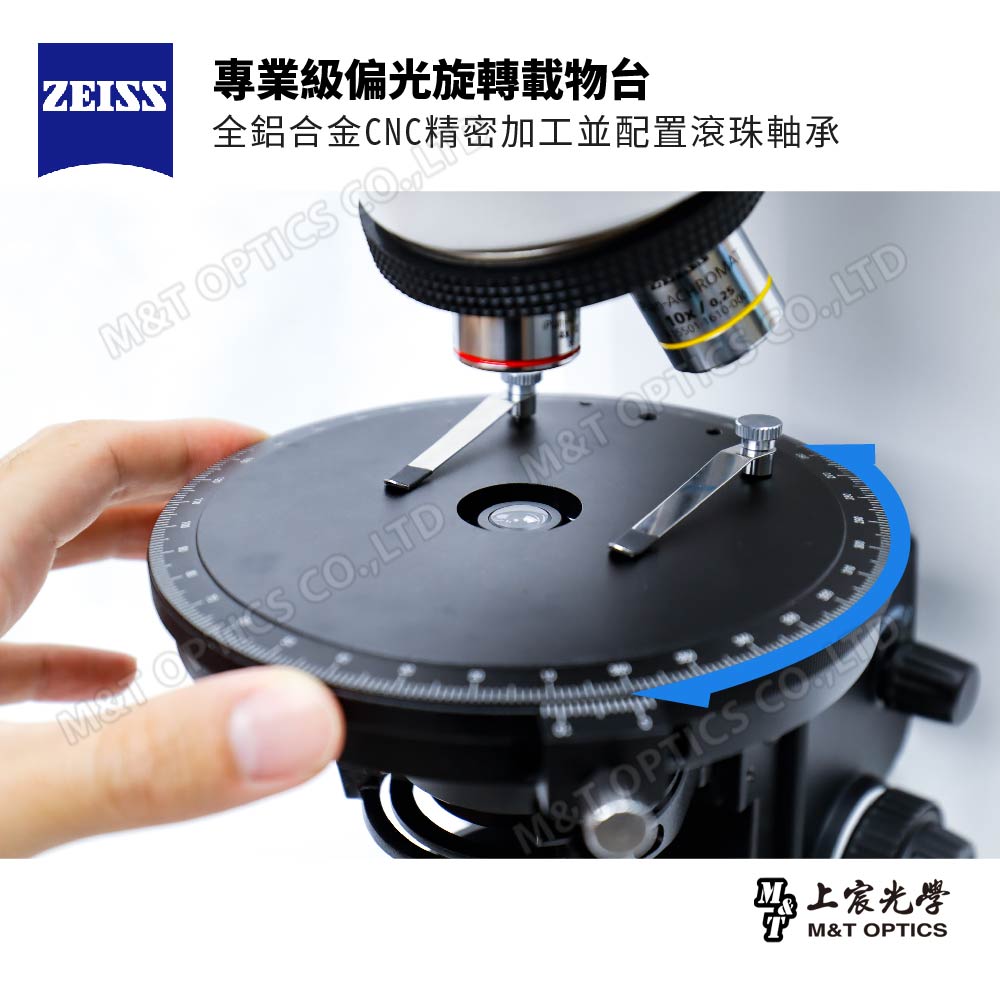

Professional grade rotating stage

The rotating sample stage of a polarizing microscope is crucial, allowing the research observer to precisely rotate the sample to change the viewing angle, which is very important for observing all directions of the crystal. The rotating stage of the MX600 is made of all-aluminum alloy CNC precision machining and equipped with ball bearings. The platform and fixture are sturdy and durable, and the operation is smooth. The center of the rotation circle can be precisely adjusted, allowing the operator to operate the rotation carefully and observe the subtle differences in light angles of the sample. image effect. There are marked scales on the edge of the turntable, allowing you to easily quantify operations and keep observed experimental results accurate and consistent.

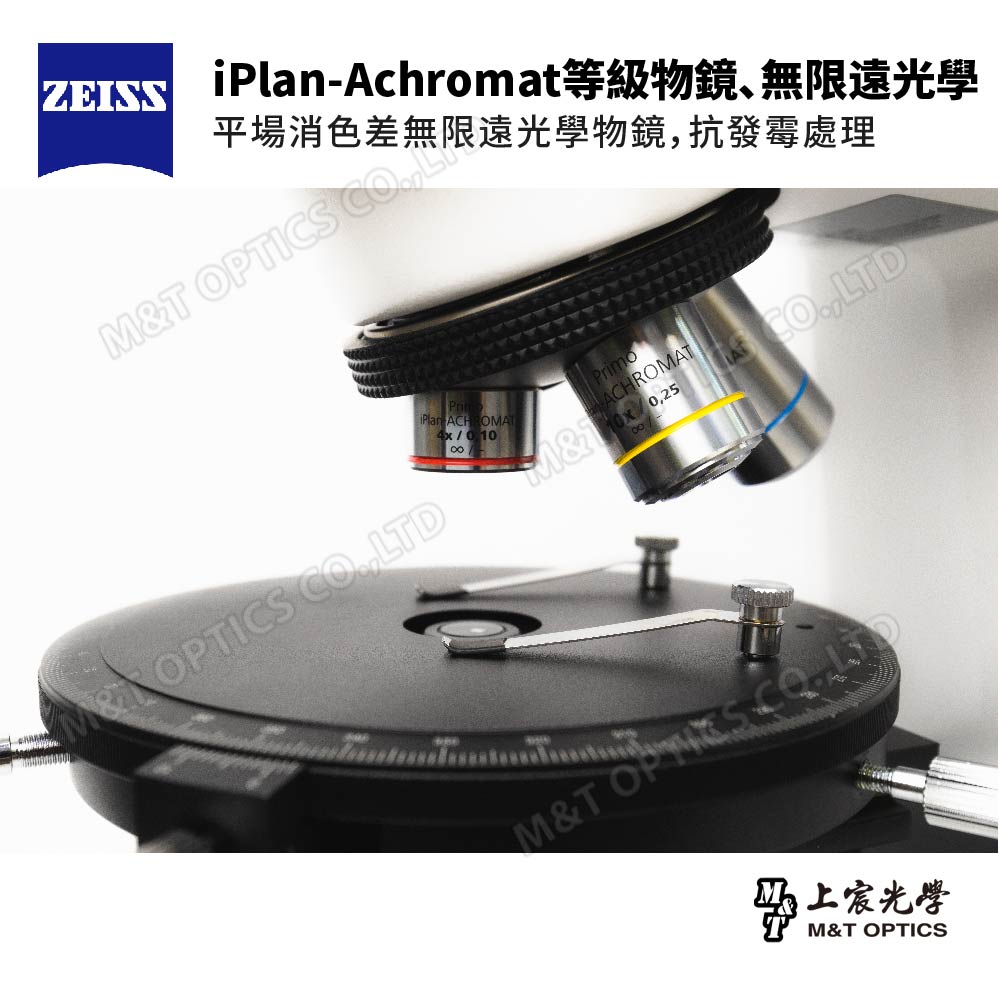

iPlan-Achromat grade objective lens, infinity optics

The standard version is equipped with iPlan-Achromat grade objective lenses, all of which have been treated with mildew resistance.

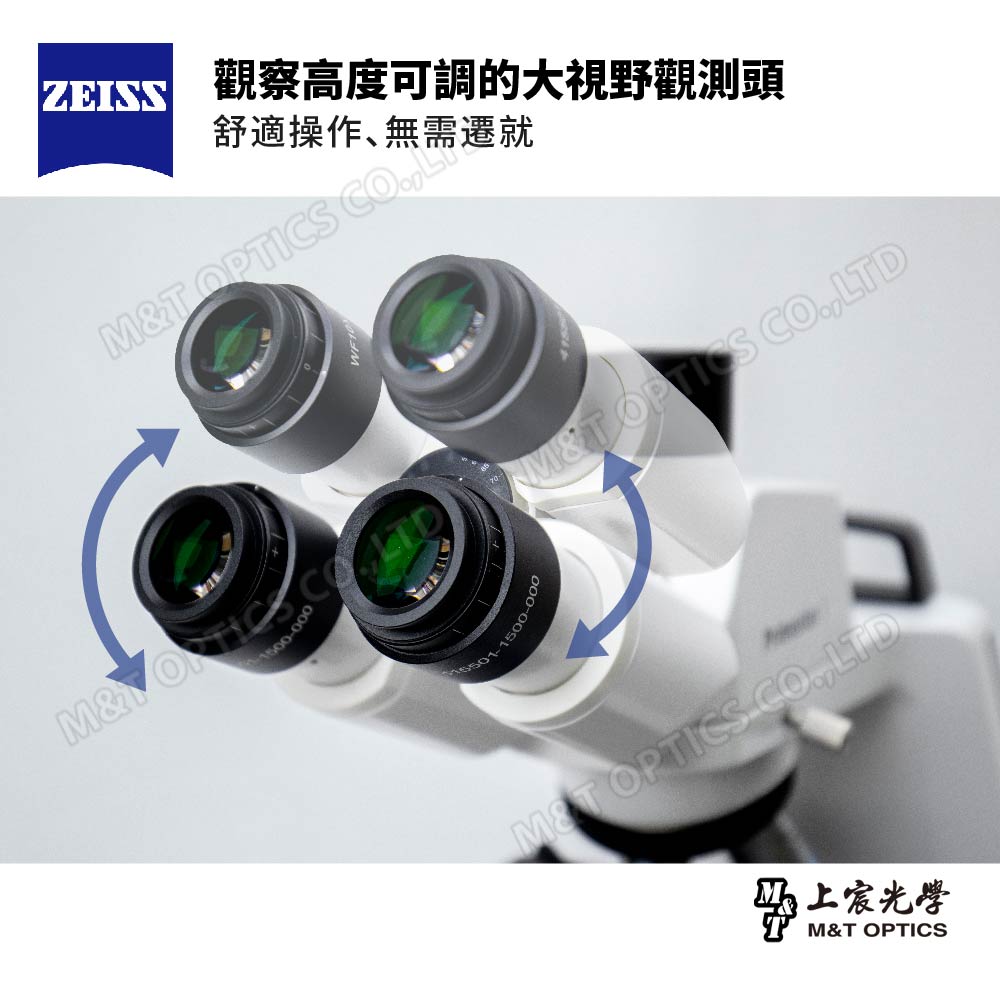

Observation height adjustable large field of view observation head

Binocular observation head with adjustable observation height: It has a viewing angle of 30° and is compatible with a maximum field of view of 20mm. Binocular pupil distance adjustment: Adjust the distance between binocular eyes in a wide range from 48 mm to 75 mm.

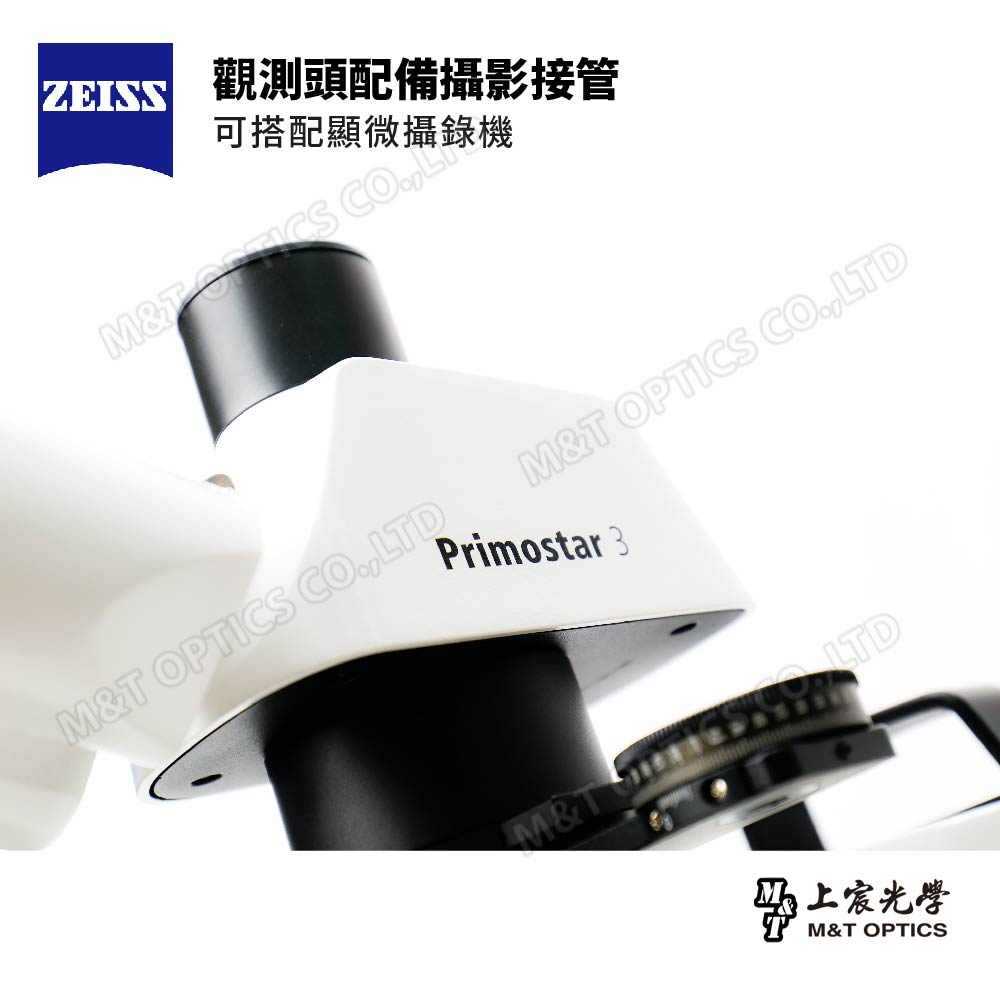

Trinocular observation head

The observation head is equipped with a photographic connection, which is suitable for various types of photomicrographs and recorders. It can be used with the ZEISS AxioCam 208 microscope camera and connected to a monitor, mobile device or computer to take photos and videos, record observations instantly, automatically calculate magnification, and output observation reports. Computer-free operation optimizes space utilization.

Purchase a microscope camera

Click here to enter the " microscopic camcorder classified store " and choose a suitable camcorder model according to your personal needs. If you need more detailed explanation or make an appointment for testing, please call or email Shangchen Optics. Contact number: 02-2521-1972, customer service email: cs@mtoptics.com

Light source intensity display function - easy to grasp the teaching site

The intensity of the light source is the most important control item for the microscope in the classroom. There are five segments of blue LED light bars on both sides of the mirror body to display the output light intensity, providing teachers and students with the most representative lighting parameters for mutual reference.
