Suitable for multiple uses

Suitable for industrial production lines, precision welding, quality assurance inspection and other applications.

Premium stereo optics from ZEISS

Adopting Greenough optical design, the Zoom zoom ratio is 5:1, the objective lens magnification is 0.8x ~ 4x, and the magnification is fixed.

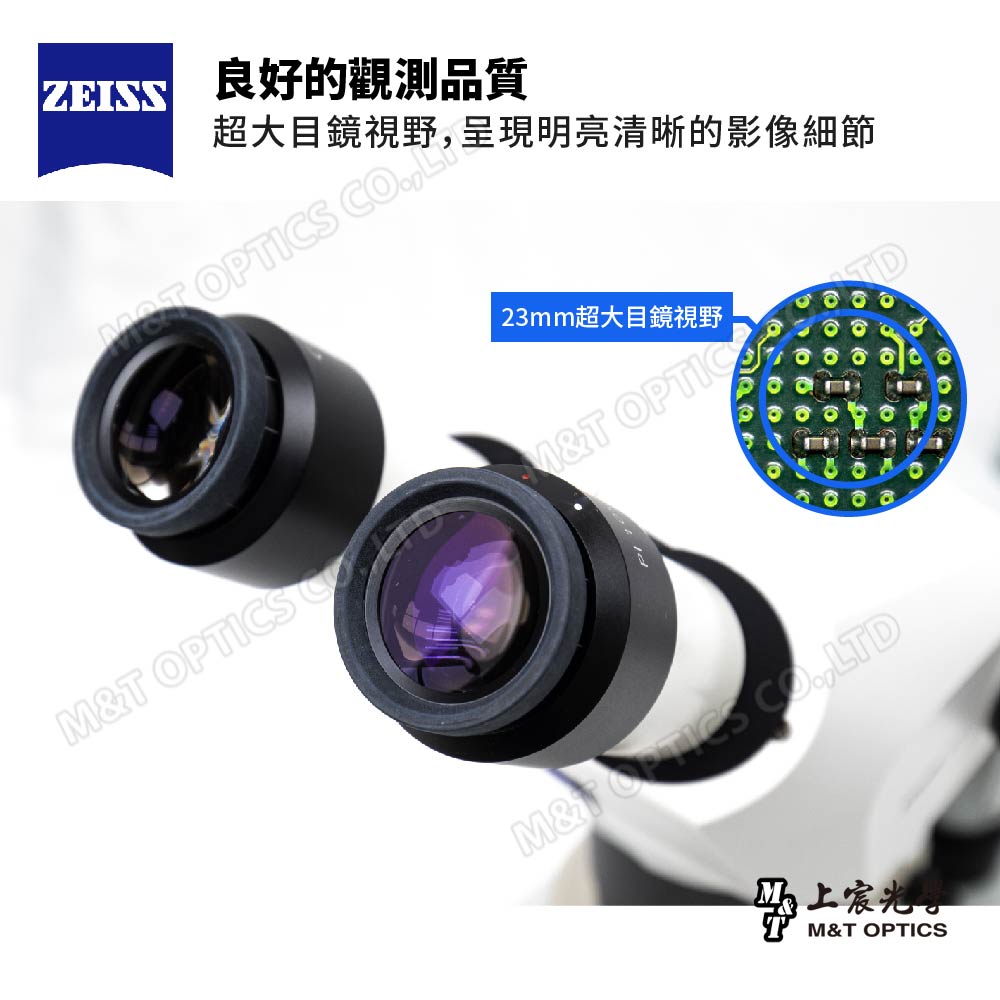

good observation quality

The 23mm super large eyepiece field of view presents bright and clear image details.

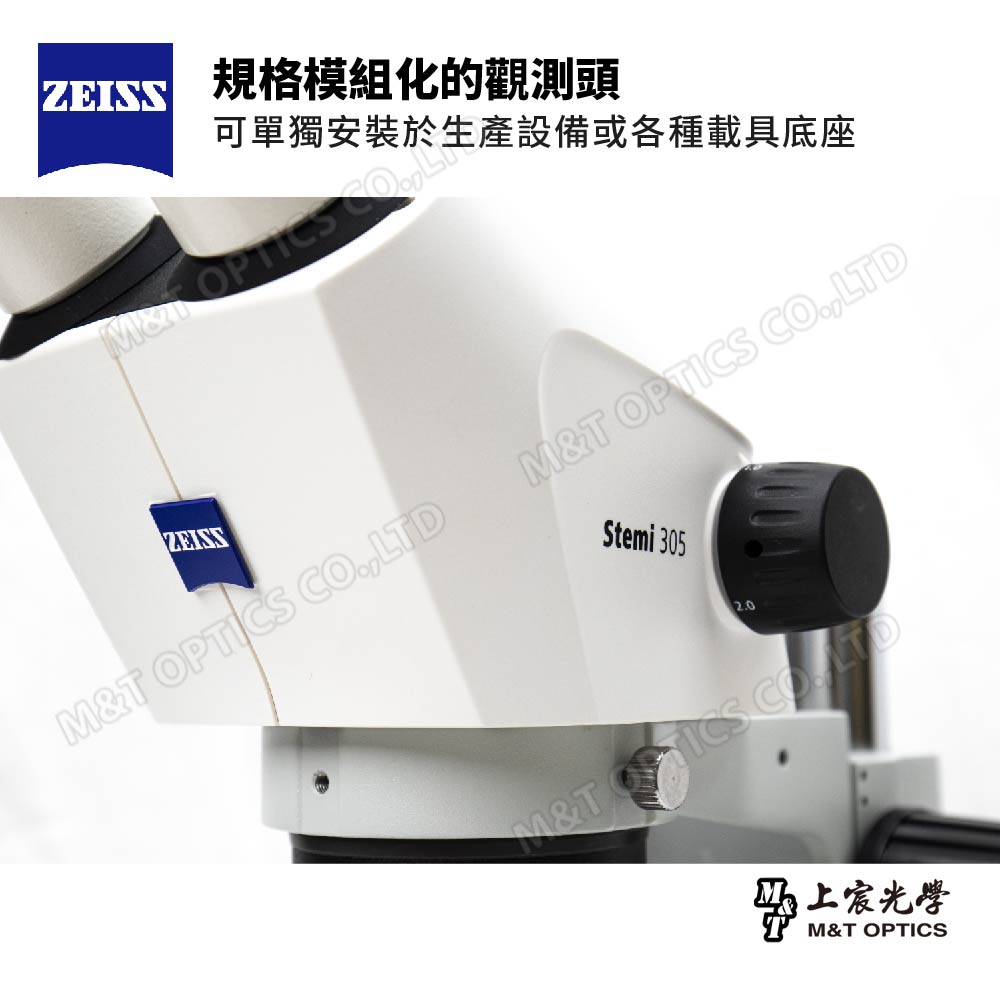

Standard modular observation head

76mm standardized diameter, can be installed individually on production equipment or various carrier bases.

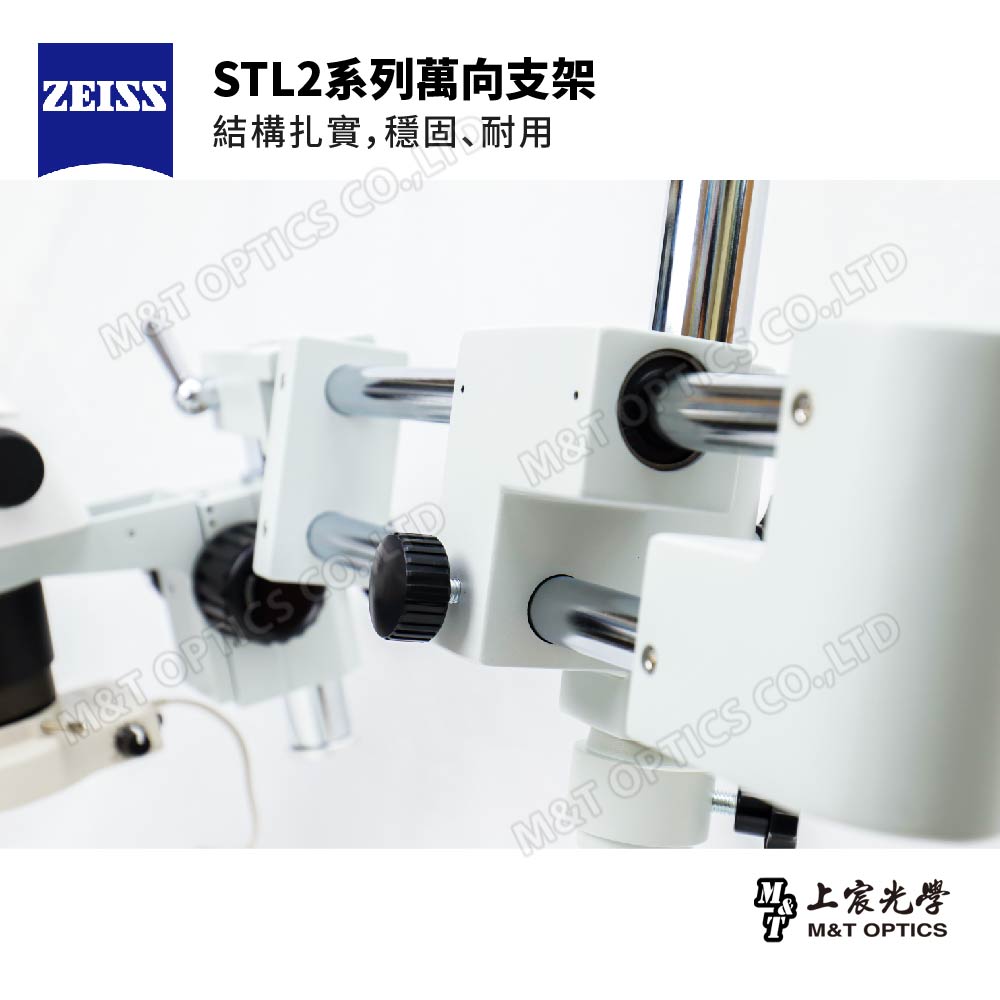

STL.2 Gimbal bracket

Adopting the most stable double cross structure, the microscope observation area can be extended. The horizontal movable mechanism adopts a ball bearing axis, making the operation smooth and smooth. The base is made of solid cast metal, and all mechanisms are made of metal. The structure is solid, stable and durable.

Vientiane bracket horizontal and vertical movable mechanism display

The horizontal movement of the bracket can be adjusted through the central damping. The lifting of the bracket can be adjusted after the hand-turn screw at the rear of the bracket is loosened.

Bracket lift adjustment hand screw

Bracket horizontal movement activity damping control

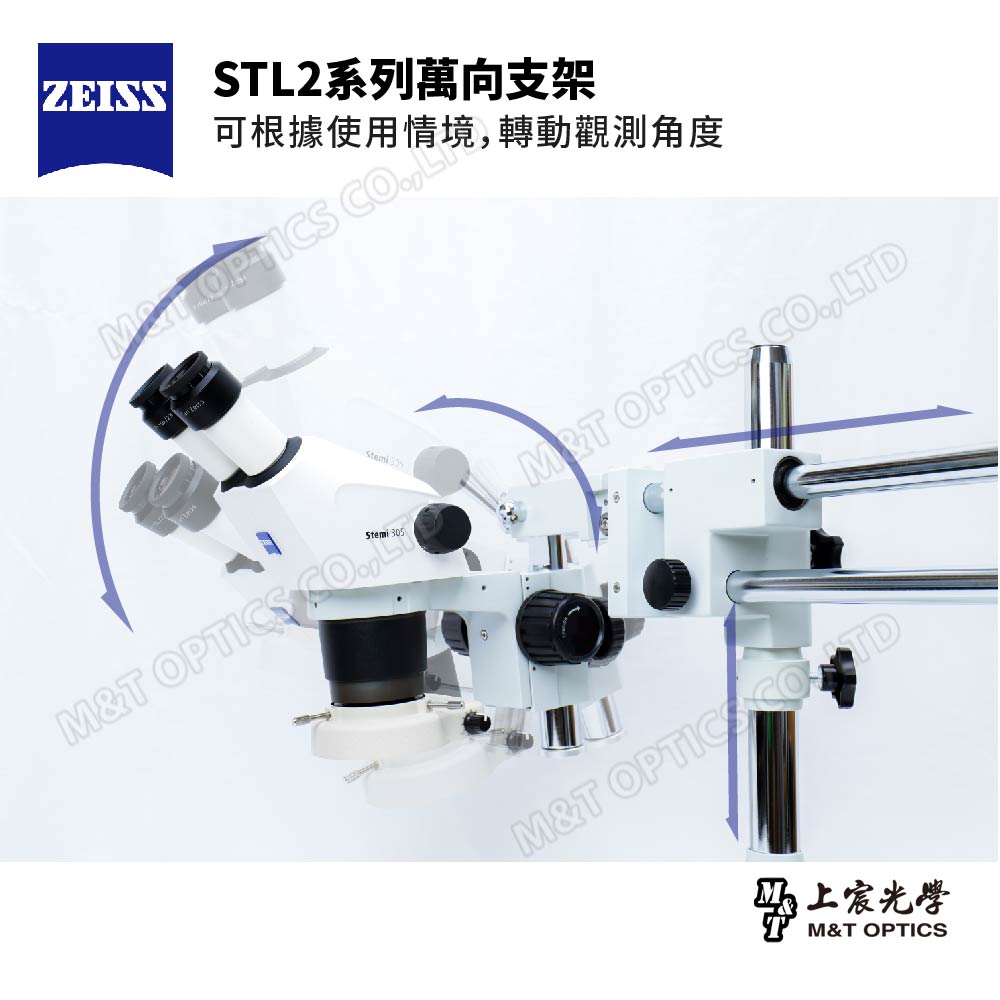

Microscope left and right tilt angle movable mechanism display

Microscope left and right tilt angle damping control

Display of microscope's front and rear tilt angle and bracket rotation movable mechanism

Standard ring light source

Standard equipped with LED ring light source, with wide lighting range and uniform light brightness and color temperature.

A variety of lighting systems are available as optional extras

Compatible with many types of ring lights, snake neck lights, cold fiber optic conduit lighting... freely selectable according to usage needs.

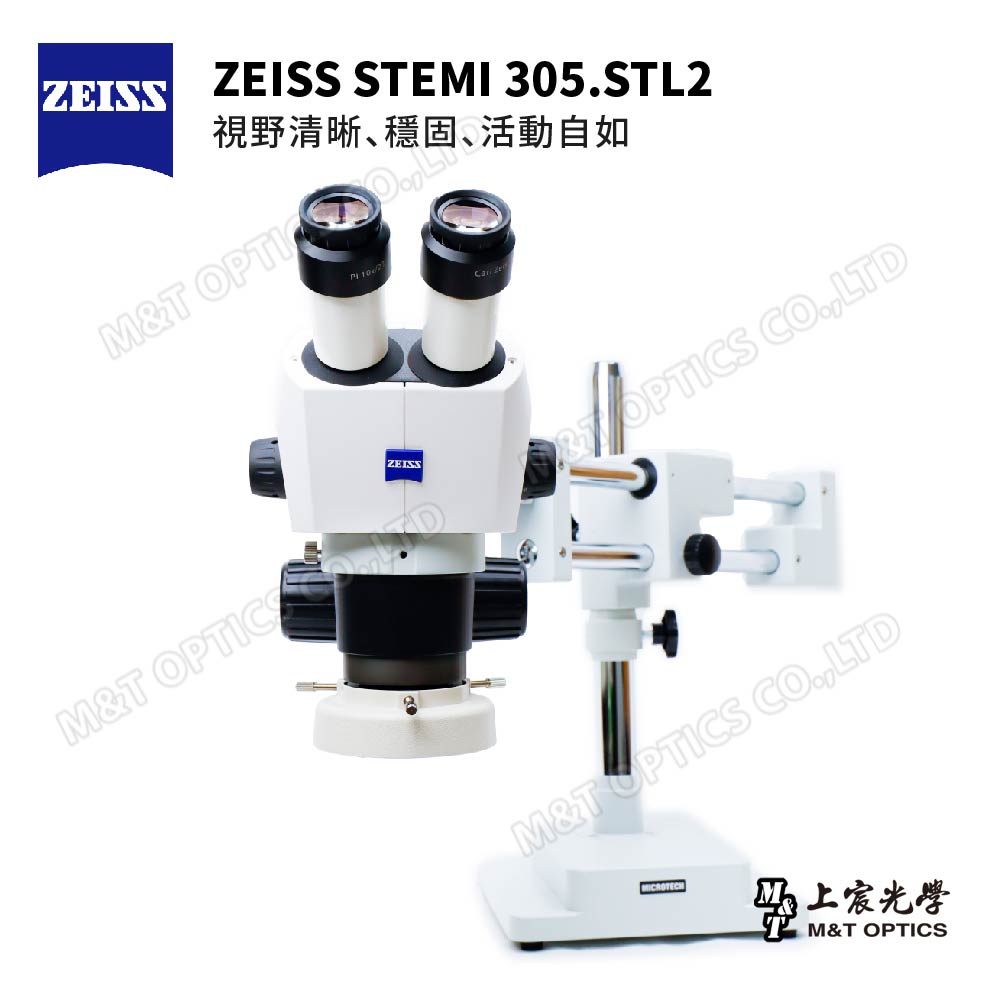

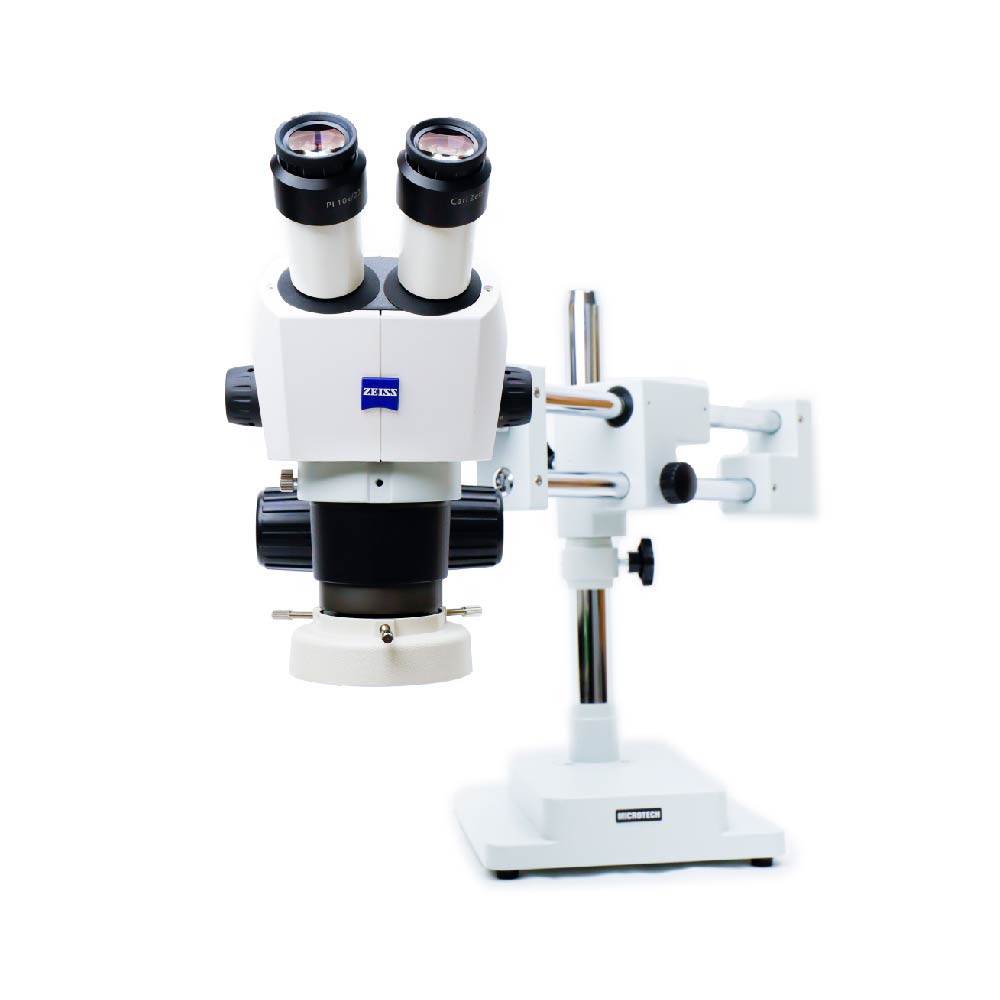

ZEISS STEMI 305.STL2 Parts Description

Observation sample sharing (industrial application)

Metal Mechanism - Ring Lighting

Observation sample sharing (industrial application)

Printed Circuit Board - Ring Lighting

Product specifications

form	Greenough design, binocular stereo microscope
Visual tilt angle	The observation tube is tilted 45 degrees, and the distance between the eyes can be adjusted from 55-75mm.
Zoom ratio	The zoom ratio is 5:1. Without the auxiliary lens and 10x eyepiece, the standard total magnification range is 8x to 40x (inclusive)
Objective lens magnification	0.8x, 1x, 2x, 3x, 4x (with freeze-frame positioning assistance)
working distance	110mm or more (without auxiliary mirror)
Eyepiece form	Binocular type, a pair of 10x eyepieces, super wide field of view 23mm, the diopter of both eyes can be adjusted independently on the eyepieces
light source	Ring-shaped double row white LED lighting source
Base type	STL.2 gimbal base
Frame inner aperture size	Φ76mm
Focusing mechanism	Rack drive steel ball guide
cylinder	Column diameter 32mm
