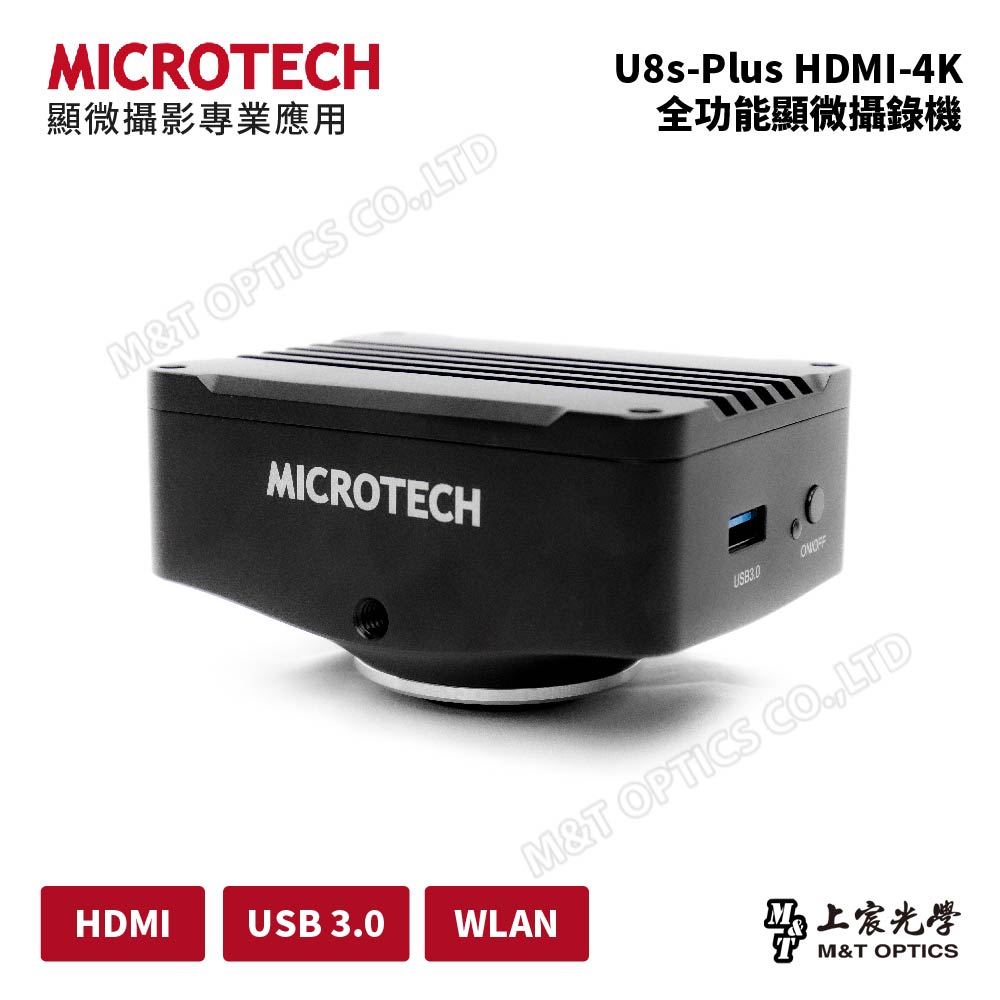

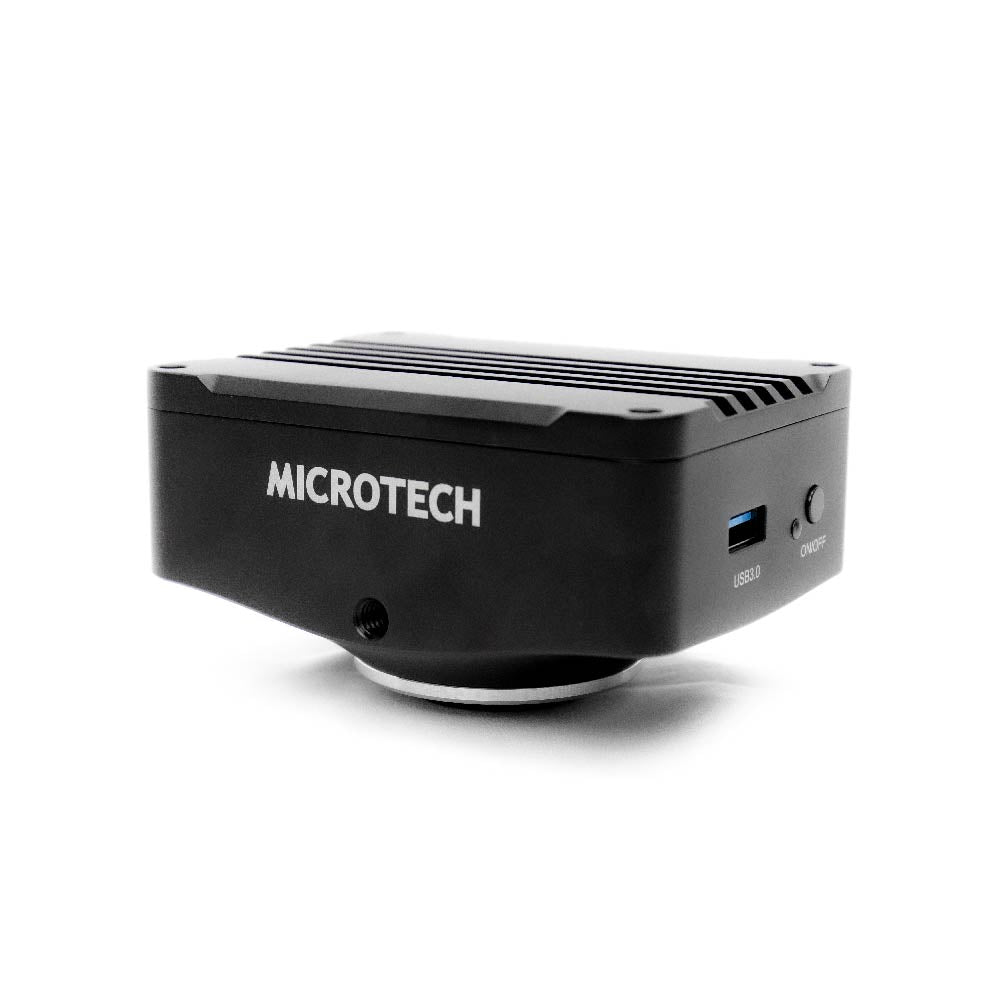

4K/60fps high-definition camcorder

The U8s-Plus HDMI.4K series is the latest generation of microcomputer camcorders with HDMI output interface. Its 4K resolution frame rate reaches 60 frames, making it one of the HDMI camcorders with the fastest picture playback rate currently. It can be directly installed on a microscope to capture high-magnification images without the need for a computer. It can also be used in a local network to become a microscopic interactive teaching system, making it convenient for teachers to teach and students to interact with each other.

main features

• Sony Exmor back-illuminated CMOS sensor
• Super large format 1/1.2” Sony CMOS sensor
• 8 million pixels/4K output, full frame 60fps
• Multiple interface output 4K HDMI / LAN network / USB / WiFi wireless module (external optional)
• High sensitivity, suitable for fluorescence microscopy USB3.0 image storage interface, flash drive to quickly store images and videos
• Embedded firmware is used to control the camera and has functions such as image processing and ruler precision measurement systems.
• MicroCamV8 software has powerful ISP and other related processing functions, making computer operation more powerful and convenient
• Support iOS/Android mobile and tablet applications APP
• Connect to an HDMI monitor or TV: Video can be recorded when used with an HDMI monitor or TV.
• Connect to Ethernet: Video can be instantly transferred to a computer for image capture and video recording.

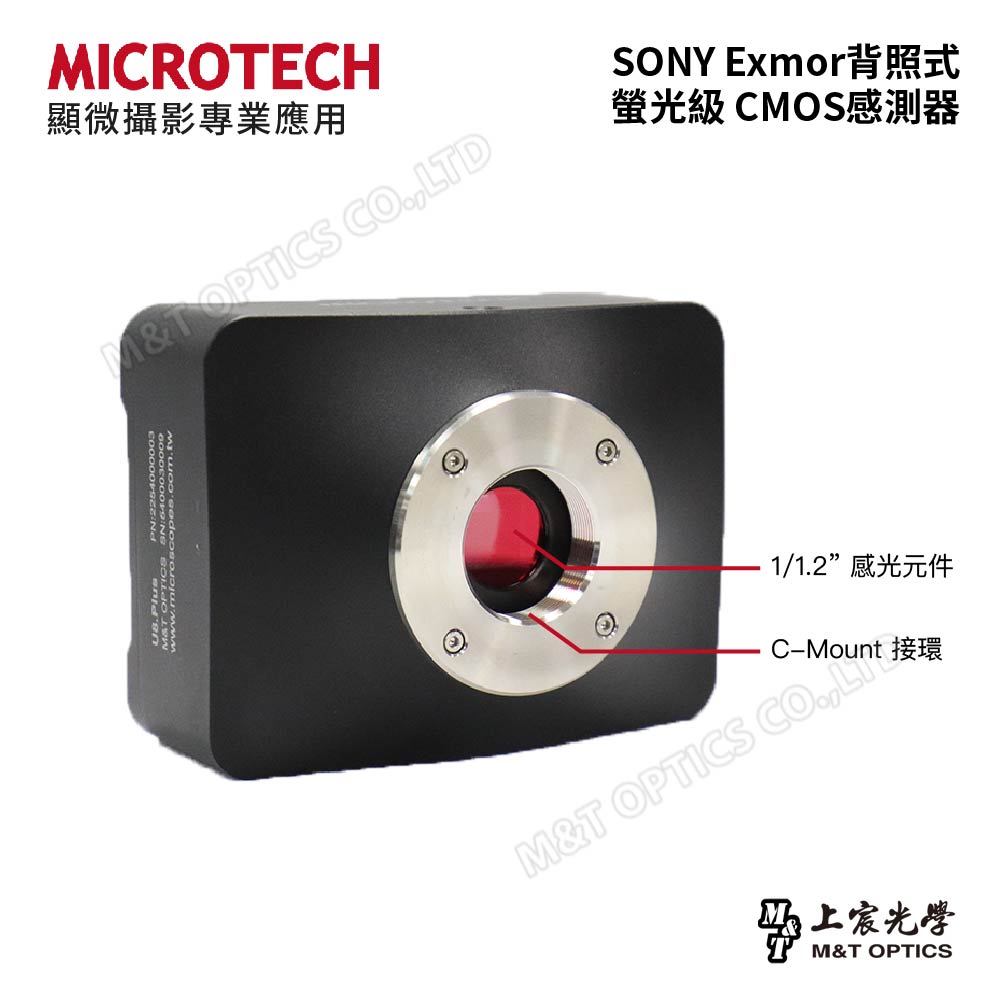

Back-illuminated SONY IMX485 CMOS star-level sensor

The U8s-Plus HDMI.4K series uses SONY IMX485LQR-C CMOS image sensor. This sensor uses Exmor technology. The chip size reaches 1/1.2" and has the advantage of large area. The single pixel size is 2.9um x 2.9um. IMX485 has It has the characteristics of extremely high sensitivity (G light sensitivity reaches 2188mv in 1/30s), low dark current and small dispersion (using color filters of R, G and B main colors).

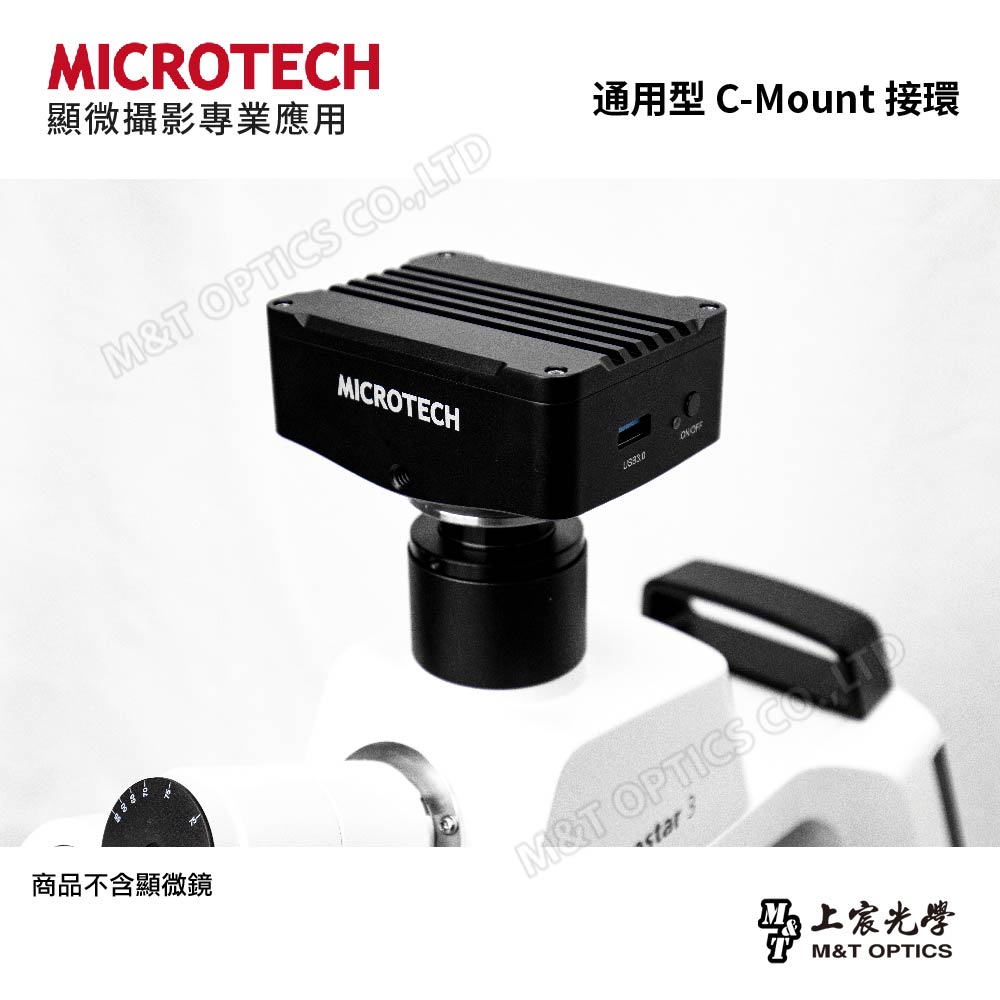

Universal C-Mount adapter

It adopts the standard C-MOUNT installation interface to maximize compatibility with various microscope systems.

Computer-free 4K HDMI high-definition output

Only one HDMI cable is needed to synchronize the images under the microscope to your external monitor with smooth high-quality 4K/60fps. It also controls shooting records to further accurately mark image details and microscopic dimensions. It uses a USB flash drive to store images and data with one click. It can also be connected to a computer via a USB cable and supports online video. The introduction of algorithms such as sharpness and local area tone mapping enables the U8s-Plus camcorder to have built-in hardware 3D noise reduction function, which greatly improves the image quality.

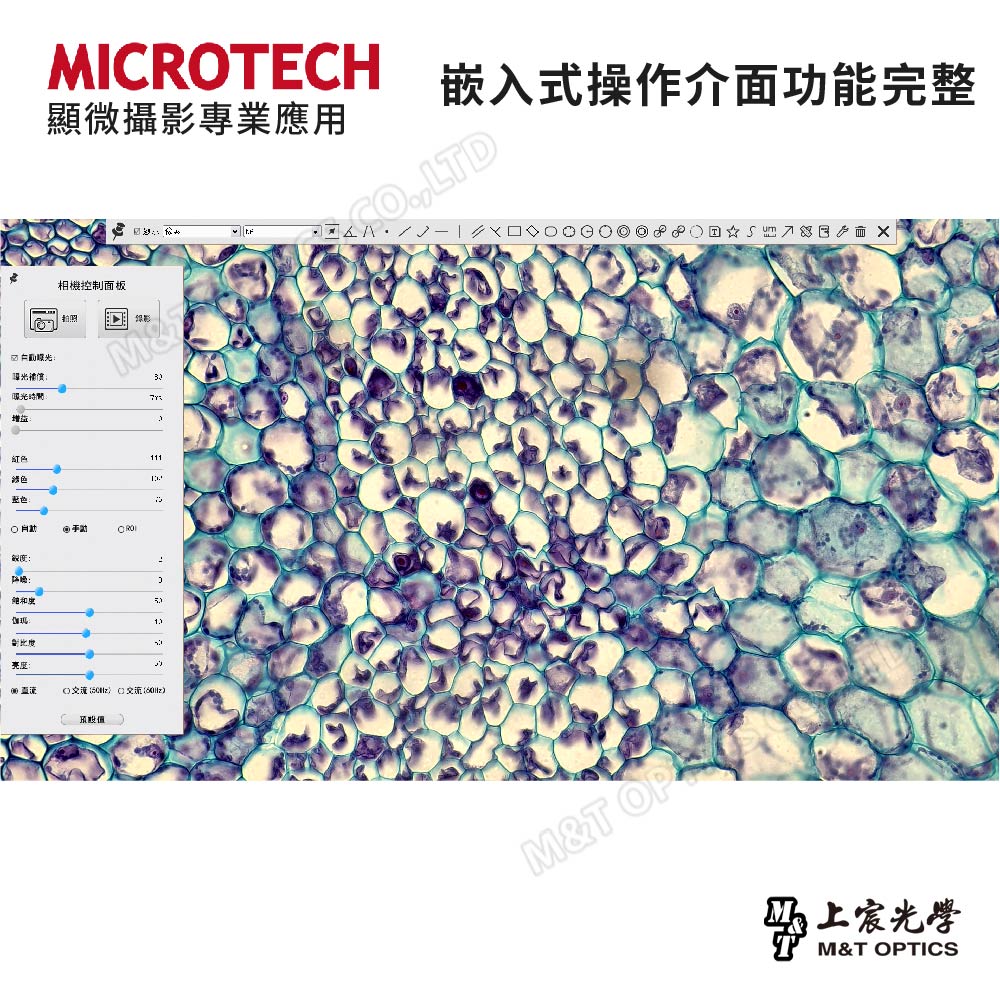

Full-featured embedded operating interface

Only one mouse is needed to operate photography, video recording, exposure adjustment, various parameter settings, screen freezing, screen ratio, digital zoom in and out. You can also use the built-in multiple microscopic image measurement tools (point, line, circle, arc, parallel line, vertical line angle measurement, ruler and compass correction) to accurately measure and record.

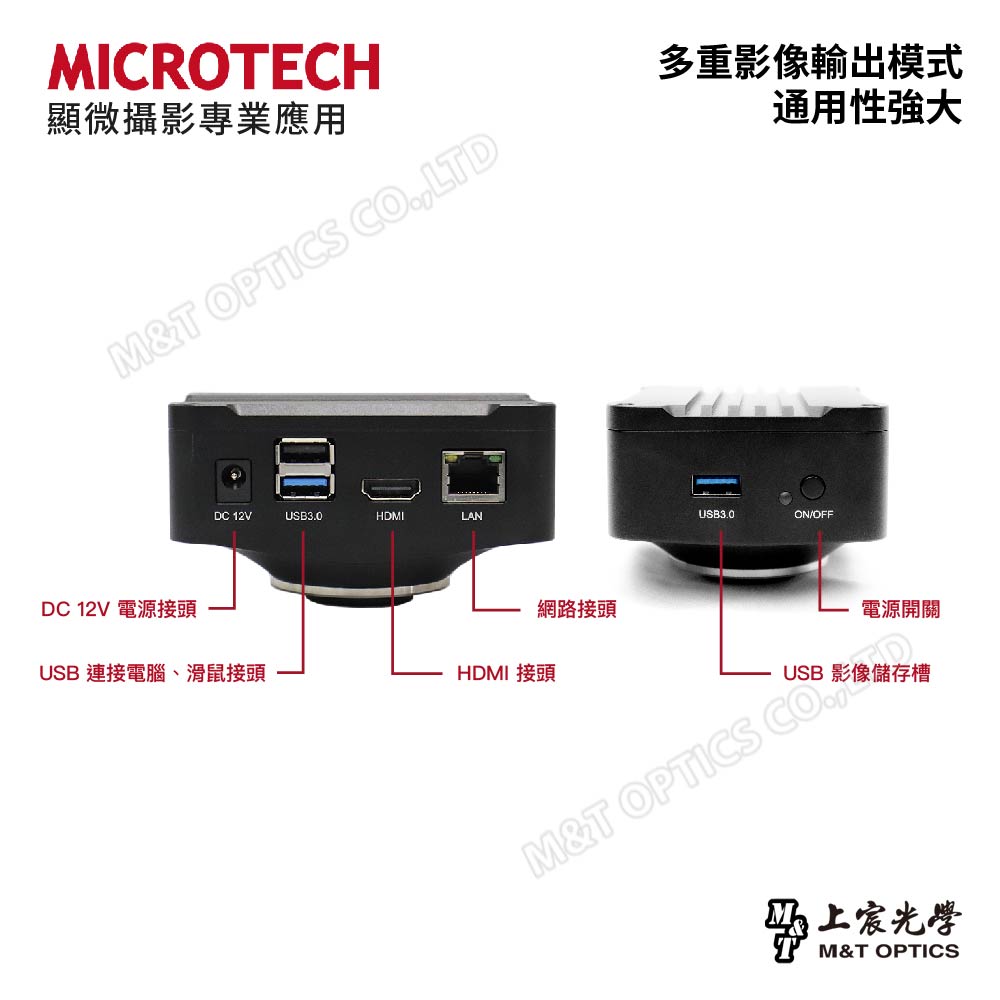

Multiple image output mode

Strong versatility It supports HDMI interface (4K) / LAN network / USB interface and multiple interface outputs to meet the different space and connection requirements of various fields.

＊Resolution and frame rate of each output mode: 75@3840*2160 (recording using a flash drive), 75@1920*1080 (recording using a flash drive), 60@3840*2160 (HDMI), 60@1920*1080 (HDMI ), 30@3840*2160(NETWORK), 60@1920*1080(NETWORK), 75@1280*720(NETWORK), 30@3840*2160(USB), 45@2688*1512(USB), 60@1920 *1080(USB)

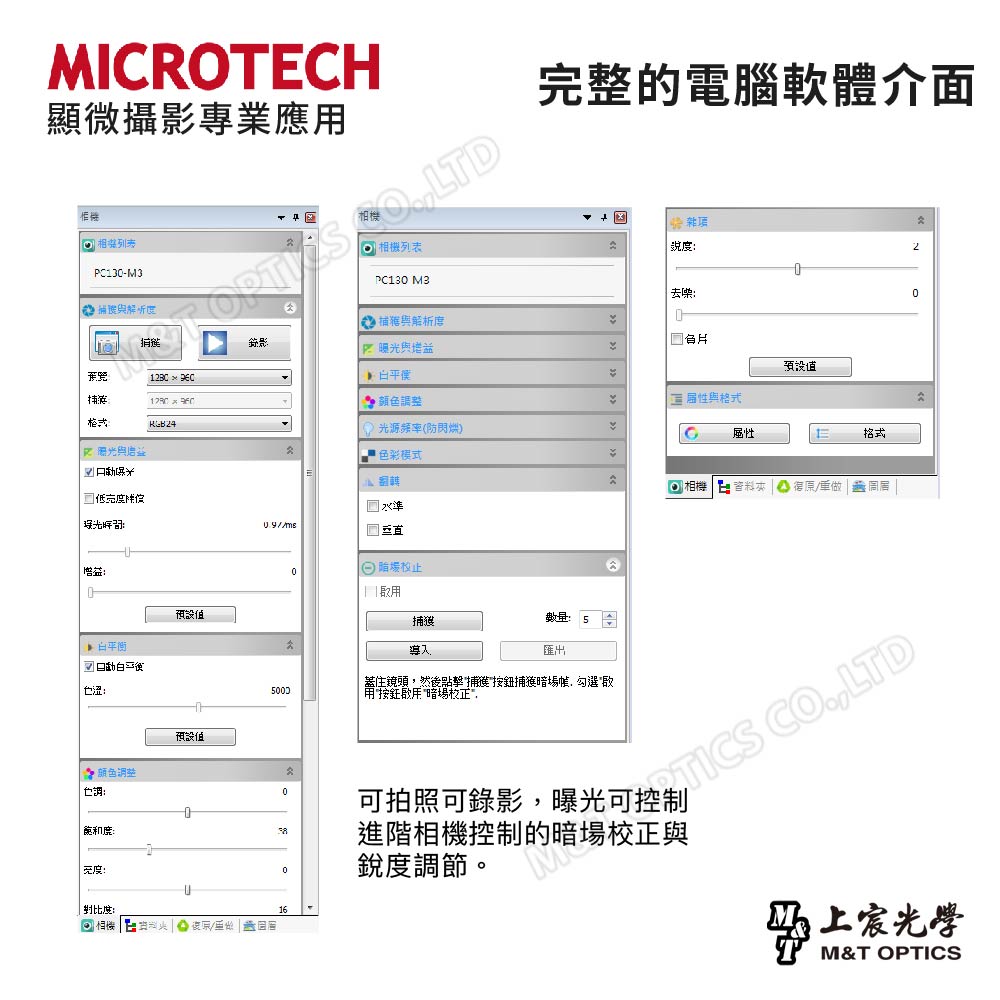

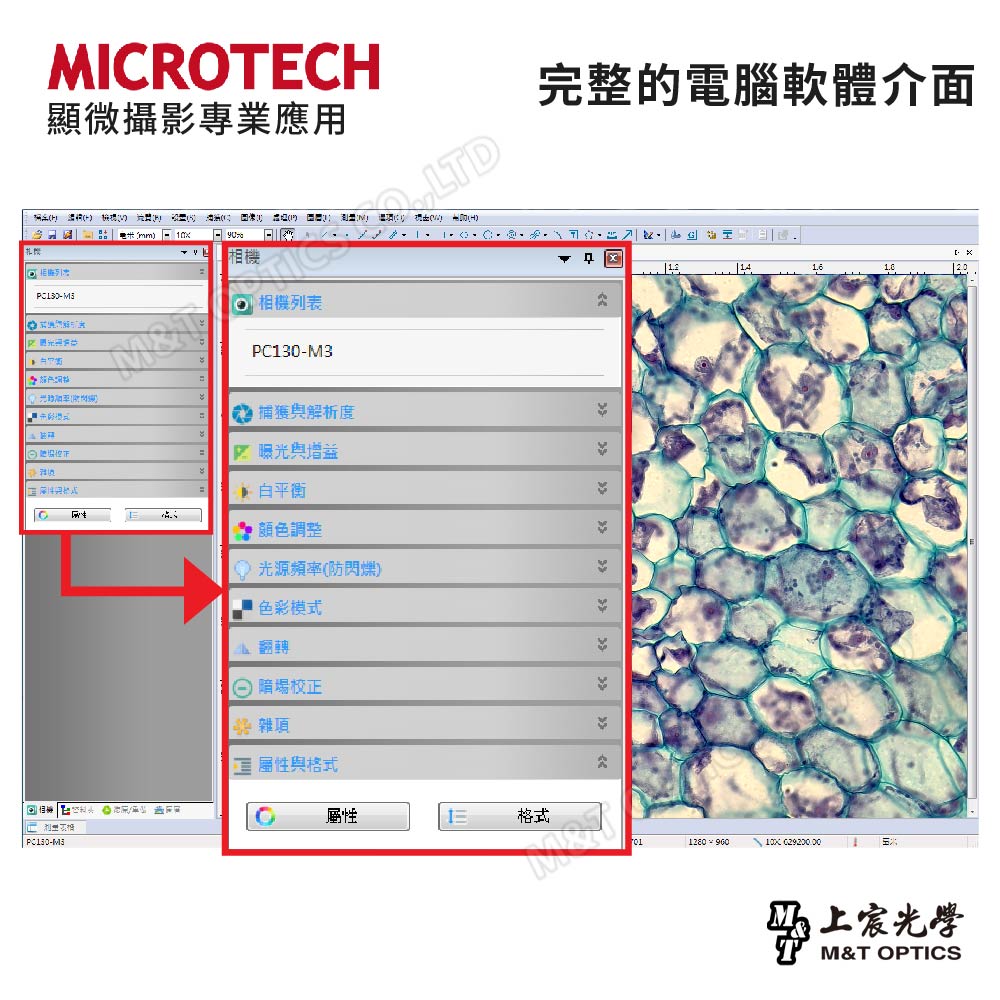

Complete computer software control interface (USB 3.0 interface connected to computer)

If you use the USB 3.0 interface to connect the camcorder to your computer, the corresponding microscopy imaging application (Microcam V8) also supports photo and video functions. You can view and capture images in the microscope in real time through the camera control software, and you can also record high-definition videos for subsequent analysis and sharing.

Powerful image processing function (USB 3.0 interface connected to computer)

The Microcam V8 app features automatic exposure and white balance functions to help you quickly obtain clear and color-accurate images. Color adjustments can also be made manually in post-production to ensure the best image quality.

Data list function (USB 3.0 interface connected to computer)

The Microcam V8 application measurement function can be used to measure geometric figures and mark scales, text and dimensions. To make the recording process more convenient, measurement results can be imported into Word or Excel using the graphic and text export function.

Plenty of accessories

The package contains MICROTECH U8s PLUS microscopic camcorder mouse, USB, HDMI cables, power transformer, and 32G USB flash drive.

Sample real shot

Rabbit - testicle section 400x (using ZEISS Primostar 3 TR microscope)

Sample real shot

Dog - Small intestine transection 400x (using ZEISS Primostar 3 TR microscope)
