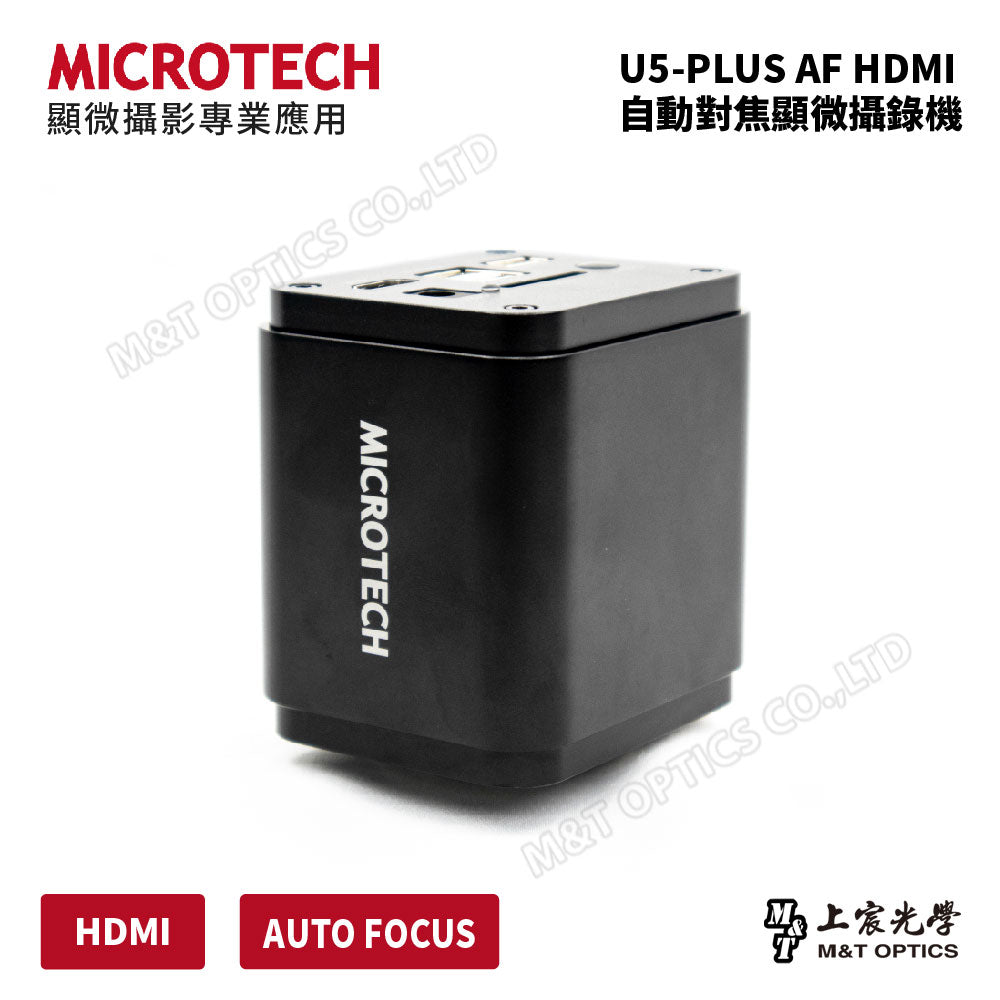

High-definition camcorder

MICROTECH U5-PLUS AF has a built-in focus motor and supports autofocus. Equipped with an 8.3 million pixel 2160p high-resolution sensor, it can output clear, detailed, real-time microscope images with excellent color rendering.

auto focus

The focus motor supports 16mm automatic focus. When adjusting the focus, you only need to turn the focus wheel to a position close to the focus. The U5 PLUS camcorder can automatically adjust the focus and quickly adjust the image to be clear and sharp, greatly simplifying the teaching or industrial quality inspection process. . Applicable to the field of life science education, industrial quality control QC, electronics industry, and high-tech industry.

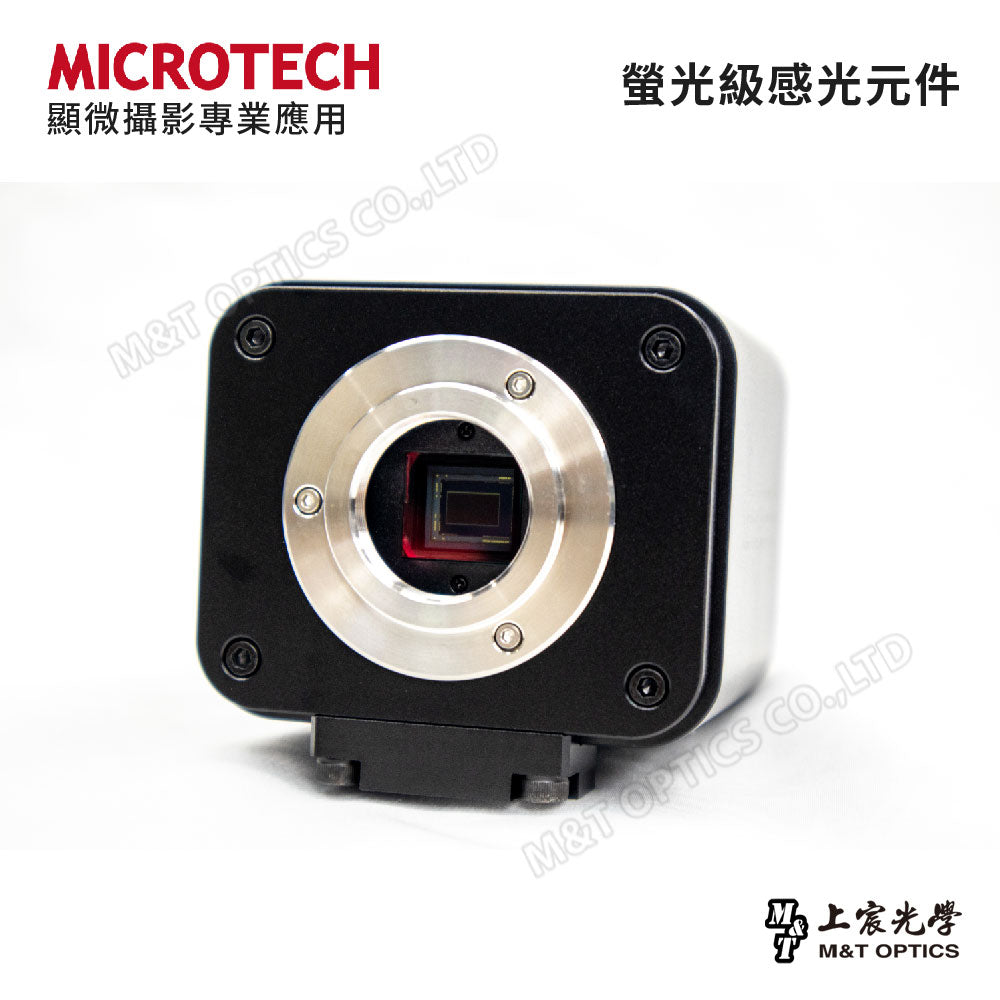

Fluorescent grade photosensitive element

It uses a 1/1.8” (7.68 mm × 4.32 mm) sensor to produce 4K (2160p) 30 frames of 8.3 million pixel high-resolution and high-quality images. It has strong photosensitivity, high dynamic range, and a wide field of view.

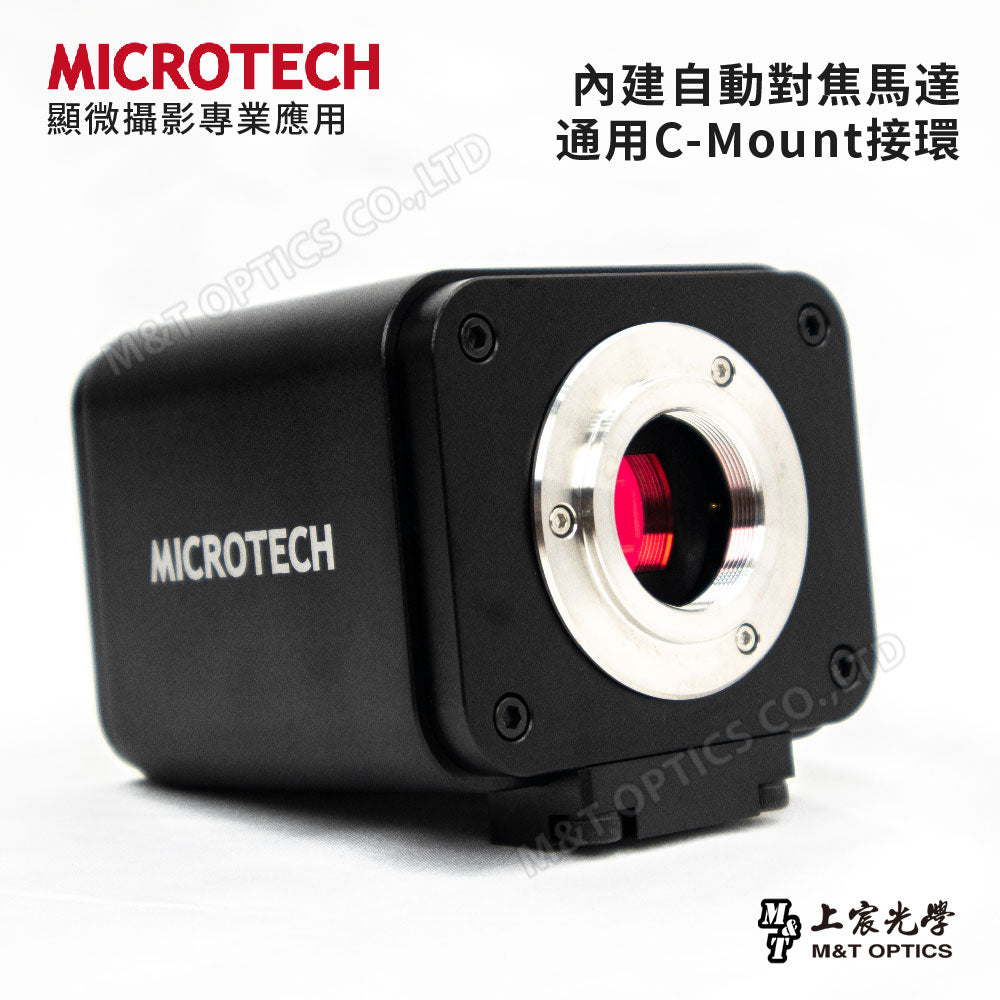

Universal C-Mount adapter

The highly compatible C-Mount adapter can be used with many types of microscopes.

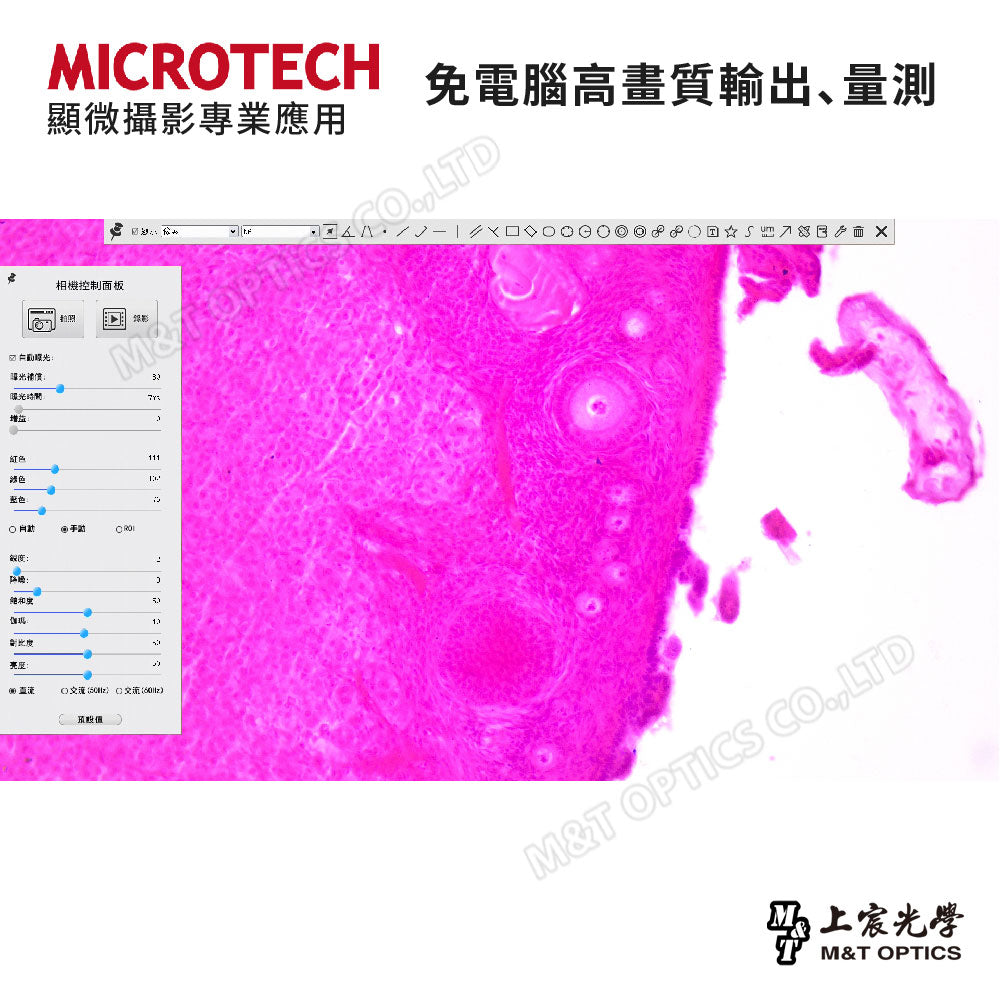

Computer-free high-quality output and measurement

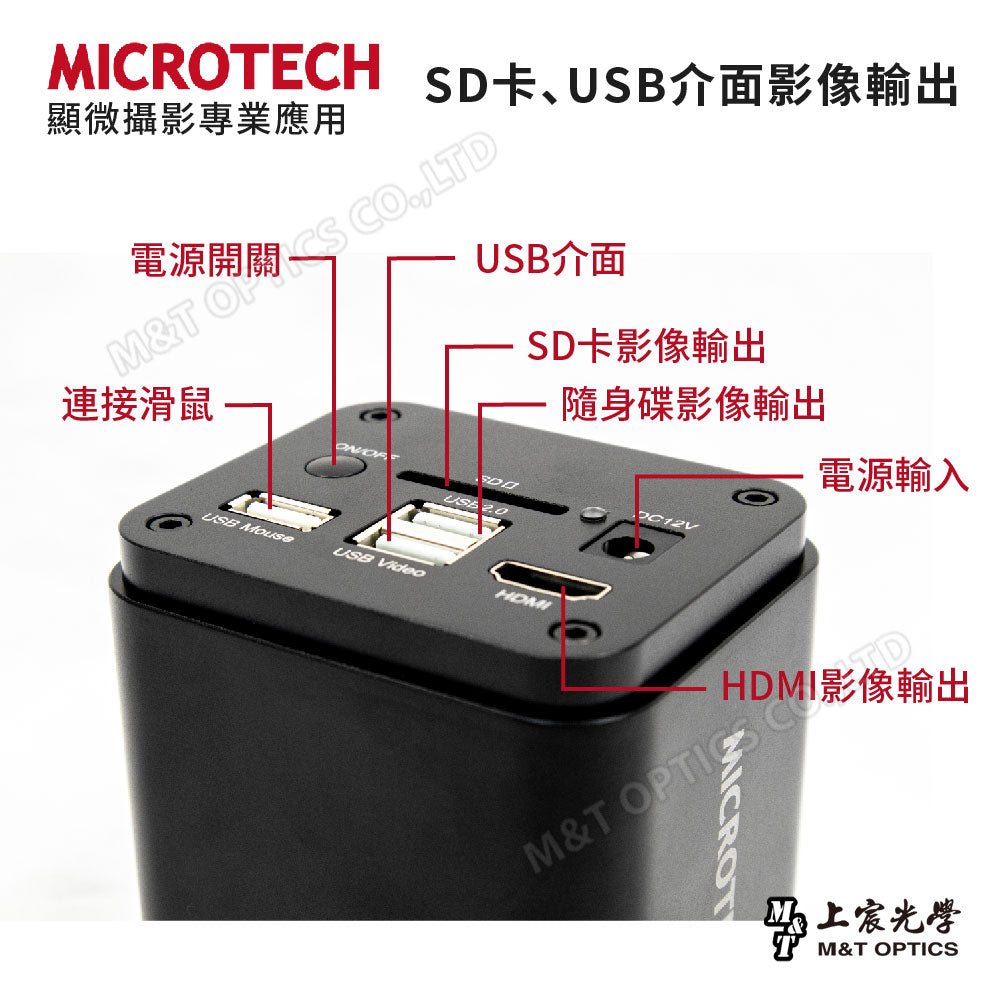

With just a mouse and an HDMI cable, you can instantly output ultra-high magnification images from the microscope and control the shooting records. The built-in ruler and various measuring tools allow you to accurately measure and record. Use SD or card flash drive to store images and data with one click. It can also be connected to a computer via USB cable and supports online video.

Plenty of accessories

The package contains MICROTECH U5-PLUS AF microscopic camcorder mouse, USB, HDMI cables, power transformer, and 32G memory card.

Product specifications

Image transmission interface	HDMI: 30fps@4K or 30fps@1080P WLAN: Connect USB-WiFi module in AP or STA mode USB Video: MJPEG format
Embedded Systems	Embedded MicroCam camcorder operating system HDMI image output
System support	Windows, Mac iOS, Android
power supply	DC12V1A
Photosensitive element size	1/1.8"" 7.68 mm × 4.32 mm
Shooting resolution	8.3 million pixels 3840 × 2160 p
Pixel sizePixel	2 µm x 2 µm
bit depth	8 Bit / 14 Bit
Exposure time	0.04ms~1000ms
G Sensitivity Dark Signal	505 mv with 1/30s 0.13 mv with 1/30s
Frame rate/resolution	"30@3840x2160(HDMI) 30@3840x21600(WLAN) 30@3840x2160(USB)"
Pixel binning	1x1
Interface and buttons	USB3.0, USB2.0, HDMI, Gigabit LAN port
WLAN	USB-WiFi module
Bluetooth	-
