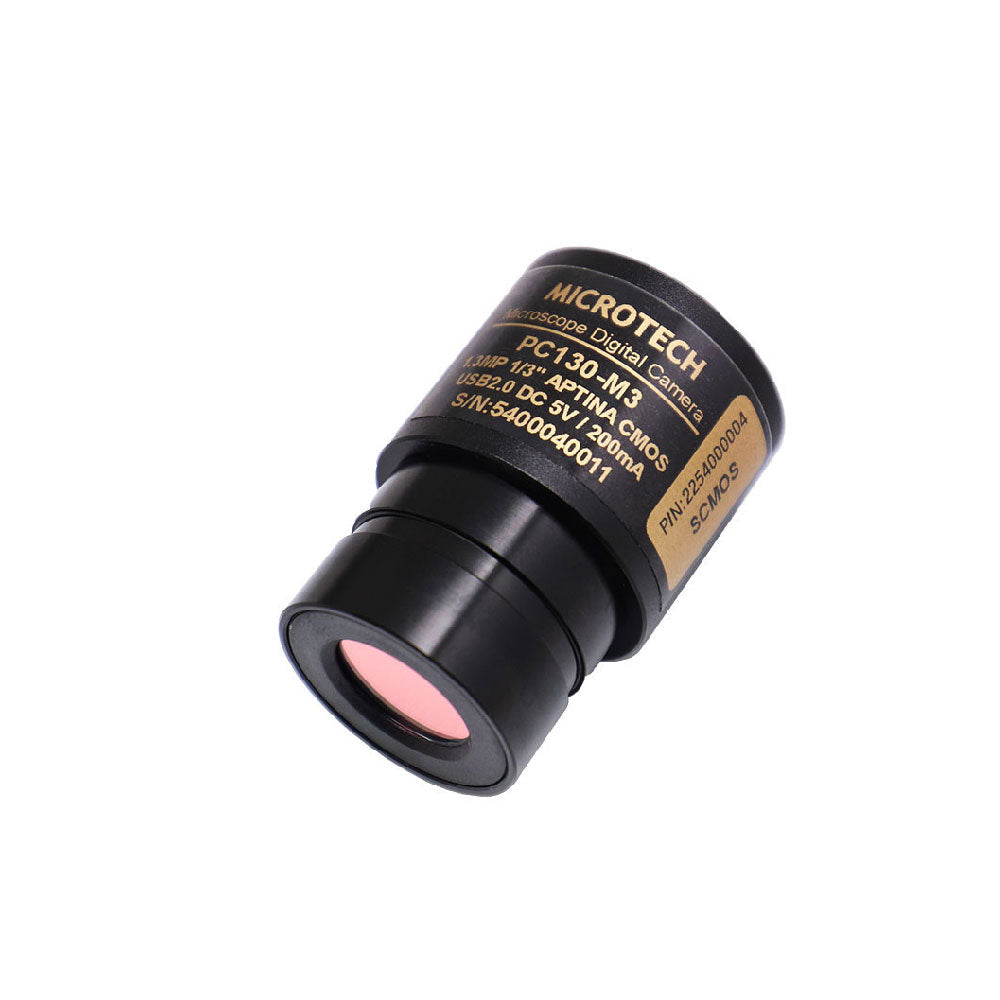

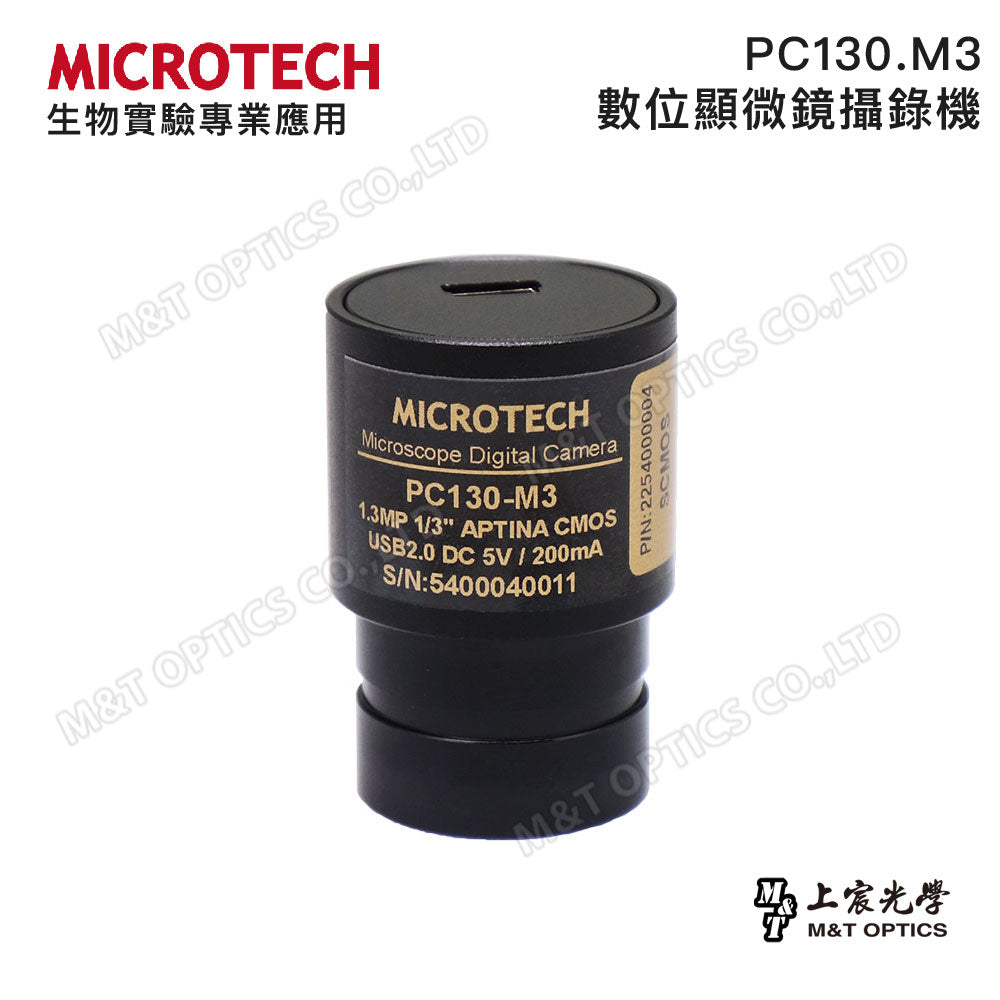

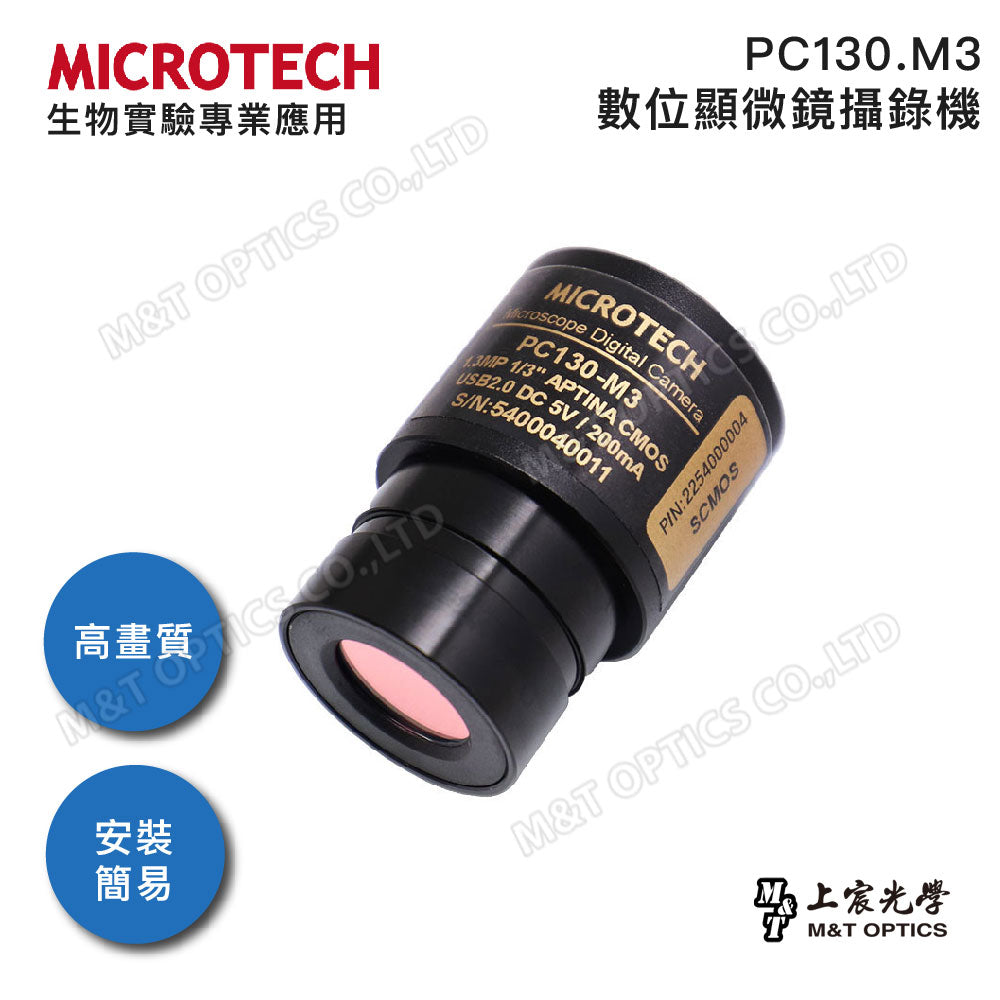

MICROTECH PC130-M3 digital microscopic camcorder USB (universal Windows/Mac operating system)

Order number

2254000004

High-performance CMOS photosensitive chip and the latest digital signal processor (DSP) technology

  • 1.3 million pixel clear high-definition images
  • Image colors are truly restored, contrast is strong, and various image parameters can be adjusted in real time.
  • Automatic white balance and automatic exposure functions
  • High-speed and stable instant image preview. Easy to install and use. Suitable for a variety of models.


Easy to install and easy to use!

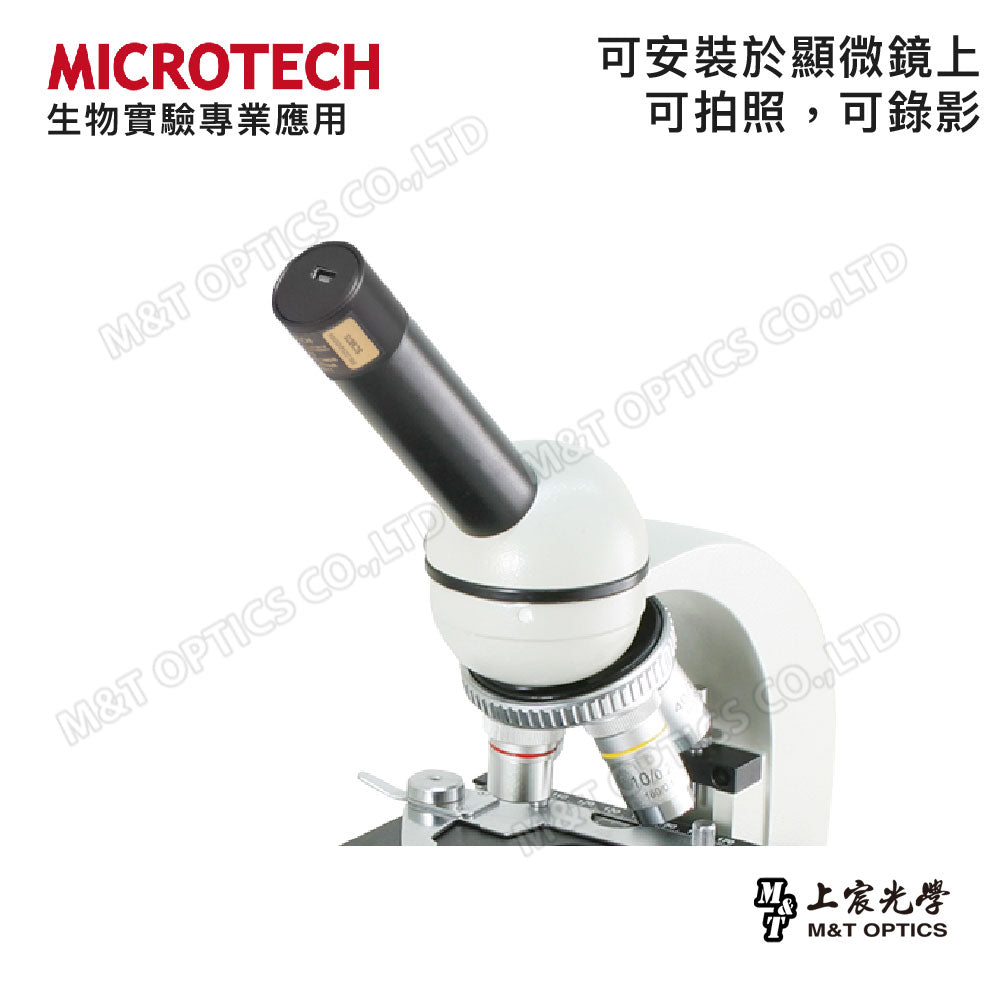

Pick up the eyepiece, and the PC130-M3 video camera can be directly connected to the microscope eyepiece tube, and the images in the microscope can be transferred to the computer through the USB cable to take pictures, video, and microscopic image measurements and calculations to meet your professional needs. .

It is suitable for shooting with any standard biological and stereo microscope, and is very suitable for school and personal use. It can make your originally complicated work easy and efficient.

Complete camera control interface and powerful image processing functions

It can take photos and videos, and the exposure can be controlled. Advanced camera control, dark field correction and sharpness adjustment.
Various photo algorithms and applications

Practical geometric dimension measurement function, which can mark scale, text and dimensions.

Convenient measurement report graphics and text export function (Excel)

Convenient measurement report graphics and text export function (Excel)

Android Android mobile phone special software (Google Play download)

The mobile phone software screen is as shown above.

Please bring your own OTG adapter USB connector

Photosensitive element 1/3 inch color CMOS (spectrum response range 380nm650nm)
total pixels 1.3 million pixels
exposure control Manually controlled fully automatic mode (electronic rolling shutter)
Resolution 1520x856、760x428
Fastest frame rate 30fps (1520x856, 760x428)
Image storage format JPG／BMP／WMV／MPG
Transmission/Power USB DC5V／USB length 150mm
Nozzle diameter
Diameter 23mm
operating system No driver installation required, suitable for XP/WIN7/WIN8/WIN10/Mac
Image capture Preview (adjustable resolution), take photos, and record videos
Image adjustment
Brightness, contrast, saturation, hue, gamma, sharpness
exposure adjustment Automatic white balance, automatic exposure
Instant processing
Flip (horizontal, vertical), gray value, embossing, sharpening, binarization, negative and other functions
Dynamic and static measurement functions
Geometric measurements of straight lines, angles, circles, areas, rectangles, etc.
