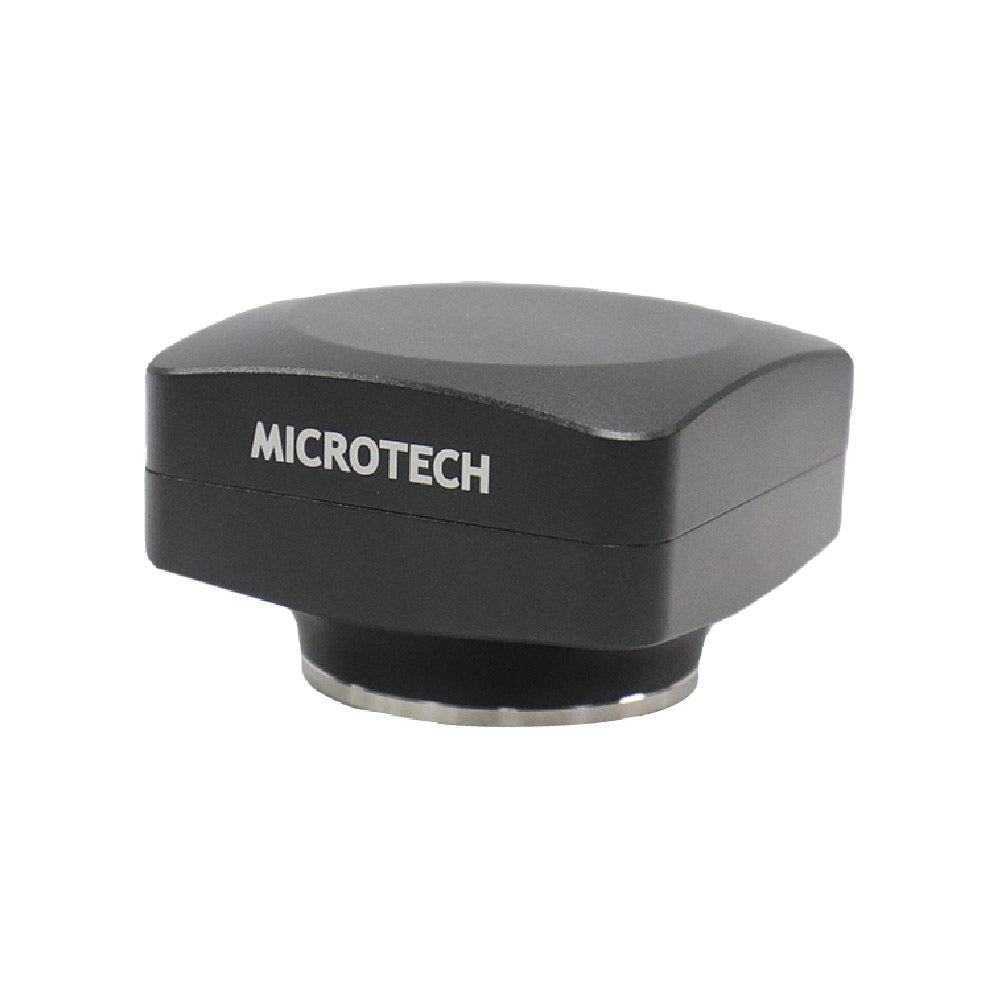

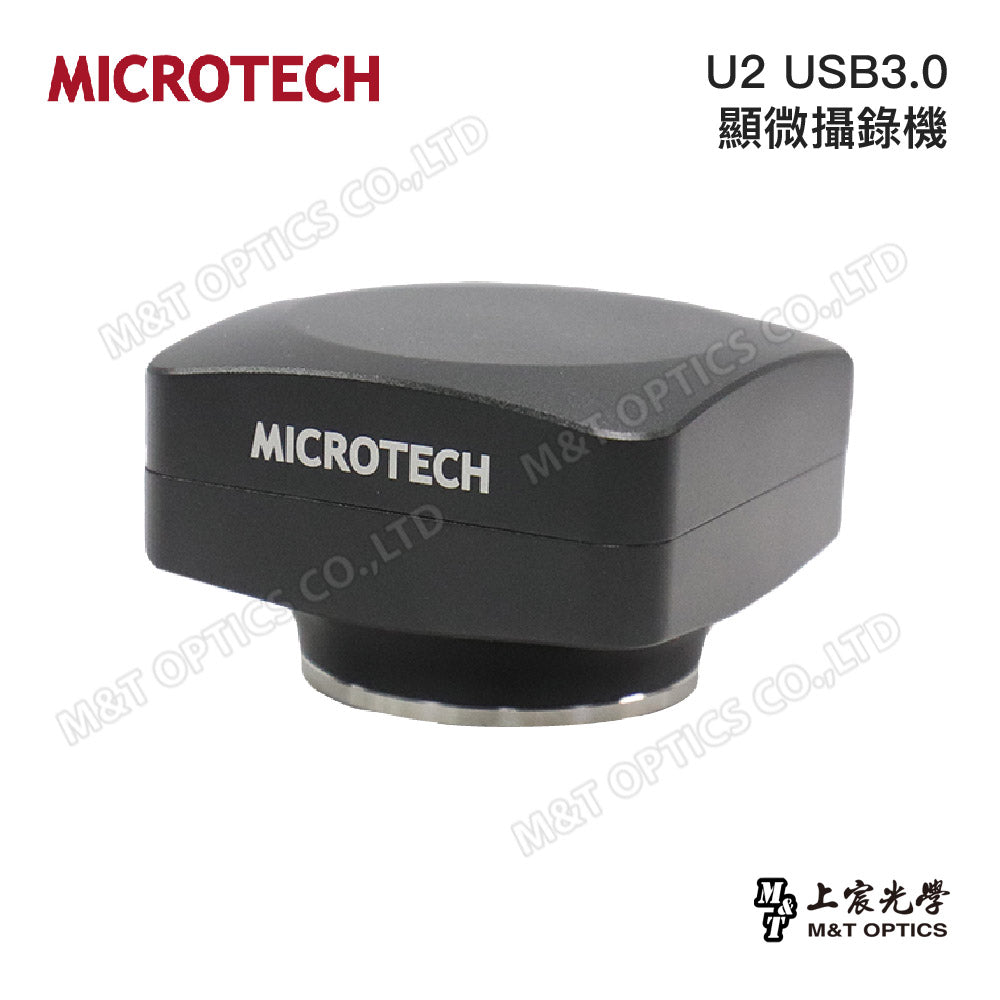

MICROTECH U2 USB3.0 microscopic camcorder-original factory warranty for one year
Order number
2254000002
Couldn't load pickup availability
High definition camcorder
MICROTECH U2 is equipped with a two-megapixel 1080p high-resolution image sensor that can capture clear, detailed microscope images. It has excellent color reproduction and excellent contrast, providing high-quality image output.

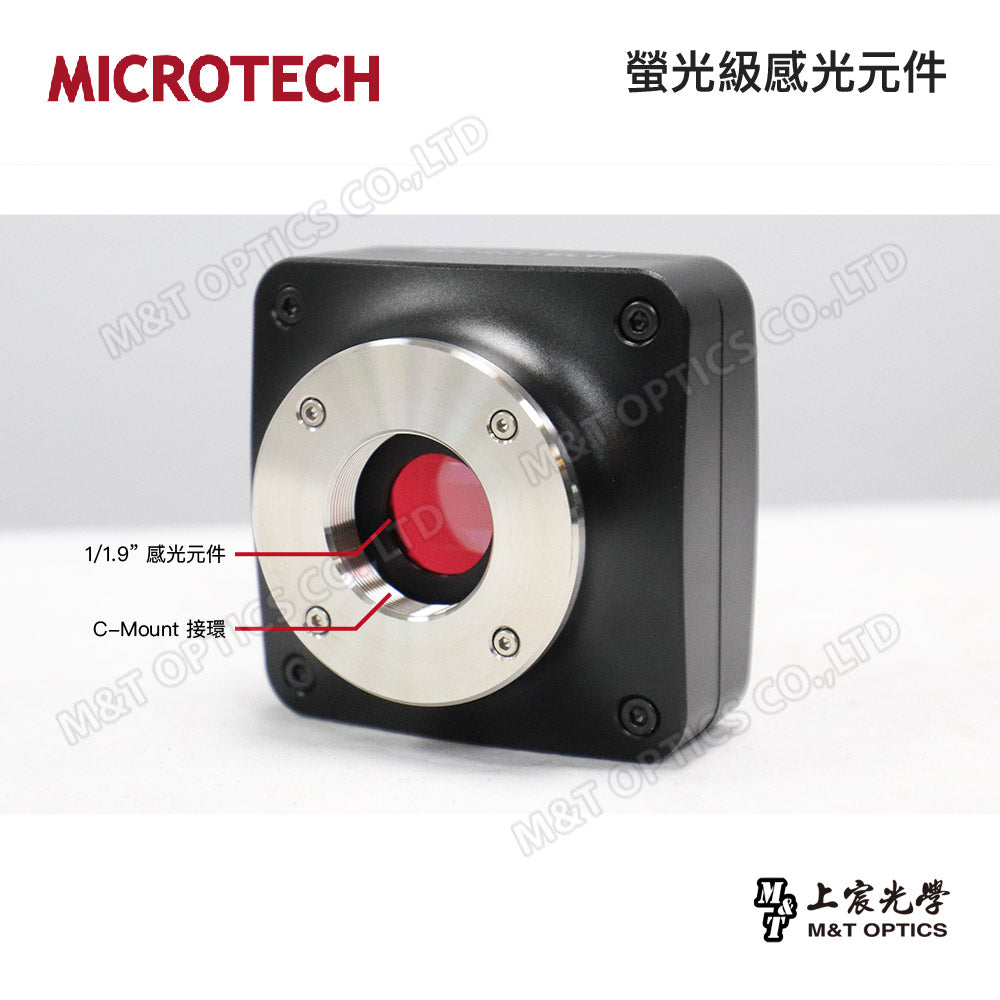

Fluorescent grade photosensitive element
It uses a 1/1.9” (7.2mm × 4.05mm) photosensitive element, which has the advantages of high dynamic range, strong photosensitivity, and wide field of view.

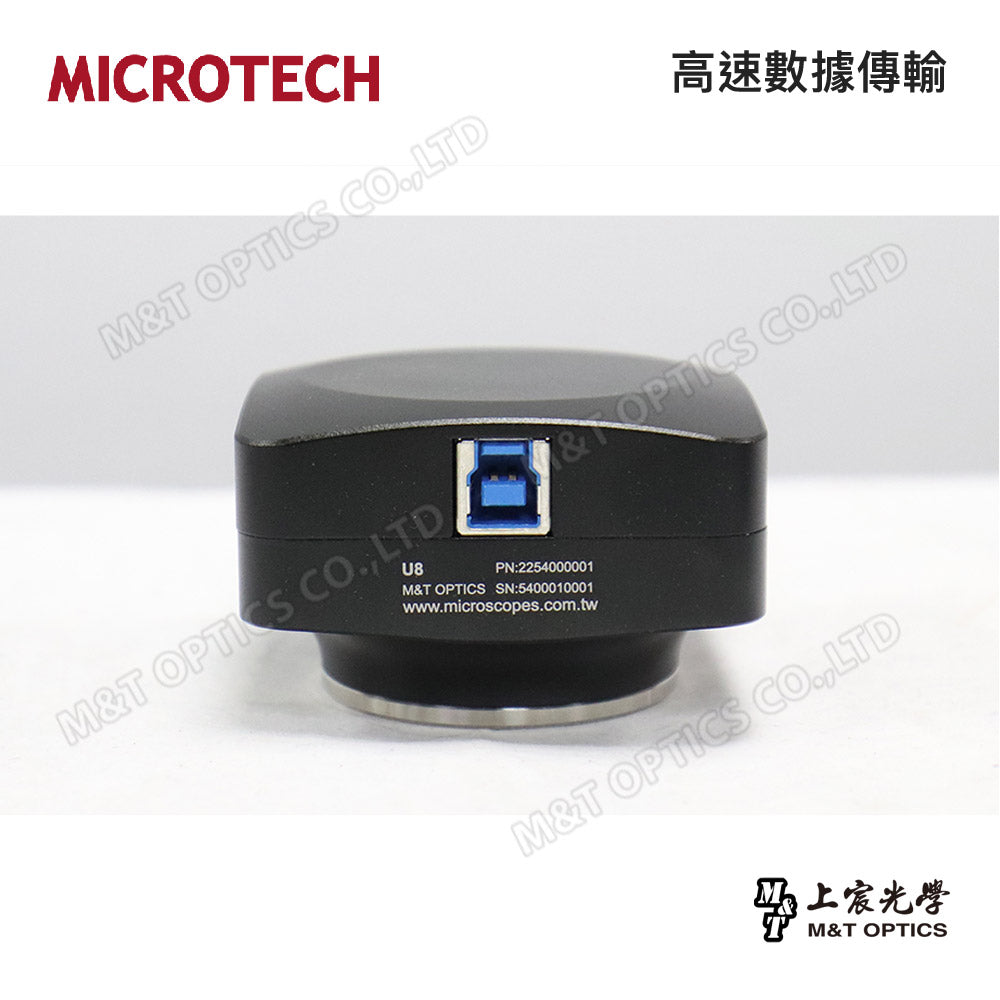

High speed data transfer
This camcorder uses USB 3.0 high-speed data transmission, allowing you to instantly observe and capture objects in the microscope. No need to worry about lag or blurry images.

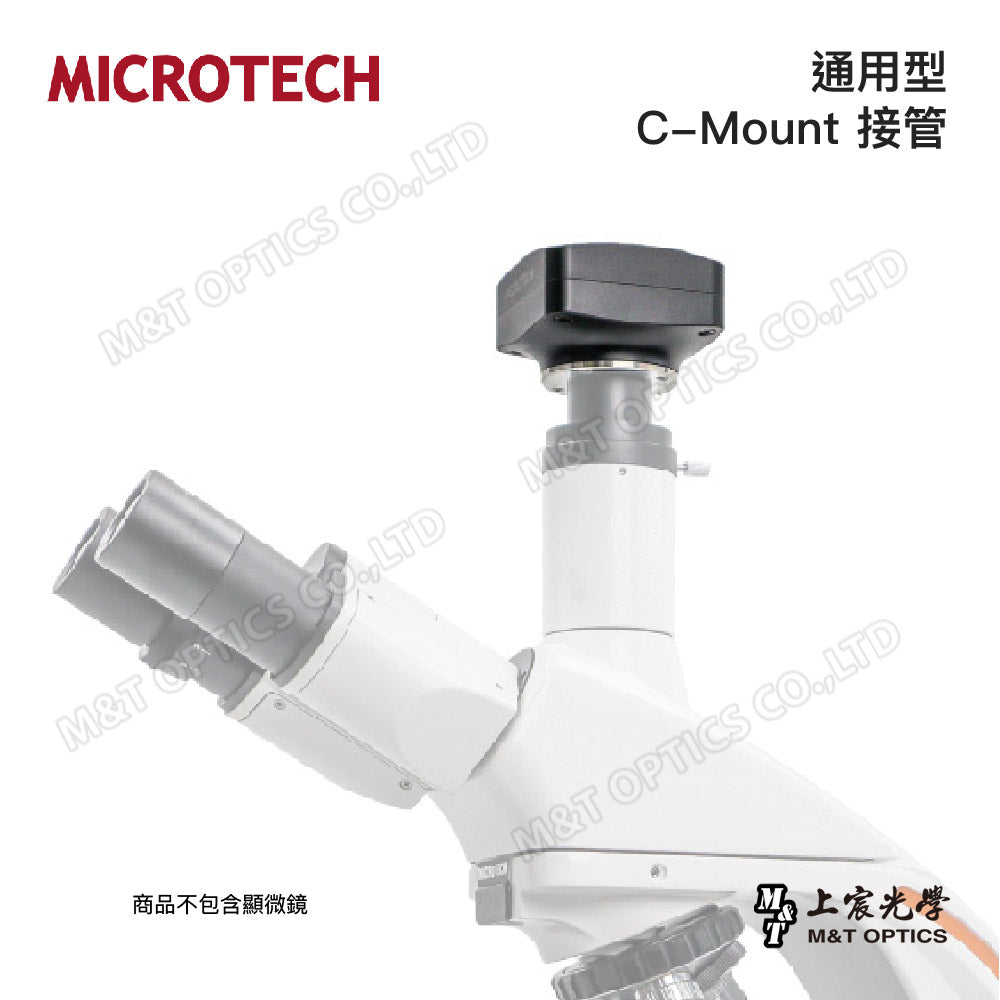

Universal C-Mount takeover
Using C-Mount adapter, it can be used with many styles of microscopes. It has a highly compatible adapter, lightweight appearance and excellent picture quality.

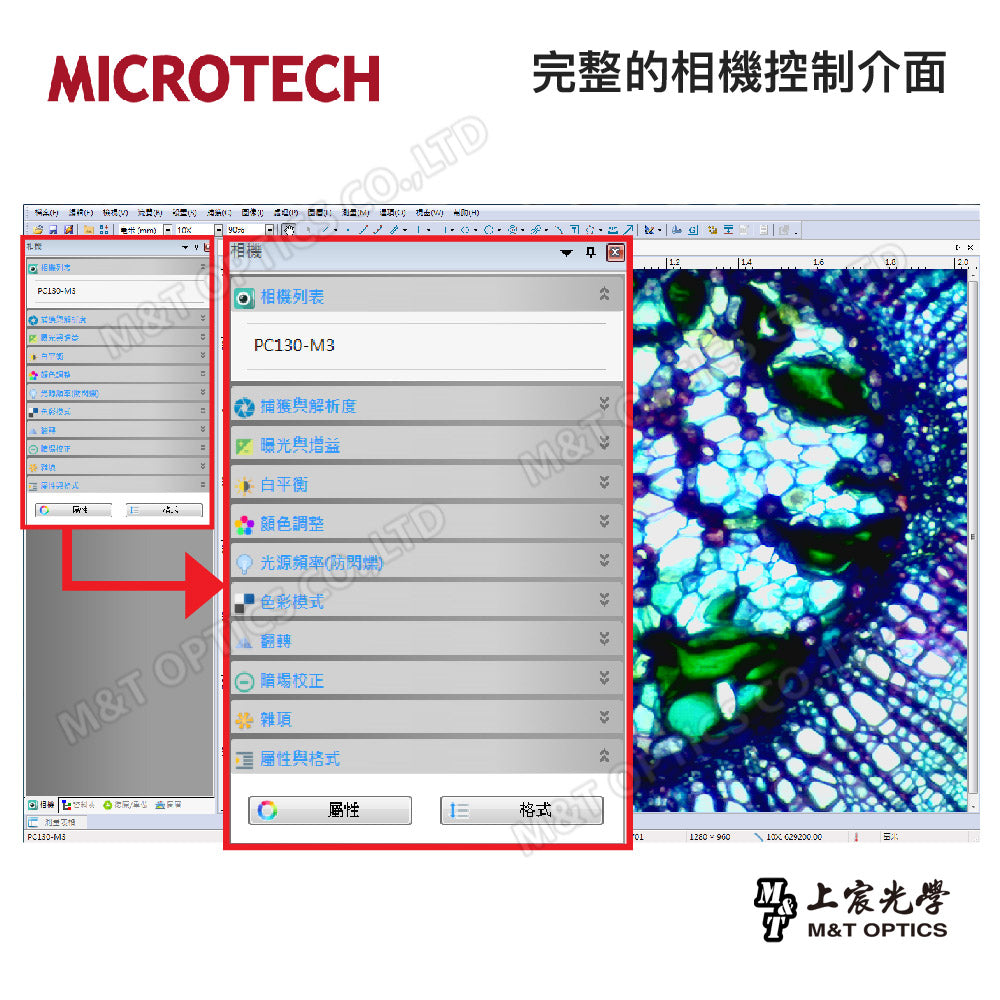

Complete camera control interface
This camcorder is equipped with easy-to-use image capture and recording functions. You can view and capture images in the microscope in real time through the camera control software, and you can also record high-definition videos for subsequent analysis and sharing.

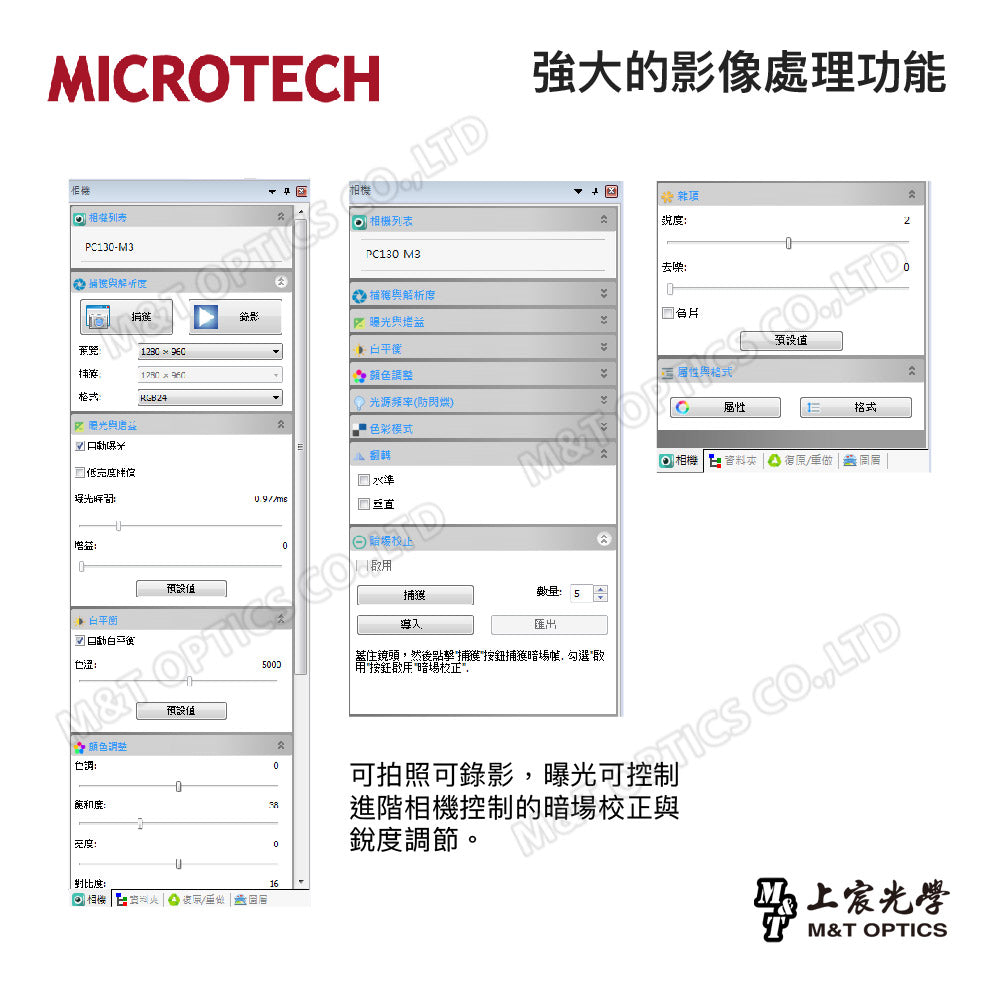

Powerful image processing functions
Equipped with automatic exposure and white balance functions, it can help you quickly obtain clear and color-accurate images. Color adjustments can also be made manually in post-production to ensure the best image quality.
Data list function
You can use the measurement function to measure geometric figures and mark scales, text and dimensions. To make the recording process more convenient, measurement results can be imported into Word or Excel using the graphic and text export function.
Recommended additional purchases
Mini PC V8 (Article No. 2254000011)
Product specifications
| Image transmission interface | USB 3.0 Video |
| Embedded Systems | - |
| System support | Windows, Mac iOS, Android |
| power supply | USB |
| Photosensitive element size | 1/1.9" (7.2 mm × 4.05 mm) |
| Shooting resolution | Two million pixels 1920 × 1080 p |
|
Pixel sizePixel
|
3.75 µm x 3.75 µm |
|
bit depth
|
8 Bit / 14 Bit |
| Exposure time | 0.1ms~15s |
| G Sensitivity Dark Signal | 2350mv with 1/30s、0.15mv with 1/30s |
| Frame rate/resolution | 125@1920x1080 |
| Pixel binning | 1x1 |
| Interface and buttons | USB 3.0 |
| WLAN | - |
| Bluetooth | - |
