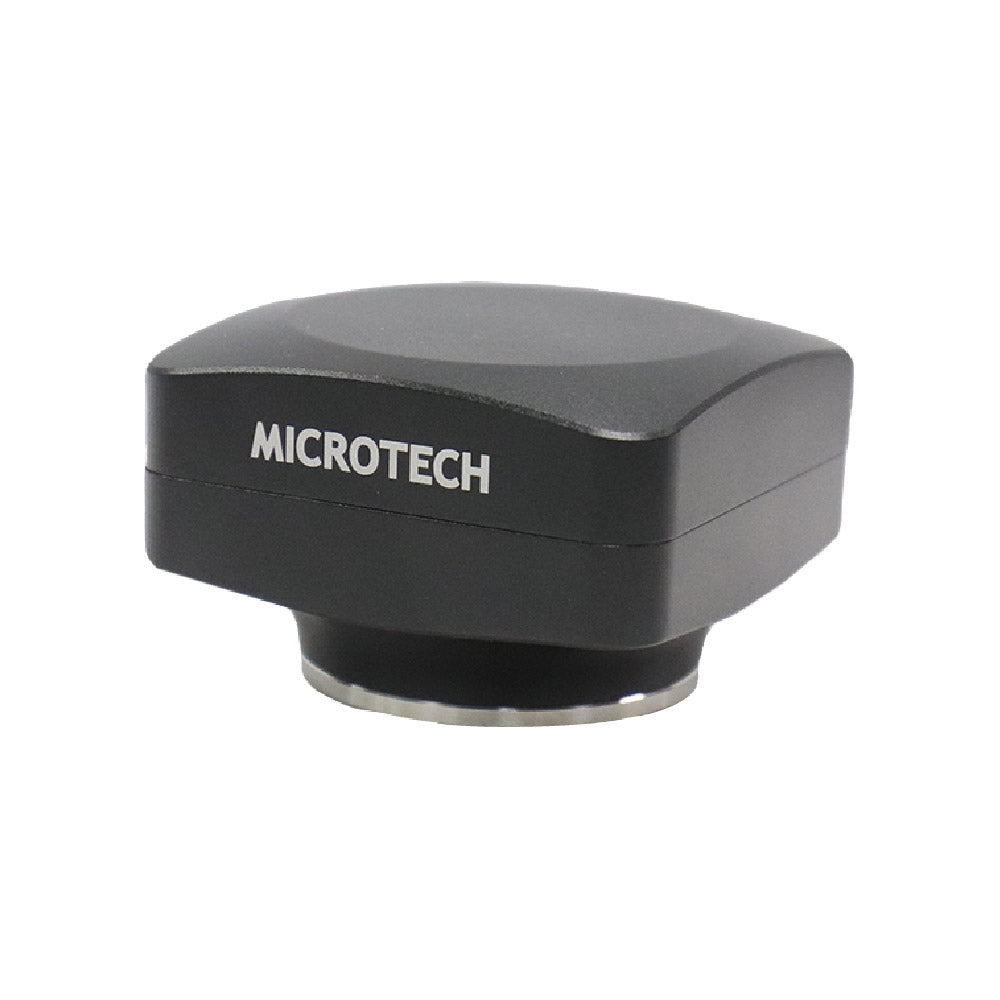

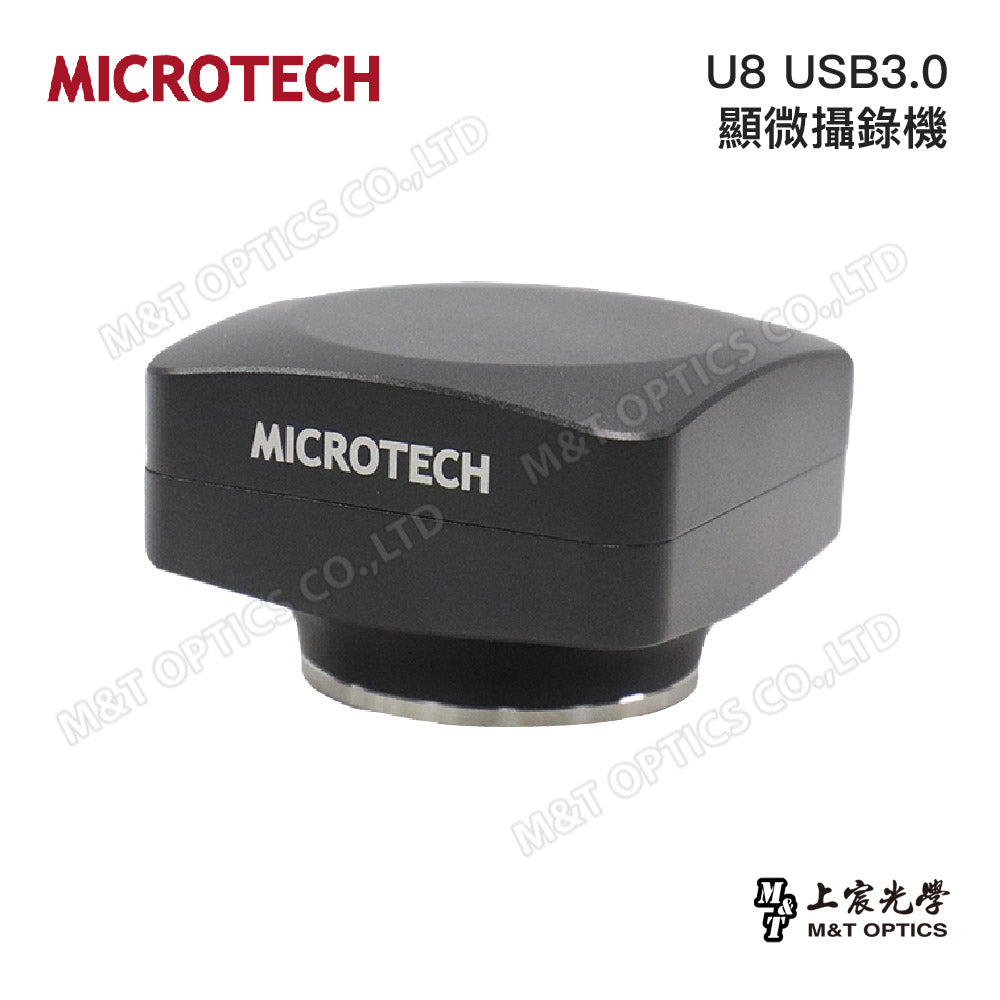

MICROTECH U8 USB3.0 microscopic camcorder-original factory warranty for one year

Order number

2254000001

High-definition camcorder

MICROTECH U8 is equipped with an 8.3-megapixel 2160p high-resolution image sensor that can capture clear, detailed microscope images. It has excellent color reproduction and excellent contrast, providing high-quality image output.

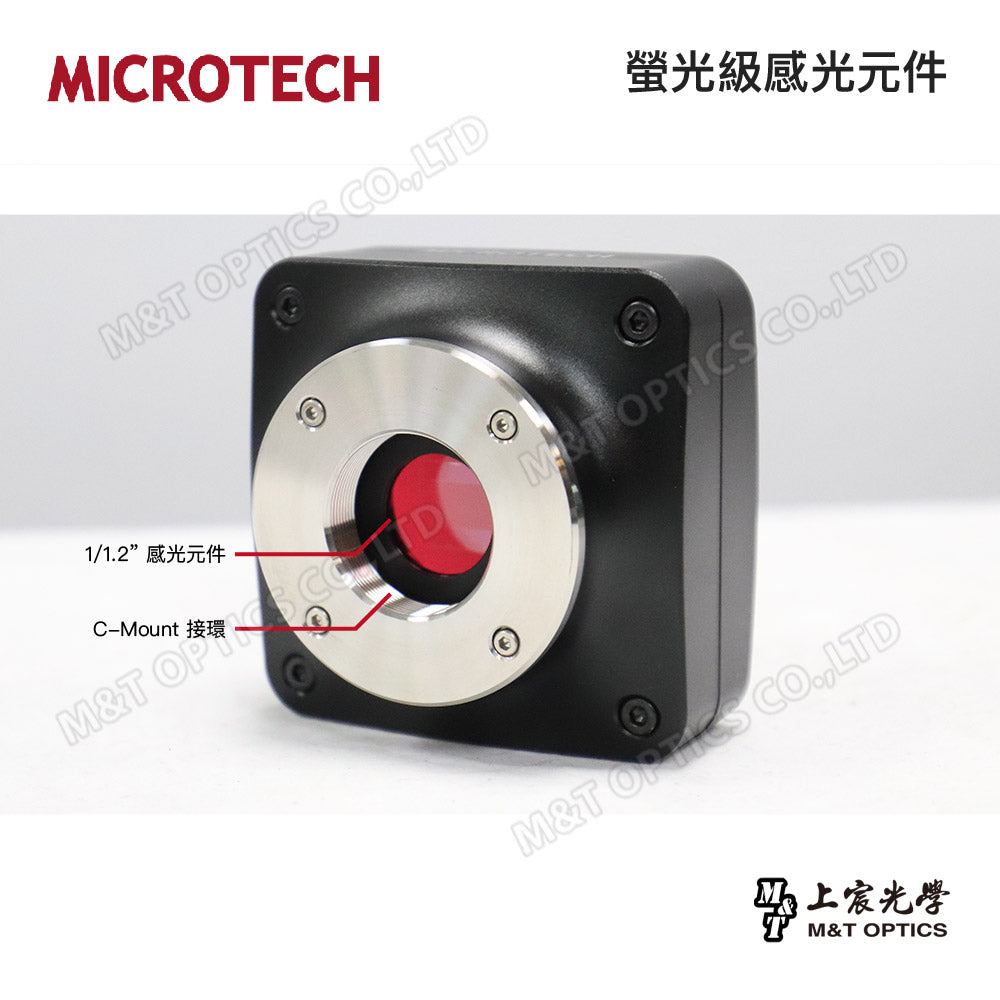

Fluorescent grade photosensitive element

It uses a 1/1.9” (7.2mm × 4.05mm) photosensitive element, which has the advantages of high dynamic range, strong photosensitivity, and wide field of view.

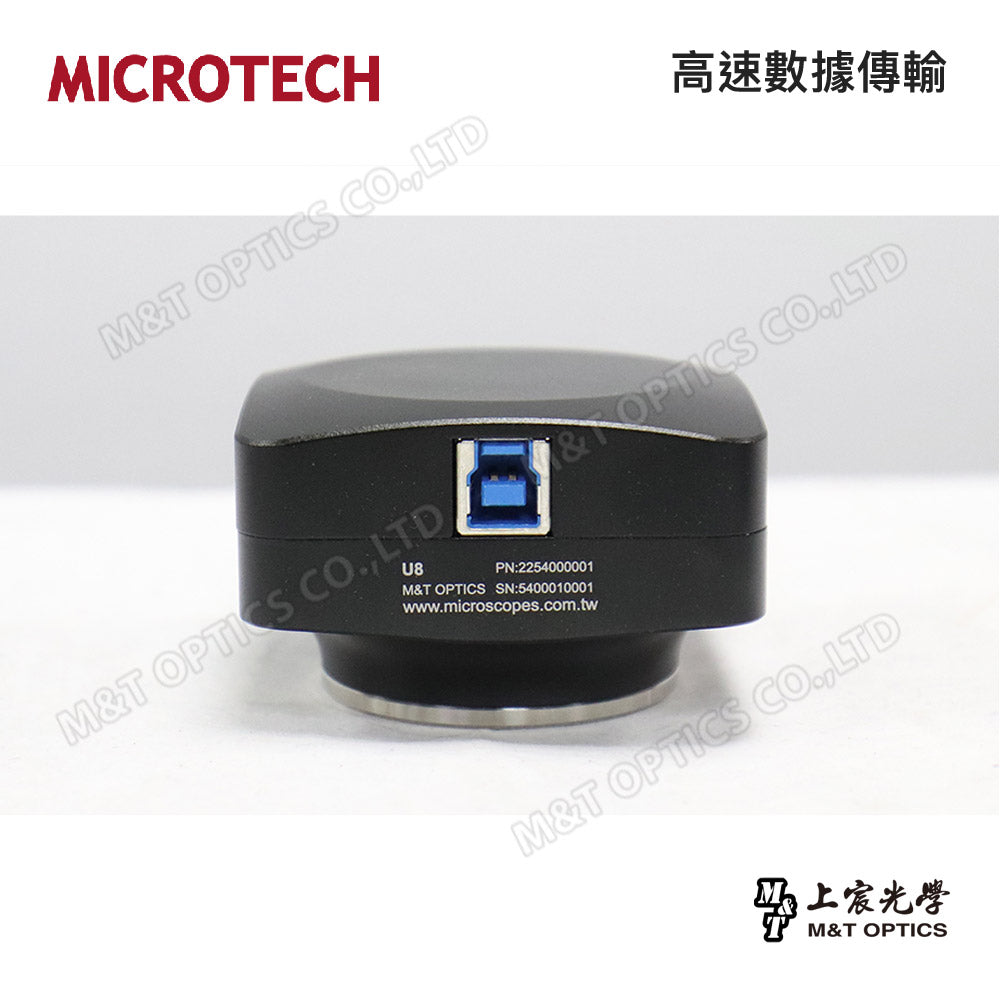

High speed data transfer

This camcorder uses USB 3.0 high-speed data transmission, allowing you to instantly observe and capture objects in the microscope. No need to worry about lag or blurry images.

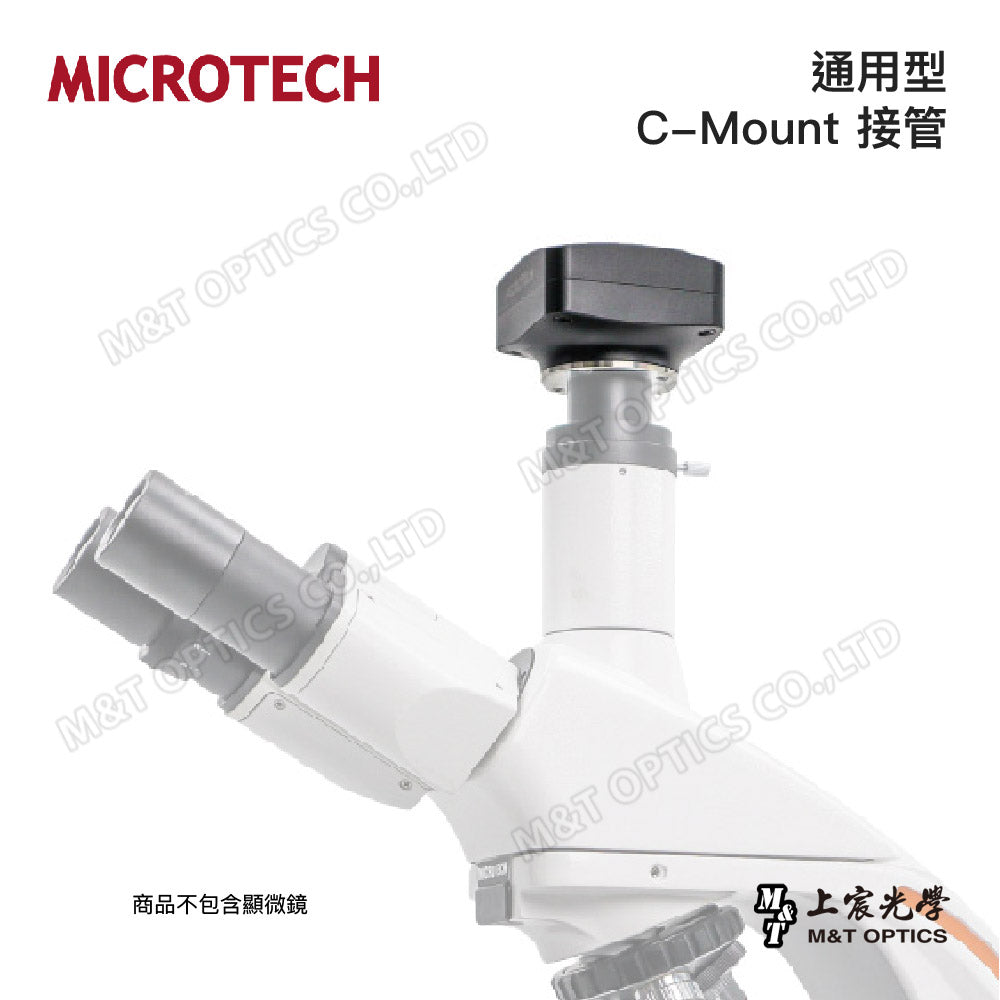

Universal C-Mount takeover

Using C-Mount adapter, it can be used with many styles of microscopes. It has a highly compatible adapter, lightweight appearance and excellent picture quality.

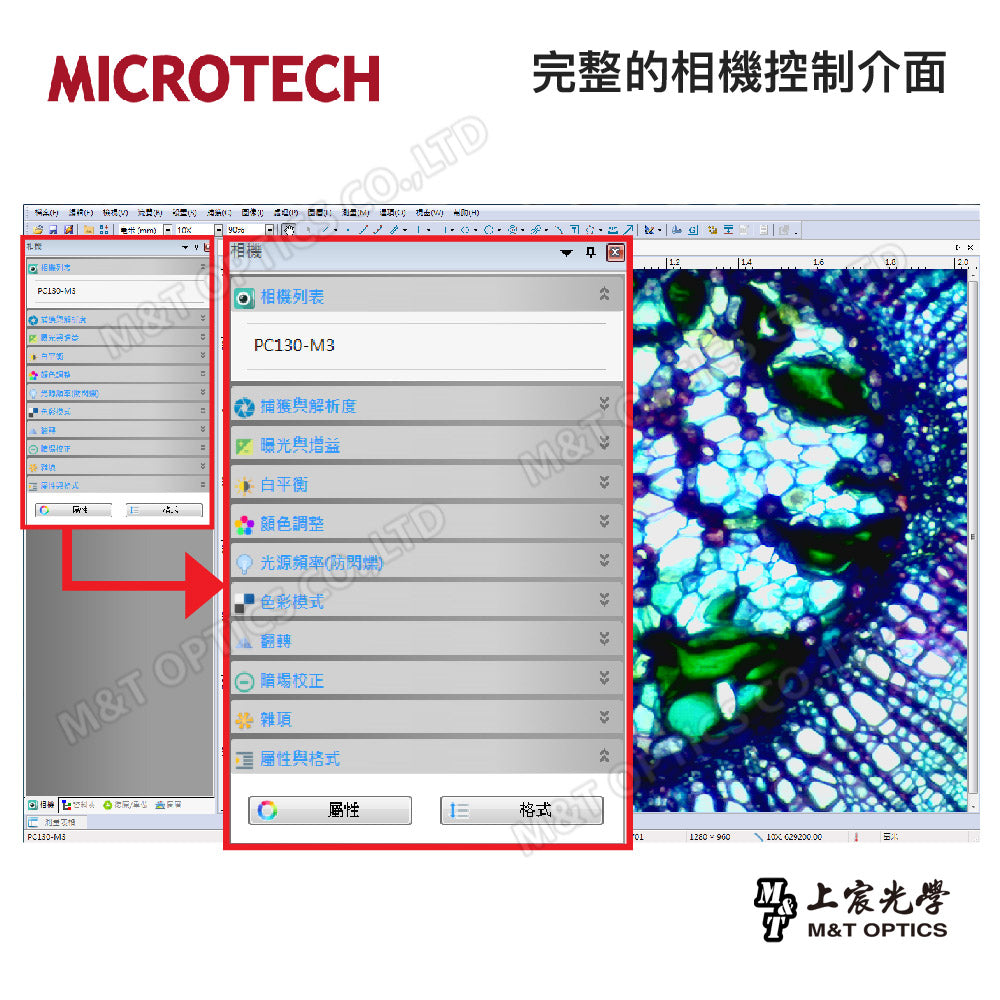

Complete camera control interface

This camcorder is equipped with easy-to-use image capture and recording functions. You can view and capture images in the microscope in real time through the camera control software, and you can also record high-definition videos for subsequent analysis and sharing.

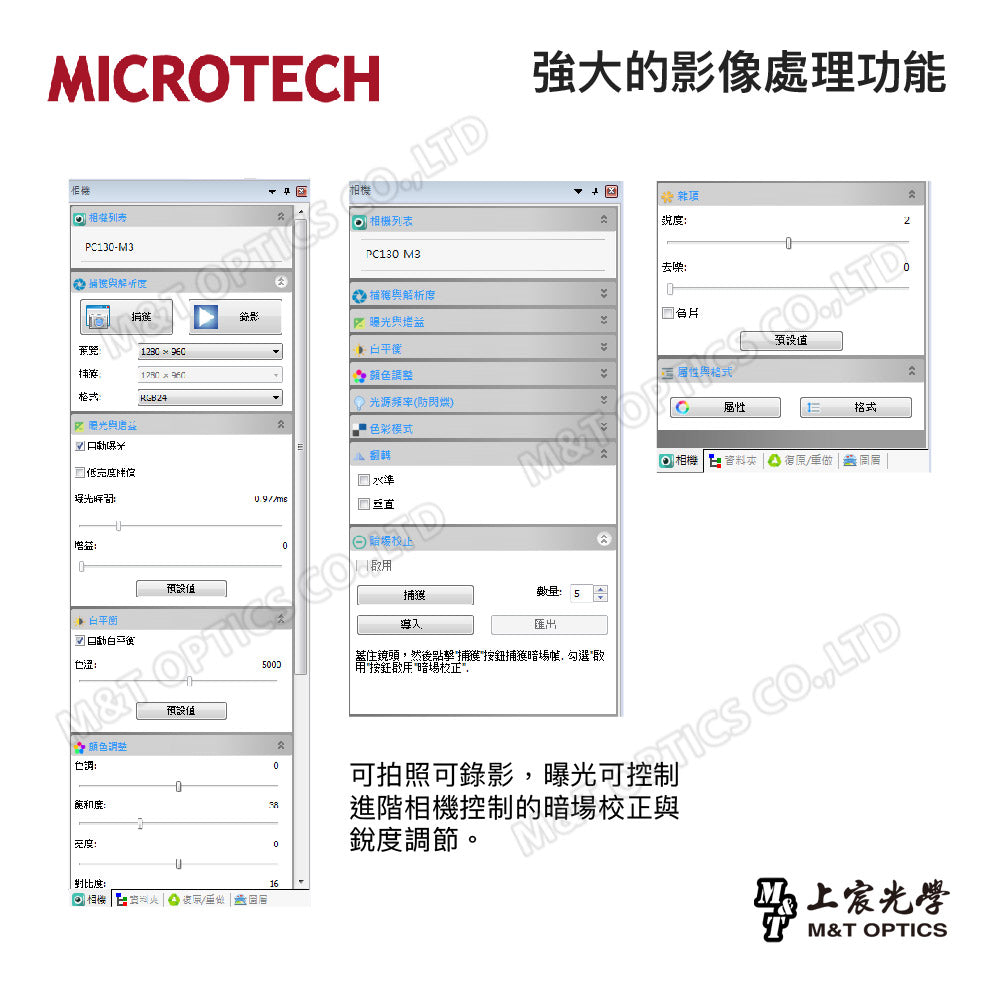

Powerful image processing functions

Equipped with automatic exposure and white balance functions, it can help you quickly obtain clear and color-accurate images. Color adjustments can also be made manually in post-production to ensure the best image quality.

Data list function

You can use the measurement function to measure geometric figures and mark scales, text and dimensions. To make the recording process more convenient, measurement results can be imported into Word or Excel using the graphic and text export function.

Recommended additional purchases

Mini PC V8 (Article No. 2254000011)

Product specifications

Image transmission interface USB 3.0 Video
Embedded Systems -
System support Windows, Mac iOS, Android
power supply USB
Photosensitive element size 1/1.2" (11.14 mm × 6.26 mm)
Shooting resolution 83,000 pixels 3840 × 2160 p
Pixel sizePixel 2.9 µm x 2.9 µm
bit depth 8 Bit / 14 Bit
Exposure time 0.02ms~15s
G Sensitivity Dark Signal
2188mv with 1/30s、0.15mv with 1/30s
Frame rate/resolution
45@3840x2160/70@1920x1080
Pixel binning 1x1,2x2
Interface and buttons USB 3.0
WLAN -
Bluetooth -
