AI artificial intelligence-the best assistant for cell culture workers

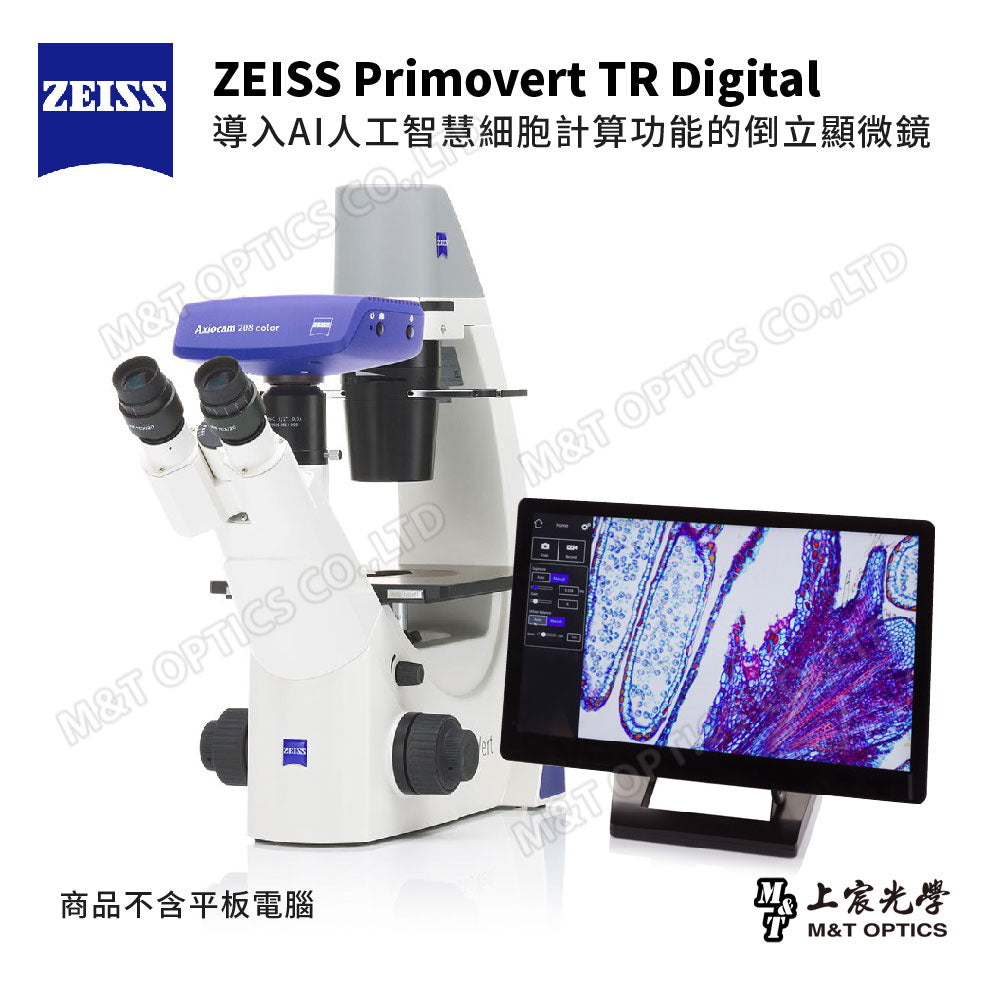

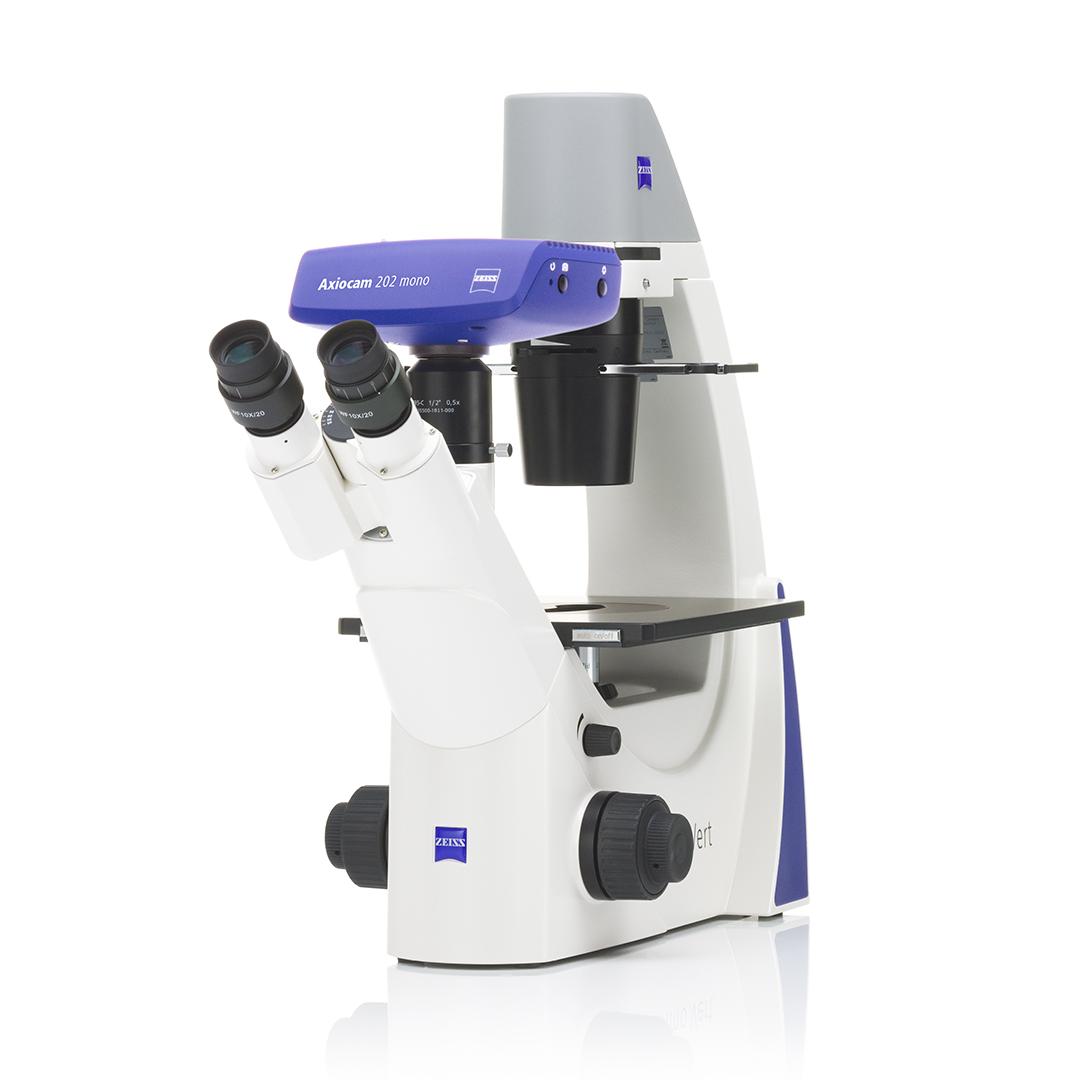

ZEISS Primovert TR Digital is a digital inverted microscope specially designed for cell culture workers. It is an ultra-efficient working microscope that applies AI artificial intelligence to the daily workflow of the laboratory. Zeiss' well-trained AI smart modules greatly improve the efficiency and credibility of your experiments with stunning speed and accuracy.

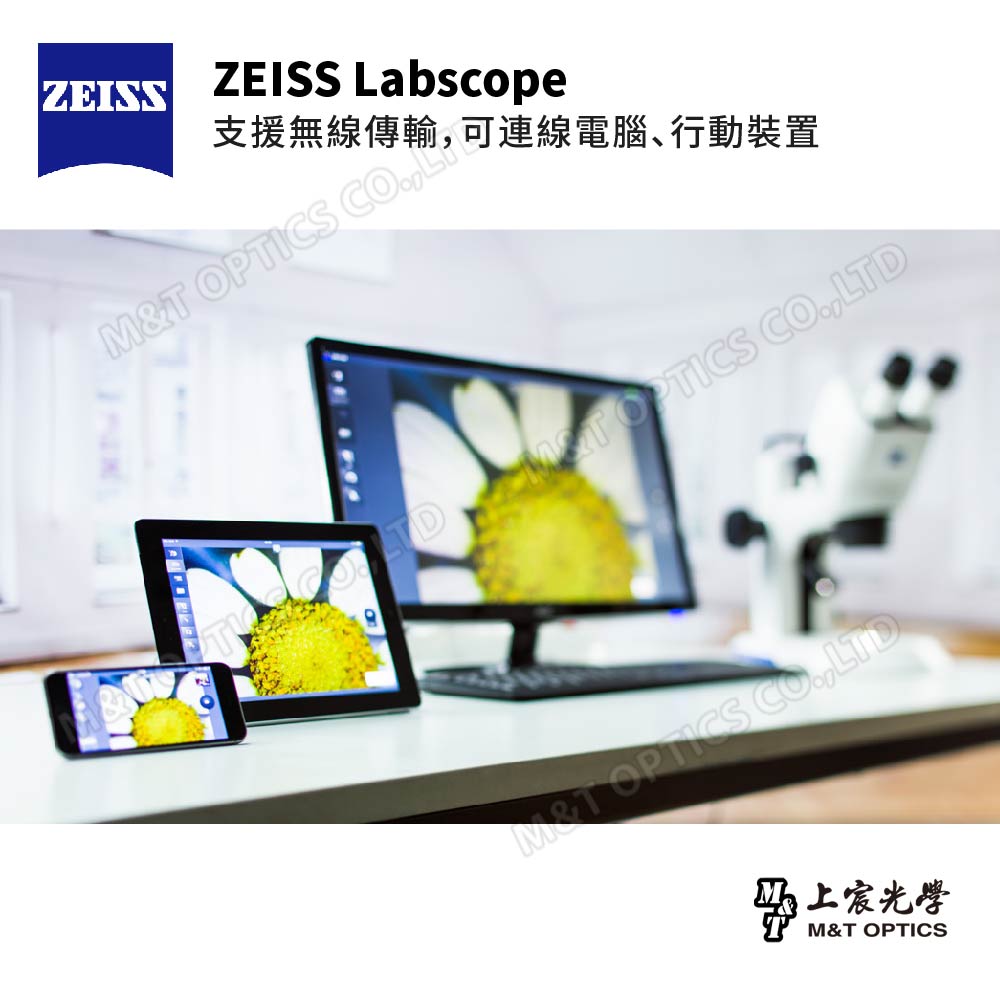

Supports multiple platforms and wireless transmission records

It can connect multiple computers and mobile devices via WiFi at the same time, and uses AI artificial intelligence to count cells and cell coverage. It can take pictures immediately with one click and generate the cell number and coverage. It can shoot continuously and quickly, and all image files are Complete information will be recorded, including objective lenses, camera systems, measurement scales, etc., and can be reviewed retrospectively at any time, enabling subsequent comparison and calculation of image data.

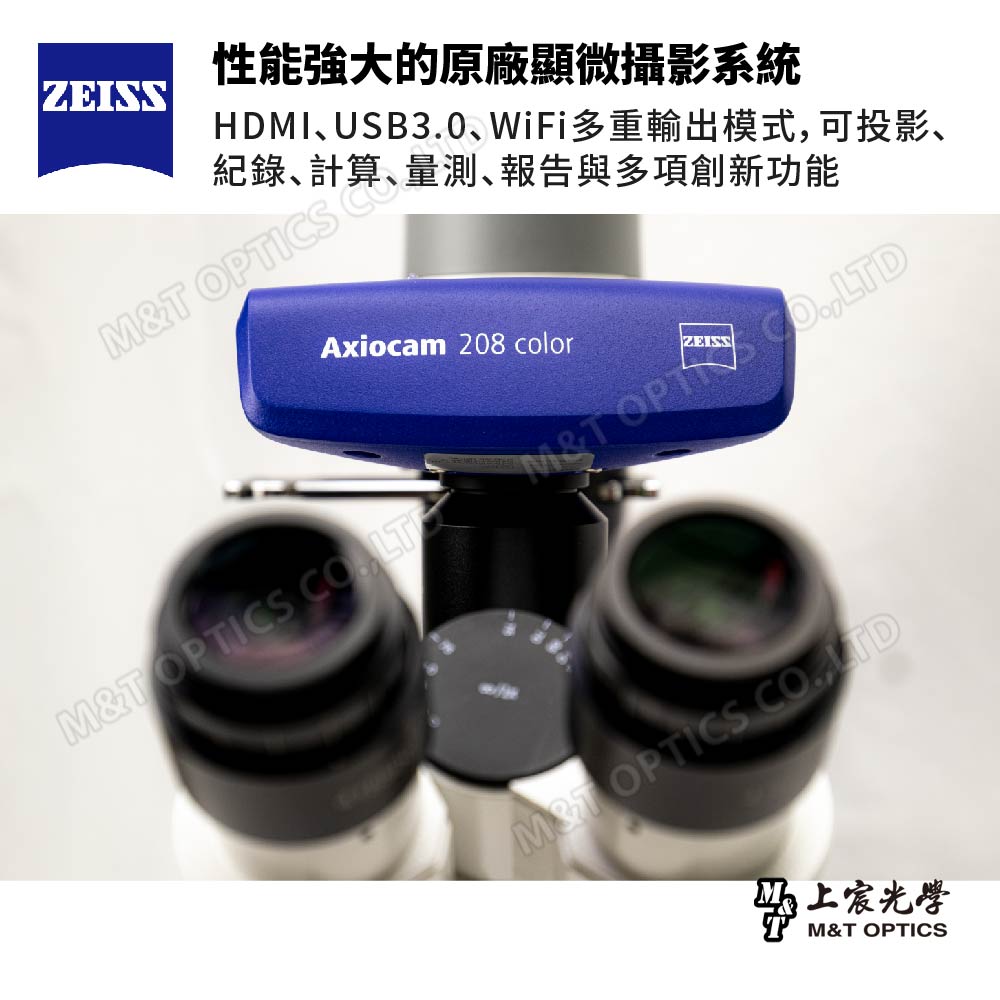

Scientific research grade ZEISS Axiocam Zeiss microscope imaging system

It leverages ZEISS' best microscopy image processing technology and perfectly combines the optical system of Zeiss microscopes with accurate colors, built-in brightness and flat-field calibration compensation functions, support for Zeiss' scientific-grade ZEN professional application software, and the extremely convenient Labscope mobile app. The device APP can perfectly control cameras and microscopes. Zeiss original factory will also provide an endless supply of high-value working modules and AI modules to keep your microscope system at the forefront of scientific research.

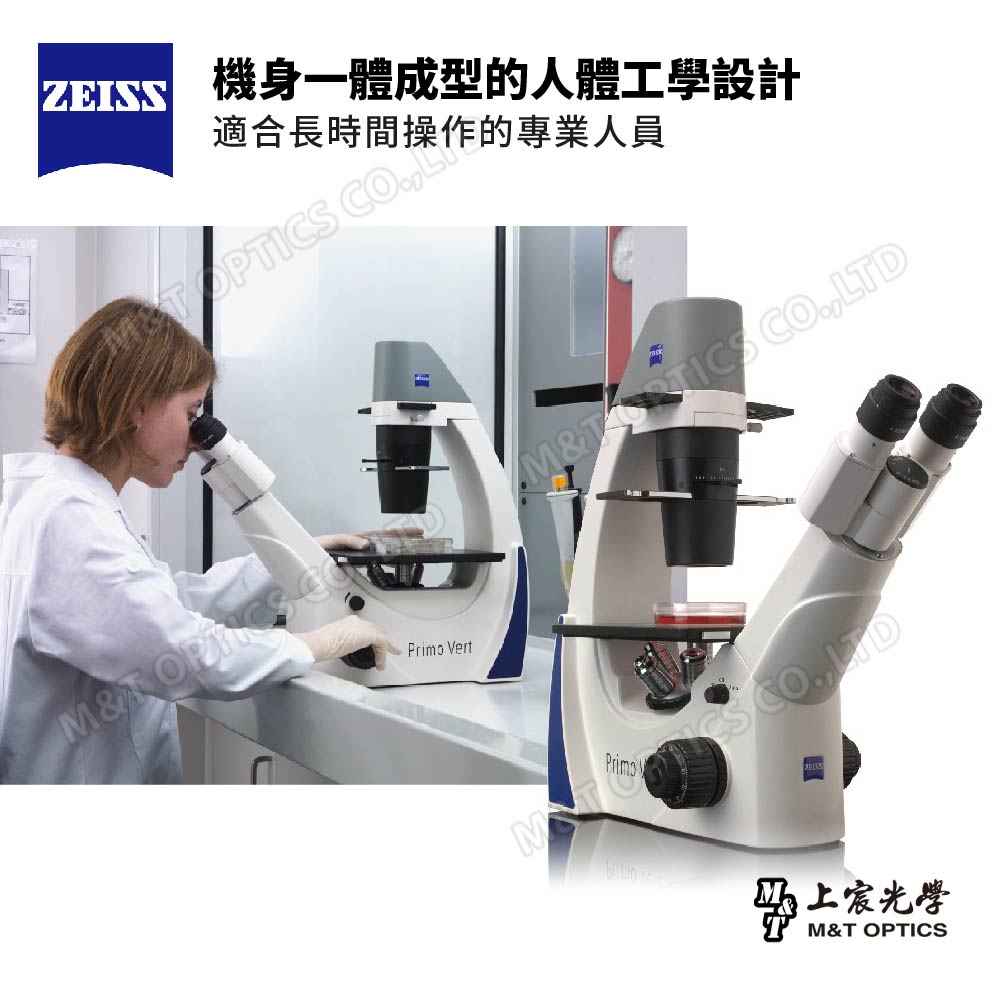

Suitable for long-term operation: ergonomic design

The forearms of both hands used by professionals working in the laboratory can be easily placed on the table, and the focus can be adjusted by simply raising the fingers. The light source adjustment button is located diagonally above the focus wheel, making it easy to observe without leaving the eyepiece. The compact and stable inverted mirror body can be easily placed in a sterile operating table for work.

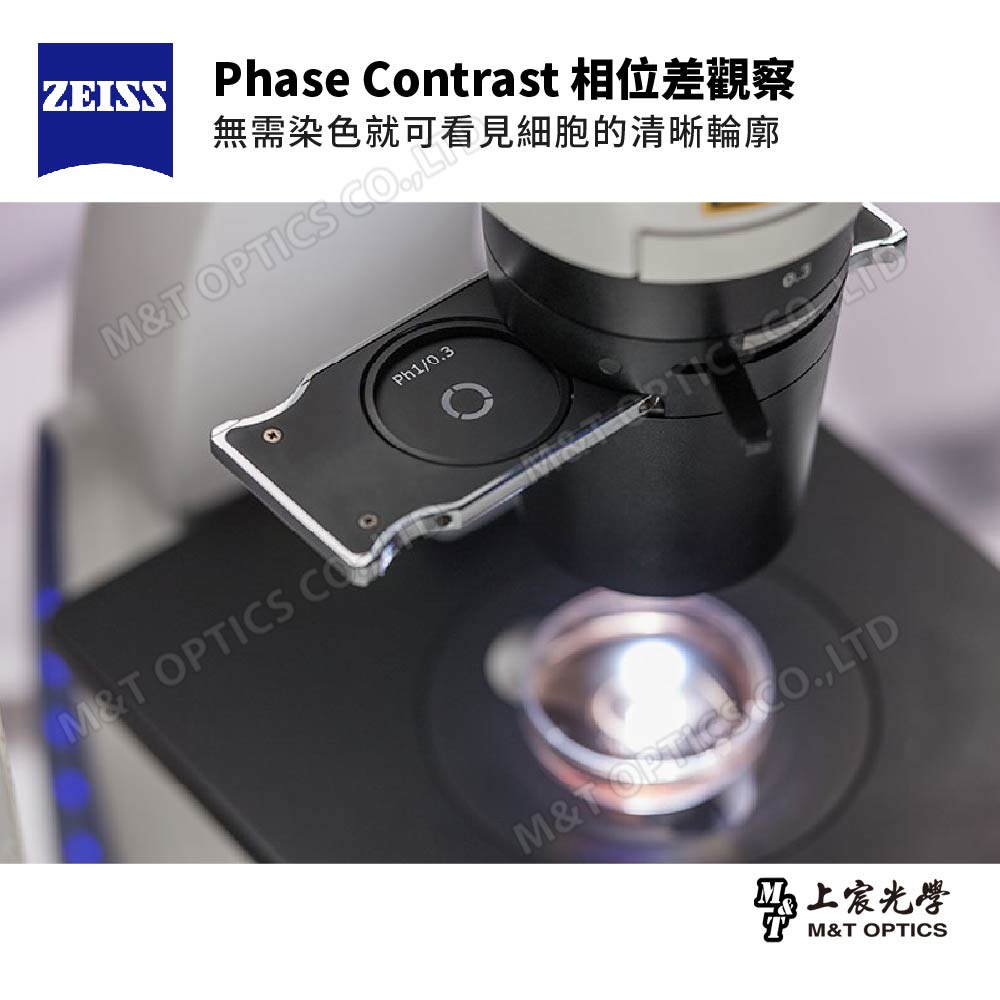

Phase Contrast Zeiss plan phase contrast objective system

Optical quality with flat field of view and extremely low chromatic aberration allows you to clearly observe high-contrast cell outlines without staining. The modular long working distance condenser is equipped with a Ph1 phase difference insert and objective lens, so there is no need to frequently switch Ph inserts. Observe back and forth between 10x, 20x, and 40x phase difference objectives with perfect efficiency without missing any subtle images.

ECO energy-saving switch

There are two quick buttons on both sides of the stage, which can be switched on and off with a light press without affecting the lighting brightness setting of the microscope. When the lower switch lever is positioned at auto, the microscope will automatically enter sleep mode after being idle for 15 minutes, saving energy and bulb consumption.

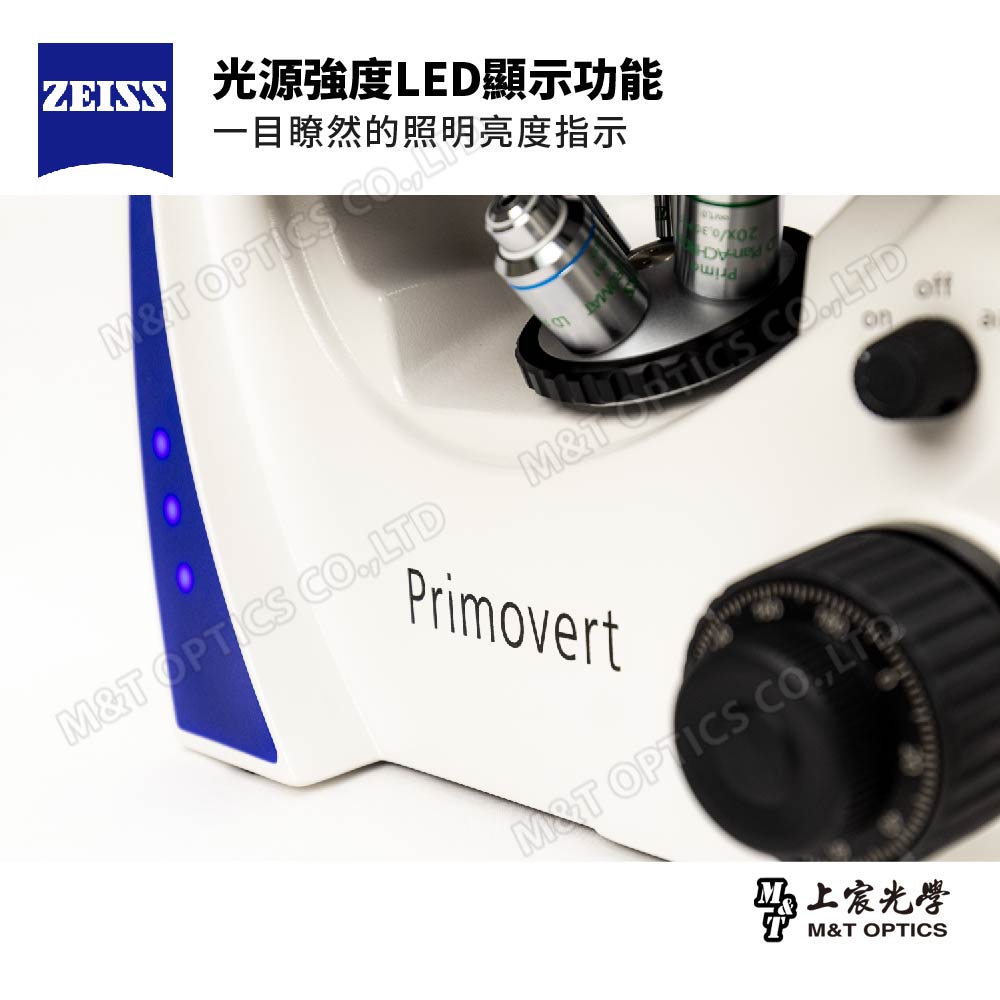

Light source intensity display function

Light source intensity is an important control item in teaching practice and microphotography. Primovert has five-segment blue LEDs on both sides of the lens body to display the light intensity, providing the most intuitive basis for lighting brightness in the laboratory or teaching site.

More reliable modular light source - supports quick replacement

Primovert light source is a modular design, and the light source control board is designed on the removable lamp holder to improve the reliability of the light source. It also supports hot-swappable light source replacement. The phase difference observation uses a standard 6V30W halogen illumination light source module. According to different observation needs, it can be replaced with a Zeiss LED light source module. Both light sources support the microscope light source management function, providing stable color temperature and brightness.

Various digital recording functions and embedded camera system

ZEISS Primovert TR Digital can instantly output images under the microscope for fast photography, video recording and image processing. The operation interface has built-in scale, measurement and up to 15 kinds of labeling functions, which are fully prepared for the subsequent scientific analysis. You can also use a variety of different preset templates to quickly compile observation reports for easy sharing and recording, and even You don't need a computer, you just need to use an HDMI cable to connect the screen, and you can use your mouse to directly control the system built into the camcorder to take photos and videos, and record them on a flash drive.

Split windows for image comparison

The image file and the real-time microscope screen can be opened at the same time, and the two screens can be displayed at the same time to compare samples with each other and facilitate teaching demonstrations. When shooting, you can also capture the images in the split screen, output the observation report and annotate it.

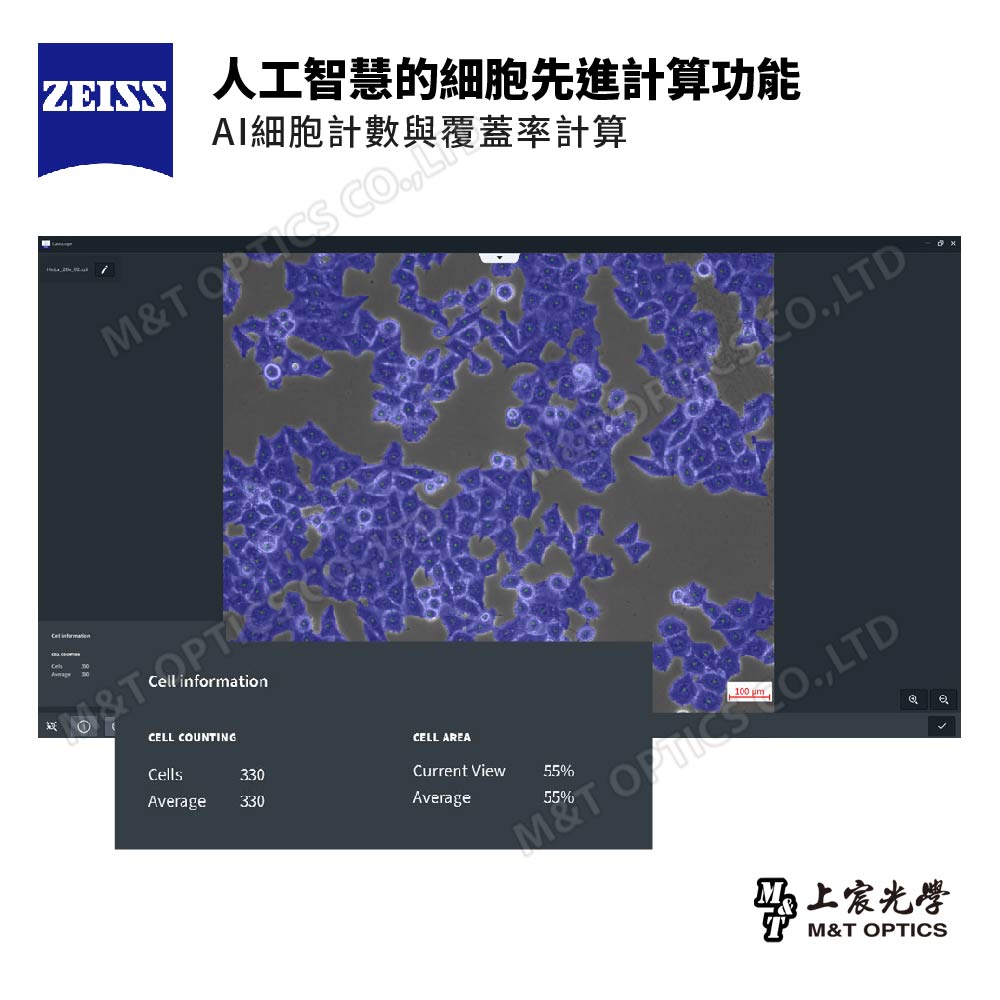

AI artificial intelligence cell counting and coverage calculation

The AI ​​artificial intelligence cell counting and real-time calculation and analysis of cell coverage on the plate, which has been trained by Zeiss global database, realize ultra-fast computing capabilities with just one click. Not only is the accuracy extremely high, but the repeatability has also been verified by a large number of global professionals. Tested by users, it improves work efficiency and reduces the chance of personnel making mistakes when performing repetitive work.

Virtual laser pen function

The virtual laser pen function can be activated, and the light point of the virtual laser pen can be projected onto a large screen or other connected device with a finger or cursor on the connected device, which is convenient for teaching and guidance, especially when explaining small structures and Interesting details for the occasion.

Tablet Micrograph-Augmented Reality Imaging Application

Introducing the auxiliary function of AR augmented reality technology, combined with the rear lens image of the tablet, allows you to instantly compare the microscopic image being taken with a book or chart, or overlay it on a white paper to draw your own Observe the sample structure.

ZEISS Primovert TR Digital parts description

Observation sample sharing

Microstar - 40x Phase Difference Observation

Observation sample sharing

U2OS Cells - 40x Phase Contrast Observation

Observation sample sharing

Sage Powdery Mildew Conidiation - 40x

Product Size

Product system diagram

Product specifications

model	ZEISS Primovert AI Digital digital inverted microscope
Optical system	Inverted, infinite parallel light, contrast and chromatic aberration correction equipment
tripartite lens	Viewing angle: 45 degrees, 20 mm, light split ratio: 50%/50%
Microscope body	Aluminum alloy one-piece seamless
Stage	Size200x239mm
penetrating light source	The built-in light panel module can be hot-swapped halogen lamp module, and LED light source module can be purchased as an add-on.
condenser	LD long distance type WD=73mm, NA.0.3
Insertion support	Bright Filed, Phase Contrast
Phase difference ring plate	Ph1
eyepiece	Quantity 2, magnification 10X/20 mm, diopter can be adjusted independently
Objective lens specifications 1	Plan-Achromat 4X/NA.0.12 WD=12mm
Objective lens specification 2	Plan-Achromat 10X/NA.0.25 Ph1 WD=4.4mm
Objective lens specification 3	Plan-Achromat LD 20X/NA.0.3 Ph1 WD=4.6mm
Objective lens specification 4	Plan-Achromat LD 40X/NA.0.5 Ph1 WD=2.7mm
Focus reducer	0.5X conjugate focus
photomicrography system	ZEISS Axiocam208
pixel	8.3M
Pixel size	1.85 µm × 1.85 µm
Exposure time	61 µs – 1 s
Sensitivity	1x~22x
Photosensitive element size	1/2.1"(8.1mm)
Signal output	HDMI, USB TYPE C 3.0, WiFi, WLAN
Software platform	Windows, Android, iOS
Warranty	One year for the whole machine
