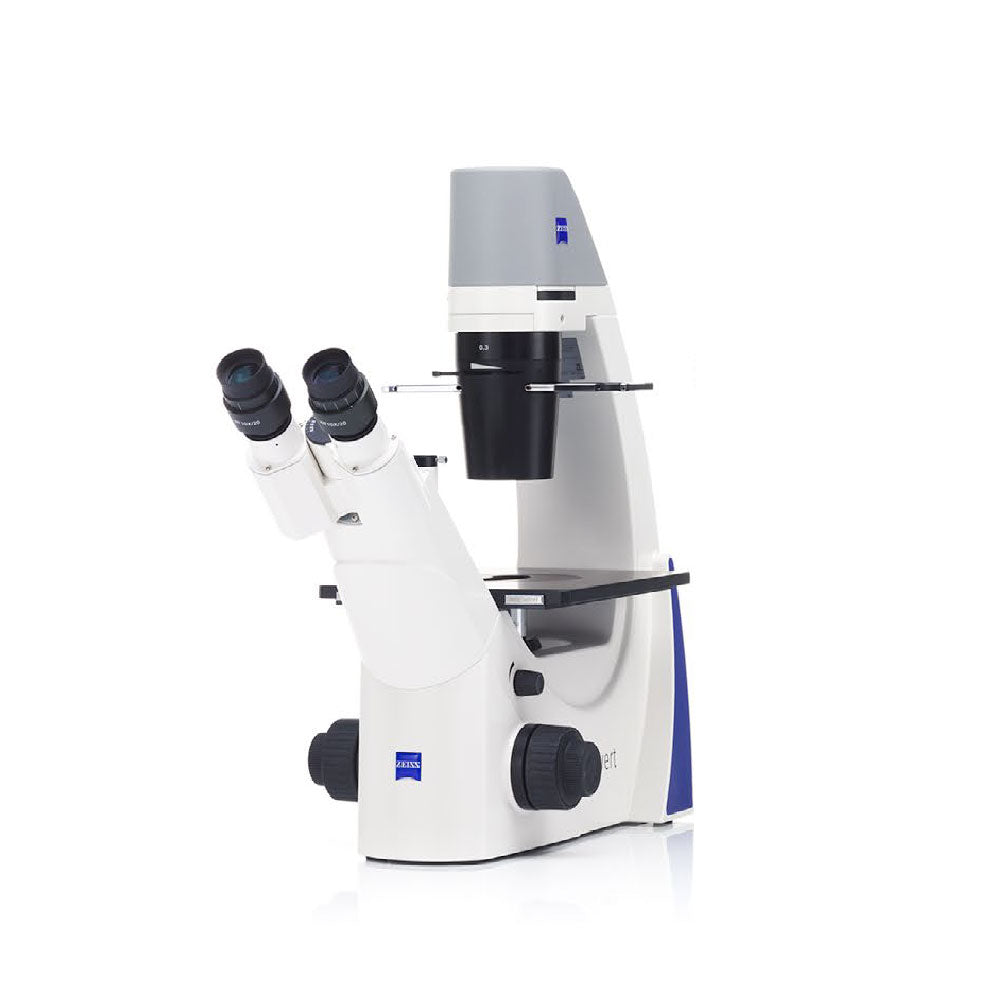

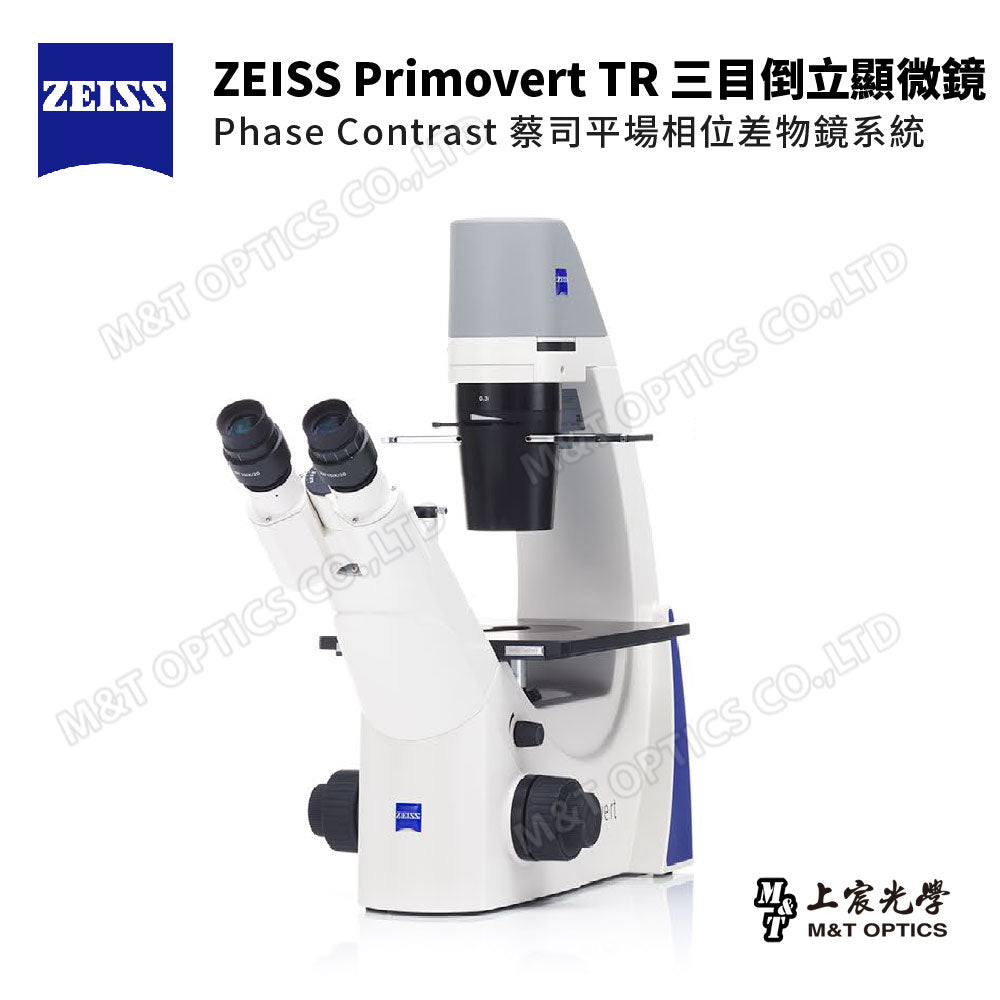

The best assistant for cell culture workers

ZEISS Primovert TR is an inverted microscope specially designed for cell culture workers. It enables fast and efficient observation of unstained cells under phase contrast contrast. The compact design allows it to be placed directly on a sterile operating table for operation. The trinocular observation head is equipped with a camera adapter, allowing you to use it with a microscope camera.

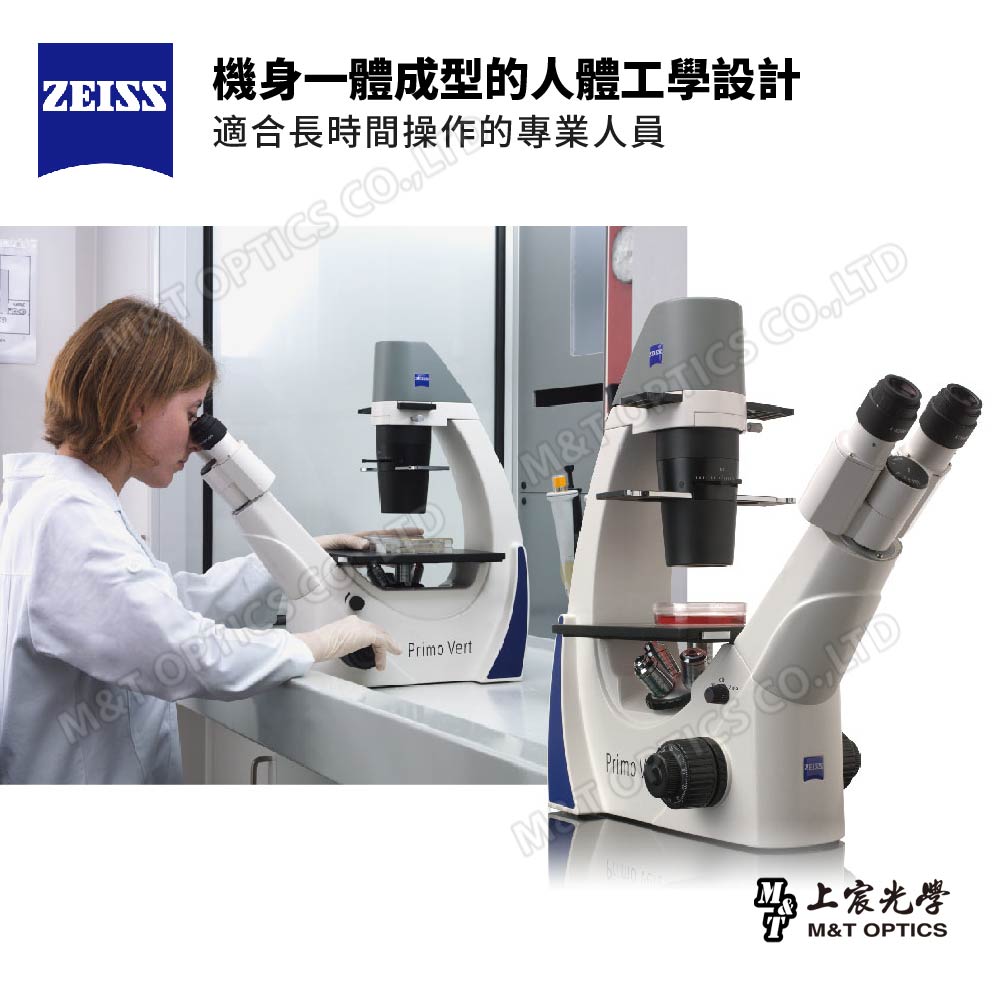

Suitable for long-term operation: ergonomic design

The forearms of both hands used by professionals working in the laboratory can be easily placed on the table, and the focus can be adjusted by simply raising the fingers. The light source adjustment button is located diagonally above the focus wheel, making it easy to observe without leaving the eyepiece. The compact and stable inverted mirror body can be easily placed in a sterile operating table for work.

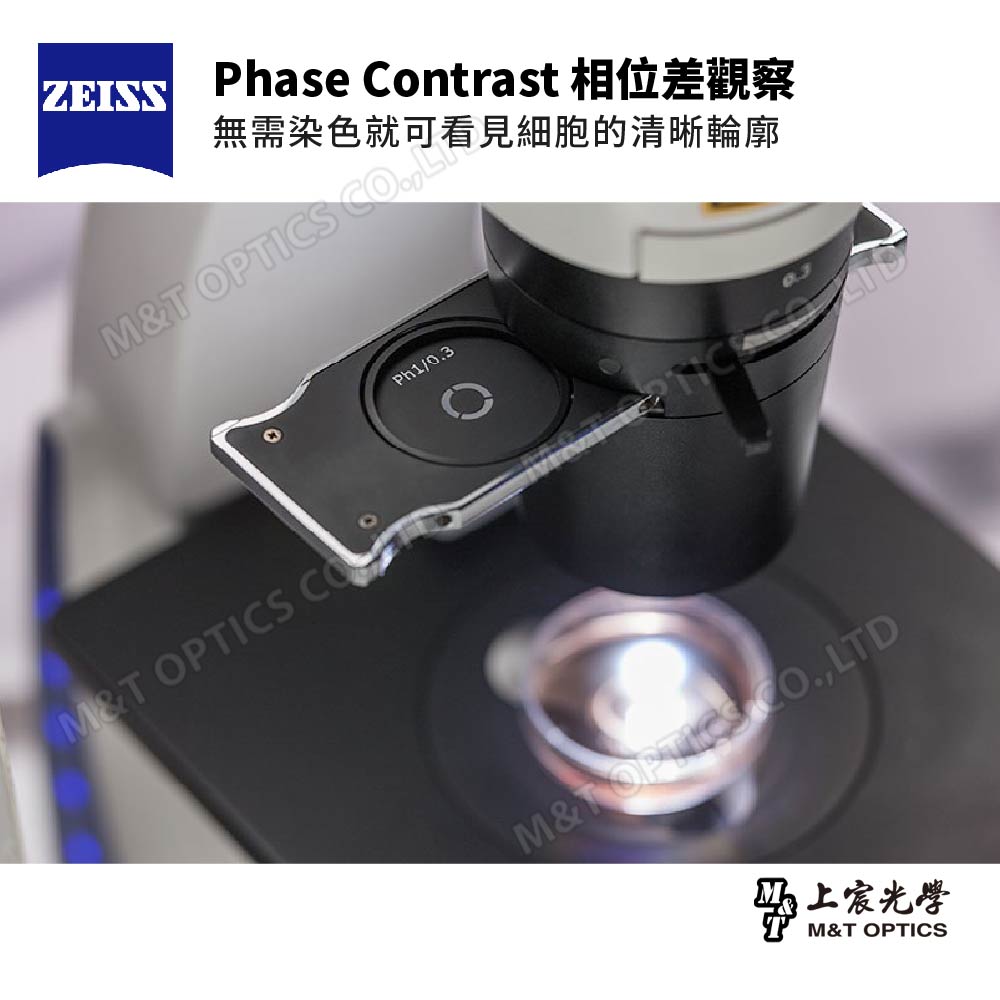

Phase Contrast Zeiss plan phase contrast objective system

Optical quality with flat field of view and extremely low chromatic aberration allows you to clearly observe high-contrast cell outlines without staining. The modular long working distance condenser is equipped with a Ph1 phase difference insert and objective lens, so there is no need to frequently switch Ph inserts. Observe back and forth between 10x, 20x, and 40x phase difference objectives with perfect efficiency without missing any subtle images.

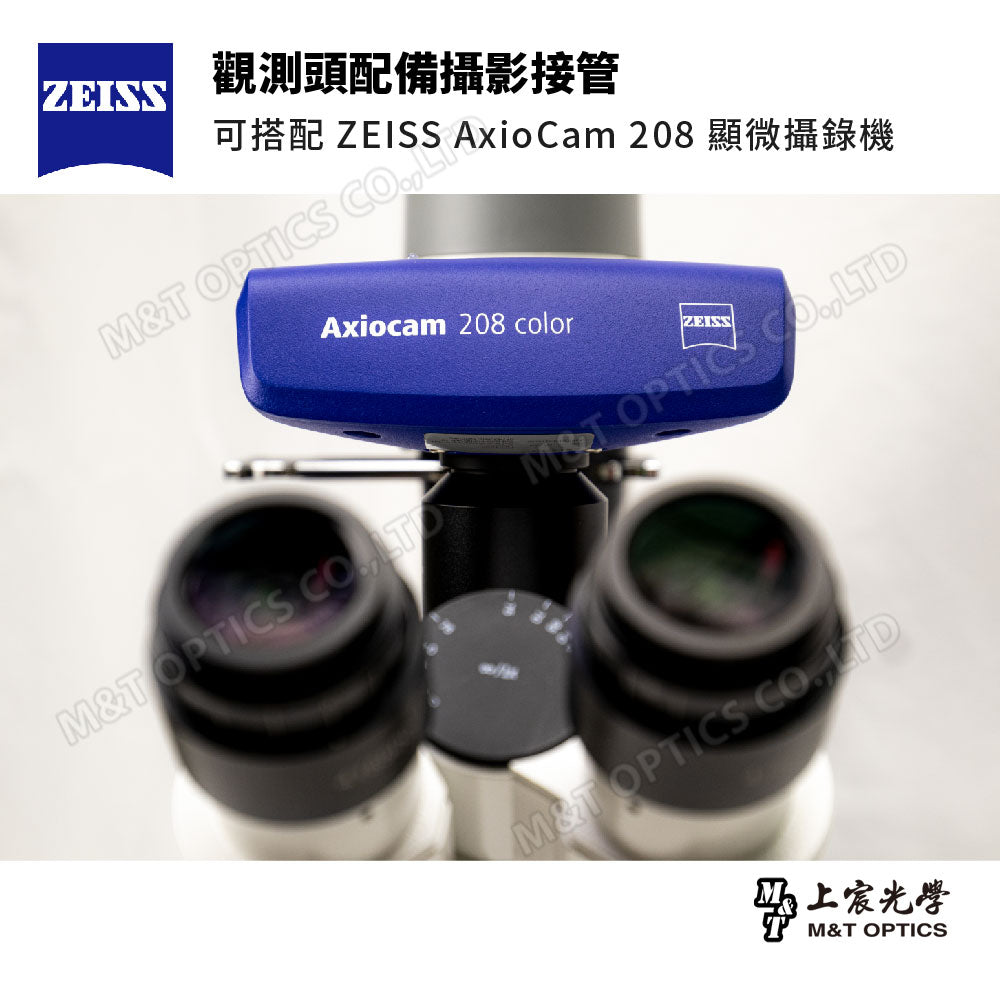

Trinocular observation head

The observation head is equipped with a photographic connection, which is suitable for various types of photomicrographs and recorders. It can be used with the ZEISS AxioCam 208 microscope camera and connected to a monitor, mobile device or computer to take photos and videos, record observations instantly, automatically calculate magnification, and output observation reports. Computer-free operation optimizes space utilization.

Purchase a microscope camera

Click here to enter the " Microscopic camcorder classified store" and choose the suitable camcorder model according to your personal needs. If you need more detailed explanation or make an appointment for testing, please call or email Shangchen Optics. Contact number: 02-2521-1972, customer service email: cs@mtoptics.com

ECO energy-saving switch

There are two quick buttons on both sides of the stage, which can be switched on and off with a light press without affecting the lighting brightness setting of the microscope. When the lower switch lever is positioned at auto, the microscope will automatically enter sleep mode after 15 minutes of inactivity, saving energy and bulb consumption.

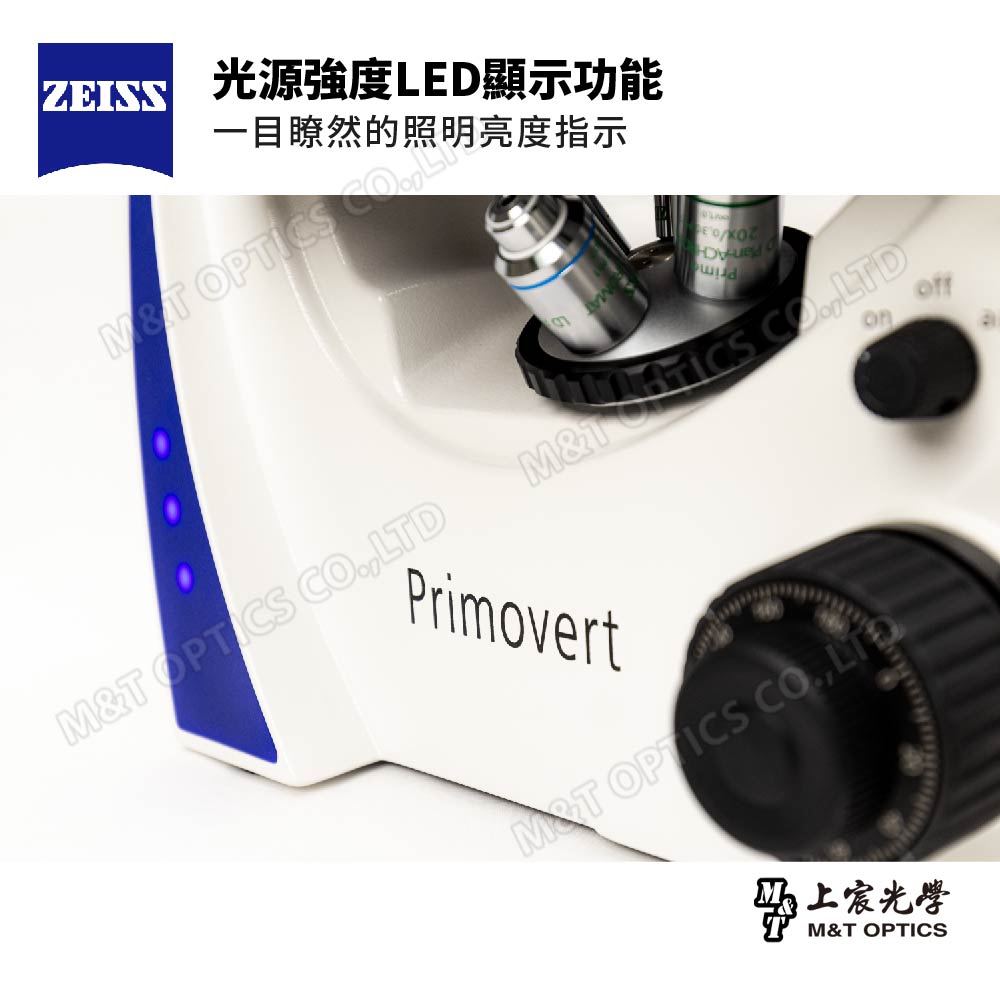

Light source intensity display function

Light source intensity is an important control item in teaching practice and microphotography. Primovert has five-segment blue LEDs on both sides of the lens body to display the light intensity, providing the most intuitive basis for lighting brightness in the laboratory or teaching site.

More reliable modular light source - supports quick replacement

Primovert light source is a modular design, and the light source control board is designed on the removable lamp holder to improve the reliability of the light source. It also supports hot-swappable light source replacement. The phase difference observation uses a standard 6V30W halogen illumination light source module. According to different observation needs, it can be replaced with a Zeiss LED light source module. Both light sources support the microscope light source management function, providing stable color temperature and brightness.

Multiple configurations for you to choose from

ZEISS Primovert TR parts description



Observation sample sharing

Microstar - 40x Phase Difference Observation

Observation sample sharing

U2OS Cells - 40x Phase Contrast Observation

Observation sample sharing

Sage Powdery Mildew Conidiation - 40x

Product Size

Product system diagram

Product specifications

model	ZEISS Primovert TR trinocular inverted microscope
Optical system	Inverted, infinite parallel light, contrast and chromatic aberration correction design
tripartite lens	Viewing angle: 45 degrees, 20 mm, light split ratio: 50%/50%
Microscope body	Aluminum alloy one-piece seamless
Stage	Size200x239mm
penetrating light source	The built-in light panel module can be hot-swapped halogen lamp module, and LED light source module can be purchased as an add-on.
condenser	LD long distance type WD=73mm, NA.0.3
Insertion support	Bright Filed, Phase Contrast
Phase difference ring plate	Ph1
eyepiece	Quantity 2, magnification 10X/20 mm, diopter can be adjusted independently
Objective lens specifications 1	Plan-Achromat 4X/NA.0.12 WD=12mm
Objective lens specifications 2	Plan-Achromat 10X/NA.0.25 Ph1 WD=4.4mm
Objective lens specification 3	Plan-Achromat LD 20X/NA.0.3 Ph1 WD=4.6mm
Objective lens specification 4	Plan-Achromat LD 40X/NA.0.5 Ph1 WD=2.7mm
Focus reducer	0.5X conjugate focus
