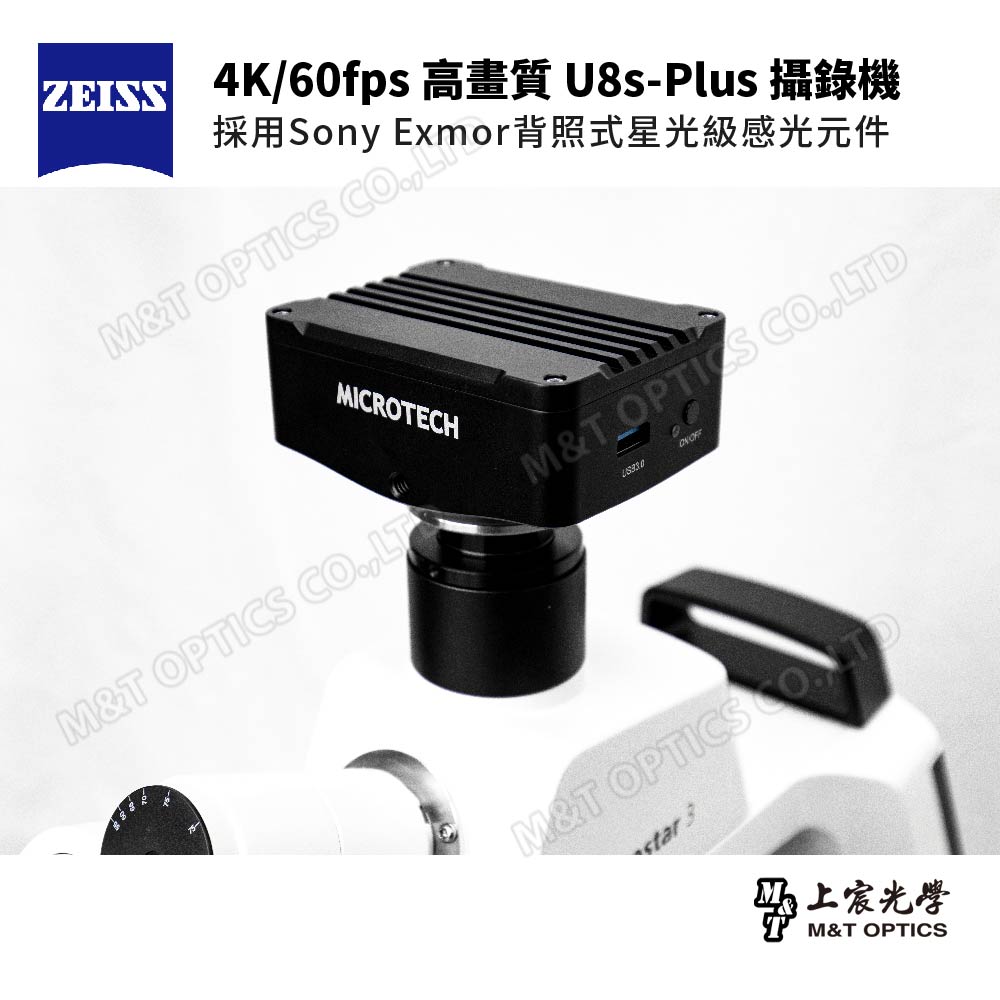

Equipped with 4K/60fps high-definition U8s-Plus HDMI camcorder

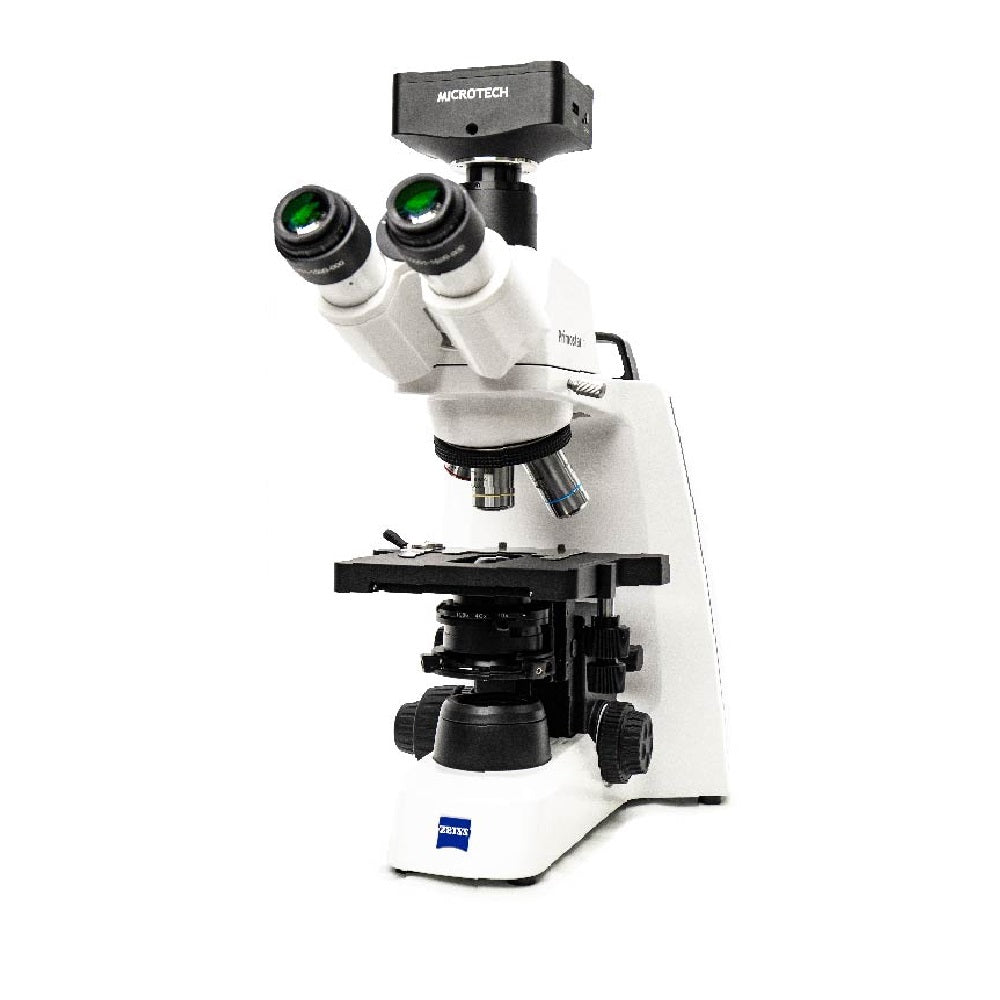

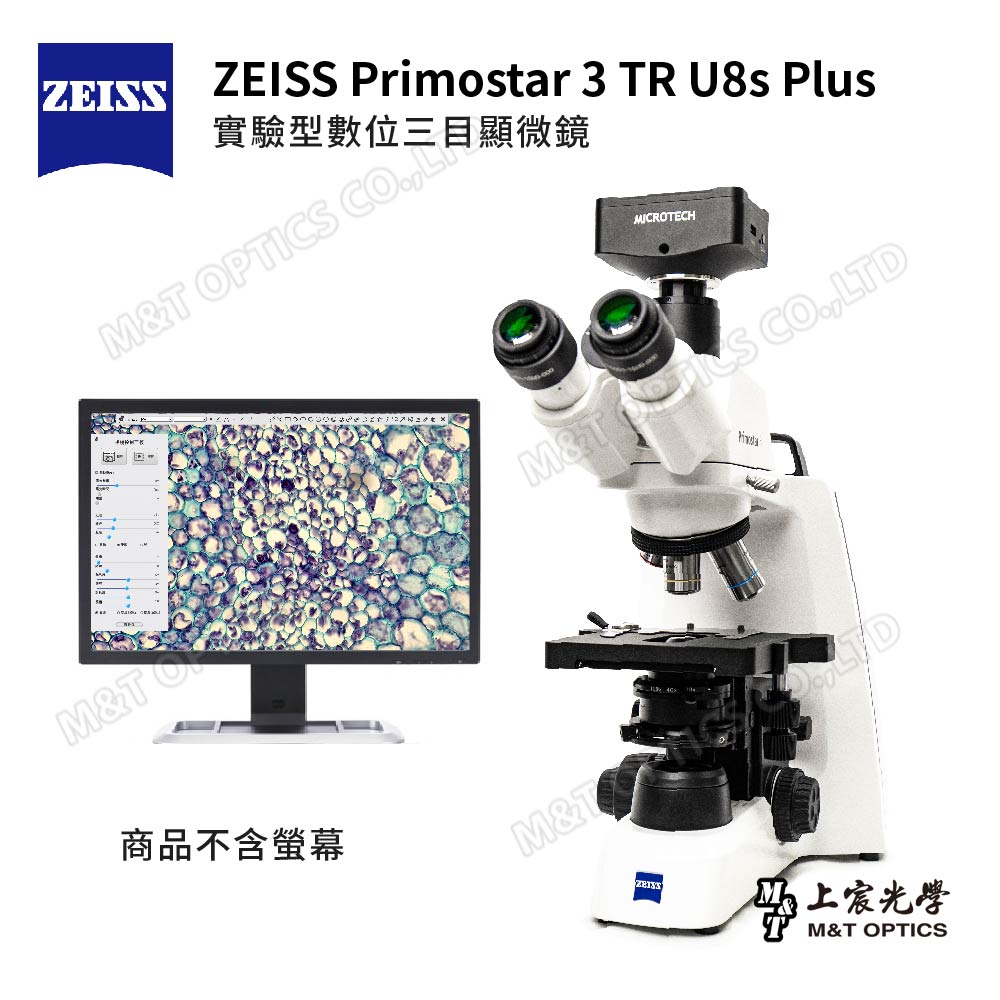

ZEISS Primostar 3 TR is a microcomputer camcorder with high-quality micro-optics from Zeiss in Germany and the latest generation of HDMI output interface "U8s-Plus HDMI.4K". Its 4K resolution frame rate reaches 60 frames, which is currently the fastest screen playback rate. One of the fastest HDMI camcorders. It can be directly installed on a microscope to capture high-magnification images without a computer. It can also be used in a local network to become a microscopic interactive teaching system, which facilitates teachers' teaching and students' learning and interaction, and can also meet your professional needs. The microscope adopts an infinity optical design and is equipped with a plan achromatic grade objective lens. Suitable for education, sample testing, and scientific research. The compact and solid metal body is reliable and durable, amplifying the efficiency and productivity of your learning/teaching or laboratory work. Back-illuminated SONY IMX485 CMOS star-level sensor

The U8s-Plus HDMI.4K series uses SONY IMX485LQR-C CMOS image sensor. This sensor uses Exmor technology. The chip size reaches 1/1.2" and has the advantage of a large area. The single pixel size is 2.9um x 2.9um. IMX485 has It has the characteristics of extremely high sensitivity (G light sensitivity reaches 2188mv in 1/30s), low dark current and small dispersion (using color filters of R, G and B main colors). Computer-free 4K HDMI high-quality output!

Only one HDMI cable is needed to synchronize the images under the microscope to your external monitor with smooth high-quality 4K/60fps. It also controls shooting records to further accurately mark image details and microscopic dimensions. It uses a USB flash drive to store images and data with one click. It can also be connected to a computer via a USB cable and supports online video. The introduction of algorithms such as sharpness and local area tone mapping enables the U8s-Plus camcorder to have built-in hardware 3D noise reduction function, which greatly improves the image quality. iPlan-Achromat grade objective lens, infinity optics

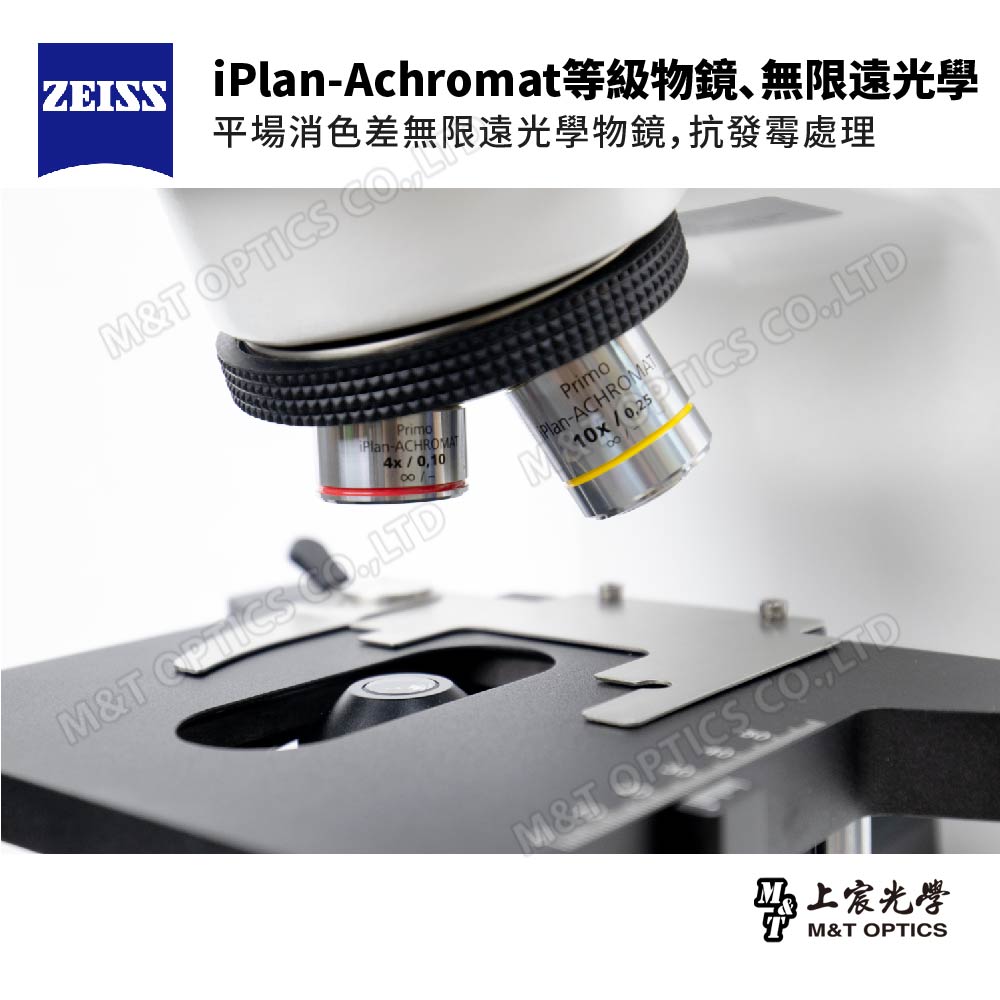

The standard version is equipped with iPlan-Achromat grade objective lenses, all of which have been treated with mildew resistance. Observation height adjustable large field of view observation head

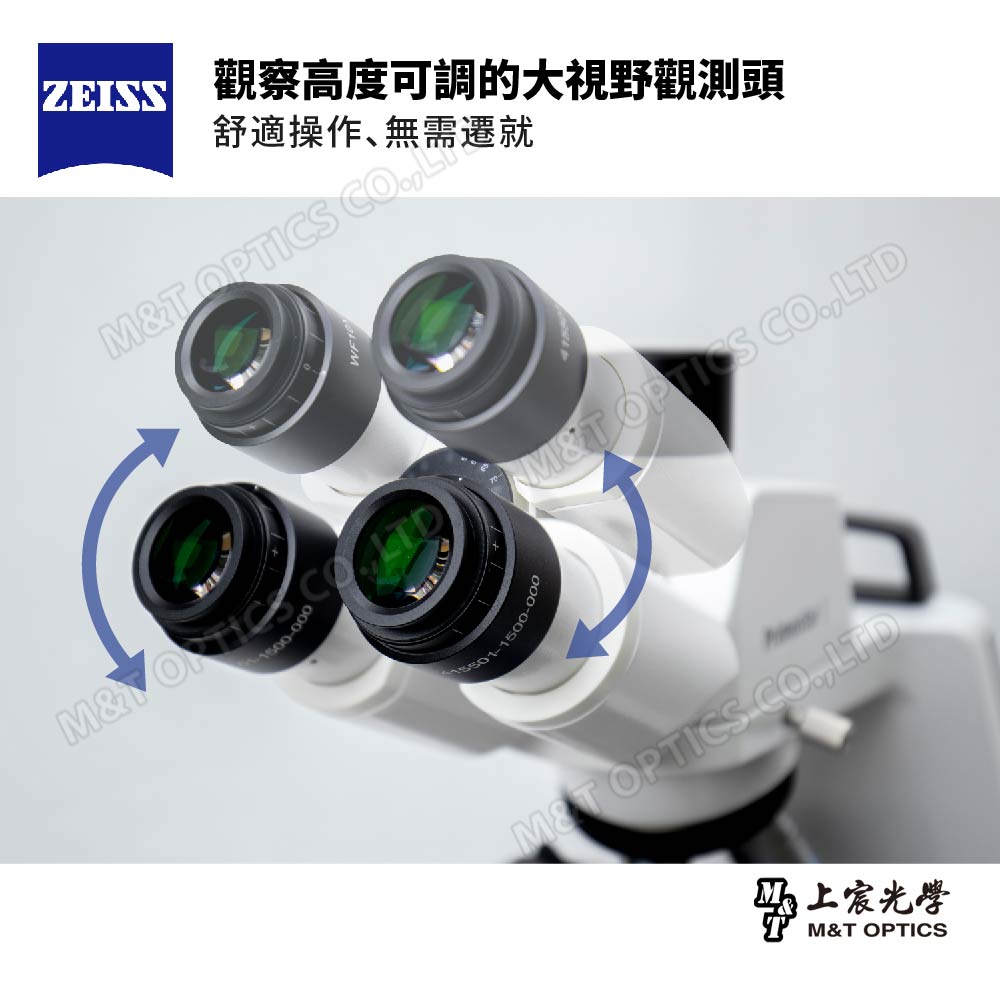

Binocular observation head with adjustable observation height: It has a viewing angle of 30° and is compatible with a maximum field of view of 20mm. Binocular pupil distance adjustment: Adjust the distance between binocular eyes in a wide range from 48 mm to 75 mm. U8s-Plus HDMI-4K full-featured microscopic camcorder

• Sony Exmor back-illuminated CMOS sensor
• Super large format 1/1.2” Sony CMOS sensor
• 8 million pixels/4K output, full frame 60fps
• Multiple interface output 4K HDMI / LAN network / USB / WiFi wireless module (external optional)
• High sensitivity, suitable for fluorescence microphotography
• USB3.0 image storage interface, flash drive can quickly store images and videos
• Embedded firmware is used to control the camera and has functions such as image processing and ruler precision measurement systems.
• MicroCamV8 software has powerful ISP and other related processing functions, making computer operation more powerful and convenient
• Support iOS/Android mobile and tablet applications APP
• Connect to an HDMI monitor or TV: Video can be recorded when used with an HDMI monitor or TV.
• Connect to Ethernet: Video can be instantly transferred to a computer for image capture and video recording.

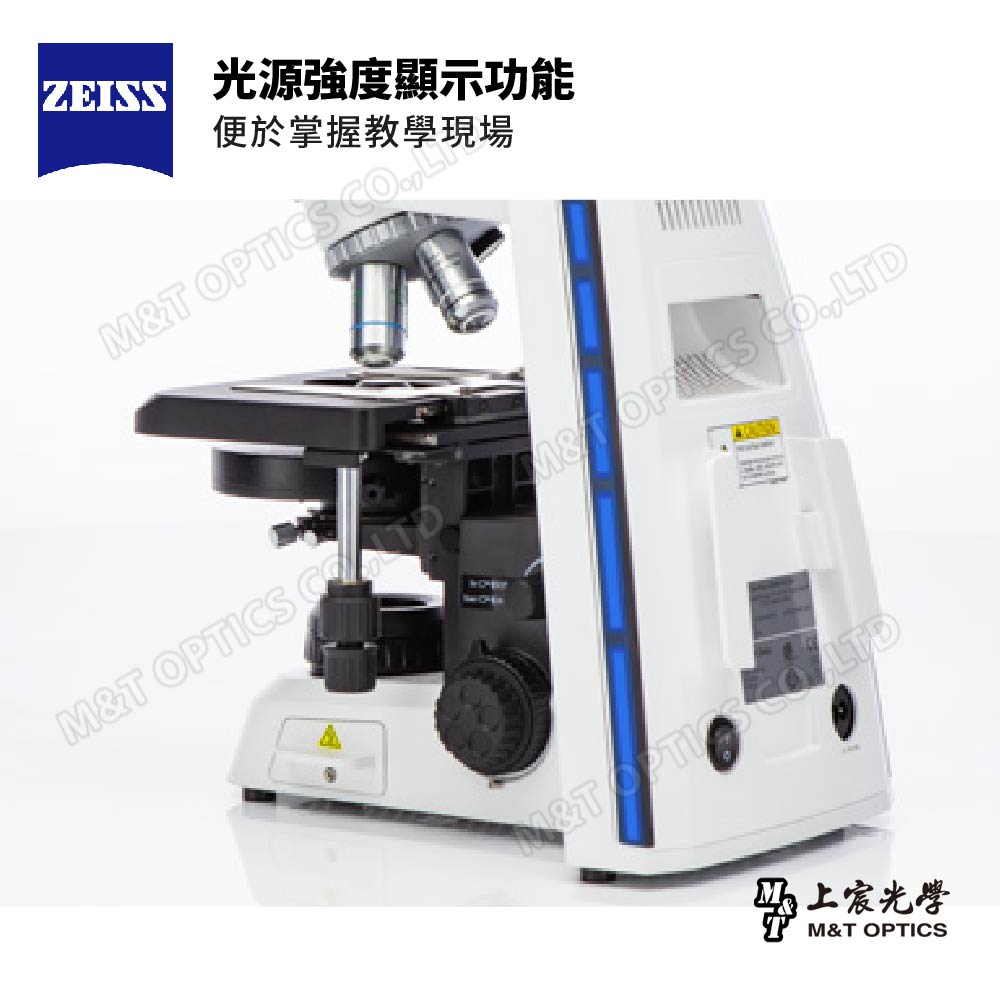

Light source intensity display function - easy to grasp the teaching site

The intensity of the light source is the most important control item for the microscope in the classroom. There are five segments of blue LED light bars on both sides of the mirror body to display the output light intensity, providing teachers and students with the most representative lighting parameters for mutual reference. Full-featured embedded operating interface (HDMI interface connected to the screen)

Only one mouse is needed to operate photography, video recording, exposure adjustment, various parameter settings, screen freezing, screen ratio, digital zoom in and out. You can also use the built-in multiple microscopic image measurement tools (point, line, circle, arc, parallel line, vertical line angle measurement, ruler and compass correction) to accurately measure and record. Included: mouse, USB, HDMI cable, 32G USB flash drive. Multiple image output mode with powerful versatility

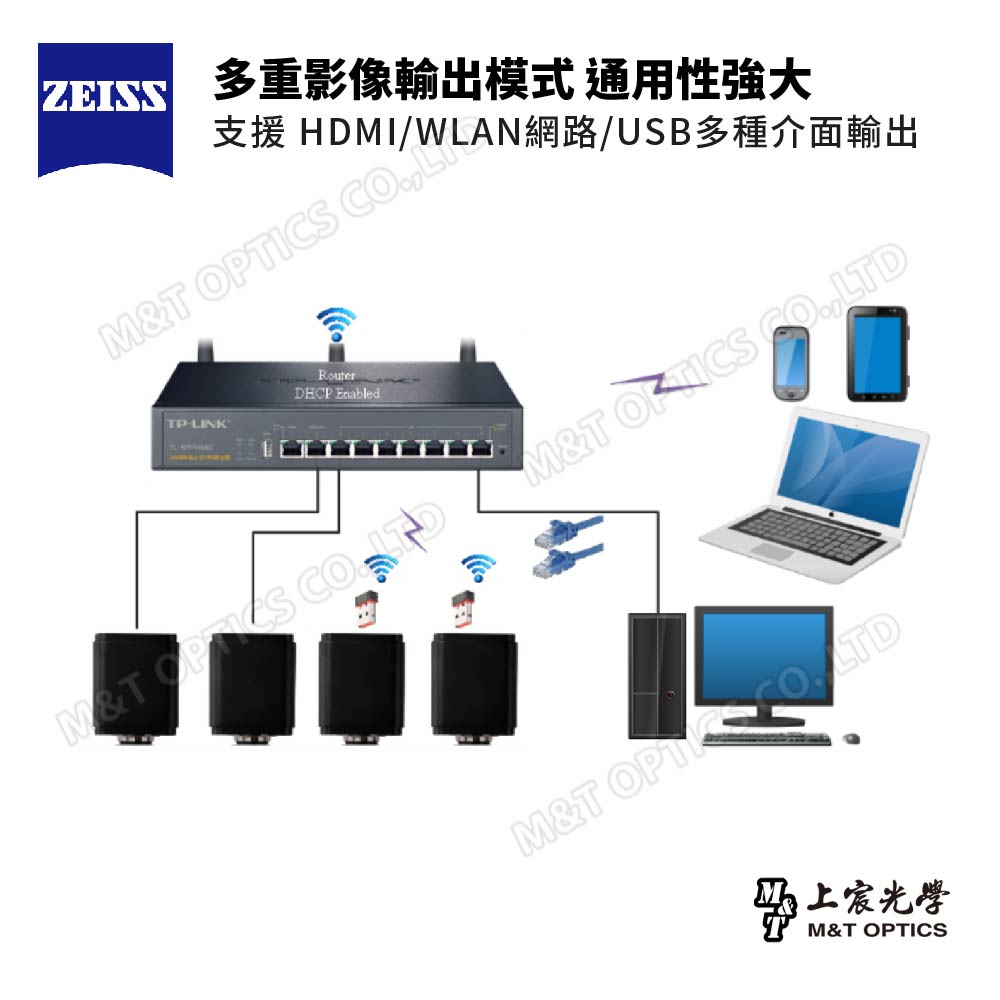

Supports HDMI interface (4K) / WLAN network / USB interface multiple interface outputs to meet the different space and connection requirements of various fields. Complete computer software control interface (USB 3.0 interface connected to computer)

If you use the USB 3.0 interface to connect the camcorder to your computer, the corresponding microscopy imaging application (Microcam V8) also supports photo and video functions. You can view and capture images in the microscope in real time through the camera control software, and you can also record high-definition videos for subsequent analysis and sharing. Powerful image processing function (USB 3.0 interface connected to computer)

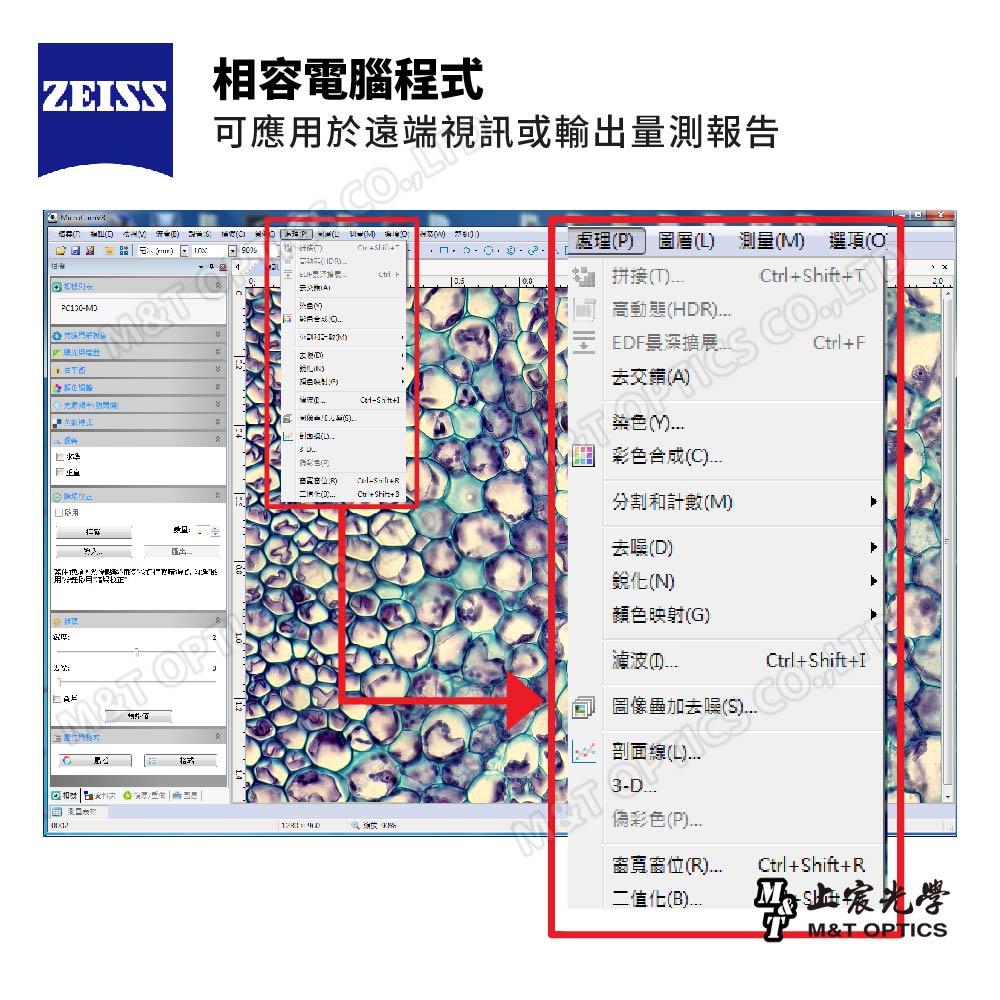

The Microcam V8 app features automatic exposure and white balance functions to help you quickly obtain clear and color-accurate images. Color adjustments can also be made manually in post-production to ensure the best image quality. Data list function (USB 3.0 interface connected to computer)

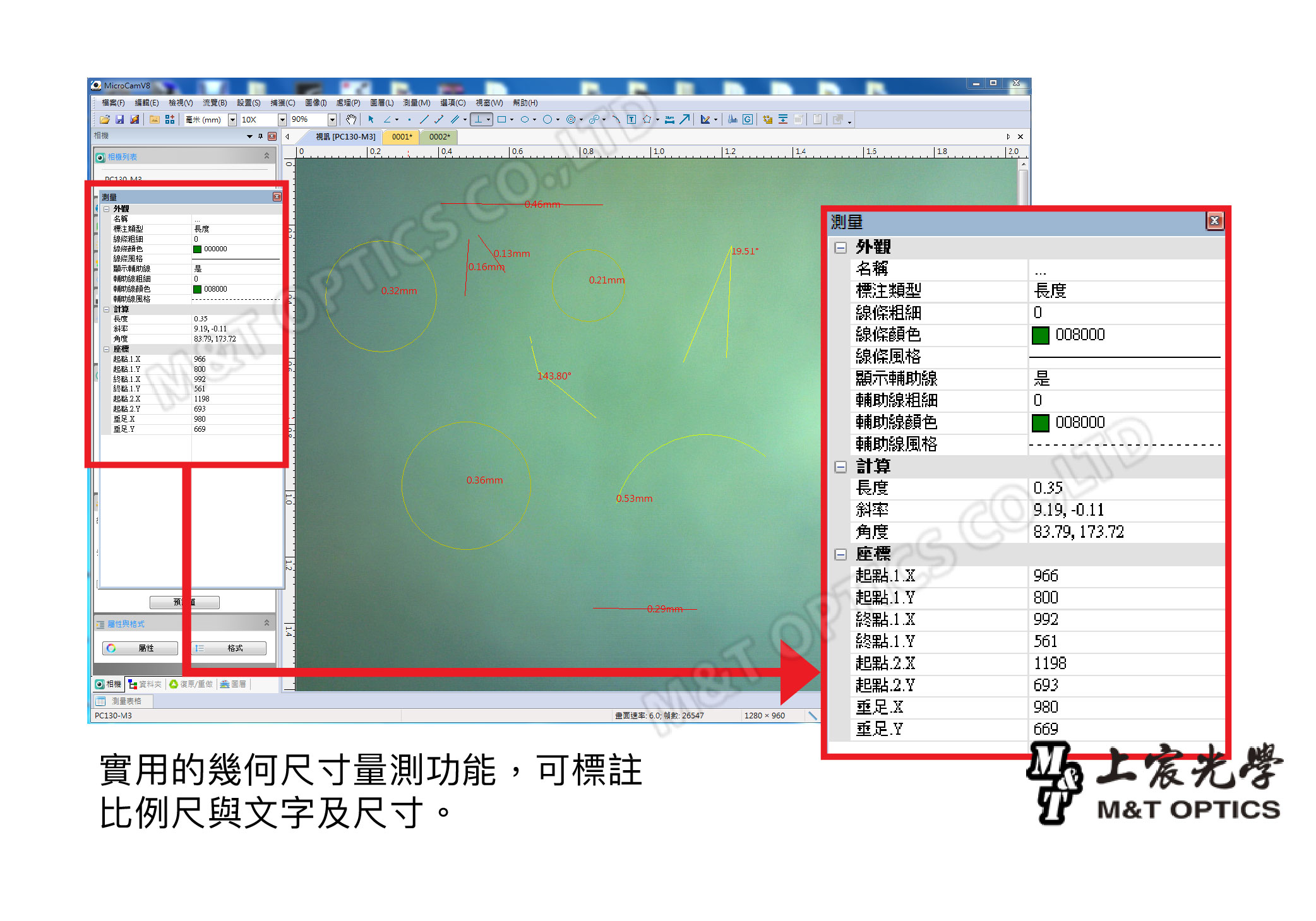

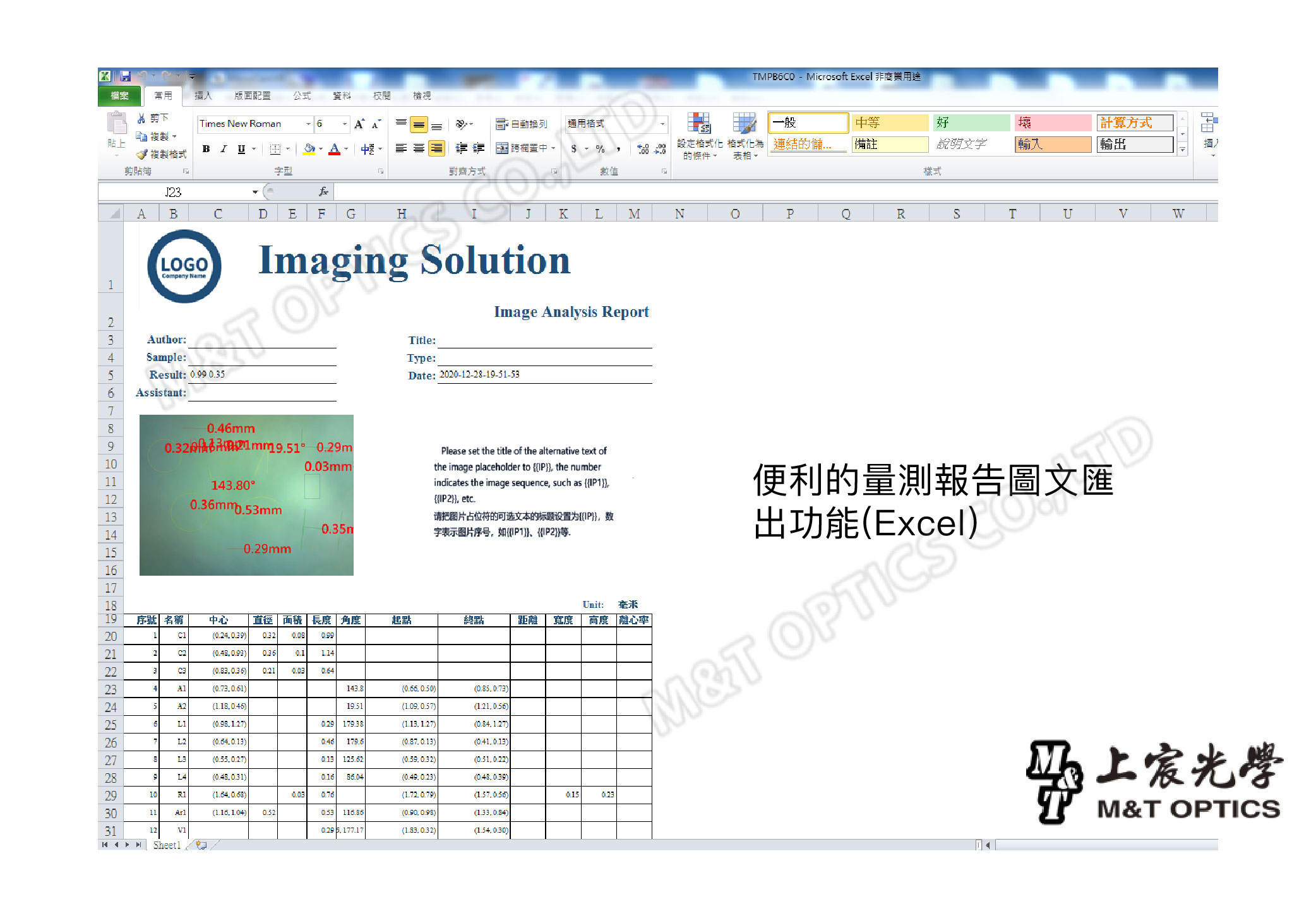

The Microcam V8 application measurement function can be used to measure geometric figures and mark scales, text and dimensions. To make the recording process more convenient, measurement results can be imported into Word or Excel using the graphic and text export function. Rackless high-quality stage

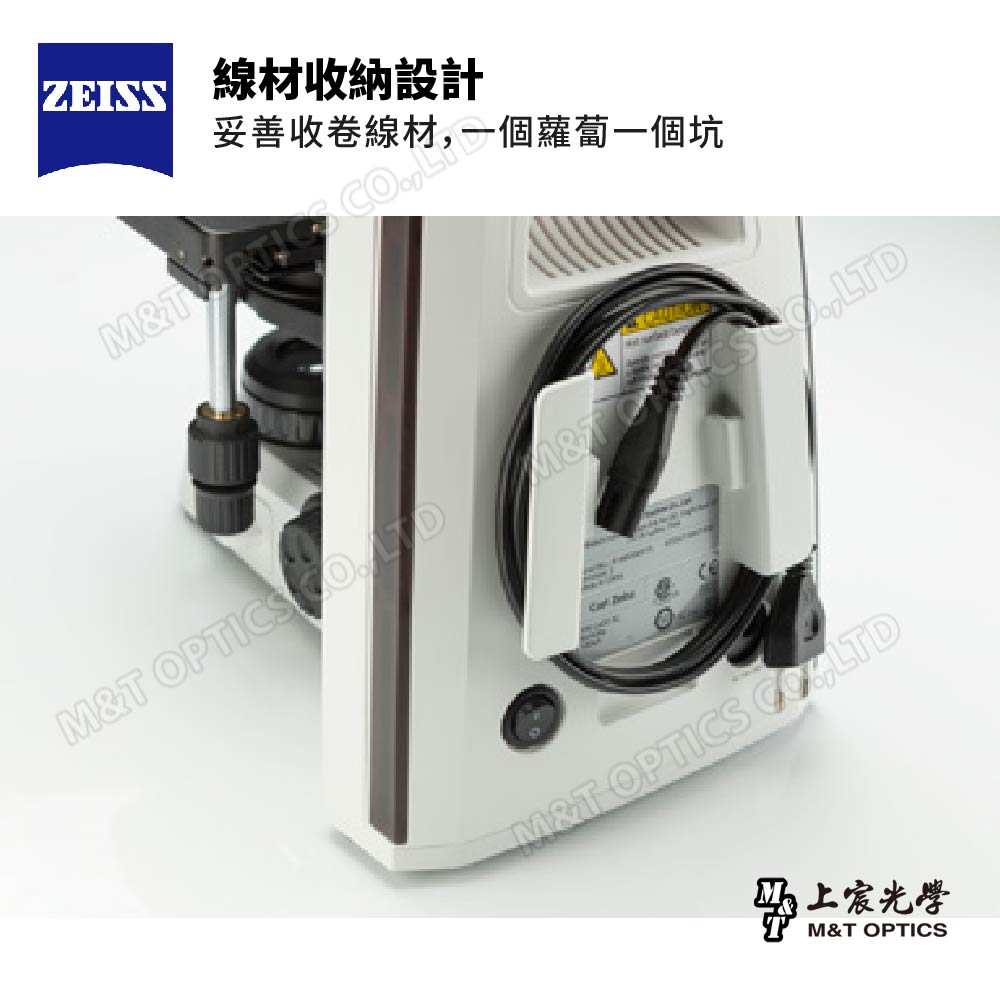

Rackless stage ensures greater safety and comfort. Durable: short, sturdy stage hinges with easy-to-read ruler. Rewind the wire properly

The wire storage design on the back of the machine provides the ultimate use of space. One carrot and one hole to avoid wire loss ZEISS Primostar 3 TR U8s Plus Parts Description Observation sample sharing

Filbert - brightfield observation, 40x objective magnification Observation sample sharing

Rabbit tongue taste buds - phase contrast observation, 40x objective lens magnification Observation sample sharing

Cross-section of vascular bundles of Lily of the Valley flower - using Zeiss original fluorescence kit, 10x objective lens magnification ZEISS Primostar 3 Microscope Dimensional Drawing ZEISS Primostar 3 series microscope configuration diagram

Comprehensive magnification	40X~400X
Trinocular observation head	Tilt angle 30°, visual field of view 20°, 50:50 light split, adjustable observation height 375-425mm, third eye connected to RD2 focus reducer and HDC588 microphotography system
pupillary distance	Adjustable pupillary distance 48~75mm, adjustable parallax (diopter) of left eye eyepiece seat
eyepiece	WF10X/22mm(φ30)*2pcs
objective lens	4X working distance WD=12mm, 10X, working distance WD=4.51mm, 40X, working distance WD=0.61mm
nose chakra	RMS W0.8 four-hole retractable type
Focusing system	Coaxial coarse and fine adjustment, with elastic adjustment ring, Z-axis adjustment wheel full stroke 15mm including limit device, coarse adjustment accuracy 45mm/revolution, fine adjustment accuracy 0.5mm/revolution
Stage	Mechanical stage, appearance size 140x140mm, XY axis movement range up to 75x40mm, rack is hidden design to avoid exposure
condenser	Fixed Abbe NA0.9/1.25, built-in aperture
Transmitted light source	Adjustable brightness 3W LED light source circuit, color temperature 5600K
power supply	External DC12V power supply, applicable voltage 100~240 V
physical dimension	208×296×398mm
weight	8.5-12kg
Microcamcorder	MICROTECH U8s-Plus HDMI Camcorder
Warranty	1 year
