Equipped with All in One microscope camera

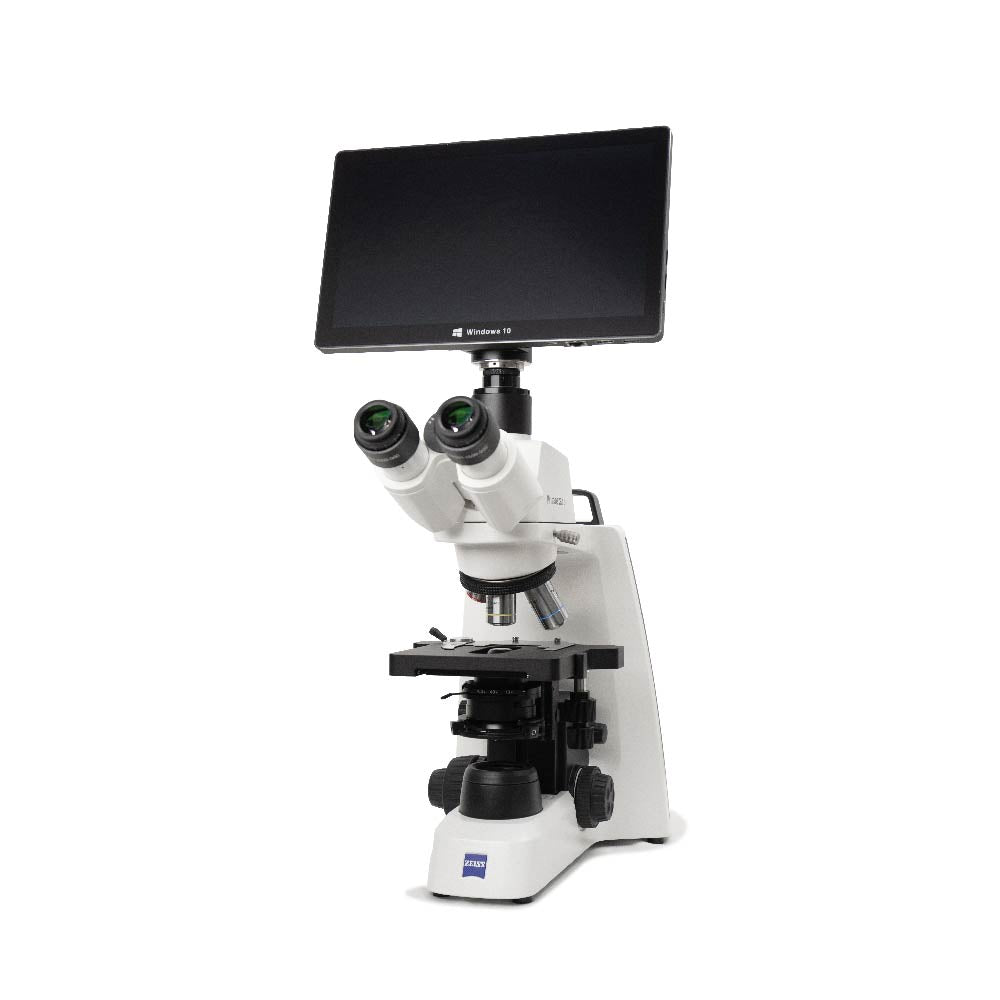

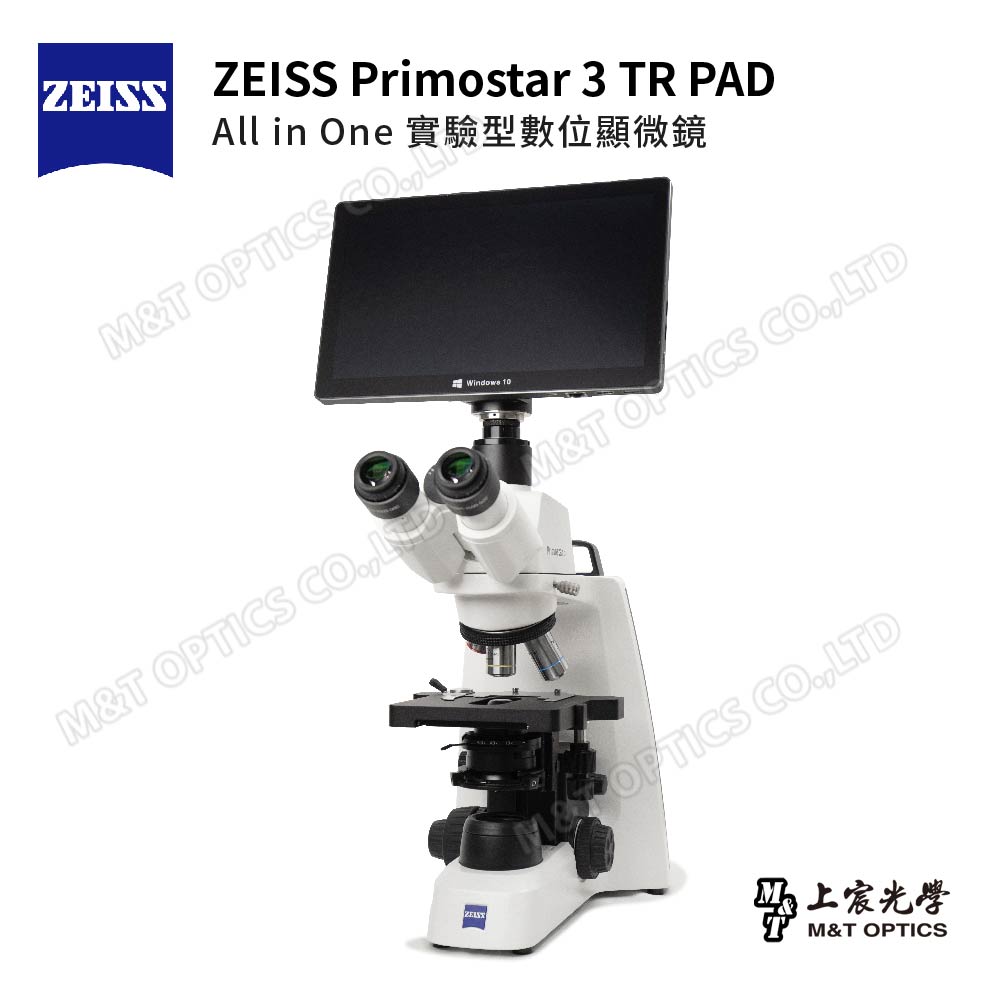

ZEISS Primostar 3 TR is a high-quality microscopic camcorder from German Zeiss equipped with HDC688.PAD. The body integrates the photosensitive element and the tablet computer. The overall body is small in size and does not affect the lateral space when placed. It is suitable for Usage scenarios such as biological education laboratories, laboratories with limited space, factory production lines, etc. The camcorder uses the Windows 10 operating system and has built-in Micro Cam V5 measurement software. It can adjust image parameters such as exposure and contrast, and can also take photos. It is very suitable for teaching, biological experiments, and recording research results. The microscope adopts an infinity optical design and is equipped with a plan achromatic grade objective lens. Suitable for education, sample testing, and scientific research. The compact and solid metal body is reliable and durable, amplifying the efficiency and productivity of your learning/teaching or laboratory work. iPlan-Achromat grade objective lens, infinity optics

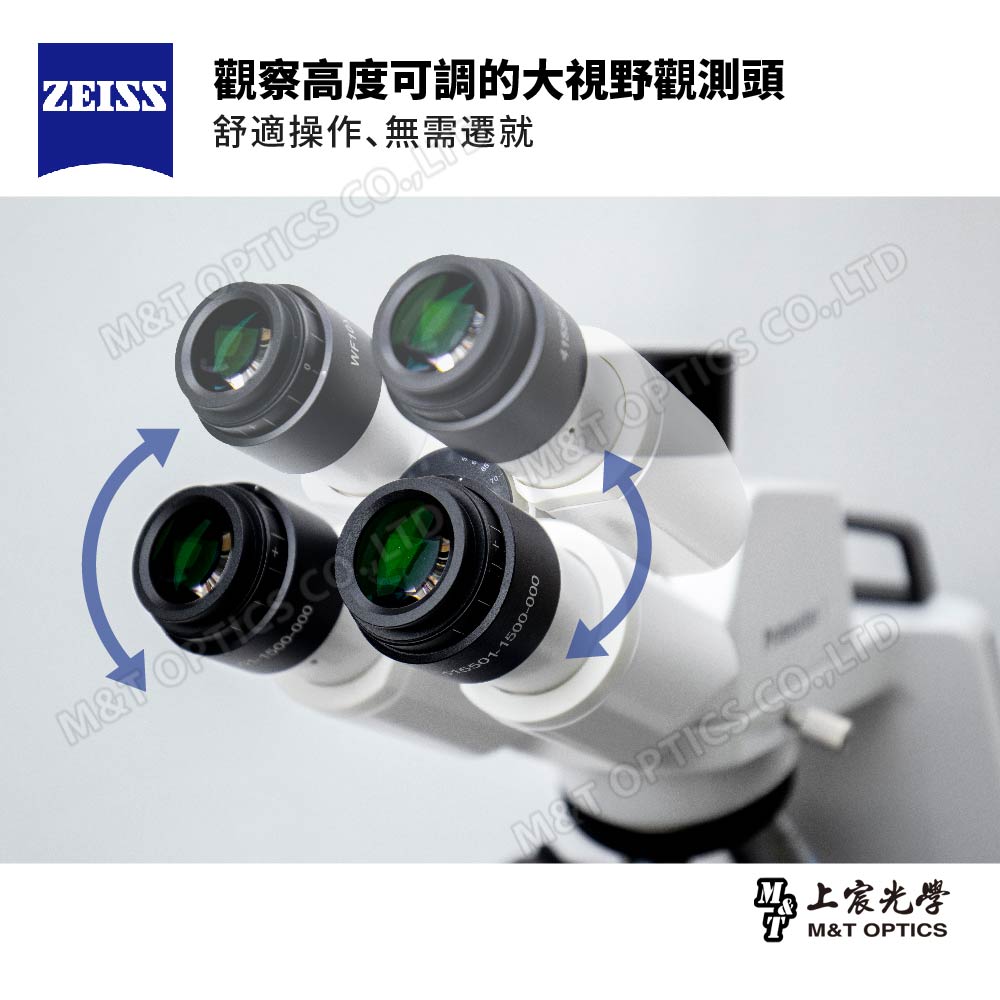

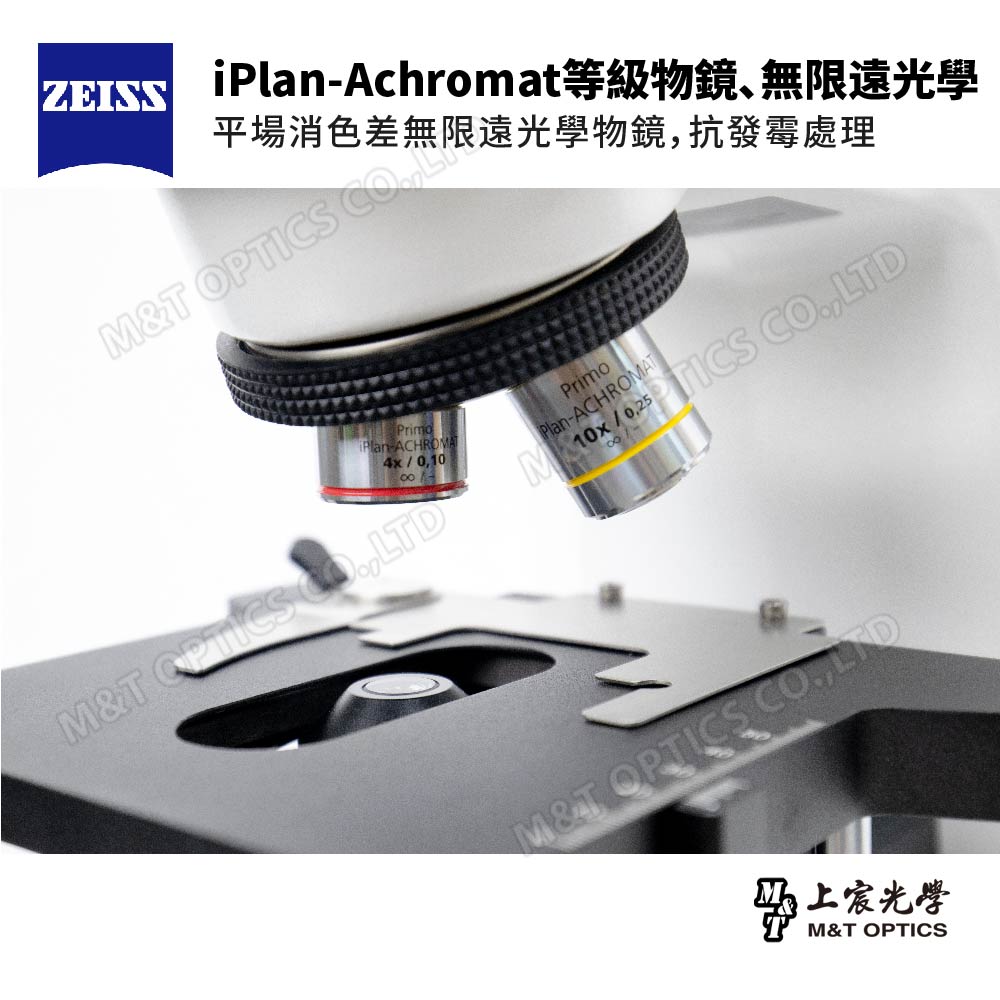

The standard version is equipped with iPlan-Achromat grade objective lenses, all of which have been treated with mildew resistance. Observation height adjustable large field of view observation head

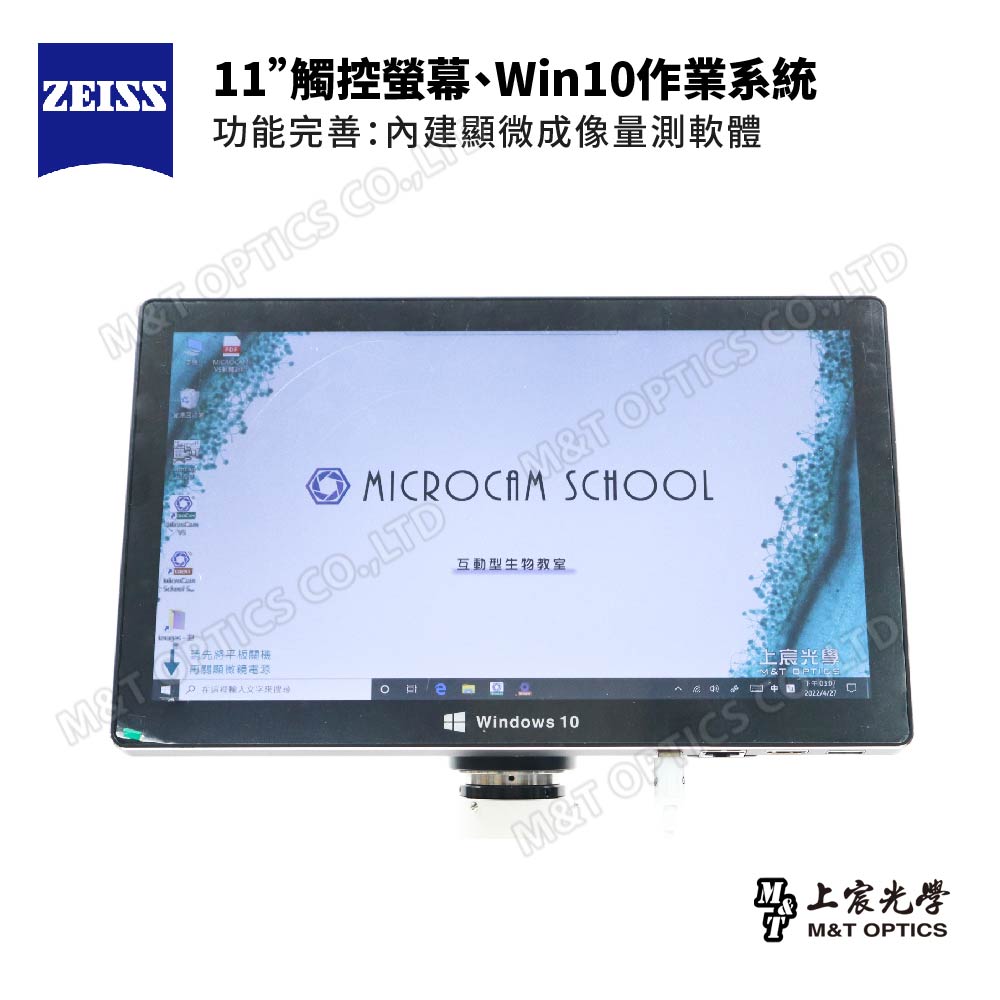

Binocular observation head with adjustable observation height: It has a viewing angle of 30° and is compatible with a maximum field of view of 20mm. Binocular pupil distance adjustment: Adjust the distance between binocular eyes in a wide range from 48 mm to 75 mm. 11" touch screen, Win10 operating system 11"

The screen size is just right and does not affect the lateral space when placed. It adopts Windows 10 operating system and is easy to operate. Supports flash drive, mouse, keyboard and network connection

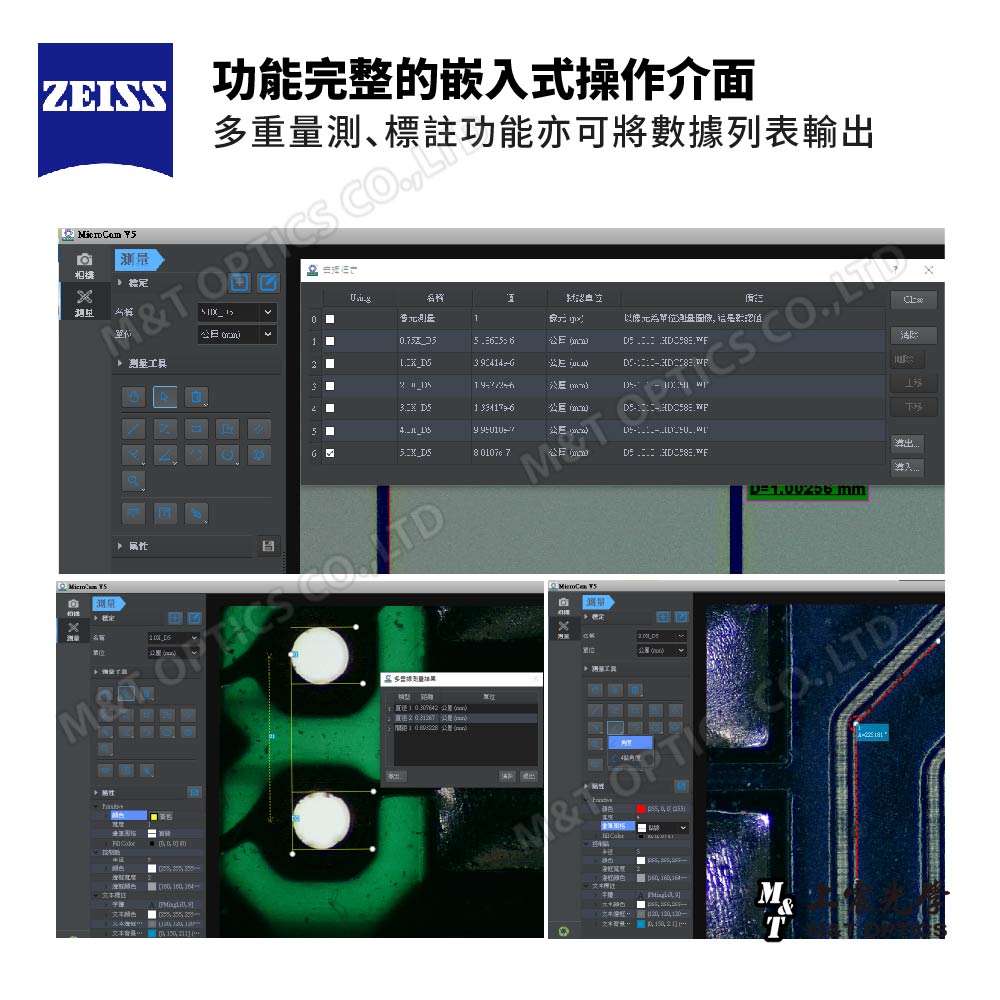

There are two USB3.0 interface connectors on the side of the fuselage, which can be operated by mouse and keyboard, and can also be connected to a flash drive to output photos and videos. Supports both wireless and wired network connections. MicroCam V5 measurement software

Professional-grade microscopic observation/measurement tools

Multiple weight measurement and labeling functions

Multiple annotation and drawing modes enable users to more accurately measure relevant parameters of the measured object. Data list function

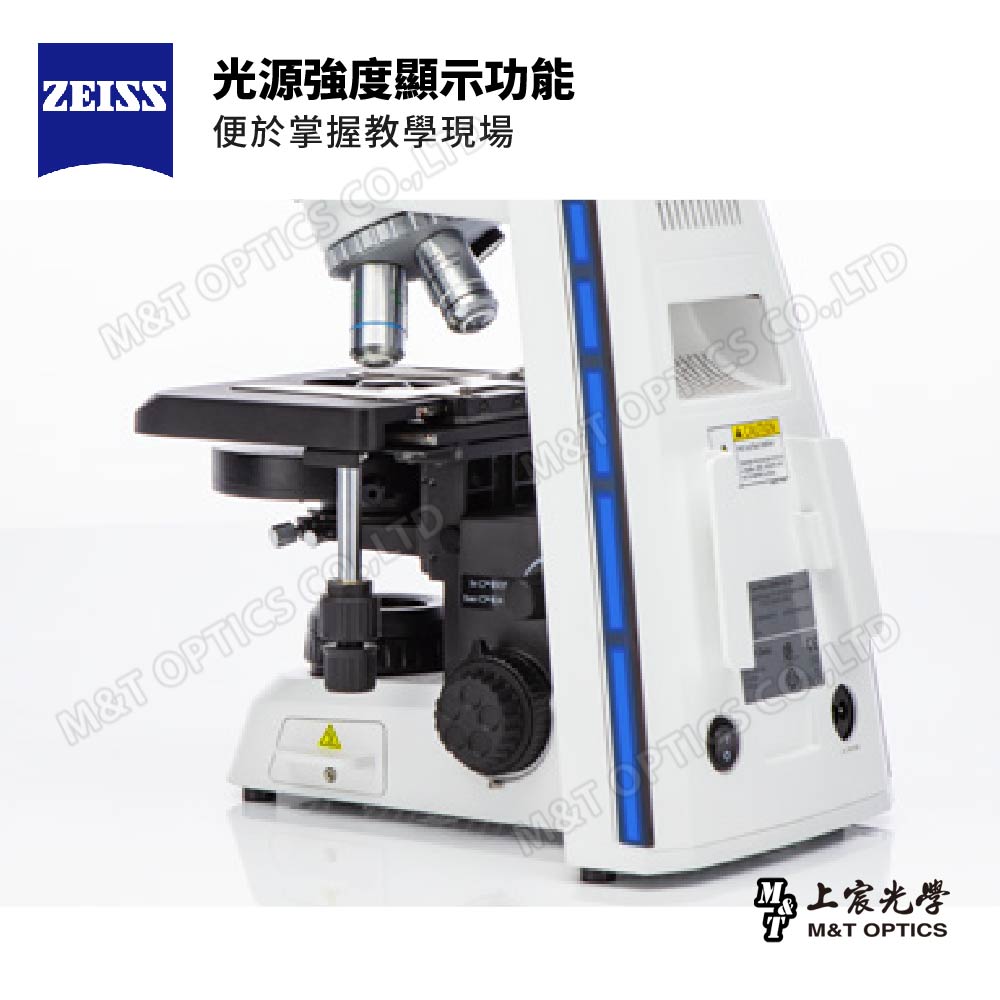

MicroCam V5 has the functions of tabular presentation and data export of measurement data, making the recording process more convenient. Light source intensity display function - easy to grasp the teaching site

The intensity of the light source is the most important control item for the microscope in the classroom. There are five segments of blue LED light bars on both sides of the mirror body to display the output light intensity, providing teachers and students with the most representative lighting parameters for mutual reference. Rackless high-quality stage

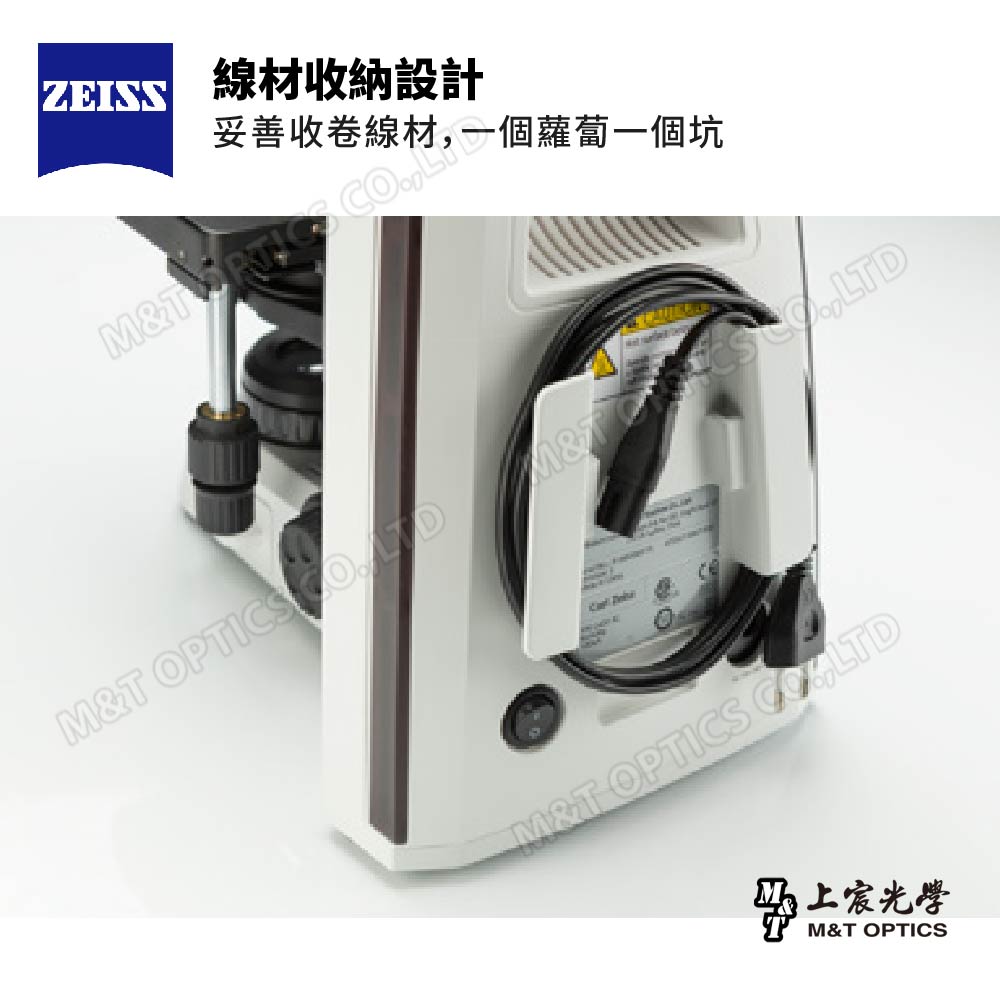

Rackless stage ensures greater safety and comfort. Durable: short, sturdy stage hinges with easy-to-read ruler. Rewind the wire properly

The wire storage design on the back of the machine provides the ultimate use of space. One carrot and one hole to avoid wire loss ZEISS Primostar 3 TR PAD Plus Parts Description Observation sample sharing

Filbert - brightfield observation, 40x objective magnification Observation sample sharing

Rabbit tongue taste buds - phase contrast observation, 40x objective lens magnification Observation sample sharing

Cross-section of vascular bundles of Lily of the Valley flower - using Zeiss original fluorescence kit, 10x objective lens magnification ZEISS Primostar 3 Microscope Dimensional Drawing

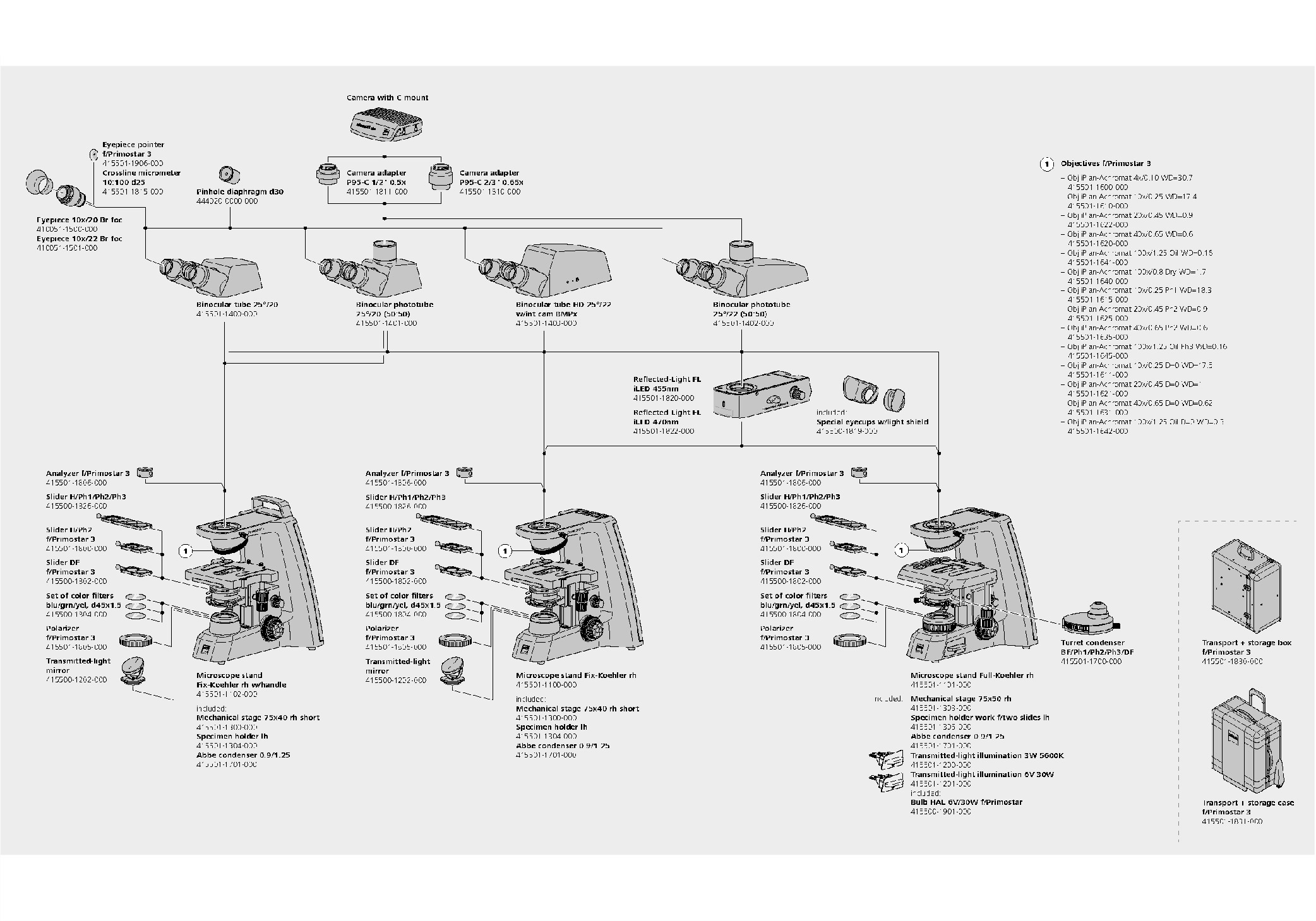

ZEISS Primostar 3 series microscope configuration diagram

Comprehensive magnification	40X~400X
Head down with three eyes on the ground	Tilt angle 30°, visual field of view 20°, 50/50 light split, adjustable observation height 375-425mm, third eye connected to RD2 focus reducer and HDC588 microphotography system
pupillary distance	Adjustable pupillary distance 48~75mm, left eye eyepiece seat adjustable parallax (diopter)
eyepiece	WF10X/22mm(φ30)*2pcs
objective lens	4X working distance WD=12mm, 10X, working distance WD=4.51mm, 40X, working distance WD=0.61mm
nose chakra	RMS W0.8 four-hole retractable type
Focusing system	Coaxial coarse adjustment, with elastic adjustment ring, Z-axis adjustment wheel full stroke 15mm including limit device, coarse adjustment accuracy 45mm/revolution, fine adjustment micro-motion accuracy 0.5mm/revolution
Stage	Mechanical stage, appearance size 140x140mm, XY axis movement range up to 75x40mm, rack is hidden design to avoid exposure
condenser	Fixed Abbe NA0.9/1.25, built-in iris
Wake-up light source	Brightness 3W LED light source circuit, color temperature 5600K
power supply	External DC12V power supply, applicable voltage 100~240 V
physical dimension	208×296×398mm
weight	8.5-12kg
Microcamcorder	MICROTECH HDC688.PAD
Warranty	1 year
