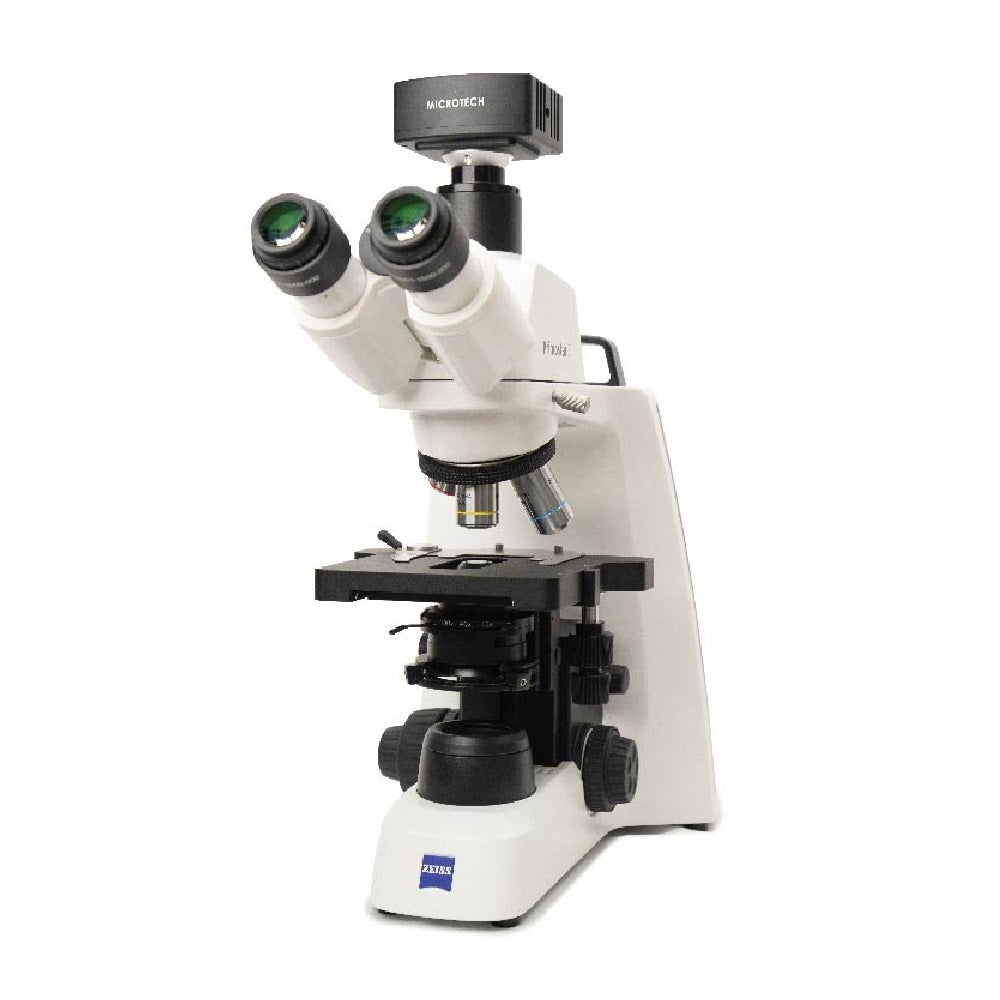

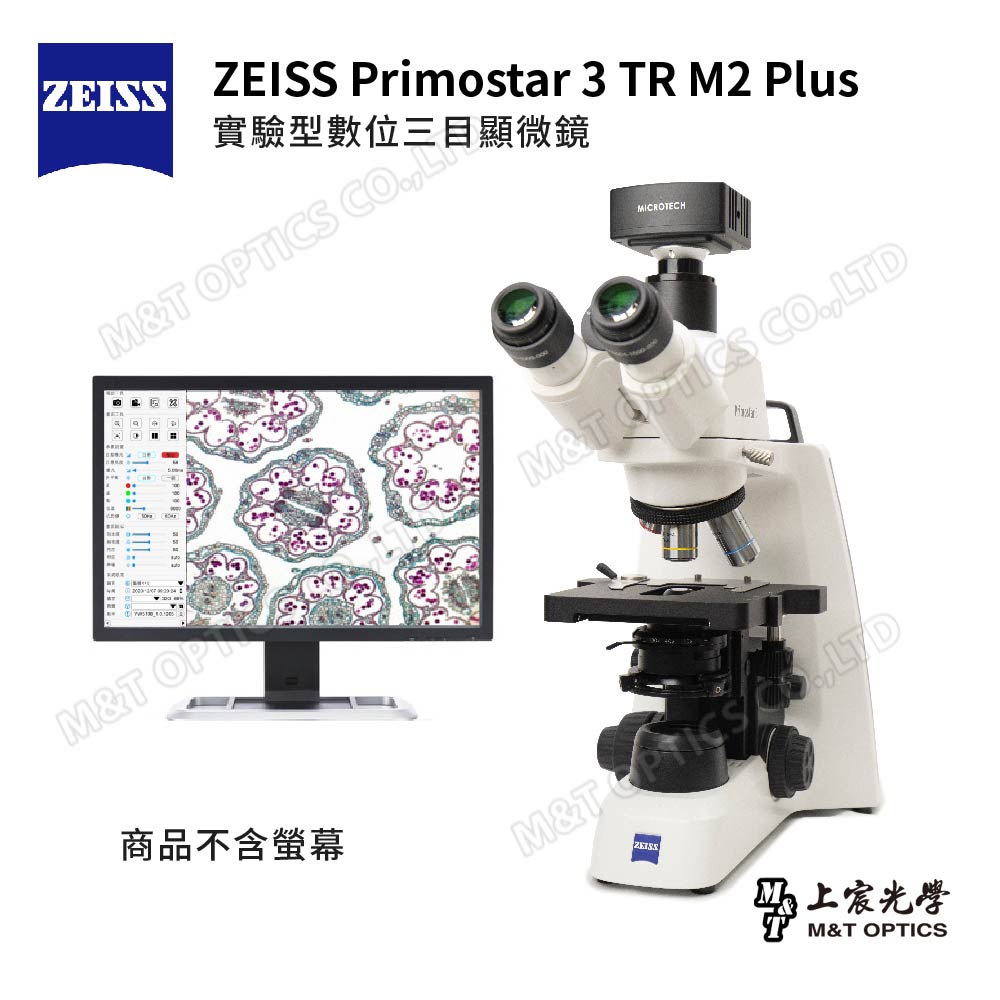

Equipped with HDMI high-definition M2 Plus microscopic camcorder

ZEISS Primostar 3 TR The high-quality microscope optics from Zeiss, Germany, is paired with the HDMI high-definition " M2 Plus Microscope Camera " to instantly view and record images under the microscope. It can also take photos and videos, measure and calculate microscopic images, and meet the needs of Your professional needs. The microscope adopts an infinity optical design and is equipped with a plan achromatic grade objective lens. Suitable for education, sample testing, and scientific research. The compact and solid metal body is reliable and durable, amplifying the efficiency and productivity of your learning/teaching or laboratory work.

You can output high-definition images without connecting to an external computer!

With just a mouse and an HDMI cable, you can instantly output microscope images and control shooting records to further accurately mark image details and microscopic dimensions. Use a USB flash drive to store images and data with one click, and can also transparently Connect to computer via USB cable and support online video.

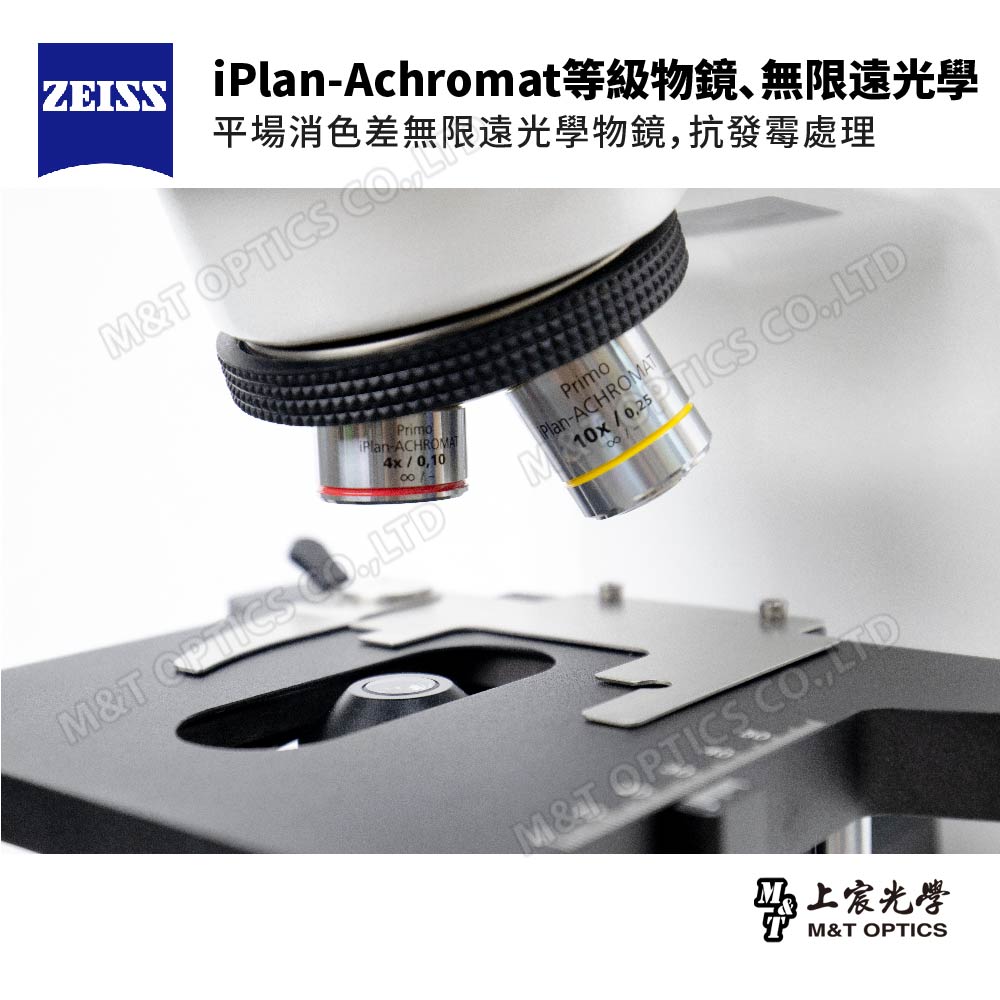

iPlan-Achromat grade objective lens, infinity optics

The standard version is equipped with iPlan-Achromat grade objective lenses, all of which have been treated with mildew resistance.

Observation height adjustable large field of view observation head

Binocular observation head with adjustable observation height: It has a viewing angle of 30° and is compatible with a maximum field of view of 20mm. Binocular pupil distance adjustment: Adjust the distance between binocular eyes in a wide range from 48 mm to 75 mm.

Advantages of M2 digital microscope

It adopts the MICROTECH M2 microphotography system, which has a microcomputer platform, HDMI direct image output, USB mouse to directly control the microscope, and embedded complete shooting functions and measurement software. It is a computer-free microphotography solution. It adopts 1/1.9” SONY fluorescent grade photosensitive element, which has the advantages of high dynamic range, strong photosensitivity and wide field of view.

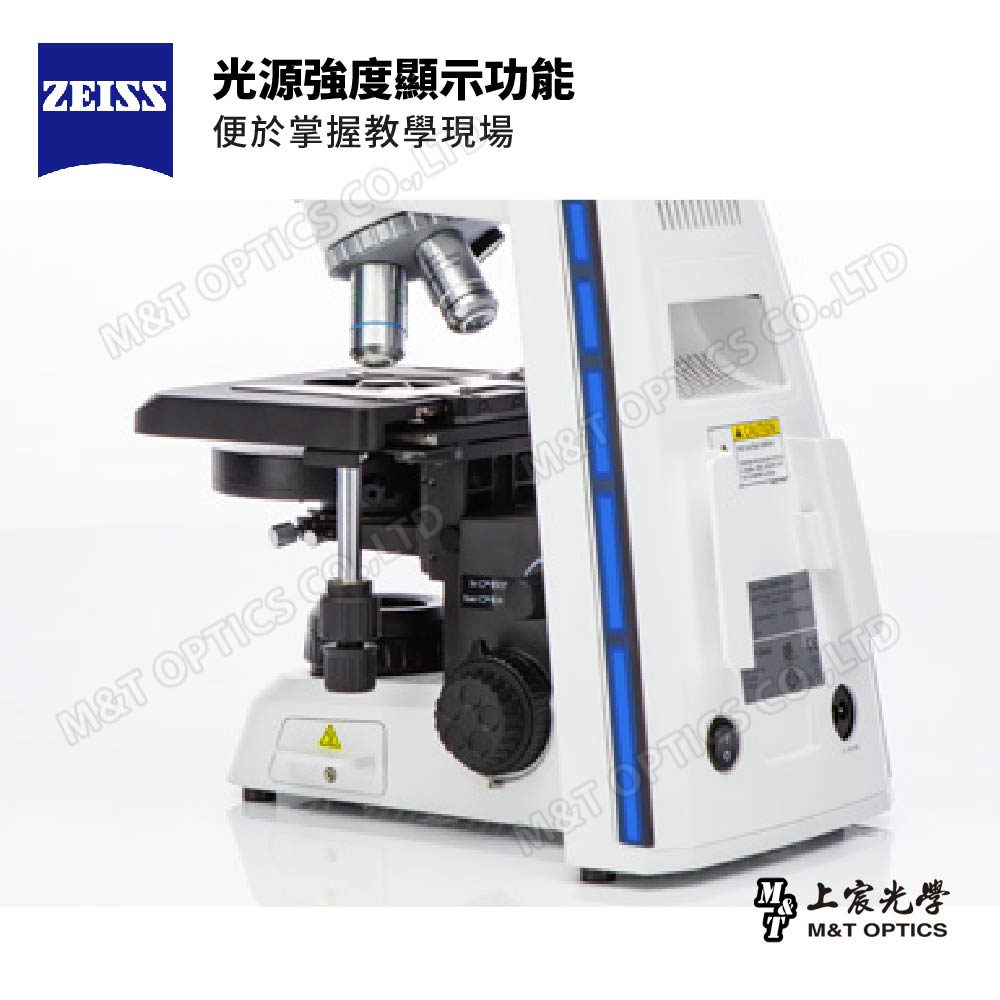

Light source intensity display function - easy to grasp the teaching site

The intensity of the light source is the most important control item for the microscope in the classroom. There are five segments of blue LED light bars on both sides of the mirror body to display the output light intensity, providing teachers and students with the most representative lighting parameters for mutual reference.

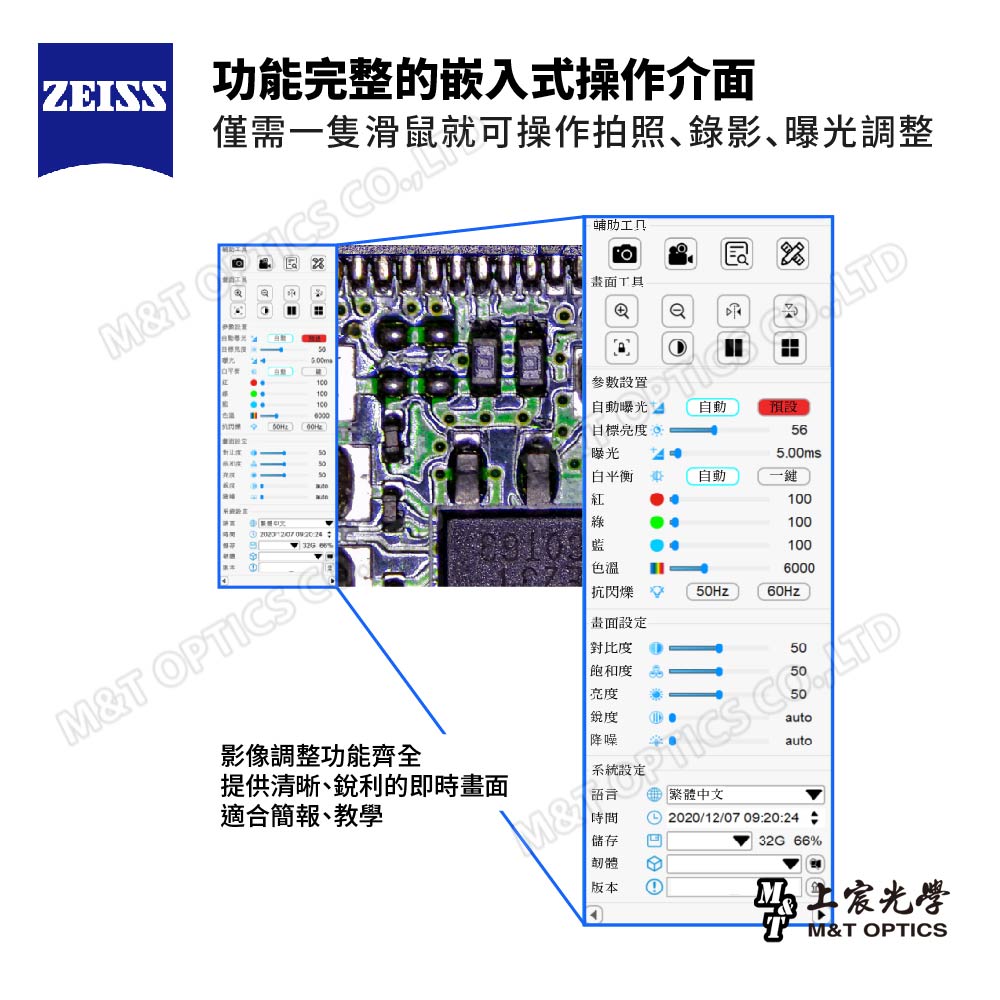

Full-featured embedded operating interface

Only one mouse is needed to operate photography, video recording, exposure adjustment, various parameter settings, screen freezing, screen ratio, digital zoom in and out.

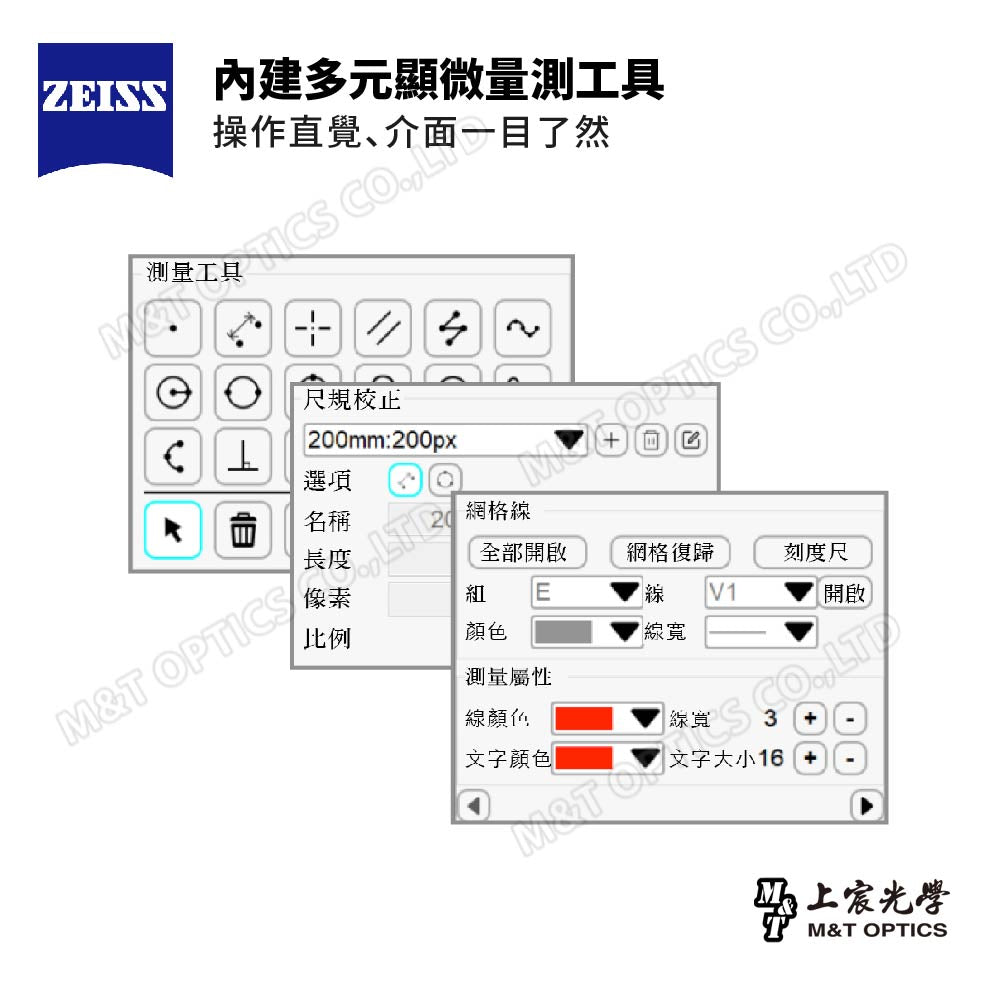

Built-in multi-dimensional microscopic image measurement tools

Complete measuring tools such as point, line, circle, arc, parallel line, vertical line angle measurement, ruler and compass correction allow users to measure and record conveniently and accurately.

Rackless high-quality stage

Rackless stage ensures greater safety and comfort. Durable: short, sturdy stage hinges with easy-to-read ruler.

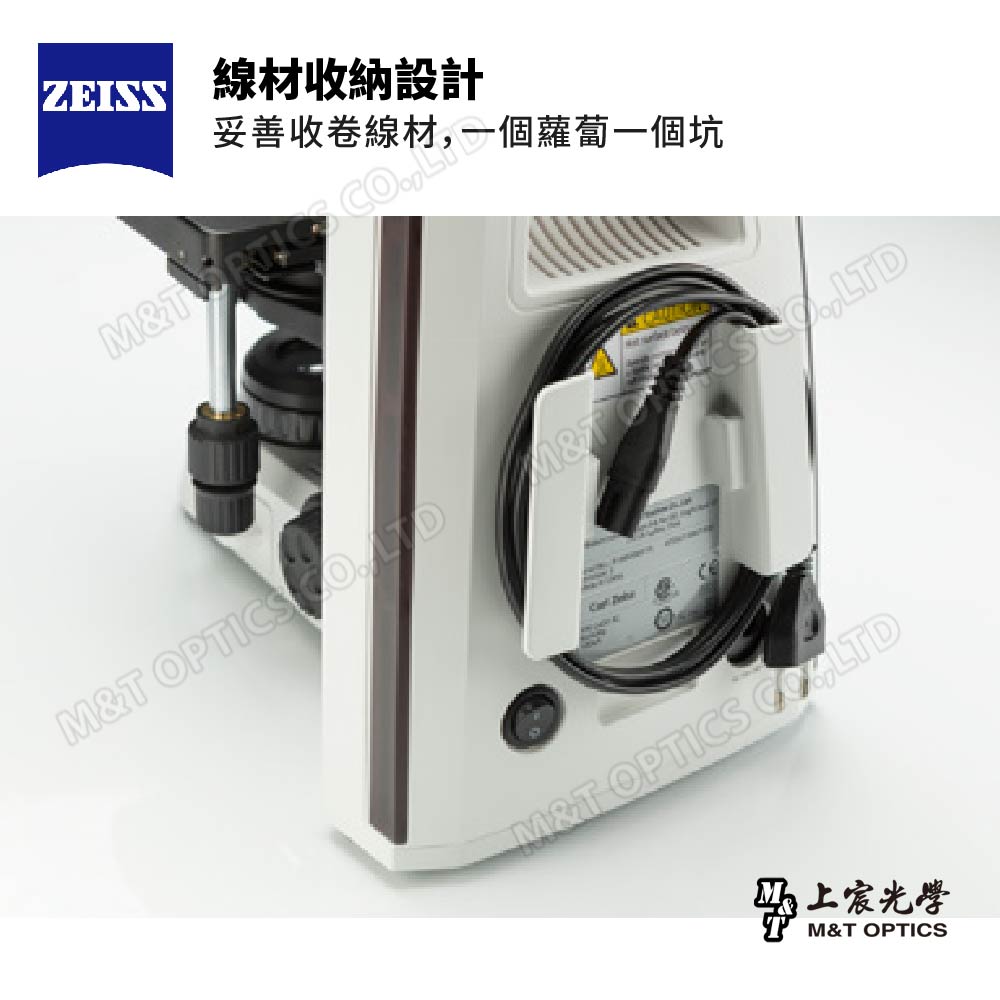

Rewind the wire properly

The wire storage design on the back of the machine provides the ultimate use of space. One carrot and one hole to avoid wire loss

ZEISS Primostar 3 TR M2 Plus Parts Description

Observation sample sharing

Filbert - brightfield observation, 40x objective magnification

Observation sample sharing

Rabbit tongue taste buds - phase contrast observation, 40x objective lens magnification

Observation sample sharing

Cross-section of vascular bundles of Lily of the Valley flower - using Zeiss original fluorescence kit, 10x objective lens magnification

ZEISS Primostar 3 Microscope Dimensional Drawing

ZEISS Primostar 3 series microscope configuration diagram

Comprehensive magnification	40X~400X
Trinocular observation head	Tilt angle 30°, visual field of view 20°, 50:50 light split, adjustable observation height 375-425mm, third eye connected to RD2 focus reducer and HDC588 microphotography system
pupillary distance	Adjustable pupillary distance 48~75mm, adjustable parallax (diopter) of left eye eyepiece seat
eyepiece	WF10X/22mm(φ30)*2pcs
objective lens	4X working distance WD=12mm, 10X, working distance WD=4.51mm, 40X, working distance WD=0.61mm
nose chakra	RMS W0.8 four-hole retractable type
Focusing system	Coaxial coarse and fine adjustment, with elastic adjustment ring, Z-axis adjustment wheel full stroke 15mm including limit device, coarse adjustment accuracy 45mm/revolution, fine adjustment accuracy 0.5mm/revolution
Stage	Mechanical stage, appearance size 140x140mm, XY axis movement range up to 75x40mm, rack is hidden design to avoid exposure
condenser	Fixed Abbe NA0.9/1.25, built-in aperture
Transmitted light source	Adjustable brightness 3W LED light source circuit, color temperature 5600K
power supply	External DC12V power supply, applicable voltage 100~240 V
physical dimension	208×296×398mm
weight	8.5-12kg
Microcamcorder	MICROTECH M2 HDMI Camcorder
Warranty	1 year
