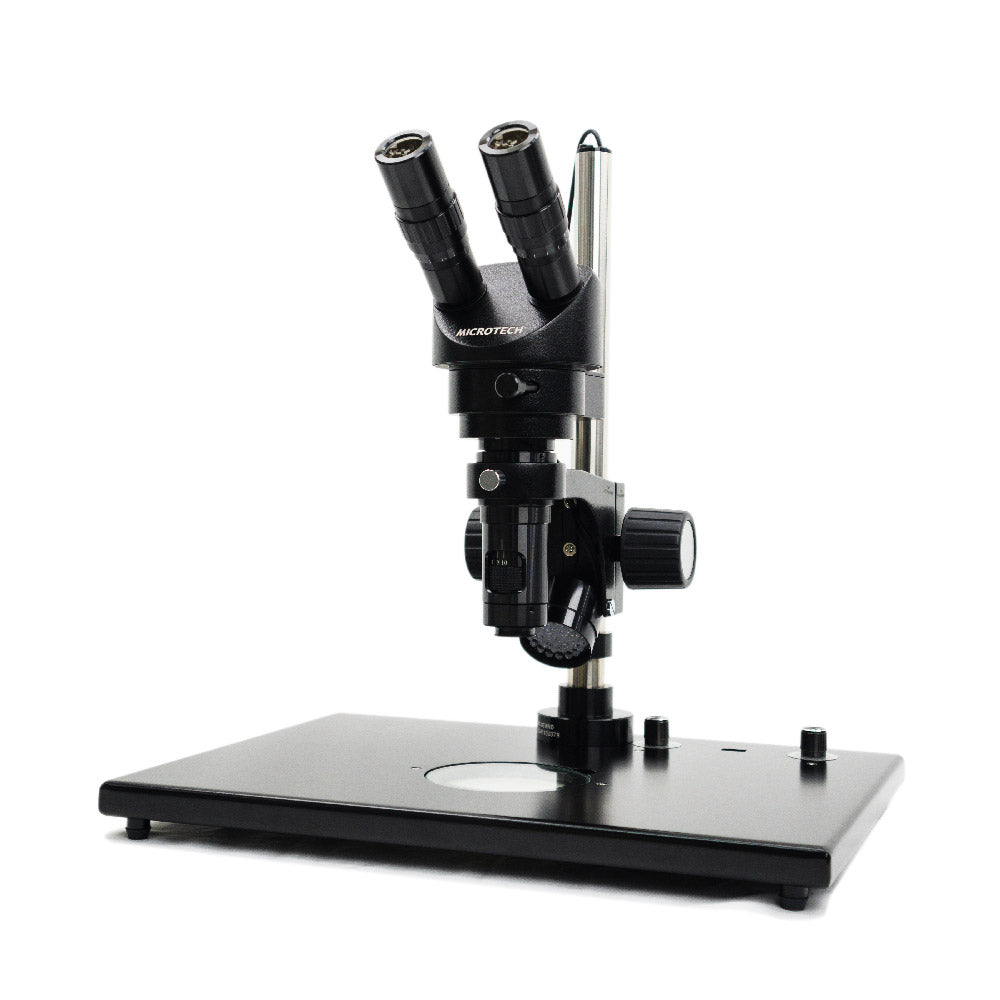

MICROTECH D10/D10T binocular/trinocular high magnification stereo microscope - original factory warranty for one year

Order number

2245100396

High magnification zoom microscope, multiple applications

Equipped with a parallel optical system zoom lens tube with fine structure and precision correction, it provides high magnification and supports both visual viewing and real-time imaging. It has powerful functions and comprehensive expansion. The standard version has a magnification of 15x ~ 100x. It comes standard with a long working distance 1X objective lens. After focusing, there is a distance of 82mm from the object being observed, providing sufficient working space for the hand while maintaining high-magnification vision. Suitable for electronic/semiconductor industry, textile, and industrial production lines.

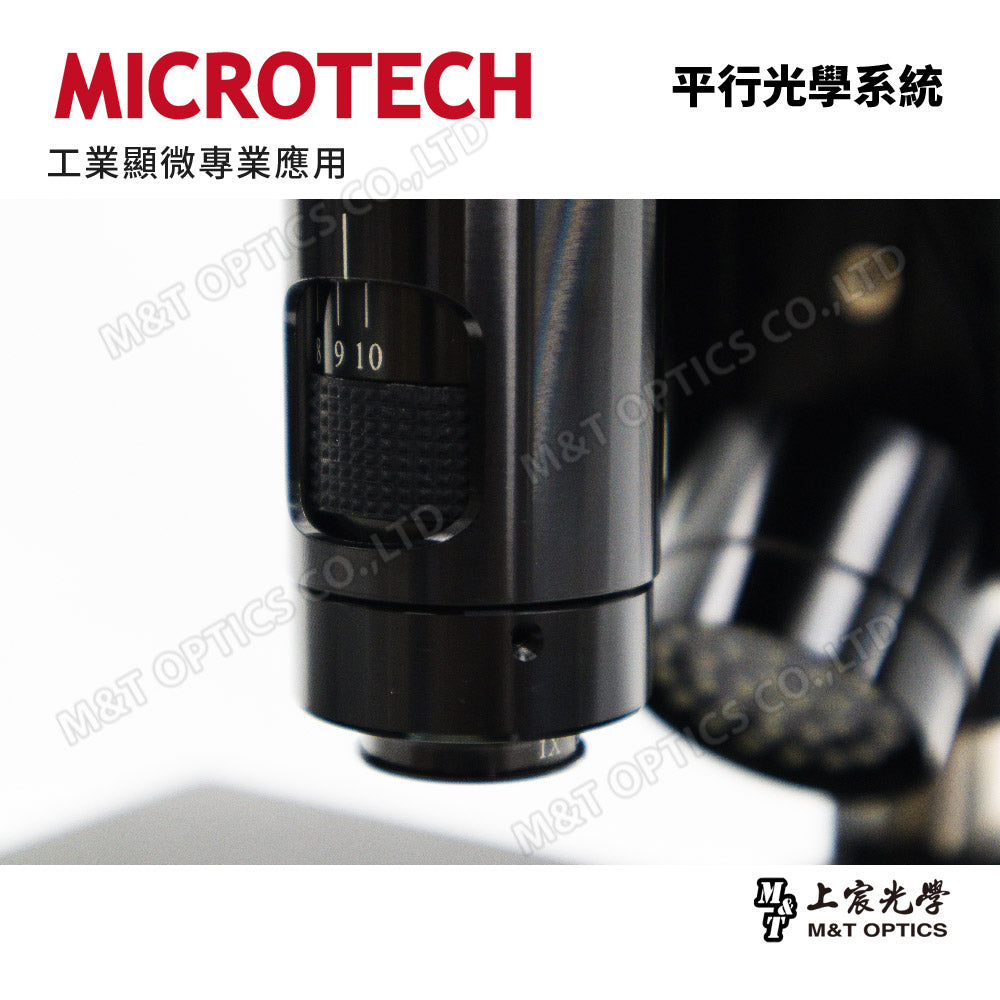

Parallel optical system with easily replaceable RMS objective lens

The Zoom zoom body with a zoom ratio of 1.5x~10x up to 6.7 is assembled with a precise optical axis and an objective lens that can be replaced by just rotating, which is fast and simple. You can purchase additional 0.7X, 0.5X, and 0.3X objective lenses to increase the working distance, or purchase 1.5X and 2X objective lenses to increase the magnification. You can also purchase metallographic grade PL5X, PLL10X, and PLL20X objective lenses. The objective lens specifications adopt the RMS international standard microscope thread, with a diameter of WJ4/5”x1/36.

Binocular visual observation head

The visual part adopts a binocular observation head, which is comfortable and not fatigued during long-term use, and is convenient for operating and processing samples while observing.

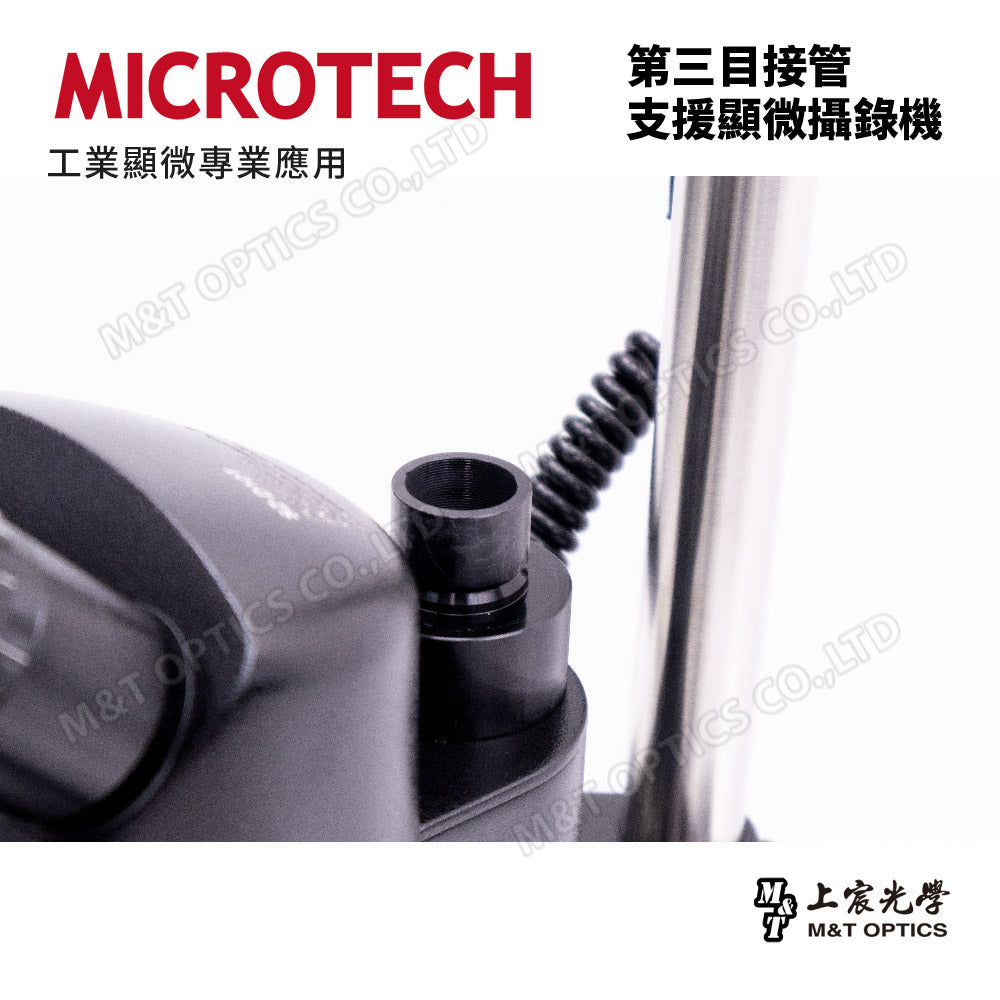

The third eye takes over and supports micro-camera (trinocular type)

The observation head is equipped with a third eye tube that can be connected to a microscope camera, allowing you to take pictures as soon as you see them.

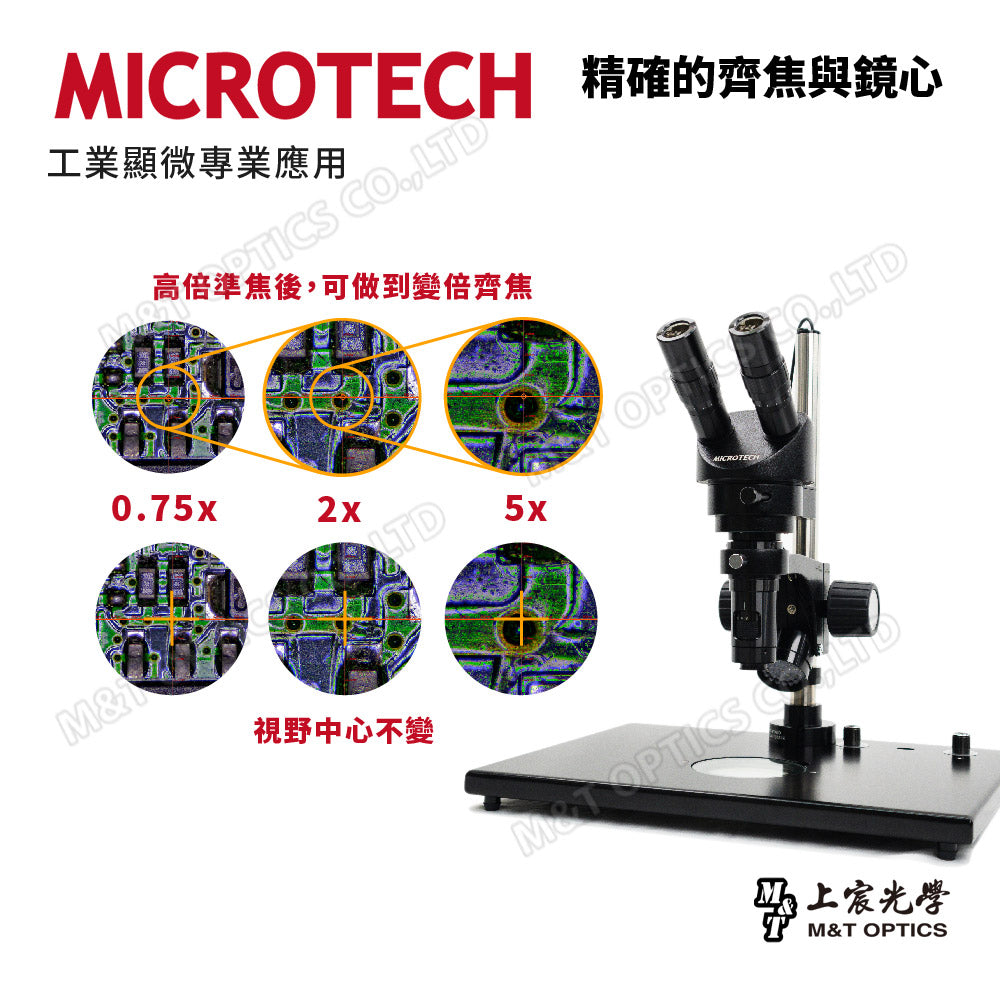

Precise parfocality and centering

Whether visualizing or connecting to a camcorder, the working distance and center of field of view remain unchanged when changing magnifications, making measurement and shooting convenient.

Integrate multiple lighting

It has adjustable side oblique lighting and penetrating bottom light, and the switch and brightness can be controlled by the knob on the stage.

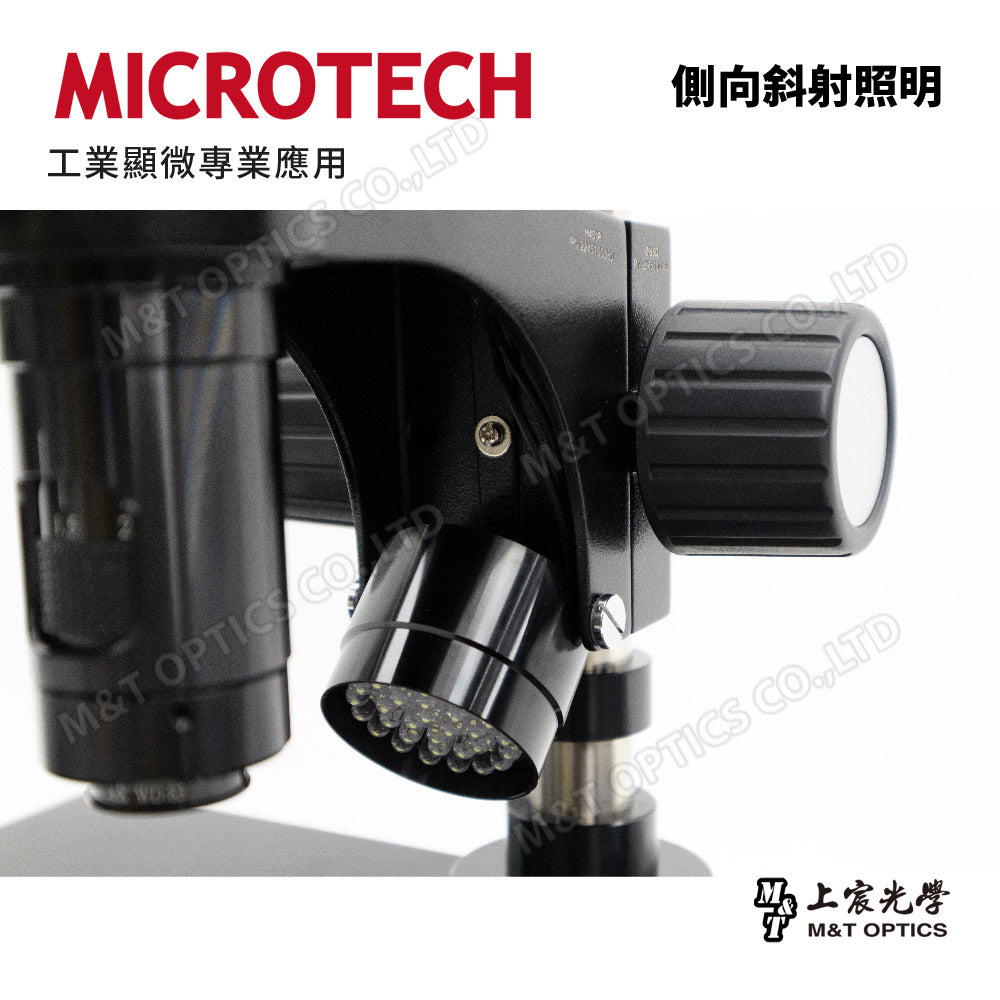

Side lighting

The focusing bracket is equipped with an LED light source, and the lighting angle can be directly adjusted manually.

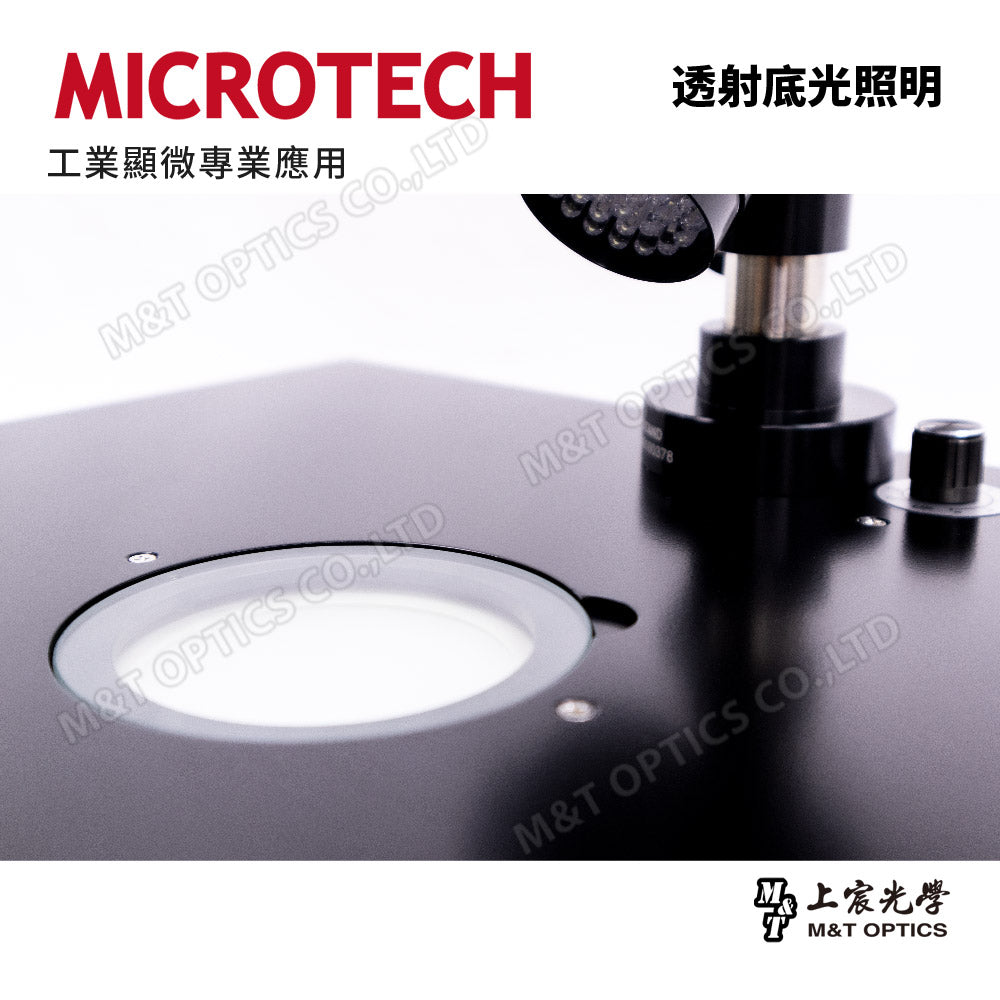

transmitted illumination

The stage integrates the transmitted bottom light and controls the brightness step by step.

A variety of lighting systems are available as optional extras

Compatible with various types of ring lights, snake neck lights, cold fiber optic conduit lighting... freely selectable according to usage needs.

MICROTECH D10 binocular/trinocular microscope parts description

Advantages of M2 high-definition camcorder

The iCamPlus.M2 microphotography system is a microscope imaging solution with a built-in microcomputer platform, HDMI direct output, direct mouse control of the camera body, and complete shooting functions and measurement software.

You can output high-definition images without connecting to an external computer!

With just a mouse and an HDMI cable, you can output ultra-high magnification images from the microscope and control the shooting records to further accurately mark image details and microscopic dimensions. Use a USB flash drive to store images and data with one click. Can be connected to a computer via USB cable and supports online video.

Full-featured embedded operating interface

Only one mouse is needed to operate photography, video recording, exposure adjustment, various parameter settings, screen freezing, screen ratio, digital zoom in and out.

Built-in multi-dimensional microscopic image measurement tools

Complete measuring tools such as point, line, circle, arc, parallel line, vertical line angle measurement, ruler and compass correction allow users to measure and record conveniently and accurately.
