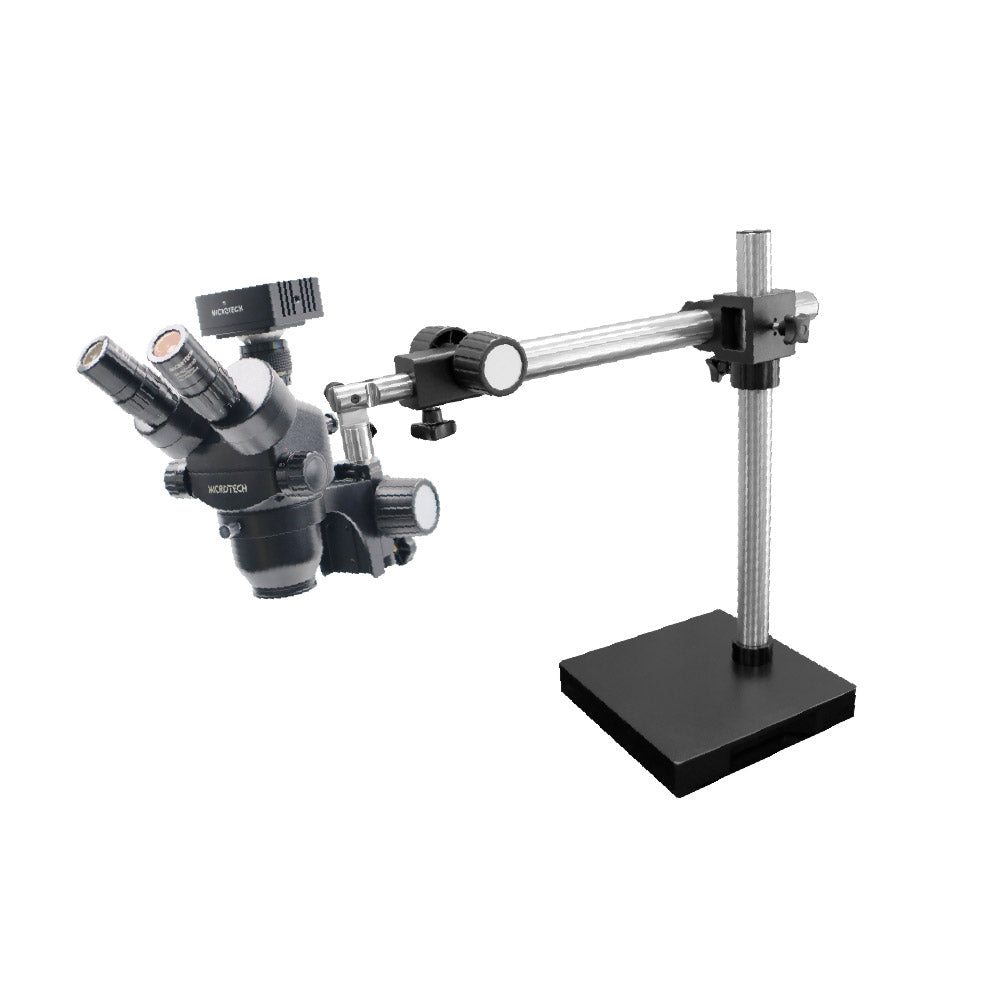

MICROTECH SZ5T.M2 Digital Stereo Microscope-Gimbal Stand Series

Order number

N/A

Product specifications

Optical system
Greenough
Comprehensive magnification
7X～45X
Zoom ratio
1:6.4
Observation head
Trinocular
Visual tilt angle
45°
pupillary distance range
52mm～76mm
Parallax adjustment

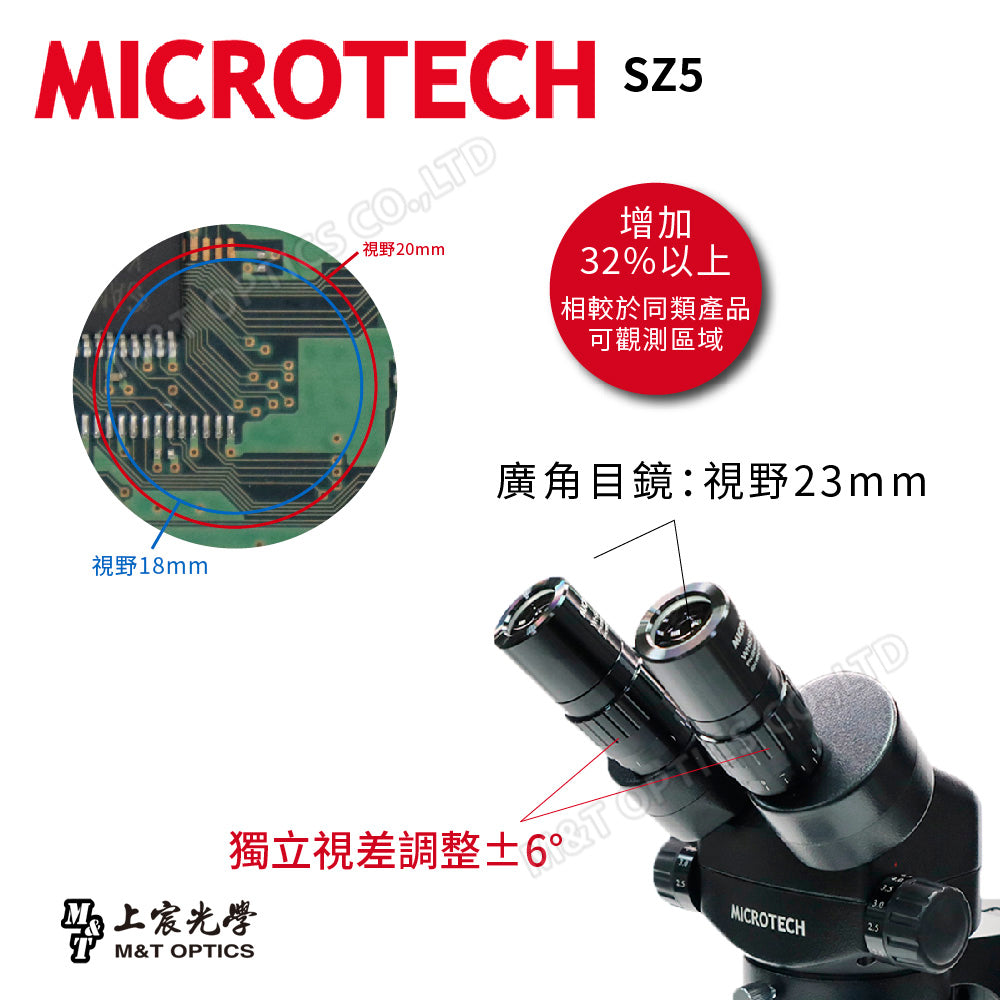

Binocular tubes have independent adjustment ±6°
eyepiece
WHSZ10X/23 field of view Φ23mm
objective lens
0.7X～4.5X
Zoom mode
ZOOM zoom. Fixed design. Horizontal zoom wheel type
Protective glass
have
Auxiliary objective thread
M48X0.75
working distance
118mm
Focusing system
Single speed.Rack guide
Column type

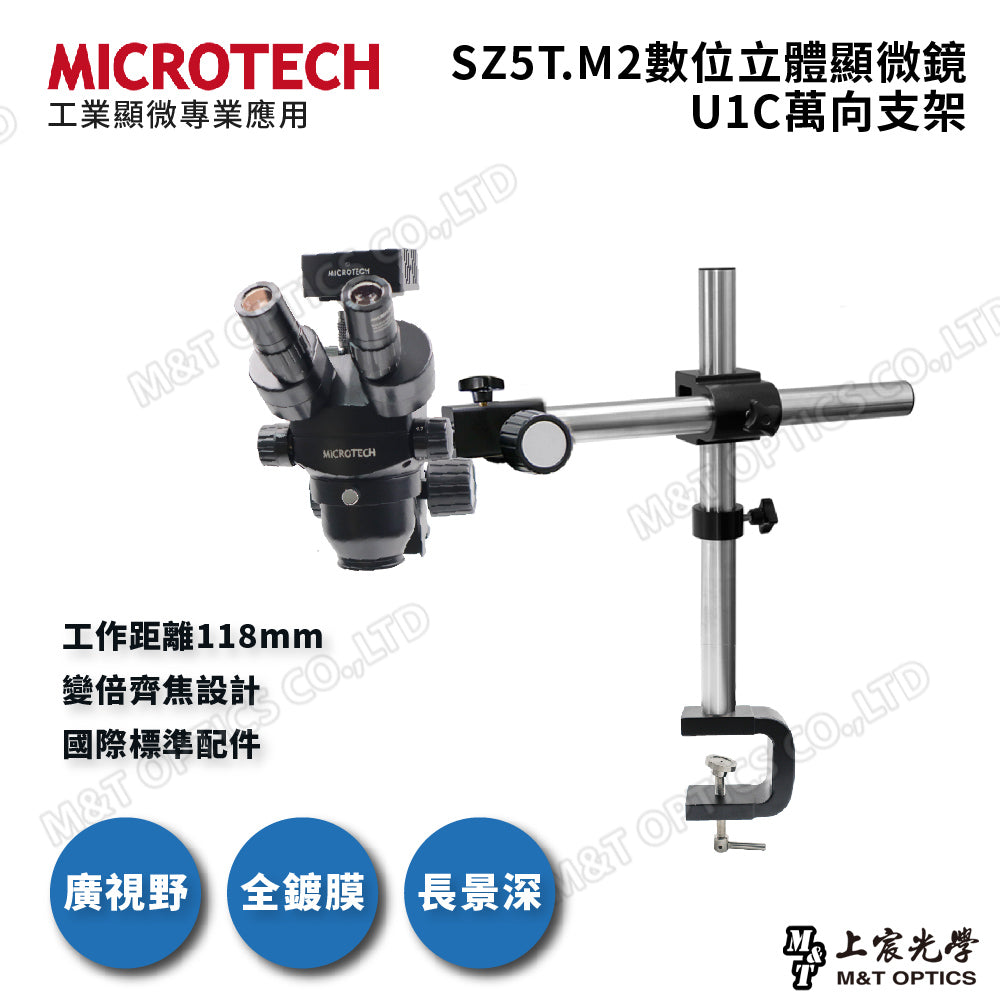

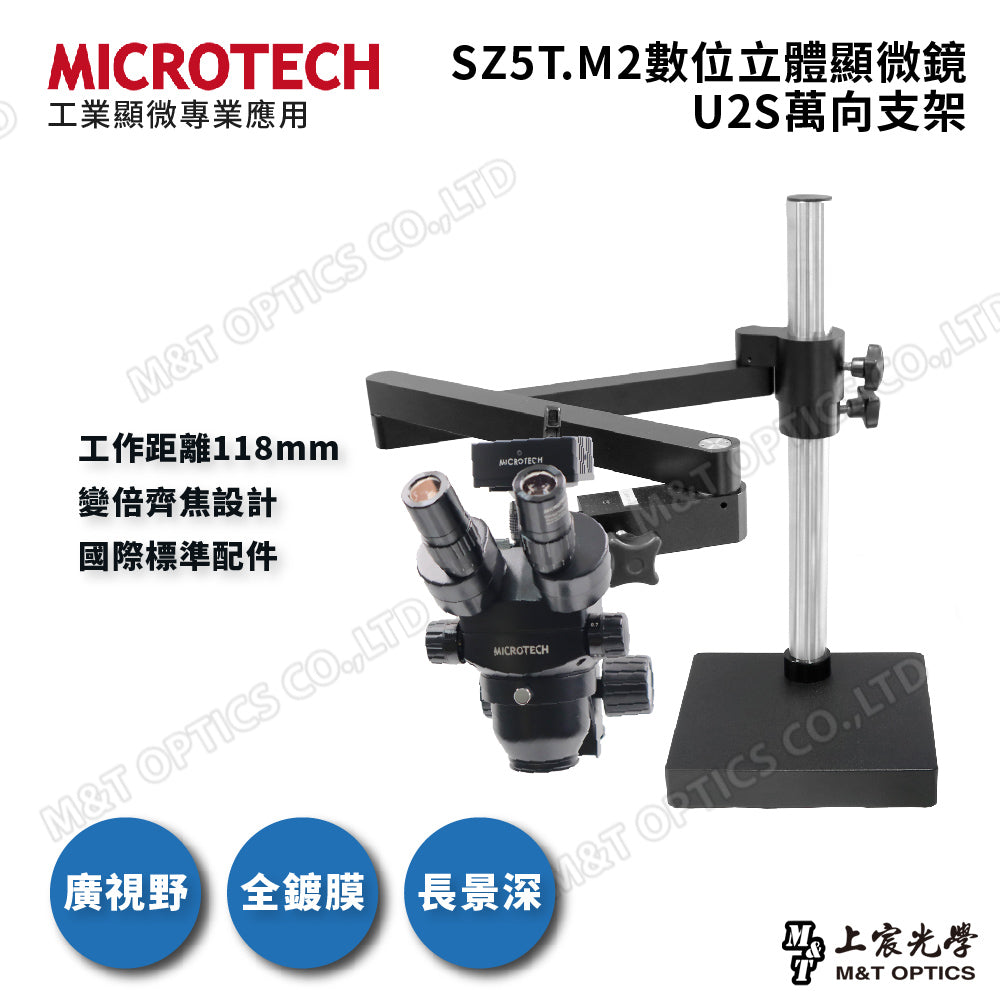

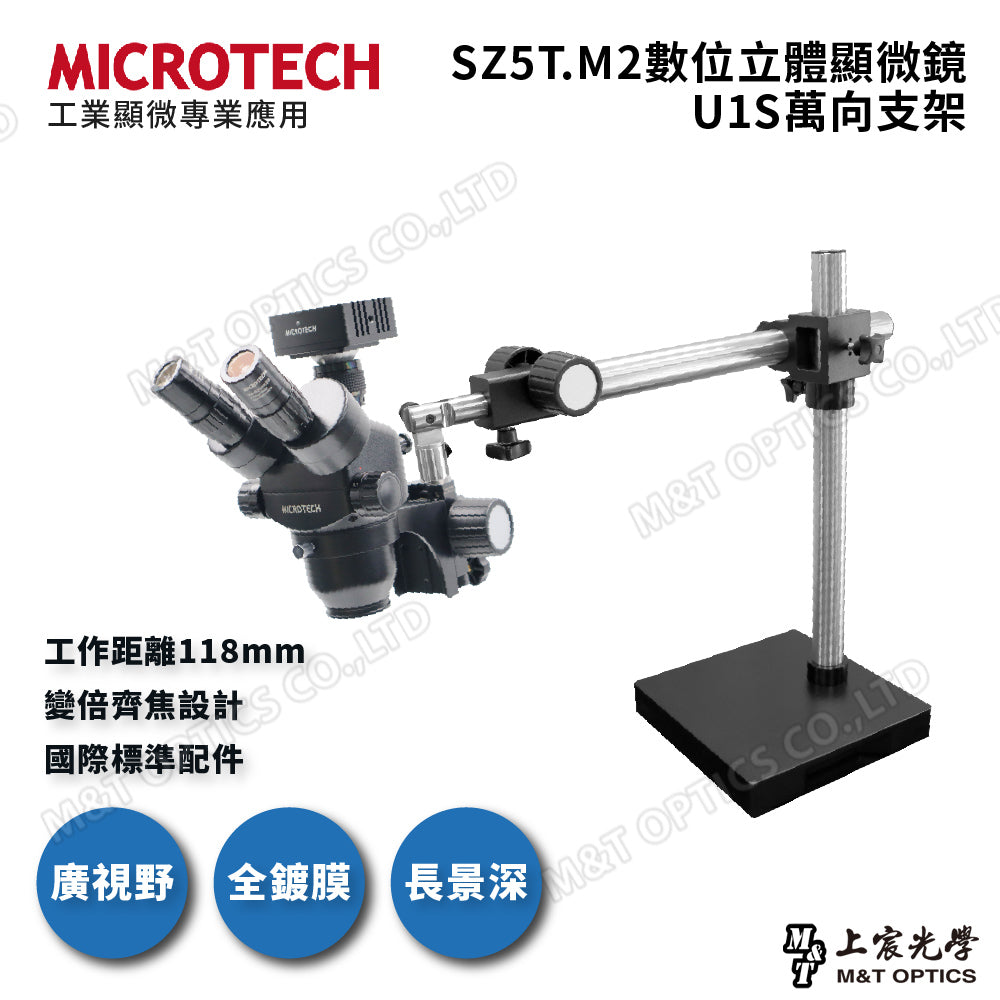

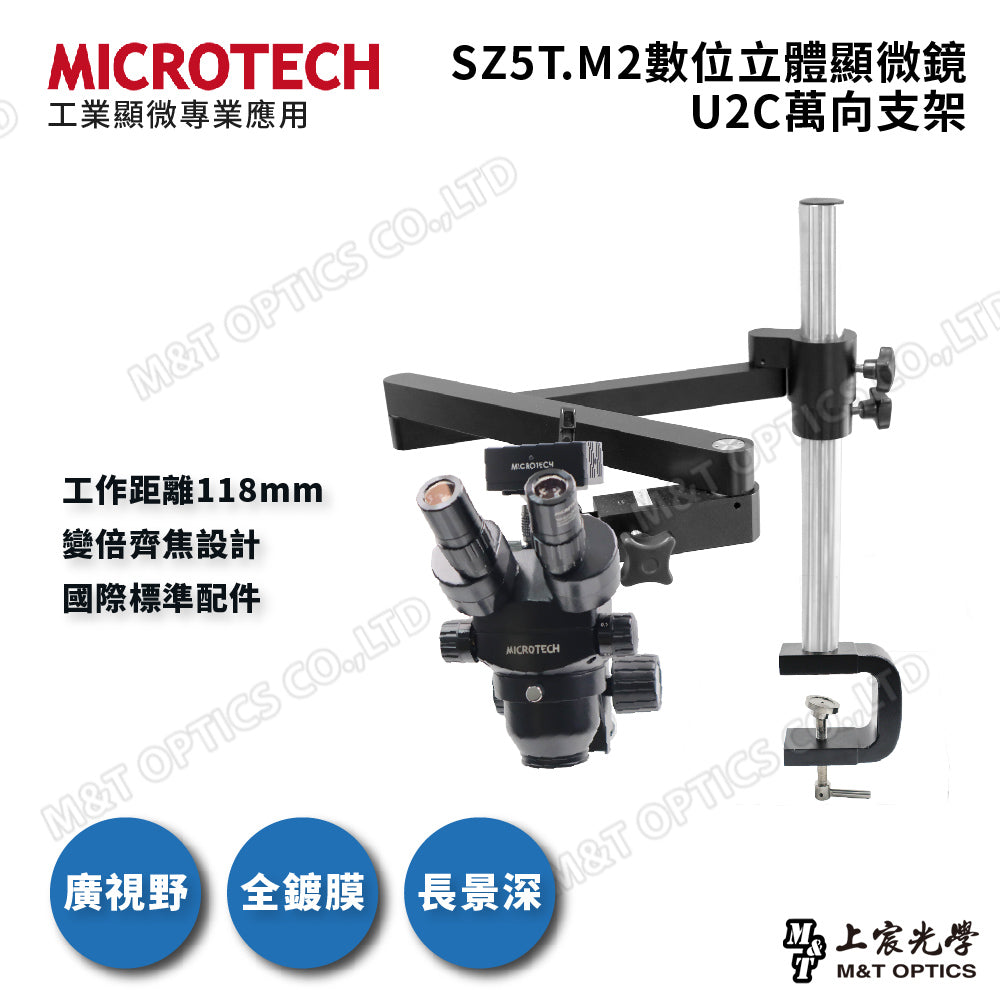

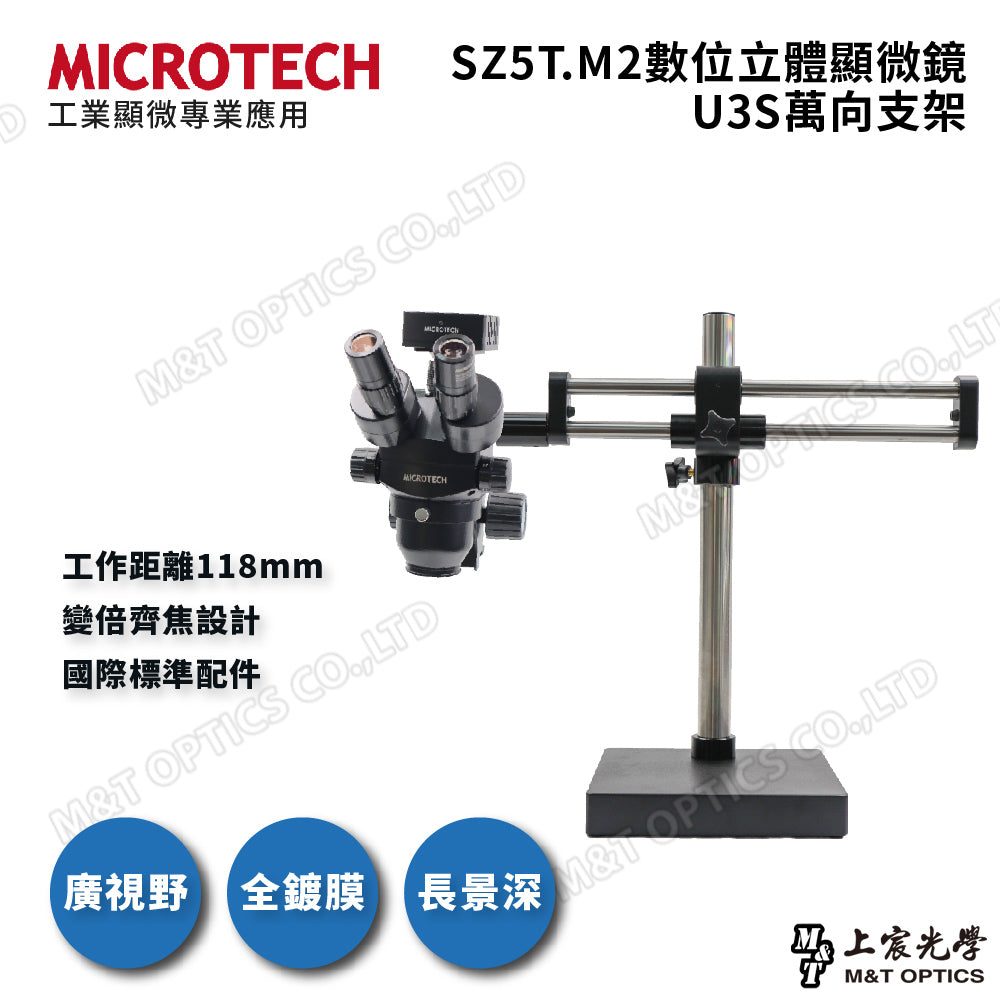

Column diameter 37mm, U1S column height 475mm, U1C column height 471mm, U2S column height 475mm, U2C column height 471mm, U3S column height 475mm
Stage type

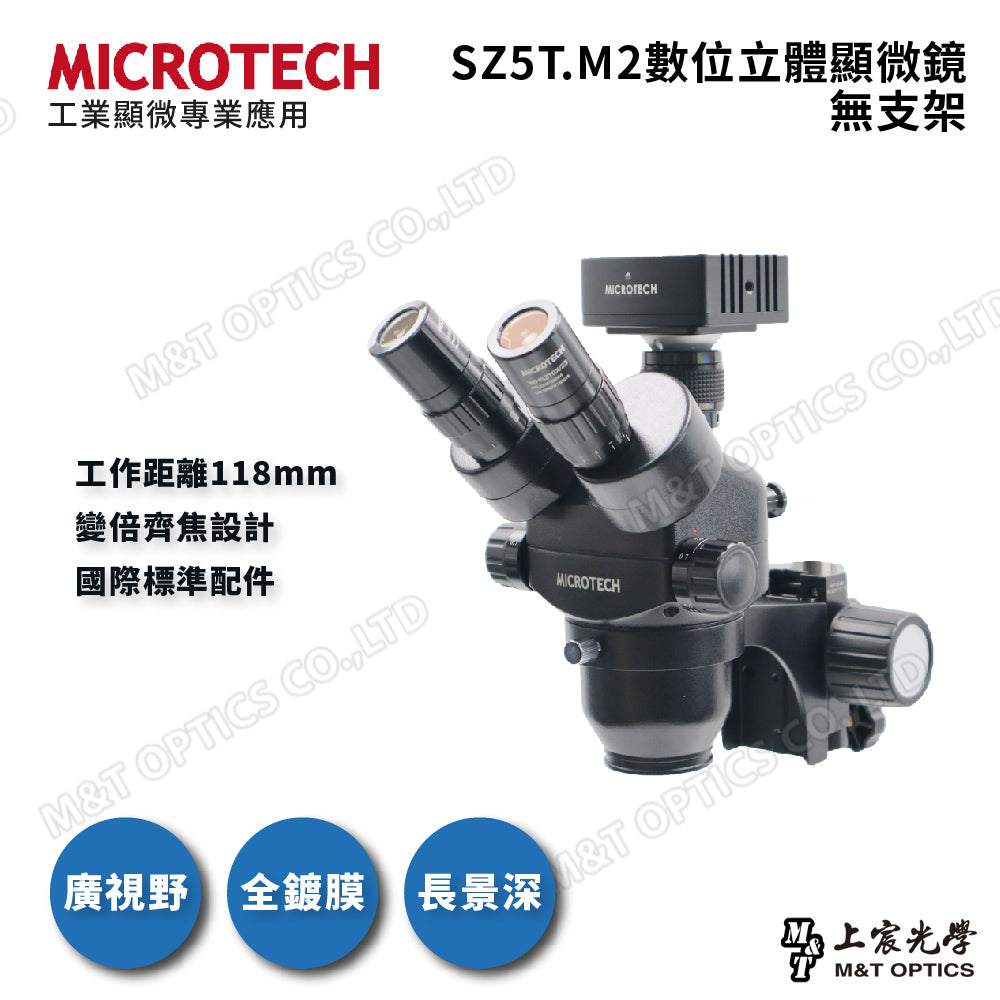

Optional: U1S, U1C, U2S, U2C, U3S, without base
Stage size
reference picture
Transmitted light source
X
Reflective light source
Optional: ring light, polarized ring light
coaxial light source
X
Polarizing module
Optional
Fluorescent module
X
power supply
Optional light source type
physical dimension
reference picture
