Powerful modular system

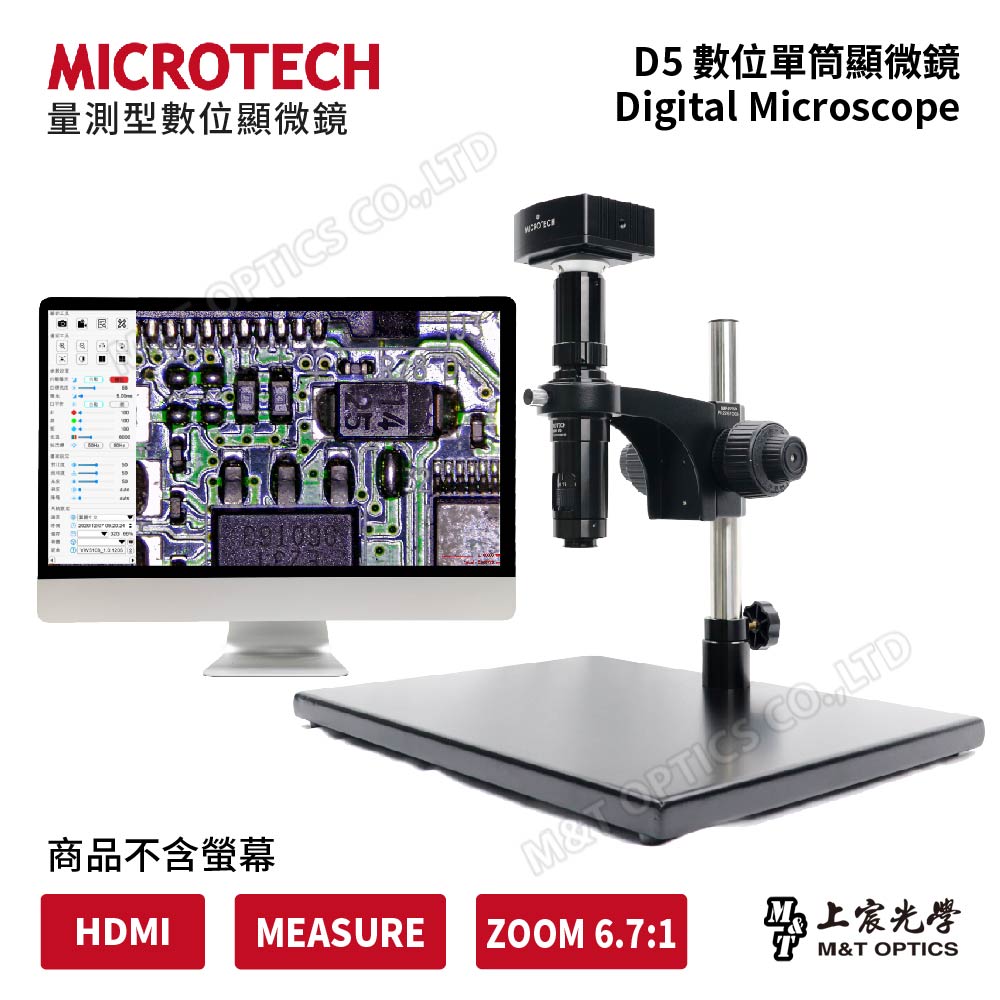

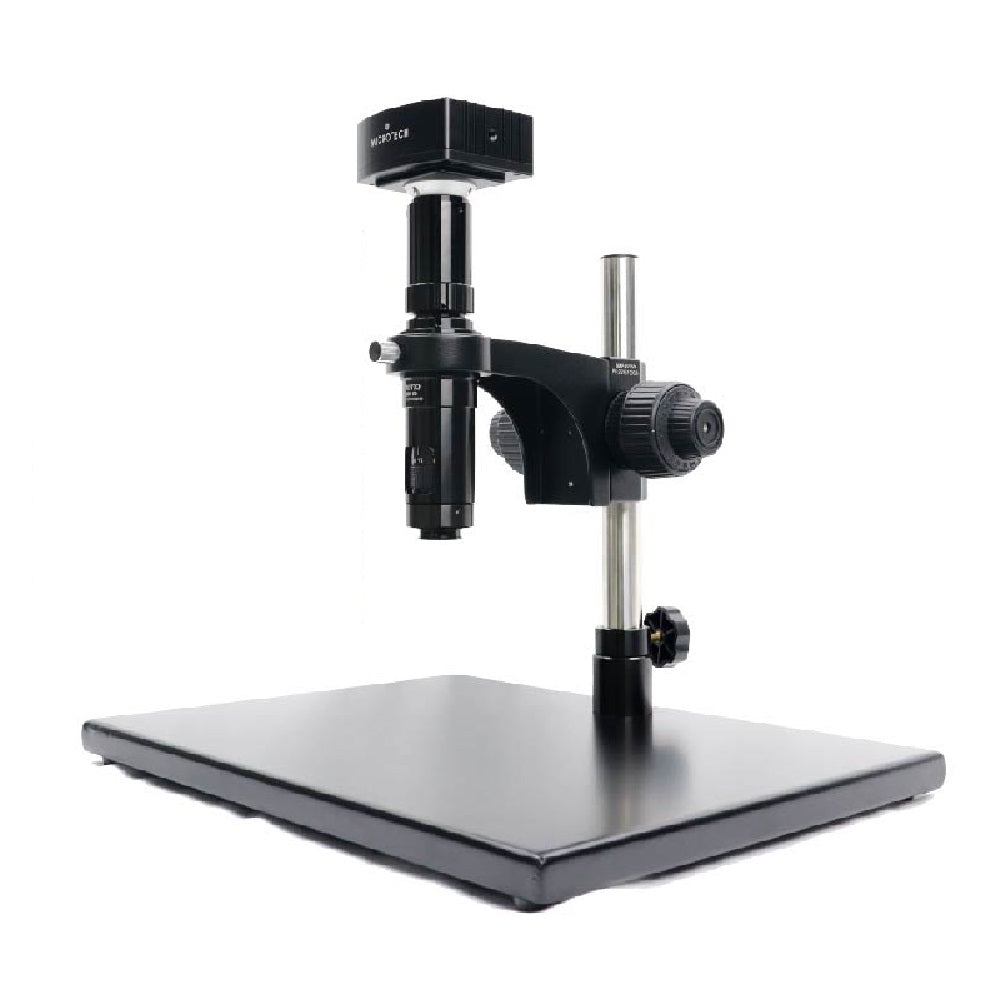

The D5 monocular microscope is a powerful modular microscope system that can be combined with modular accessories to create a microscopic imaging system tailored to your needs.

Suitable for various applications of precision microscopy imaging

It has a structurally precise and correctable optical zoom lens and is equipped with an ultra-fine image quality digital imaging module to create a powerful, comprehensive, and lightweight microscope system that not only allows high-magnification observation, but also has an ultra-long working space. Suitable for most microscopic observation needs.

Parallel optical system

The 2oom zoom body with a 0.75X~5X zoom ratio of 6.7 is assembled with precise optical axis and can be installed with an RMS (Note 1) infinity optical objective. Note 1: RMS specification is the international standard microscope objective thread, diameter specification WJ4/5”×1/36”

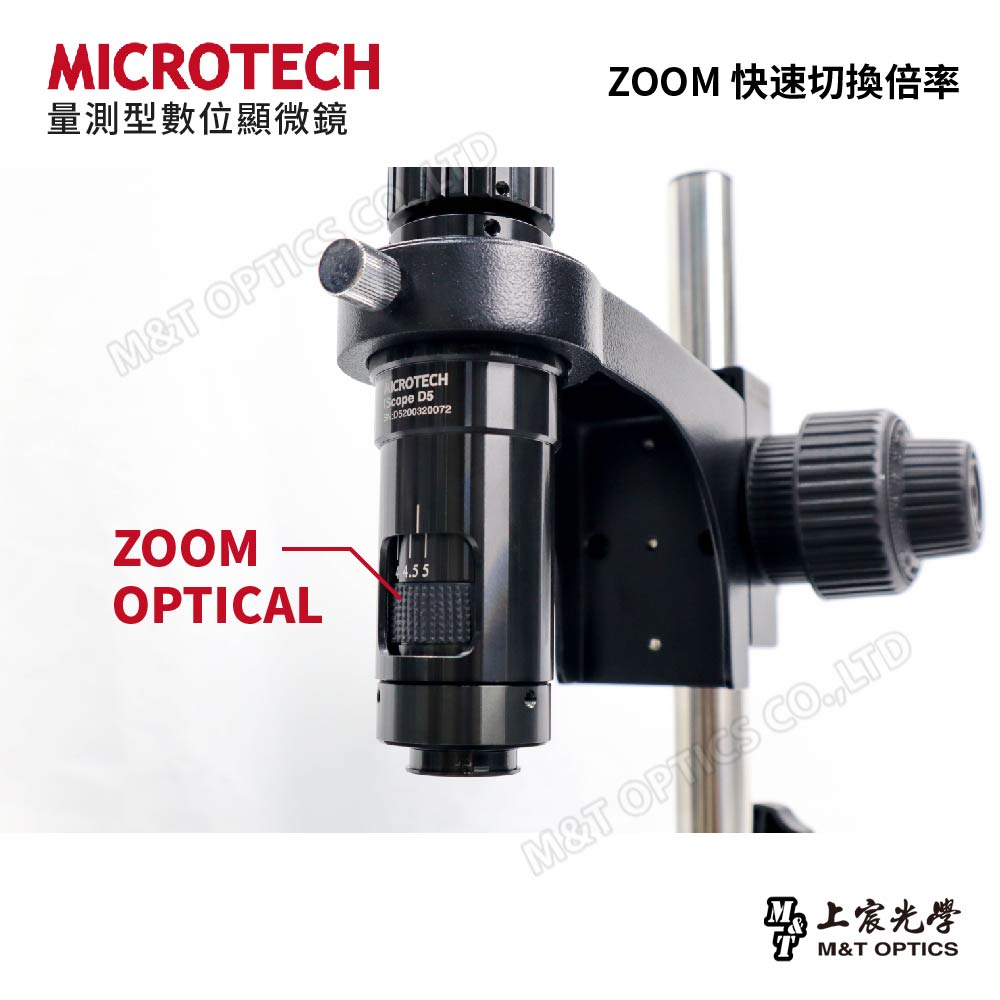

Zoom ring with fixed design

Accurately position and freeze the integer magnification of each gear, so that the magnification has a basic condition that can be calculated, which is an essential condition when using a measurement system (Note 2). Note 2: The measurement system software must perform optical correction based on the actual microscope objective lens magnification to determine the true size meaning of each pixel. Therefore, the zoom microscope must have fixed positioning to avoid rotation errors.

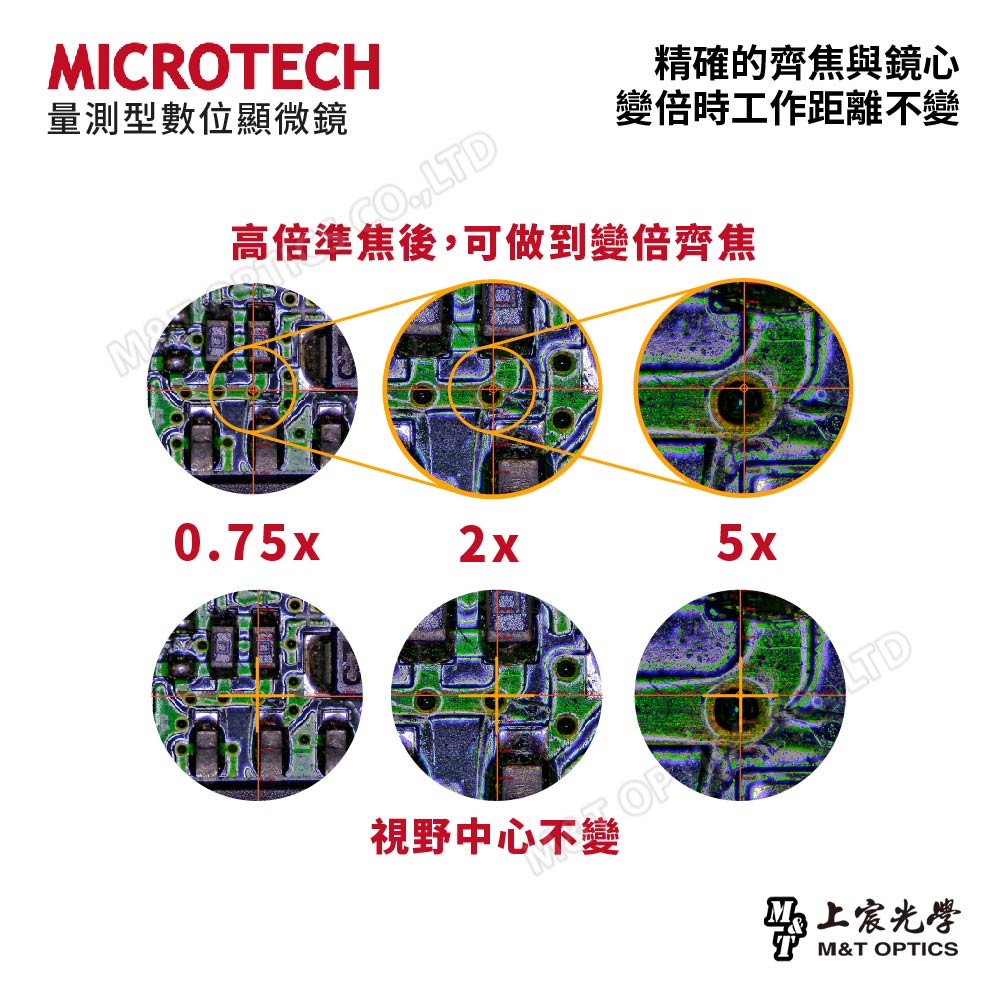

Precise parfocality and centering

The design of the C-MOUNT lens set that can correct and adjust the back focus is particularly important for the parfocal and center points of the microscope. No matter how the magnification ring is adjusted and rotated, maintaining the optical focus and center on the screen is sufficient for MICROTECH microscopy optics necessary conditions

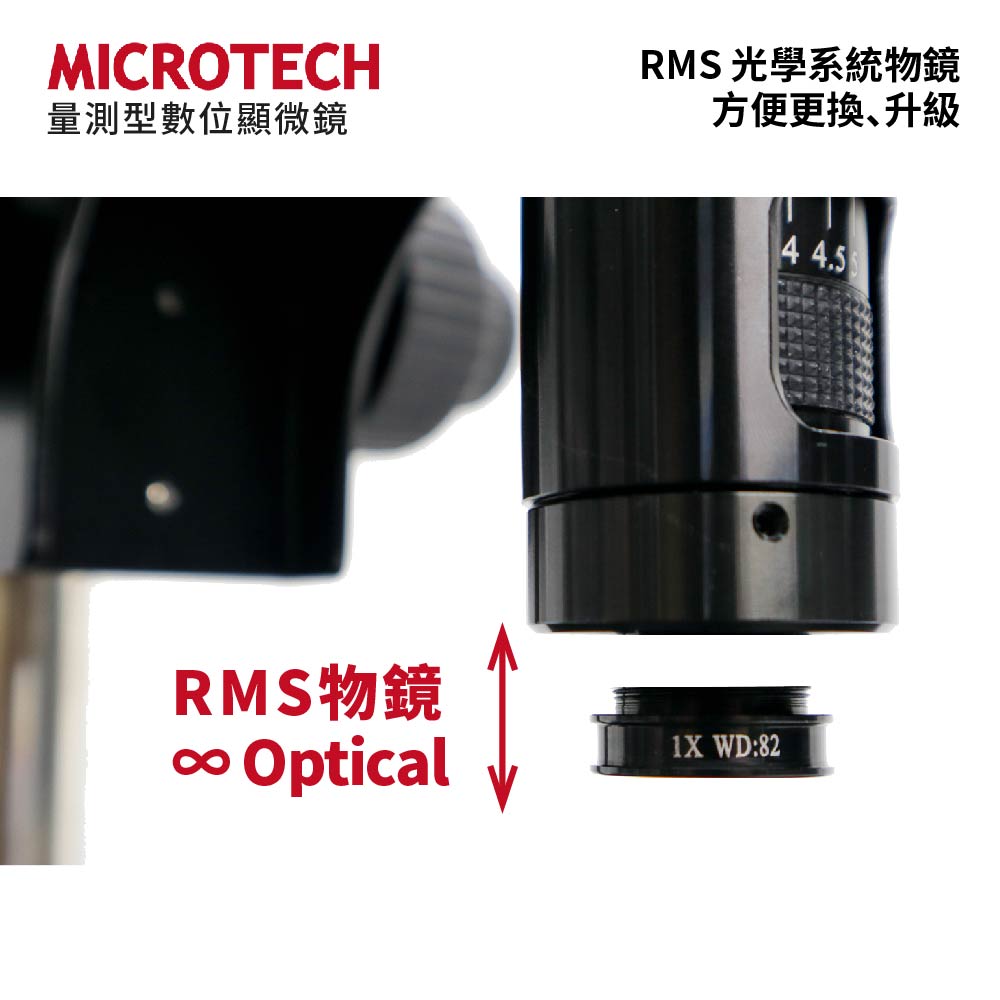

Easy to replace, compatible with RMS infinity parallel optical system

The objective lens is equipped with a 1X objective lens with ultra-long working distance as standard. After focusing, the distance between the microscope and the object being observed is 82mm, providing sufficient working space for the hand. Whether you want to increase the WD working distance, you can purchase and replace 0.7X or 0.5X. , 0.3X objective lens, or if you need to increase the magnification, you can choose 1.5X or 2X objective lens or purchase metallographic grade PL5X, PLL10X, PLL20X objective lens, which is very quick and convenient.

Precision focusing system and various base options

The D5 monocular microscope can be equipped with a variety of bases, focusing brackets and lighting sources according to the use situation, and has a variety of connection methods for expansion options. No matter your work environment, the D5 can meet your requirements.

Powerful optical expandability

In addition to the various C-Mounts and objective lenses that can change the magnification and working distance, what is more powerful for industrial applications is the expandable coaxial light source and polarization. The lens body is lightweight and highly precise, and is suitable for installation on various machines and equipment. There are a variety of focusing brackets and bases that can be matched.

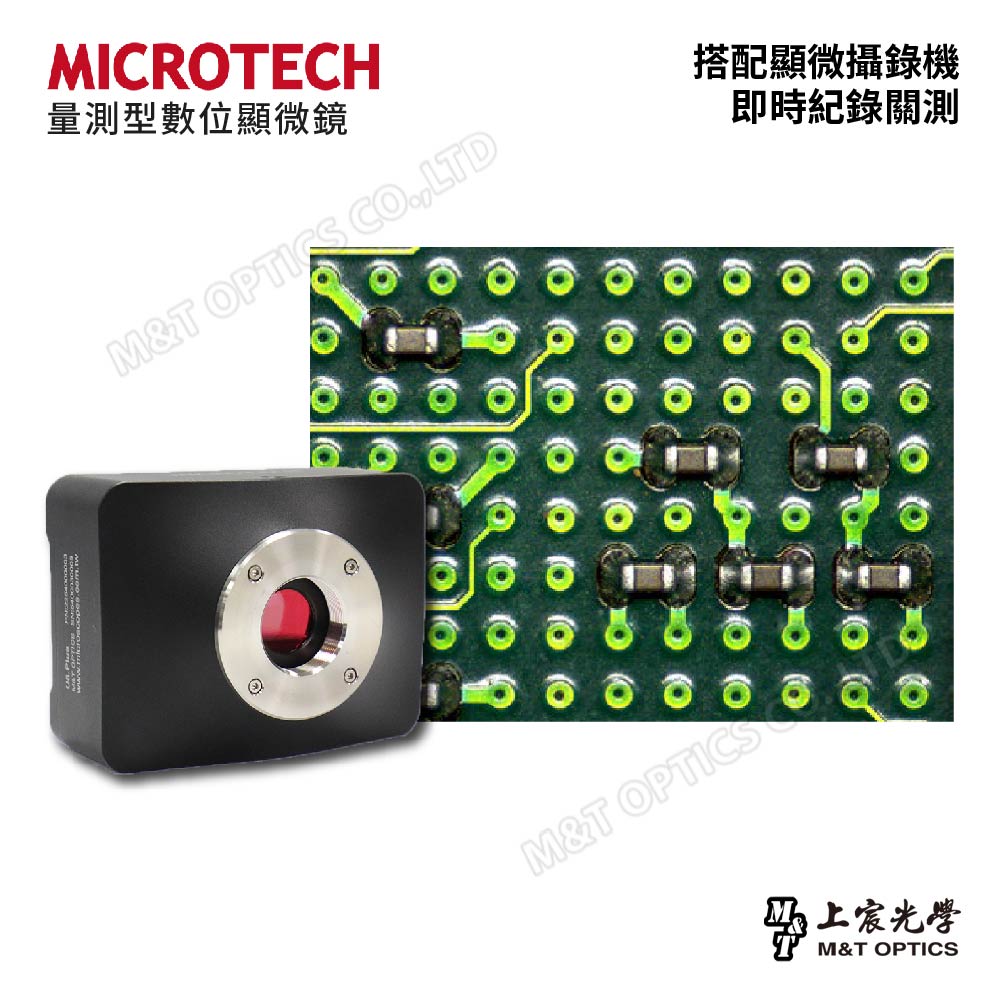

Advantages of digital microscopes

It can be freely matched with a microphotography system. It has a microcomputer platform and can use HDMI to directly output images. It can also use a USB mouse to directly control the microscope. It can also be connected to a computer to quickly export observation records for calculation and analysis.

Full-featured embedded operating interface

Only one mouse is needed to operate photography, video recording, exposure adjustment, various parameter settings, screen freezing, screen ratio, digital zoom in and out.

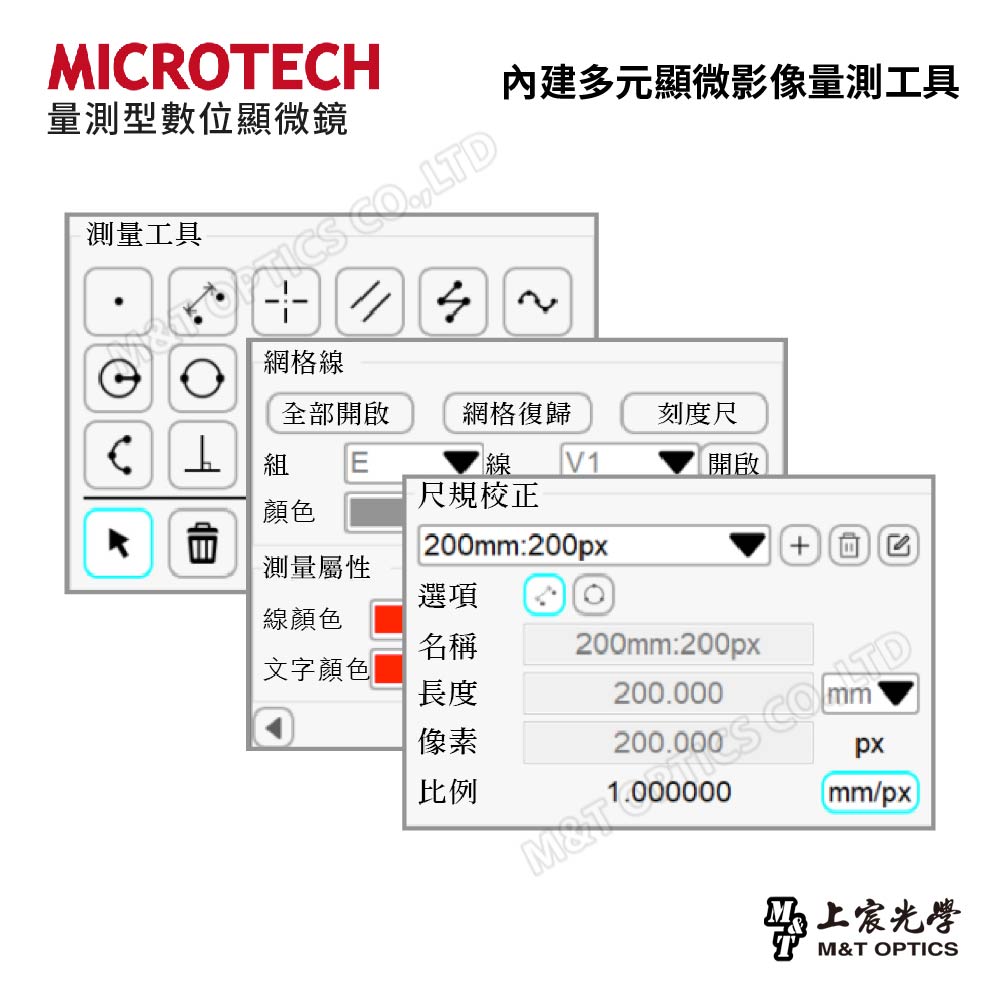

Built-in multi-dimensional microscopic image measurement tools

Complete measuring tools such as point, line, circle, arc, parallel line, vertical line angle measurement, ruler and compass correction allow users to measure and record conveniently and accurately.

Special light source for microscopy (additional purchase required)

Optical fiber light guide cold light source (need to purchase additional

Through the fiber optic light guide, the light from the high-power light source box is guided to the place where lighting is needed. It has the characteristics of light conduction but not heat conduction, and is suitable for biomedical research and extended lighting of industrial equipment.

Product specifications

Series stores	D5-0610+M2 HDMI measurement digital microscope
model	D50610M2 (Cat. No. 2245100366)
Optical system	Infinity parallel optical system
Zoom tube	Zoom ratio 6:7:1, ZOOM 0.75X～5X, full-time fixed-frame design
Objective lens type	RMS DW1.0X
photography adapter	C—Mount—0.67X
Lens magnification	Optical 0.5X～33.5X
Photosensitive element	1/2 inch (7.20mmx4.05mm) SONY IMX fluorescent grade CMOS
Pixel size	3.75x3.75 (μm)
Output quality	1920x1080P
Output interface	HDMI, UVC (USB)
File storage	USB
Power requirements	DC12V 1A
working distance	82mm (parfocal distance of objective lens)
System magnification	About 38X～255X (Out Put to 24-inch LCD Monitor)
Focusing system	Precision two-speed adjustment wheel, focusing stroke 51mm
Column height	SF: 278.5mm, SN: 243.5mm, SWD: 255.5mm
Stage size (SF large base)	400x300x20mm
Stage size (SN small base)	170x245x28mm aluminum alloy with black and white plate
Stage size (SWD micro-motion base)	70x245x28mm: 180x250mm, with WD dual-axis micro-motion stage (travel 100x88mm)
light source	Not built-in, can be purchased separately
0.75x field of view LxW	14x8mm
5x field of view LxW	2.14x1.2mm
