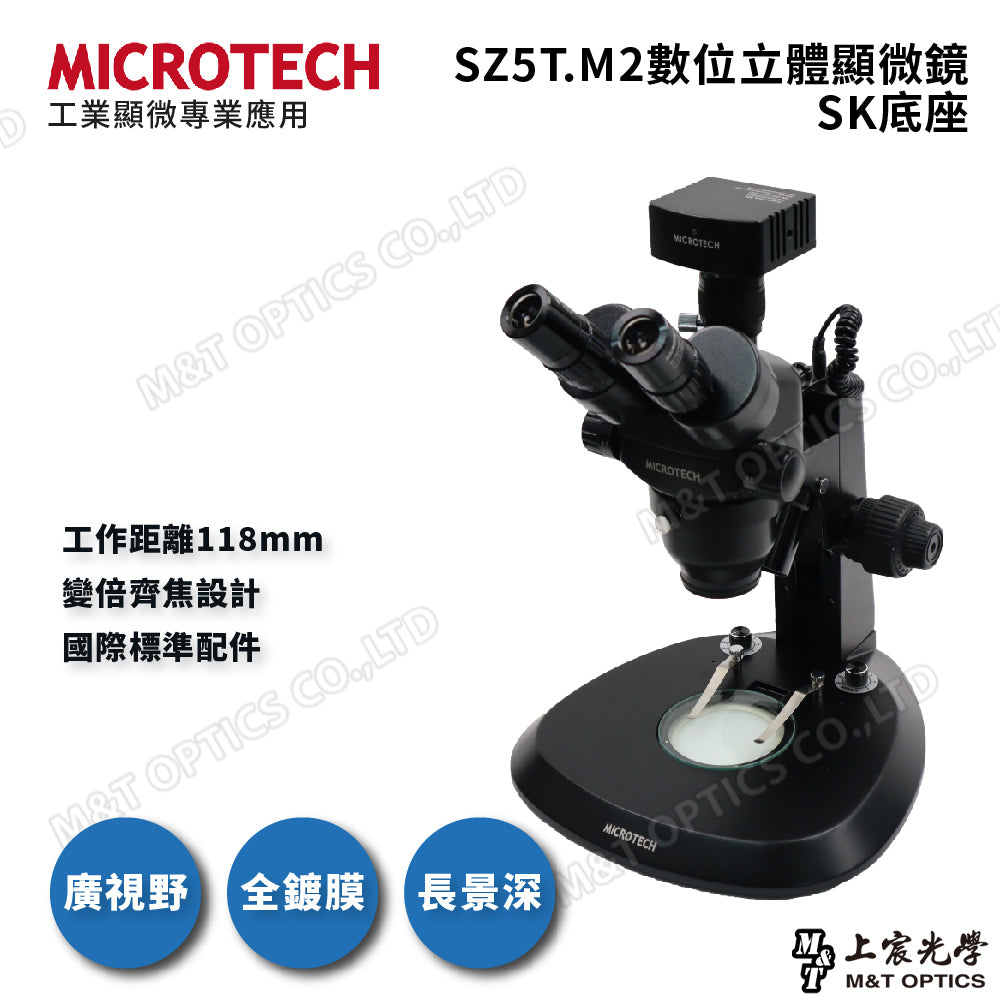

MICROTECH SZ5T.M2 digital stereo (anatomy) microscope - top and bottom light base combination

Order number

N/A

Product specifications

Optical system
Greenough
Comprehensive magnification
7X～45X
Zoom ratio
1:6.4
Observation head
Binocular
Visual tilt angle
45°
pupillary distance range
52mm～76mm
Parallax adjustment
Binocular tubes have independent adjustment ±6°

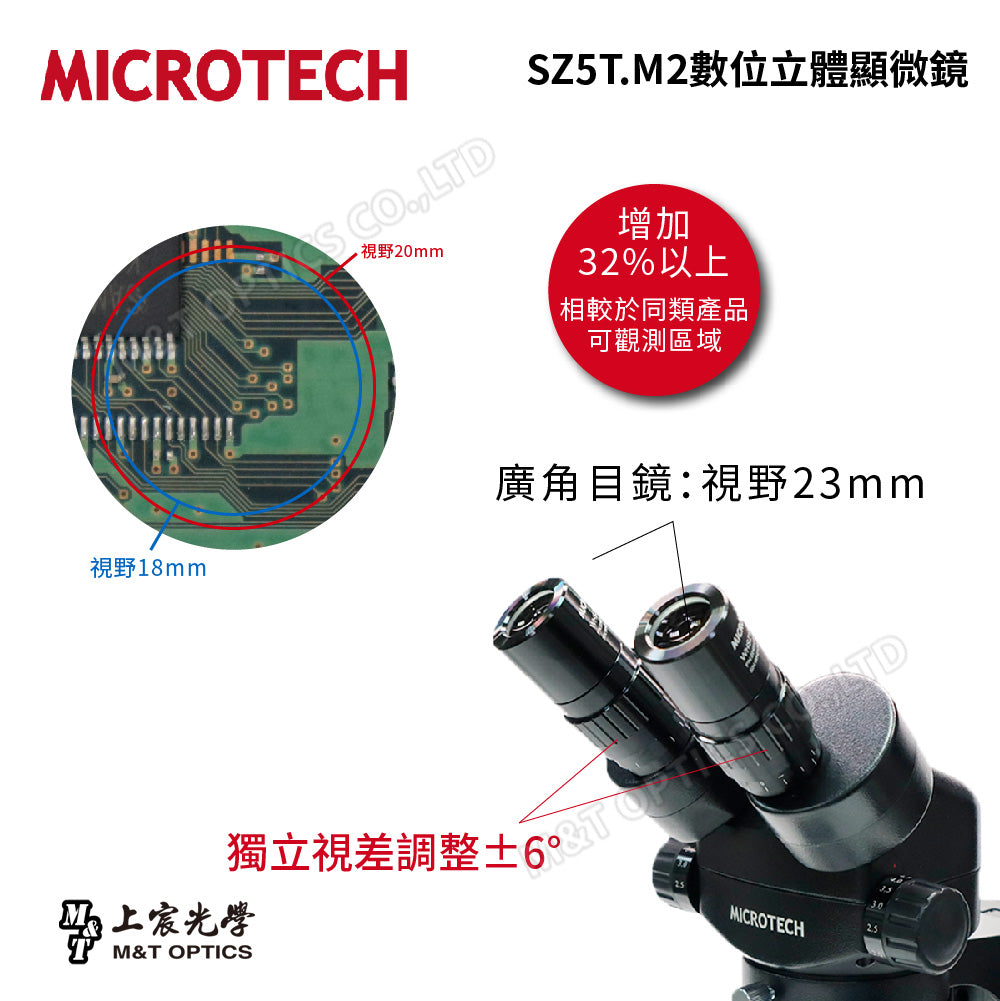

eyepiece
WHSZ10X/23 field of view Φ23mm
objective lens
0.7X～4.5X
Zoom mode
ZOOM zoom. Fixed design. Horizontal zoom wheel type
Protective glass
have
Auxiliary objective thread
M48X0.75
working distance
118mm
Focusing system
Single speed. Rack guide rail (SLT type), double speed. Steel ball guide rail (SK type)
Column type
SLT type cylindrical column diameter is 25mm, SK type square column column height is 283.5mm
Stage type
SLT,SK

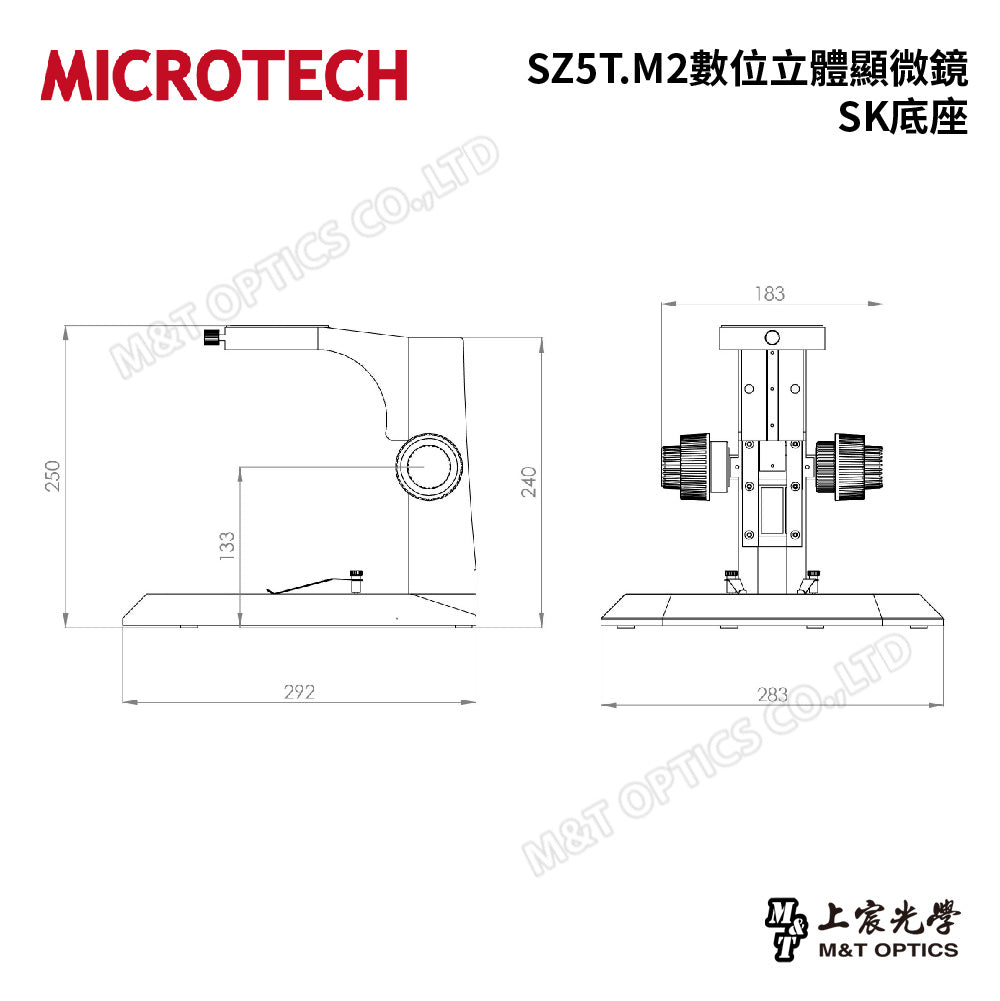

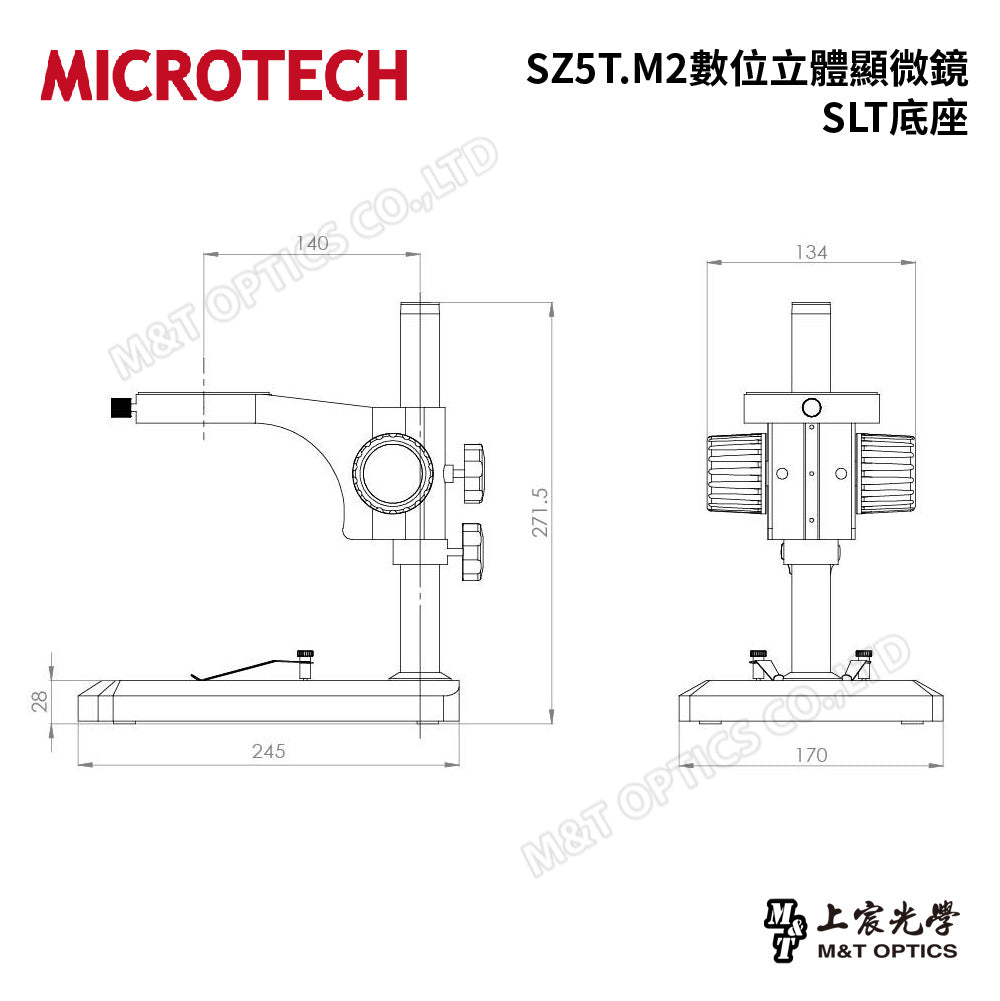

Stage size
SLT type (width 170mmX depth 245mm), SK type (width 283mmX depth 292mm)
Transmitted light source
Yes, can be dimmed independently
Reflective light source
Yes, side projection type, independently dimmable, adjustable angle
power supply
SLT (DC12V3A DC transformer input power supply AC100~240V), SK (AC100~240V input power supply)
