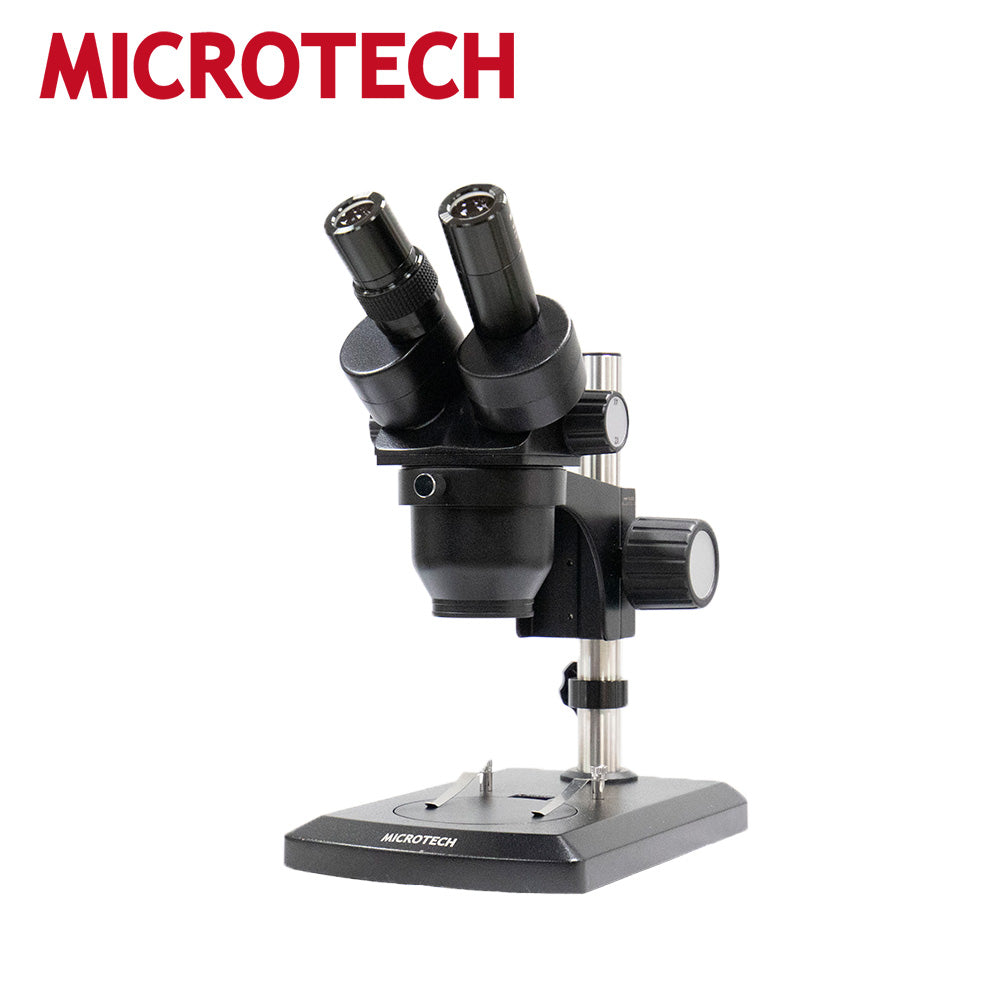

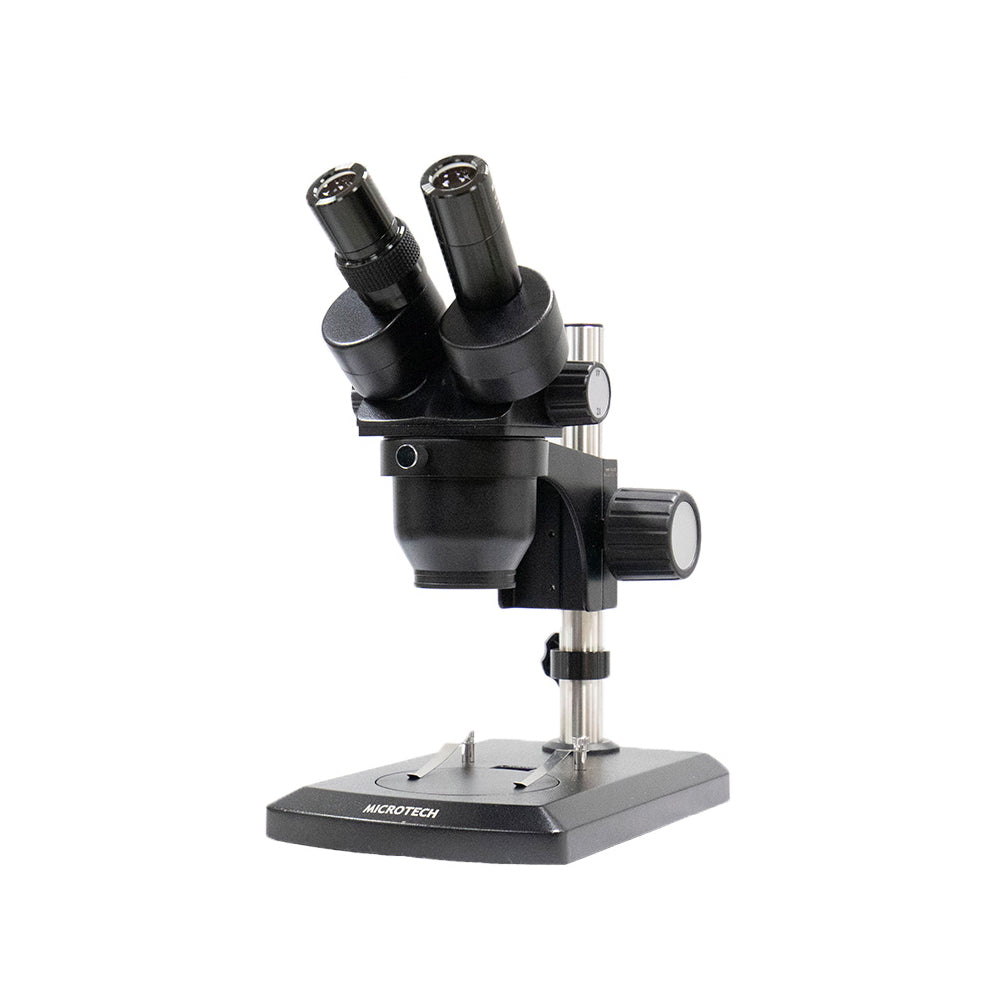

MICROTECH SZ2-SN binocular stereo microscope-original factory warranty for one year

Order number

N/A

The MICROTECH SZ series is a representative model of the latest generation of stereomicroscopes. It has excellent optical quality and rigorous assembly quality, internationally accepted specifications, extremely high component compatibility, and better cost performance. It is popular in industry and academia. First-line applications.

  • Greenough binocular stereo microscope with 45° viewing angle, independent diopter adjustment ±6°
  • Environmentally friendly process, black matte coating, the whole machine complies with the EU Rohs lead-free process
  • Fixed magnification 2X, 4X variable magnification objective lens, working distance parfocal point = 118mm
  • Detailed metal texture and calm matte black lead-free coating, laser seal engraving mirror
  • Comes with multi-coated anti-reflective protective mirror
  • Modular components with high specification compatibility, suitable for modification and matching with production line equipment

-About the base-

The modular focusing system can be used with various brackets and bases.
Single-speed adjustment bracket, fast and stable lifting.
Optional upgraded to a more sophisticated two-speed micro-focusing bracket.
The lightweight and stable aluminum alloy ST standard base can be expanded with a variety of light sources.

- Expansion accessories can be purchased-

  1. Auxiliary objective lens for increased magnification (2X, 1.5X)
  2. Auxiliary objective lens to increase working distance (0.7X/WD=145mm, 0.5X/WD=195mm, 0.37X/WD=275mm)
  3. Polarized ring light that eliminates reflections
  4. Fiber optic (snake neck) light source, various lengths available
  5. Shadowless ring light fixtures available in four colors

Product specifications

Fixed magnification objective lens 2X, 4X
Working distance mm 118
Visual tilt angle 45°
Adjustable range of exit pupil distance 52mm～76mm
diopter adjustment Binocular tube diopter adjustable
Zoom adjustment Double-handed turbine top zoom
eyepiece WHSZ10X/23, field of view Φ23mm
Frame base SN
Frame size The inner diameter of the frame is Φ76mm
Round column type The column diameter is 25mm, the column height is 235mm, the rack drive steel ball guide rail, the focusing handwheel is adjustable, and the focusing stroke is 51mm.
Stage D245mm*W170mm, cast aluminum
