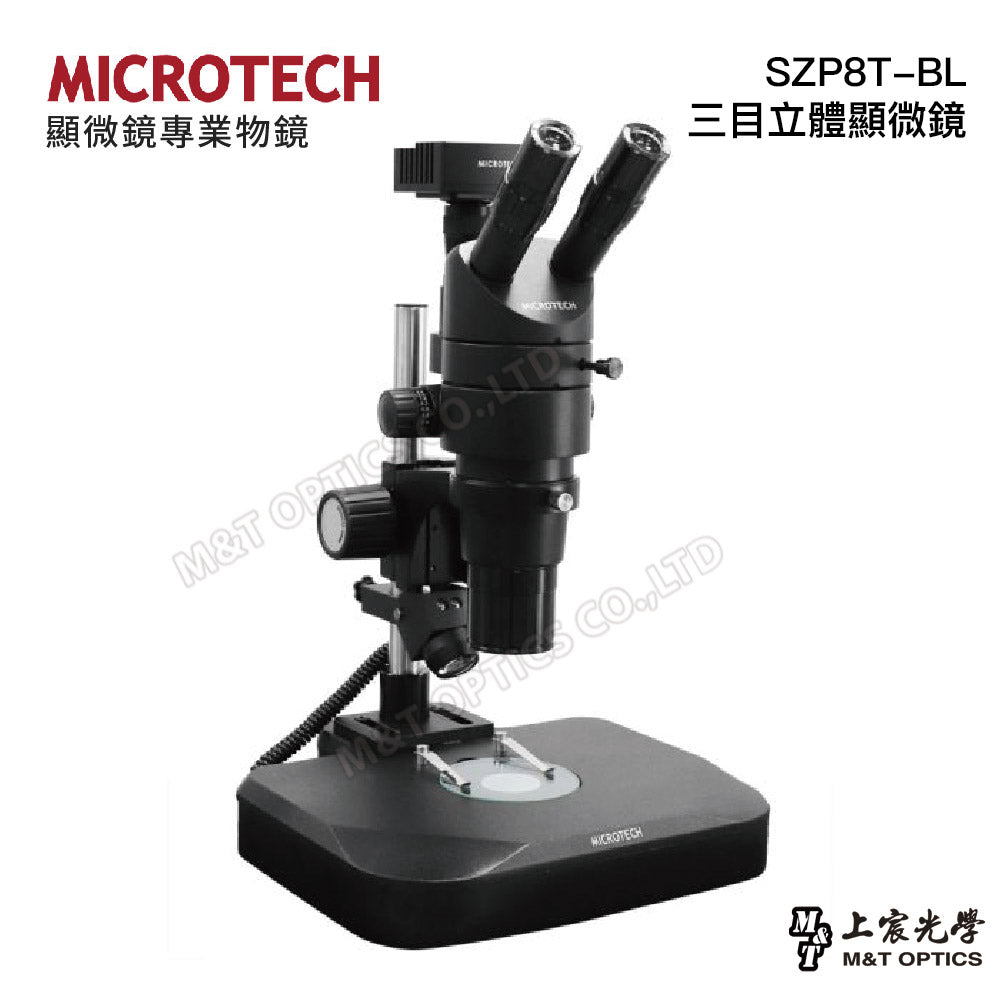

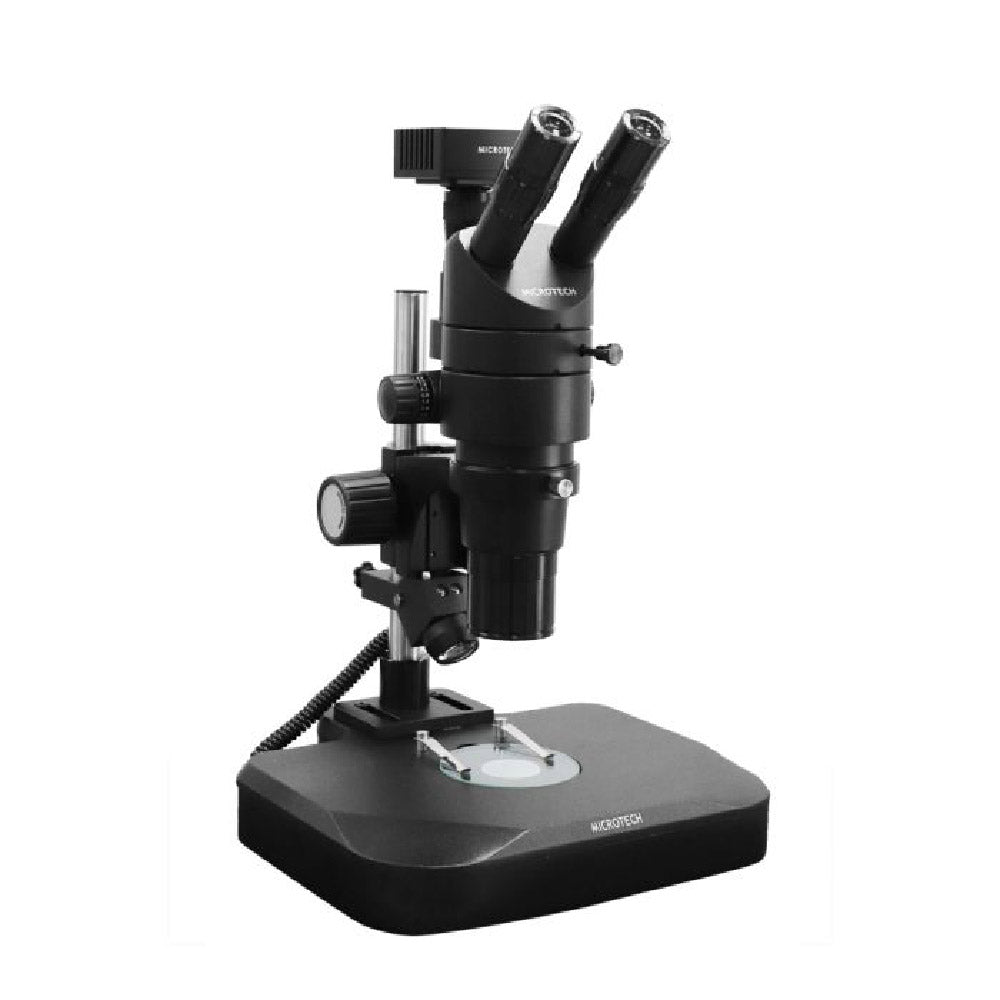

Name: MICROTECH SZP8T-BL-iCamPlus trinocular digital stereo microscope
Brand: MICROTECH
SKU: 2245100287
Availability: InStock

1 3

MICROTECH SZP8T-BL-iCamPlus trinocular digital stereo microscope

Order number

2245100287

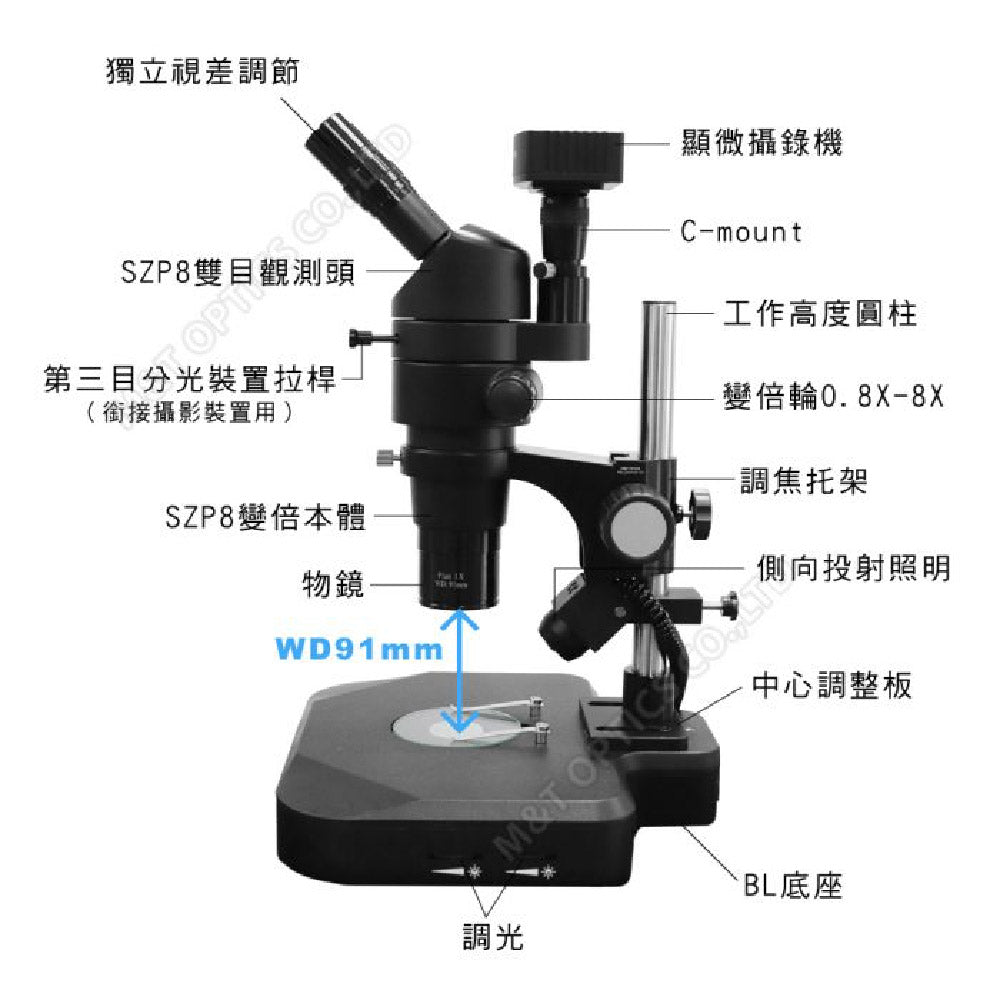

Greenough-type fixed-magnification objective lens 0.8x~8.0x, including quick-release anti-reflective coating protective lens.
The binocular tube can independently adjust the parallax to ±6°, 45-degree viewing angle, and the original LOGO eyepiece has a 10X field of view of 22.
The third-eye photography interface can be installed with a CCD camcorder or a single-lens camera (the adapter can be purchased as an add-on).
Environmentally friendly manufacturing process, black matte coating, the entire machine complies with the EU Rohs lead-free manufacturing process.

Product specifications

Zoom objective	0.8 times 8.0 times
working distance	91mm
Zoom adjustment	The magnification can be expanded to 4 to 360 times by adding shopping glasses and eyepieces.
Frame base	ST
Frame size	The inner diameter of the frame is Φ76mm
Round column type	Column diameter 25mm, column height 278mm, rack-driven steel ball guide rail, focusing handwheel with adjustable tightness, focusing stroke 51mm
Stage	280x380mm cast aluminum
