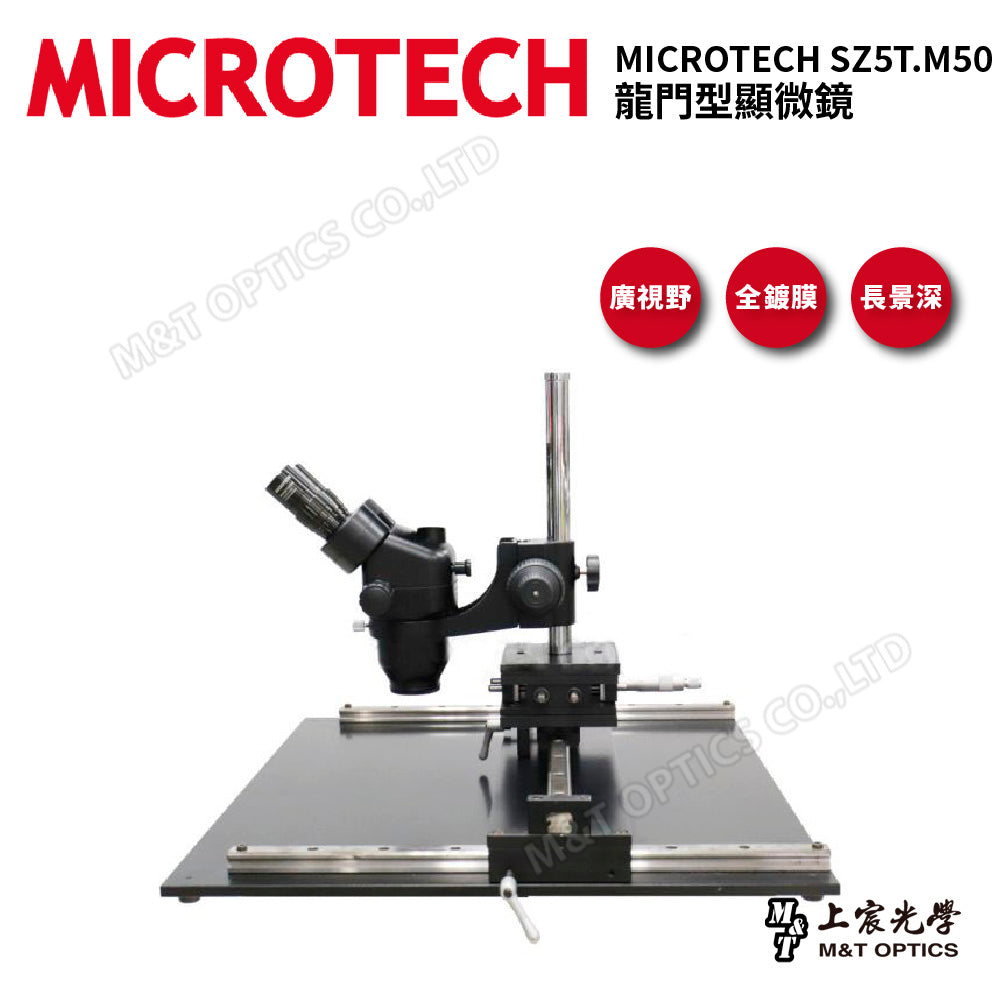

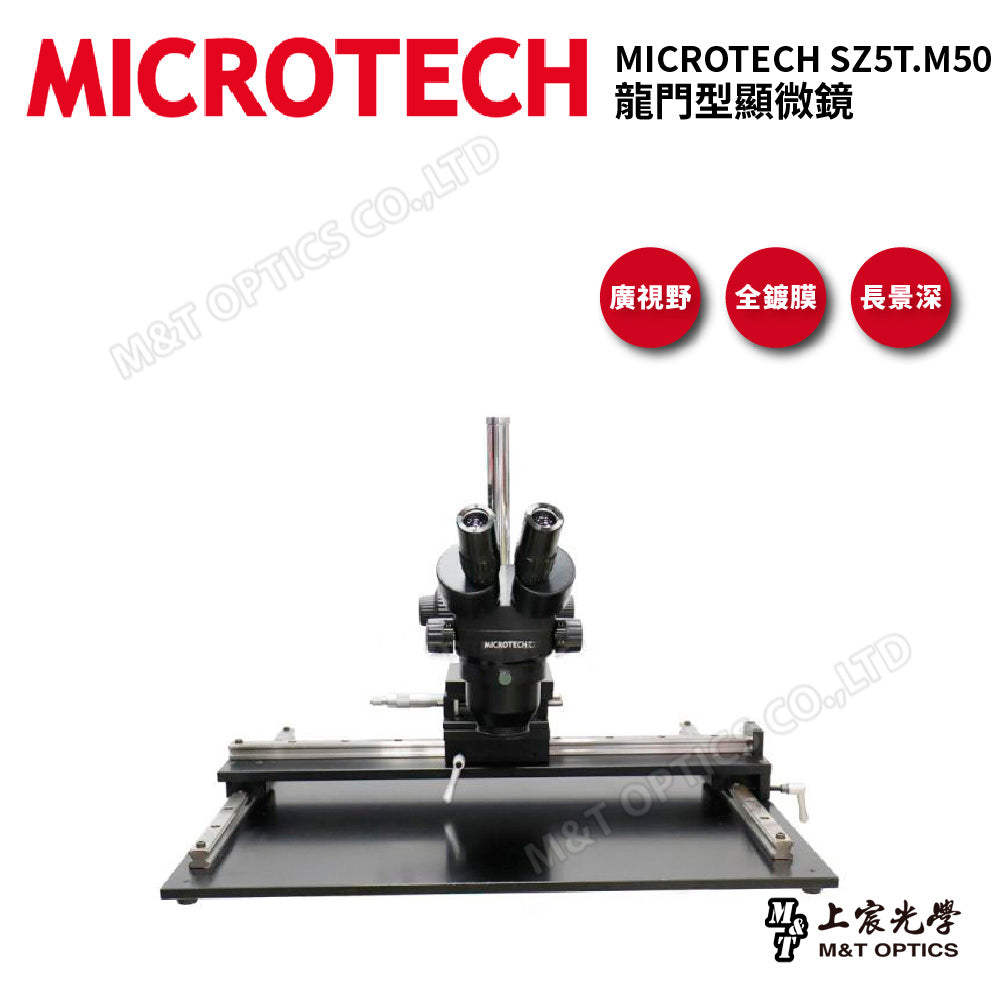

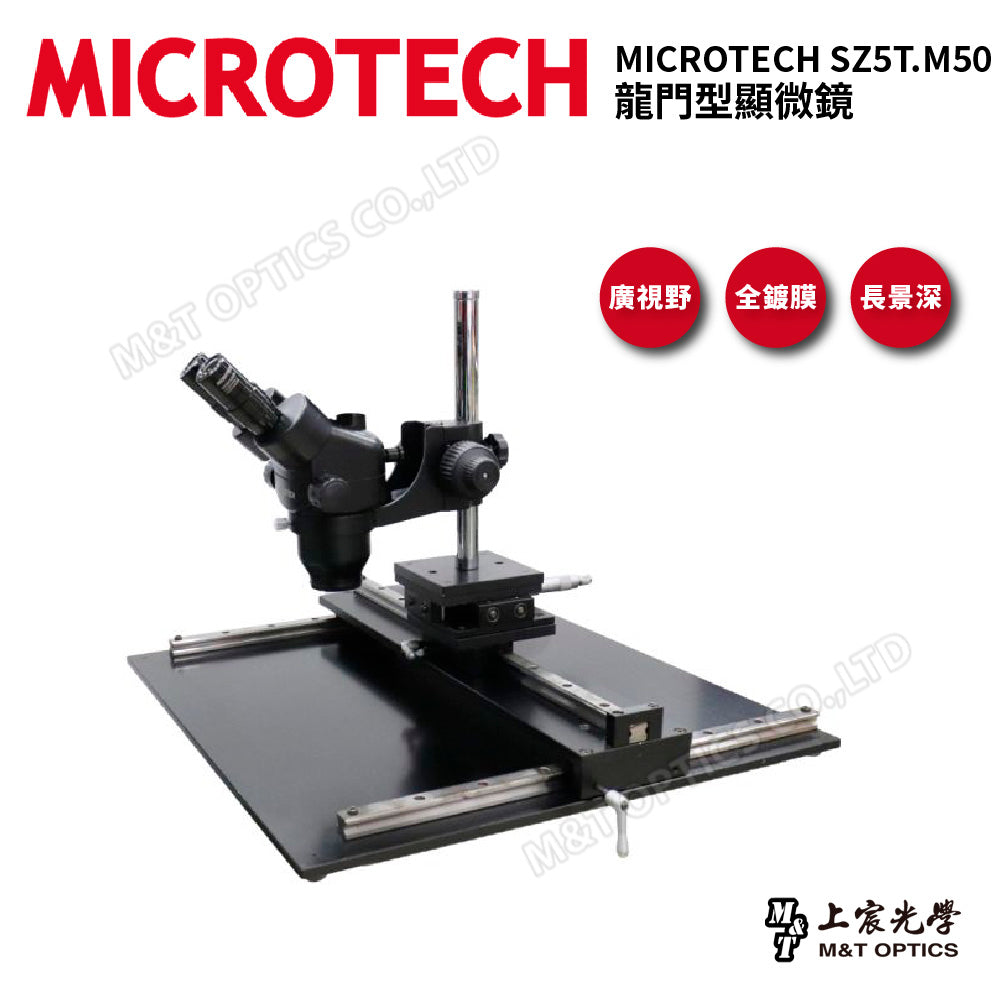

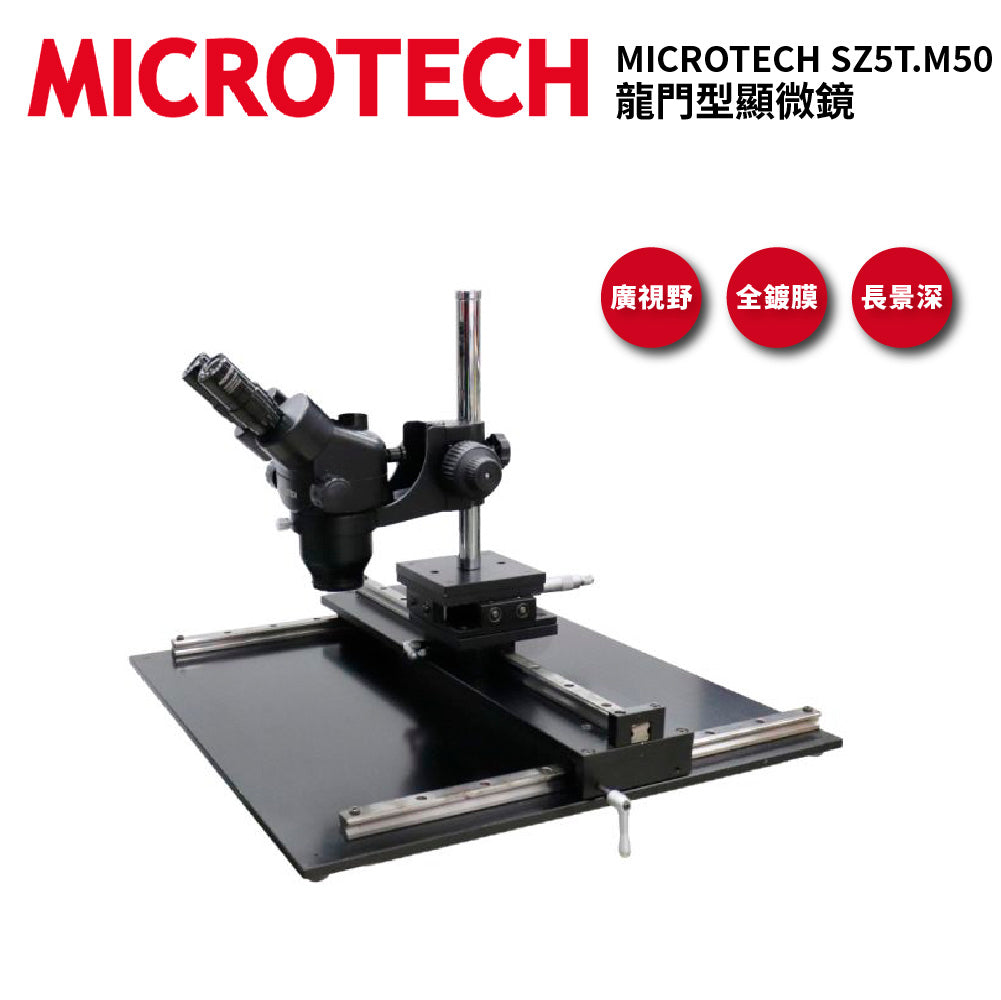

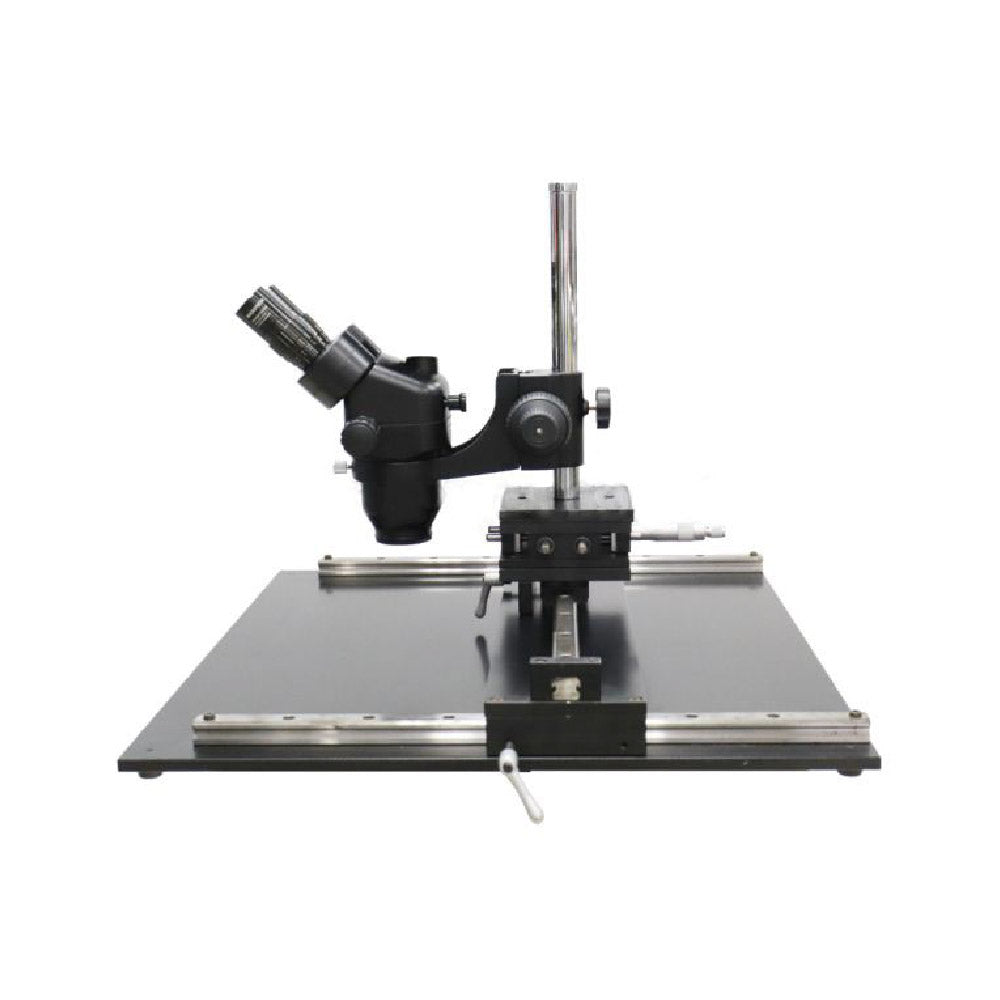

MICROTECH SZ5T.M50 gantry type microscope

Order number

2245100282

Product specifications

Zoom objective 0.7~4.5X
Visual tilt angle
45°
pupillary distance range
52mm～76mm
diopter adjustment
Adjustable binocular tube
become regulated Horizontal zoom with both hands
eyepiece
WHSZ10X/23 field of view Φ23mm
working distance
118mm
Round column type
Column diameter 25mm, column height 27cm, focusing stroke 51mm
journey X-axis travel 59cm, Y-axis travel 50cm
Base size
60cmx55cm
light source
Not built-in, must be purchased separately
View full details
