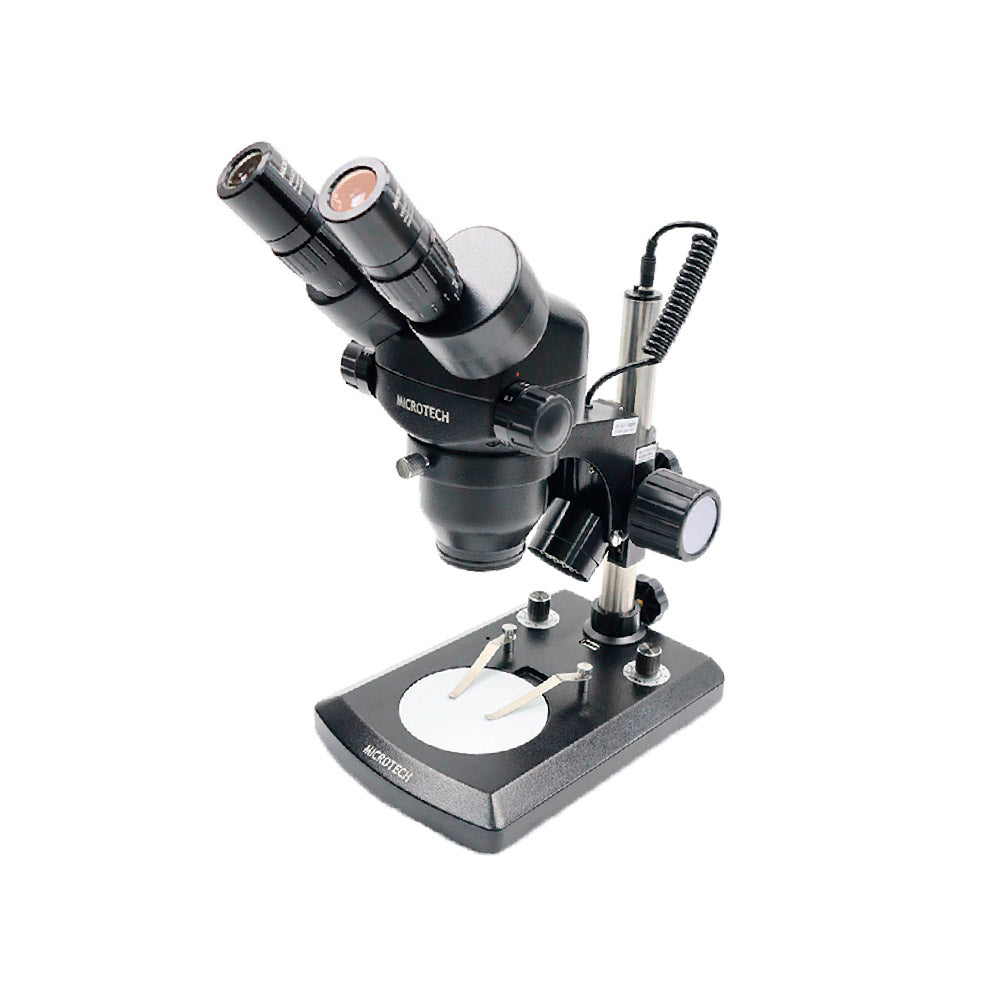

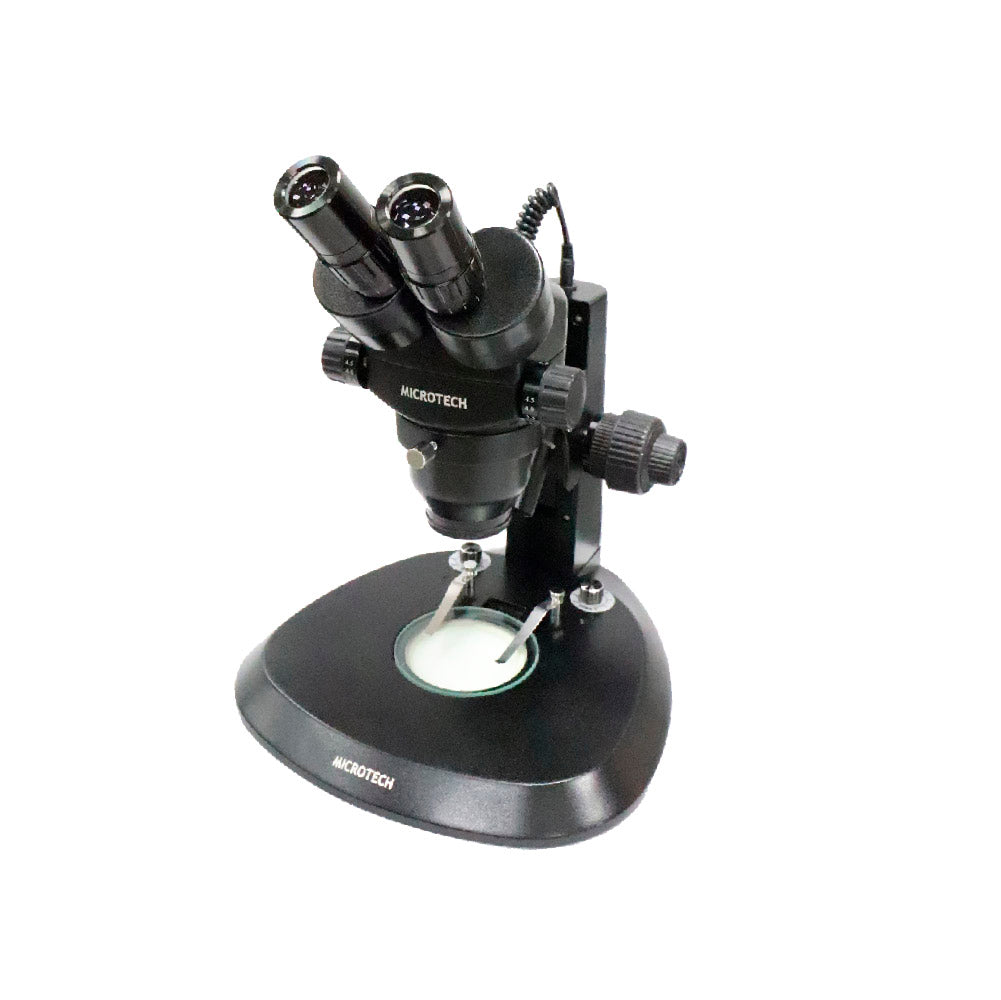

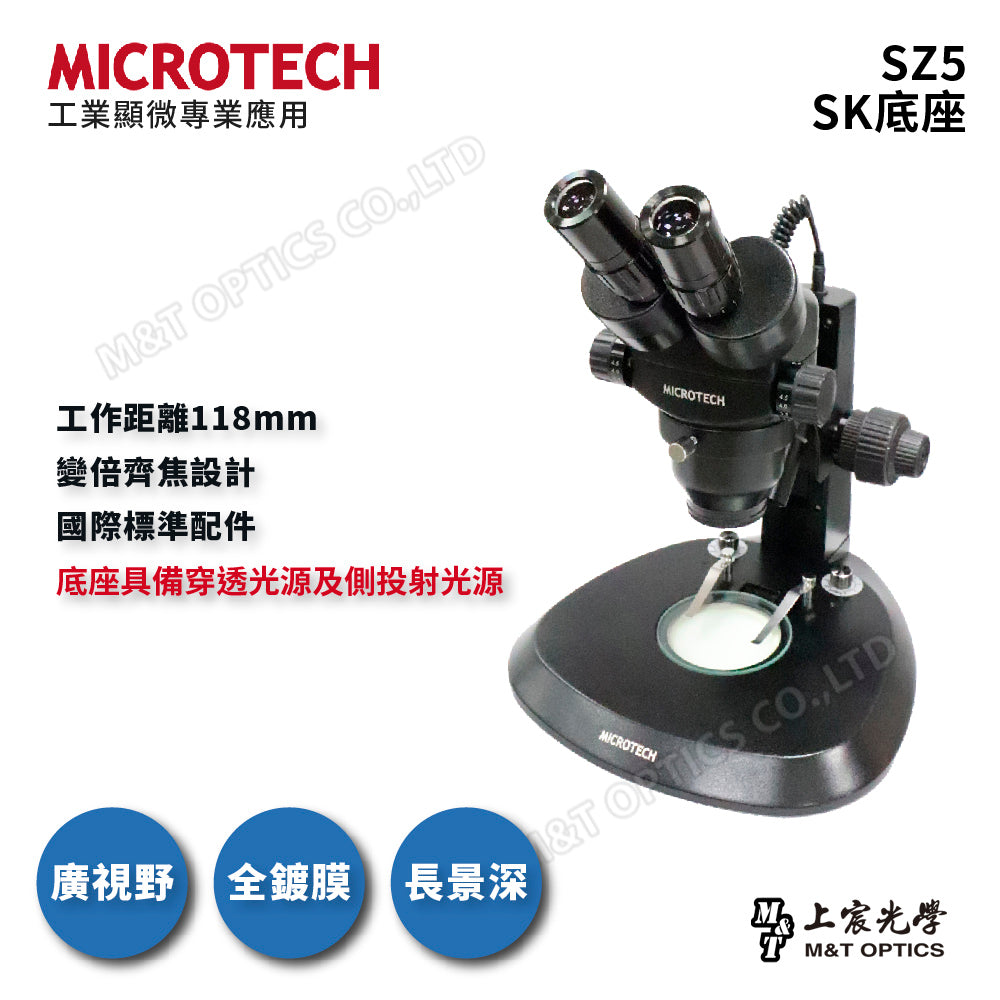

MICROTECH SZ5 binocular stereo (anatomy) microscope-up and down light base combination-original one-year warranty
Order number
N/A
Couldn't load pickup availability
Product specifications
| Optical system | Greenough |
| Comprehensive magnification | 7X～45X |
| Zoom ratio | 1:6.4 |

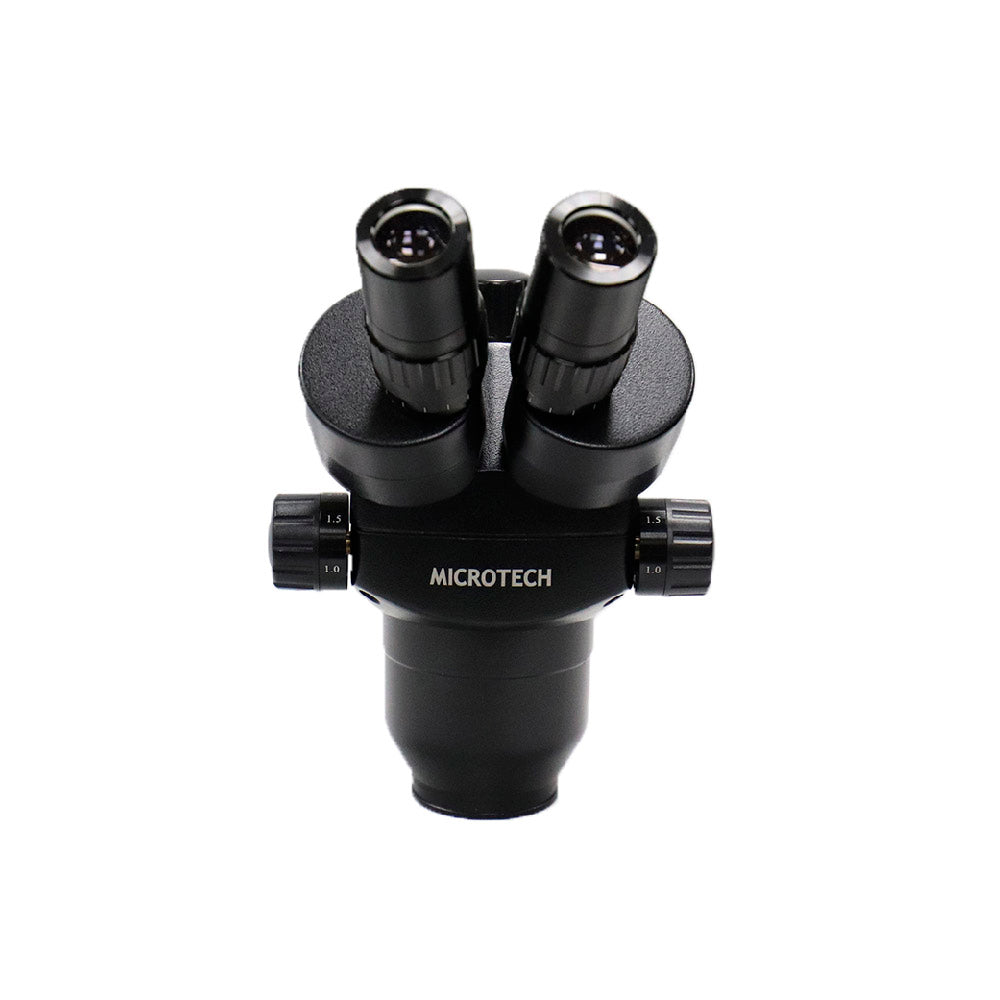

| Observation head | Binocular |
| Visual tilt angle | 45° |
| pupillary distance range | 52mm～76mm |

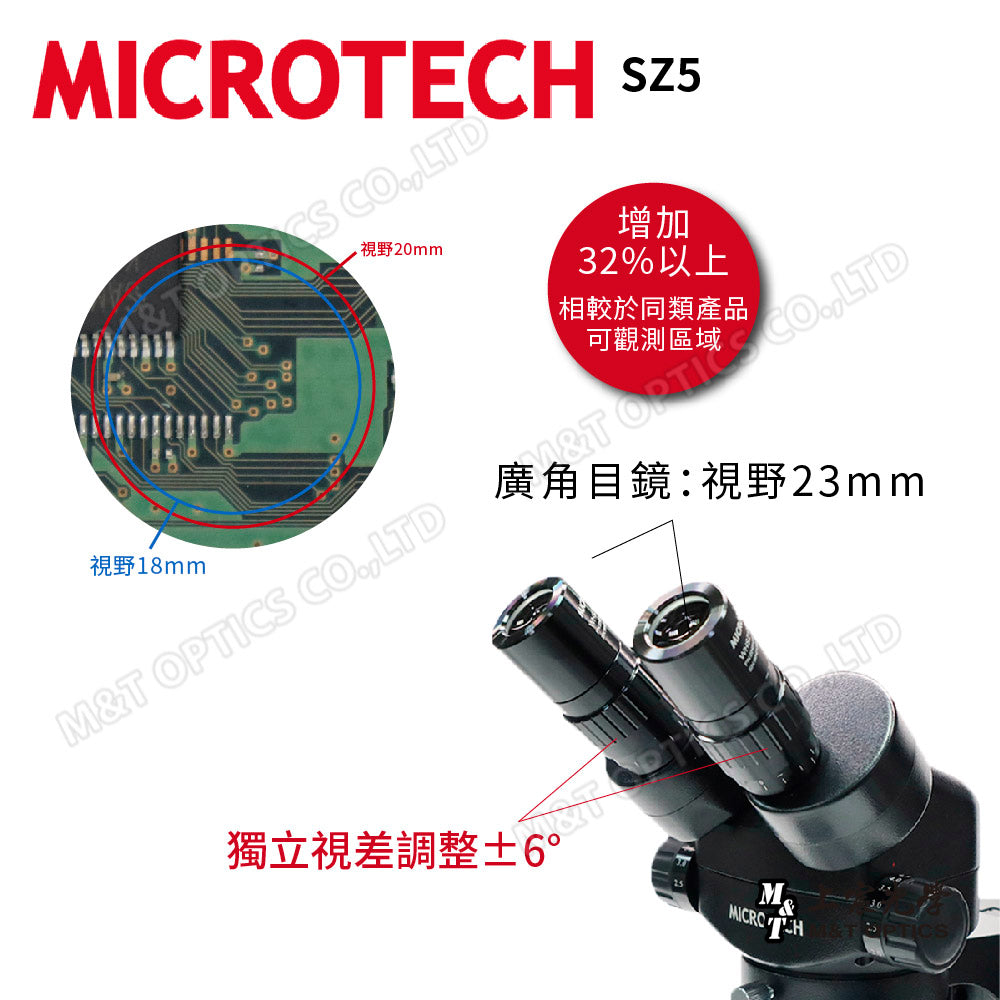

| Parallax adjustment | Binocular tubes have independent adjustment ±6° |
| eyepiece | WHSZ10X/23 field of view Φ23mm |
| objective lens | 0.7X～4.5X |
| Zoom mode | ZOOM zoom. Fixed design. Horizontal zoom wheel type |
| Protective glass | have |
| Auxiliary objective thread | M48X0.75 |

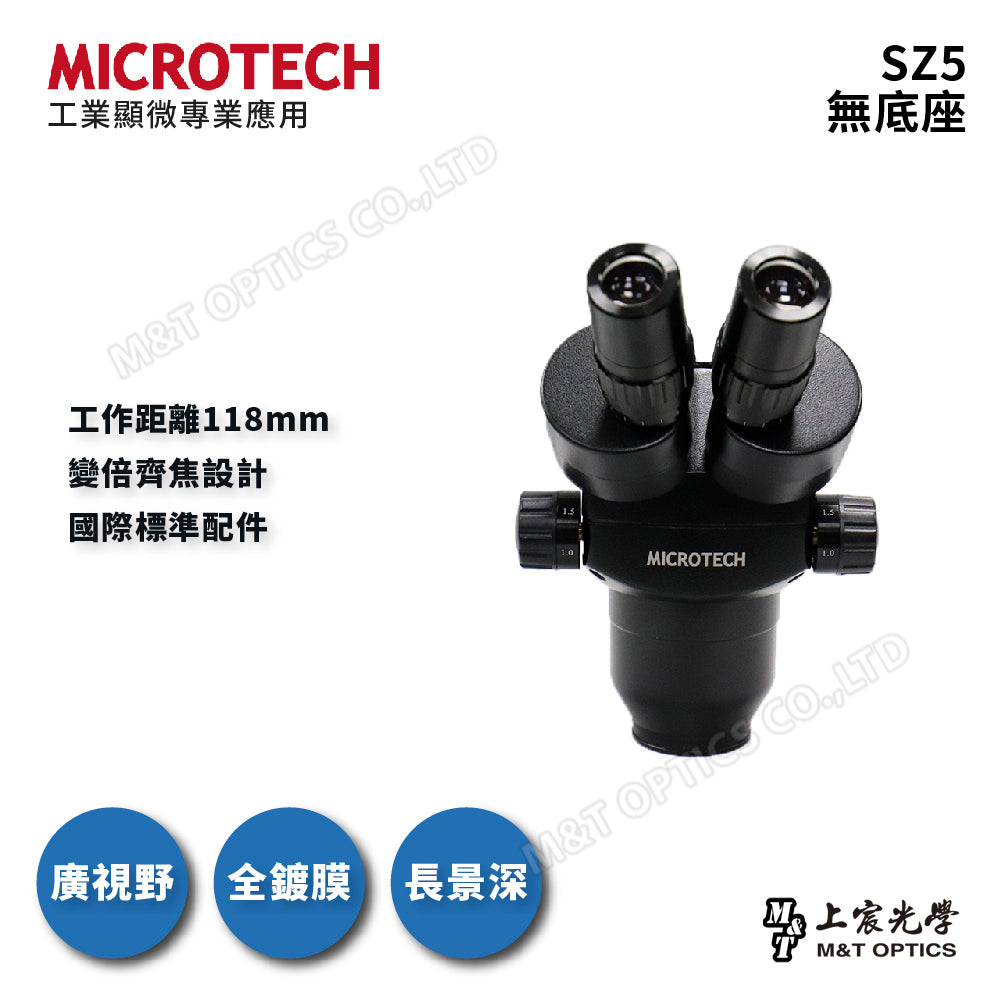

| working distance | 118mm |
| Focusing system | Single speed. Rack guide rail (SLT type), double speed. Steel ball guide rail (SK type) |
| Column type | SLT type cylindrical column diameter is 25mm, SK type square column column height is 283.5mm |
| Stage type | SLT,SK |

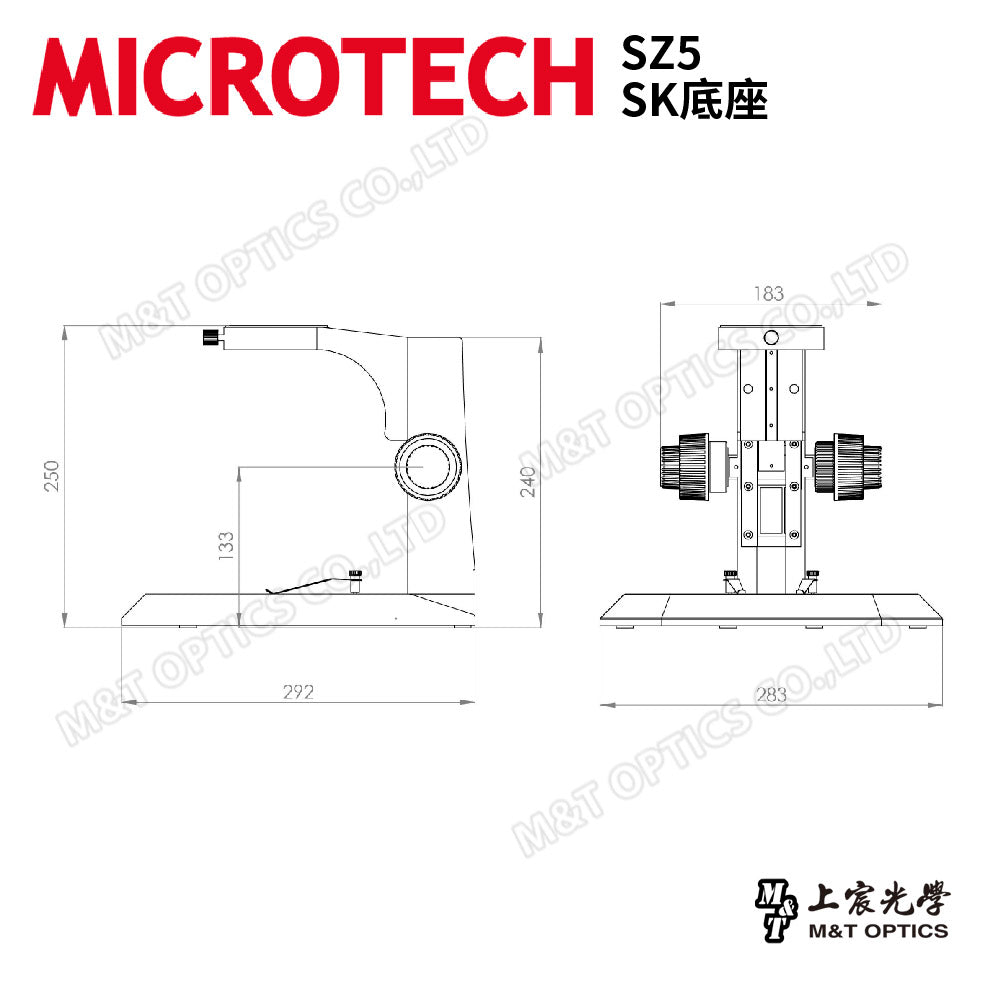

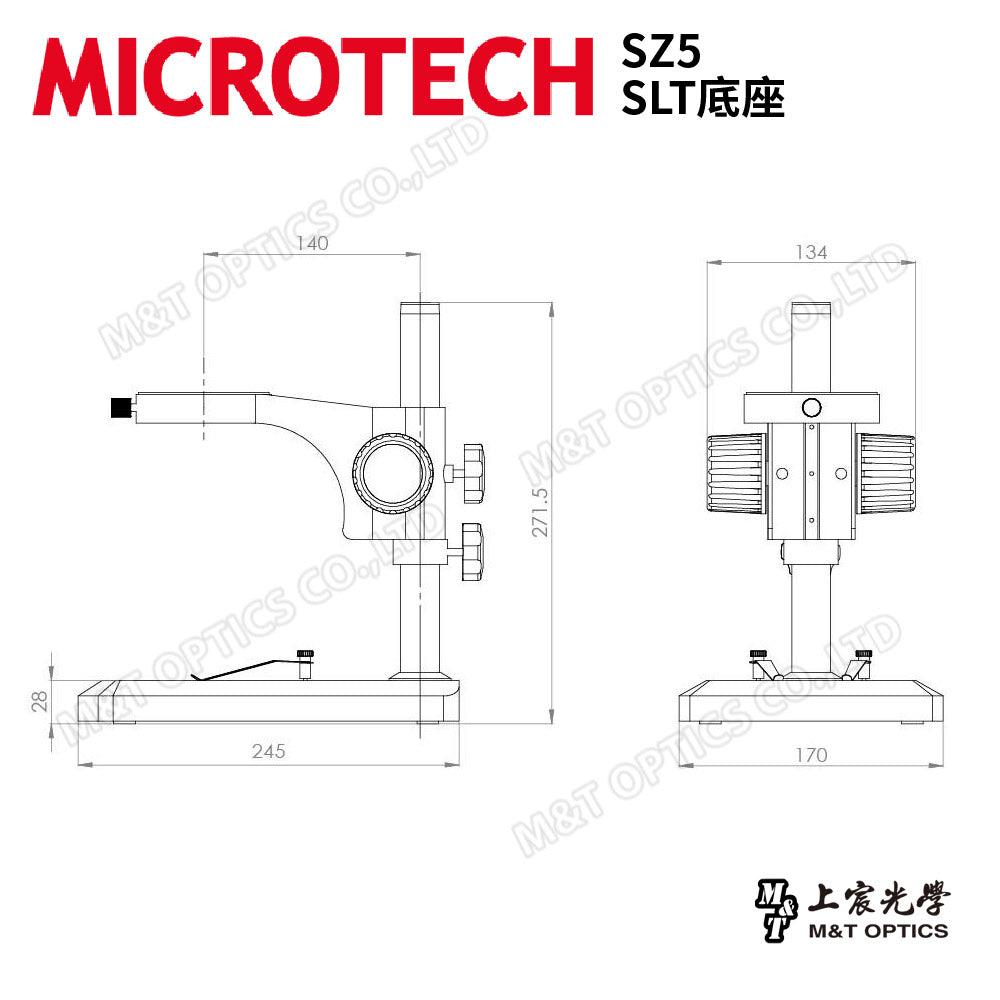

| Stage size | SLT type (width 170mmX depth 245mm), SK type (width 283mmX depth 292mm) |

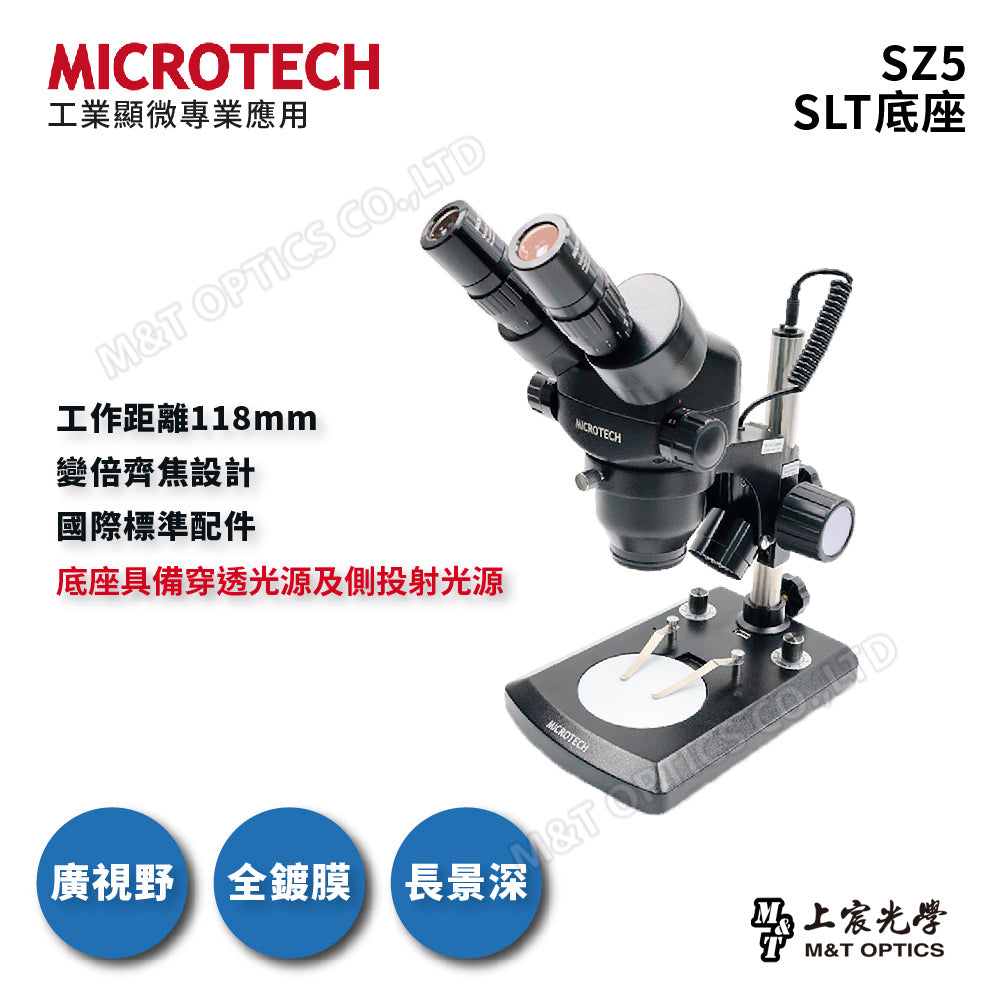

| Transmitted light source | Yes, can be dimmed independently |
| Reflective light source | Yes, side projection type, independently dimmable, adjustable angle |
| power supply | SLT (DC12V3A DC transformer input power supply AC100~240V), SK (AC100~240V input power supply) |
