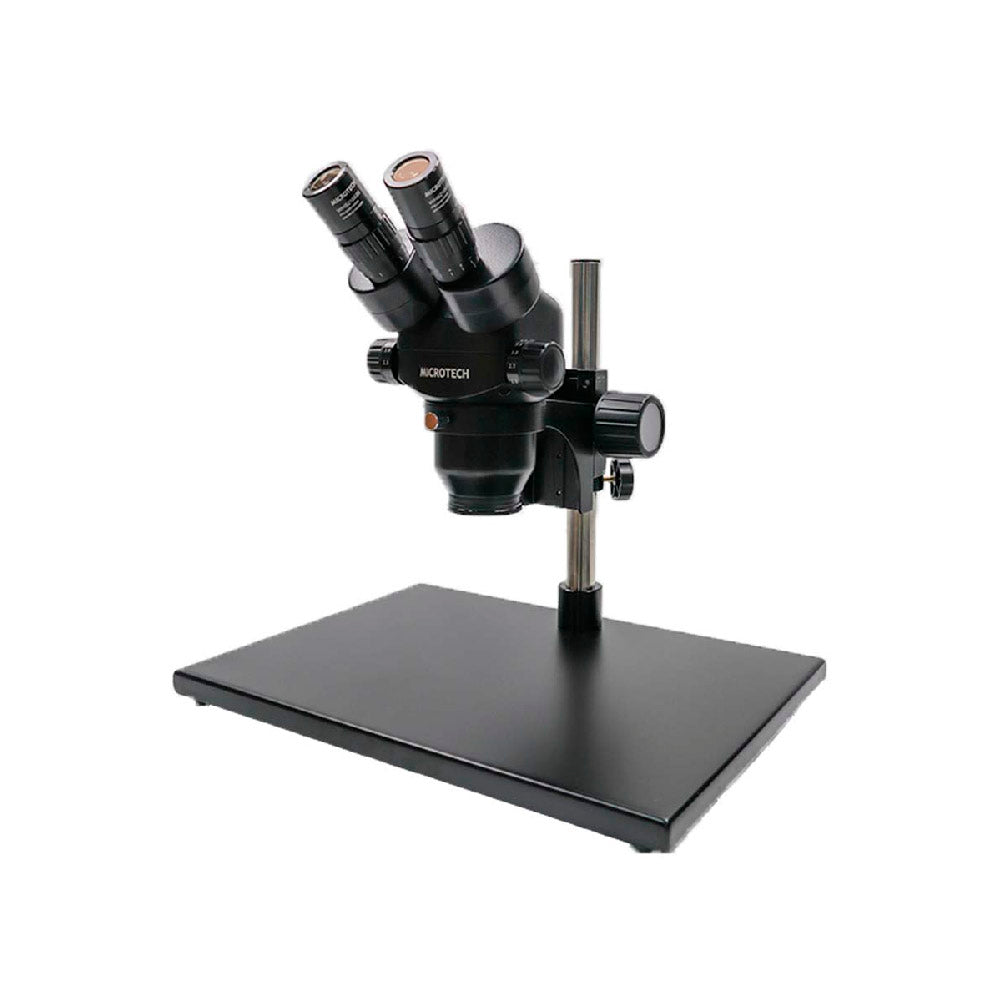

MICROTECH SZ5 Binocular Stereo Microscope-Matte Base Series

Order number

N/A

Product specifications

Optical system
Greenough
Comprehensive magnification
7X～45X
Zoom ratio
1:6.4
Observation head
binocular
Visual tilt angle
45°
pupillary distance range
52mm～76mm

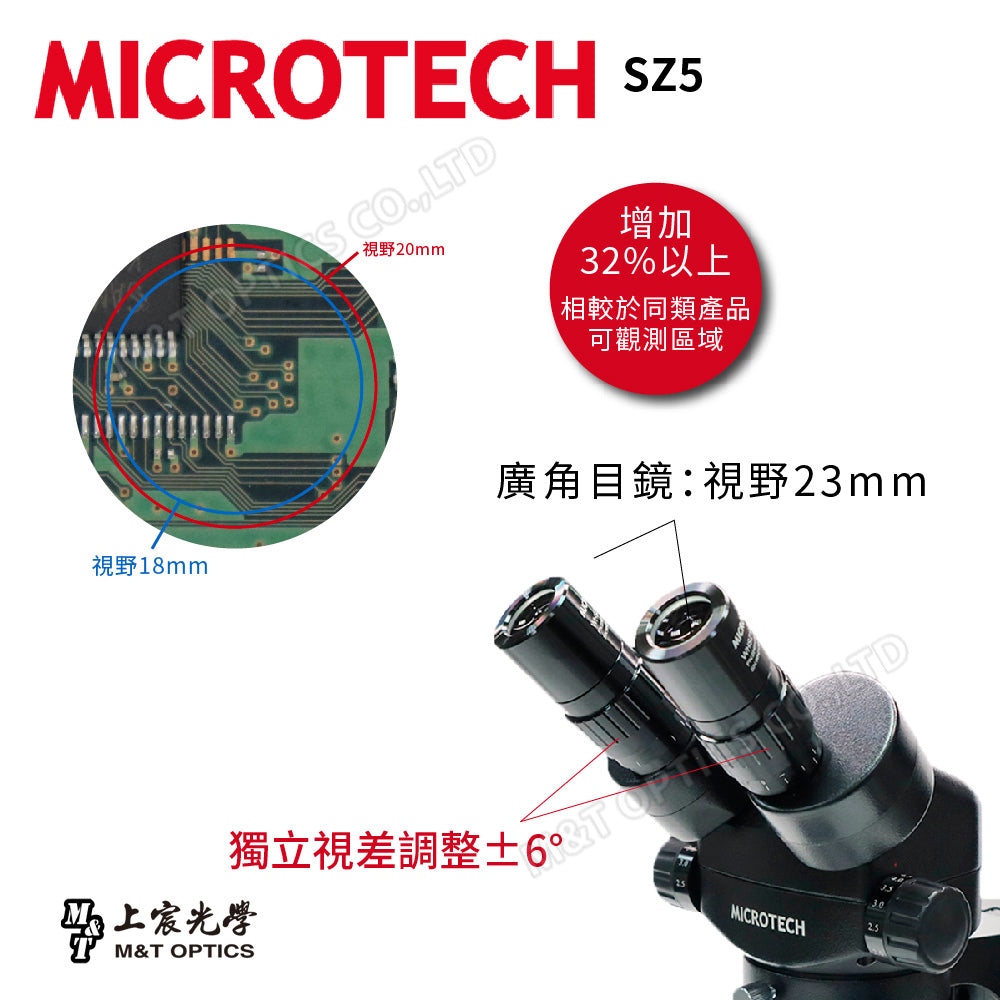

Parallax adjustment
Binocular tubes have independent adjustment ±6°
eyepiece
WHSZ10X/23 field of view Φ23mm
objective lens
0.7X～4.5X
Zoom mode
ZOOM zoom. Fixed design. Horizontal zoom wheel type
Protective glass
have
Auxiliary objective thread
M48X0.75
working distance
118mm

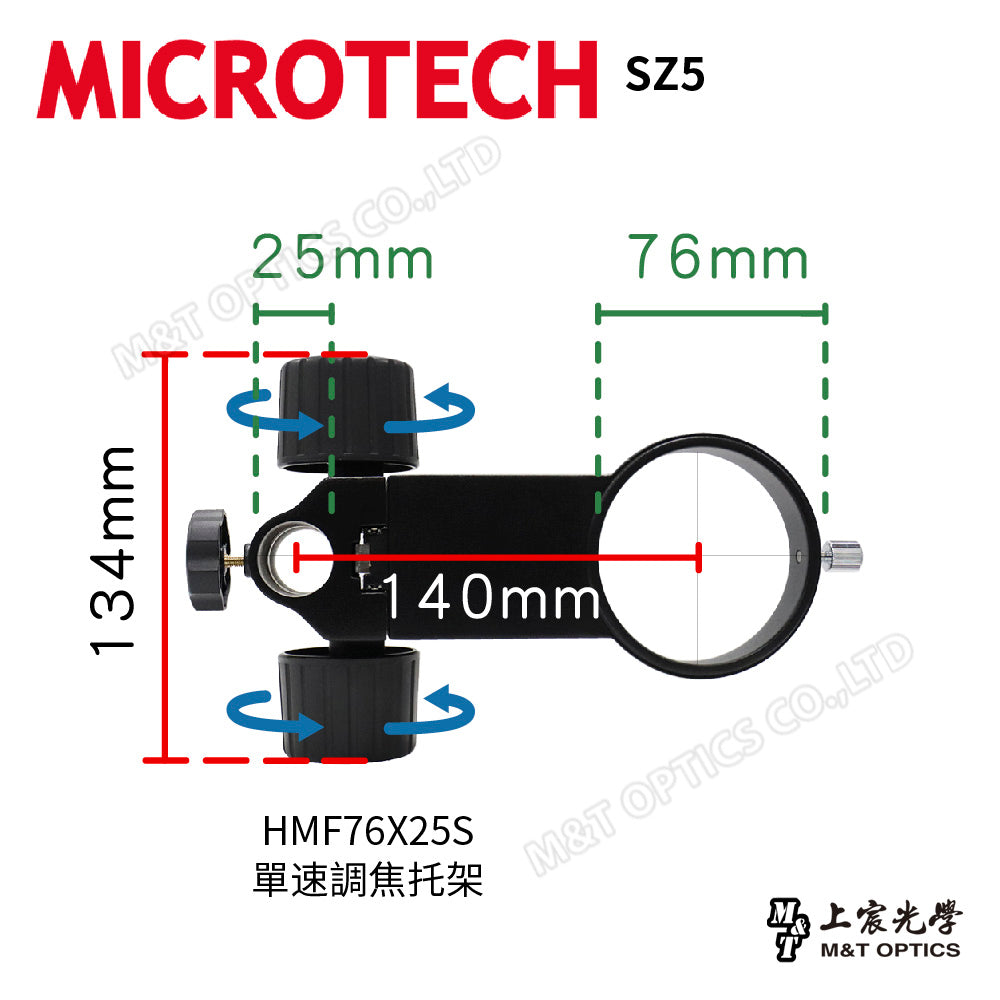

Focusing system
Single speed.Rack guide
Column type
Column diameter 25mm, SF column height 278.5mm, ST column height 255.5mm, SN column height 243.5mm

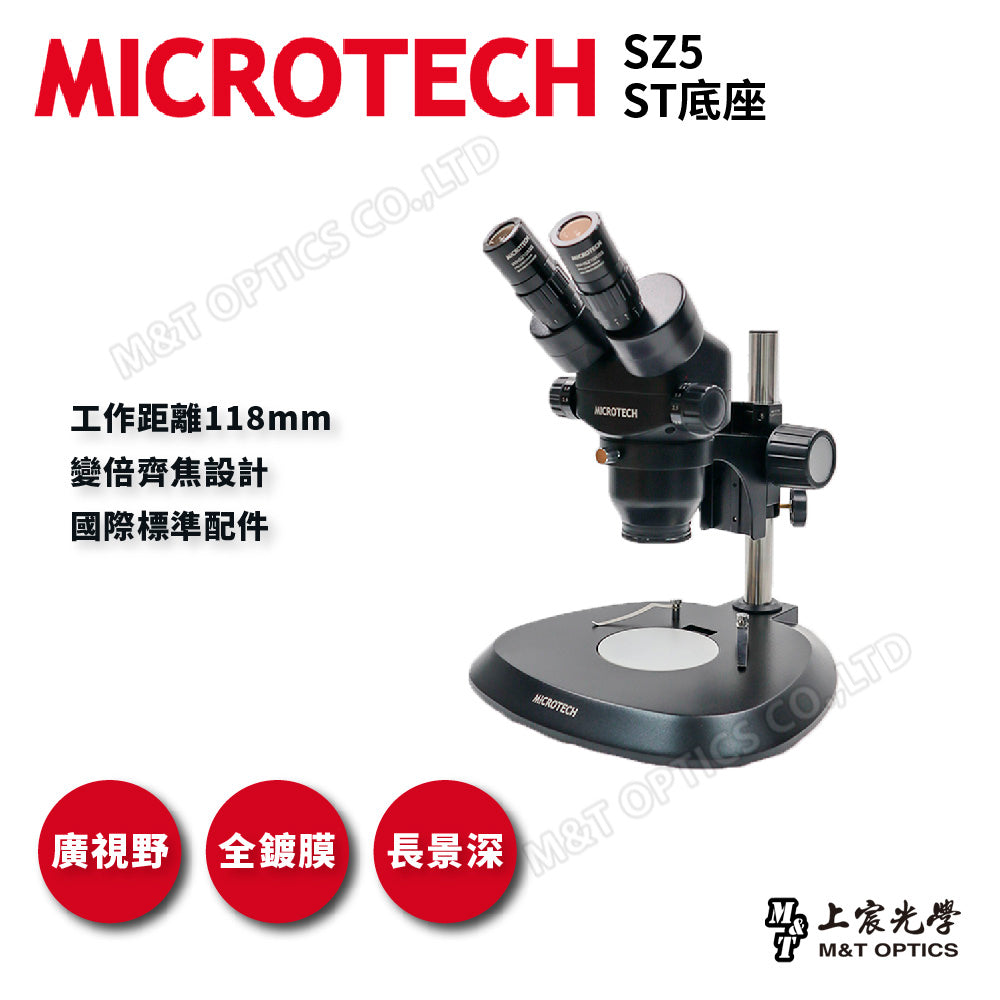

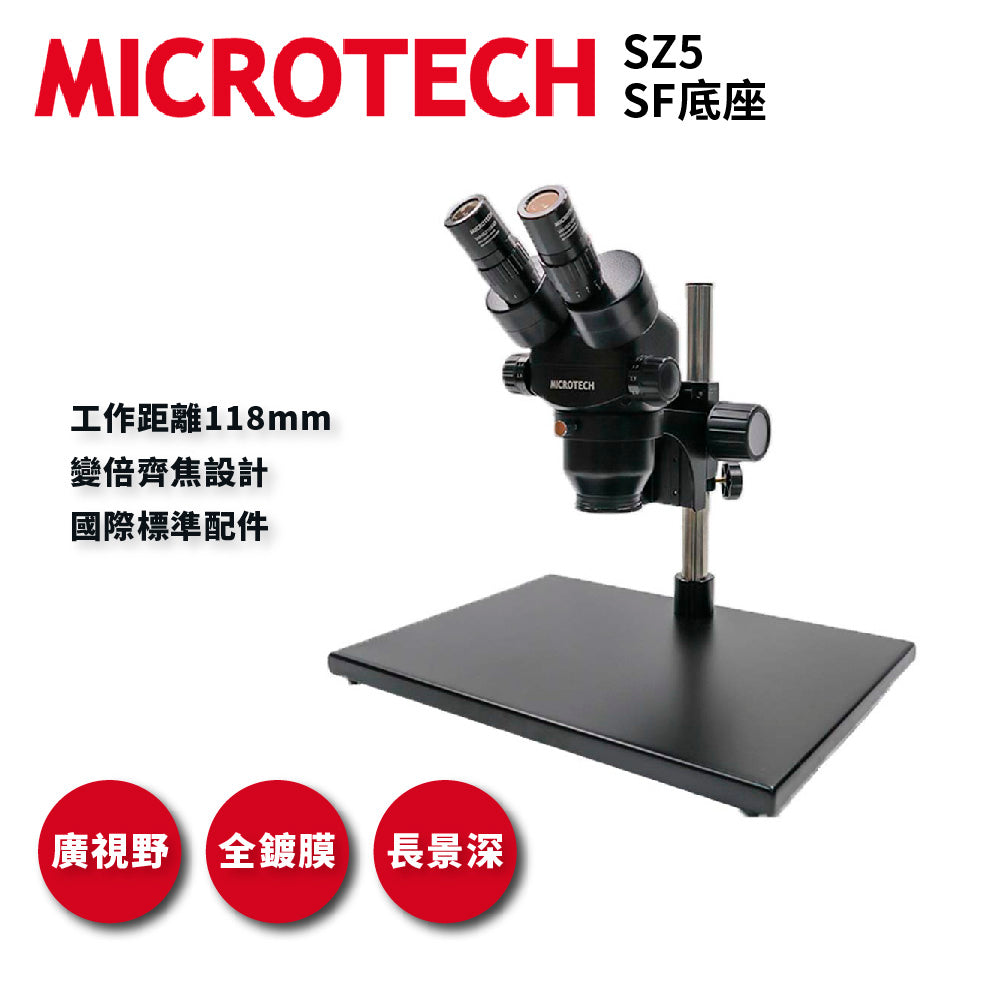

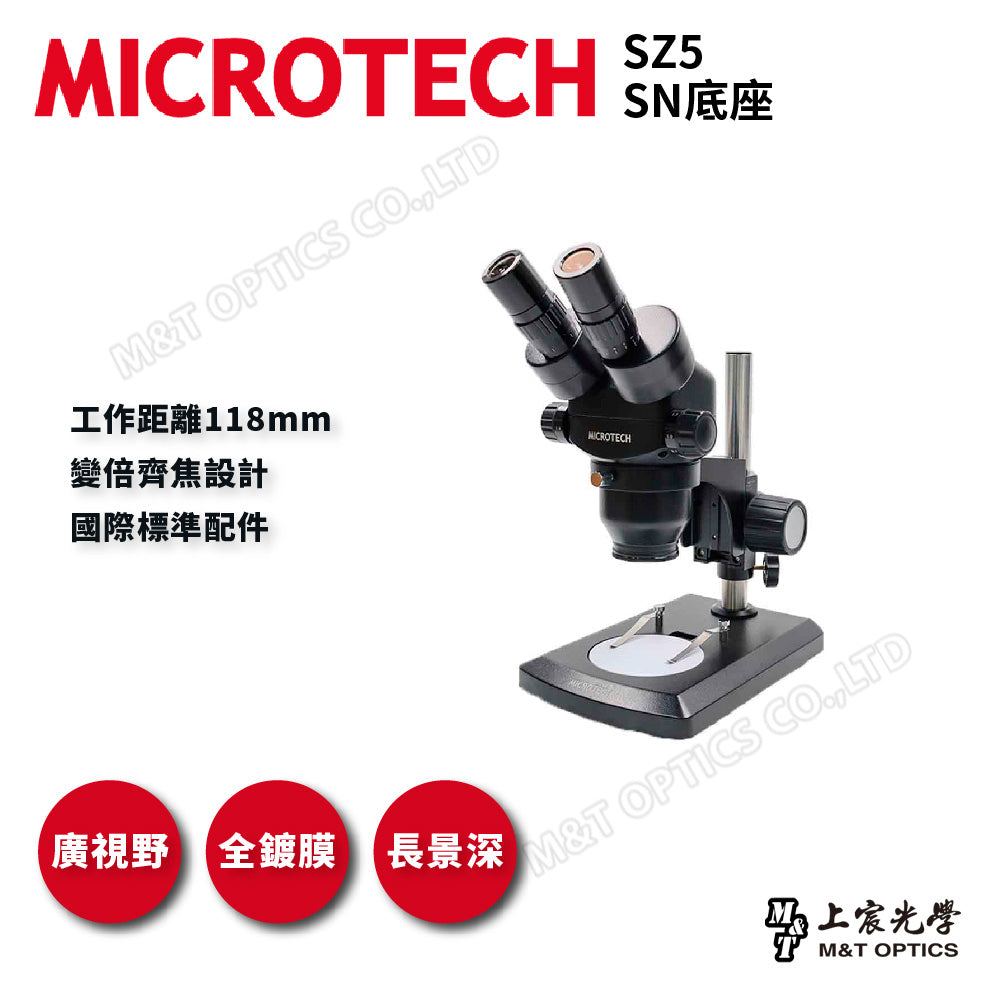

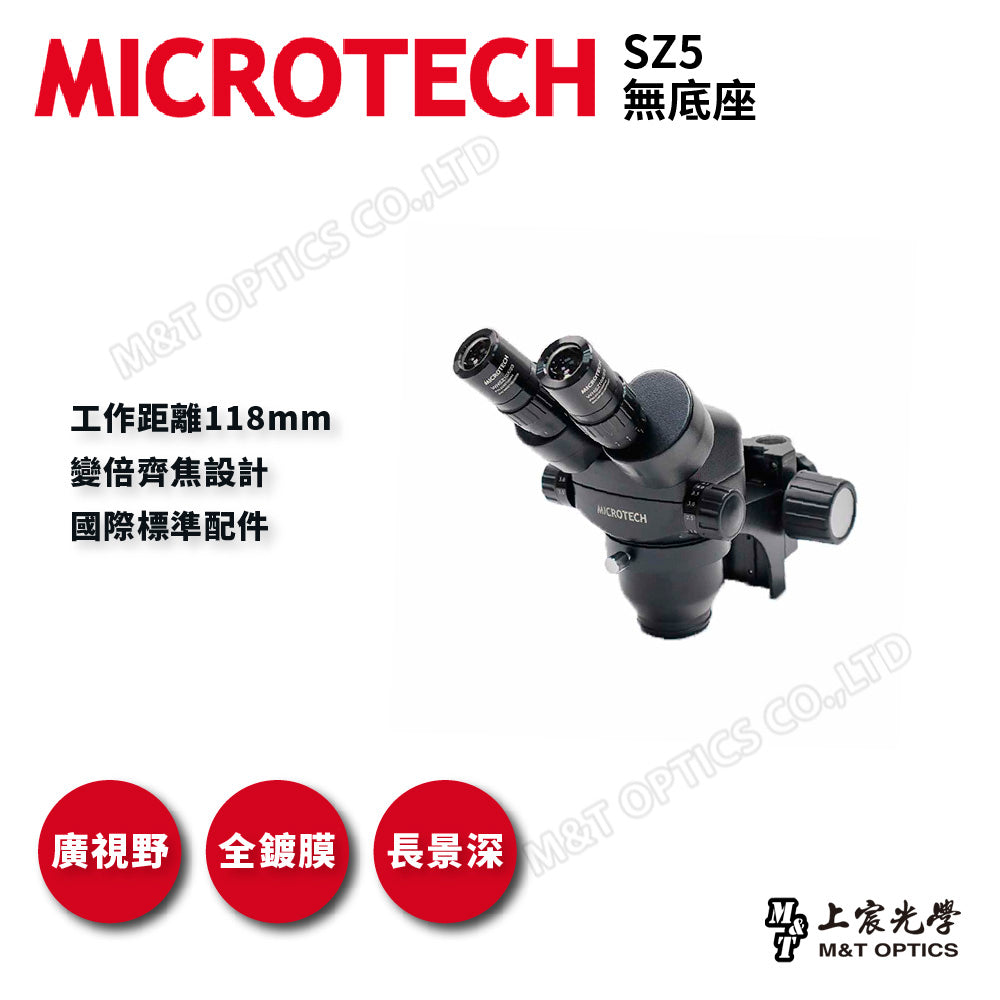

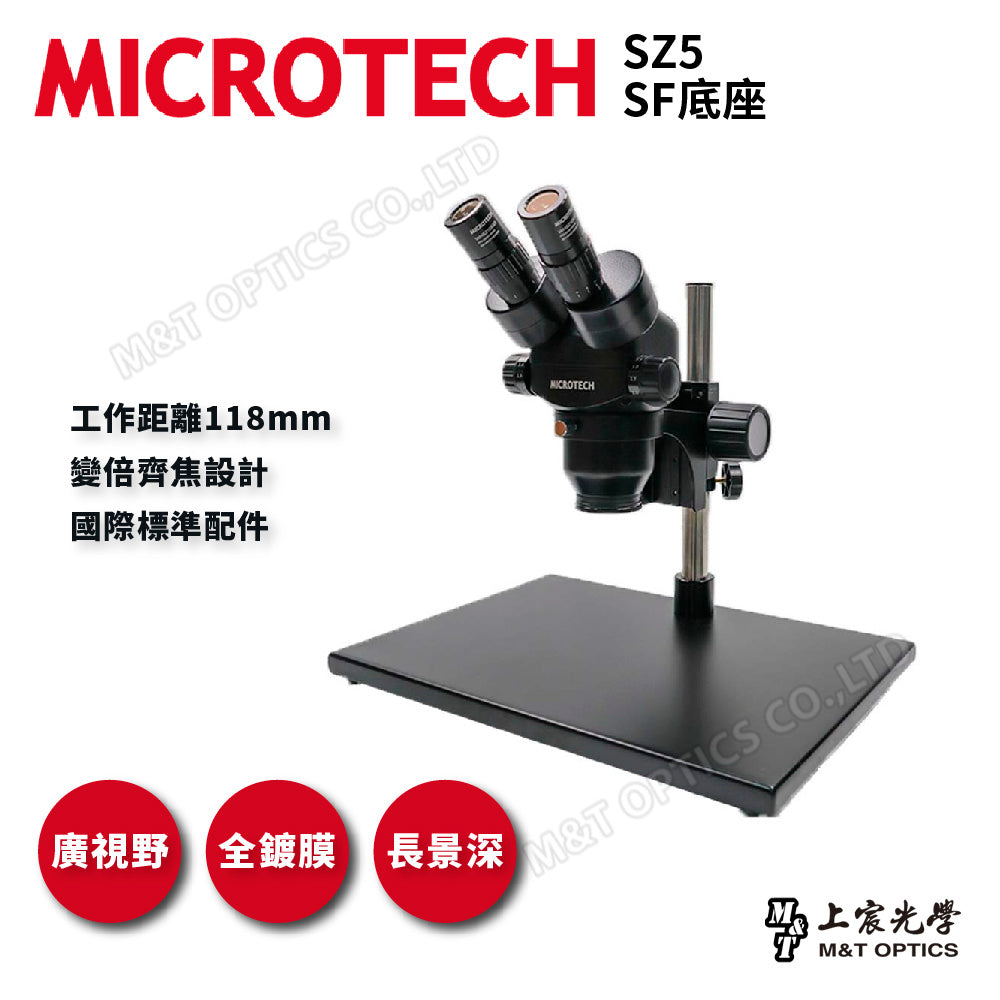

Stage type
SF, ST, SN, without base
Stage size
reference picture
Transmitted light source
X
Reflective light source
Optional
coaxial light source
X
Polarizing module
Optional
Fluorescent module
X
power supply
Optional light source type
physical dimension
reference picture
