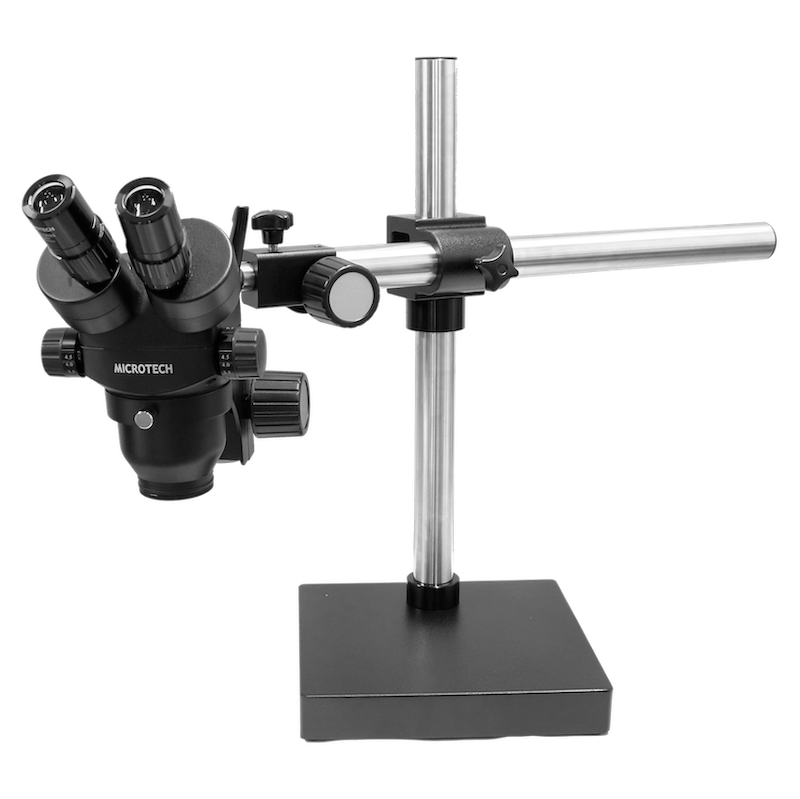

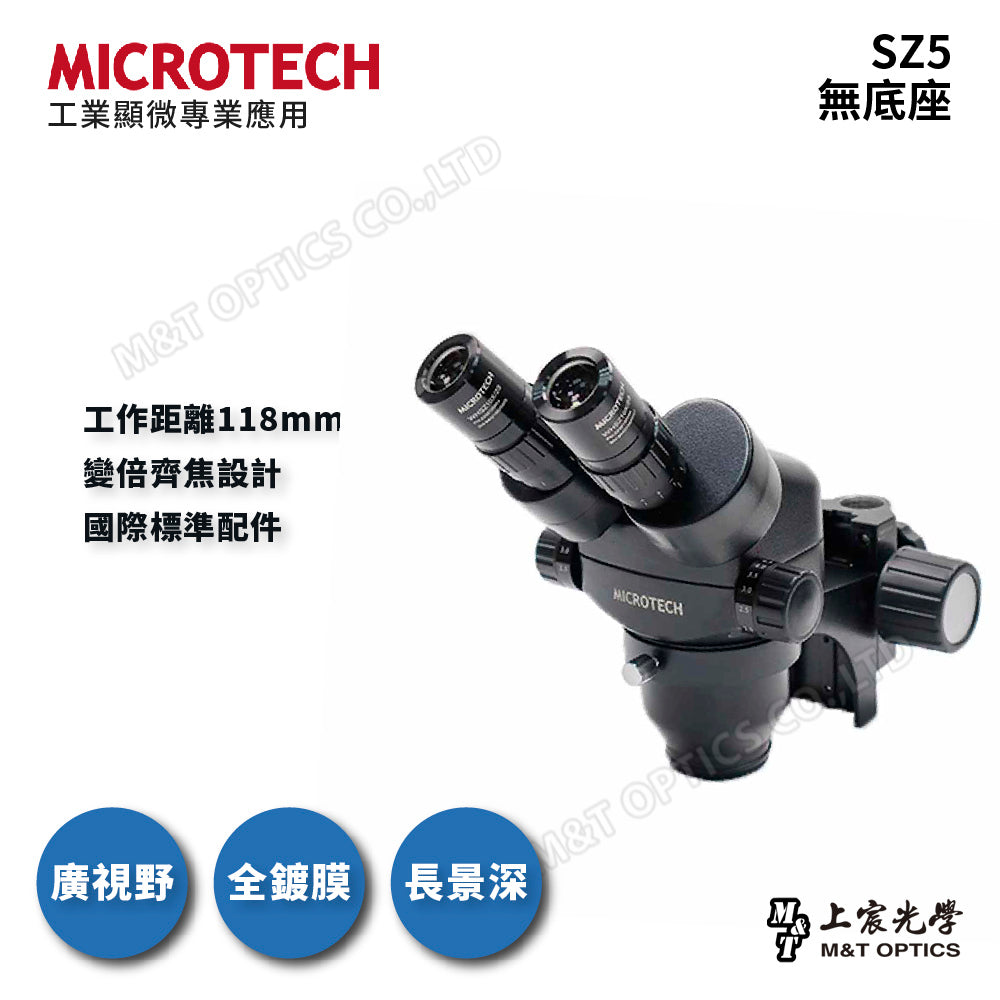

MICROTECH SZ5 binocular stereo microscope (gimbal base series) - original factory warranty for one year
Order number
N/A
Couldn't load pickup availability
Product specifications
| Optical system | Greenough |
| Comprehensive magnification | 7X～45X |
| Zoom ratio | 1:6.4 |
| Observation head | binocular |
| Visual tilt angle | 45° |
| pupillary distance range | 52mm～76mm |

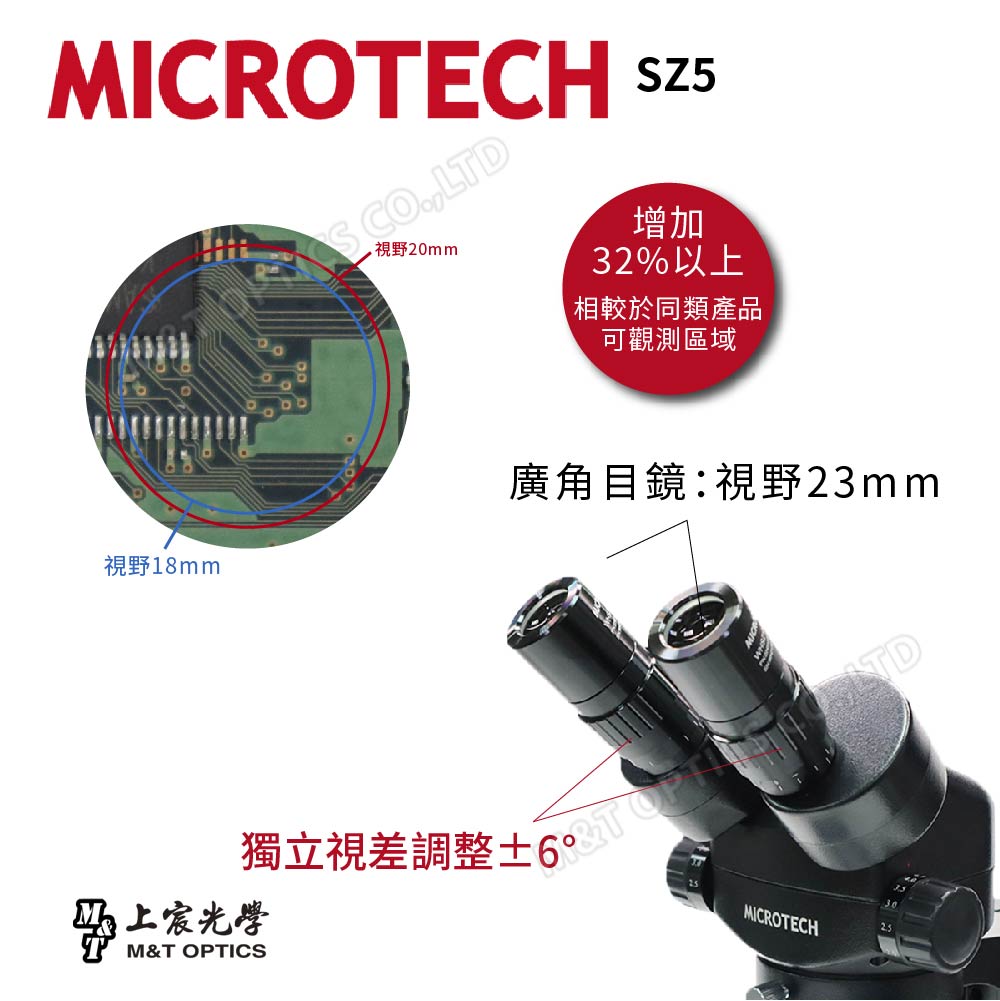

| Parallax adjustment | Binocular tubes have independent adjustment ±6° |
| eyepiece | WHSZ10X/23 field of view Φ23mm |
| objective lens | 0.7X～4.5X |
| Zoom mode | ZOOM zoom. Fixed design. Horizontal zoom wheel type |
| Protective glass | have |
| Auxiliary objective thread | M48X0.75 |
| working distance | 118mm |
| Focusing system | Single speed.Rack guide |

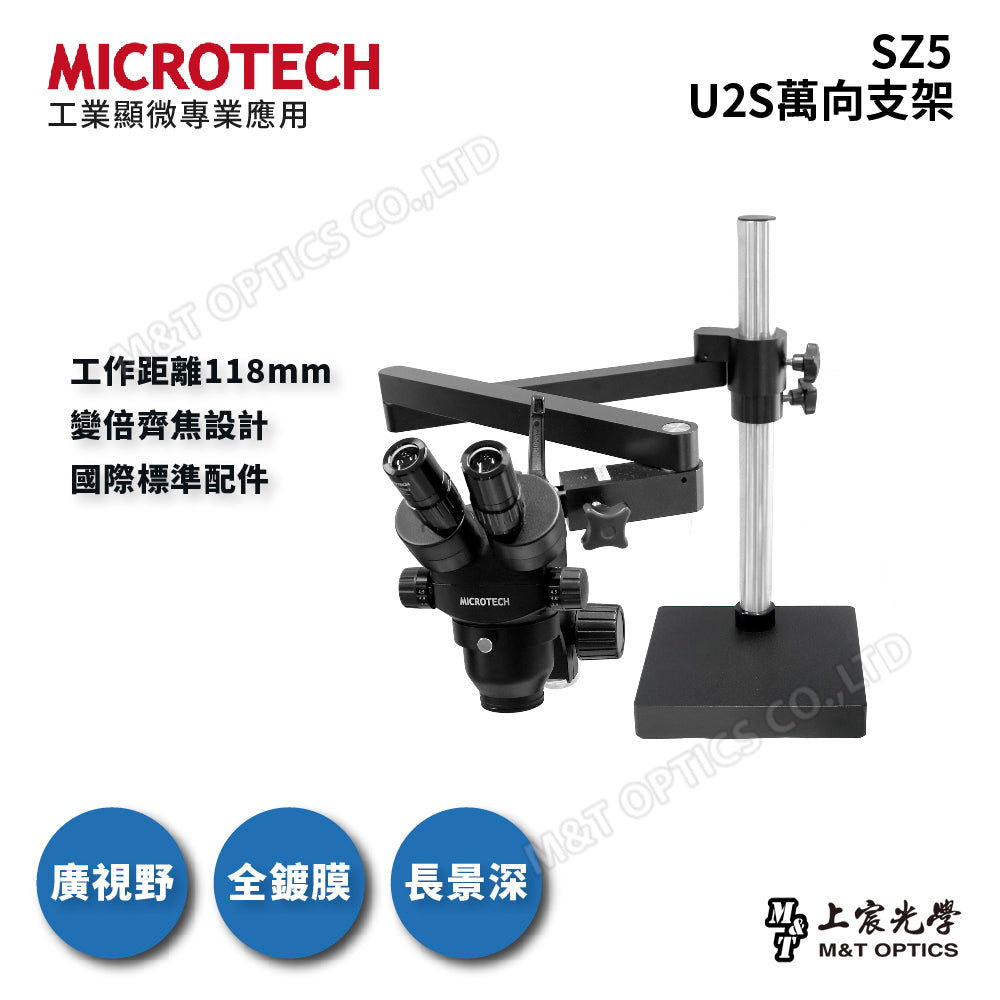

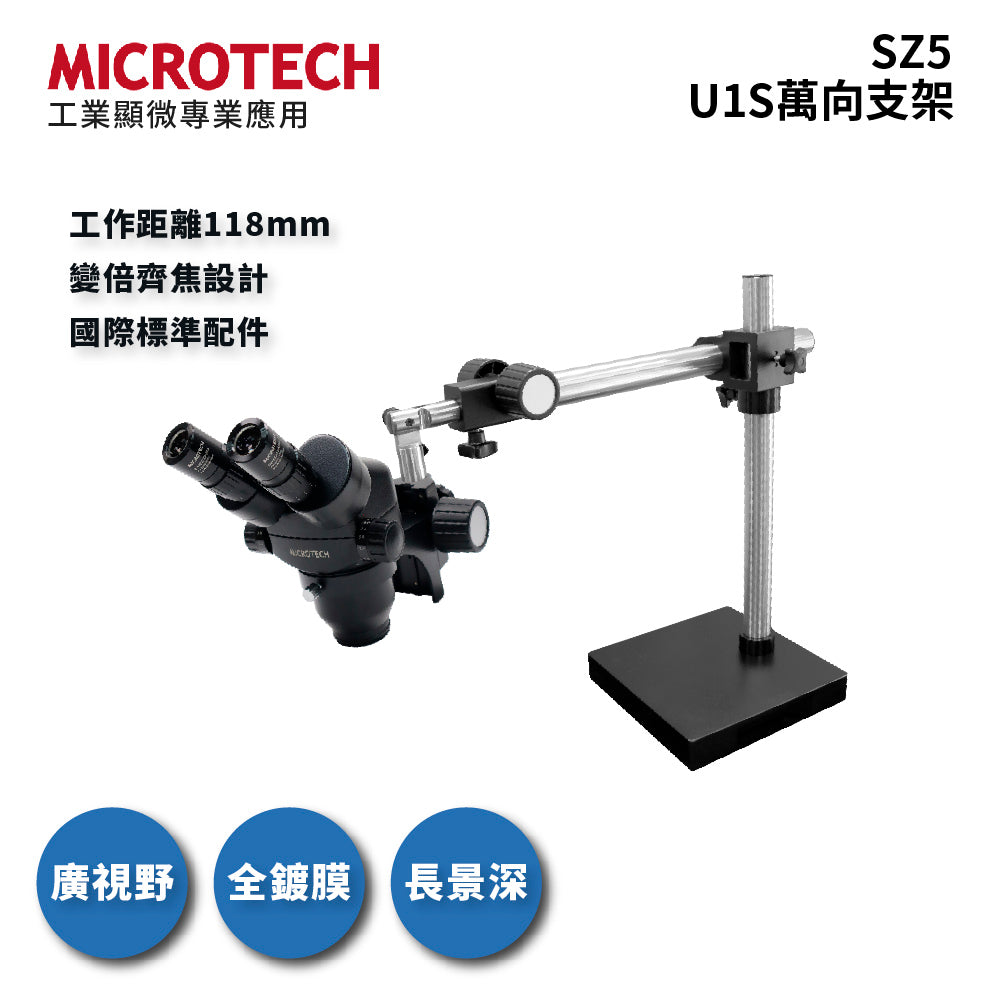

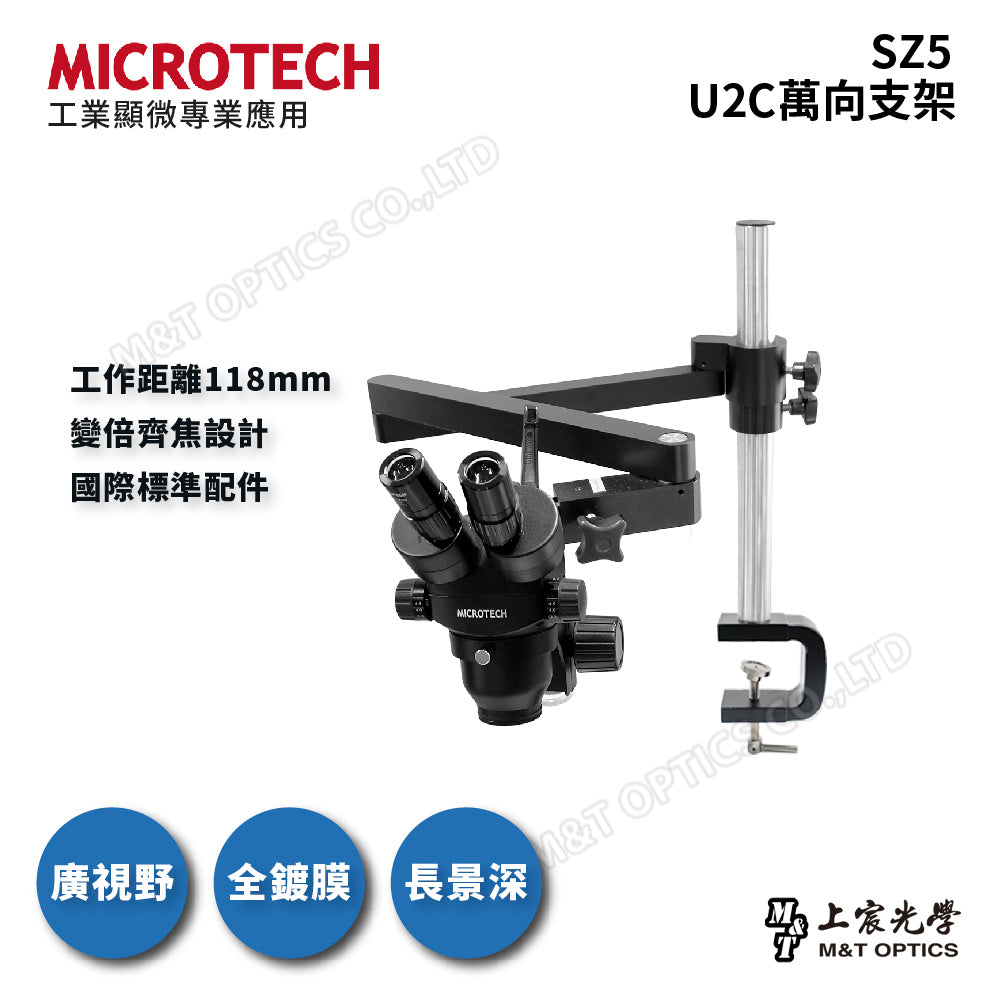

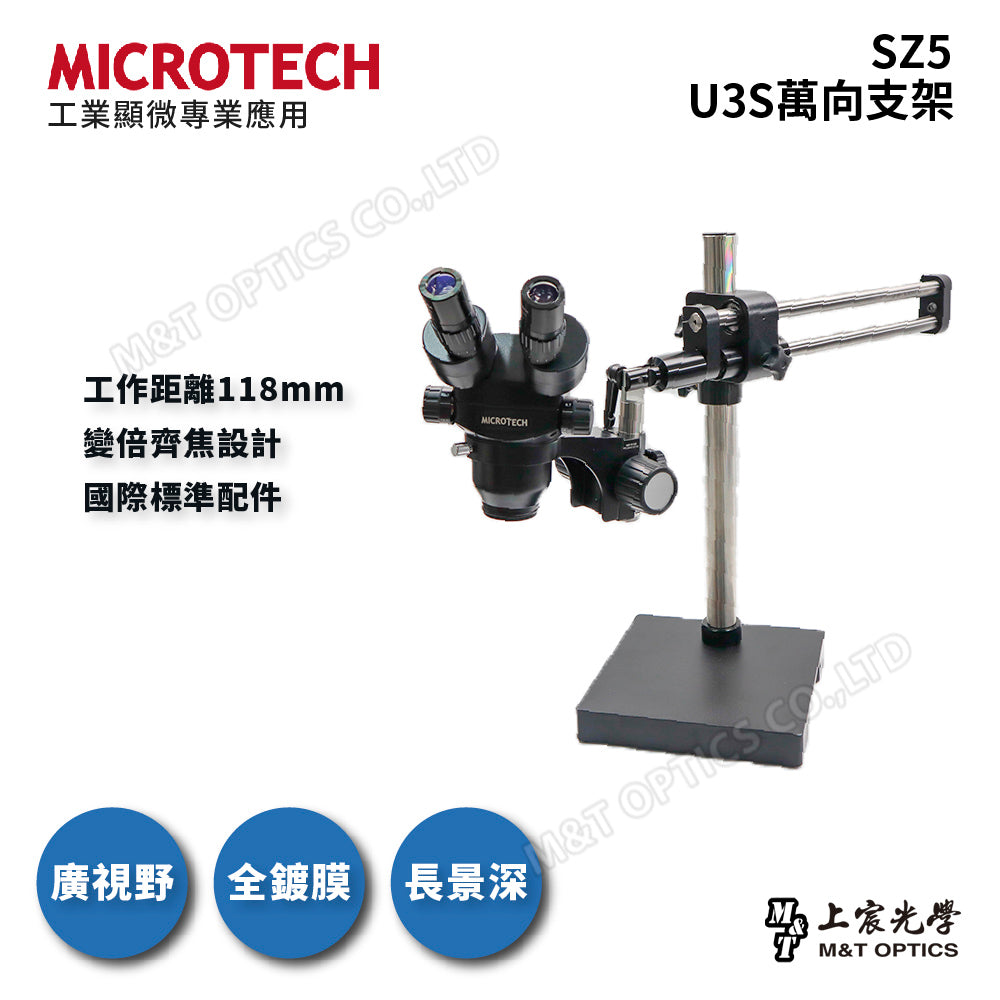

| Column type | Column diameter 37mm, U1S column height 475mm, U1C column height 471mm, U2S column height 475mm, U2C column height 471mm, U3S column height 475mm |
| Stage type | U1S, U1C, U2S, U2C, U3S, without base |
| Stage size | reference picture |
| Transmitted light source | X |
| Reflective light source | Optional |
| coaxial light source | X |
| Polarizing module | Optional |
| Fluorescent module | X |
| power supply | Optional light source type |
| physical dimension | reference picture |
