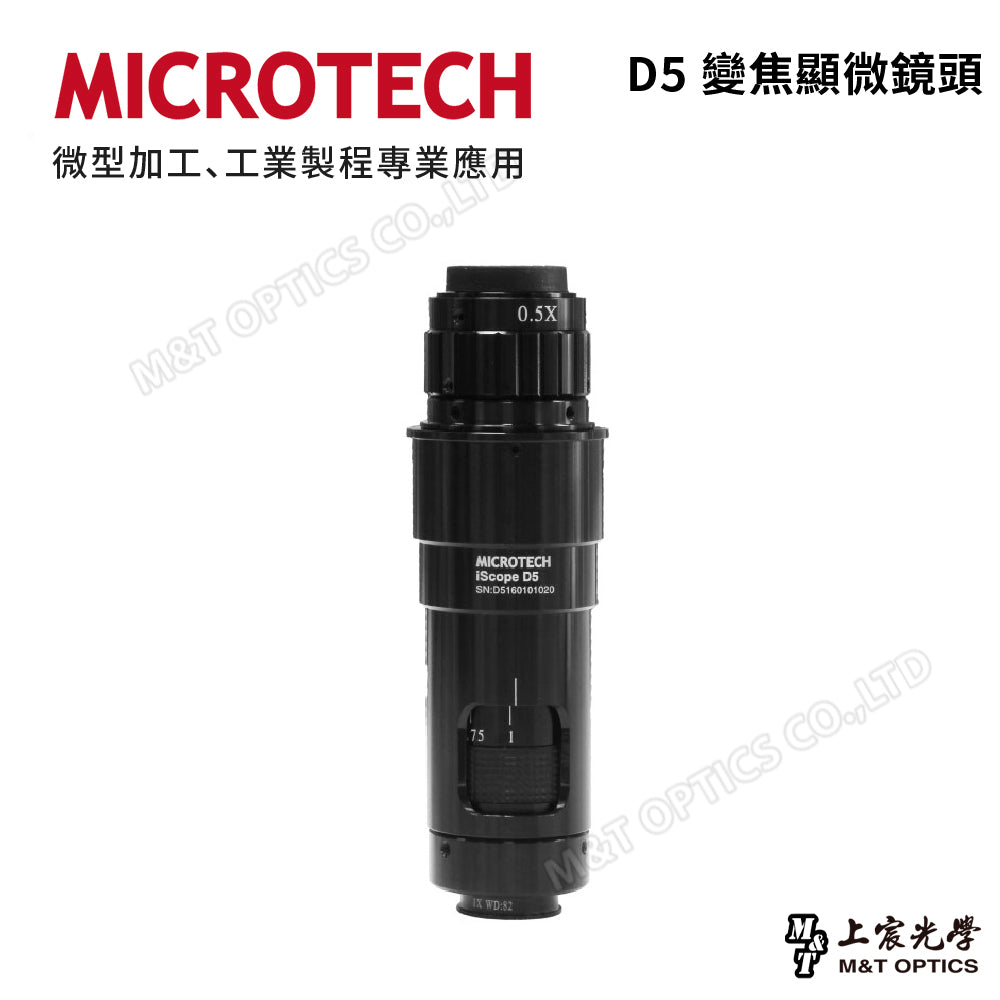

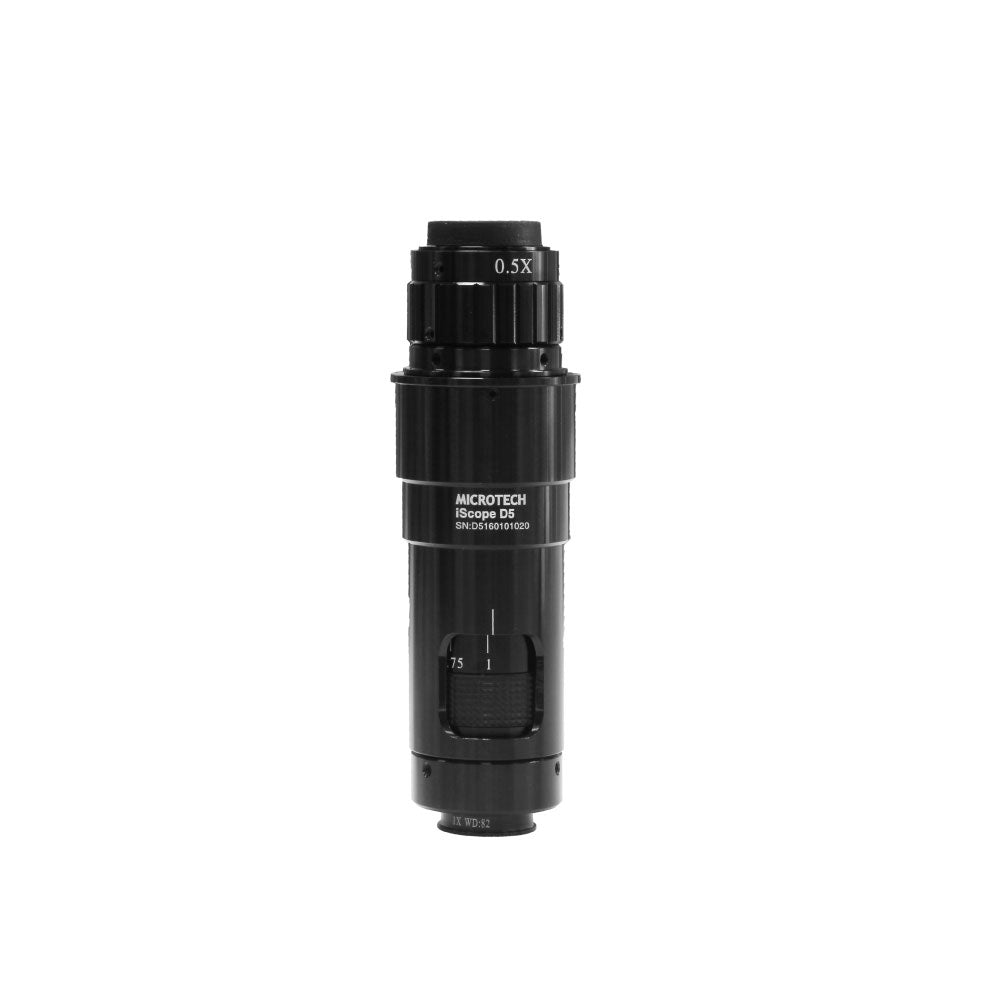

MICROTECH D5 series microscopes can create your own microscope. Through the modular accessory combination, you can choose from a variety of interchangeable objective lenses, CCD connectors, external light sources, image output devices, focusing supports, bases, etc.

In addition, you can also purchase various accessories for applications in various fields such as industrial products, jewelry and antique identification, circuit board welding, diamond inlays, printing quality inspection, and ecological observation of insects and plants, all of which can be combined with the D5 microscope Find the digital microscope that's right for you.

Product specifications

Optical system	Infinity parallel optical system (Infinity)
Zoom tube	Zoom ratio 6:7:1, ZOOM 0.75X～5X, full-time fixed-frame design
Objective lens type	Optional: RMS type 0.3X, 0.5X, 0.75X, 1.0X, 1.5X, 2.0X
photography adapter	C—Mount optional 0.3X, 0.4X, 0.5X, 0.67, 1.0X, 1.5X, 2.0X
working distance	The parfocal distance of the 1X objective lens is 82mm. The working distance can be changed by changing the objective lens.
System magnification	The magnification of the lens and camcorder may vary. Additional supplies are provided.
Focusing system	Optional: HMF4525S single-speed standard type, HMF4525D double-speed precision type
Column height	Optional: 124mm, 500mm
Stage type	Optional: SF large base, SN small base, SWD micro-motion base
light source	Optional: R25W ring light, POL polarized light, LED63 ring light, C3000 coaxial light, fiber optic cold light guide light source
photography system	Optional: M2, U2, PC130, HDC588, HDC3600
Measurement system	The video recording system is built-in when you purchase it
