ALL in One Microscope Camera

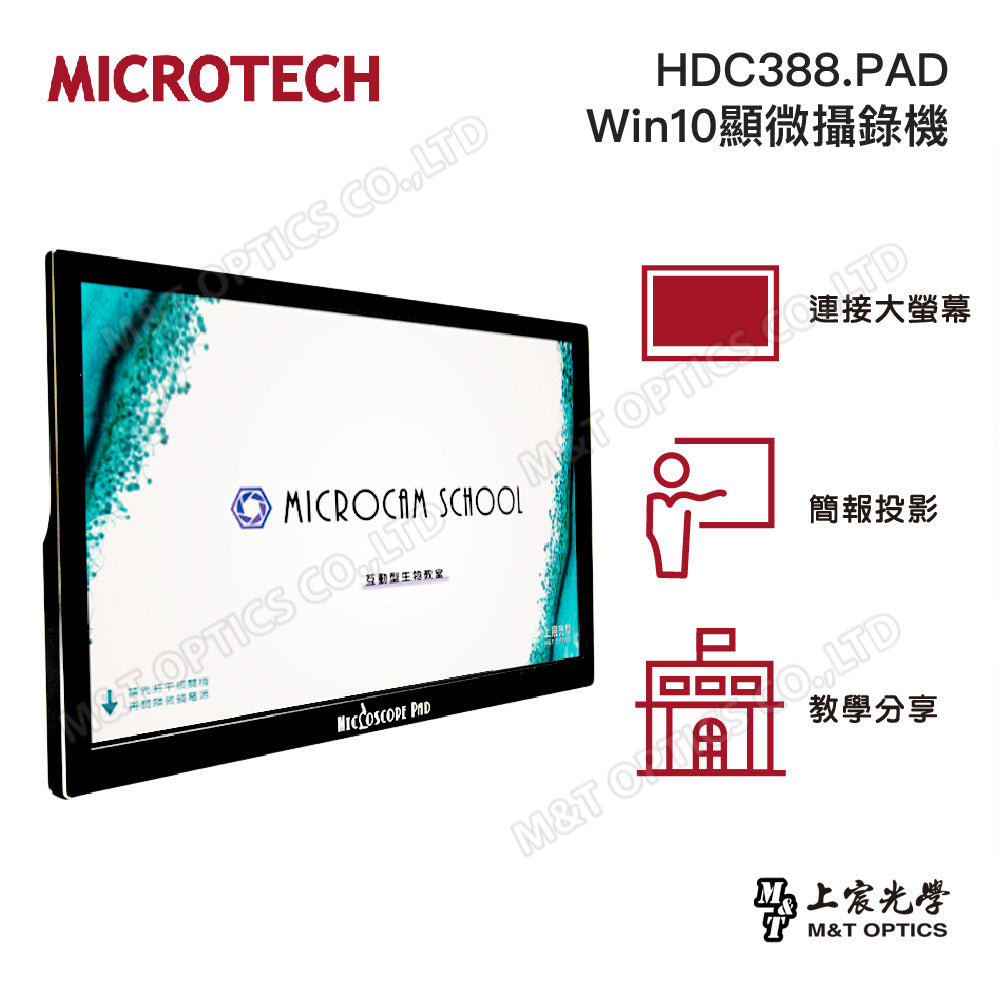

HDC388.PAD is a microscopic camcorder that integrates a photosensitive element and a tablet computer. No need to connect any external equipment to instantly output the observation screen. The Windows 10 operating system has built-in Micro Cam V5 measurement software, which can adjust image parameters such as exposure and contrast, and can also take photos. It is very suitable for teaching, biological experiments, industrial applications, assembly lines, and quality control.

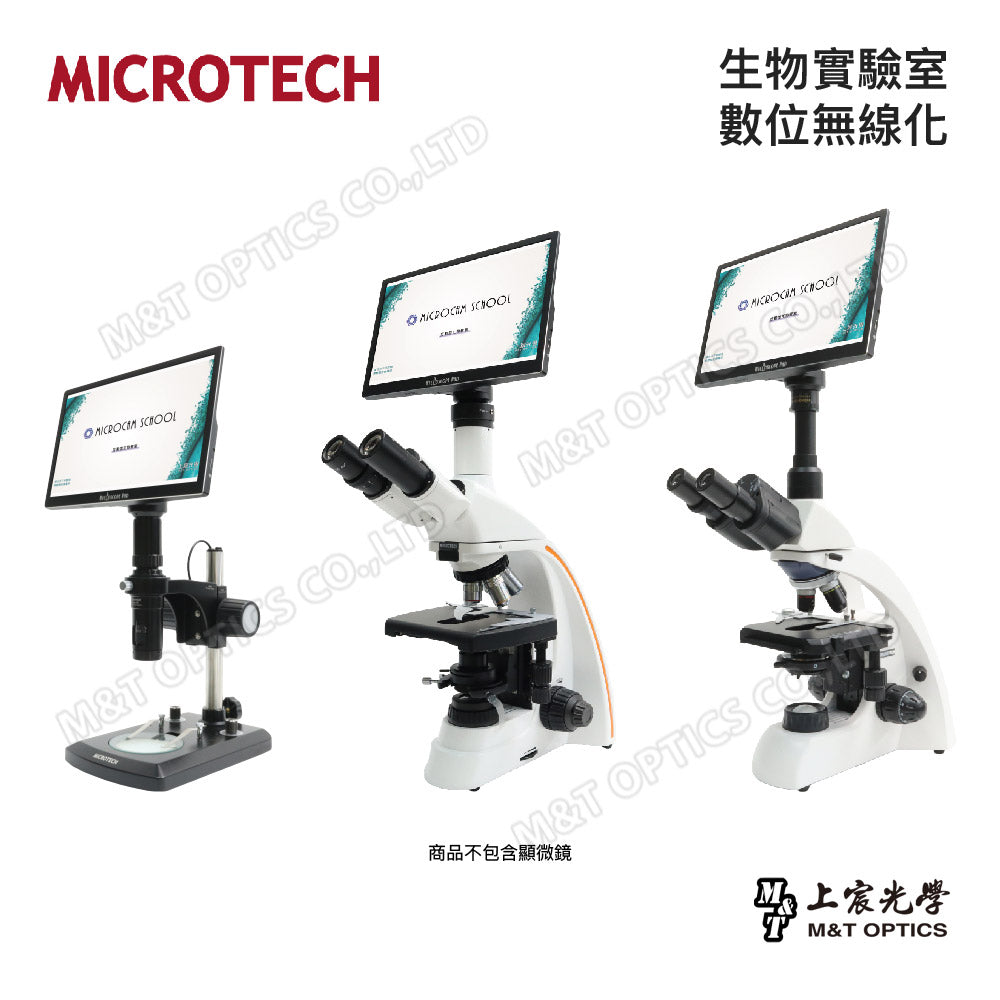

Laboratory space optimization

Highly integrated microscopy imaging system, microscopic camera, monitor, and measurement software all-in-one to optimize working space. Suitable for use in biology classrooms, assembly lines, and quality control centers.

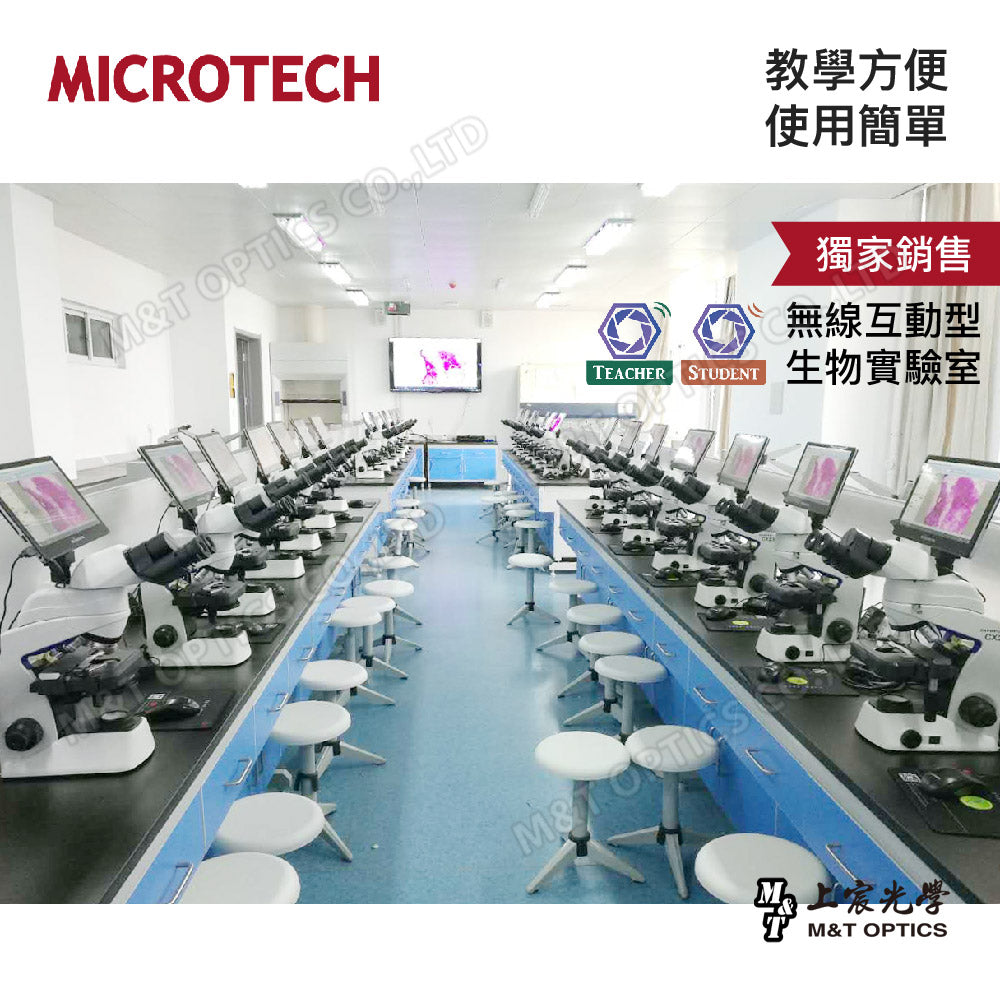

Interactive biology laboratory

The software supports one-to-many teaching mode, and teachers can synchronize microscopic images to the big screen in real time. Content can also be shared with multiple HDC388.PAD microscopic camcorders or monitors at the same time to enhance interactivity and optimize teaching.

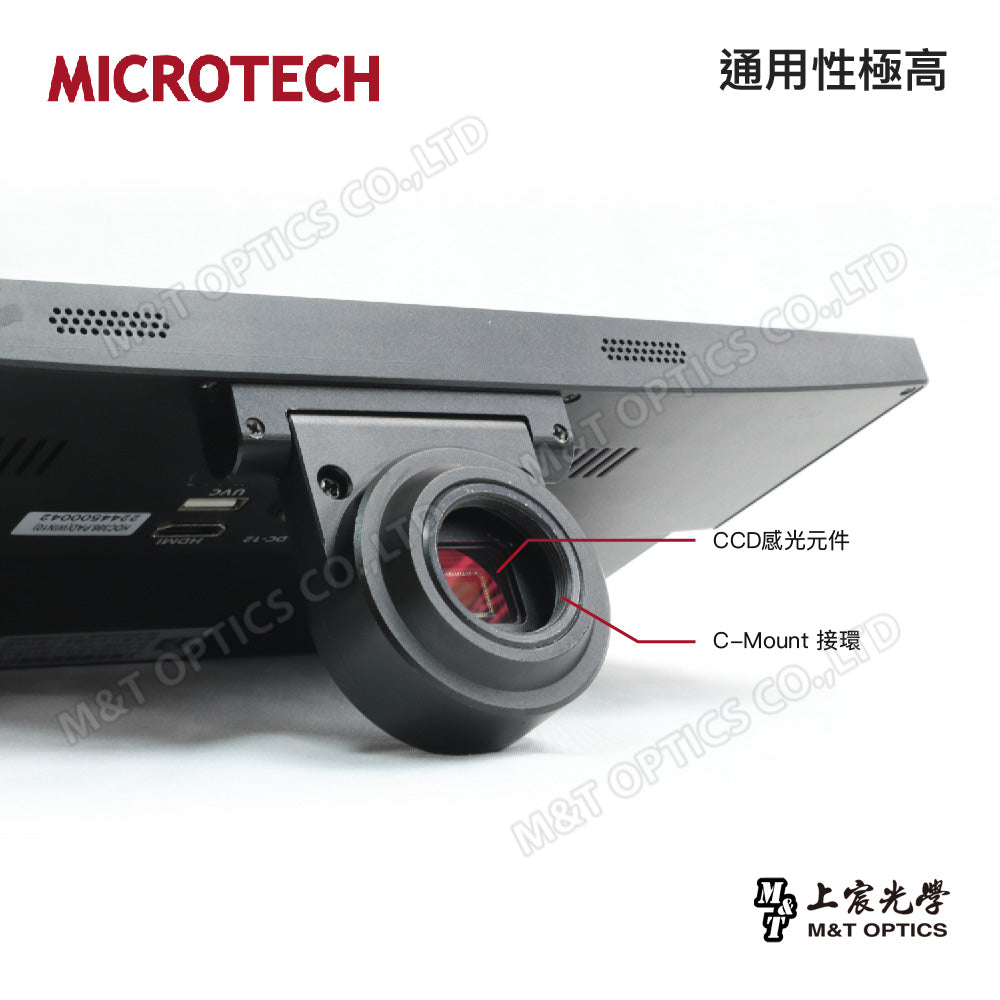

Universal C-Mount takeover

The C-Mount adapter can be installed on various types of microscopes with focus reducers of different magnifications.

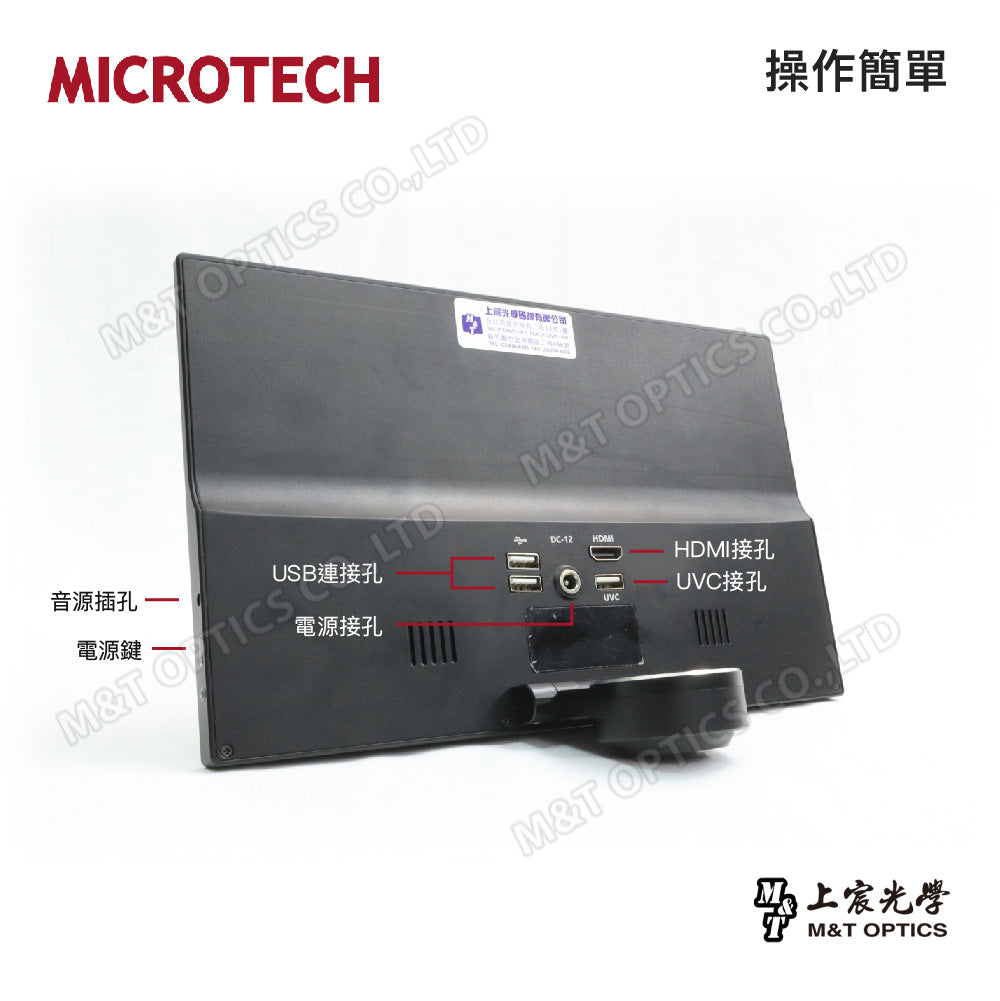

Parts description

There are two USB3.0 interface connectors on the side of the fuselage, which can be operated by mouse and keyboard, and can also be connected to a flash drive to output photos and videos. Supports both wireless and wired network connections.

Instant images, instant feedback

Microscope ultra-high magnification images can be output in real time, and touch-controlled shooting and measurement can be performed. Insert a flash drive to save images and measurement results with one click. It can also be connected to a computer and supports online video.

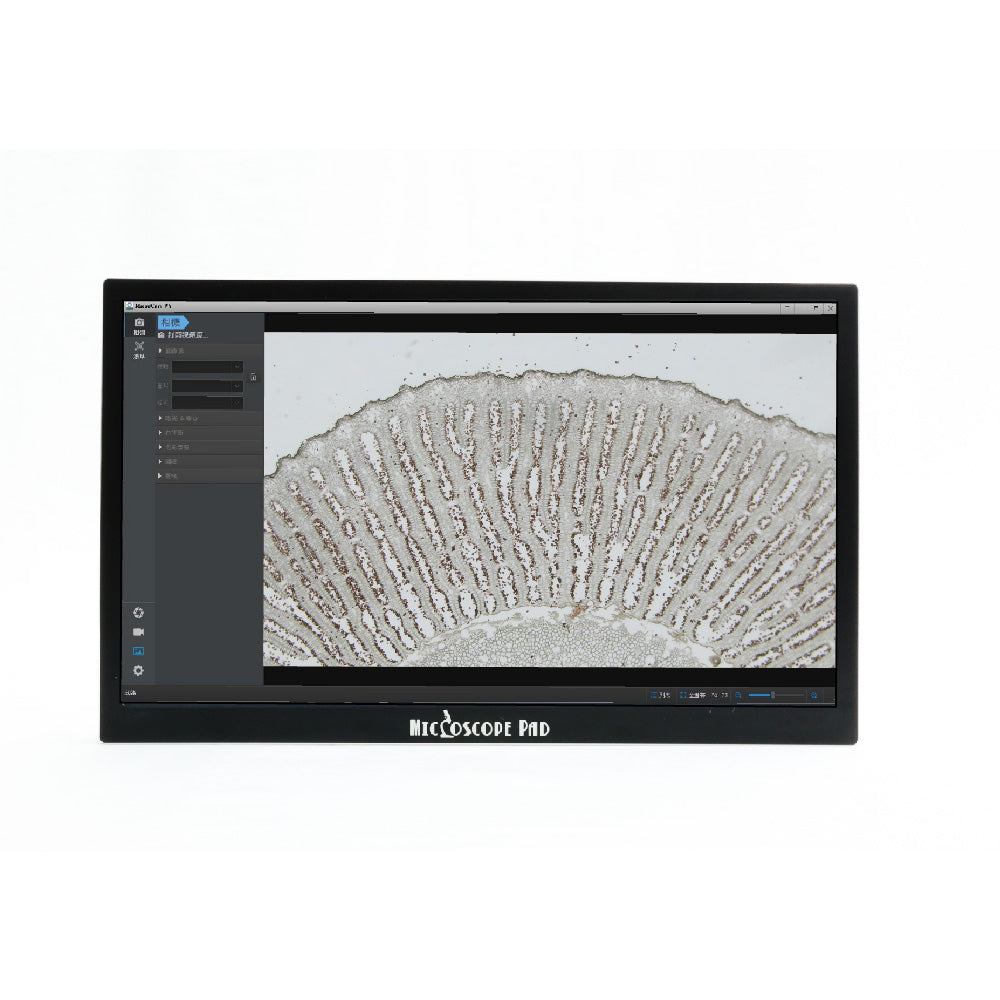

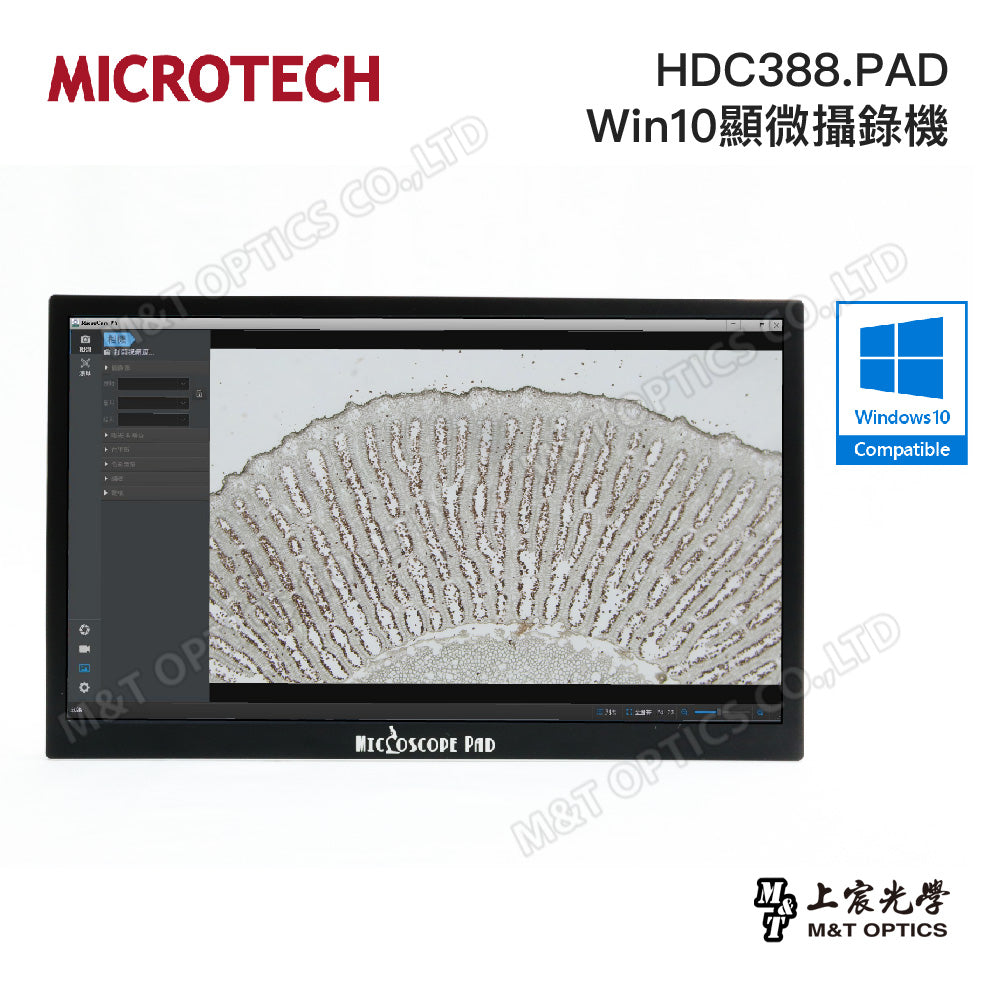

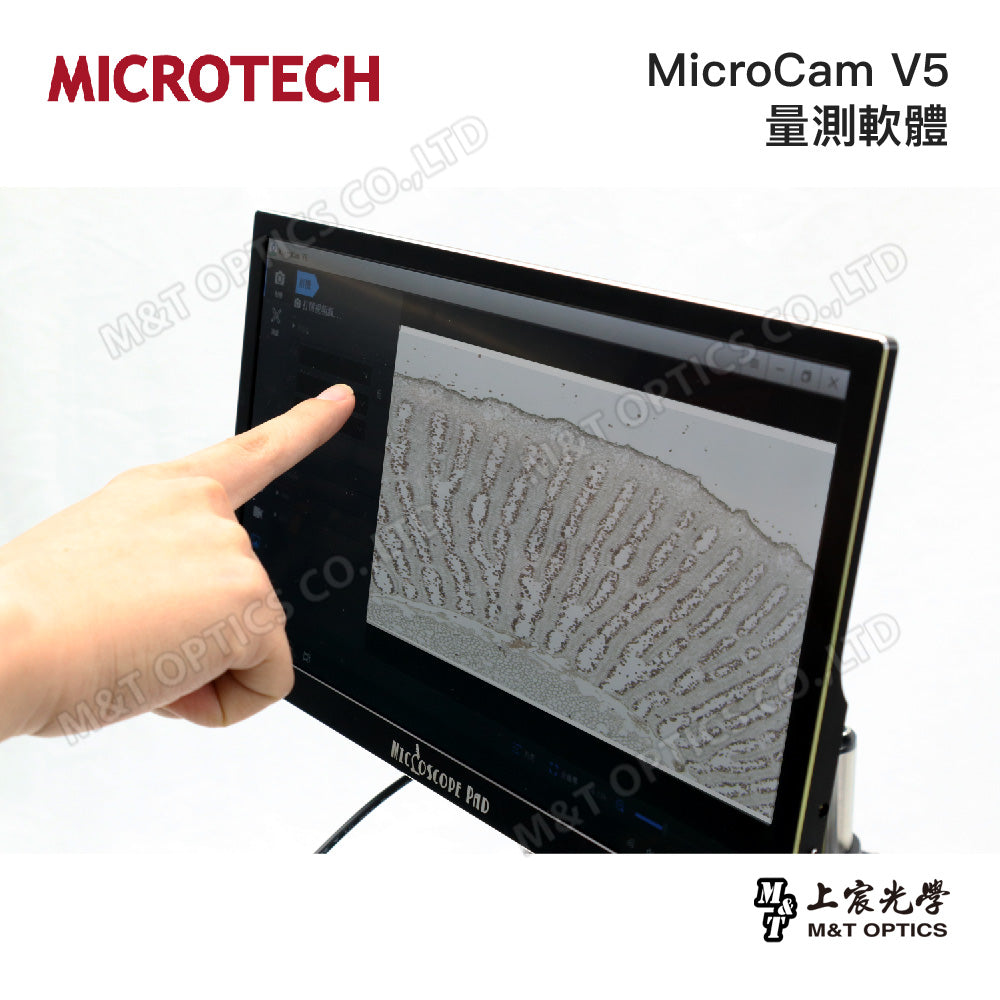

MicroCam V5 measurement software

MicroCam V5 is a professional-grade microscopy/measurement tool that allows you to capture digital images or load existing images from files. You can obtain images using a camera, scanner, or other image input device.

Multiple weight measurement and labeling functions

It provides a variety of measurement tools that can be used to measure different sizes and angles in the image, allowing users to more accurately measure relevant parameters of the object being measured. For dimensional calibration, you mark reference objects of known dimensions in the image and the software will then adjust other measurements based on these reference objects.

Data list function

MicroCam V5 can export measurement results as data files or generate professional reports. You can perform statistical analysis on measurement data and present the results in charts or tables to make the recording process more convenient.

screen size	11 inches
operating system	Windows 10 64 Bit
processor	Intel Celeron N4000 CPU 1.1GHz
Temporary memory capacity	4GB
Hard drive capacity	60G
Camcorder connector	C-Mount
power input	DC12V safety transformer
