High image quality, suitable for educational, medical and industrial microscopes

It has FULL-HD 1920*1080P high image quality, redefines microscopic image quality and uses a new generation image processor. Suitable for installation in: educational microscopes, medical microscopes, and industrial microscopes.

Advantage

• The image quality format has been updated to digital high-quality mode, and image details have been greatly improved!
• VGA image output mode is available, and high-definition images can be projected using common computer monitors.
• No need to use a computer, you can directly look at the screen to open the camera menu function, and professionally adjust the image output details
• Built-in USB output port, you can use a mouse to connect to a camcorder, or connect to a computer to use software to take pictures and record videos
• Free download of photography software, no driver required, plug and play, compatible with WINDOS
• Aluminum alloy casing precision manufactured by computer CNC, industrial design and production, excellent quality and higher durability

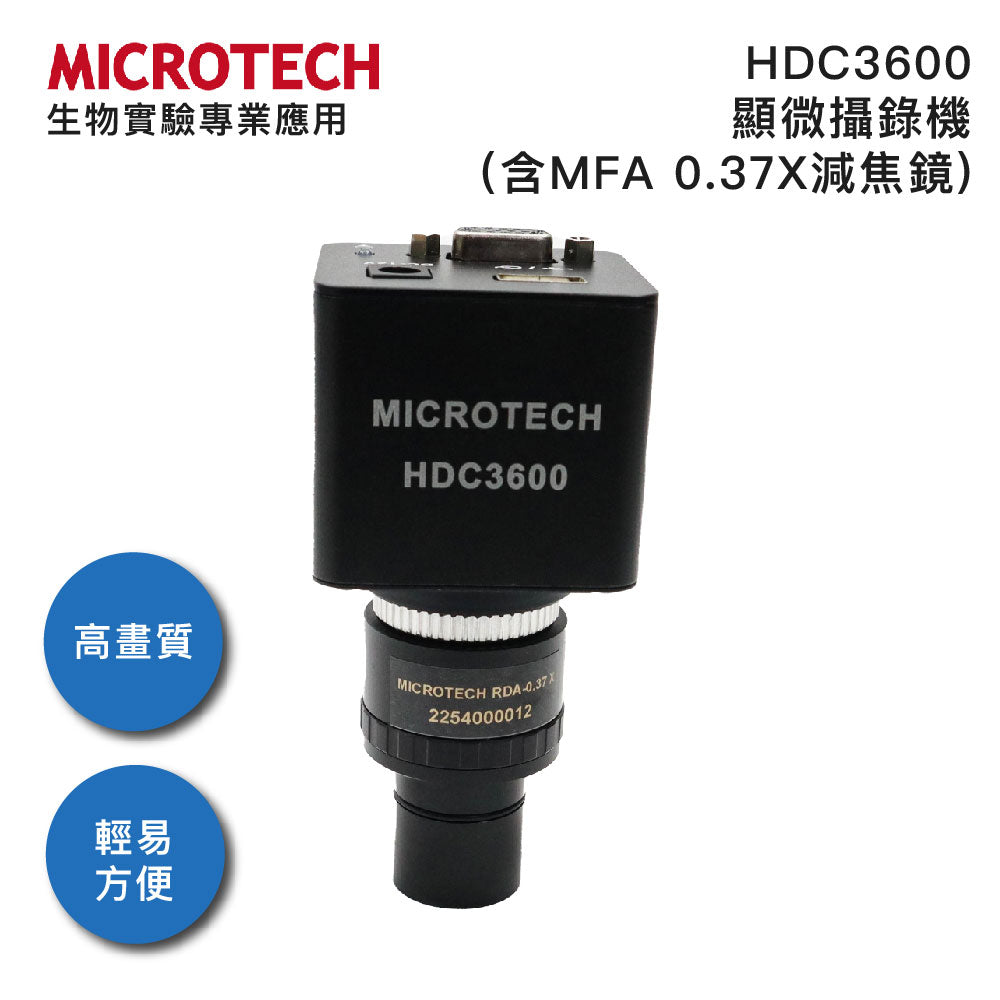

With focus reduction lens

Expand the field of view, observe comfortably, and adjust the focus once.

Standard accessories

Power plug, mouse, camcorder body, focus reducer

Recommended additional purchases

A WiFi image sharer can be purchased to output images wirelessly. When taking photos or videos with a tablet or mobile phone or mounting them on a microscope, it is recommended to purchase an RD-level optical reducer (which can double the field of view), or a UC-level optical reducer with a larger field of view (which can double the field of view).

If you have image measurement needs, it is recommended to use the V5 version of professional measurement software, which can accurately measure microscopic images and output image measurement reports.

MicroCam V5 measurement software (recommended additional purchase)

Professional-grade microscopic observation/measurement tool that can be installed on a computer or MiniPC-V5 version for operation.

MicroCam V5 measurement software: multi-weight measurement and annotation functions

Multiple annotation and drawing modes allow users to more accurately measure relevant parameters of the measured object.

MicroCam V5 measurement software: data list function

MicroCam V5 has the function of tabular presentation and data export of measurement data, making the recording process more convenient.

Recommended additional purchase: MiniPC-V5 mini computer

Product specifications

Camera type	Microcomputer video recording device with USB output port*1, VGA image output port*1, and power input hole*1.
Body design	Aluminum alloy CNC precision manufacturing casing, industrial design with heat dissipation slot.
Image sensor	1920*1080P, 1/2.86" CMOS, pixel size 2.75*2.75um.
Lens mount type	CMOUNT
Camera control interface	No computer required, external screen camera menu function requires mouse control.
Image control	Exposure Shutter Brightness White Balance RGB Contrast Sharpness.
crosshairs	You can define the number, color, thickness and position of lines by yourself.
Image comparison	Supports dual-screen historical image and real-time image comparison function.
frame rate per second	30 sheets
special function	HDR wide dynamic mode, digital noise reduction, digital amplification (up to 10 times)
storage interface	Use a USB external computer to download the WEBCAM camera and video software for operation.
USB output	You can connect it to an external computer to use the software to take photos and videos, or connect the mouse to the main body to control the camera.
VGA output	Image quality 1920*1080P
Power requirements	DC12V500mA
appendix	DC12V1A transformer (input AV100~240V)＊1, mouse＊1
