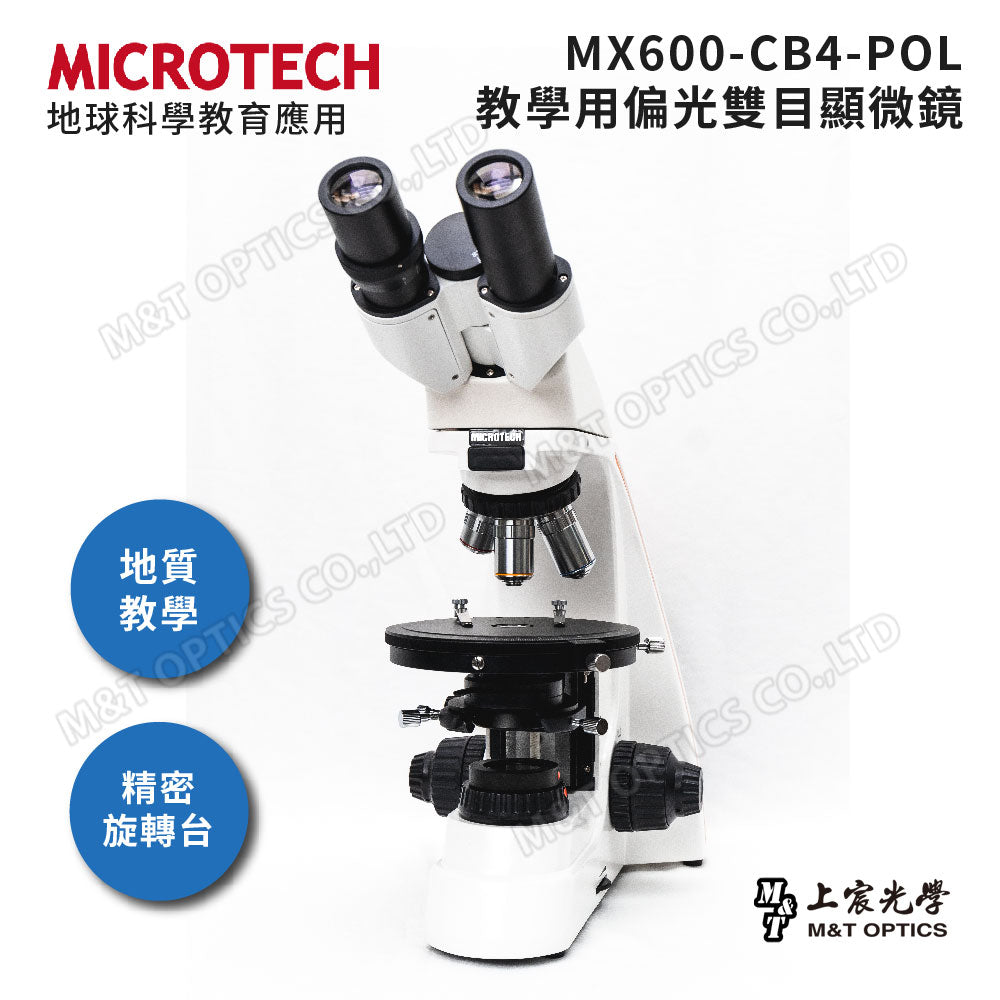

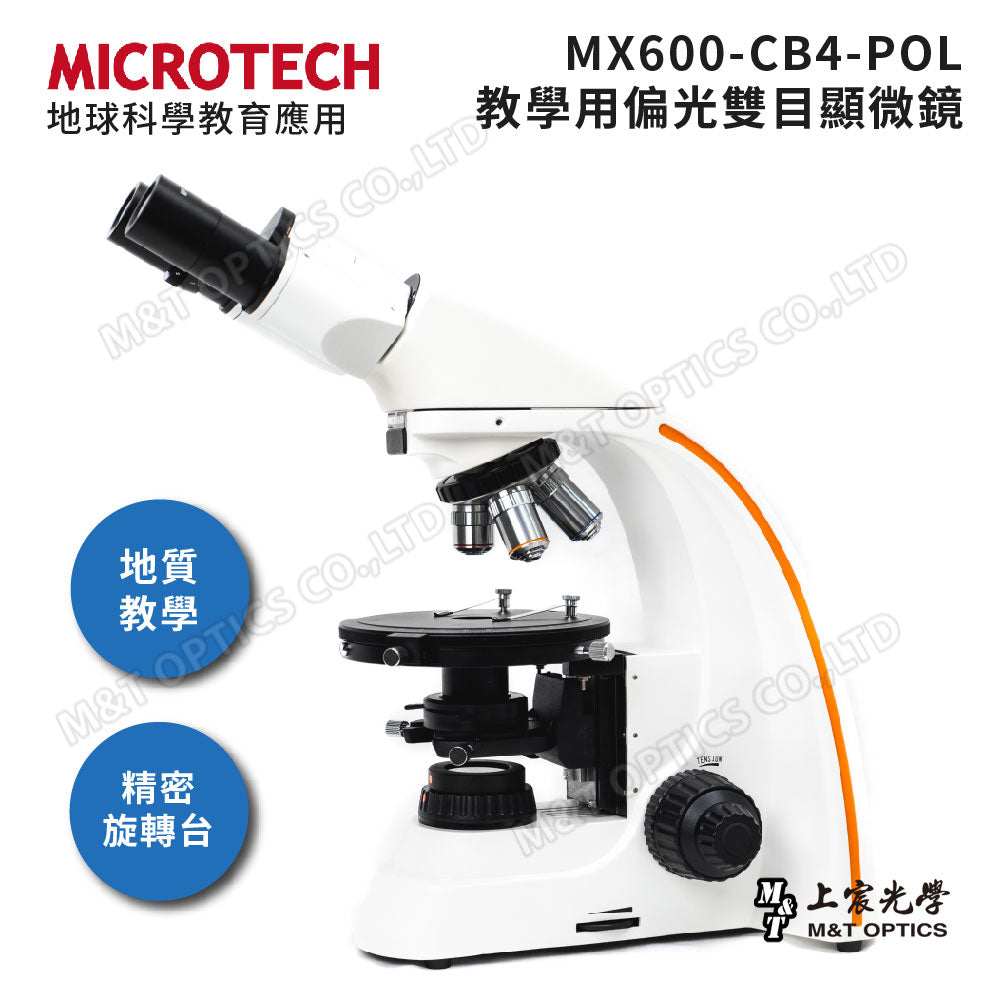

Tailored for geology and earth science education

In earth science and geology teaching practice, polarizing microscopes are used to analyze rocks, minerals, and core samples. This helps identify different types of minerals, understand the history and geological processes of rocks, and study the Earth's structure. MICROTECH MX600-CB4-POL is equipped with a high-resolution infinity parallel optical system objective lens and a ring-shaped polarizing stage to allow the operator to rotate the specimen smoothly and carefully observe the sample response under different angles of light transmission. The large field of view eyepiece enables wide vision and clear imaging. The ergonomic focusing mechanism design allows both hands to be placed flat on the table to adjust focus. The inverted nose wheel and built-in carrying handle make the appearance more concise and easy to move and store. Suitable for earth science research, materials science education, geology and other application fields.

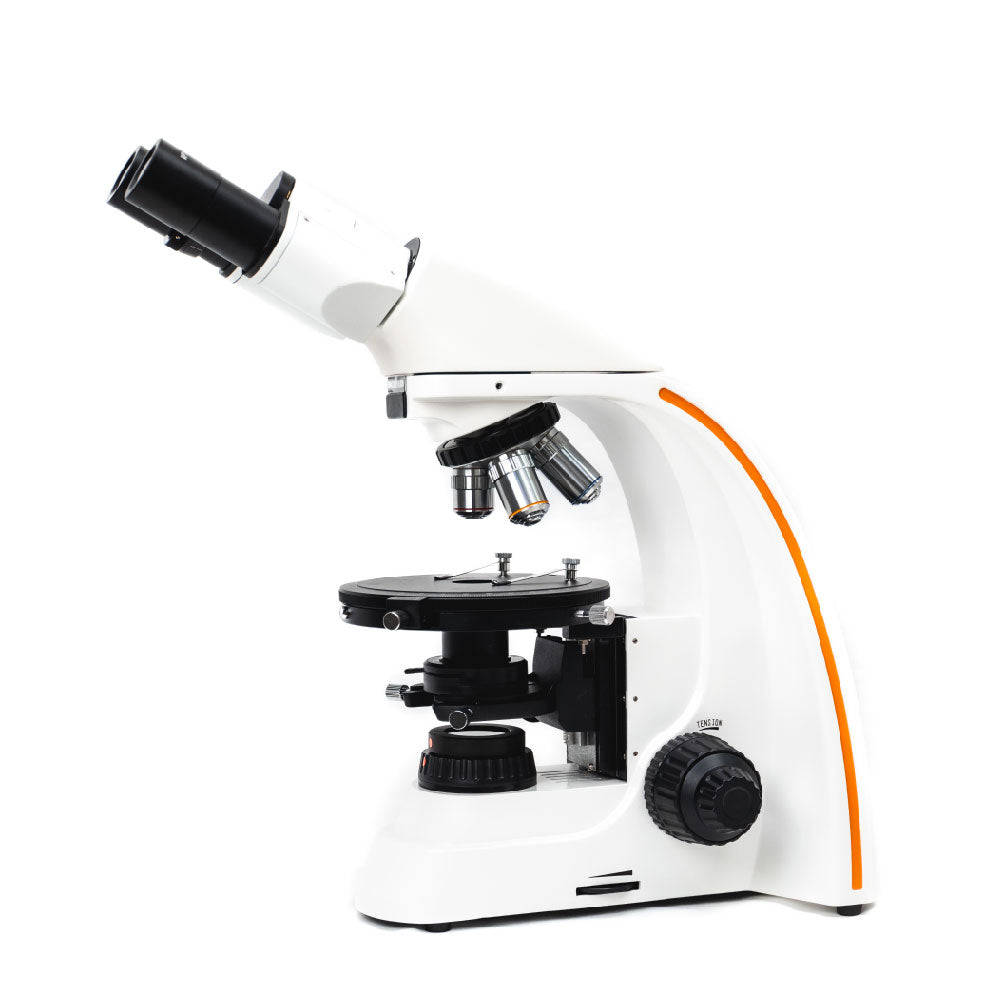

Integrated body and curved design lens body

Cut with generous curved surfaces and cast in one piece, the structure is solid and stable. There is a handle design on the rear of the fuselage, making it easy to move without any difficulty. Many equipments adopt modular design and can be easily upgraded!

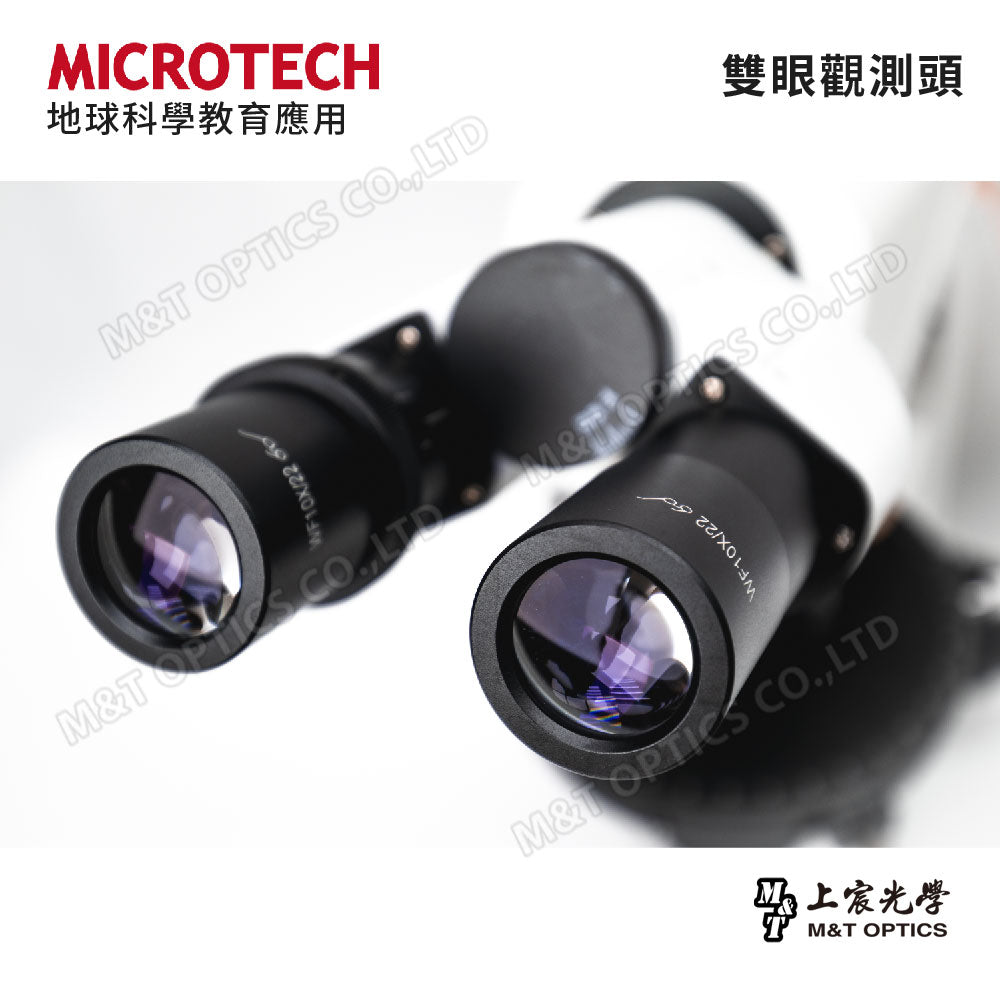

Binocular observation head, large field of view eyepiece

Comfortable observation experience, long-term observation without fatigue, suitable for education and academic research.

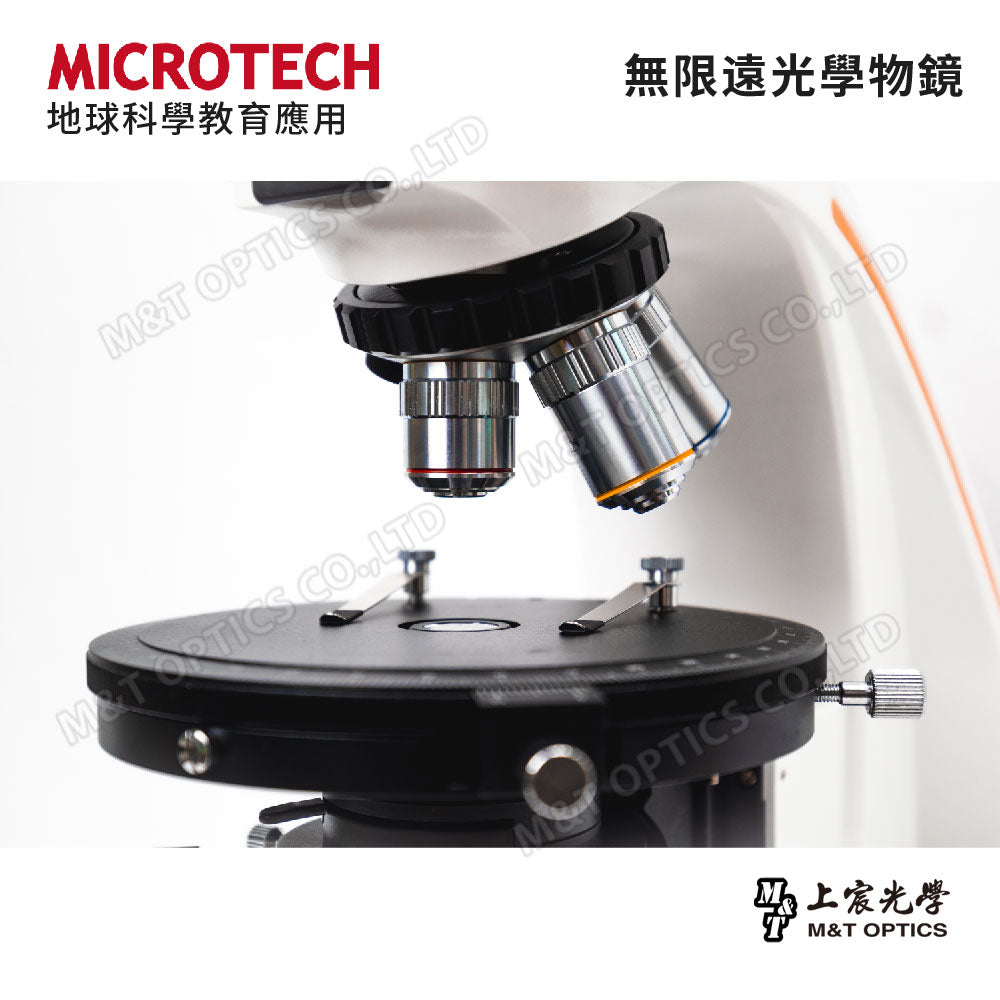

High-end precision nose wheel system

The inward-inclined nose wheel structure can avoid collision and contamination of the mirror. The five-hole design allows for more objective lenses to be installed, and a polarizing device can be added.

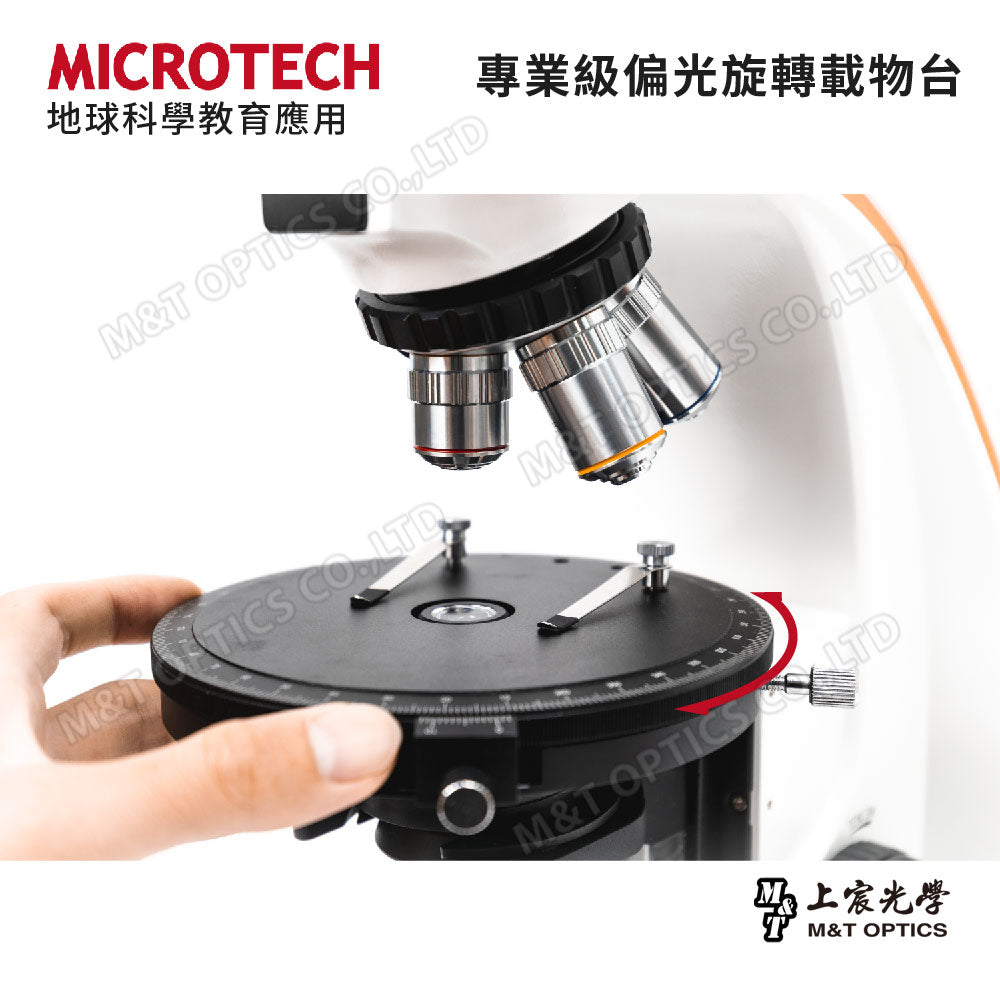

Professional grade rotating stage

The rotating sample stage of a polarizing microscope is crucial, allowing the research observer to precisely rotate the sample to change the viewing angle, which is very important for observing all directions of the crystal. The rotating stage of the MX600 is made of all-aluminum alloy CNC precision machining and equipped with ball bearings. The platform and fixture are sturdy and durable, and the operation is smooth. The center of the rotation circle can be precisely adjusted, allowing the operator to operate the rotation carefully and observe the subtle differences in light angles of the sample. image effect. There are marked scales on the edge of the turntable, allowing you to easily quantify operations and keep observed experimental results accurate and consistent.

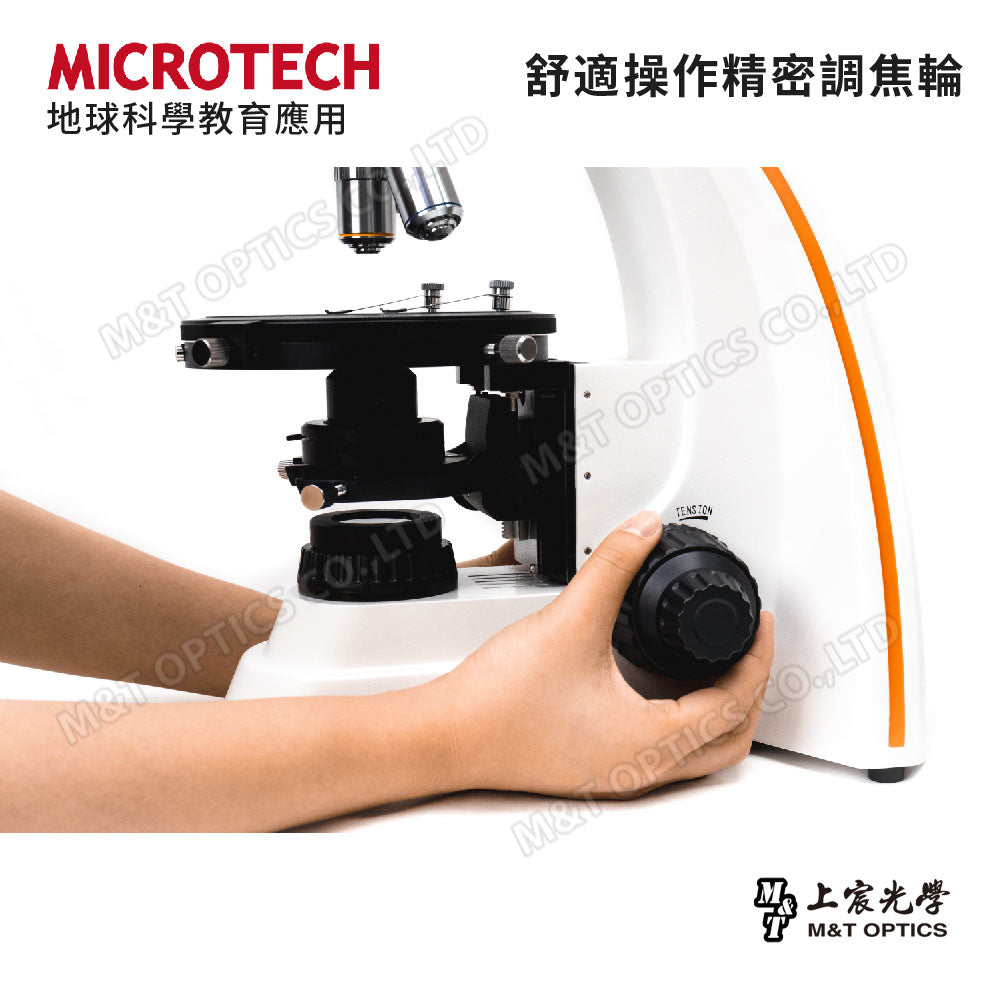

Ergonomic and precise focusing system

The coaxial thickness adjustment wheel with a precision of 2um allows the hands to be placed flat on the table to adjust the focus to ensure the stability of long-term operation. It is thoughtfully equipped with a lifting safety limit device and a focus damping control wheel to make experimental work more comfortable and safe.

Concentrators and lighting systems

The lighting system can be raised and lowered and the aperture can be adjusted to allow users to adjust the depth of field and lighting range according to their observation needs, highlighting the details they want to observe.

Observation examples

Rock thin section specimen

MICROTECH MX600 series product system diagram
