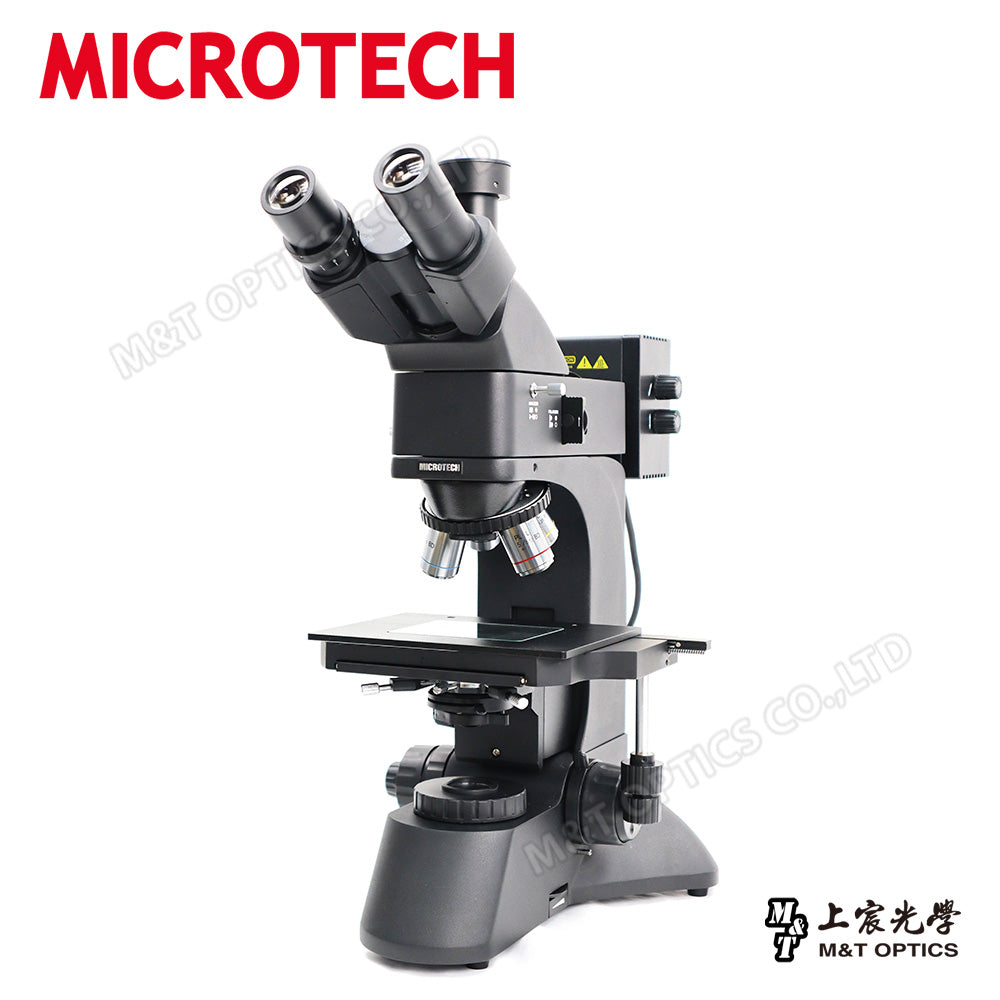

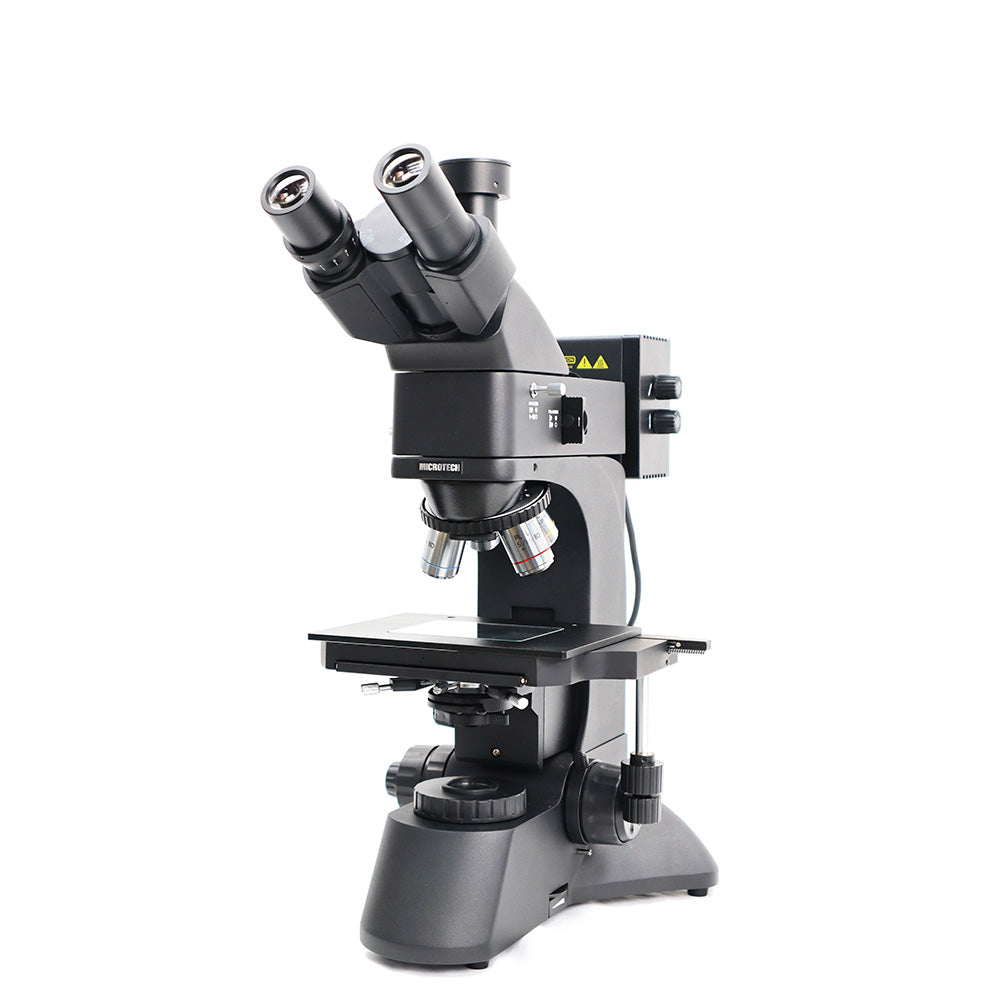

MICROTECH MX53 series upright metallographic microscope is suitable for microscopic observation of opaque or transparent objects without a cover glass.

Adopting an excellent infinity optical system and modular functional design concept, it can provide excellent optical performance and system upgrades, and realize functions such as synchronized transmission and reflection or independent illumination, polarized light observation, and dark field observation.

With easy operation and clear images, MX53 is an ideal instrument for industrial and research fields such as metallurgy, mineralogy, precision engineering, and electronics.

● MX53-RF bright field metallographic microscope

Transflective upright metallographic microscope, using independent illumination of transmission and coaxial reflection. There are two lighting modes: transmission and coaxial reflection, and the power switch can be quickly changed. Suitable for microscopic observation of surface geometry and organization of opaque objects or transparent objects.

Suitable for observation: semiconductors, panels, PCBs, materials, electronics, micro-machining, metals, electroplating, gems, minerals and other industries.

The infinity parallel optical system can clearly observe the microstructure of the object's surface, effectively improving high-magnification analytical capabilities.

MICROTECH MX53-RF brightfield metallographic microscope has excellent quality and high compatibility. It is very suitable for use in academic research, quality assurance research and development, and industrial production lines. Shangchen Optical Engineering Department provides various modification and upgrade technical support.

Product specifications

model	MICROTECH MX53BD
Product Code	2241200202
Optical system	Infinity parallel optics, with coaxial epi-optical path and transmitted optical path
magnification	50-500x
Observation head	Trinocular observation head, 30-degree tilt, interpupillary distance adjustment range 5375mm, parallax adjustment ±5 diopters (left eye)
eyepiece	WF10X (field of view Φ22mm)
Connect objective lens	BD PLL5X／0.12 WD＝9.7mm｜BD PLL10X／0.25 WD＝9.3mm｜BD PLL20X／0.40 WD＝7.23mm｜BD PLL50X／0.70 WD＝2.50mm
nose chakra	Five-hole inward tilting type
Focusing system	Coarse and micro motion coaxial focusing, with locking and limiting device, micro motion grid: 2μm
Stage	Double-layer mechanical mobile stage, overall dimensions: 210mmX140mm, moving range: 75mm X 50mm
Transmitted light source	HAL halogen lamp 12V/50W
epi light source	HAL halogen lamp 12V/50W
Polarizing system	have
power supply	AC 110-240V 3A
physical dimension	526x250x280mm
Warranty	one year
