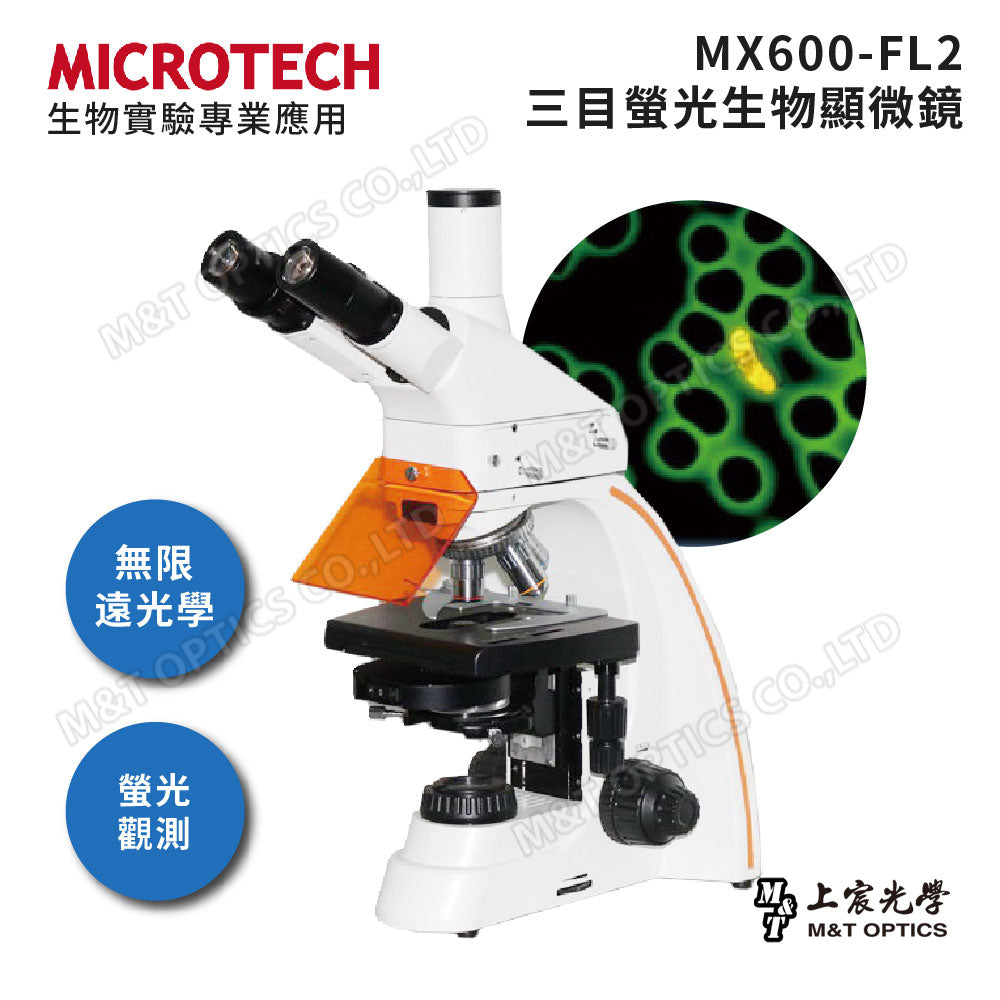

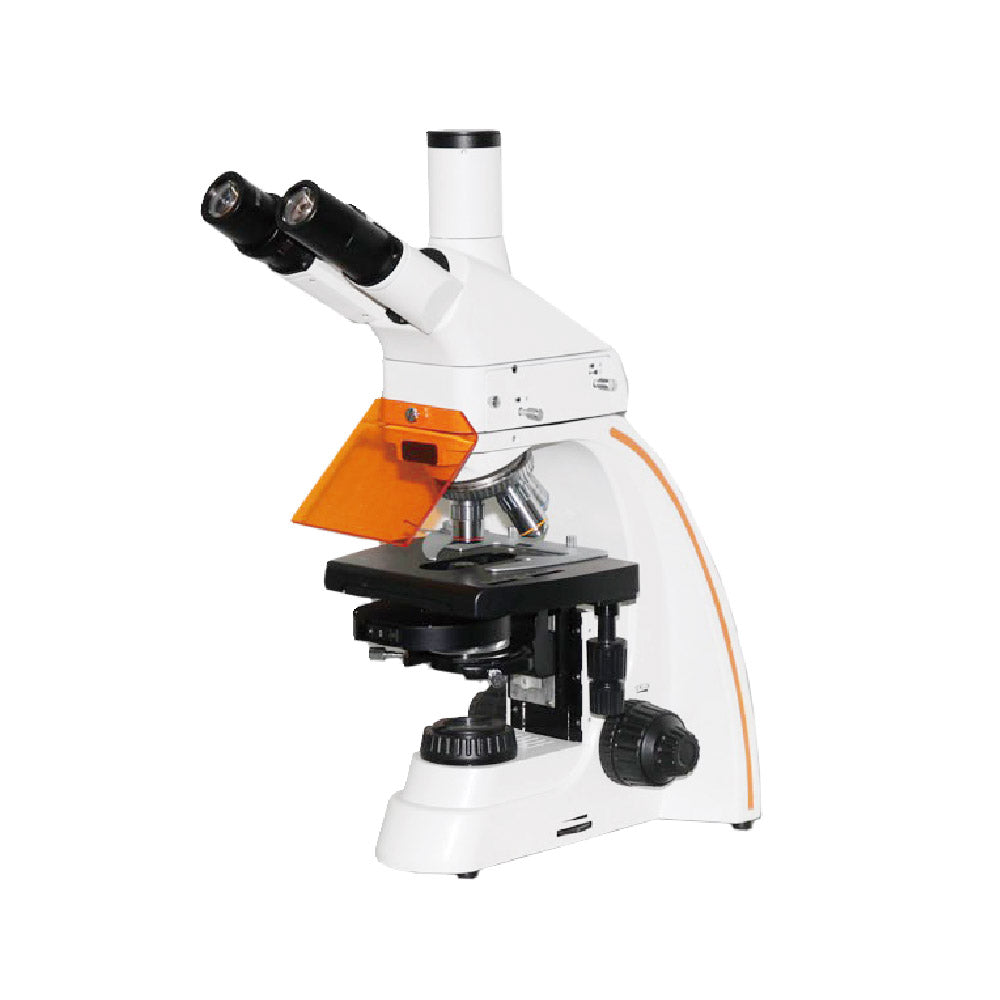

MICROTECH MX600-FL2.BG/UV - Original factory warranty for one year
Order number
Couldn't load pickup availability
Product specifications
| Optical system | ∞Infinite parallel optics |
| magnification | 40X～1000X |

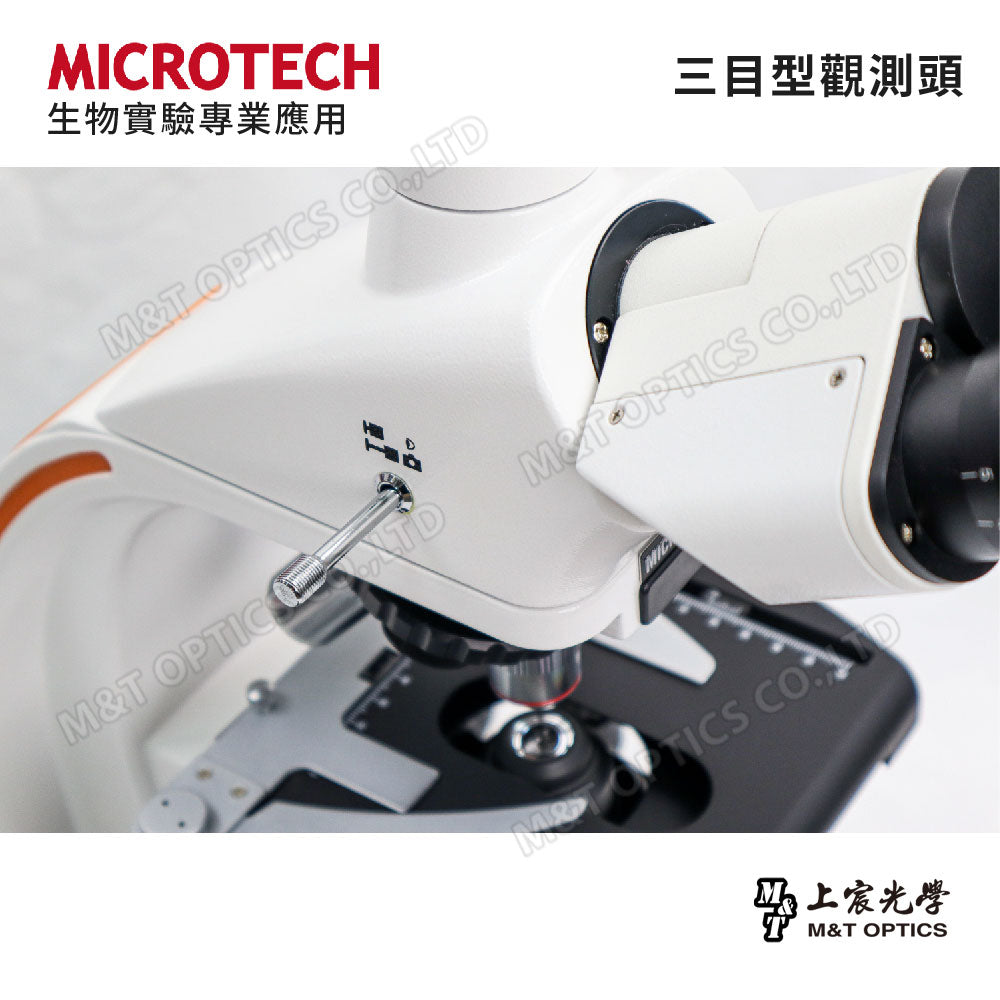

| Observation head | Trinocular type, 30 degree inclination angle |
| eyepiece | WF10X field of view φ22mm 2 pieces |

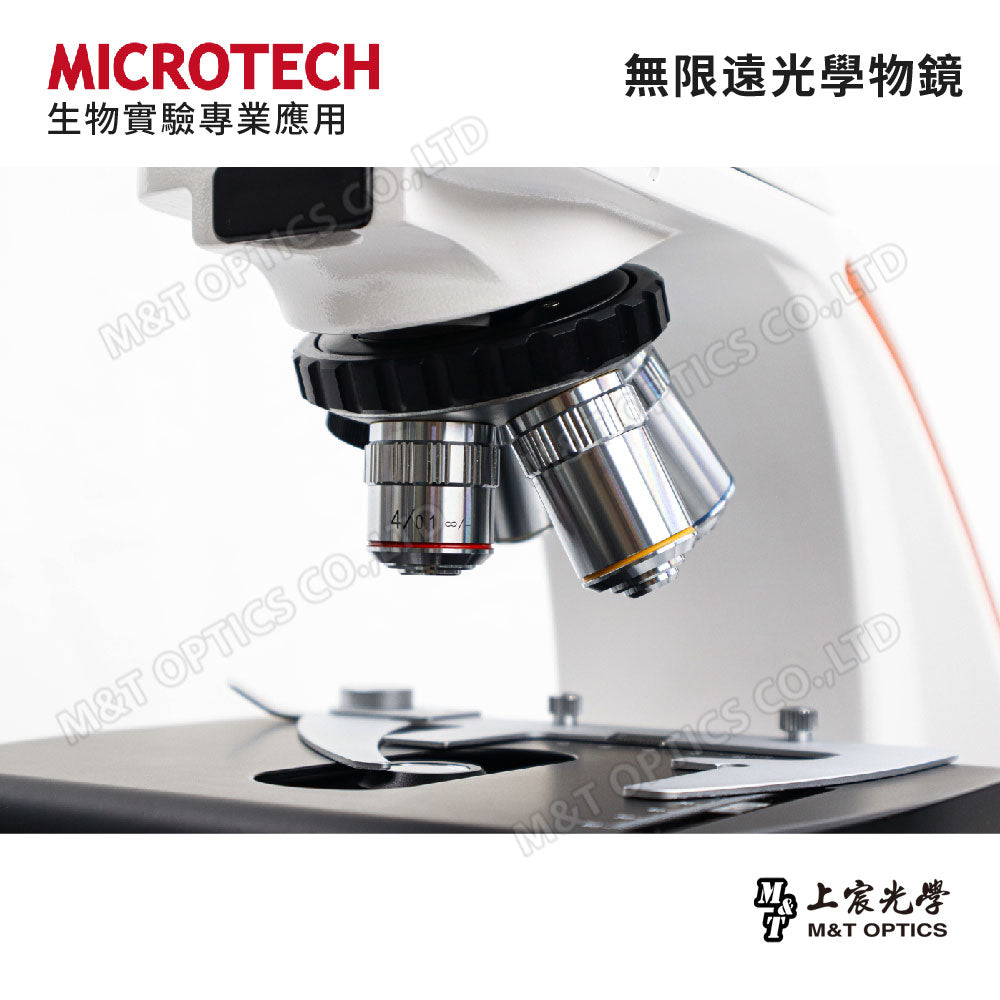

| Connect objective lens | Infinity plan achromatic objective lens PL4X0. 10∞0.17, WD19.8mm PL10X0.25∞0.17, WD5mm PLFL40X0.85∞0.17, WD0.42vmm PL100X1.25∞0.17, WD0.36mm |
| nose chakra | Five-hole retractable type, built-in polarizer extraction slot. |

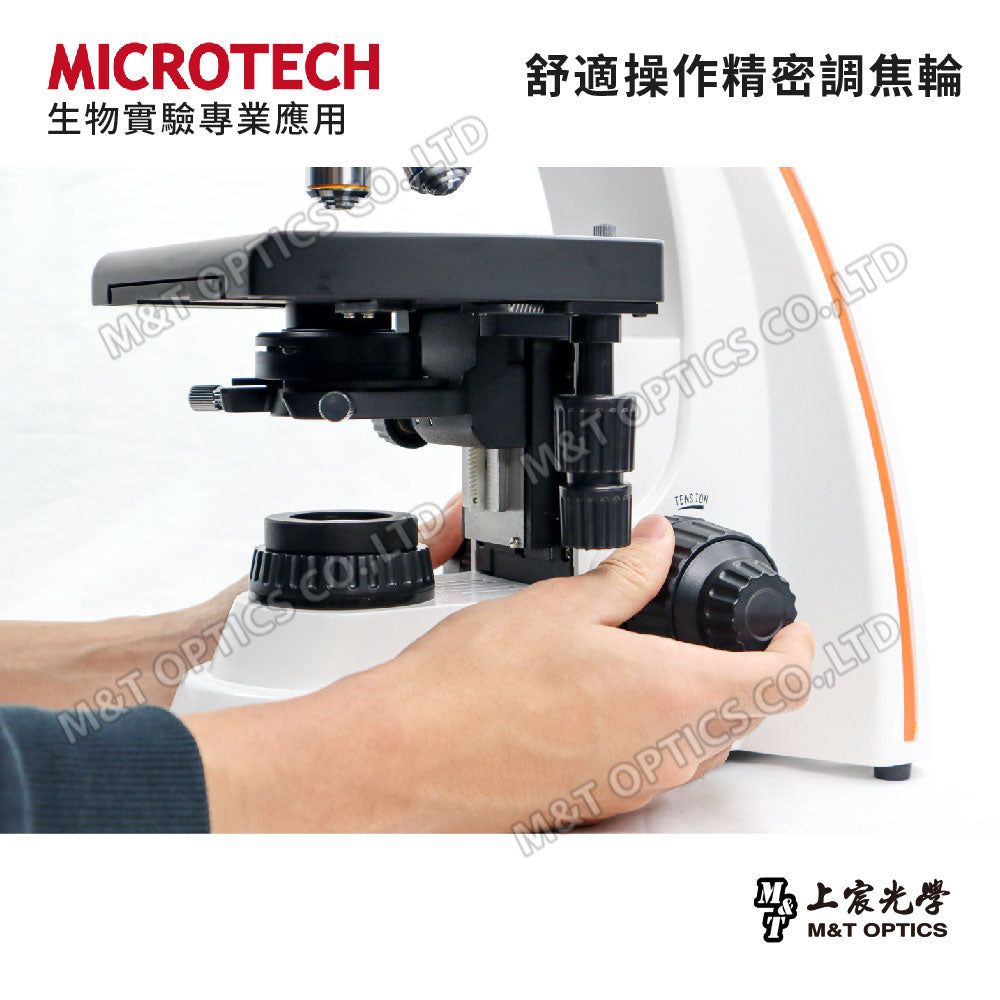

| Focusing system | Coarse and micro-motion coaxial type, with locking wheel and limit wheel, micro-motion grid value accuracy 2μm. |

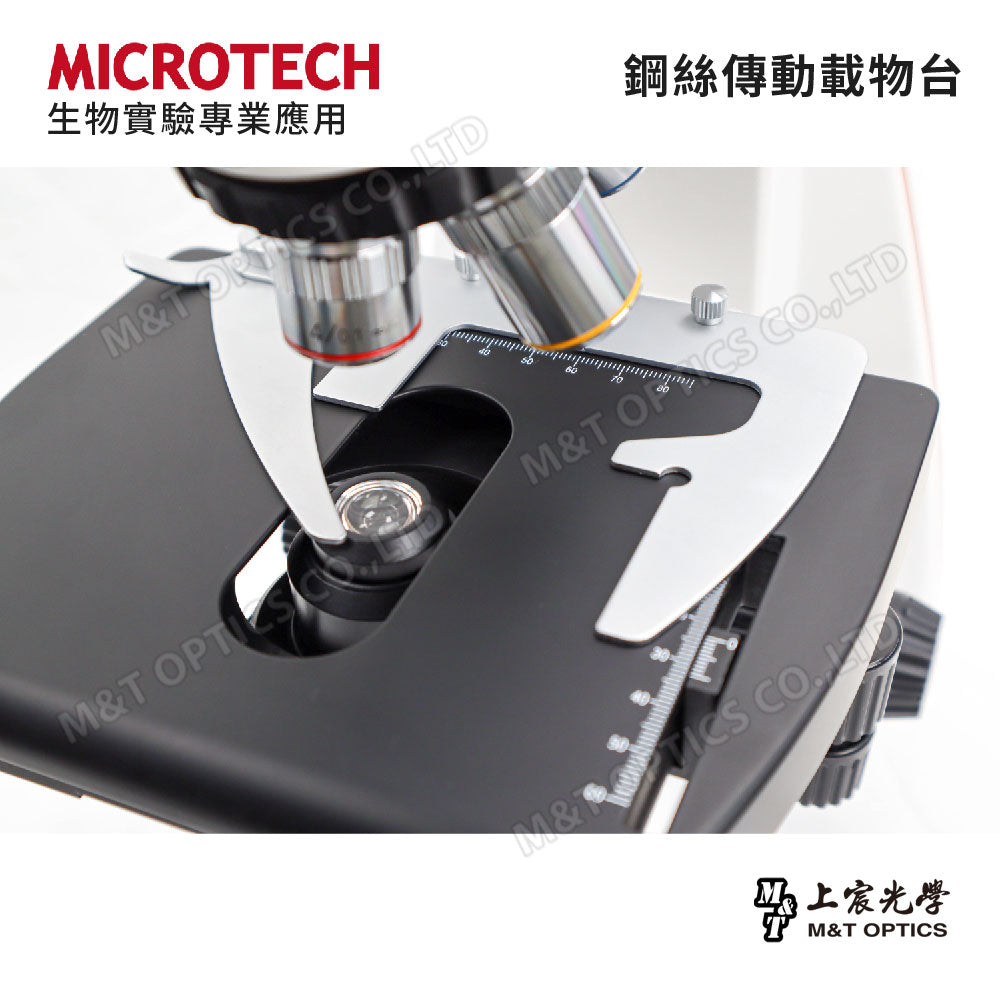

| Stage | The latest steel wire traction transmission XY axis, no exposed rack, no need to add a cover, ceramic-coated flat and non-protruding table size 180mm140mm, slide clamp micro-motion stroke 7550mm. |
| Transmitted light source | The white light 5W LED has adjustable brightness and a color temperature of 6000K. |

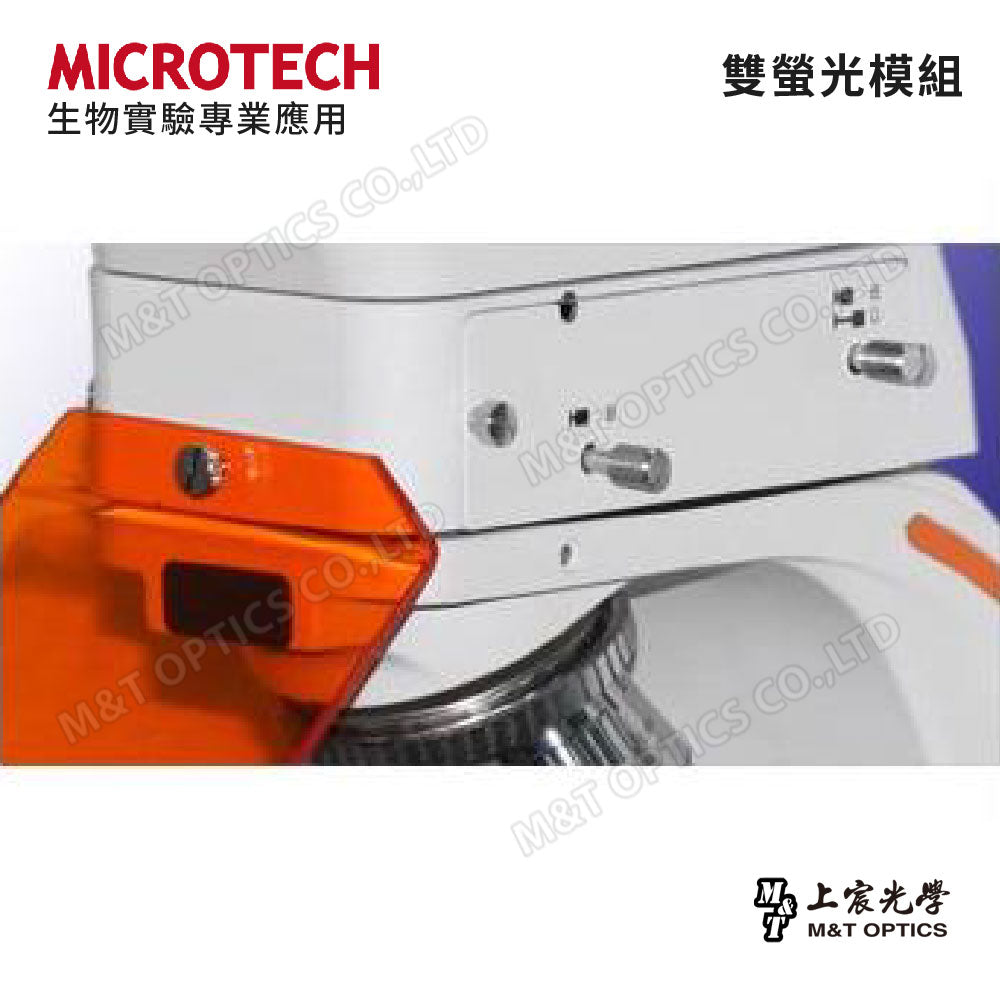

| epi light source | LED epi-fluorescence lighting system (choose one of two), B and G two-bands/V and UV two-bands |
| Fluorescent module | B excitation wavelength 420nm at 485nm, emission wavelength 515nm G excitation wavelength 460nm at 550nm, emission wavelength 590nm/UV excitation wavelength 330nm at 400nm, emission wavelength 425nm V excitation wavelength 395nm at 415nm, emission wavelength 455nm |
| power supply | 100－240V 50/60Hz |
| physical dimension | 400 (L) * 200 (W) * 490 (H) - 458 (eye height) mm |
| Warranty | one year |
