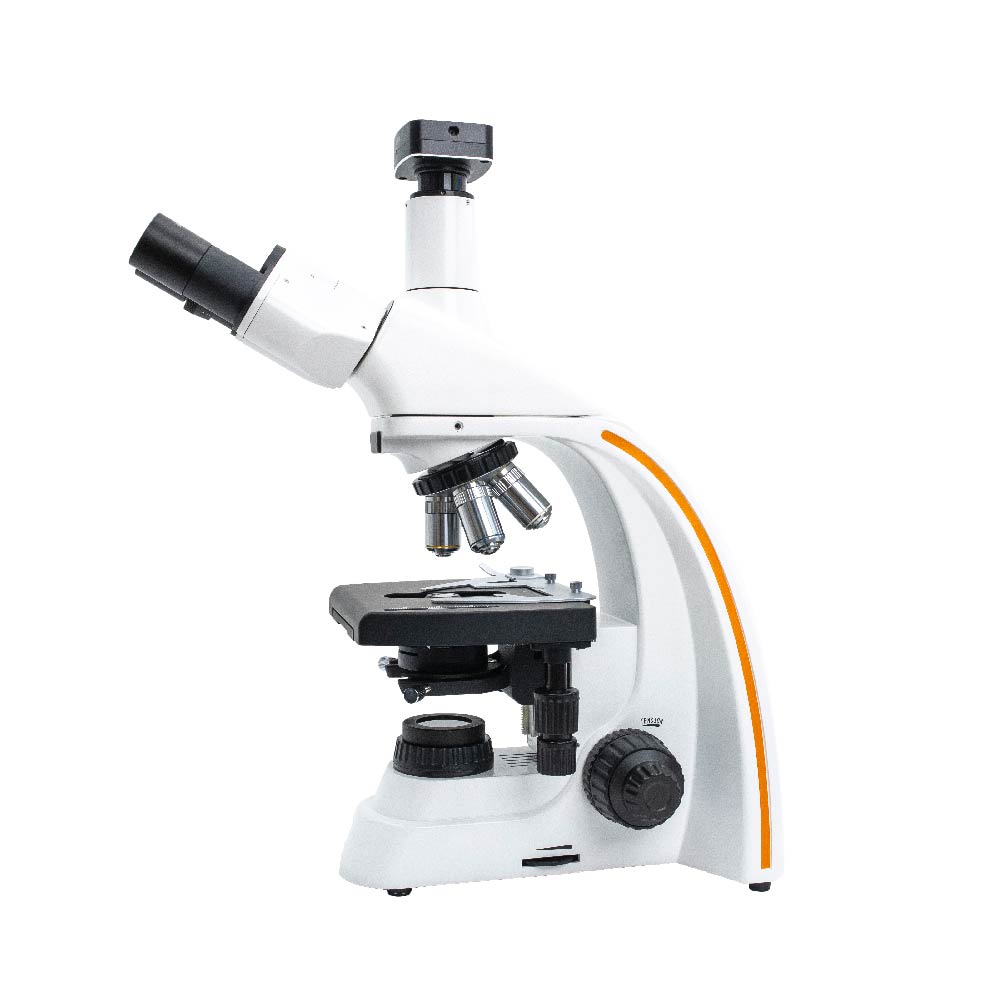

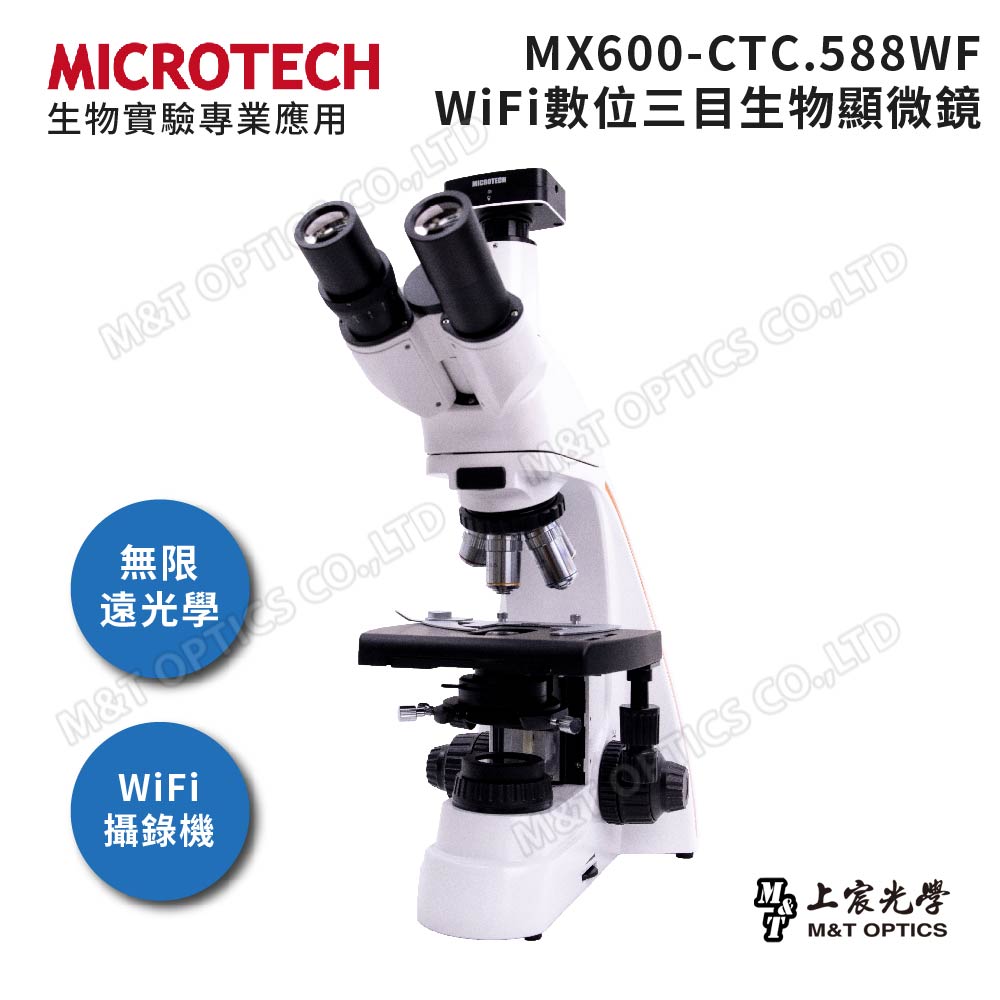

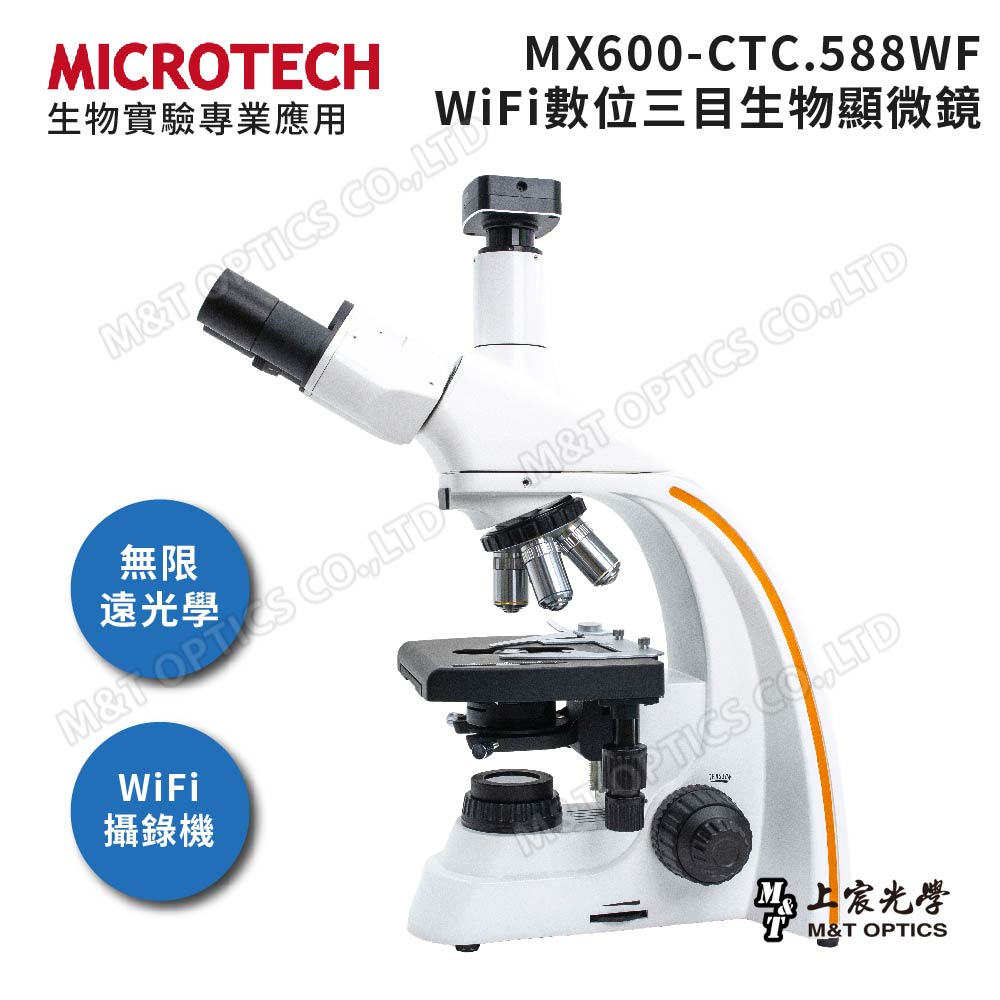

MICROTECH MX600-CTC.588WF wireless WiFi photography compound microscope-original factory warranty for one year
Order number
2241200165
Couldn't load pickup availability
Product specifications
| Standard equipment | MX600-CT.C microscope set, C-MOUNT adapter, camcorder power supply DC5V 2A, USB cable (Type A to Type B), wireless camcorder body |
| Optical system | ∞Infinite parallel optics |
| eyepiece | WF10X field of view φ22mm pair |

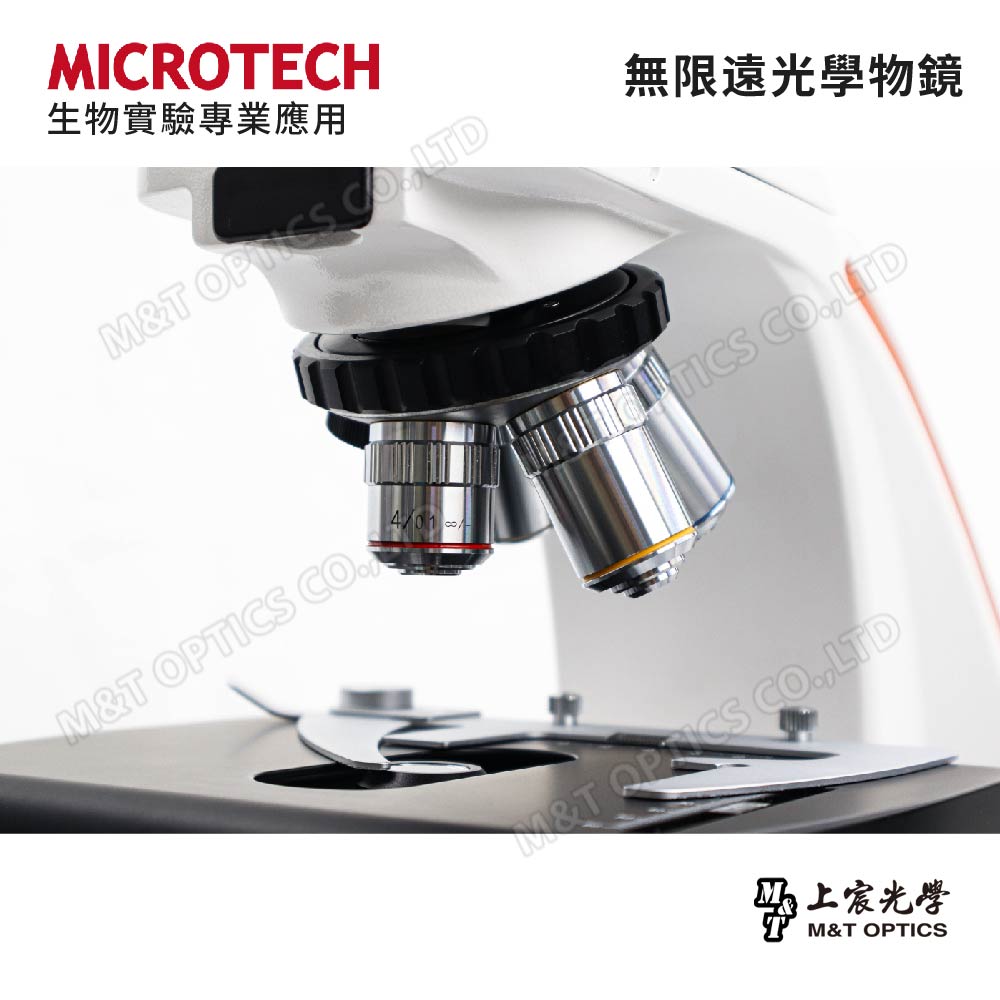

| CPC objective lens | 4X/0.10—∞/0.17. 10X/0.25-∞/0.17. 40X/0.65-∞/0.17. 100X/1.25-∞/0.17. |

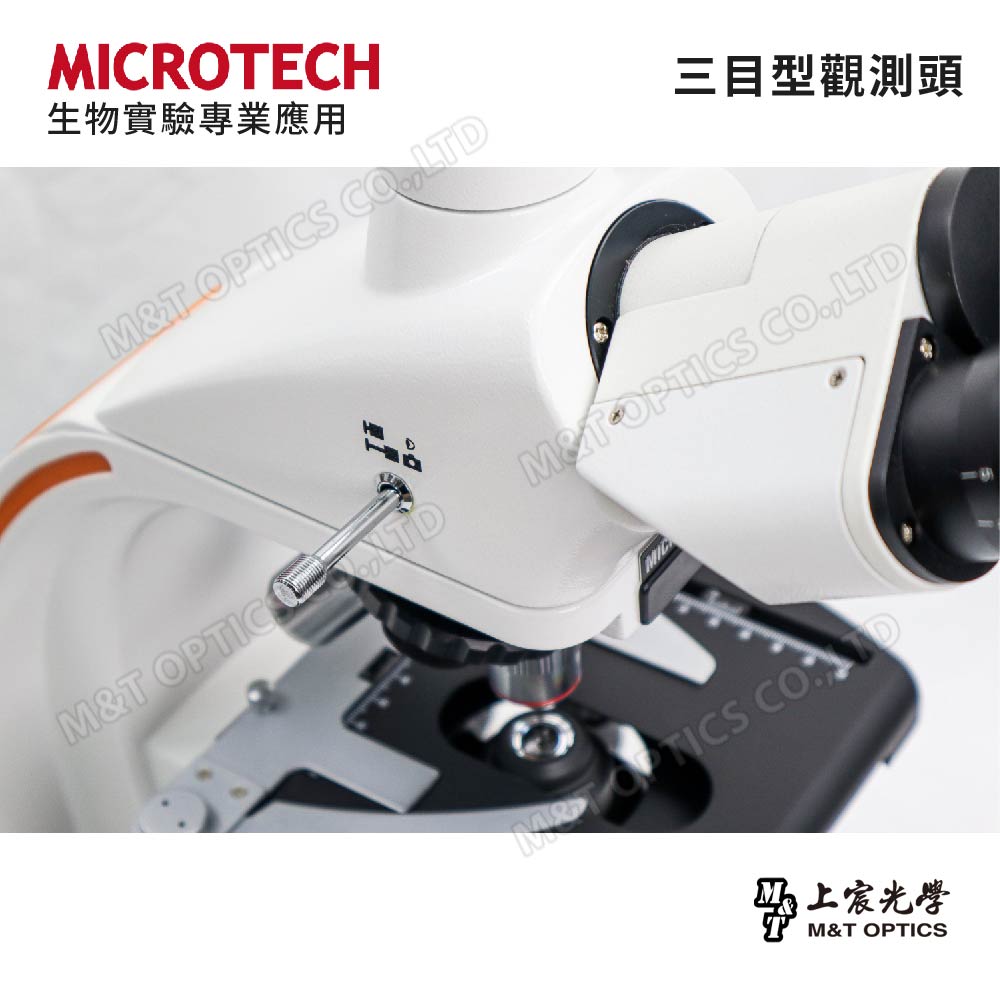

| eyepiece tube | Trinocular split ratio 100, tilt 30 degrees, interpupillary distance adjustment range 53~75mm |

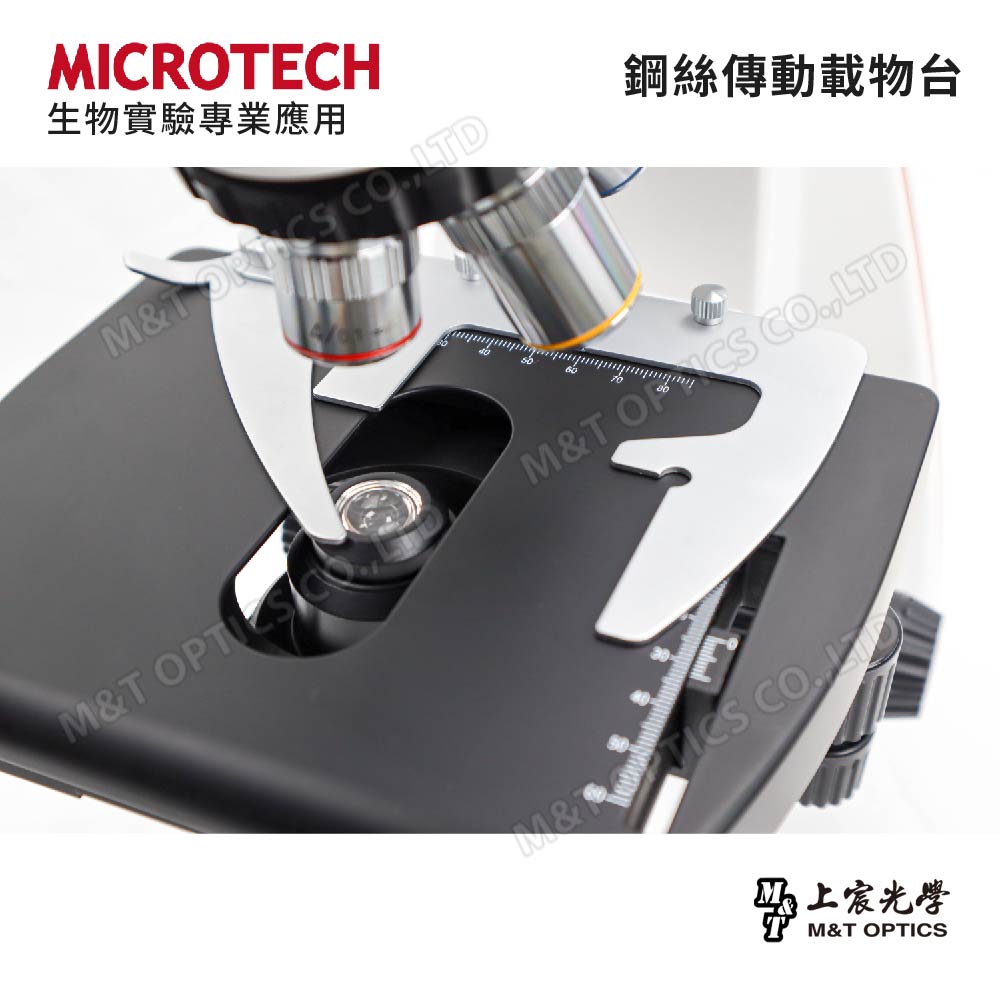

| Wire driven stage | Size 180x140mm, stroke 75x50mm, no rack exposed |

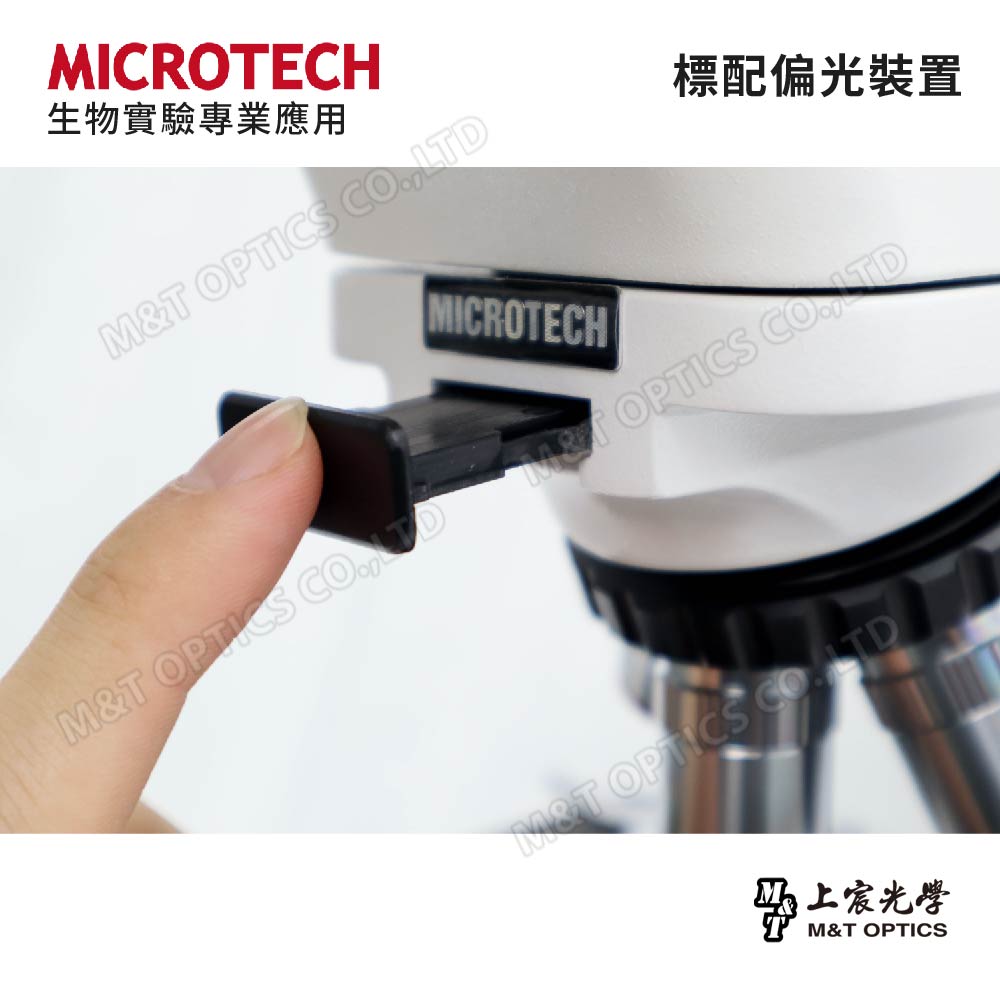

| nose chakra | Five-hole retractable nose wheel converter, equipped with a simple polarizing analyzer. |
| Transmissive Abbe condenser | NA=1.25, adjustable up and down, built-in field diaphragm |
| transmitted light source | White LED brightness adjustable |
| transmission filter | Frosted glass x1 |
| light collector | Transmissive plano-convex lens system, adjustable Kohler light field, attached with simple polarizer |
| Appearance size mm | 400x200x436mm eye height 404mm |
| power supply | Universal wide voltage type 85～265V, 50～60Hz |
| Camcorder picture quality | 8 million pixels |
| Photosensitive element size | 1/18" |
| output | Wirelessly connect to computers and mobile devices, and can also switch USB inputs |
| Compatible system | iOS, Android, Windows |

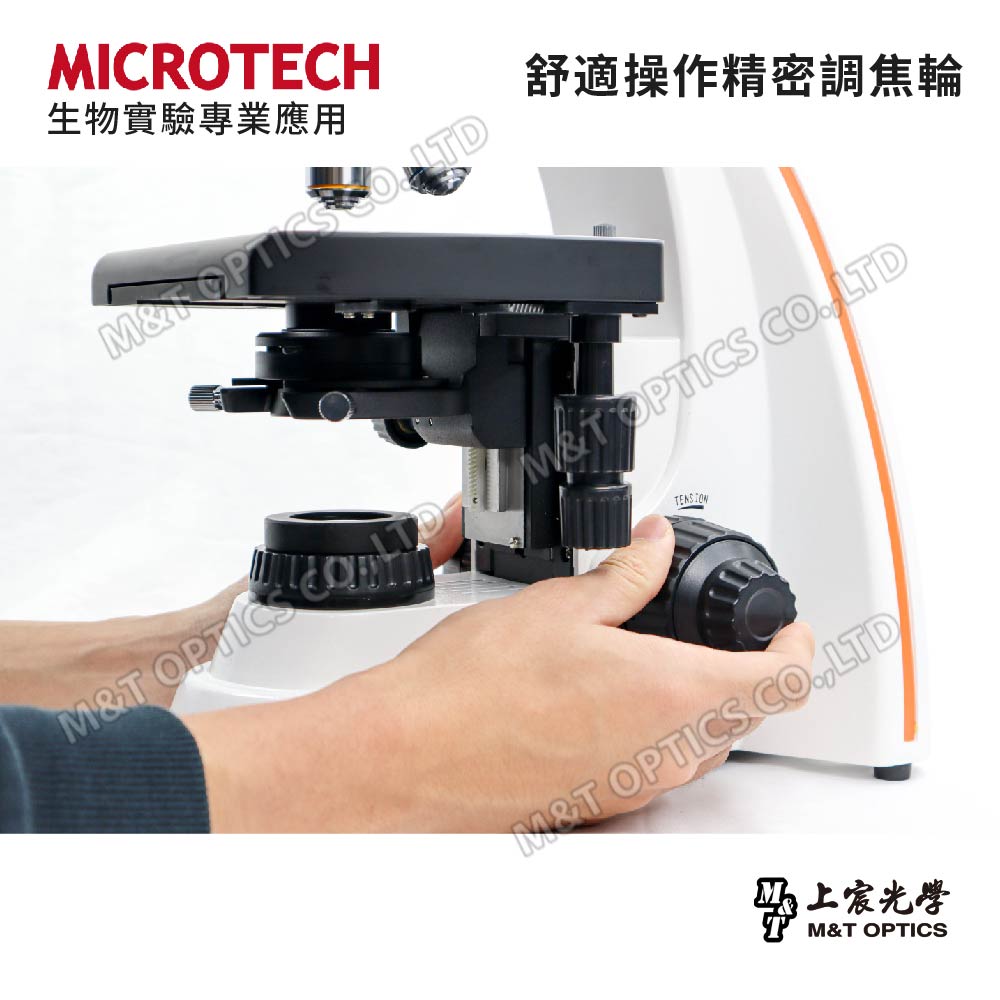

| focusing | Can be directly parfocal with the eyepiece without additional adjustment |
| photography | Video microscopic images can be taken |
| Measure | You can add the Windows version V5 software for purchase |
