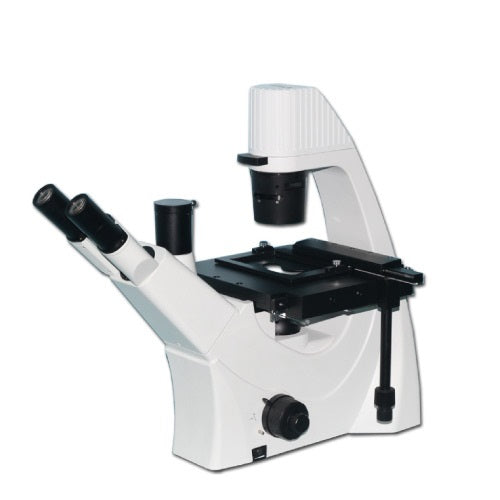

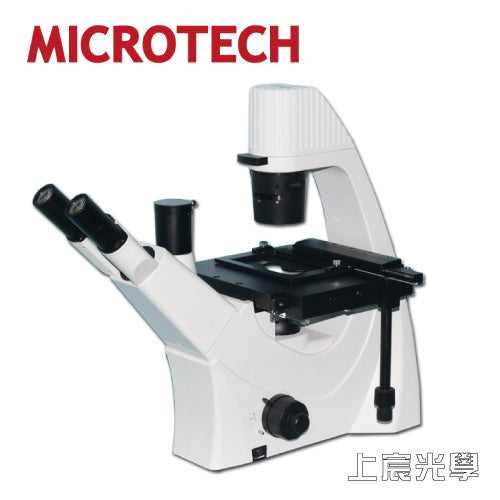

Inverted biological microscope adopts excellent infinity optical system to provide excellent optical performance. The streamlined design concept and the compact and stable high-rigidity mirror body fully demonstrate the anti-vibration requirements of microscopic operations. The ultra-long working distance focusing system can conduct contamination-free observation of cultured cells in tall petri dishes or cylindrical flasks. The 9W-LED lighting system has excellent heat dissipation and safety. The ergonomic design concept makes operation more convenient and comfortable. Safety. The phase difference device is attached to the condenser light path and can be used for phase difference microscopic observation. This instrument can conduct microscopic observation of cell tissues, transparent liquid tissues, and dynamic microscopic observation of cultured tissues in petri dishes. It can be used in scientific research institutes, universities, medical and health, inspection and quarantine, and dairy agriculture. and other departments.

Positive phase photo

System size

Product specifications

Optical system	Infinity parallel optics
eyepiece	WF10X/field of view 22mm 2 pcs, phase difference correction eyepiece 1 pc
condenser	Long working distance WD70mm condenser with built-in phase difference ring plate
Inverted phase contrast objective lens	MXK/PHP-PLL5X/0.10, unlimited/-, WD=26.1mm. |MXK/PHP-PLL10X/0.25, unlimited/1.2, WD4.27mm. |MXK/PHP-PLL20X/0.40, unlimited/1.2, WD=8mm. |MXK/PHP-PLL40X/0.60, unlimited/1.2, WD=3.5mm.
Trinocular eyepiece tube	The tilt is 45 degrees, the interpupillary distance range is 48~75mm, and the height from the eye point to the stage is 400mm.
Light path spectrophotography design	100 switching beam splitting holes can be used to install photography equipment.
Coarse and fine coaxial focusing	Equipped with locking and limiting devices, the micro-movement value is 2μm, and the focusing stroke is 11mm.
nose chakra	Five hole nose wheel converter
Fixed stage dimensions	227mmX208mm
Glass round stage plate dimensions	Diameter 118mm
Mechanical moving dimensions	Movement range: 79mm vertically and 112mm horizontally
Petri dish tray one	Size 86mm*129.5mm, can be equipped with round petri dish Ø90.5mm.
Petri dish tray 2	Size 34mm*77.5mm, can be equipped with round petri dish Ø68.5mm.
Petri dish tray three	Size 57mm*82mm, can be equipped with round petri dish Ø60.5mm.
transmitted light source	9W LED light with adjustable brightness and front light bar
transmission filter	One frosted glass and one blue filter
