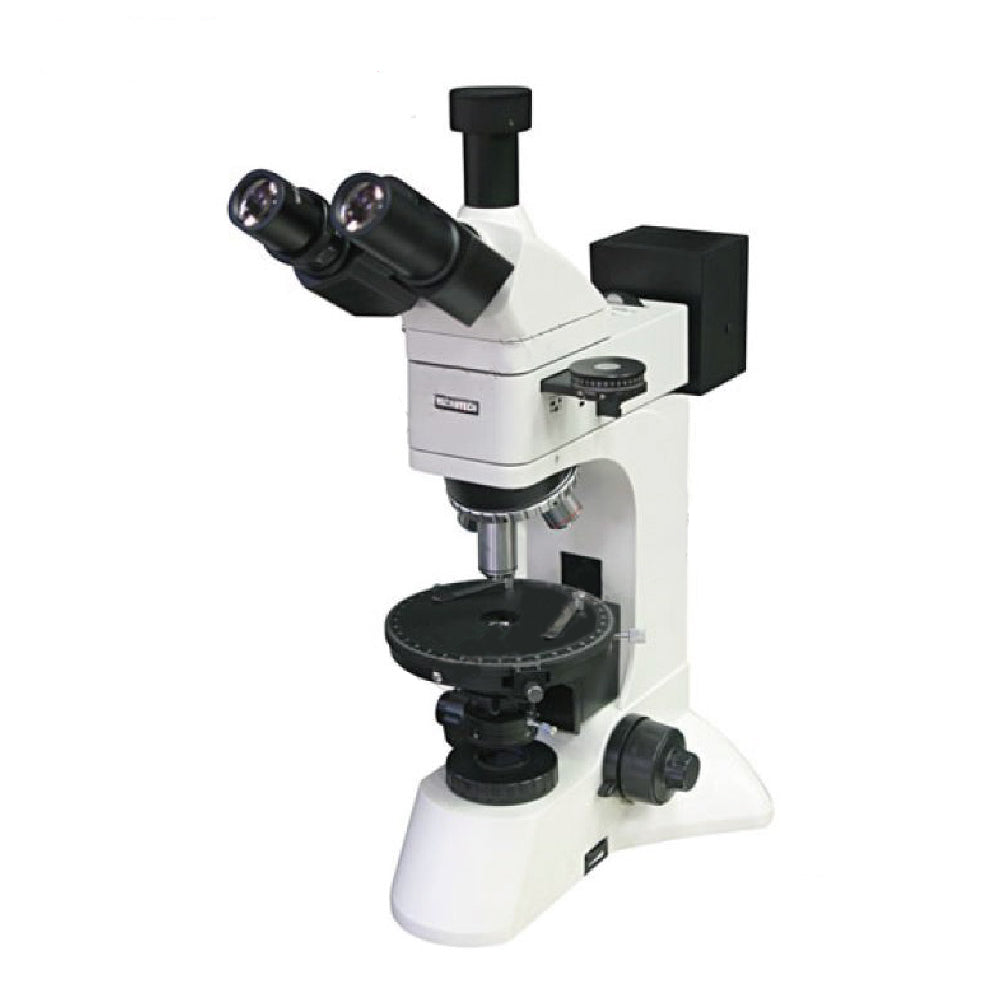

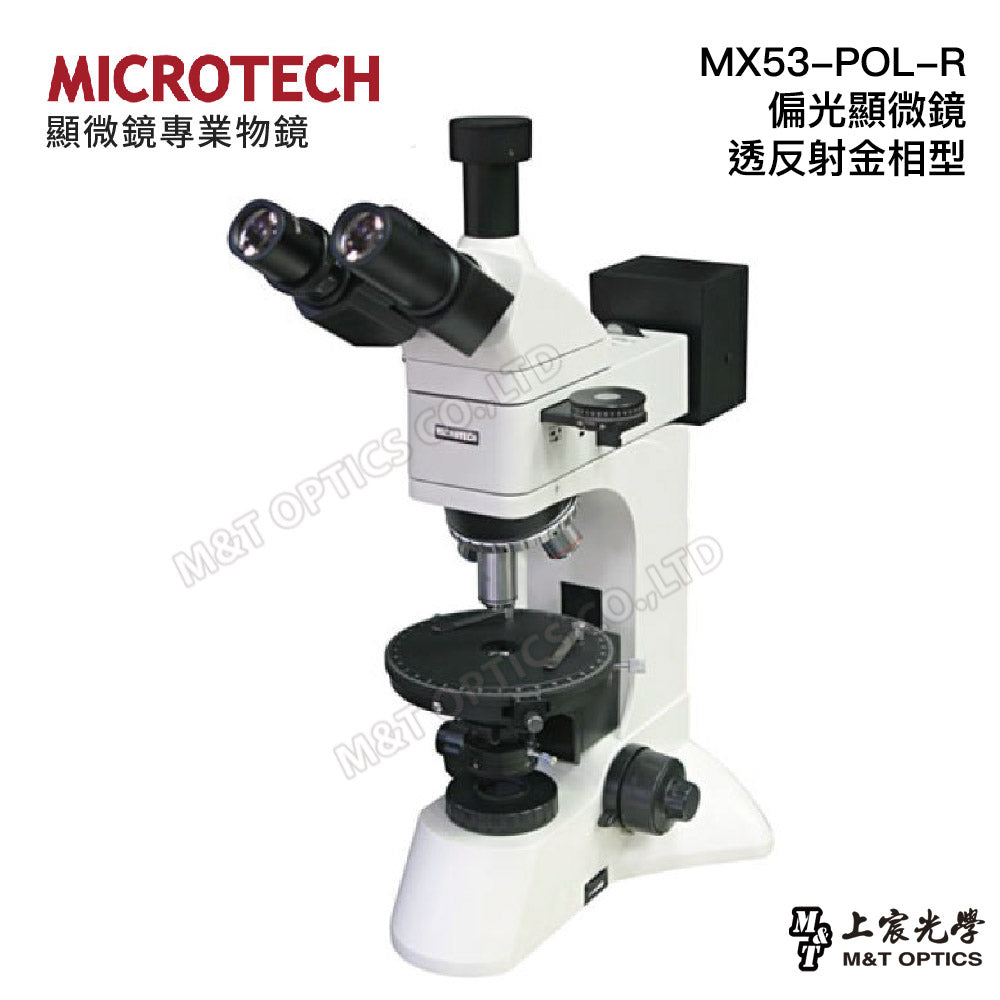

MICROTECH MX53-POL-R polarizing microscope-transflective metallographic type-original factory warranty for one year
Order number
2241200045
Couldn't load pickup availability
Product specifications
|
brand
|
MICROTECH |
| Optical system | Infinity parallel optics, with coaxial incident light path and transmission light path. |
| eyepiece tube | Trinocular 30-degree tilt angle, 100-degree beam splitting, adjustable interpupillary distance and eye height adjustment |
| Bertrand mirror | Push-in center correctable. |
| Compensator | λ, 1/4λ, quartz compensator (one each). |
| eyepiece | 2 WF10X/22 wide field eyepieces, 1 WF10X/22R cross scale eyepiece |
| Stress-free plan polarizing objectives | Stress-free POL cover glass-free polarizing objective lens PLL5X, PLL10X, PLL20X, PLL50X |
| epi-illumination | 10W white LED with adjustable brightness, built-in field diaphragm, aperture diaphragm, (yellow, blue, green, frosted) color filter turntable, 360-degree polarizer and 360-degree analyzer scales and indicators |
| transmitted illumination | White LED light source, 360-degree rotatable transmission condenser NA1.25 with aperture |
| Focusing mechanism | Thickness and fine adjustment coaxial handwheel with tightness adjustment, micro-movement accuracy 0.2um |
| POL correctable nose wheel | Retractable ball positioning, objective lens fine adjustment mechanism |
| size | 526mm (H) x 250mm (W) x 280mm (D) |
| Polarizing stage | Diameter: 150mm |
| Stage moving ruler (optional) | Slide travel 30 x 25mm |
| power supply | Universal wide voltage type (85-265V, 50/60Hz) |
| Warranty | one year |
