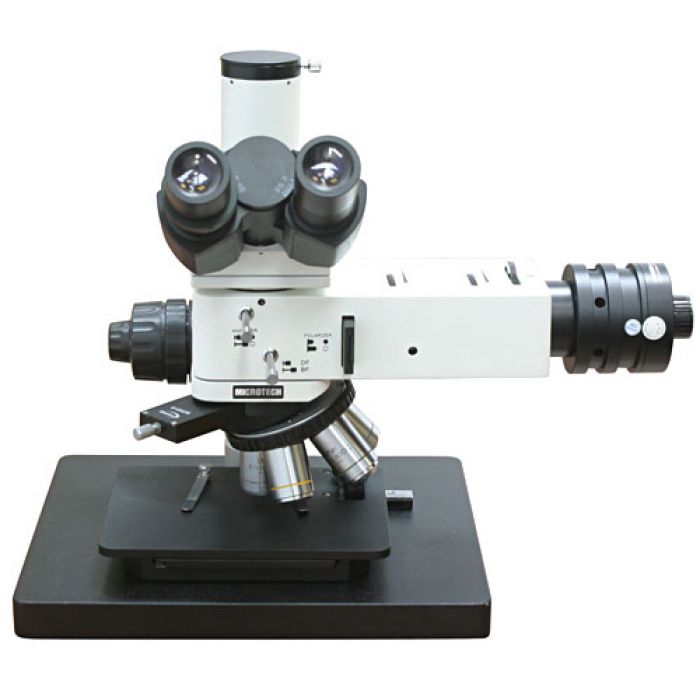

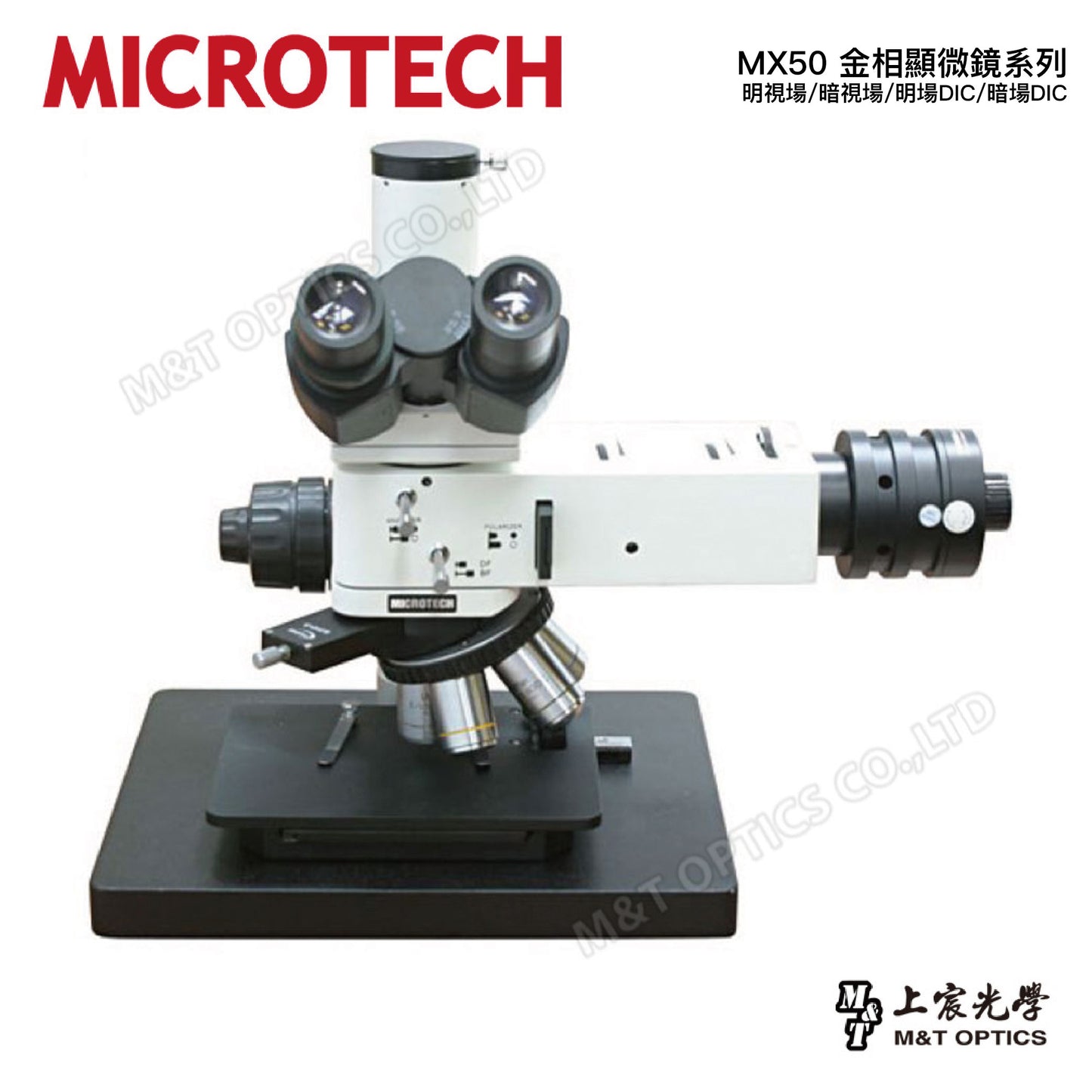

Industrial R&D tool

Suitable for semiconductor, panel, PCB, materials, electronics, micro-processing, metal, electroplating, gemstones, minerals and other industries. The latest infinity parallel optical system can clearly observe the microstructure of the surface of an object. The modular optical assembly mechanism makes it easy to upgrade the system and is suitable for modification to work machines. Whether it is polarized observation, DIC observation, light and dark field observation and other functions, you can observe details through the purchase of components. With excellent quality and high compatibility, it is very suitable for use in academic research, quality assurance research and development, and industrial production lines. Shangchen Optical Engineering Department also provides various modification and upgrade technical support.

Modular system

Loosen the fixed knob on the rear of the microscope and you can freely adjust the distance between the lens and the stage up and down. The lens can be separated from the base and modified on other types of work machines.

Epi-illumination system (BD dark field type)

HAL 12V 50W halogen lamp house with adjustable brightness, built-in field diaphragm, aperture diaphragm, (yellow, blue, green, frosted glass) color filter turntable, push-pull polarizer and analyzer.

Mechanical XY-axis micro-moving stage

The rack-type double-axis micro-movement is convenient for high-power observation and adjustment of the position of the measured object, and the operation is comfortable and convenient. Stage outer dimensions: 185x140mm, movement range 35x30mm, base outer dimensions 300x240mm

observing system

Trinocular observation head, 30-degree tilt eyepiece, adjustable interpupillary distance and eye height. WF10X large field plan eyepiece, with a field of view of 22mm, provides you with a flat and wide observation space.

Nose wheel & optical system

The five-hole retractable ball positioning nose wheel makes the magnification change operation smooth and facilitates the expansion of objective lenses with different magnifications. Coaxial epi-optical path, infinity parallel optics, provide excellent image quality, the best tool for industrial R&D and wafer observation! Three-eye photography lens design separates observation and photography, making it more convenient to use~

Focusing mechanism

Thickness and fine adjustment coaxial handwheel with tightness adjustment, micro-movement accuracy 0.1um.

Differential interference observation system

The differential interference interference insert plate assembly (DIC insert plate) and the DIC objective lens have already calibrated the interference plane. The user does not need to make special corrections. It is very convenient to use. The change of interference color can be changed by adjusting the precision fine-tuning knob.
