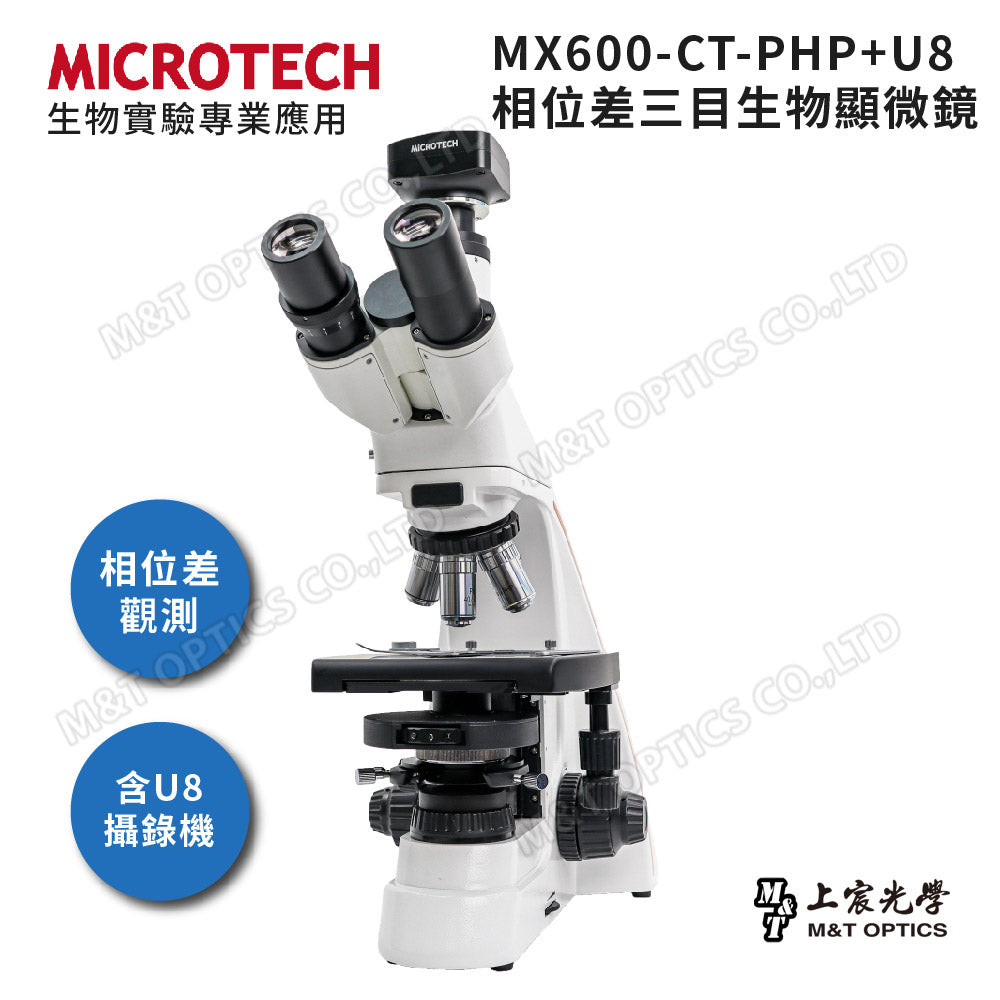

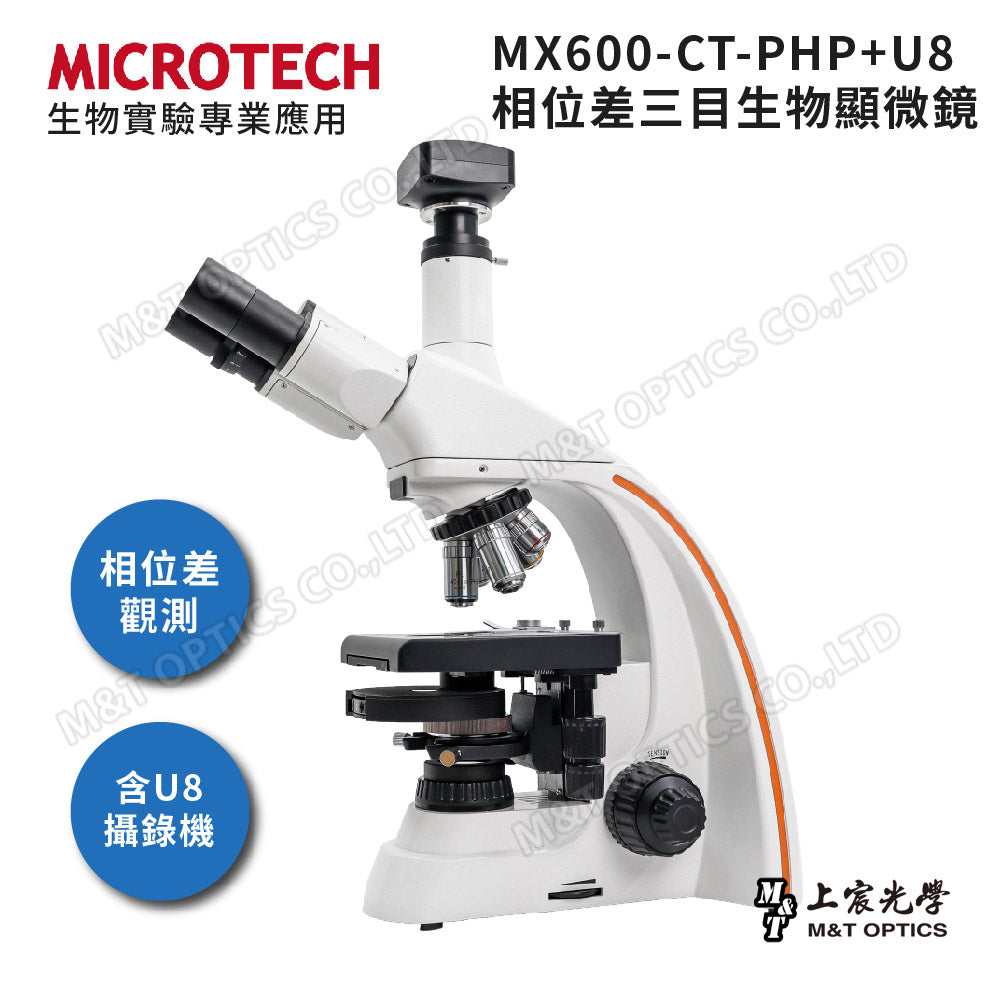

MICROTECH MX600-CT-PHP+U8 phase contrast trinocular biological microscope - original factory warranty for one year

Order number

2241200004+2241200183+2254000001

Product specifications

Optical system ∞Infinite parallel optics
eyepiece WF10X field of view: φ22mm pair, 1 phase centering eyepiece

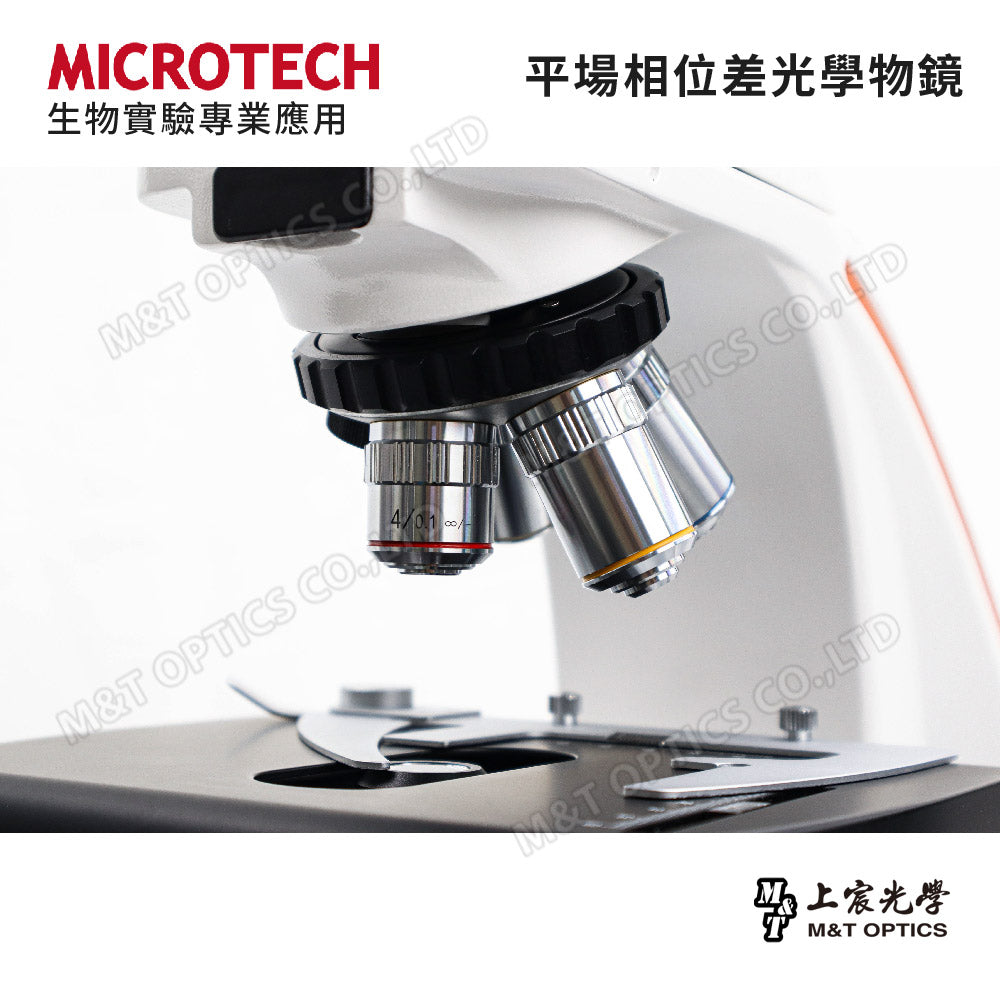

PLAN plan high order achromatic objectives PL4X/0.10—∞/0.17, WD＝19.8mmPHP—PLAN, PL10X/0.25—PHP—∞/0.17, WD＝5.0mm, PL20X/0.40—PHP—∞/0.17, WD＝8.0m, PL40X/0.65—PHP —∞／0.17, WD＝0.42mm, PL100X／1.25—PHP—∞／0.17, WD＝0.36mm

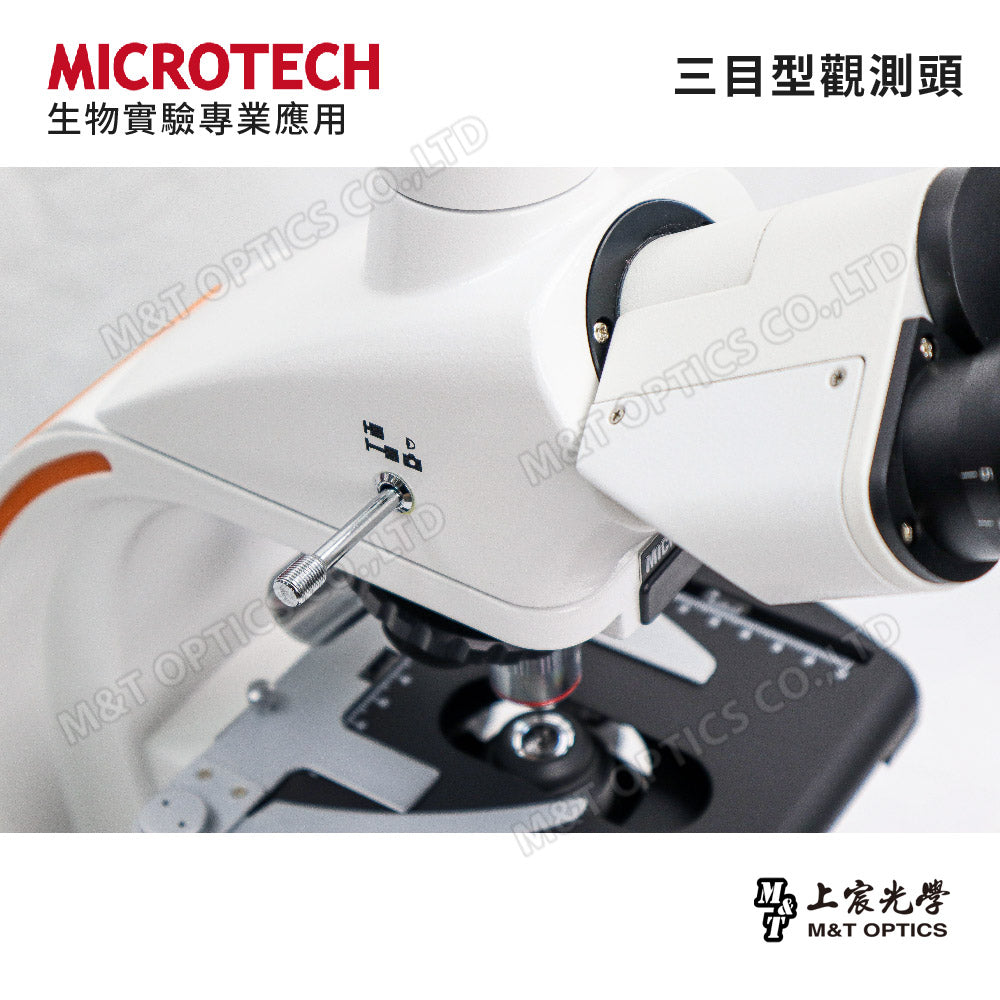

eyepiece tube Trinocular split ratio 100, tilt 30 degrees, interpupillary distance adjustment range 53 ~ 75mm.

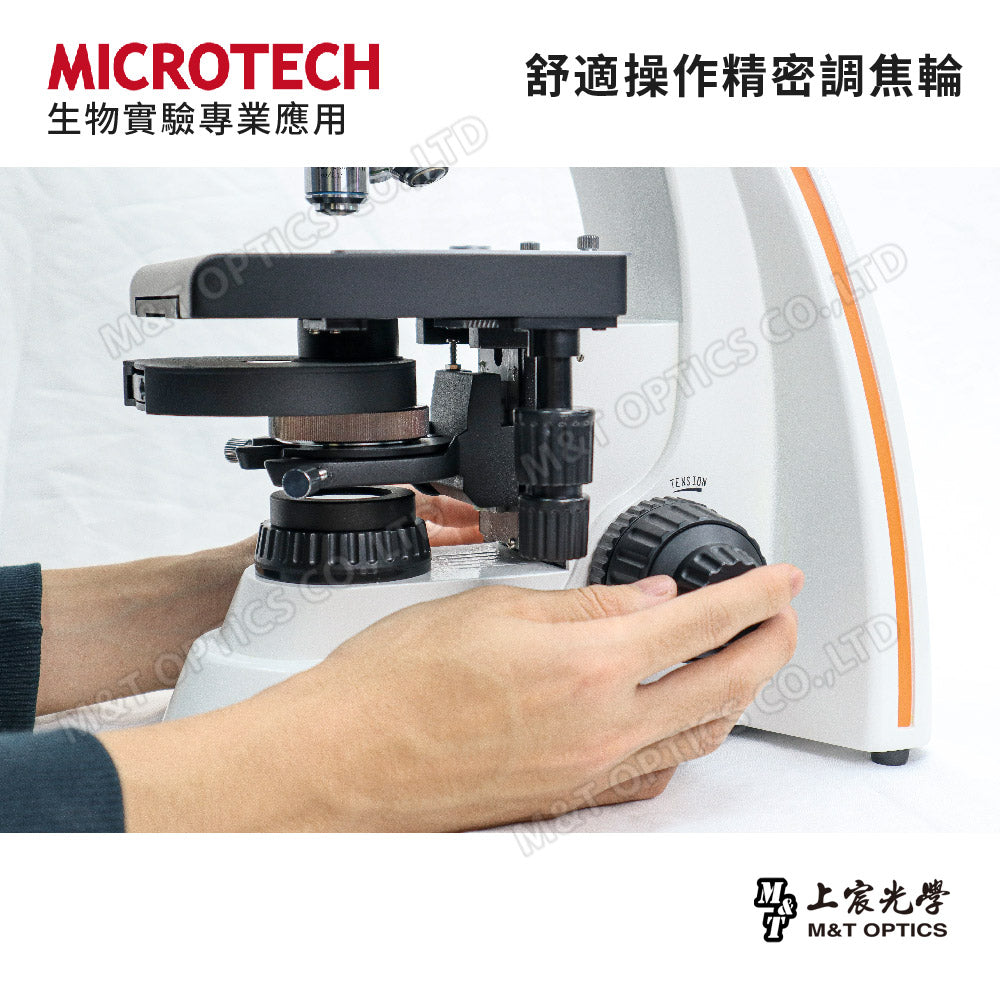

Coarse and fine coaxial focusing Comes with locking and limiting devices, micro-movement value 2μm.

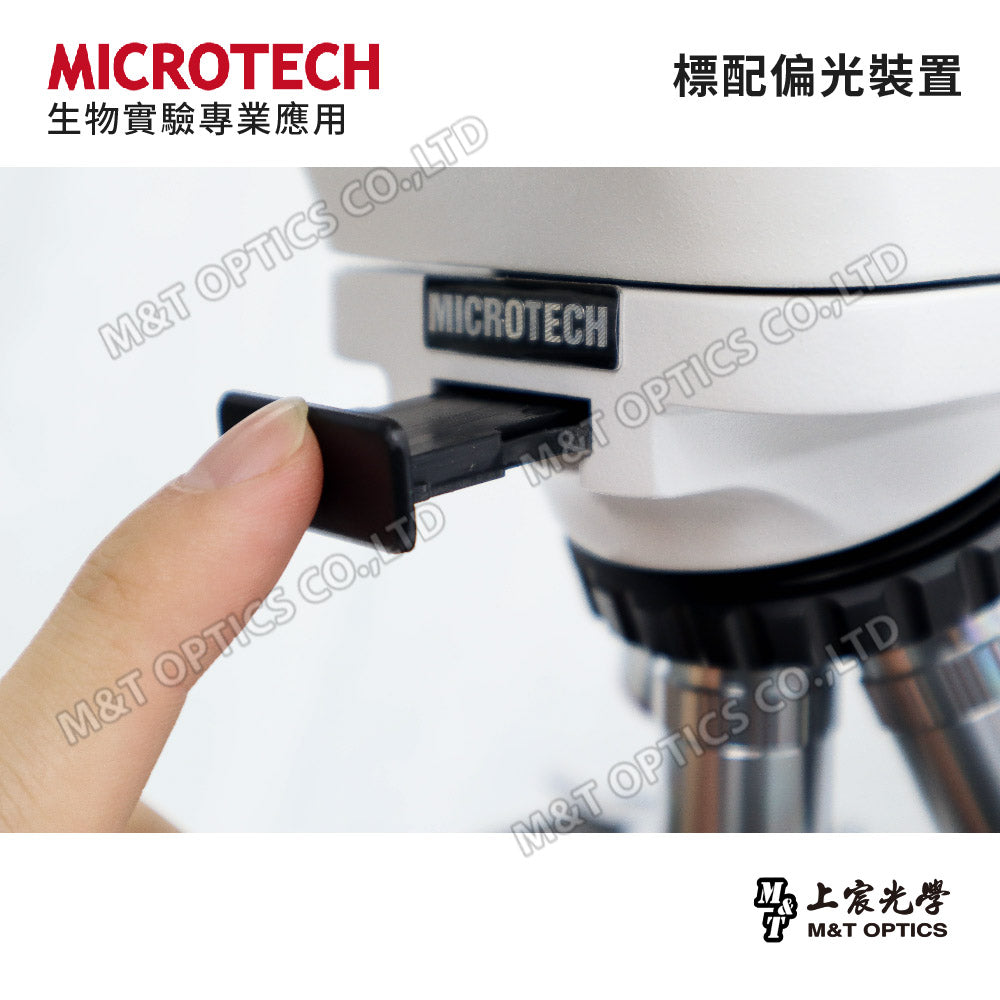

nose chakra Five-hole retractable nose wheel converter, equipped with a simple polarizing analyzer.

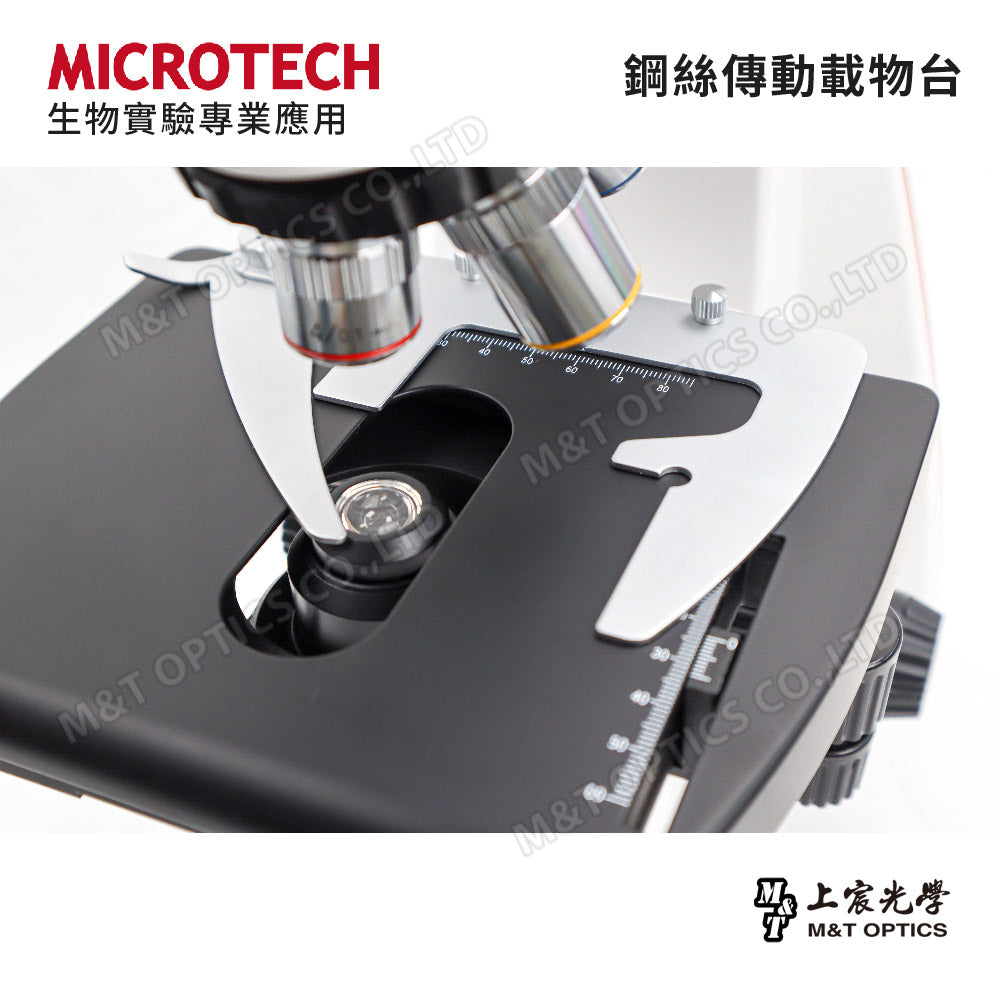

Wire driven stage Size 180x140mm, stroke 75x50mm, no rack exposed.

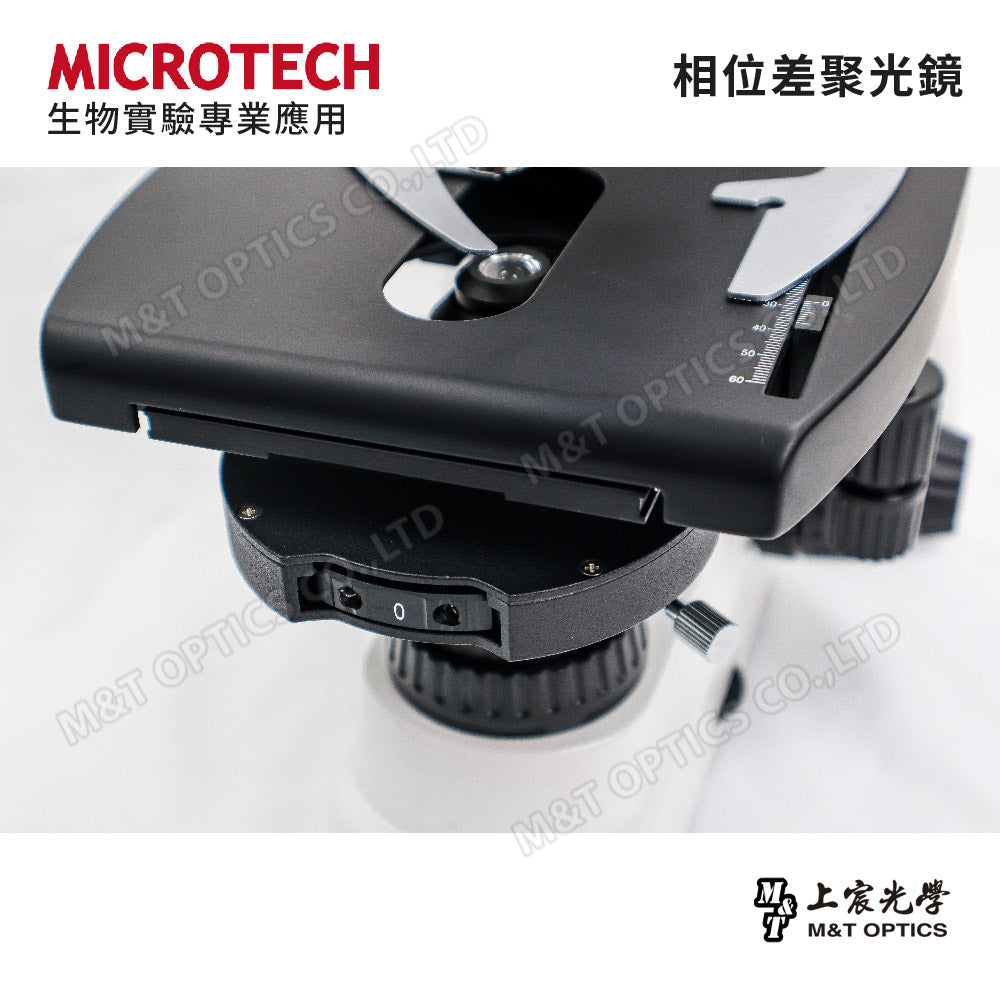

condenser Five-position turntable phase contrast condenser.
transmitted light source White LED brightness is adjustable.
transmission filter Frosted glass x1.
light collector Transmissive plano-convex lens system, adjustable Kohler light field, attached with simple polarizing polarizer.
Appearance size mm 400x200x436mm, eye height 404mm.
power supply Universal wide voltage type 85~265V, 50~60Hz.
