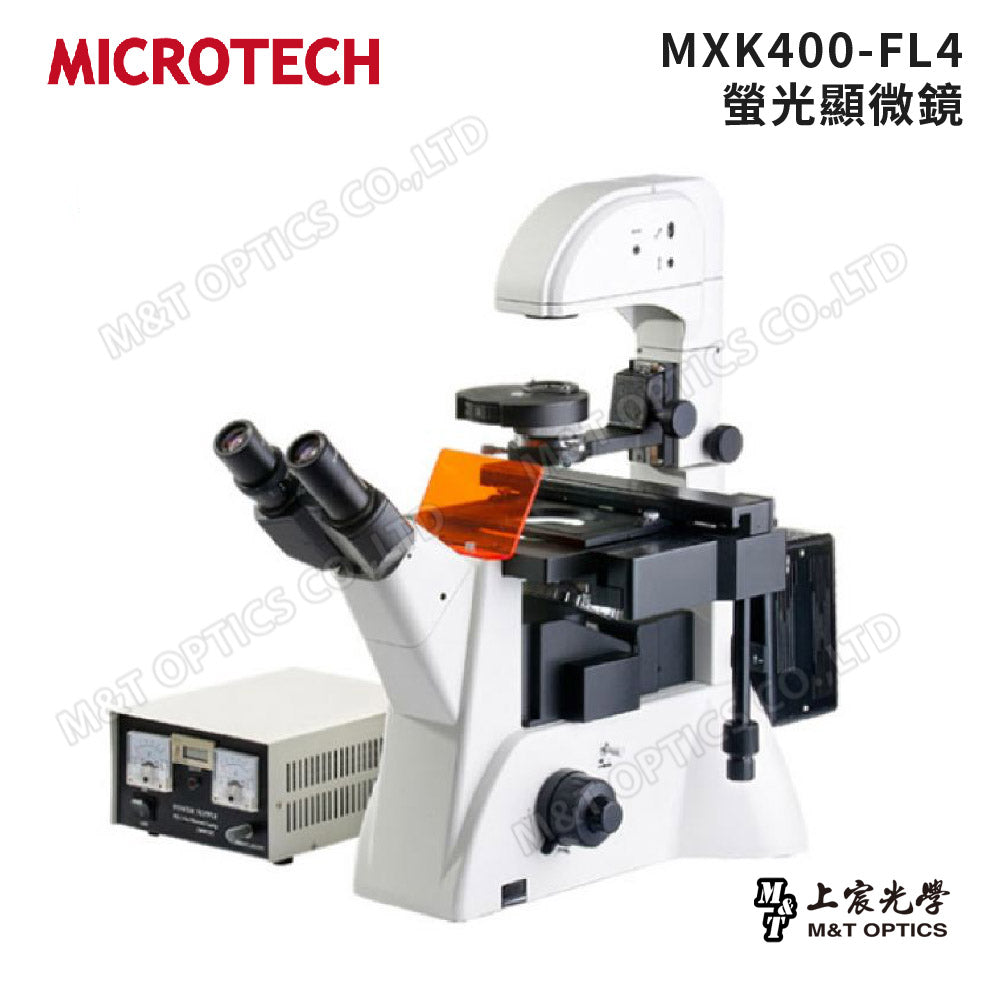

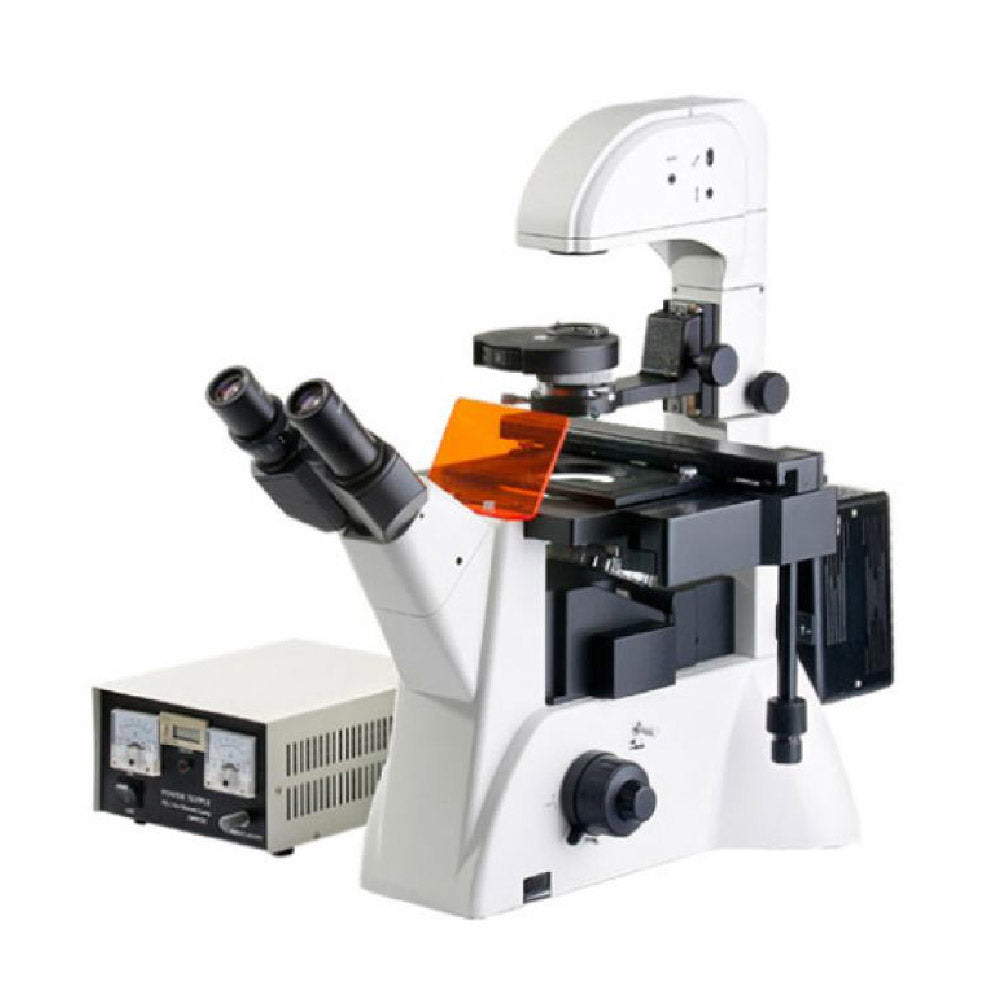

MXK400-FL4-four-band inverted fluorescence microscope features:

• Inverted objective lens design allows observation of living cells in beakers and culture tanks

• LED penetrating light phase difference optical system, the cell image has clear three-dimensional layers

• Six-hole nose wheel converter, long working distance objective lens magnification 10X, 20X, 40X

• The metal textured lens body is detailed and stable, and comes standard with an XY micro-motion stage.

• Complete four-band fluorescent filter module, UV, V, B, G in one place

Mercury mercury lamp reflective standard fluorescent light path, can be modified with LED fluorescent light source module

Introduction:

The inverted fluorescence microscope can be used for both epi-fluorescence microscopy and inverted microscopy systems. It adopts an infinity optical system and is equipped with a special ultra-long working distance plan objective lens and a 10x/22mm wide field of view eyepiece for inverted microscopes. The compact, stable and highly rigid scope fully meets the shock-proof requirements for microscopic operations. The screw-in condenser allows contamination-free observation of cultured cells in culture dishes or cylindrical flasks.

MXK400 adopts a modular design concept, which can safely and quickly adjust the lighting mode and quickly switch to a fluorescent filter module. It can be used for microscopic observation of cell tissues and transparent liquid tissues, as well as fluorescence microscopy observation in the fields of biopharmaceuticals, medical testing, disease prevention and other fields.

Product Usage:

University education biological experiment, medical education, pathological science, chemical materials, etc.....Testing science Mycobacterium tuberculosis identification, pathological examination, bacterial culture, tissue observation, medical research, etc.....Biotechnology cell culture, biochip, pharmacological testing , water quality inspection, environmental protection appraisal, etc.... Ecological teaching insect observation, biological anatomy, geological investigation, mineral research, etc.... Agricultural application plant analysis, pest research, biochemical experiments, animal husbandry, aquatic cultivation, etc....

Fluorescent case photos

Phase difference case photos

Product specifications

Optical system	∞Infinity parallel optical design. Inverted optics, coaxial light epi-optical module, PH2 phase difference optics.
eyepiece tube	The binocular viewing angle is 30 degrees, the field of view is 423mm, and the eyepiece holder is 430mm. The hinge-type interpupillary distance adjustment range is 53~75mm. The right side of the fuselage has a 100% switchable low-beam path spectroscopic photography design, allowing the installation of photography equipment. Marking eyepiece WF10X/field of view (422mm * 1 piece, built-in eyepiece micrometer, with independent diopter adjustment. Standard eyepiece WF10X/field of view 422mm * 1 piece. Centering eyepiece * 1 piece, dedicated for phase difference correction.
Inverted phase difference long working distance objective lens PHP2-PLL	MXK/PHP2 • PLL10X/0.25 • ∞/1.2 • WD=4.3mm MXK/PHP2. PLL20X/0.40 . ∞/1.2 . WD=8mm MXK/PHP2 • PLL40X/0.60 • 0/1.2 • WD=3.5mm
Inverted long working distance objective lens for biological use LD-PLL	MXK/PLL10X/0.25 • ∞/1.2 • WD=4.3mm MXK/PLL20X/0.40 • 0/1.2 - WD=8mm MXK/PLL40X/0.60 • ∞/1.2 • WD=3.5mm
Fluorescent epi-optical path	Six-hole nose wheel converter, fluorescent filter slot, mercury lamp baffle + epi-condensing mechanism, mercury lamp spotlight house (including MERCURY-LAMP/100W). Mercury lamp power supply AC110V.
Fluorescence filter module	Ultraviolet (UV): excitation wavelength (EX330nm~400nm), emission wavelength (EM425nm). Violet (V): excitation wavelength (EX395nm~415nm) • emission wavelength (EM455nm). Blue (B): Excitation wavelength (EX42Onm~485nm), emission wavelength (EM515nm). Green (G): excitation wavelength (EX460nm~550nm), emission wavelength (EM59Onm).
Transmitted light path	Transmission filter: frosted glass, one blue and one green filter. Four-position turntable phase contrast condenser WD=55mm. Transmitted light source: 6V30W halogen lamp with adjustable brightness and front light bar.
Stage and focus	Coarse and micro-movement coaxial focusing: equipped with locking and limiting devices, micro-movement value 2um. Fixed stage size: 227mmX208mm. Glass round stage plate size: ¢118mm. Mechanical moving size: moving range is 77mm vertically and 134mm horizontally.
Petri dish tray	1: Dimensions: 86mm (width) 2: Dimensions: 34mm (width) Three: Size 57mm (width) × 82mm (length), can be equipped with round cultured blood ¢87.5mm.
