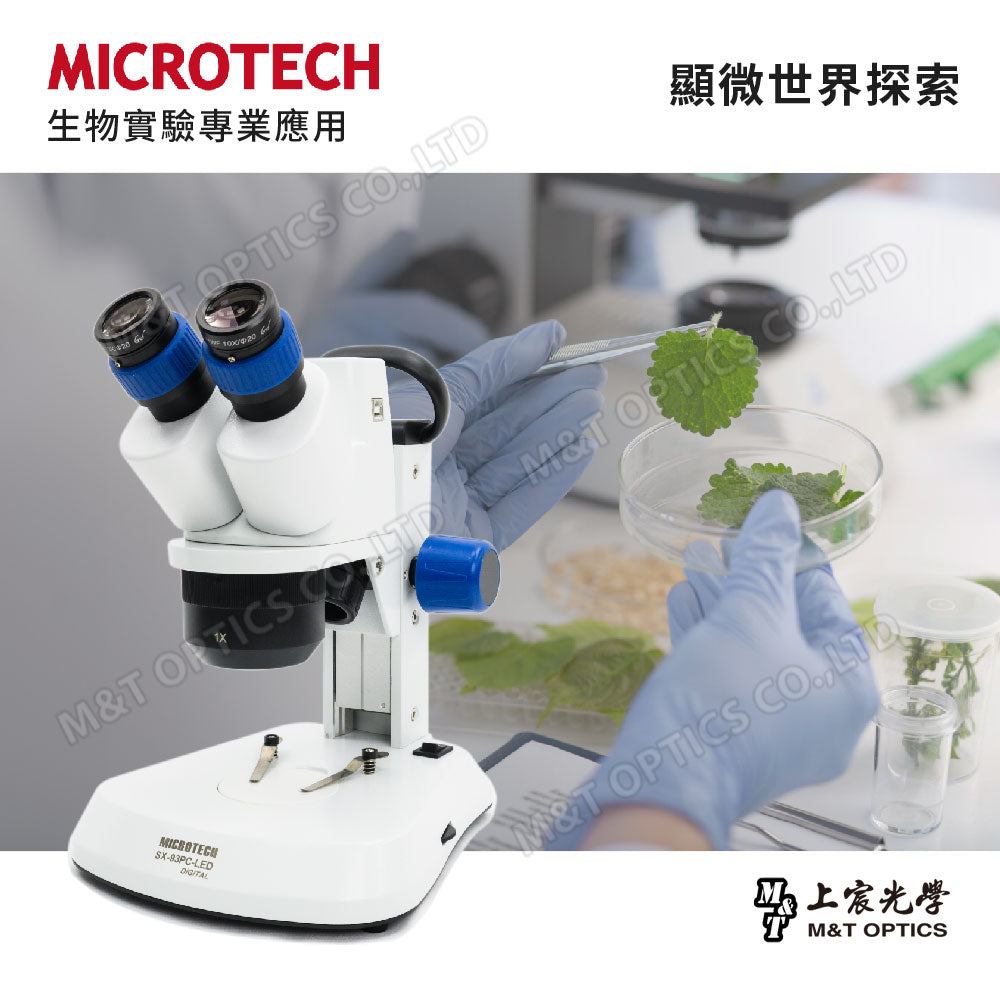

Exploring the world of microscopy and cultivating interests

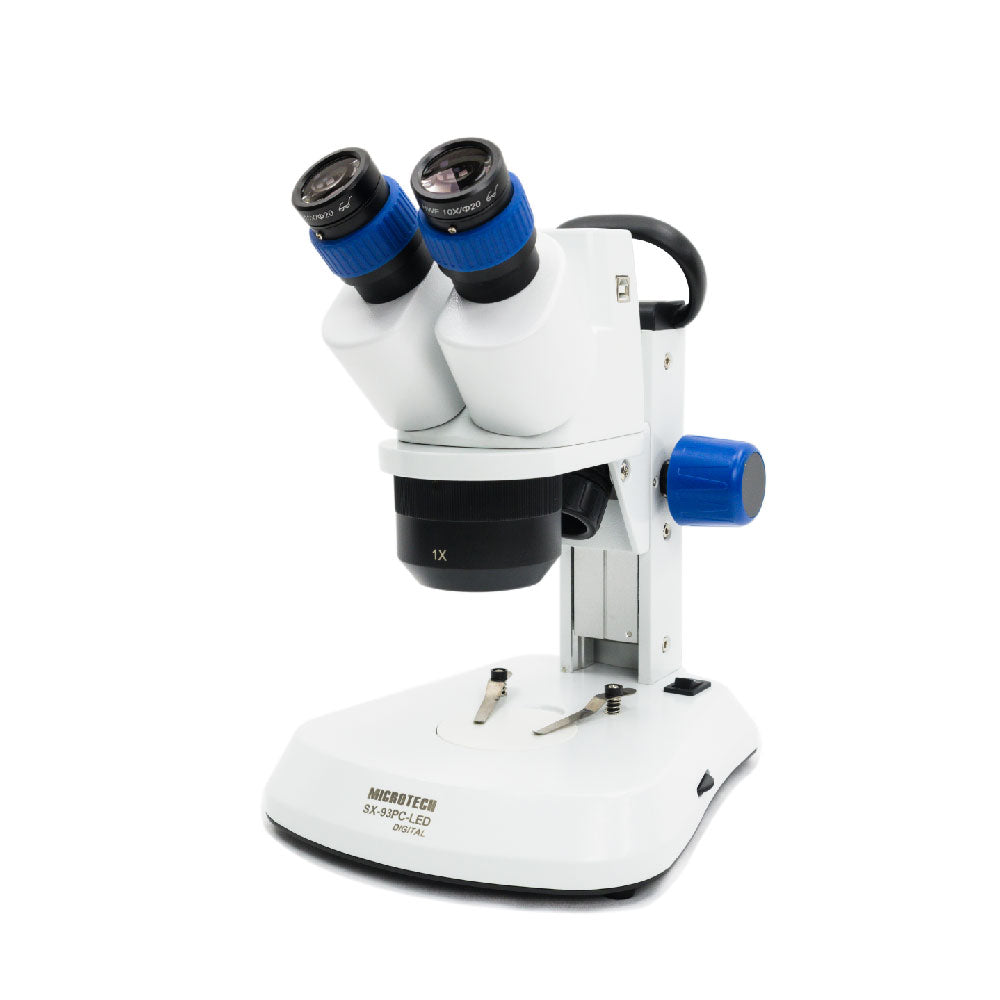

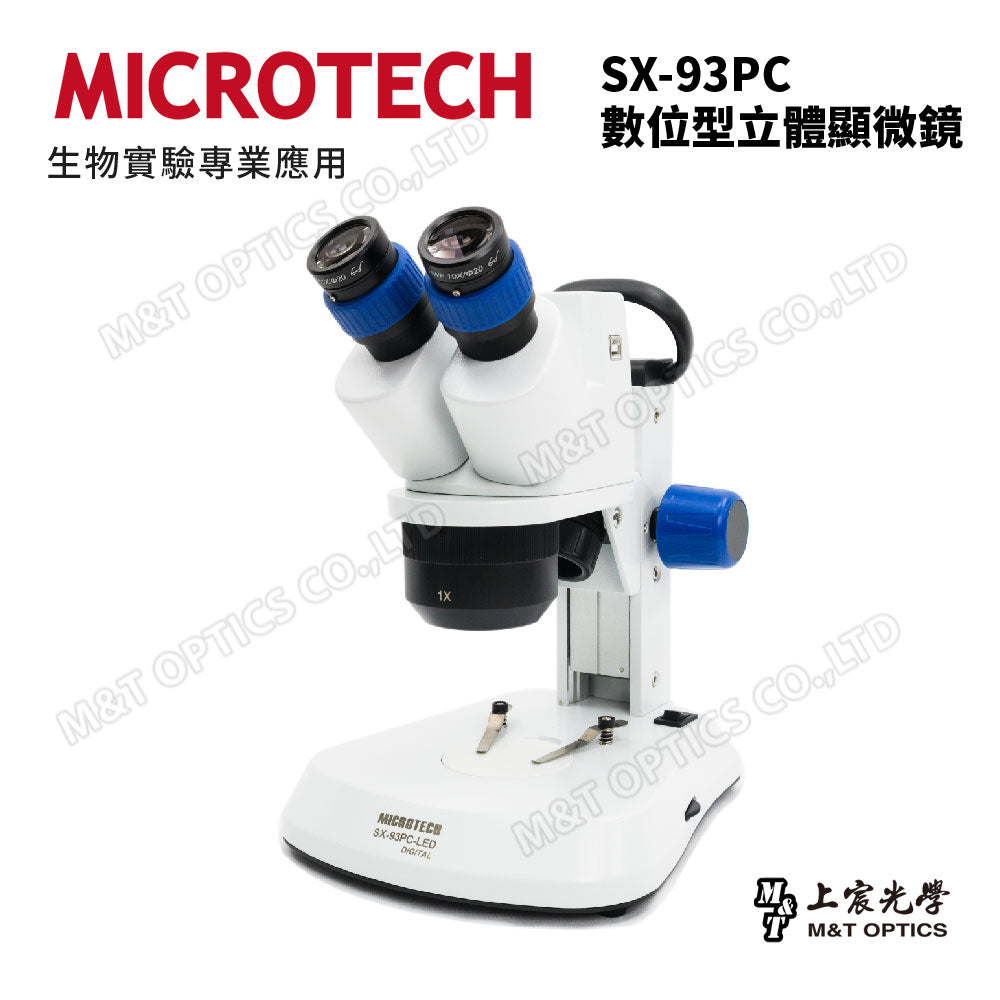

The SX-93PC stereo microscope is easy to operate and allows you to get started quickly and is capable of a variety of observation tasks. Dissecting microscopes do not require additional slide specimens and can be used to view a variety of objects at will. Whether it is teaching or scientific research, the SX-93PC will pull you into it. Science's best partner.

Sturdy and reliable, light and solid in size

The body is made of aluminum alloy and has an ergonomic design for comfortable operation. It has built-in upper and lower light sources and is suitable for multiple work needs such as electronic processing, research and inspection, biological anatomy, academic, geology, archaeology, art sculpture, and jewelry inlay. MICROTECH microscopes have undergone strict quality control inspections and are of high quality and superior performance. They are backed by the company's one-year warranty.

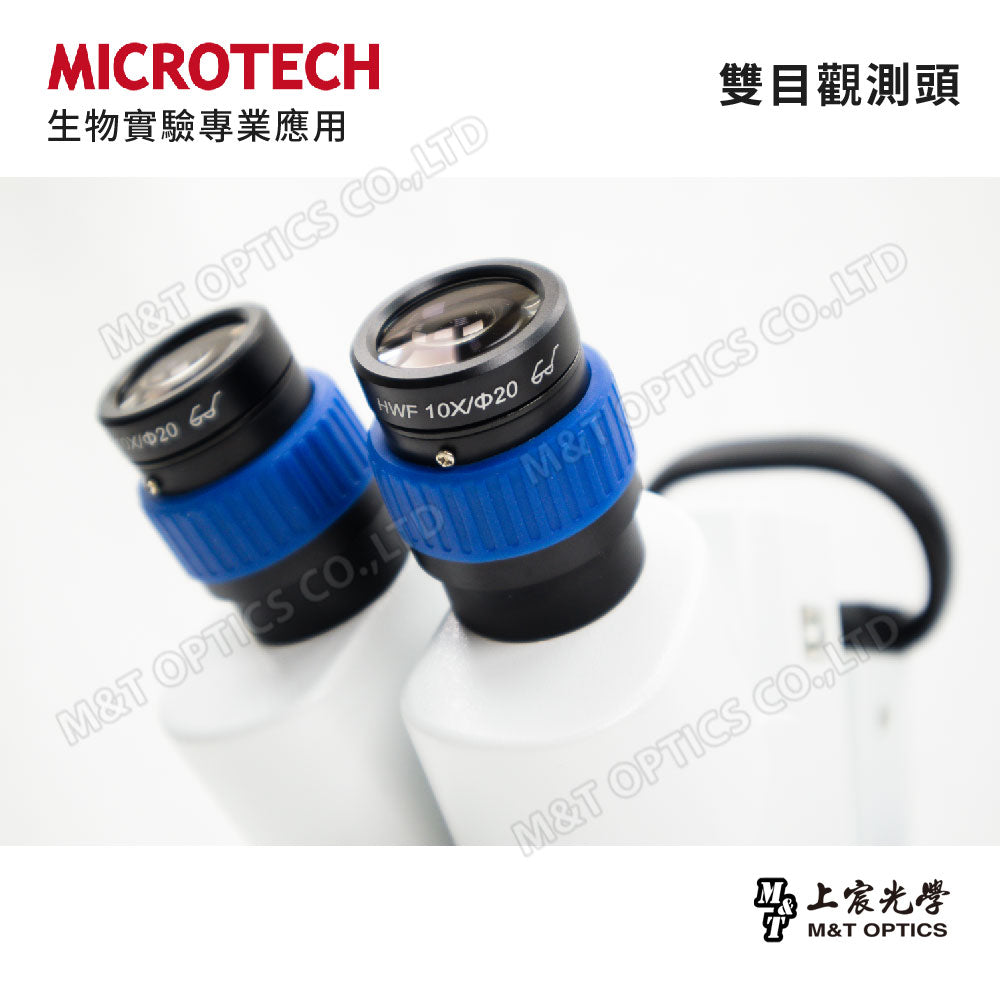

binocular observation head

Large field of view eyepiece, simultaneous observation of both eyes, wide stereoscopic field of view, observation head tilt angle of 45°, ergonomic, and you will not feel fatigue after long-term use. Eye distance adjustment hinge stroke 52-80mm.

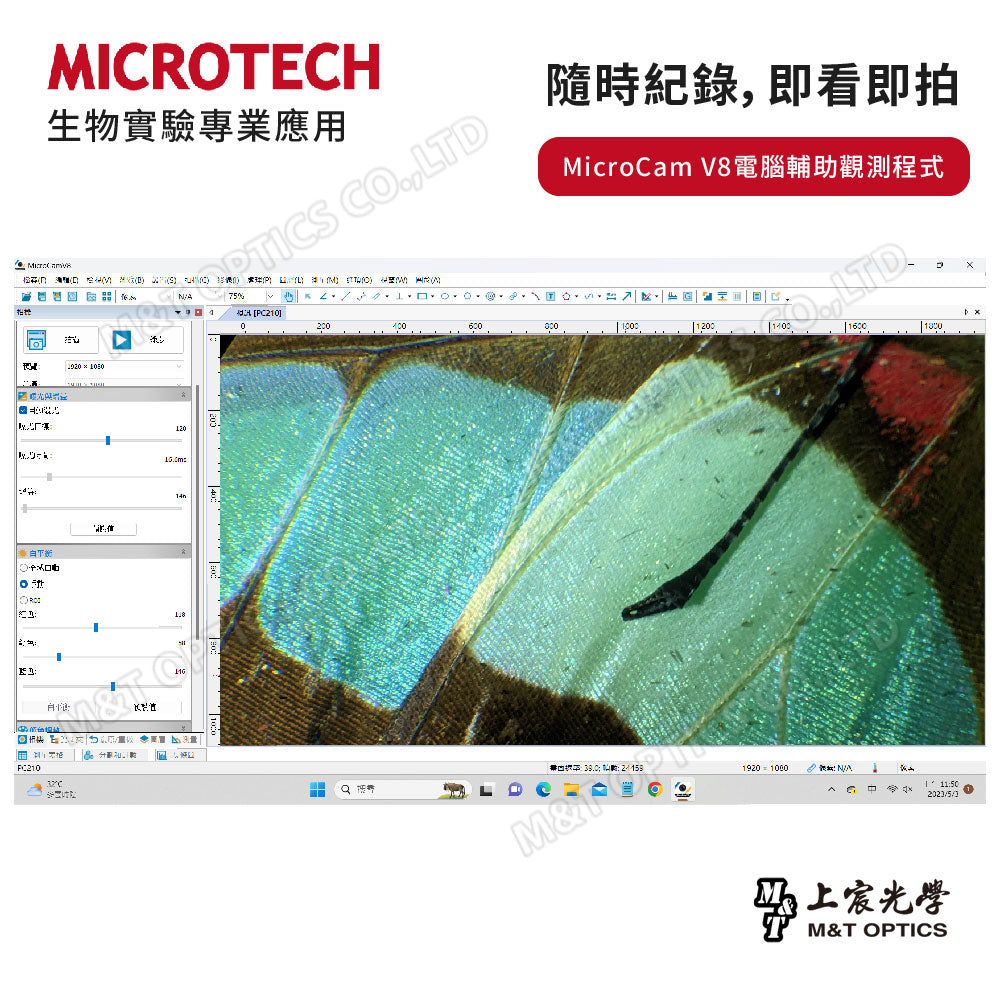

Record at any time, watch and shoot immediately

Built-in video camera, one-line connection to computer, one-click recording of observations. In the teaching and learning process, all records are priceless. Compatible with MicroCam V8 computer observation assistance software. You can adjust the color of the shot, and you can also create various rulers to measure, analyze and observe samples.

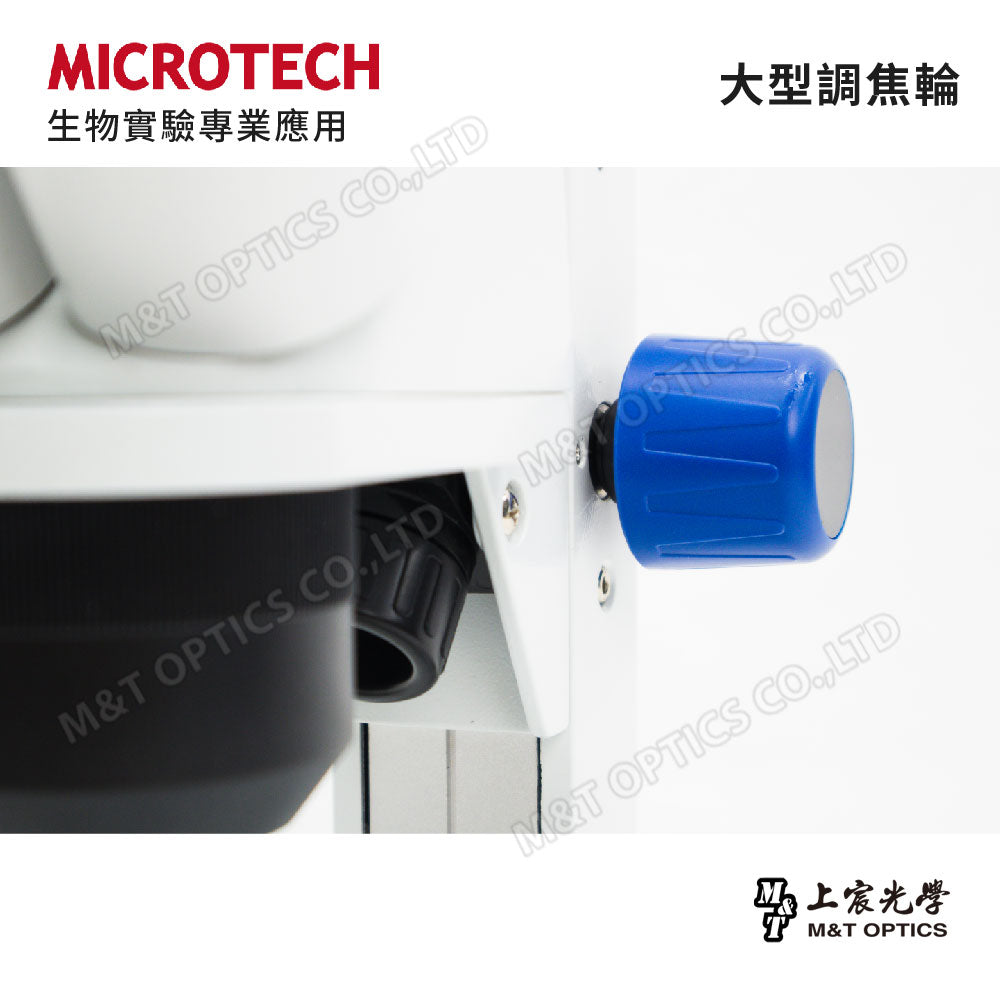

Lateral focusing light source & large stage

The high-brightness LED focused light source is built into the fuselage, providing sufficient light to enhance the three-dimensional sense of observation. The platform has a wide surface, making it easy to observe large objects. Large focusing wheel, focusing quickly and easily without missing any details.

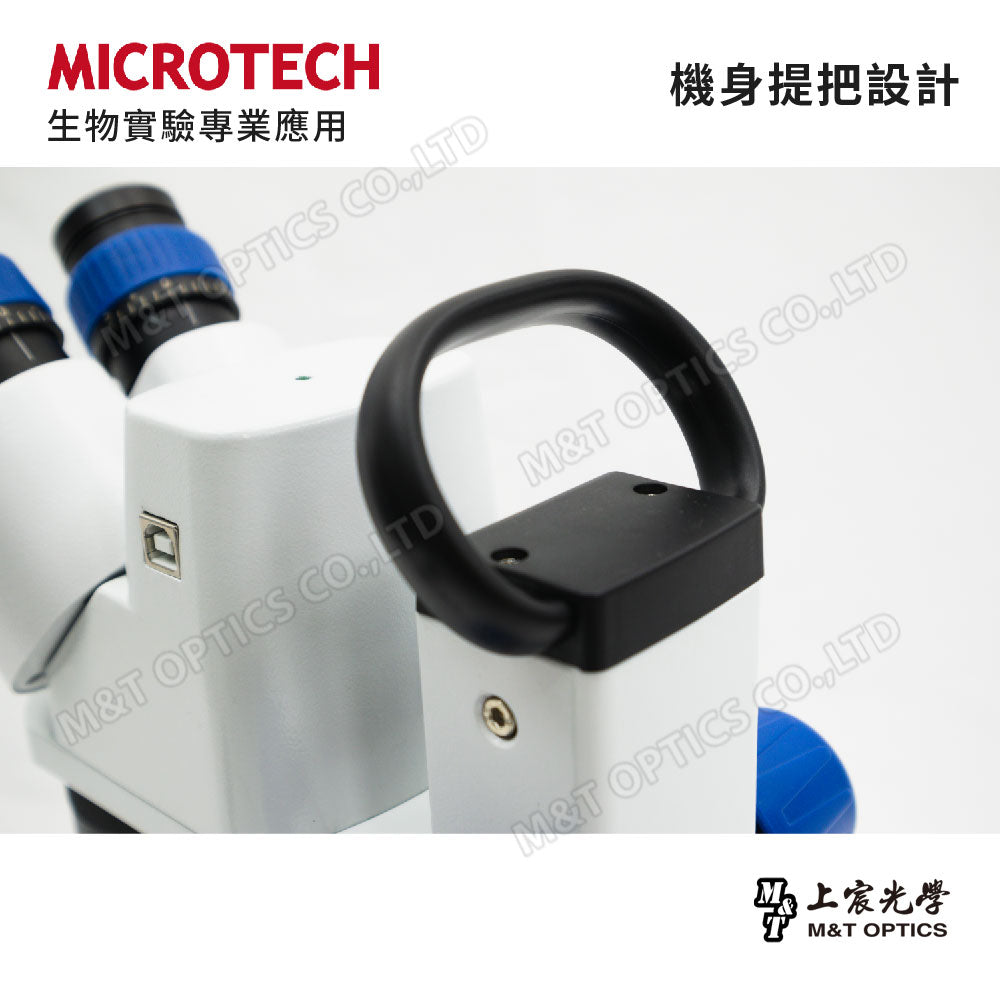

Body handle design

It increases the mobility of the machine and greatly reduces the risk of movement, especially suitable for educational occasions.

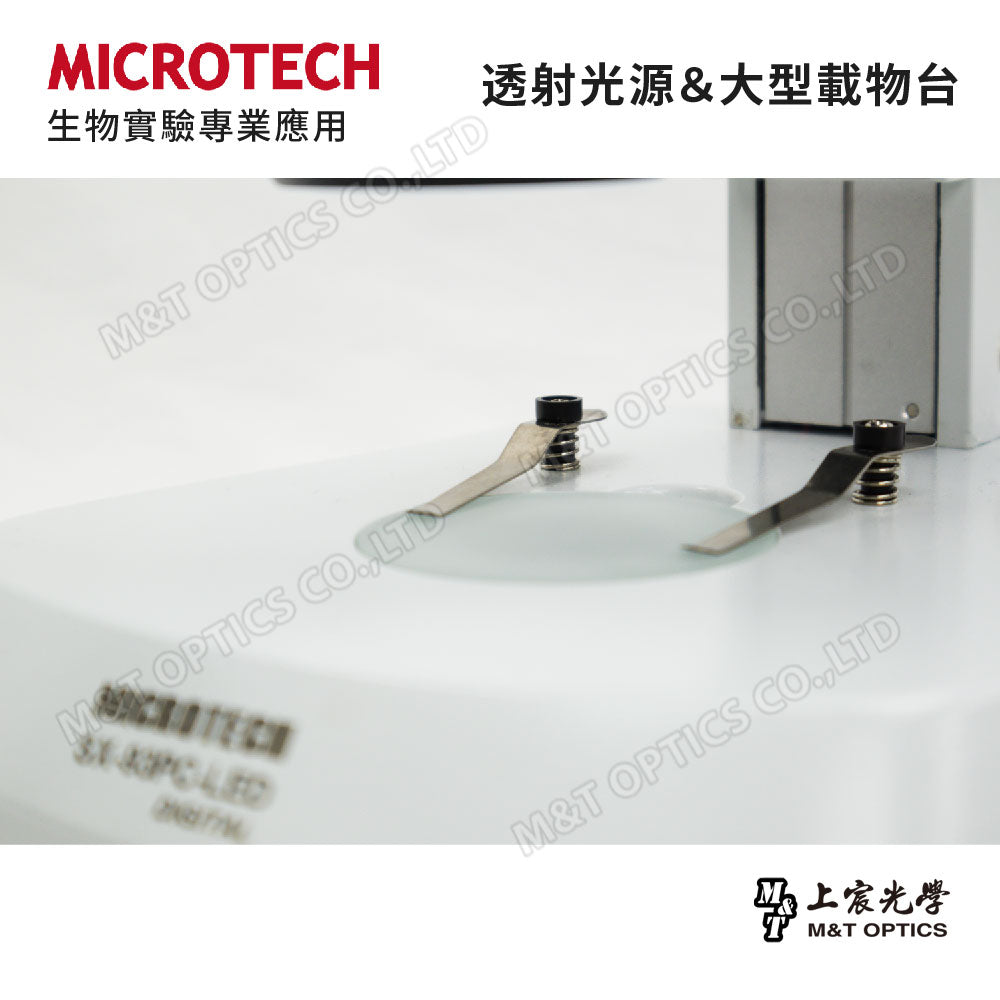

transmitted light source

The stage can alternately use opaque black and white boards and matte glass. When using glass boards, transmitted indirect lighting from below can be enabled.

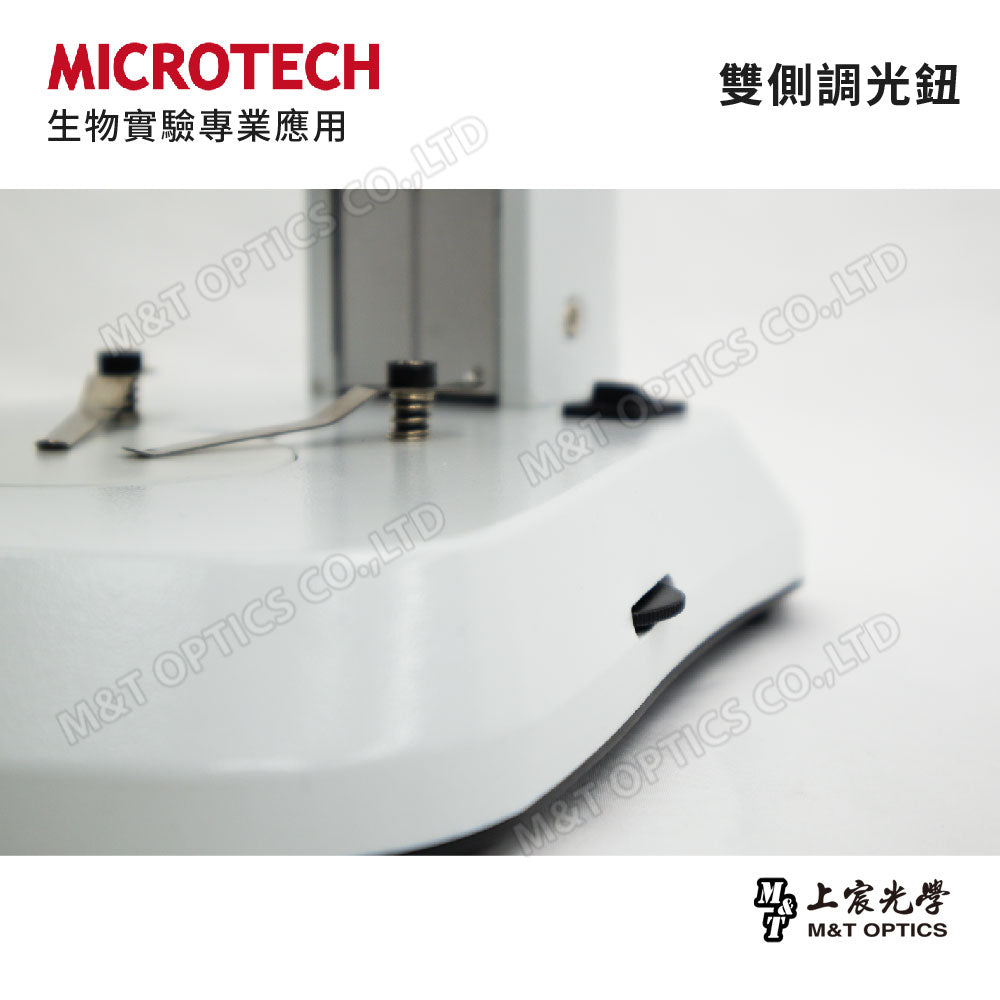

Double side dimmer button

Supports bilateral dimming, and hand operations are not restricted.

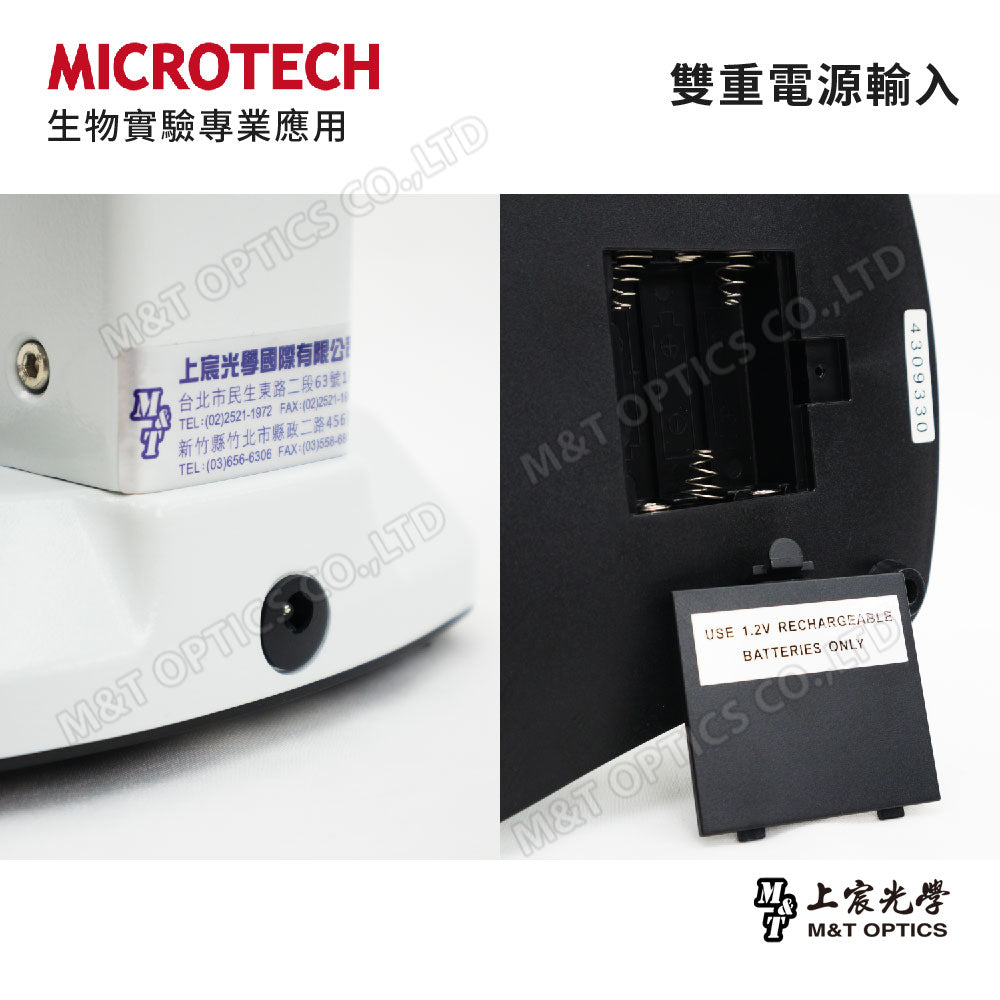

Dual power input

It can be powered by a rechargeable lithium battery or external power supply, and the power input port supports battery charging.

Sample sharing (circuit board) Sample sharing (live water fleas) Sample sharing (fabric) Sample sharing (butterfly wings)

Product specifications

Observation head	Integrated digital trinocular observation head: Built-in and powered camera system USB output
Objective lens group	3-stage independent magnification objective lens 1X/2X/4X
eyepiece group	Large field of view eyepiece WF10X/20*2pcs. (WF20X can be purchased separately)
Focusing track	The stroke is about 50mm, the square column track height is 178mm, and the objective lens center distance is 105mm.
working distance	When focusing, the distance from the objective lens to the stage is 57mm.
Base and mirror body	Dimensions: length 225*width 182*height 40mm, aluminum alloy casting, powder paint coating.
penetrating light source	White LED indirect transmitted lighting, light output diameter 30mm, attached with φ59.5mm frosted glass plate.
Reflected light source	White LED side-focused light source (light diameter 18mm)
Light modulator	Independent dimming of penetrating reflective light source, one main power switch.
Image output quality	1920x1080p FULL HD
Computer Compatible Observation Program	MicroCam V8
power supply	DC4.5V / 1A transformer or your own AA rechargeable battery, the power input port supports battery charging
appendix	Black and white board＊1, dust cover＊1, rubber eye mask＊2
