Shangchen Optics-MICROTECH SX-93E (Binocular Stereo Microscope)

1 3

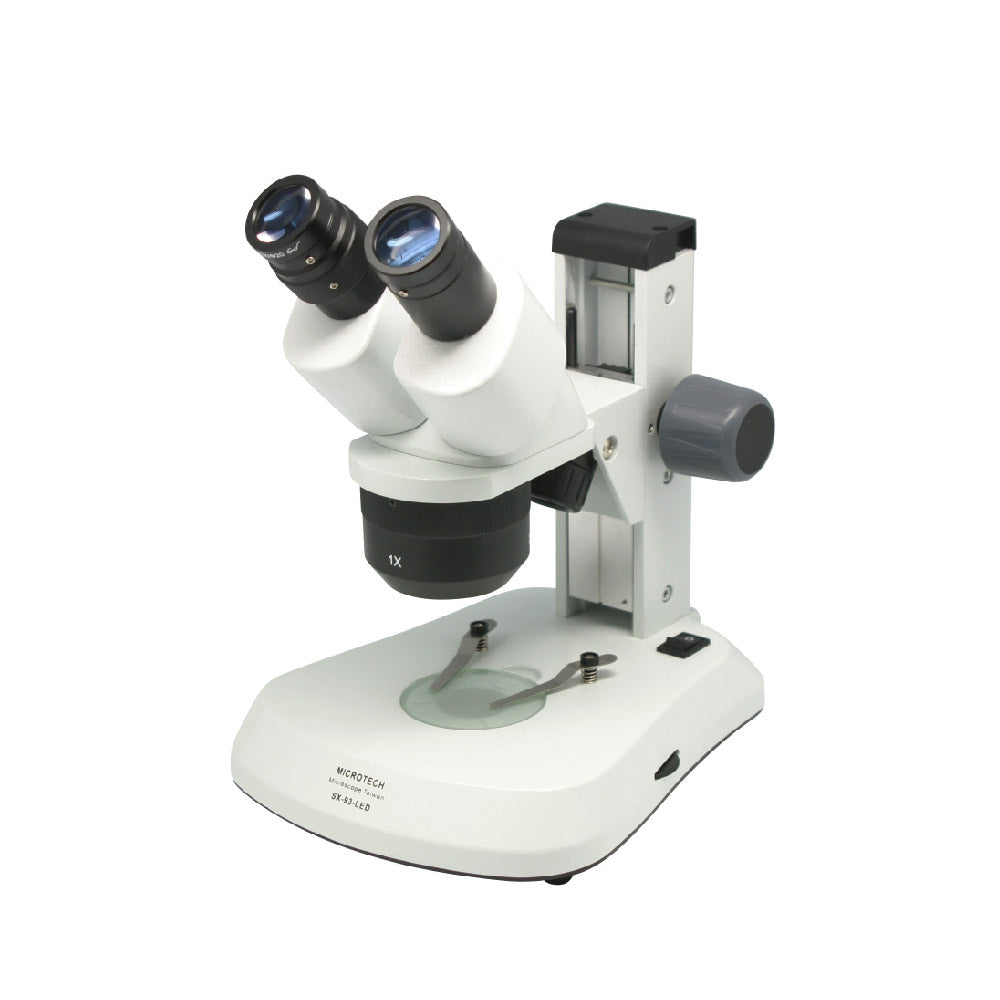

MICROTECH SX-93E (binocular stereo microscope)

Order number

2241100001

Sturdy and durable, practical and beautiful, the aluminum alloy casting body is stable and durable, and the ergonomic design is comfortable to operate.

It is widely used in the electronic industry, assembly and maintenance of precision instruments, research and inspection, biological anatomy, academic, geology, archaeology, art sculpture, jewelry inlay, gem identification, microscopic identification, etc. It has a wide range of uses.

MICROTECH microscopes have undergone strict quality control inspections and are of high quality and superior performance. They come with a one-year warranty.

Ergonomically designed, with a 45° tilted binocular observation head, you won’t feel tired even after long-term use. The hinge-type adjustment of the pupil distance is 52-80mm.

Large field of view and wide-angle eyepiece, the imaging effect is clear and sharp, the field of vision is wide and comfortable.

High-brightness LED white light transmitted illumination and side-focused light source provide the object under test with an excellent light source environment

Large adjustment wheel, focusing can be adjusted quickly and easily, paying no attention to details.

It can be installed with 3 AA batteries (prepared by your own). It can also be taken out for outdoor observation without plugging in the indoor power supply. There are no restrictions on its use.

Large working platform, convenient for observing various large objects

Recommended additional purchases

Item number (2247500066)

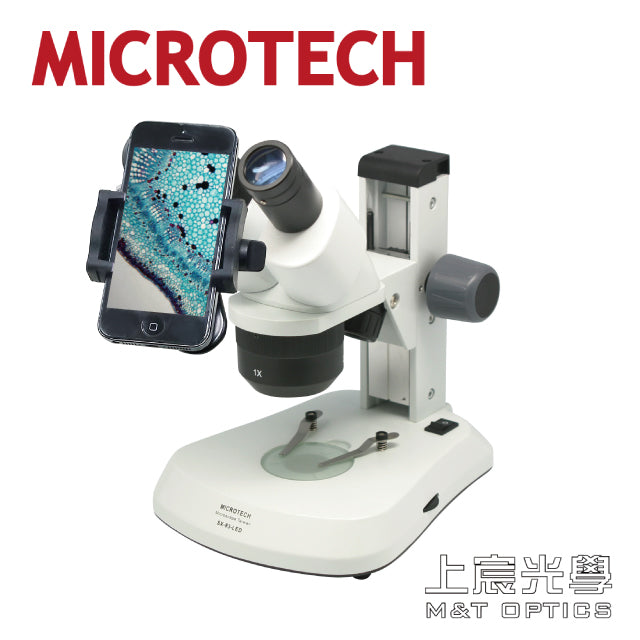

UPN-340.SX mobile phone holder

Product specifications

Observation tube	Binocular type with tilt angle of 45 degrees, hinge-type adjustment of pupil distance to 5280mm
Objective lens group	3-stage independent magnification objective lens 1X/2X/4X
eyepiece group	Large field of view eyepiece WF10X/20*2pcs. (WF20X can be purchased separately)
Focusing track	The stroke is about 50mm, the square column track height is 178mm, and the objective lens center distance is 105mm.
working distance	The distance from the objective lens to the stage when focusing is 57mm
Base and mirror body	Dimensions: length 225width 182height 40mm, aluminum alloy casting, powder paint coating
penetrating light source	White LED indirect transmitted lighting, light diameter 30mm, attached with φ59.5mm frosted glass plate
Reflected light source	White LED side-focused light source (light diameter 18mm)
Light modulator	Independent dimming of penetrating reflective light source, one main power switch
power supply	DC4.5V / 1A transformer or own AA battery (rechargeable battery, alkaline battery)
appendix	Black and white board＊1, dust cover＊1, rubber eye mask＊2
Can be purchased additionally	UPN340.SX Customized mobile phone photography stand
