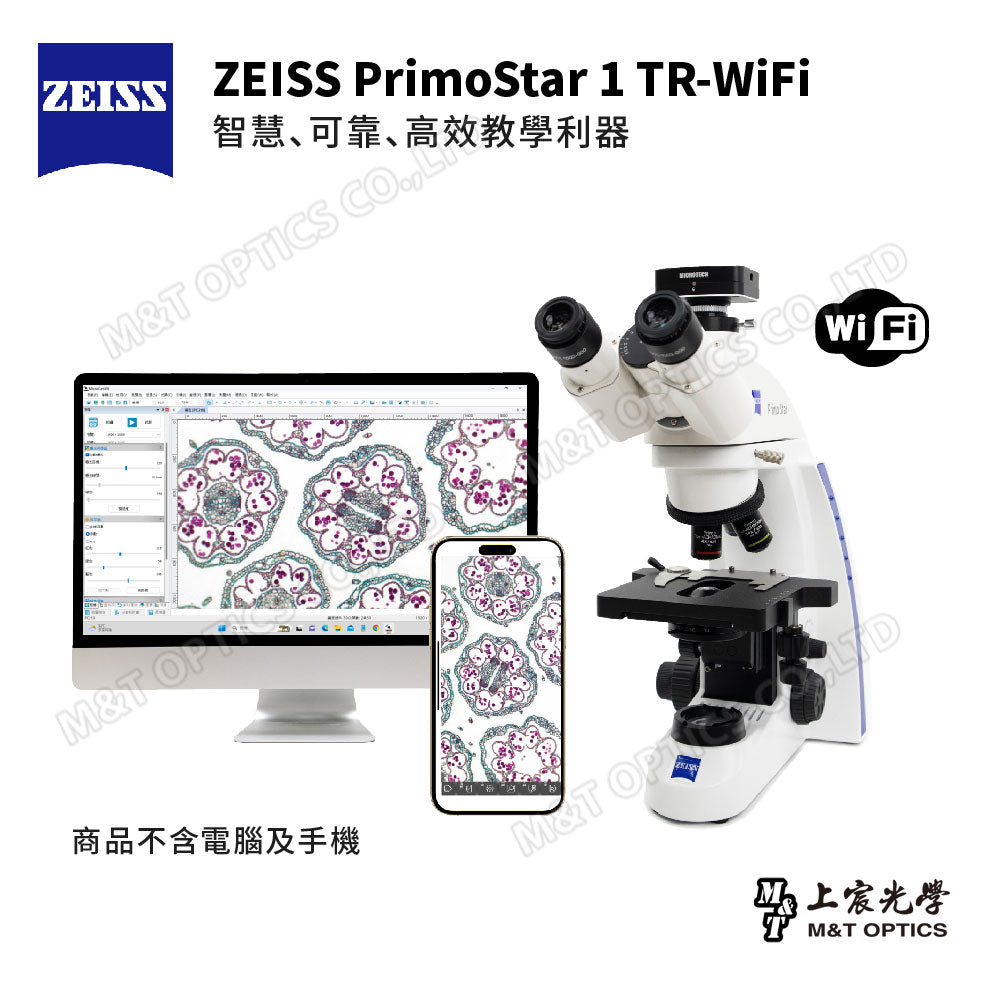

Understand your needs and provide the necessary performance and quality!

The lens body structure is durable and easy to operate. It uses high-quality and high-priced optical components from Zeiss but enjoys an extremely affordable price advantage. The camcorder can be connected to computers and mobile devices via WiFi to synchronize microscopic images in real time for photography, recording and measurement. It is an excellent choice for microscopes in the field of life science education.

PrimoStar 1 has been optimized by the original manufacturer and is suitable for use in the field of life sciences. The picture shows stained specimen sections observed under a brightfield microscope.

Instrument-level precision is used for teaching more efficiently

Zeiss's long-standing expertise in instrumentation, in order to ensure longer service life, uses extremely high-quality, professional, energy-saving, LED materials with a color temperature of 3200K for microscopic light sources, and uses a high-end fixed Kohler lighting system for this machine. Simply plug in and start microscopic observation immediately. Choosing PrimoStar 1 will be a very correct and economical investment for you.

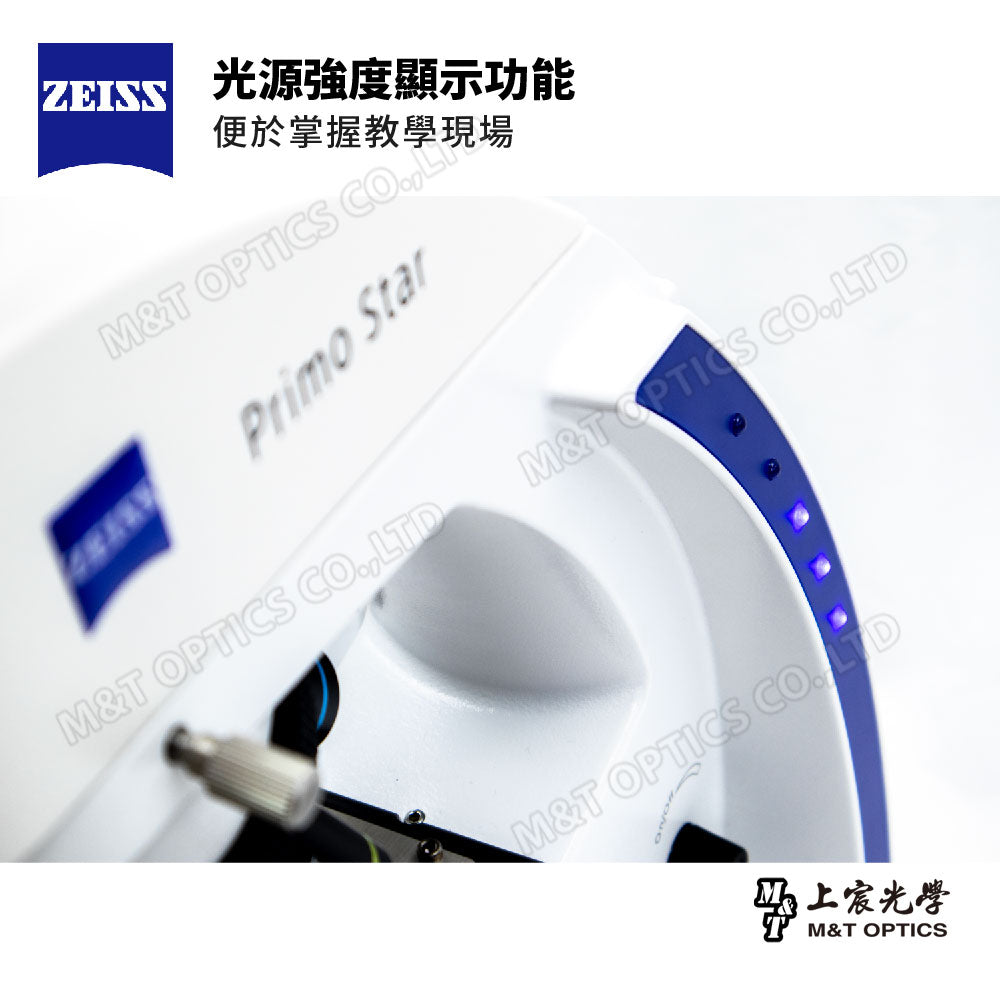

Light source intensity display function - easy to grasp the teaching site

The intensity of the light source is the most important control item for the microscope in the classroom. There are five-segment blue LEDs on both sides of the mirror body to display the light intensity, allowing the teacher to know the current status of the light source intensity of the student's microscope at any time.

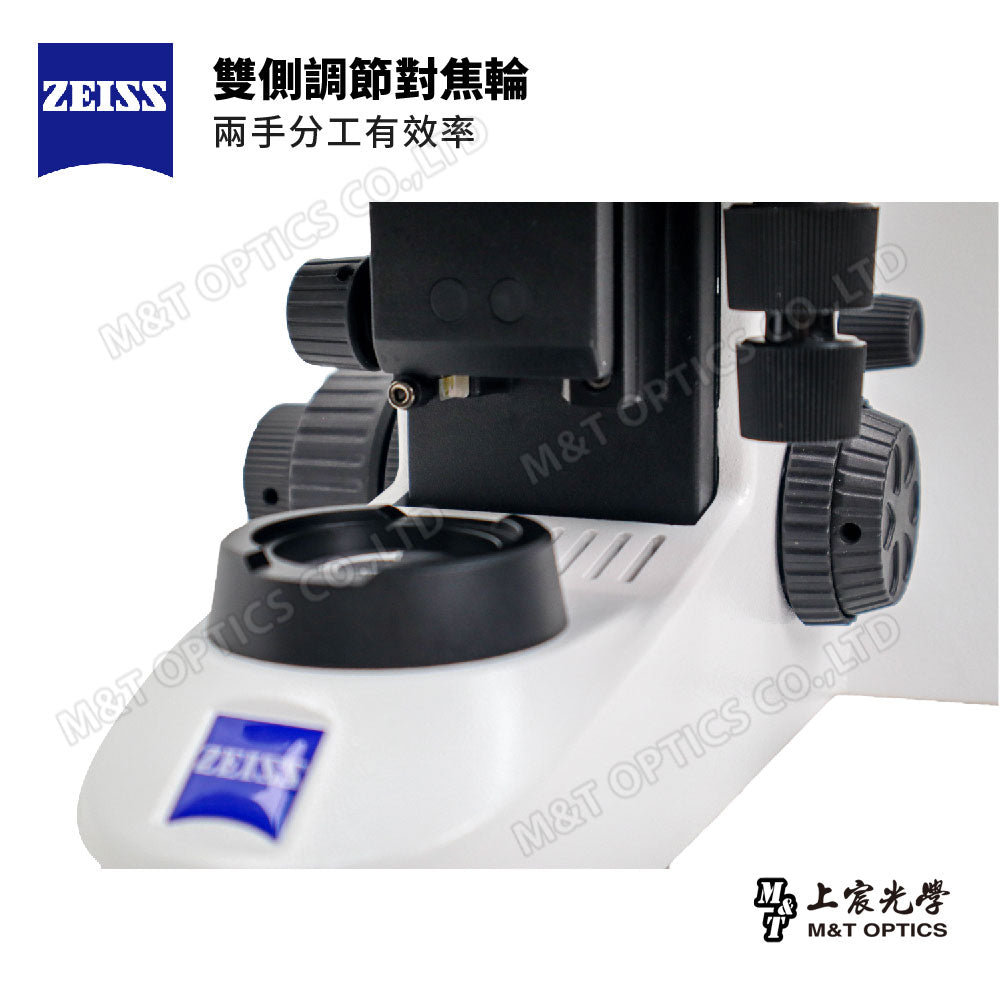

Design for division of labor between left and right hands

Use your right hand to adjust the XY axis micro motion of the stage, and use your left hand to adjust the focus wheel at the same time, making your work efficient. The full stroke of the Z-axis adjustment wheel is 15mm, with a coarse adjustment of 45mm/revolution and a fine adjustment of 0.5mm/revolution.

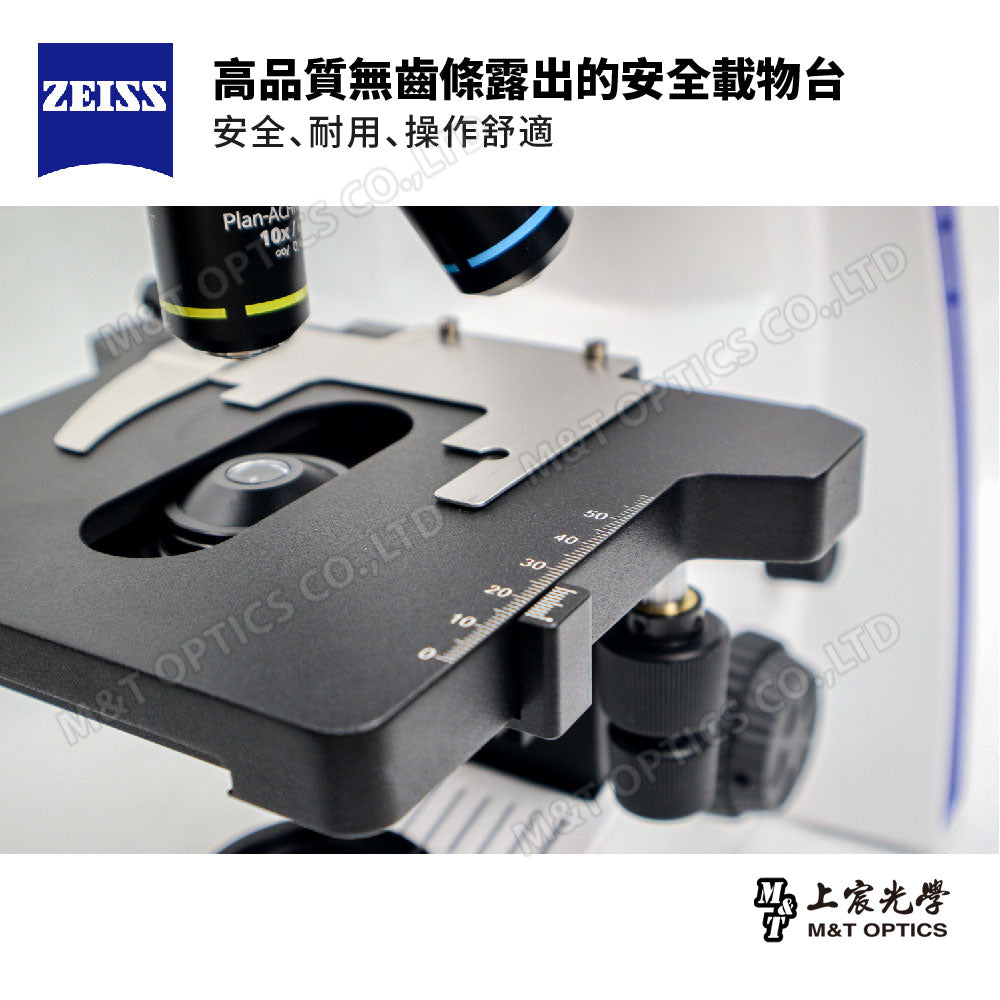

High quality rack-less safety stage

There are no protruding racks to ensure safer and more comfortable operation, and it has a short and sturdy XY axis for greater durability. There is an easy-to-read ruler on the table. The size of the mechanical stage is 140x140mm, and the XY axis movement range can reach 75x40mm.

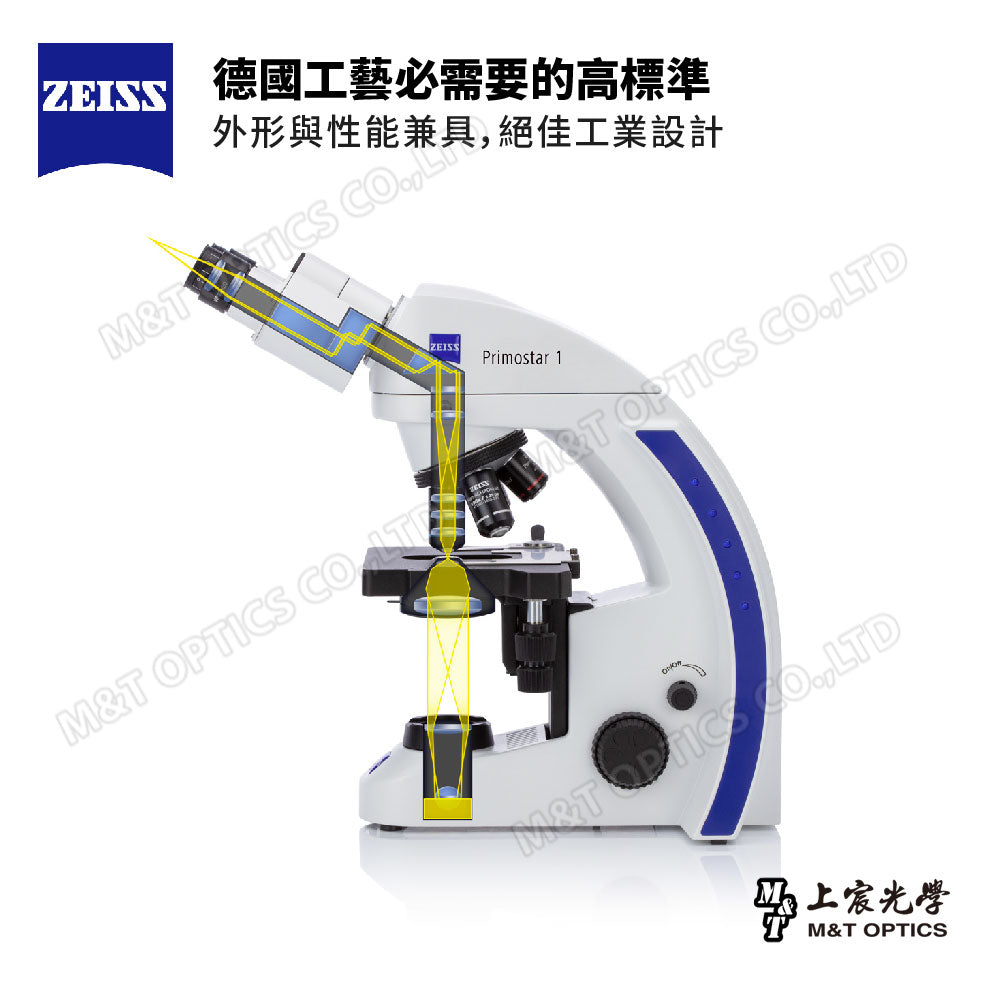

High standards necessary for German craftsmanship

The main body of the microscope is made of metal, with both appearance and performance. The excellent industrial design maximizes the combination of aesthetics and performance.

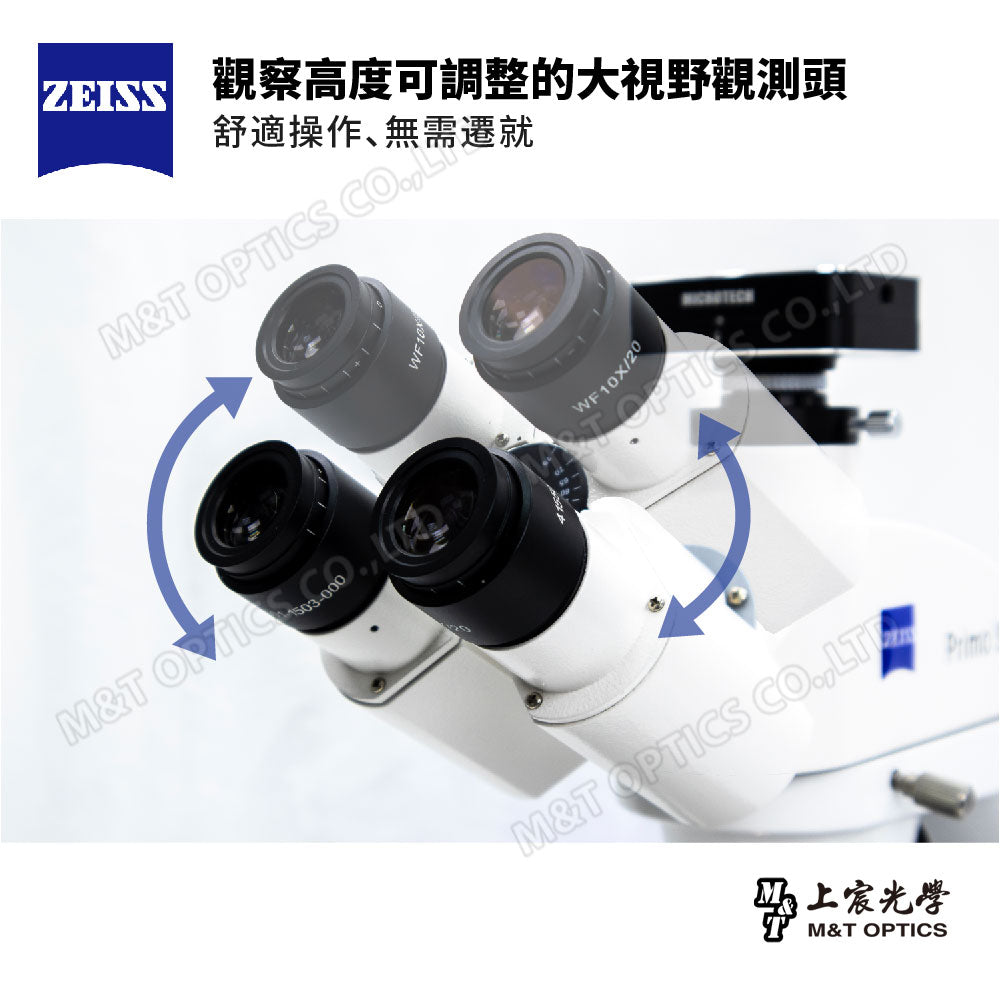

Observation height adjustable large field of view observation head

The two eyeglass tubes can be rotated 360 degrees vertically and the viewing height can be adjusted to 375-425mm. The visual inclination angle is 30°, and the field of view can be up to 20mm. The pupil distance of both eyes can be adjusted from 48mm to 75mm; the 10x eyepiece field of view is 20mm and the diopter can be adjusted independently by ±5 degrees. Side micrometers or teaching indicator sheets can be optionally installed; both the observation head and the eyepiece have anti-disassembly and anti-falling protection mechanisms.

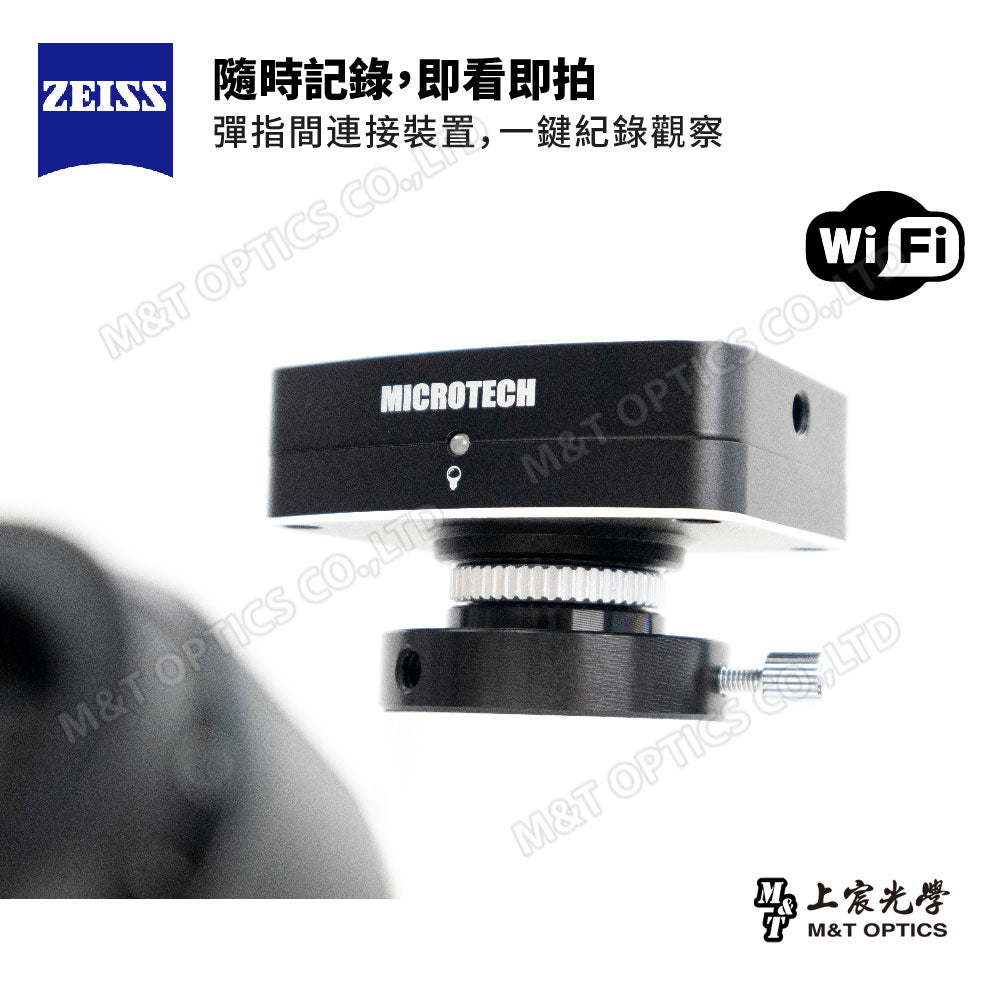

Wireless WiFi digital microscope ~ record at any time with the click of a finger, watch and shoot immediately

The digital Zeiss microscope TR-WiFi Modified by M&T uses mobile phones and computers to record digital images. It supports four systems: Windows, Mac OS, Apple iOS and Androidn. It uses USB or wireless WiFi to share and record digital images. The image quality is up to 8 million pixels. It can take photos, videos, count, mark text, scale, measure dimensions, area, extended depth of field, automatic puzzle and other intelligent functions.

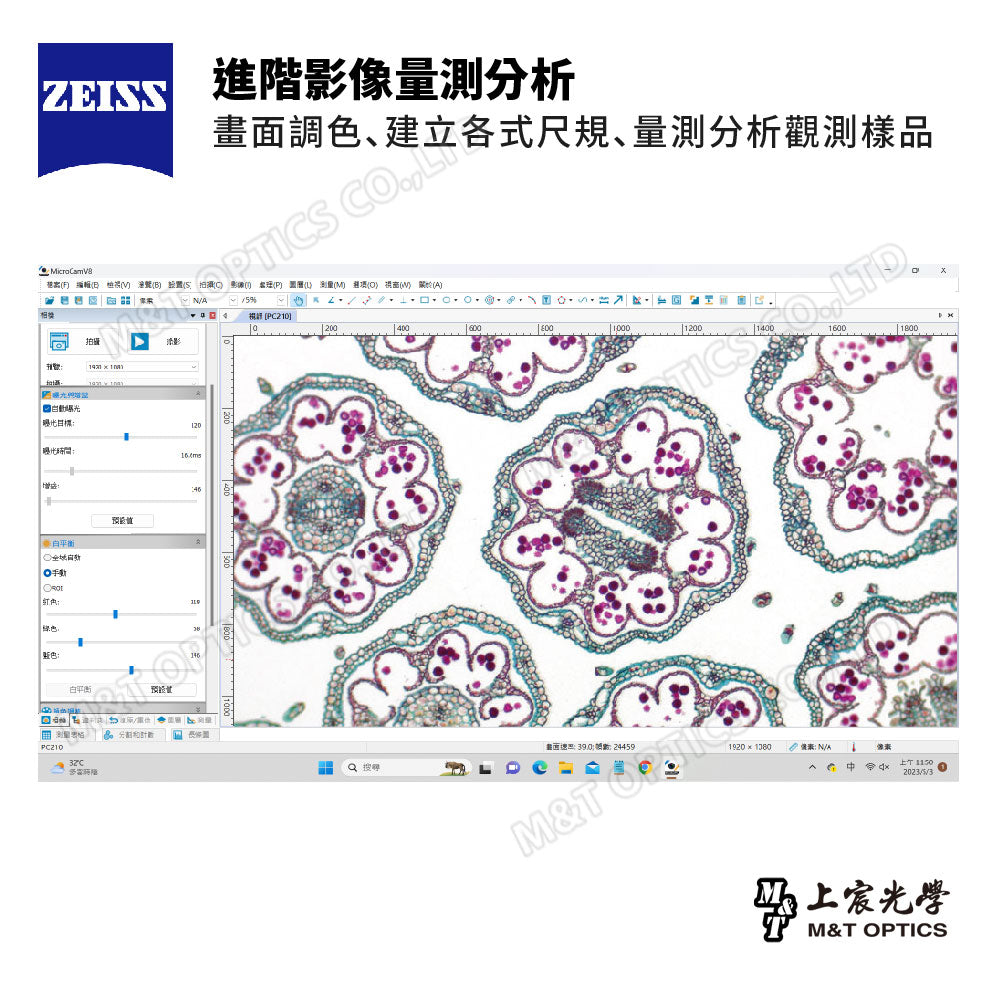

Smart microscopy imaging software ~ All image records are priceless

MicroCam V8 software can create microscopic rulers, measure, analyze and observe samples. Through intelligent image computing, it can perform microscopic image processing such as dynamic automatic cross-screen collage or extended depth of field. It can also perform dynamic fluorescence synthesis in fluorescence microscope mode, so that the digital images of the microscope can be used in biology teaching, scientific experiments, and papers. Publishing, data analysis, biotechnology, pharmaceuticals, environmental protection and other fields.

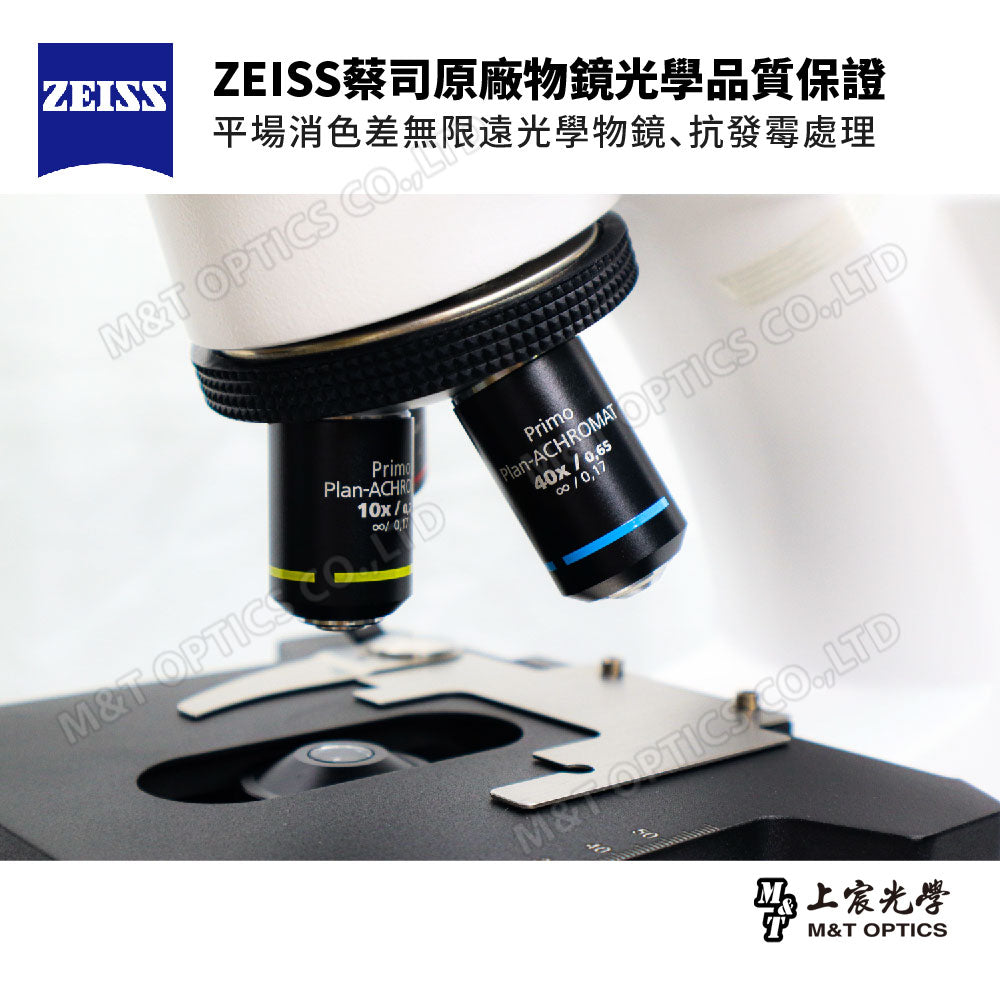

ZEISS Zeiss original objective lens optical quality assurance

All Zeiss objectives are anti-mold treated. This machine is equipped with Plan-Achromat original objective lenses with infinity parallel optics: 4X/0.10, 10X/0.25, 40X/0.65. An additional 100x/1.25 oil type can be purchased upon request. objective lens.

Optical expandability

Through the professional technology of Modified by M&T Optics, this machine can be expanded and upgraded to advanced observation capabilities such as polarization, dark field, phase contrast and other research-grade microscopes. It can be used in laboratory uric acid crystal examination, live bacterial cell culture, fermentation and wine making. , health care product research and development, dental and dental bacteria examination, natural medicine one-drop blood blood test, sewage inspection, micro-fluidic experiment and other special fields, it can greatly improve the effect of microscopic images. For related microscope applications, please contact Shangchen Optical Customer Service cs@ mtoptics.com

Product specifications

Optical system	Color-Corrected Infinity Optics.
Comprehensive magnification	40X~400X (up to 2500X, need to add shopping glasses and eyepieces)
Trinocular observation head	Tilt angle 30°, visual field of view 20°, 50:50 light split, adjustable observation height 375-425mm, third eye connected to RD2 focus reducer and HDC588 microphotography system
Photography function	1/1.8-inch photosensitive element USB and WiFi dual output
pupillary distance	Adjustable pupillary distance 48~75mm, adjustable parallax (diopter) of left eye eyepiece seat
eyepiece	WF10X/22mm(φ30)*2pcs
objective lens	4X working distance WD=12mm, 10X, working distance WD=4.51mm, 40X, working distance WD=0.61mm
nose chakra	RMS W0.8 four-hole retractable type
Focusing system	Coaxial coarse and fine adjustment, with elastic adjustment ring, Z-axis adjustment wheel full stroke 15mm including limit device, coarse adjustment accuracy 45mm/revolution, fine adjustment accuracy 0.5mm/revolution
Stage	Mechanical stage, appearance size 140x140mm, XY axis movement range up to 75x40mm, rack is hidden design to avoid exposure
condenser	Fixed Abbe NA.0.9, built-in aperture
light field lens	Fixed Coral lighting
Transmitted light source	Adjustable brightness 3W LED light source circuit, color temperature 3200K power supply
power supply	External DC12V power supply, applicable voltage 100~240 V
physical dimension	190×400×390 mm
weight	7.5kg
