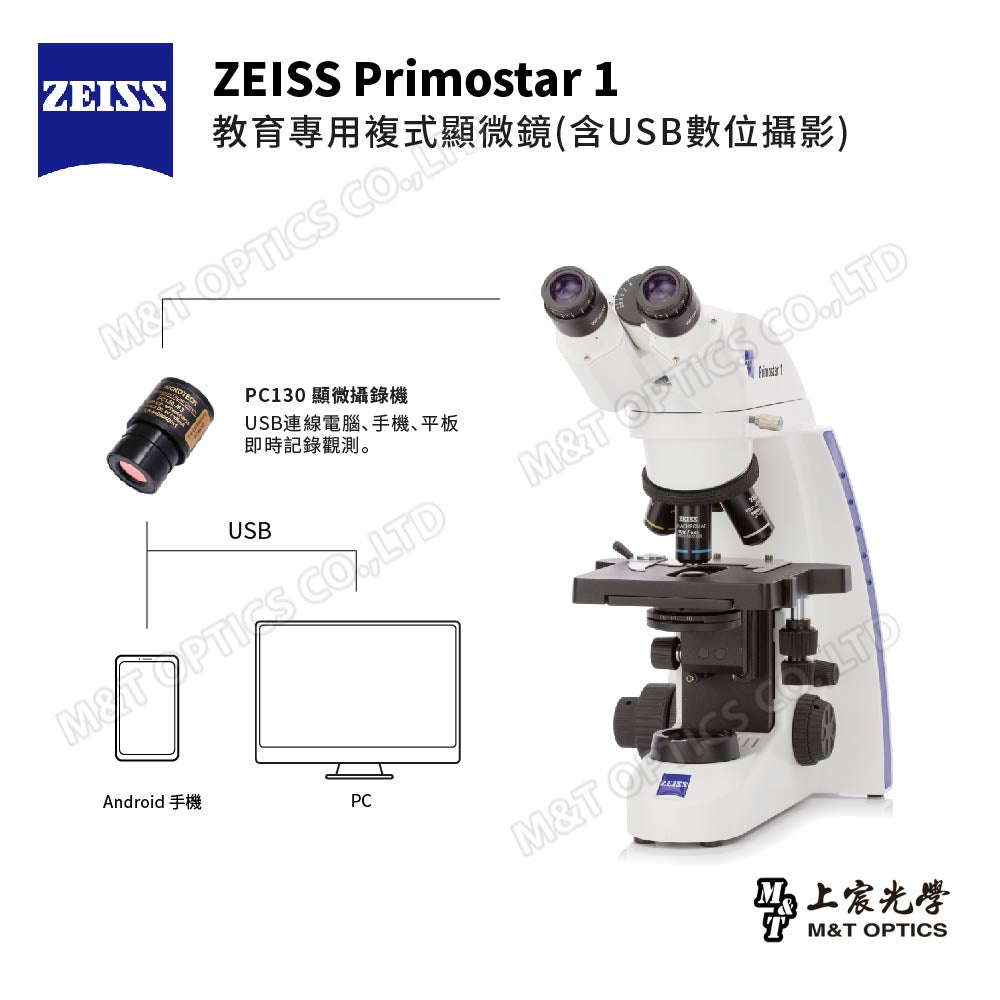

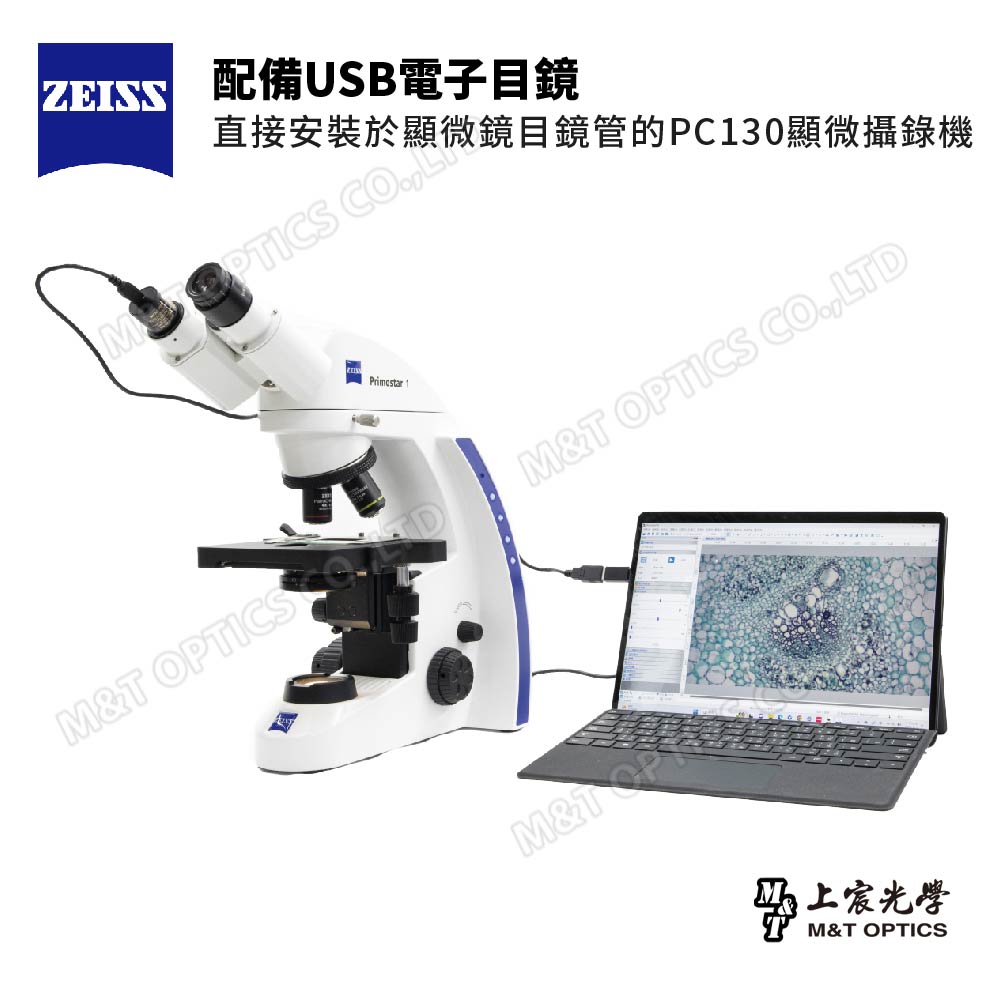

Equipped with USB electronic eyepiece

The high-performance "PC130.M3 Microscope Camera" is equipped with 1.3 million pixels of clear images and can be directly installed on the microscope eyepiece tube for easy operation. You only need a USB cable to connect to a computer or Android phone, and you can instantly view and record images under the microscope. You can also take photos and videos, measure and calculate microscopic images to meet your professional needs.

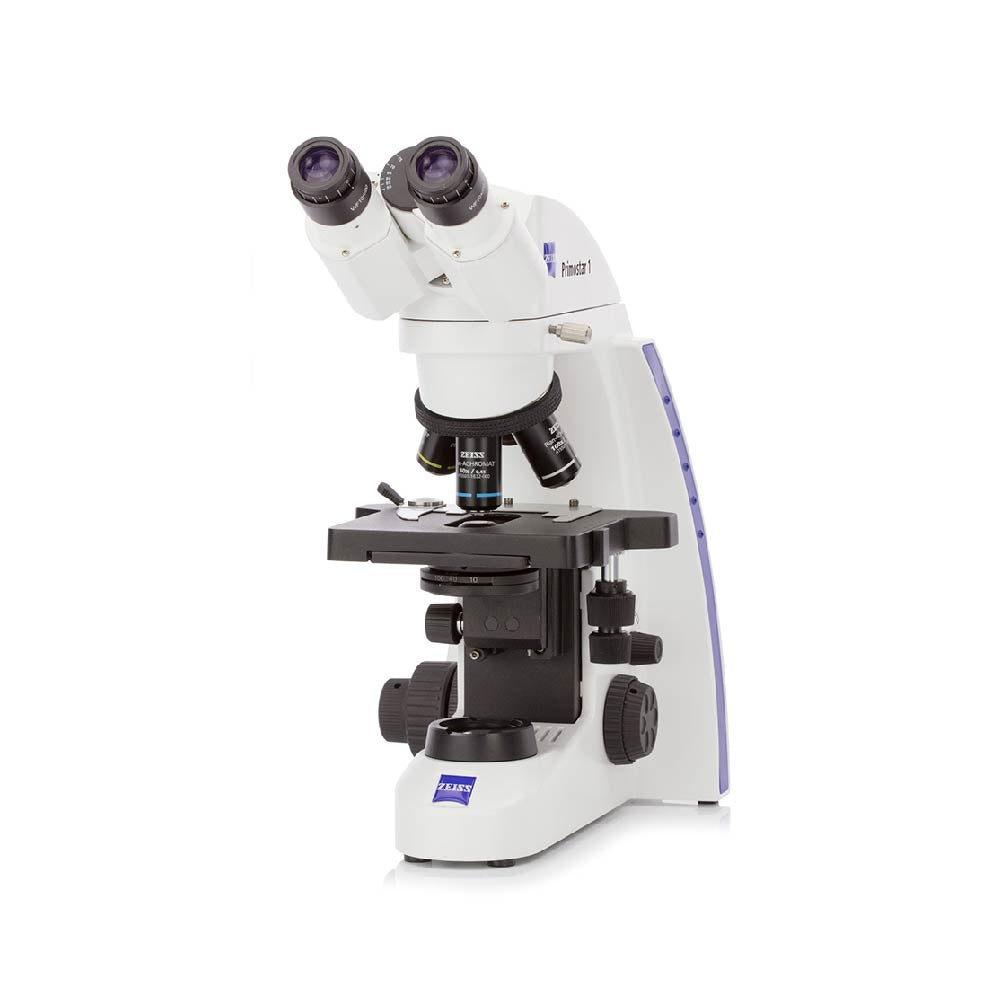

ZEISS Primostar 1

The structure of the mirror body is sturdy and durable, easy to operate. It uses high-quality and high-priced optical components from Zeiss but enjoys an extremely affordable price advantage: it is an exclusive discount for microscopes in the educational field.

Educational microscope optimized by the original factory

Know your needs and focus on delivering the necessary performance for brightfield microscopy of stained specimen sections in the life sciences.

Ready to go - just plug in and start working

The standard version of the microscope even offers advanced fixed Kohler illumination systems. Very simply plug it in and start your microscopic observations. In order to last for a long time, Primostar 1 uses extremely high-quality materials and uses professional and energy-saving LED microscopic lighting. The light source life is: 25,000 hours. Instrument-level precision also makes Primostar 1 more efficient for teaching, making your choice a very important and correct economic investment.

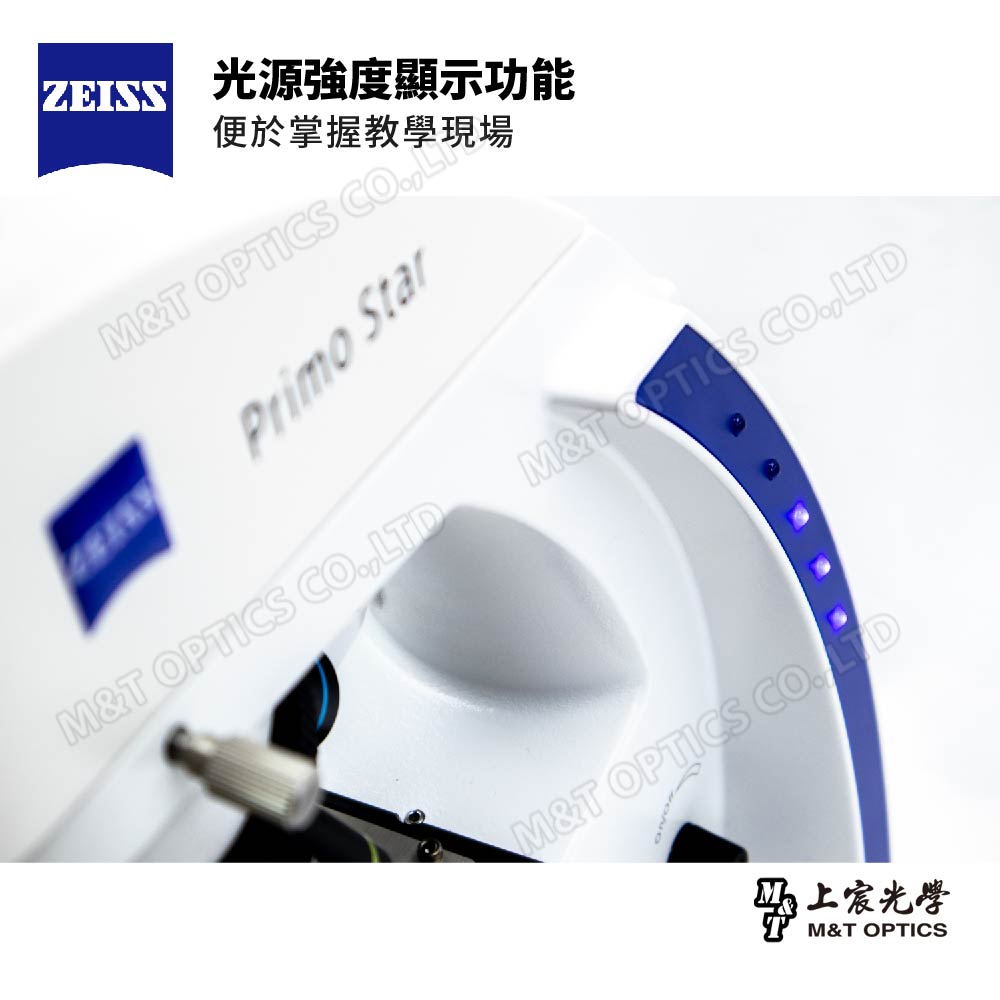

The light source intensity display function makes it easy to grasp the teaching site

The intensity of the light source is the most important control item for the microscope in the classroom. The two sides of the lens have a blue light intensity display function, which allows teachers to understand the current use of the microscope light source by the students.

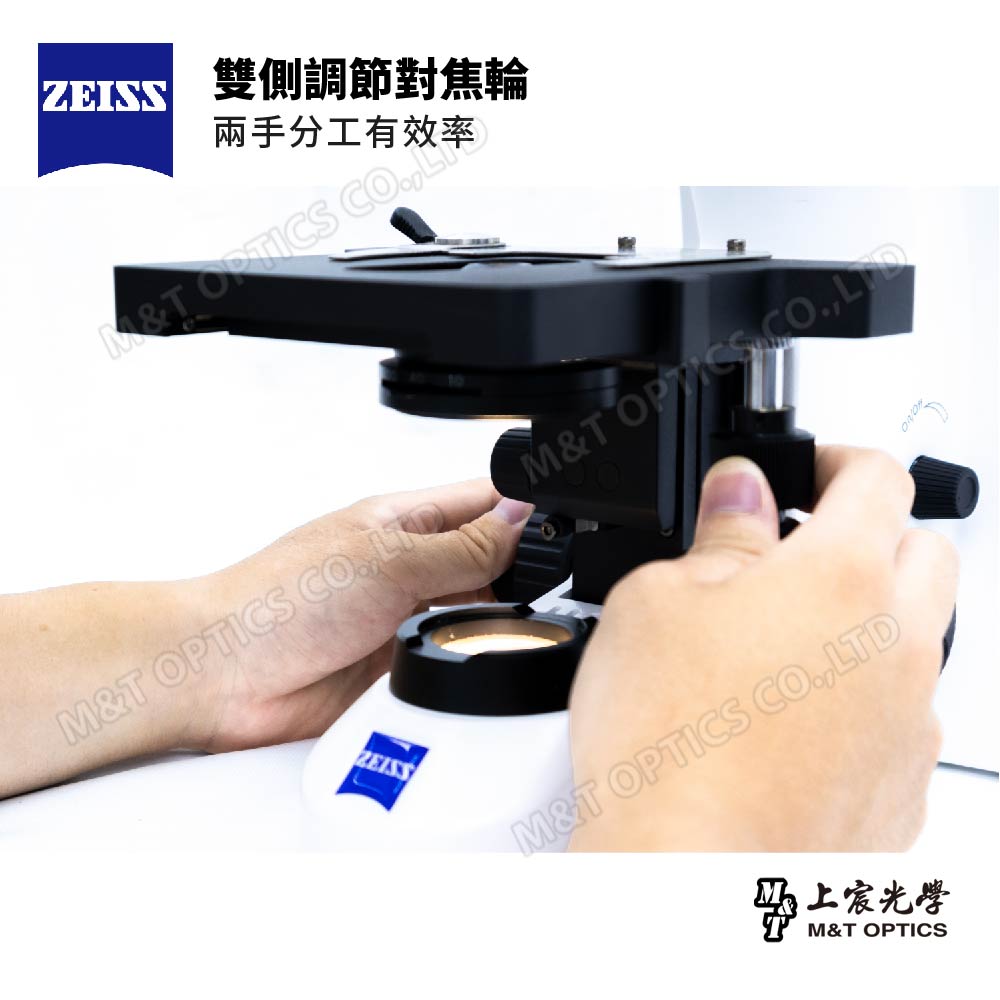

The focus wheel can be adjusted on both sides for efficient operation by dividing the labor between two hands.

Use your right hand to adjust the XY axis micro motion of the stage, and use your left hand to adjust the focus wheel.

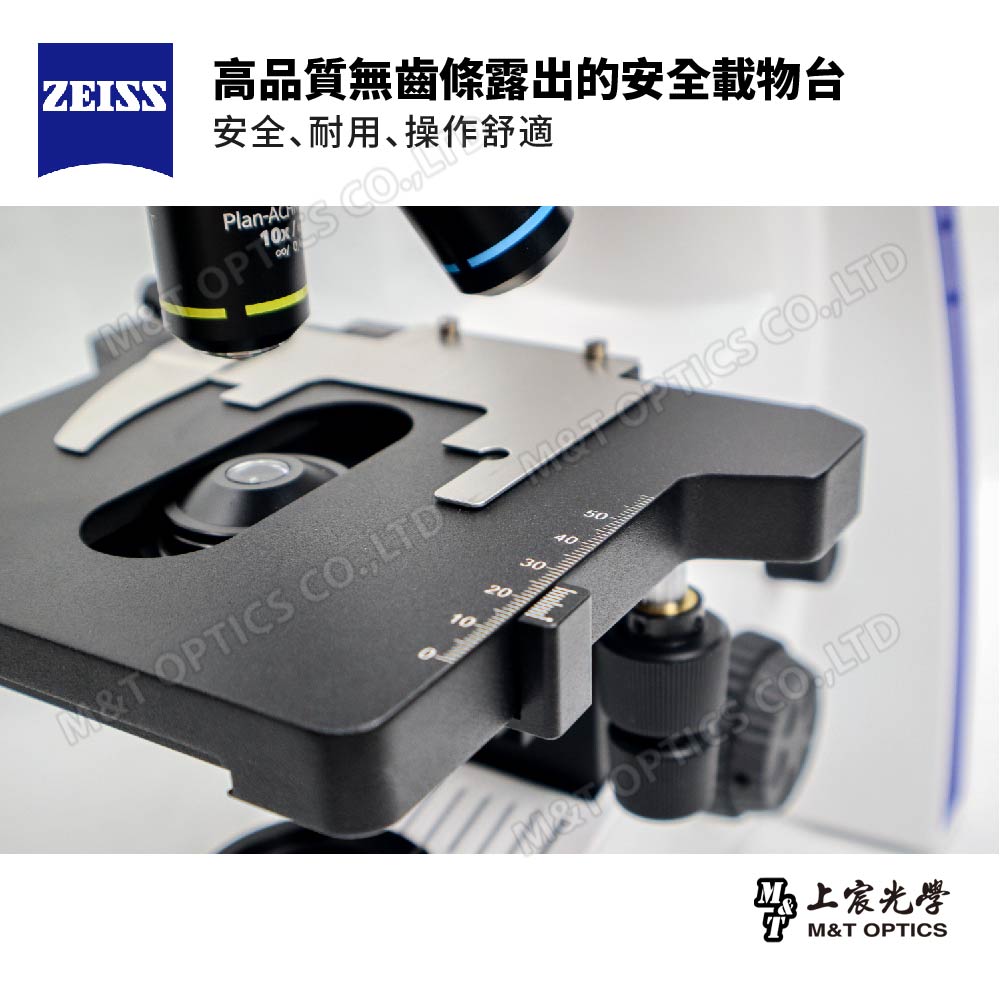

Rackless high-quality stage

Rackless stage ensures greater safety and comfort. Durable: short, sturdy stage hinges with easy-to-read ruler.

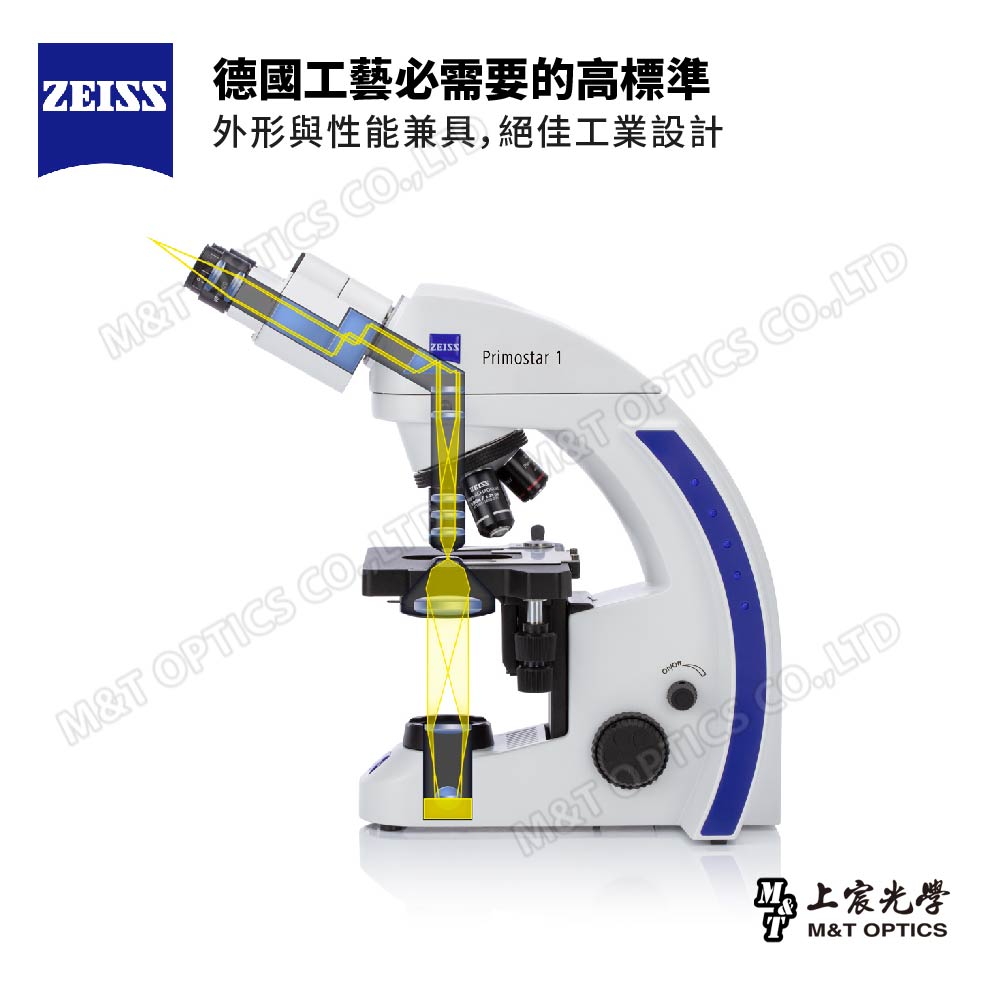

Appearance design aesthetics

Necessary high standards: The microscope body is made of metal. Form meets performance: design aesthetics combined with maximization of performance.

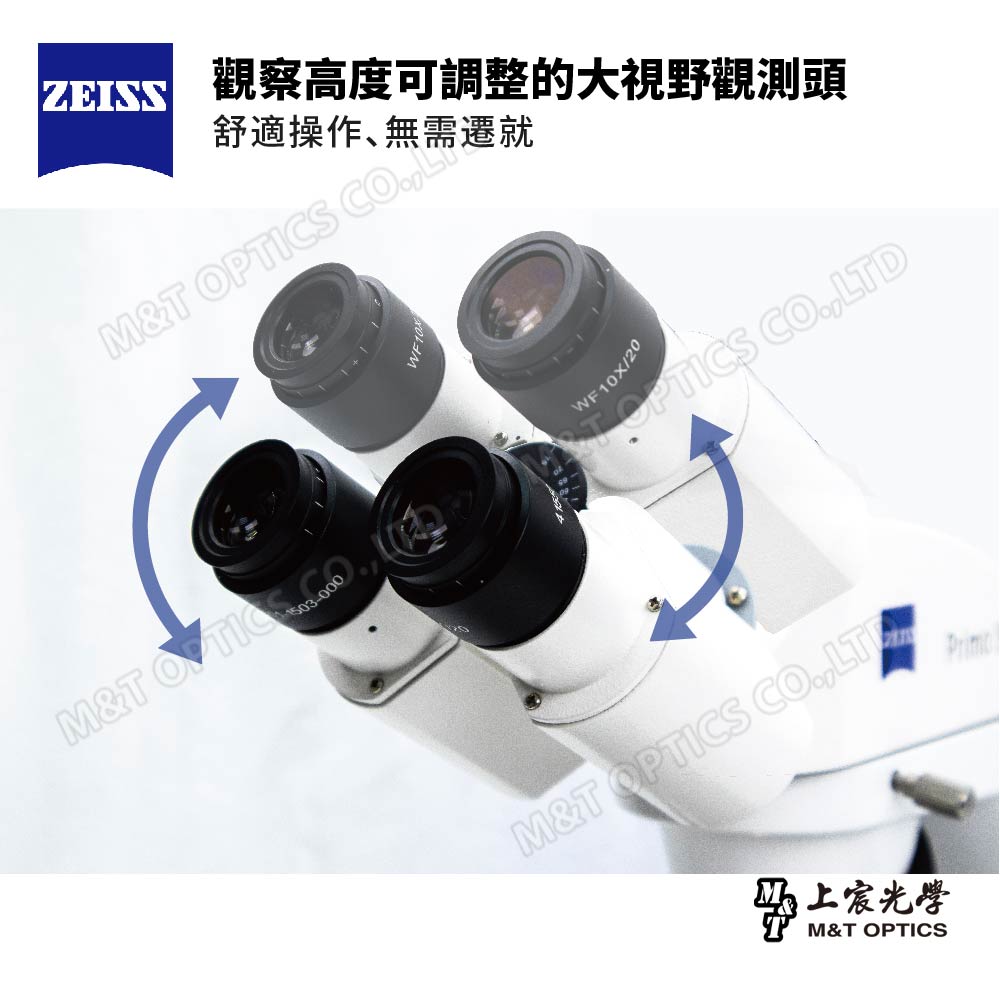

Large-diameter adjustable binocular observation head, anti-tamper protection mechanism

Binocular observation head with adjustable observation height: It has a viewing angle of 30° and is compatible with a maximum field of view of 20mm. Binocular pupil distance adjustment: Adjust the distance between binocular eyes in a wide range from 48 mm to 75 mm. Both the objective lens and eyepiece have anti-tamper protection mechanisms.

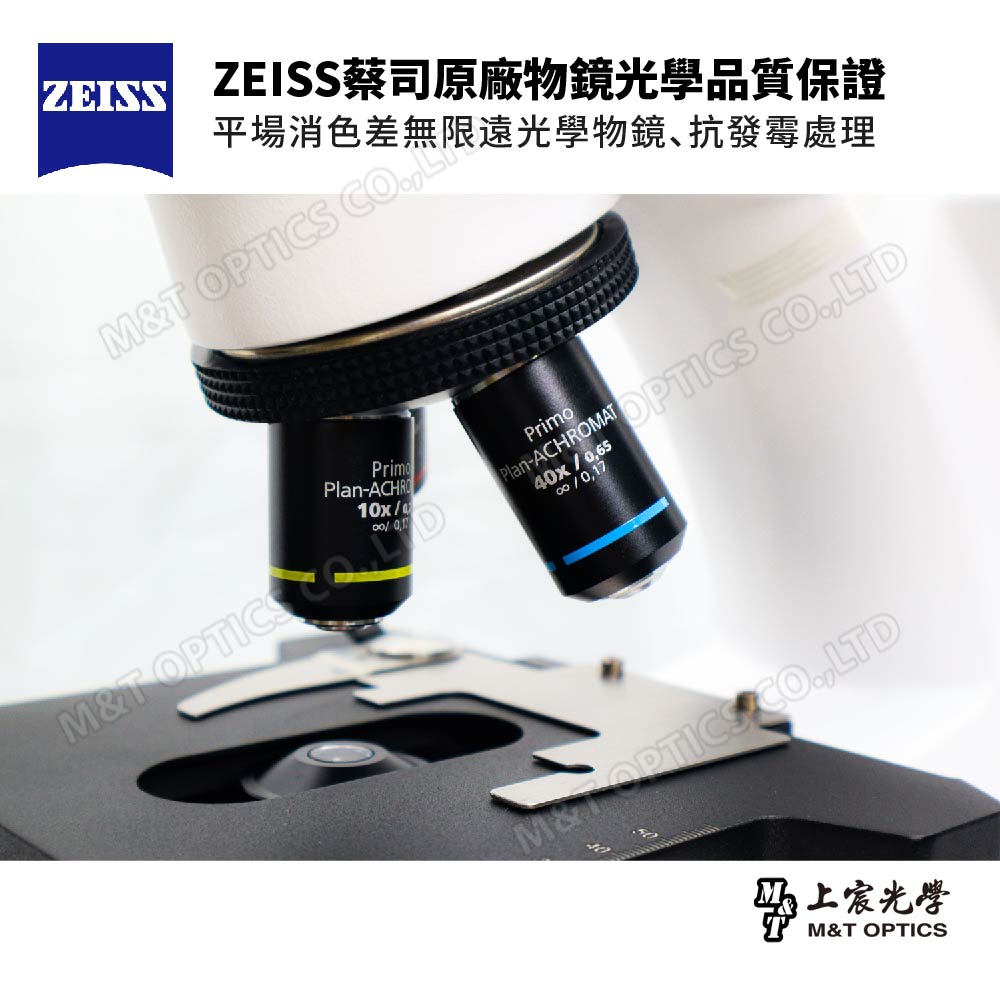

Plan-Achromat grade objective lens, infinity optics

The standard version is equipped with Plan-Achromat grade 4×/0.10, 10×/0.25, and 40×/0.65 objectives, all of which are anti-mold treated.

Complete camera control interface and image processing functions

The computer software contains a complete operating interface, which can control the exposure of the microscope camera and provide advanced control of field correction and sharpness adjustment. Measurement reports (Excel spreadsheets, Word files) can also be exported.

Primostar 1 Microscope Parts Description
